Polyimide (Kapton) PCB Solder Paste Stencil
by baldengineer in Circuits > Soldering
43059 Views, 68 Favorites, 0 Comments
Polyimide (Kapton) PCB Solder Paste Stencil
![IMG_3165.jpg](/proxy/?url=https://content.instructables.com/F2Y/5YUN/HAUNNH56/F2Y5YUNHAUNNH56.jpg&filename=IMG_3165.jpg)
Creating a solder paste stencil for a toaster reflow oven or hot plate is simple when you have access to a laser cutter. I used the Laser Cutter at my local TechShop to create this and other PCB stencils.
This Instructable assumes you have created a PCB and are able to generate the Gerber Files for it. Specific directions will be given for EAGLE, but other PCB software can be used. The board used in this example is an Arduino RTC Shield based on the DS3231. Follow the link for the EAGLE design files if you want to follow along.
Hardware you'll need:
- Polyimide (Kapton) Film (such as McMaster's #2271K2).
- Material for a Stencil (Hardboard, Wood, or Acrylic)
Equipment you'll need:
- Laser Cutter
- Camera to show off your cool looking stencil
Software you'll need:
- PCB Software (e.g. EAGLE)
- ViewMate GERBER Viewer
- CutePDF
- Vector Drawing Program (InkScape or Adobe)
This Instructable assumes you have created a PCB and are able to generate the Gerber Files for it. Specific directions will be given for EAGLE, but other PCB software can be used. The board used in this example is an Arduino RTC Shield based on the DS3231. Follow the link for the EAGLE design files if you want to follow along.
Hardware you'll need:
- Polyimide (Kapton) Film (such as McMaster's #2271K2).
- Material for a Stencil (Hardboard, Wood, or Acrylic)
Equipment you'll need:
- Laser Cutter
- Camera to show off your cool looking stencil
Software you'll need:
- PCB Software (e.g. EAGLE)
- ViewMate GERBER Viewer
- CutePDF
- Vector Drawing Program (InkScape or Adobe)
Create Stencil Specific GERBER File
![ds3231 eagle cam processor.png](/proxy/?url=https://content.instructables.com/FKA/4M73/HAUNNH6Y/FKA4M73HAUNNH6Y.png&filename=ds3231 eagle cam processor.png)
If you're doing a stencil for both sides, you're going to have to create two stencils. These instructions show how to generate a GERBER file for both the top and bottom. If you only need one side, you can stop at #5.
If you are using EAGLE, I have created a CAM job file and included manual instructions. If you are using another PCB software, generate a GERBER file with the dimension layer and cream layer.
Easy method:
Download this Cam Job (for EAGLE): Stencil_Cam_Job.cam
In EAGLE, Open the CAM
1. Open the CAM Processor.
File -> Cam Processor
2. Open the job
File -> Open -> Job
[Note if you don't see "Job" then click on the "CAM Processor" Window and go back to File -> Open -> Job.]
Select the file/job "stencil_cam_job.cam".
3. Click Process Job
The files will be the same directory as your .brd file.
Manual Eagle Instructions:
In EAGLE, Open the CAM
1. Open the CAM Processor.
File -> Cam Processor
2. Name the Section "Top"
3. Select only 20-Dimension and 31-tCream
4. Select GERBER_RS274X as the Device
5. Name the file something descriptive like "top_cream"
If you only need to do the Top (or only the Bottom) layer, skip to #12.
6. Click Add
7. Go to the Newly created Tab
8. Change the name of Section to "Bottom"
9. Select only 20-Dimension and 32-bCream
10. Make sure Device is "GERBER_RS274X"
11. Name the file something description like "bottom_cream"
12. Click Process Job
EAGLE will now generate two new GERBER Files
If you are using EAGLE, I have created a CAM job file and included manual instructions. If you are using another PCB software, generate a GERBER file with the dimension layer and cream layer.
Easy method:
Download this Cam Job (for EAGLE): Stencil_Cam_Job.cam
In EAGLE, Open the CAM
1. Open the CAM Processor.
File -> Cam Processor
2. Open the job
File -> Open -> Job
[Note if you don't see "Job" then click on the "CAM Processor" Window and go back to File -> Open -> Job.]
Select the file/job "stencil_cam_job.cam".
3. Click Process Job
The files will be the same directory as your .brd file.
Manual Eagle Instructions:
In EAGLE, Open the CAM
1. Open the CAM Processor.
File -> Cam Processor
2. Name the Section "Top"
3. Select only 20-Dimension and 31-tCream
4. Select GERBER_RS274X as the Device
5. Name the file something descriptive like "top_cream"
If you only need to do the Top (or only the Bottom) layer, skip to #12.
6. Click Add
7. Go to the Newly created Tab
8. Change the name of Section to "Bottom"
9. Select only 20-Dimension and 32-bCream
10. Make sure Device is "GERBER_RS274X"
11. Name the file something description like "bottom_cream"
12. Click Process Job
EAGLE will now generate two new GERBER Files
Setup a PDF Printer
![CutePDF Printer Screen Shot.png](/proxy/?url=https://content.instructables.com/FD6/MAUY/HAUNNH95/FD6MAUYHAUNNH95.png&filename=CutePDF Printer Screen Shot.png)
If you don't already have a PDF printer setup, download and install CutePDF Writer. Note that you'll only need to install Ghostscript.
CutePDF Writer is a commercial product that is considered Freeware.
Ghostscript is a GPL'd Open-Source utility.
This is a create utility to create PDFs when you print a document, which is going to be important when it is time to laser cut.
CutePDF Writer is a commercial product that is considered Freeware.
Ghostscript is a GPL'd Open-Source utility.
This is a create utility to create PDFs when you print a document, which is going to be important when it is time to laser cut.
Get ViewMate
In order to manipulate and convert the GERBER into a PDF, you will need to register and download ViewMate from Pentalogix. You only need the free Viewer.
http://www.pentalogix.com/viewmate.php
After you register you'll get a serial code by email which you will need while installing Pentalogix.
Install the software and launch when done.
http://www.pentalogix.com/viewmate.php
After you register you'll get a serial code by email which you will need while installing Pentalogix.
Install the software and launch when done.

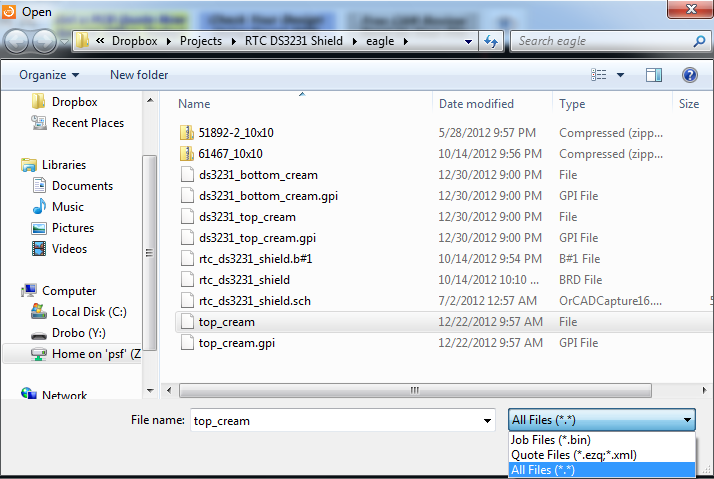

Open the Gerber in ViewMate
![ViewMate open File.png](/proxy/?url=https://content.instructables.com/F3W/XMBZ/HAUNNHA4/F3WXMBZHAUNNHA4.png&filename=ViewMate open File.png)
Open up the Gerber file generated from step #1. You'll need to select "All Files" in the File -> Open dialog. Don't select the GPI file.
In this example I am using the "top_cream" file that was generated.
In this example I am using the "top_cream" file that was generated.
Swell the Pads
![1 Select All Pads.png](/proxy/?url=https://content.instructables.com/F91/1GIC/HAUNNHB9/F911GICHAUNNHB9.png&filename=1 Select All Pads.png)
![2 Operations Swell .png](/proxy/?url=https://content.instructables.com/FRN/AGR6/HAUNNHBA/FRNAGR6HAUNNHBA.png&filename=2 Operations Swell .png)
![3 Swell a value of.png](/proxy/?url=https://content.instructables.com/F2F/0ZDA/HAUNNHBV/F2F0ZDAHAUNNHBV.png&filename=3 Swell a value of.png)
![4 Ignore Error 42.png](/proxy/?url=https://content.instructables.com/F9J/WVNP/HAUNNHBB/F9JWVNPHAUNNHBB.png&filename=4 Ignore Error 42.png)
Since the laser has some kerf associated with it, let's reduce the pad sizes just a little bit. Don't worry, they're still going to be plenty big enough to get paste on to them.
Open the D-Codes dialog from the Setup menu (or press F5).
I suggest clicking on the "Shape" column to sort by shape. The shape letters describe different pads on the PCB. C is Circle. R is Rectangle. S is Square.
Select all of the rows.
Open the menu Operations -> Swell.
Type in a value. This Adafruit tutorial recommends -0.002. I have found the best results with -0.004.
If you get an error about not being able to swell a primitive, just ignore it. :)
Open the D-Codes dialog from the Setup menu (or press F5).
I suggest clicking on the "Shape" column to sort by shape. The shape letters describe different pads on the PCB. C is Circle. R is Rectangle. S is Square.
Select all of the rows.
Open the menu Operations -> Swell.
Type in a value. This Adafruit tutorial recommends -0.002. I have found the best results with -0.004.
If you get an error about not being able to swell a primitive, just ignore it. :)

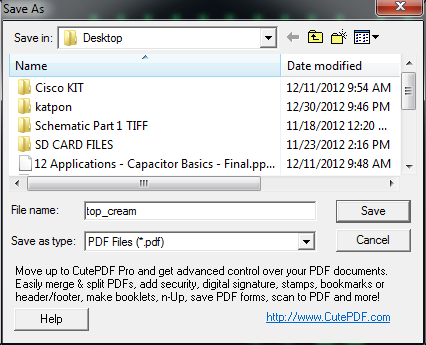

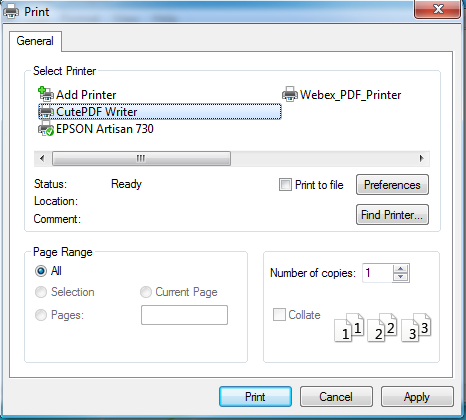

Print to PDF
![1 ViewMate Print Dialog.png](/proxy/?url=https://content.instructables.com/F3S/7HRD/HAUNNHEU/F3S7HRDHAUNNHEU.png&filename=1 ViewMate Print Dialog.png)
![2 Select CutePDF in System Print Dialog.png](/proxy/?url=https://content.instructables.com/FVS/YRWR/HAUNNHEW/FVSYRWRHAUNNHEW.png&filename=2 Select CutePDF in System Print Dialog.png)
![3 Save the PDF Somewhere.png](/proxy/?url=https://content.instructables.com/FT9/LA5E/HAUNNHF1/FT9LA5EHAUNNHF1.png&filename=3 Save the PDF Somewhere.png)
The PDF that gets created isn't an image file, instead it is a vector file. This is key to creating a good stencil on the laser cutter.
After select File -> Print a ViewMate Dialog will come up.
Select Options:
- Current Board Layer
- Black on White
- By Factor: 1 **critical**
- None of the Checkboxes
Click Okay and the System Print Dialog is Shown.
Select your (new) PDF Printer and click "OK"
When the File Dialog Pops up, save your new PDF somewhere
After select File -> Print a ViewMate Dialog will come up.
Select Options:
- Current Board Layer
- Black on White
- By Factor: 1 **critical**
- None of the Checkboxes
Click Okay and the System Print Dialog is Shown.
Select your (new) PDF Printer and click "OK"
When the File Dialog Pops up, save your new PDF somewhere
Clean Up the PDF
![Before and After Cleanup.png](/proxy/?url=https://content.instructables.com/FHE/LSN8/HAUNNHJF/FHELSN8HAUNNHJF.png&filename=Before and After Cleanup.png)
Launch your preferred Vector editing program. I will use Illustrator in this Instructable, but Inkscape (or any other vector editor) will work perfectly fine.
The example I am using has some extra pads and lines that I'm not interested in being in the stencil. Check your PDF to see if anything like that appears. If so, clean it up now.
You are looking to clean up things that you don't want allow paste to flow through... except for dimensions or anything you can use for registration. For example, in my example I left the Arduino screw holes and dimension outline, even though I don't want those to have paste. In the next step, we'll take care of that.
Before proceeding, you might want to spot check a known dimension to make sure no translation errors have occurred.
The example I am using has some extra pads and lines that I'm not interested in being in the stencil. Check your PDF to see if anything like that appears. If so, clean it up now.
You are looking to clean up things that you don't want allow paste to flow through... except for dimensions or anything you can use for registration. For example, in my example I left the Arduino screw holes and dimension outline, even though I don't want those to have paste. In the next step, we'll take care of that.
Before proceeding, you might want to spot check a known dimension to make sure no translation errors have occurred.
Add Jig Outline
![Jig Outline.png](/proxy/?url=https://content.instructables.com/FQT/L5PJ/HAUNNHOL/FQTL5PJHAUNNHOL.png&filename=Jig Outline.png)
You'll need a jig to place your board in and you'll want one to stretch your polyimide during cutting.
So use your vector program to draw a jig cut out (square) around your dimension outline. I picked 1/2inch because that gives you some room to move the stencil around as well as reattach with double-sided tape.
In this example, I just drew a square around my dimension line.
So use your vector program to draw a jig cut out (square) around your dimension outline. I picked 1/2inch because that gives you some room to move the stencil around as well as reattach with double-sided tape.
In this example, I just drew a square around my dimension line.
Colorize and Prioritize the Cuts / Rastering
![colorized stencil.png](/proxy/?url=https://content.instructables.com/F4L/DSBH/HAUNNHQ9/F4LDSBHHAUNNHQ9.png&filename=colorized stencil.png)
All Laser Cutter control software supports using different colors for different operations. The following settings should work on any laser cutter, but I use a Trotec Speed 300 at my local TechShop.
1. Set the outline and fill color for all pads to Black (0,0,0).
2. Set the dimension line to a hairline or 0.002pt line and color Red (255,0,0).
3. Set the jig outline to hairline or 0.002pt line and color Green (0,255,0).
4. Set the holes (or other registration aspects) to color Blue (0,0,255).
The idea is that the Black color will get rastered (engraved). The Red and Green line are meant to be cut with your jig material. The Blue color is for use as you see fit.
1. Set the outline and fill color for all pads to Black (0,0,0).
2. Set the dimension line to a hairline or 0.002pt line and color Red (255,0,0).
3. Set the jig outline to hairline or 0.002pt line and color Green (0,255,0).
4. Set the holes (or other registration aspects) to color Blue (0,0,255).
The idea is that the Black color will get rastered (engraved). The Red and Green line are meant to be cut with your jig material. The Blue color is for use as you see fit.
"Print" Your Stencil on a Laser Cutter
Using your laser printer's print control software, Print!
If you are using the Trotec Speedy series, I highly suggest editing the driver's preferences to turn off Halftone.
If you are using the Trotec Speedy series, I highly suggest editing the driver's preferences to turn off Halftone.
Cut the Jig First
![Jig Cut.jpg](/proxy/?url=https://content.instructables.com/F0M/D30P/HAUNNHSM/F0MD30PHAUNNHSM.jpg&filename=Jig Cut.jpg)
Cut out your jig first. So setup your Job Control software to skip the Blue and Black Colors. It should first cut Green (the outline of the board) and then Red (the outline of the jig).
The material you use for the jig is up to you. I would suggest something the same thickness of your PCB. I use hardboard (masonite) because it is really (really) cheap. However, it is 1/8" thick while my PCBs are 1/16". So I have put two boards into my jig to make them thick enough for the stencil.
Some trial and error may be in order.
The material you use for the jig is up to you. I would suggest something the same thickness of your PCB. I use hardboard (masonite) because it is really (really) cheap. However, it is 1/8" thick while my PCBs are 1/16". So I have put two boards into my jig to make them thick enough for the stencil.
Some trial and error may be in order.
Laser the Stencil!
![Lasering Stencil.jpg](/proxy/?url=https://content.instructables.com/FEX/V2X0/HAUNNHTH/FEXV2X0HAUNNHTH.jpg&filename=Lasering Stencil.jpg)
Attach a sheet of polyimide to your new jig. Adjust your Job Control settings to skip everything except for the Black Color.
For the Trotec Speed 300, which is a 80Watt laser, I use the following settings:
ENGRAVE. 75% Power. 10% Speed. 500 PPI.
You may need to run 2 or 3 passes to cut through the material. Adjust your laser setting accordingly.
I just using a pick and flashlight to test if the material cut through. Don't remove the jig from the laser cutter
Once done, wash the new stencil with soap and water to clean up the burnt polyimide.
For the Trotec Speed 300, which is a 80Watt laser, I use the following settings:
ENGRAVE. 75% Power. 10% Speed. 500 PPI.
You may need to run 2 or 3 passes to cut through the material. Adjust your laser setting accordingly.
I just using a pick and flashlight to test if the material cut through. Don't remove the jig from the laser cutter
Once done, wash the new stencil with soap and water to clean up the burnt polyimide.
Conclusion
![IMG_0189.jpg](/proxy/?url=https://content.instructables.com/F8T/O2GA/HAUNNHYI/F8TO2GAHAUNNHYI.jpg&filename=IMG_0189.jpg)
I made it at TechShop! (Check them out at www.techshop.ws).
If you have questions or suggestions feel free to leave comments. Members of the Bay-Area and Austin TechShops may be able to flag me down in person since I frequent both.
If you have questions or suggestions feel free to leave comments. Members of the Bay-Area and Austin TechShops may be able to flag me down in person since I frequent both.
