Pocket Volt Meter
I have been using a bigger version of this voltmeter for quite some time and it was always very helpful
so when I saw Pocket Sized Contest I said to my self why didn't use this opportunity and share this with you
I made a few design improvements during this process so I am very happy with results

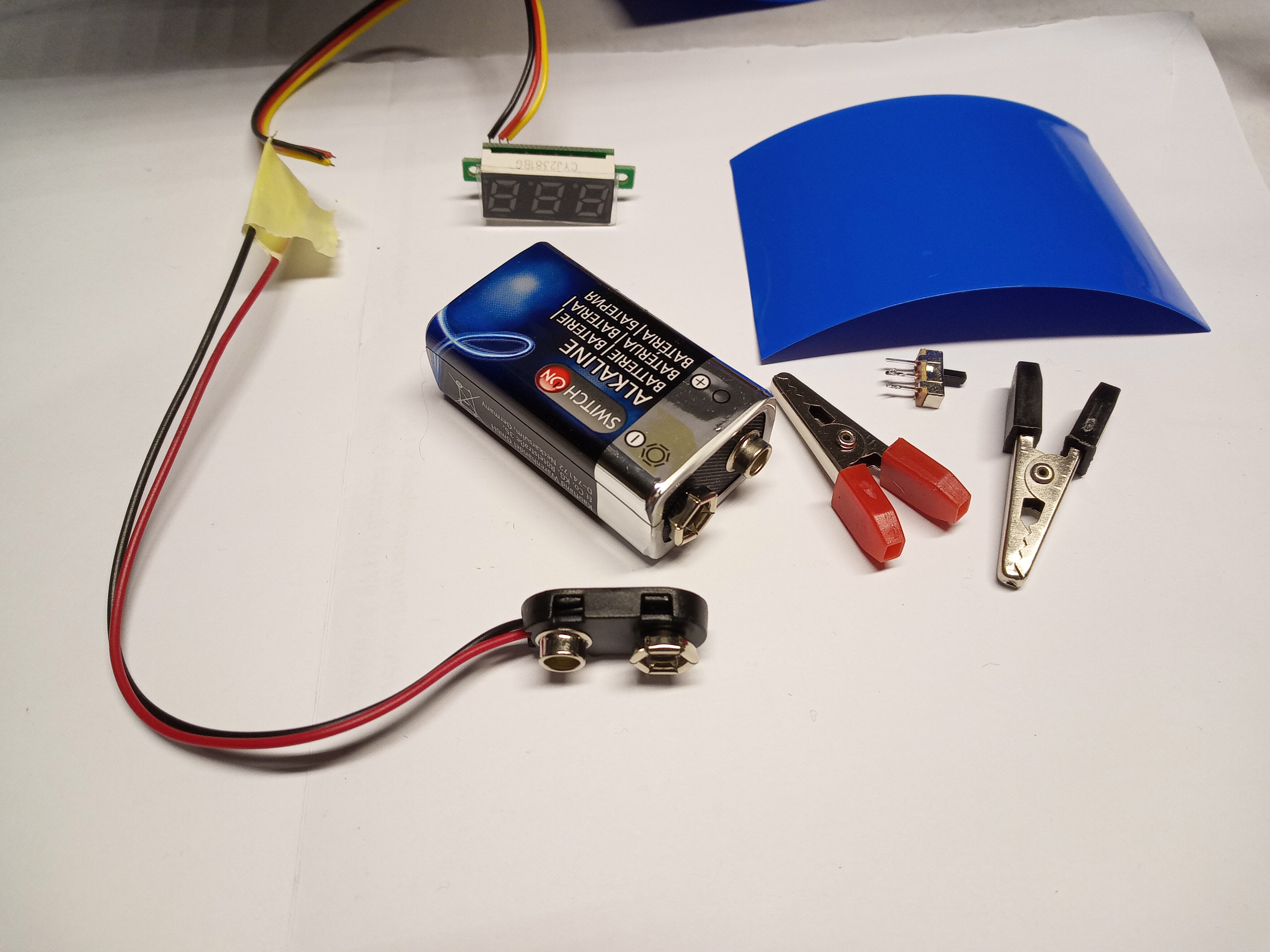

Materials and Tools
parts:
- small voltmeter eBay link I recommend 0.36" version
- small switch eBay link
- probes alligator clips or hook probes
- 9V battery
- holder for 9V battery eBay link (i recommend plastic one as on my picture)
- heat shrink foil 50mm ΓΈ35mm eBay link
tools:
- soldering iron
- hot glue gun
- hot air gun or flame from hob (if you using heat shrink foil)

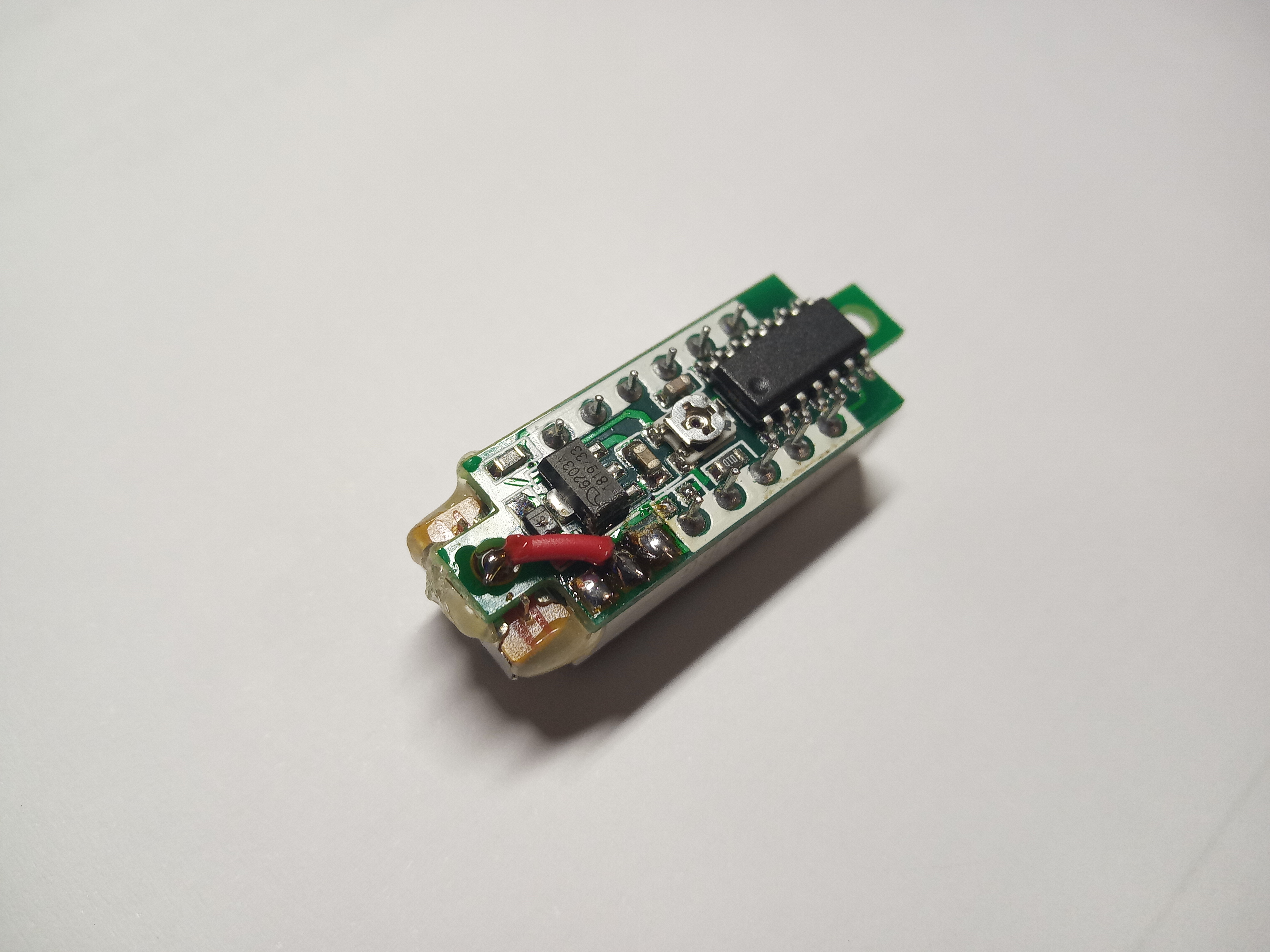

Switch

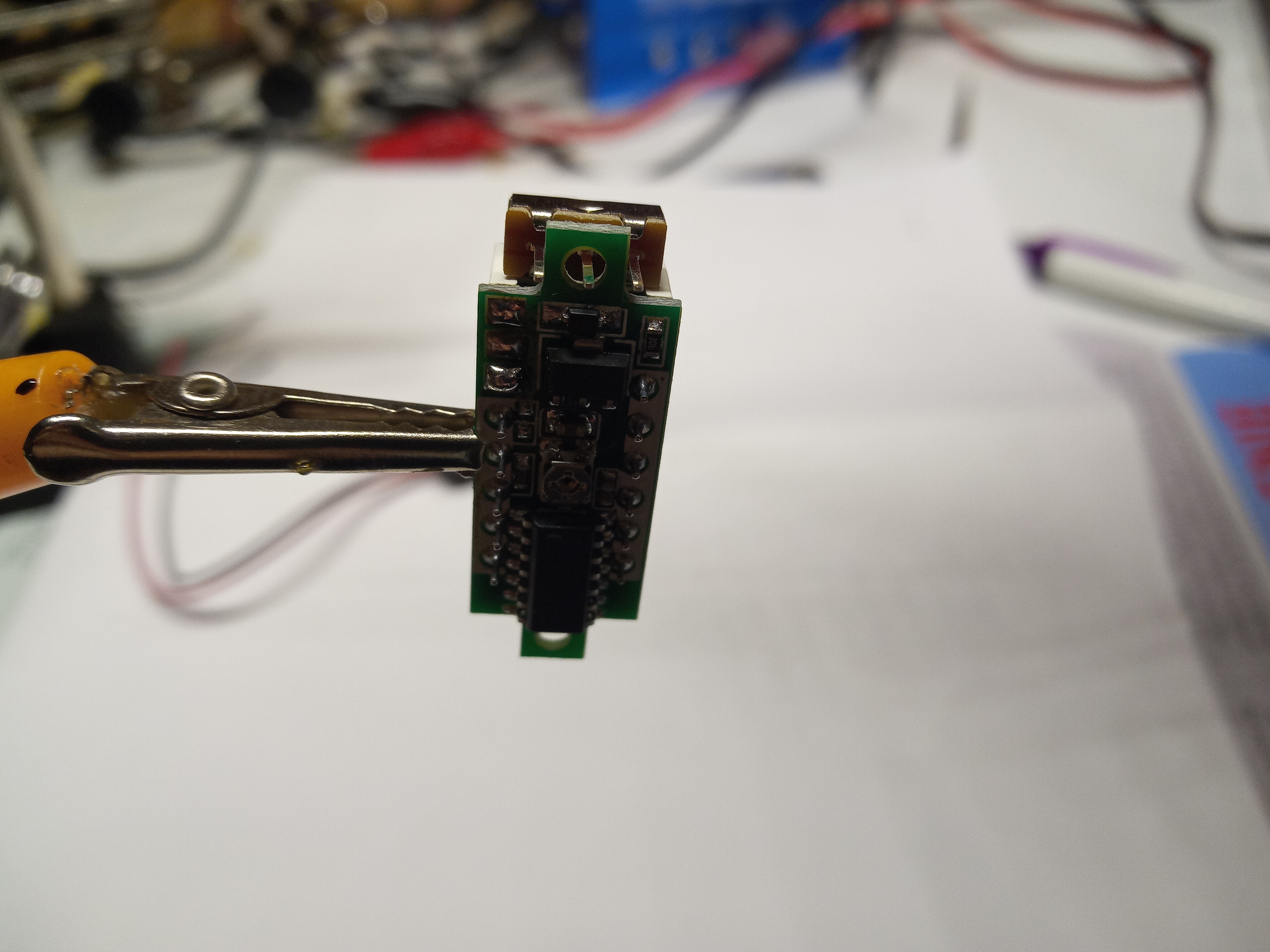

- disconnect all wires and find the best position for the switch
- if you have a good position you can glue switch on the place
- then connect (+) power to middle pin on the switch
Probes

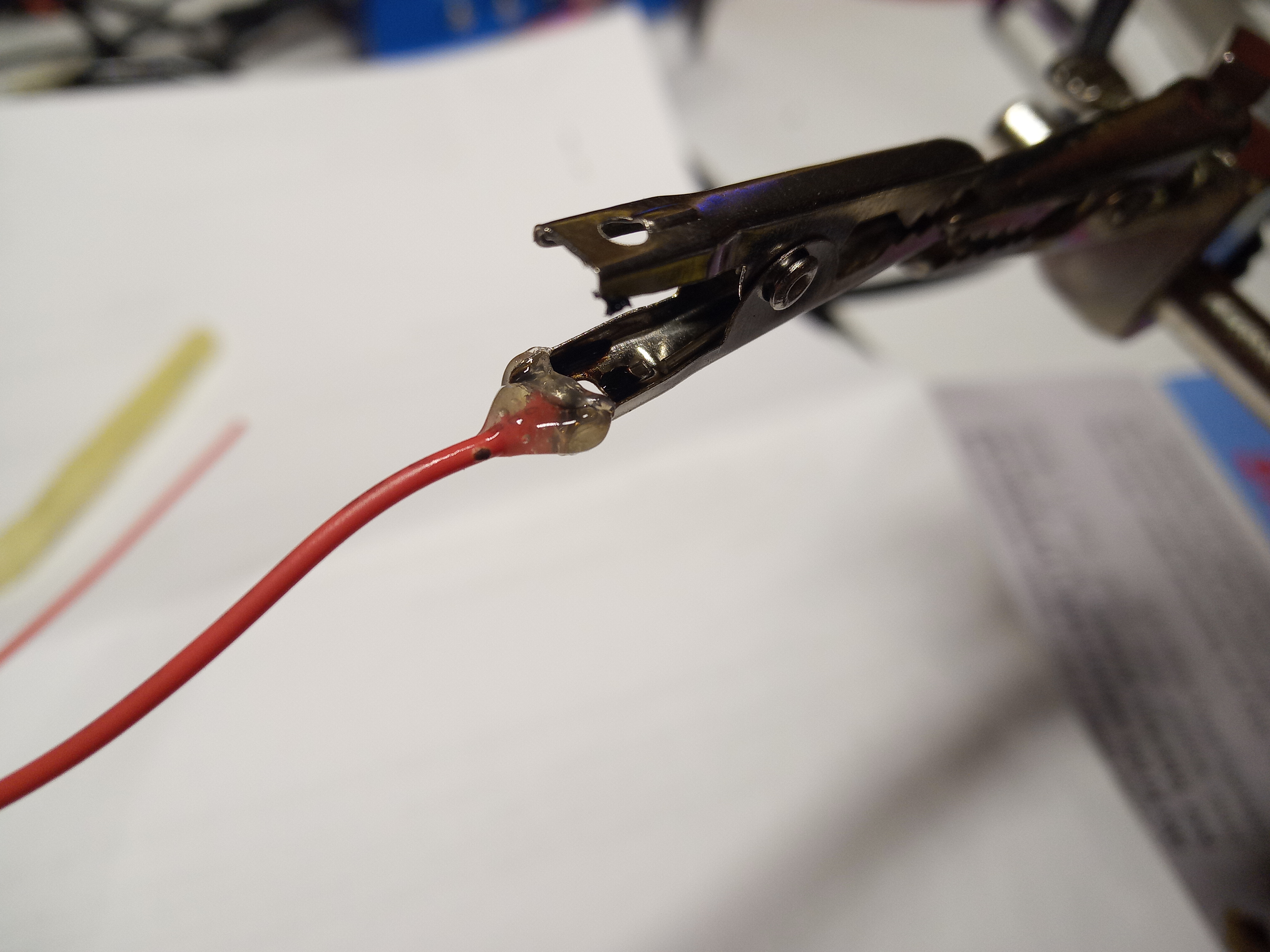

- connect a wire to crocodile clips and secure it with hot glue
- then connect black (-) probe to common ground and red (+) probe to pin where was orriginaly yellow or white wire

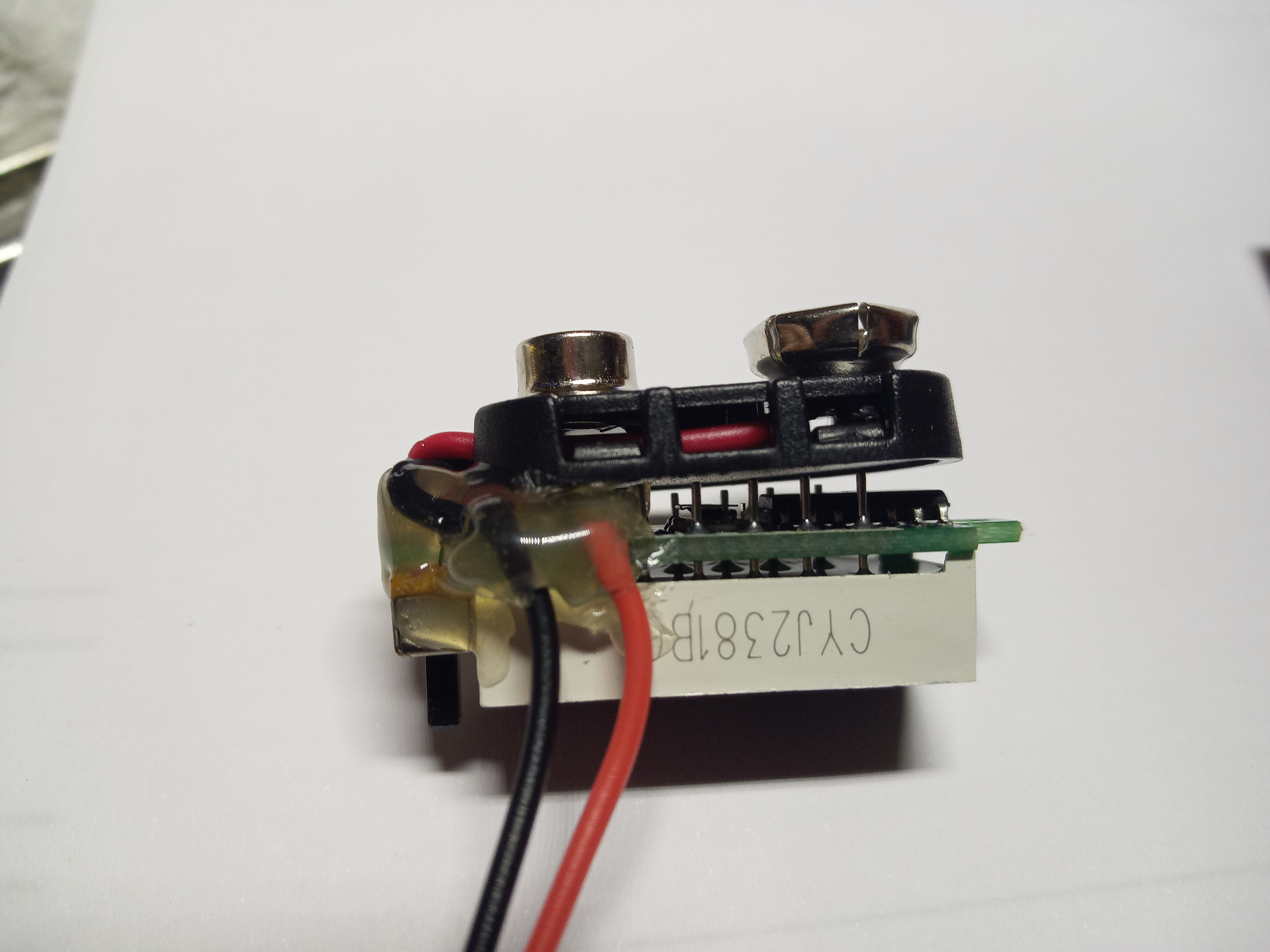

Battery Connector

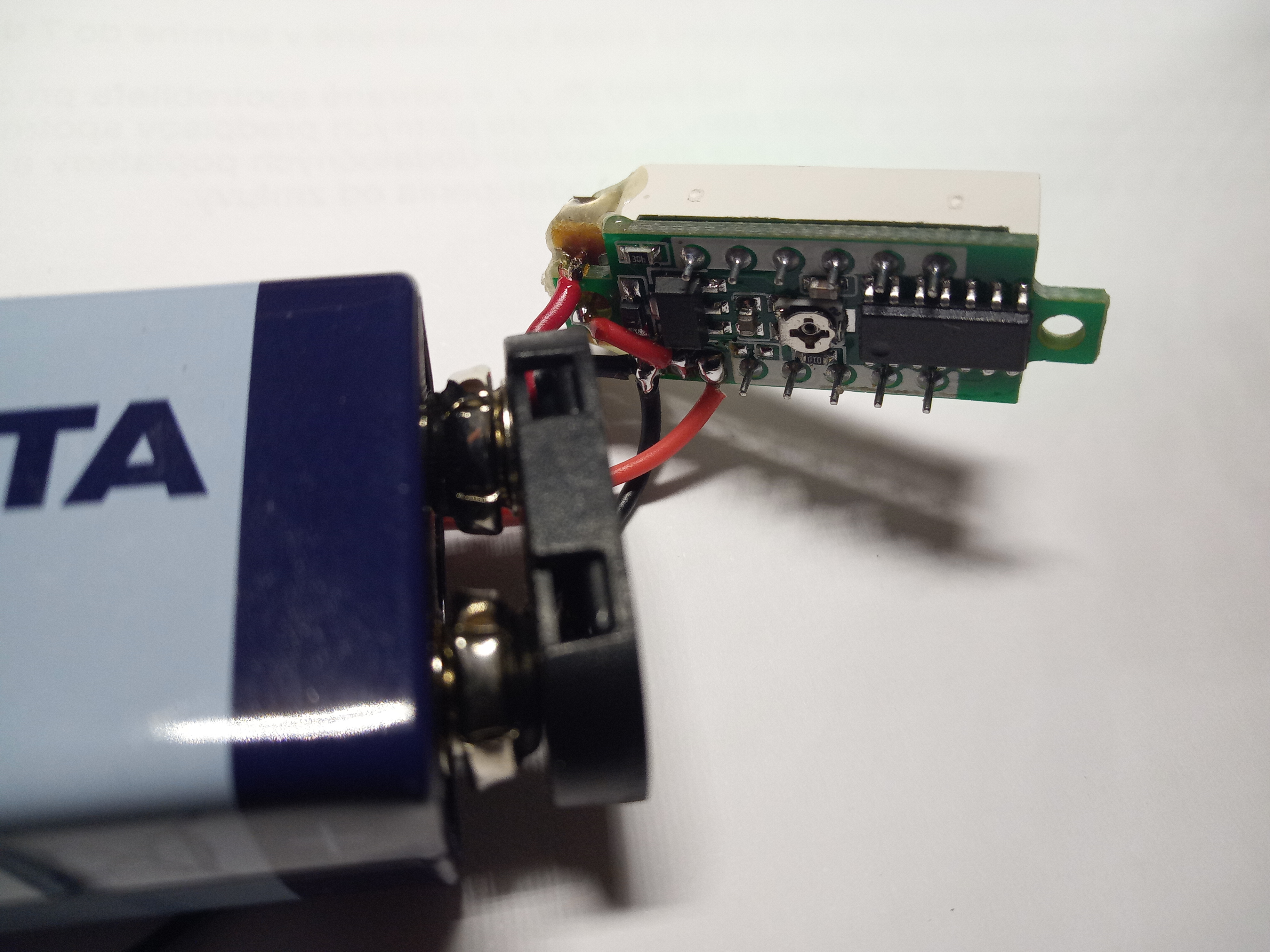

- pick a place where you want your voltmeter and cut them to the needed length
(I made this second to sit on the connector so they were werry short)
- connect the red wire to switch pin and black to common ground

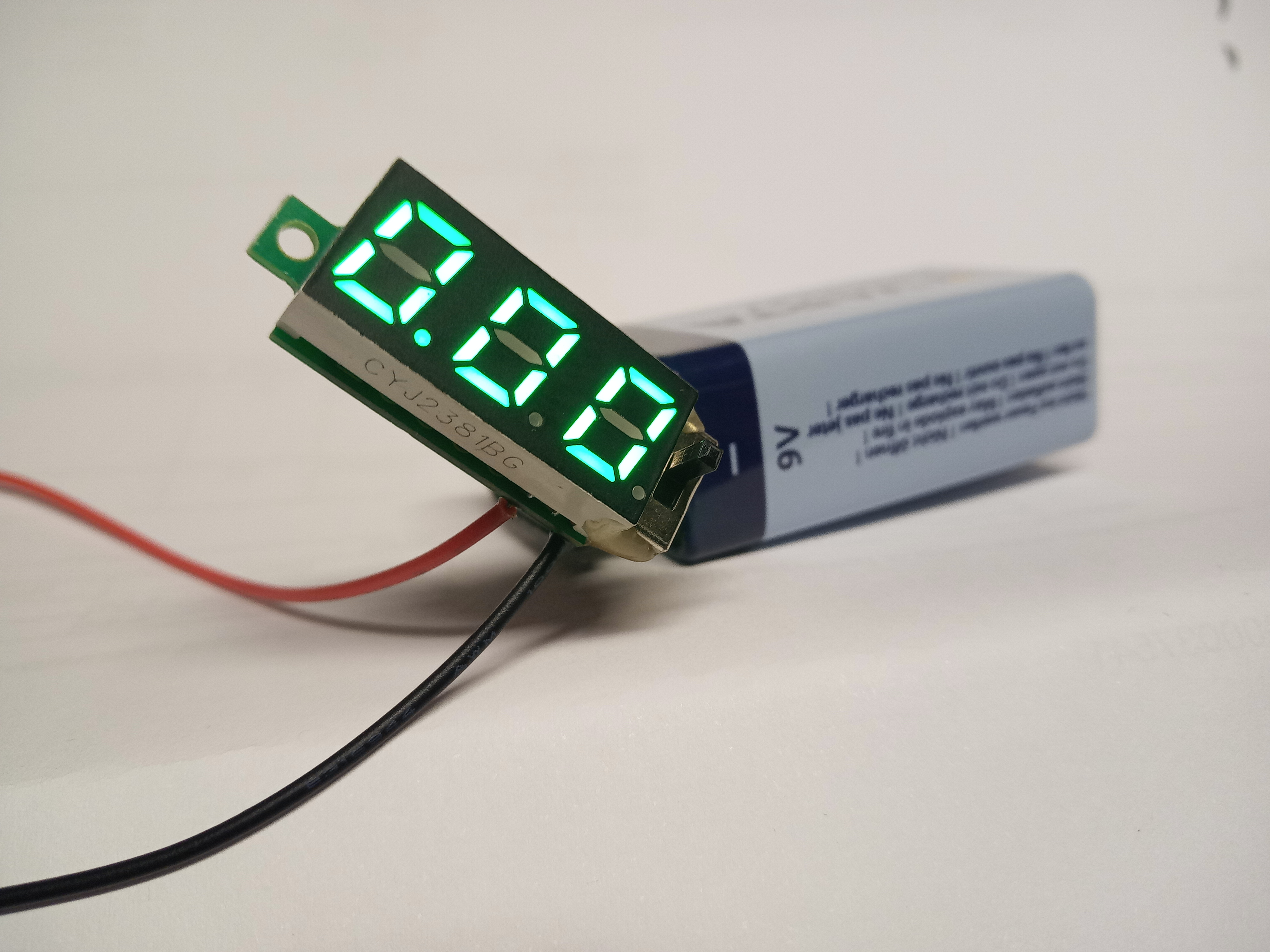

Test
- test it and if everything works you can adjust accuracy if needed with little potentiometer (not every voltmeter have this option)
- if you are done glue every wire to secure long life and glue the whole potentiometer on its place

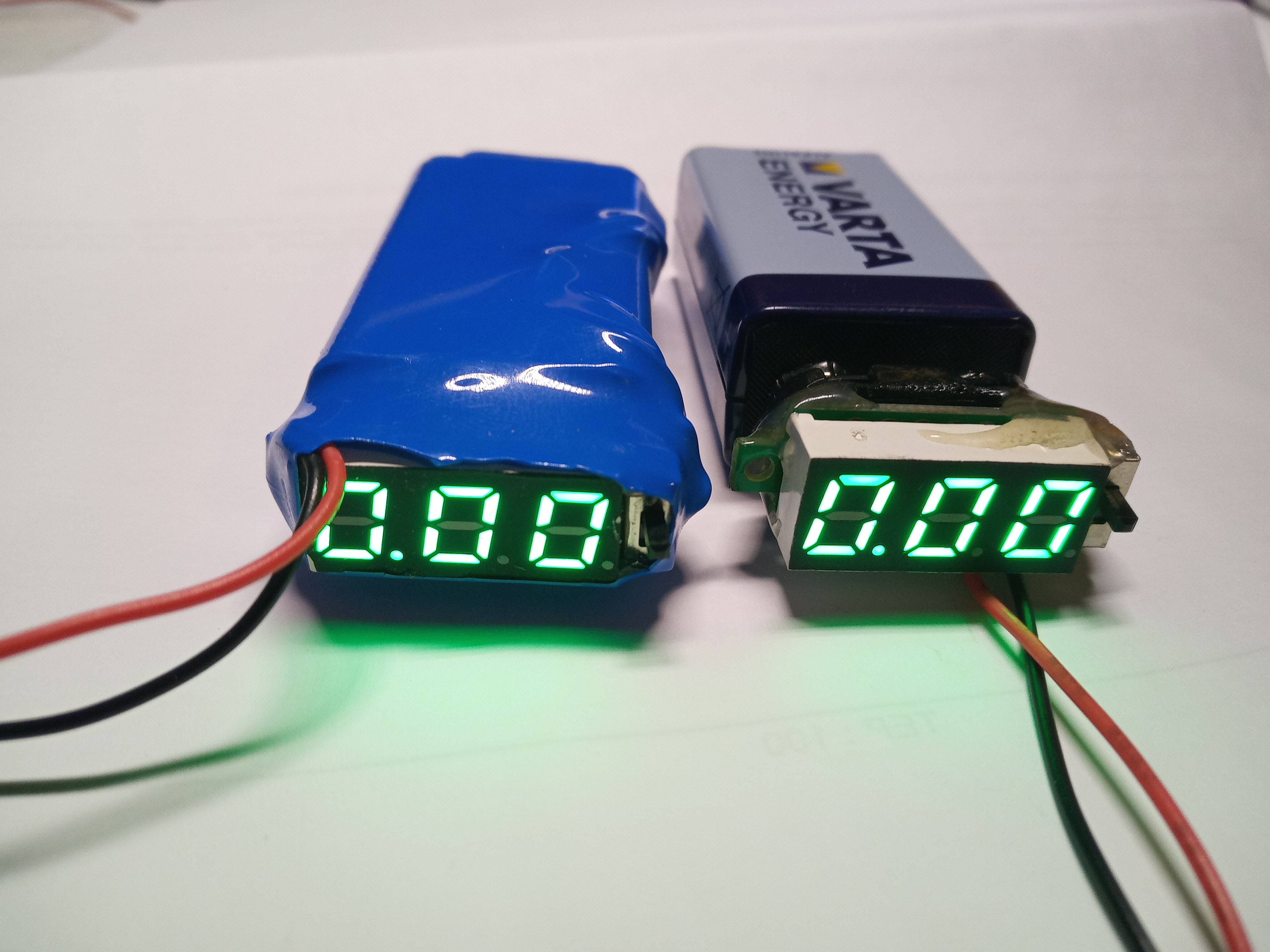

- you can wrap finished voltmeter in heat-shrink foil if you want for better-looking finish
and you are done you can now put your mini voltmeter into your pocket and have it wherever you go ready to use
enjoy :)
