Playstation Style Cd/disk Tray/shelf

Hello, my name is Aarav and I am attending Portage Northern High School as a freshman This is a ps1 themed cd/disk tray/shelf in a very thin form factor. This project is made using Fusion 360.

You will need a Fusion 360 subscription, a device to use it on and probably a 3d printed or money to use craftcloud.

Import the picture in Fusion 360.

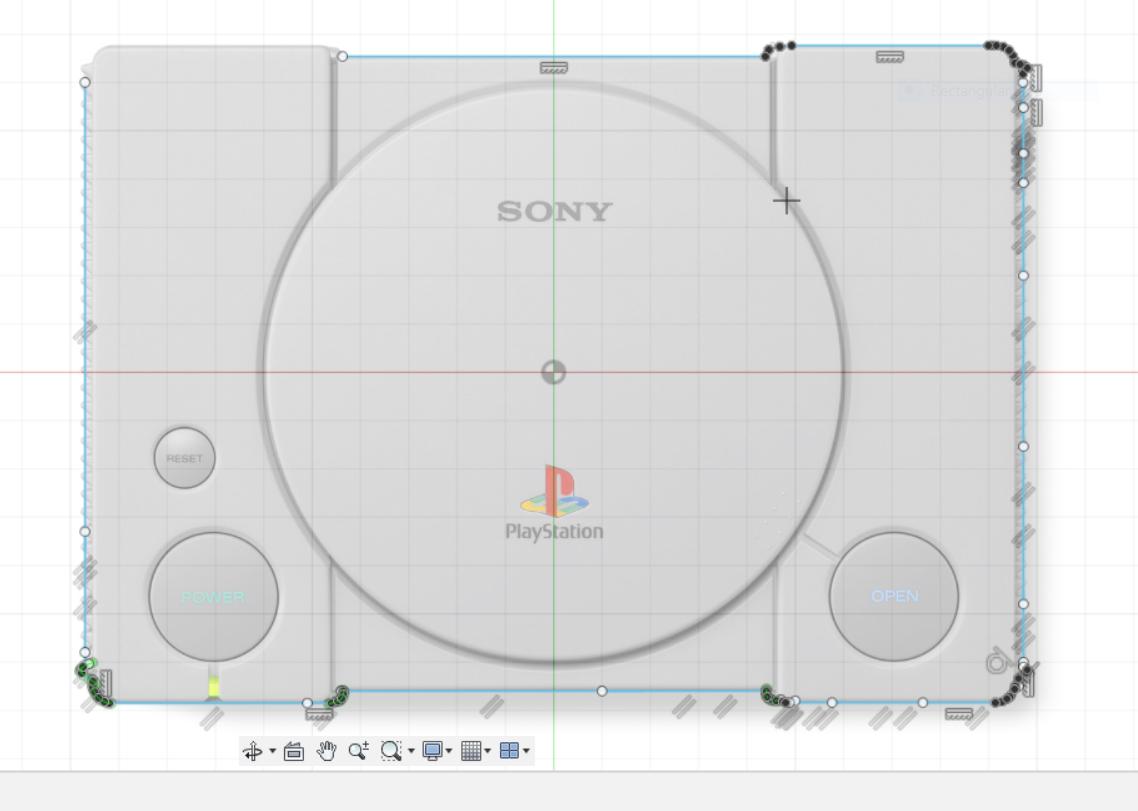

Use the sketch feature in Fusion 360 and trace out the important parts of the picture ( outline everything without too much detail)

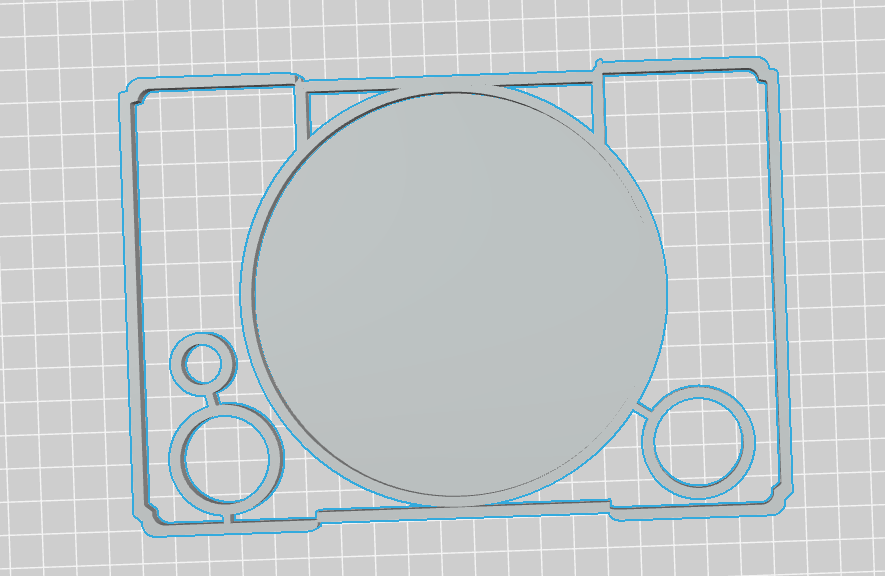

After you are done sketching use the offset feature on all of the lines and make sure they go outward with a width of 3mm so the inner circle should have a diameter of 121mm.

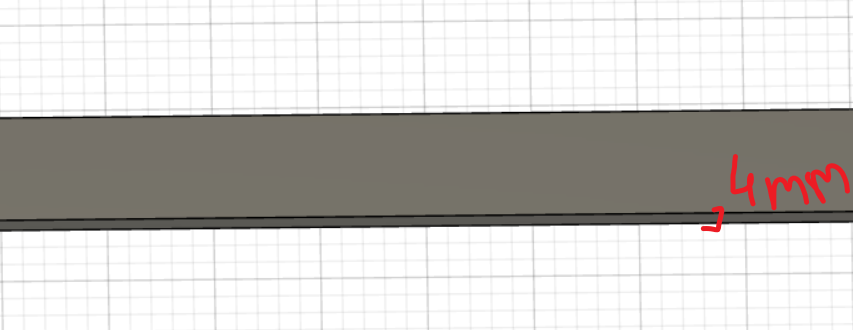

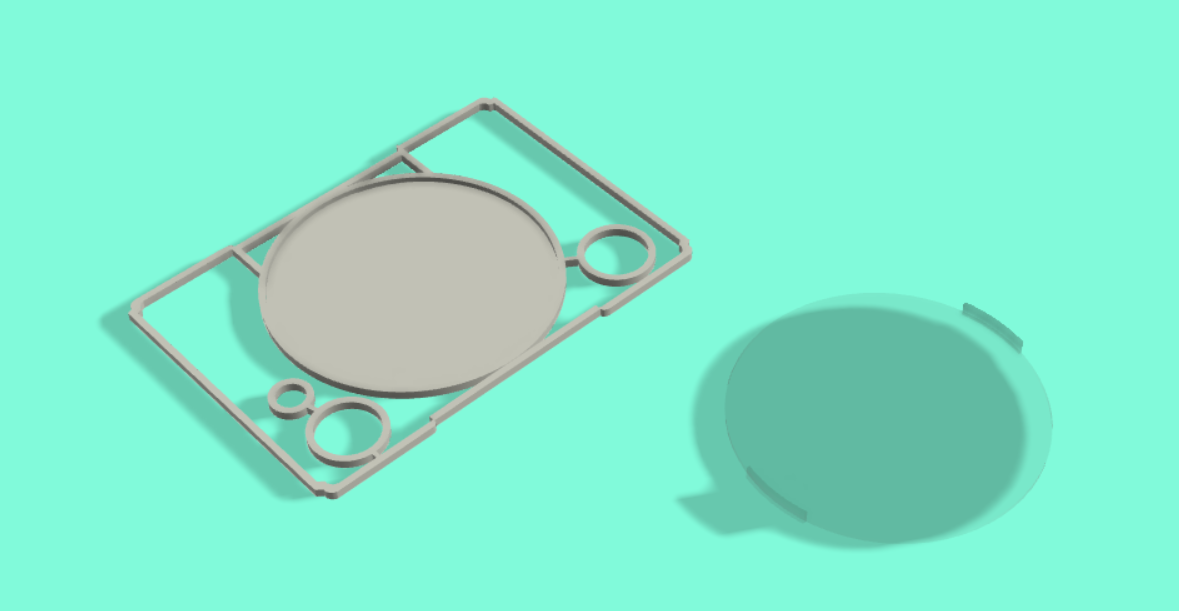

When you are done with the offset part extrude the outline by 4mm and the inner circle (the big one in the center) by 1.5mm and you should be done. ...... I did also design a clear cover that I will not list how to make because it is very easy to make and almost anyone can do it. :)

I will be 3d printing this.
