Playing Pico W With Arduino IDE

This instructables show some projects you can play with your newly arrived Raspberry Pi Pico W with Arduino IDE.

Note:

There are much resources in Python platform that can be reused by Pico W but will not mentioned here. This instructables is mainly focus on Arduino IDE.

• Raspberry Pi Pico W
• A display module, e.g. ILI9341, ST7789...
• breadboard and wires

Raspberry Pi Pico W is a new product release at 2022 June. It added a WiFi module on top of a RP2040 microcontroller and make it become a new member of IoT maker board.

There are already various projects made from RP2040 since 2021 January launched. This instructables focus on what further can play after added a WiFi module.

https://www.raspberrypi.com/news/raspberry-pi-pico-w-your-6-iot-platform/

Arduino IDE

Download and install Arduino IDE latest 1.x version if not yet:

https://www.arduino.cc/en/software

Arduino-Pico

Follow installation step to add Arduino-Pico support if not yet:

https://github.com/earlephilhower/arduino-pico

Arduino_GFX Library

Open Arduino IDE Library Manager by select "Tools" menu -> "Manager Libraries...". Search "GFX for various displays" and press "install" button.

You may refer my previous instructables for more information about Arduino_GFX.

HttpClient Library

Arduino-Pico not yet implement it's own HttpClient library, but it can reuse previous written Arduino Library.

Open Arduino IDE Library Manager by select "Tools" menu -> "Manager Libraries...". Search "WiFi HttpClient" and press "install" button.

JPEGDEC Library

Open Arduino IDE Library Manager by select "Tools" menu -> "Manager Libraries...". Search "JPEGDEC" and press "install" button.

U8g2 Library

Open Arduino IDE Library Manager by select "Tools" menu -> "Manager Libraries...". Search "U8g2" and press "install" button.

ArduinoVNC Library

This project use a enhanced version ArduinoVNC Library, you need import this library manually.

Download and import the ArduinoVNC library to Arduino IDE:

https://github.com/moononournation/arduinoVNC.git

You may refer to Arduino Documentation for the details on how to import library to Arduino IDE

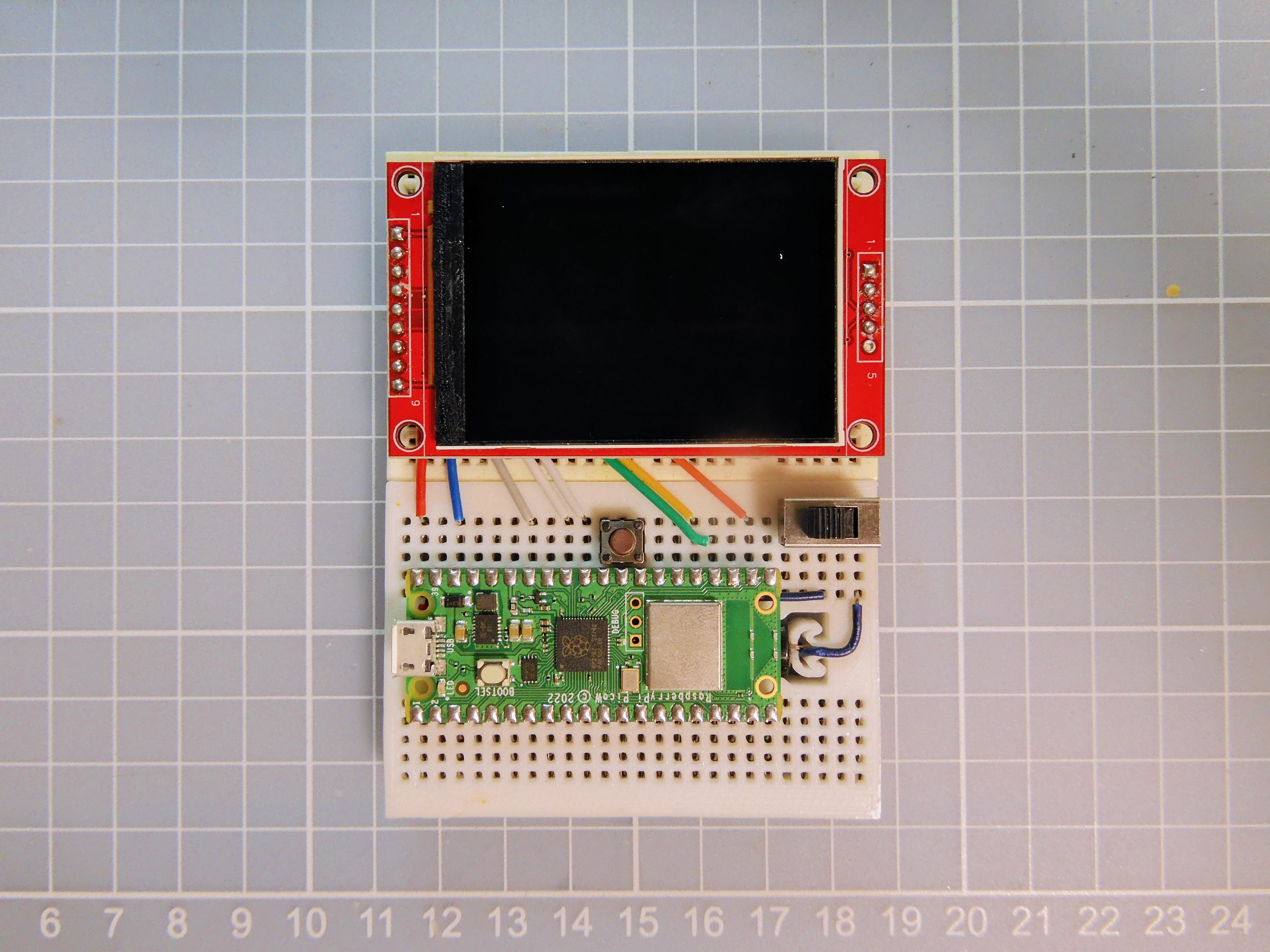

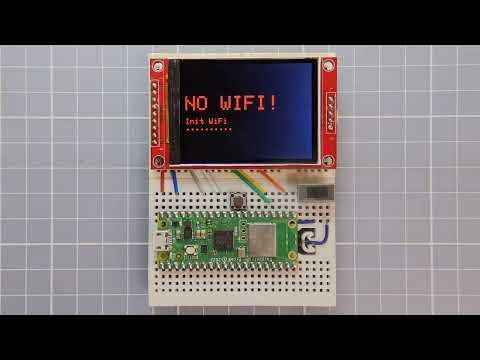

The Pico W pinout is as same as Pico, so it is painless reuse all the software and hardware designed.
Here are the connection summary:
Raspberry Pi Pico W -> ILI9341
Vin                 -> Vcc
GND                 -> GND
GPIO 17             -> CS
GPIO 26             -> RESET
GPIO 27             -> D/C
GPIO 19(MOSI)       -> SDI(MOSI)
GPIO 18(SCK)        -> SCK
GPIO 28             -> LED

Ref.:

https://www.instructables.com/ArduinoGFX/

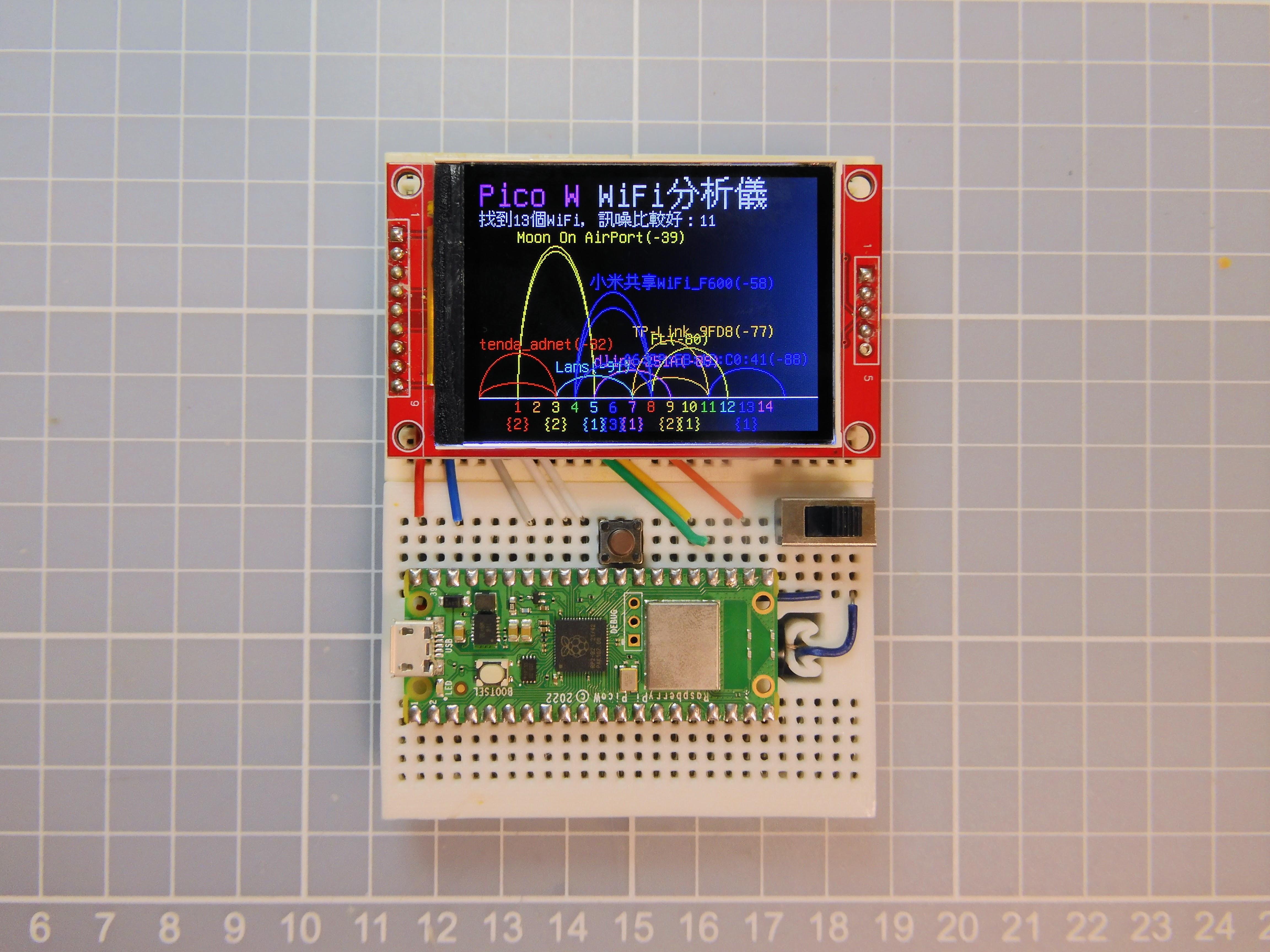

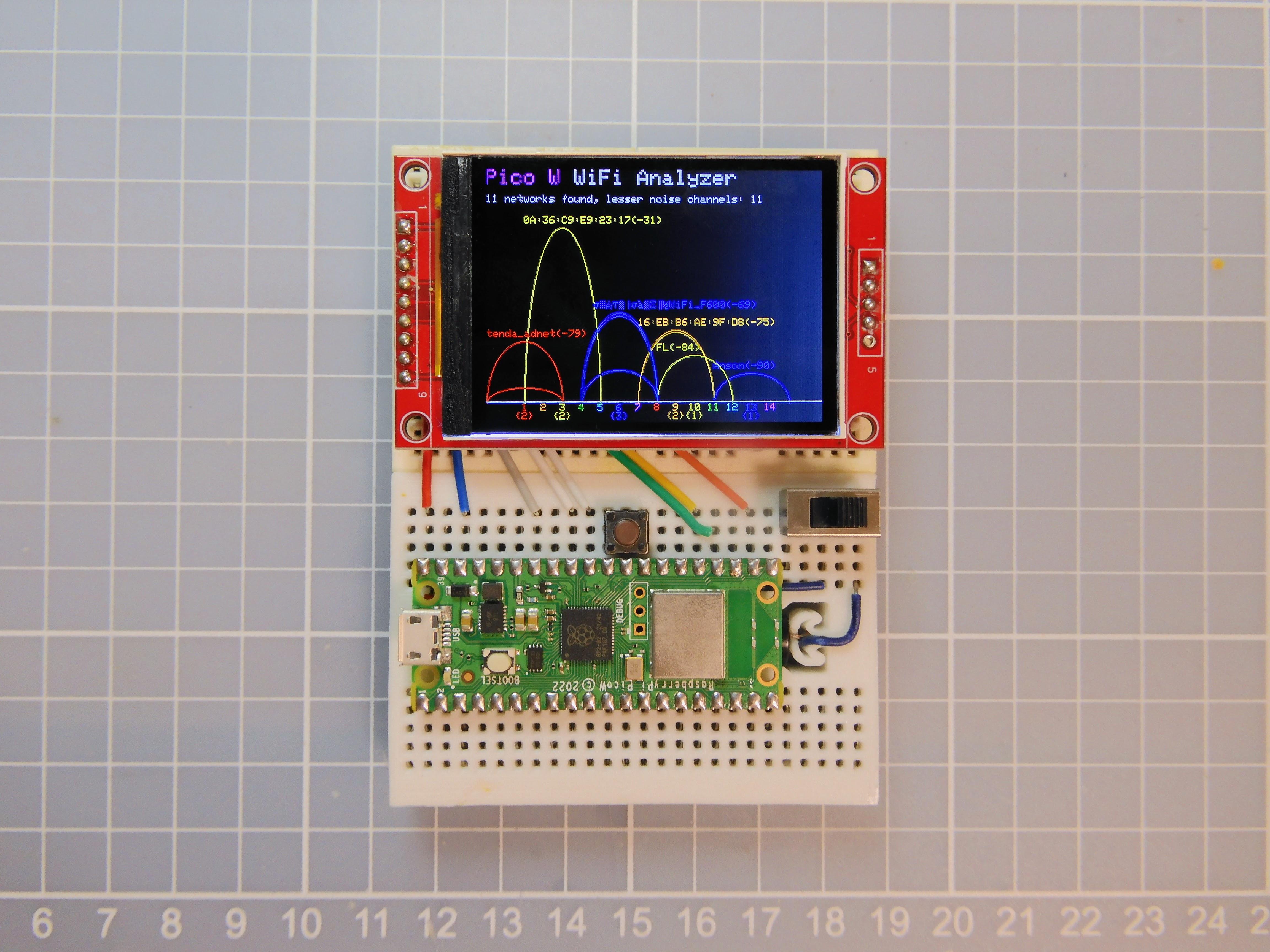

WiFi Analyzer can visualize the WiFi AP information in the environment.

This WiFi Analyzer is started from ESP8266 at 2017, then ported to ESP32 and RTL8720DN and became a Arduino_GFX example. Now it is also ported to Pico W.

You can find this example code at:

Arduino IDE -> File menu -> Examples -> GFX library for Arduino -> WiFi Analyzer -> PicoWiFiAnalyzer

Or you can select PicoWiFiAnalyzerUTF8 if you want to show Unicode AP name.

Ref.:

https://www.instructables.com/ESP8266-WiFi-Analyzer/

https://www.instructables.com/Portable-WiFi-Analyzer/

https://www.instructables.com/Dual-Band-WiFi-Analyzer/

RSS Reader can display realtime RSS feed from the Internet.

The default RSS source is Hong Kong weather feed from Hong Kong Observatory, you can change your own feed by altering value of RSS_* definition.

You can find this example code at:

Arduino IDE -> File menu -> Examples -> GFX library for Arduino -> U8g2Font -> U8g2RssReader

Ref.:

https://www.instructables.com/Display-Unicode-in-Arduino/

WiFi Photo Frame can display photo from a given URL in every time interval.

You can find this example code at:

Arduino IDE -> File menu -> Examples -> GFX library for Arduino -> WiFiPhotoFrame

Ref.:

https://www.instructables.com/Face-Aware-OSD-Photo-Frame/

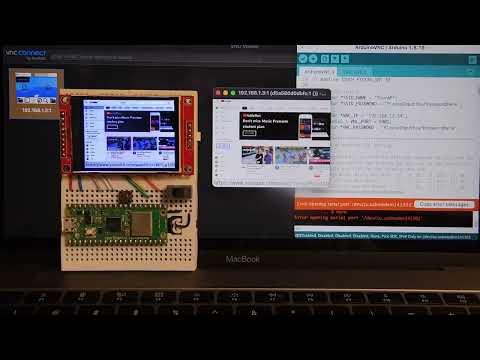

ArduinoVNC can make your Pico W as a VNC client.

if you do not have a VNC server host yet, you may make a quick one with docker:

docker run -p 5901:5901 -e VNC_COL_DEPTH=16 -e VNC_RESOLUTION=320x240 -e VNC_PW=PleaseInputYourPasswordHere --shm-size=256m accetto/ubuntu-vnc-xfce-firefox-g3

You can find this example code at:

Arduino IDE -> File menu -> Examples -> GFX library for Arduino -> ArduinoVNC

Ref.:

https://github.com/accetto/ubuntu-vnc-xfce-g3.git

Still many of my previous IoT project that can port to Pico W, e.g.:

• Google Photo Frame
• BiJin ToKei
• MJPEG Video Streaming
• WiFi Remote Robot Car
• Robot Cat
• ...

The porting is still work in progress, this instructables will be updated afterward.
