Planter Box From Pallets


This is my first project on Instructables and also my first time working with pallets. These planters are meant to house two large pots in a more attractive manner. To me, working with pallets takes a good amount of work but I do like the feeling of up-cycling something that would have gone to the landfill.





Drawing File – Plan 1
https://drive.google.com/file/d/0B21TbB8gGNQbMEl2...

Drawing File – Plan 2
https://drive.google.com/file/d/0B21TbB8gGNQbUWUw...

Pallets


Find free pallets from Craigslist. If not available, you can purchase them locally for very little money. When searching through the pallet stack, look for the pallets with the most usable wood. The length of the slats is ~ 3 feet. The thickness varies from ½ to ¾ thick. The width of the slats can vary from 2.5 to 6 inches.

Deconstruction


Breaking the pallets apart takes a decent amount of work. Use a jig or circular saw to cut the ends. Pry the wood from the center support. This should give you 8 to 14 boards per pallet. Remove nails from slats.

What's Left?


Before you start cutting, determine the best pieces to get the desired width (see drawing). I had multiple long pieces with cracks and/or damage down one side. I was able to cut the damage off and still have usable pieces.

Cut/Sand Boards


Refer to the drawings in the intro for the length of each board. After cutting the pieces, sand them with course sandpaper to remove rough spots or major staining/paint…unless that is your desired look.

Frame


Assemble top frame (nail & glue)

Platform


Assemble bottom platform (nail & glue).

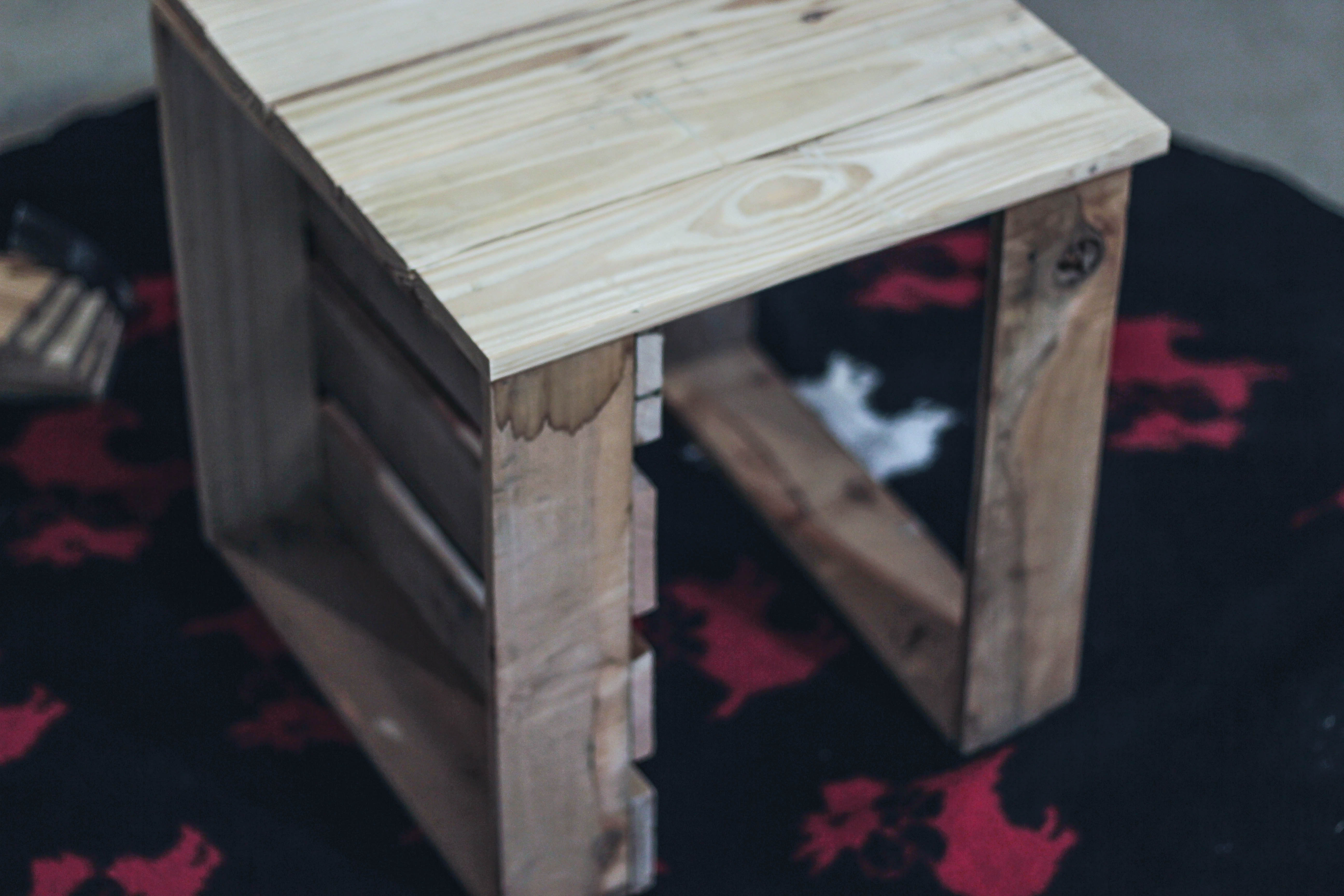

Ready to Build


Ready for next step

Side Attachment


Attach the sides to the top frame and bottom platform (nail & glue).

Trim


Attach the side trim to the upper sides (nail & glue). Attach the top trim (nail & glue).

Clean Up


Sand again

Stain or Paint


Finish as desired. Version shown is finished with red oak stain and coated with an outdoor urethane.

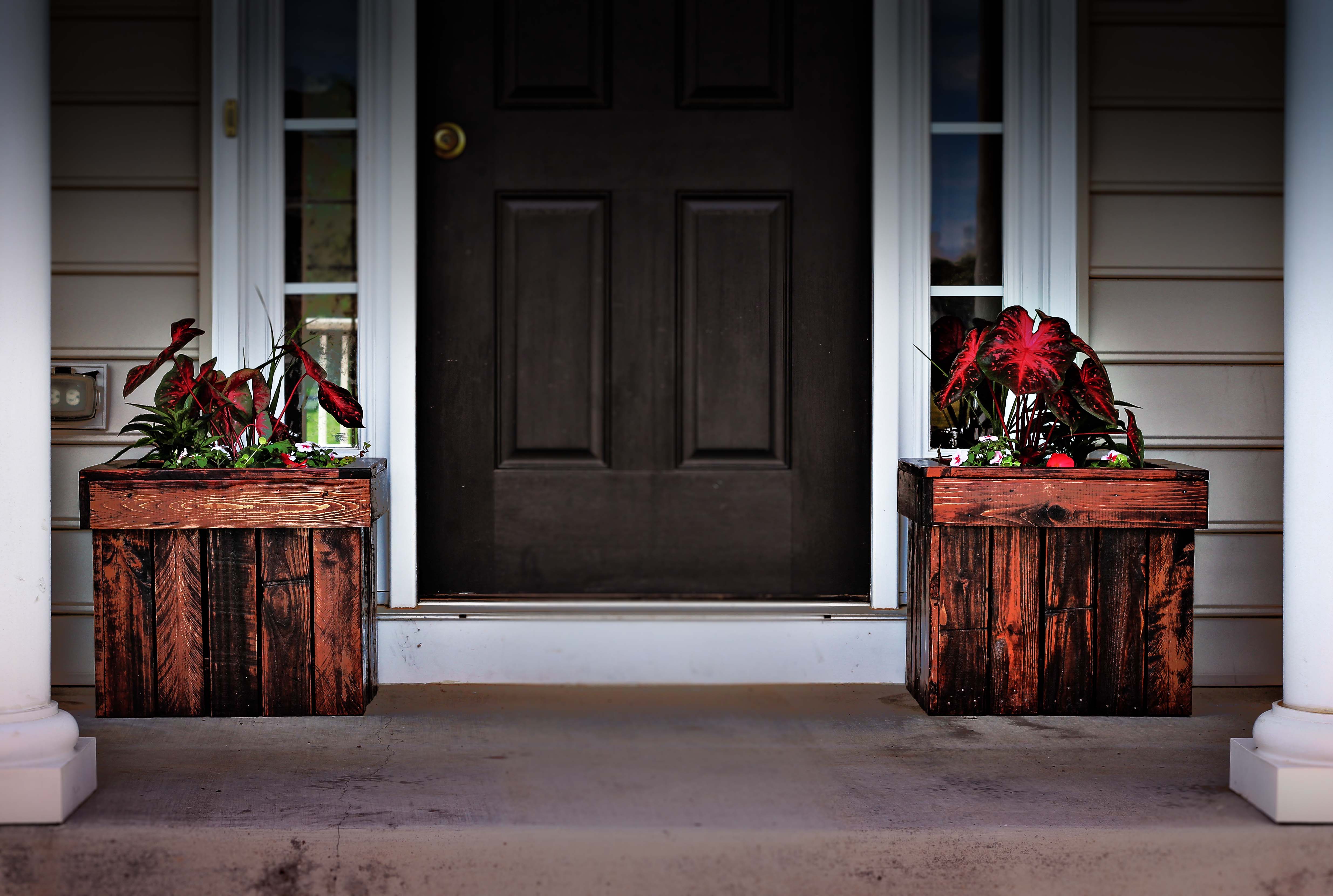

Finished


Finished project - project done in the winter (no plants yet)!

Updated With Plants


UPDATE
