Plant Watering Warning


a super simple circuit for plants
Part List


- a PNP transistor (i use CBF493S)
- a N-channel mosfet (i use 4800BDY)
- a trimmer 100k
- resistor 10k
- resistor 1k
- a led (i use a flash led)

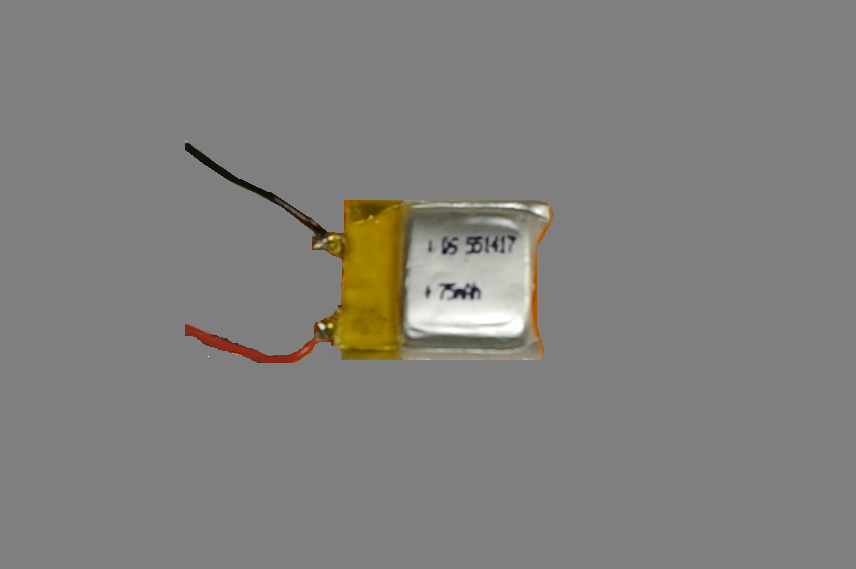

- small battery 3.6v
- 2 stainless steel probes
Circuit Diagram

you can use most of pnp transistor and N-channel mosfet..
you can adjust the sensitivity with the trimmer
Print the Pcb

print the pcb, or make yours for the parts you have
Downloads
Solder the Parts




add a 3 pin connector for the battery

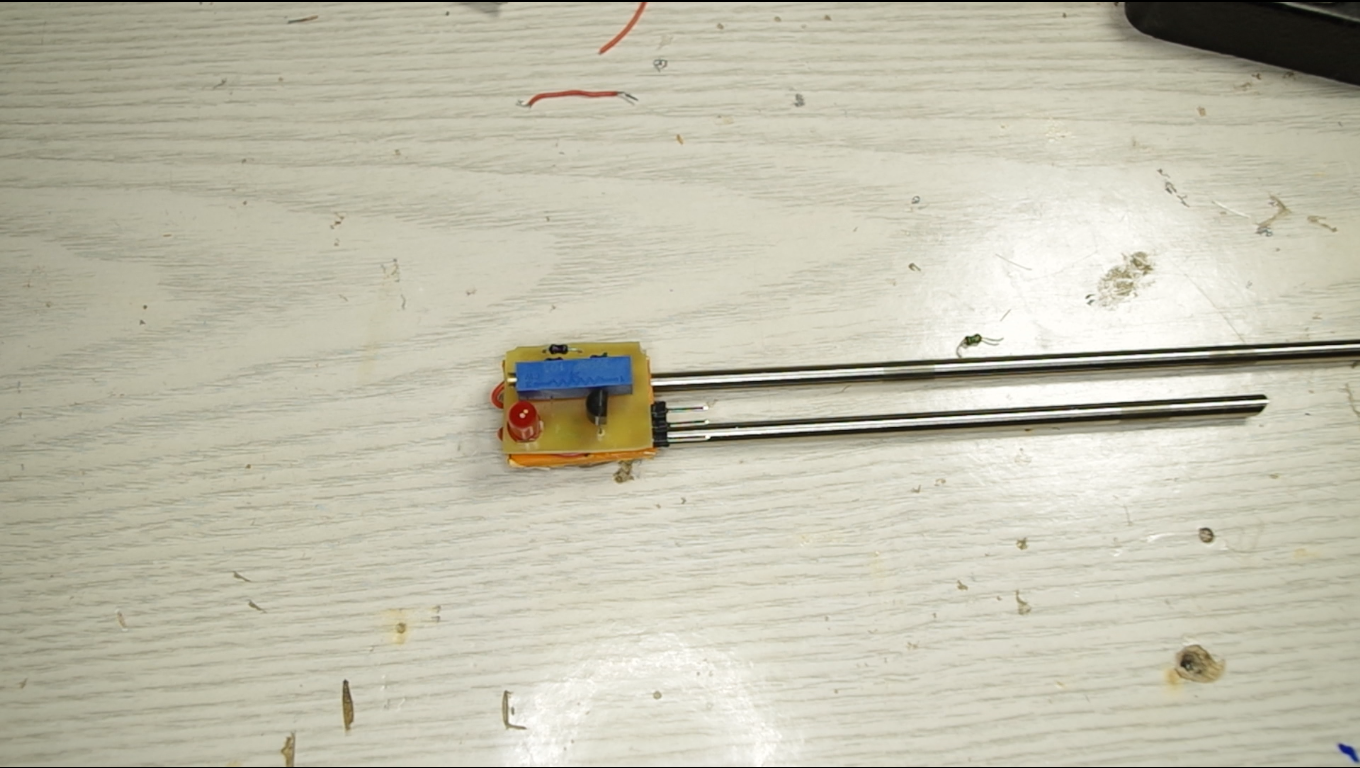

Build It






place the probes on a plastic with hot glue
place the pcb
- you can add a test switch between the probes
- add a nice box for the circuit
- you can recharge the battery (i dont know when)
End

when the plan need water the led flashing (if you use flashing led)
--you must adjust the trimmer--
