You need 1 white cylinder shape ( measurement : 131.95 mm for length and 19.30 mm for diameter)

Step 2


you need two white paraboloid shapes one for front and one for back

( measurement : 20.40 mm for length and 22 mm for diameter ) for front

( measurement : 40 mm for length and 17 mm for diameter ) for back

Step 3

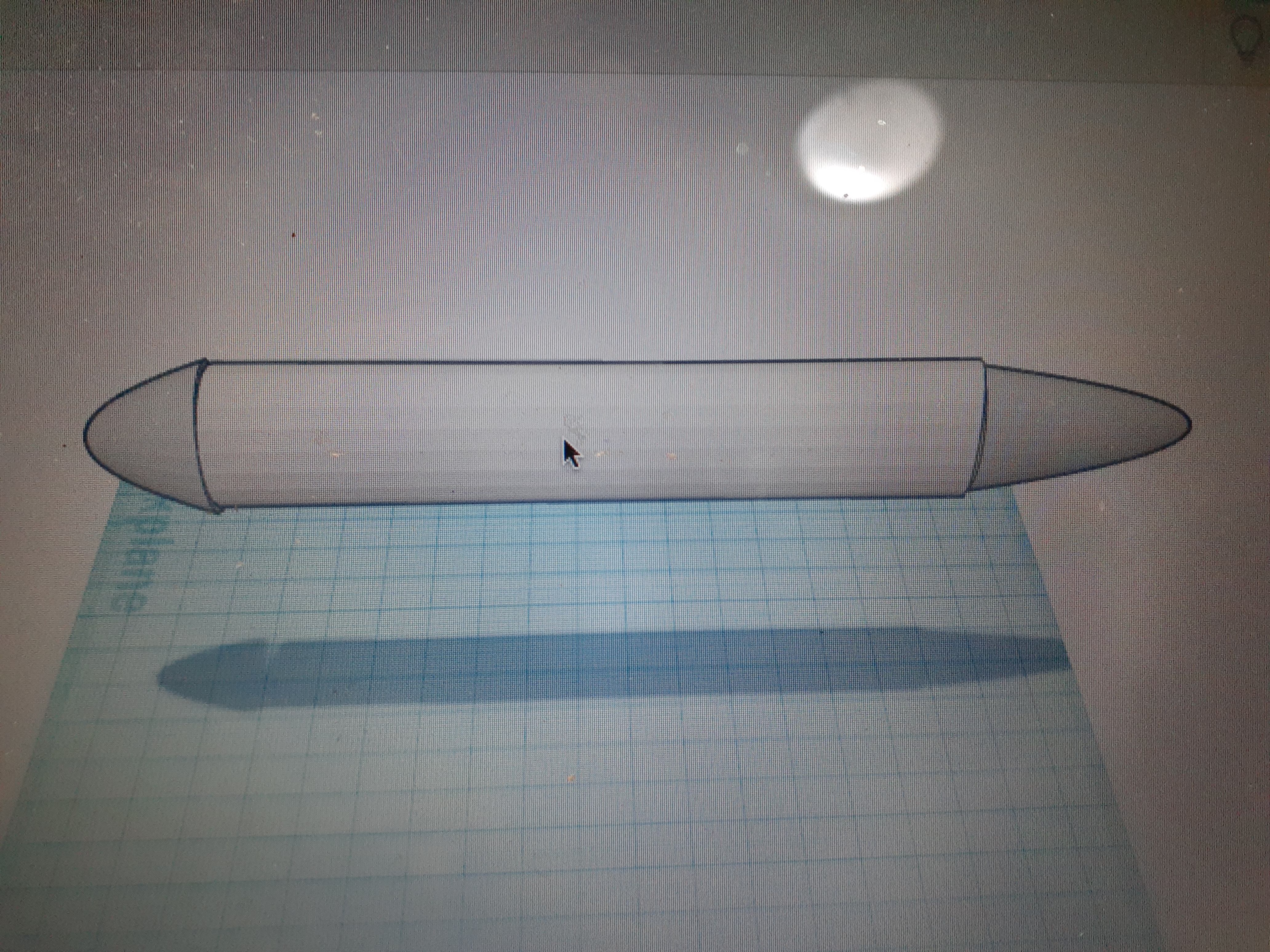

attach the short paraboloid to the front and long paraboloid to the back

Step 4


you need white 3 box shape as for the fins

( measurement : 30 mm for length, 10 mm for width and 2 mm for height )

Step 5

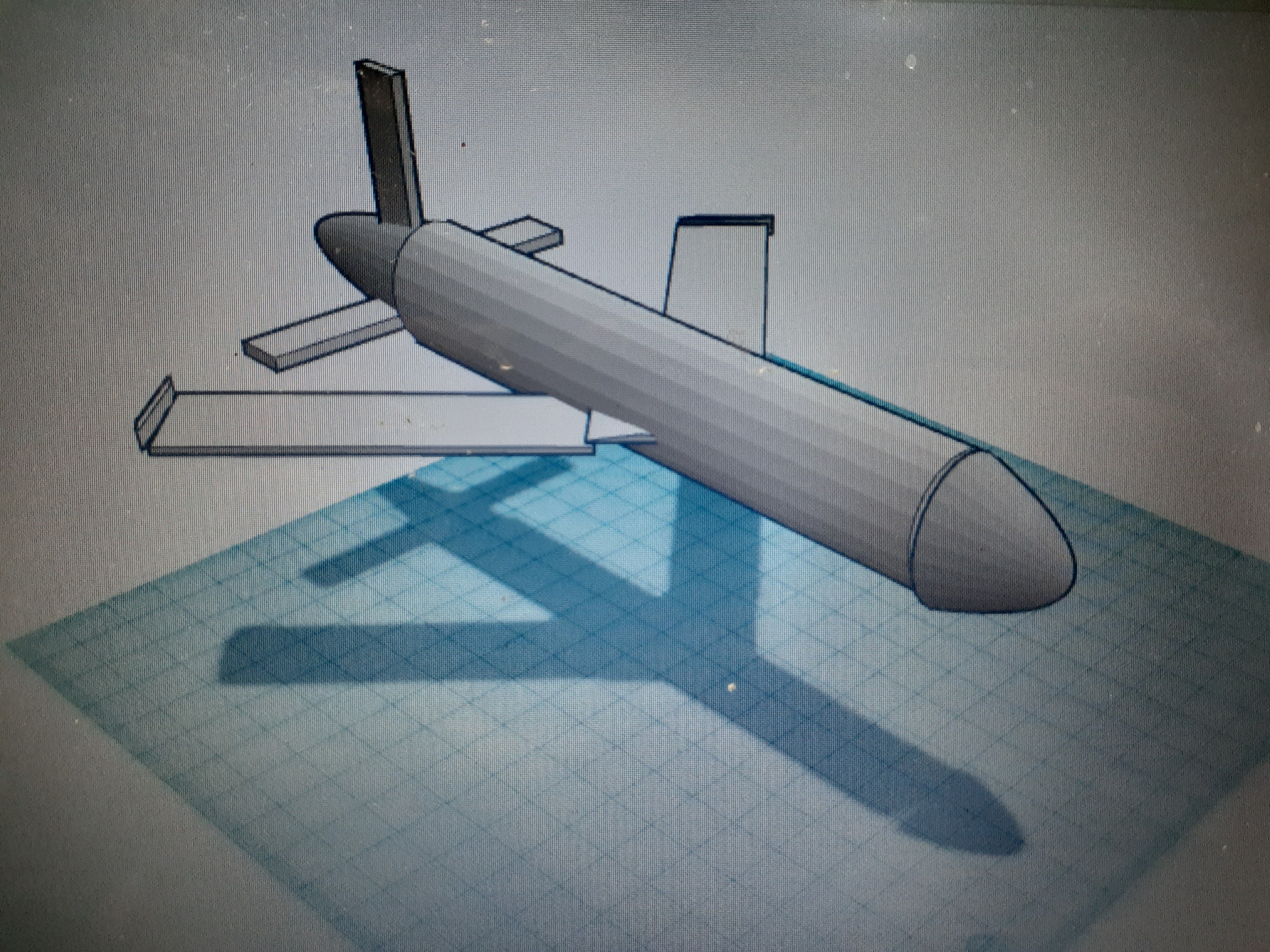

rotate the 2 box shape 90 degrees clockwise or anticlockwise horizontally. rotate the other box shape 90 degrees clockwise or anticlockwise vertically and attach it all together at the long paraboloid.

Step 6


you need white 2 box shape plane wings , 2 white box shape for tail of the plane wings , 2 white roof

( measurement : 73.70 mm for length, 21.30 mm for width and for 1 mm for height ) for plane wings

( measurement : 19.80 mm for length, 1.55 mm for width and 3 mm for height ) for tail of the plane wings

( measurement : 19.89 mm for length, 18.96 mm for width and 1.20 mm for height ) for attachment for plane

Step 7


Rotate the 2 plane wings 45 degrees and other 135 degrees and do, same for other shape and to attach all together for wings and group the two plane wing together.

Step 8

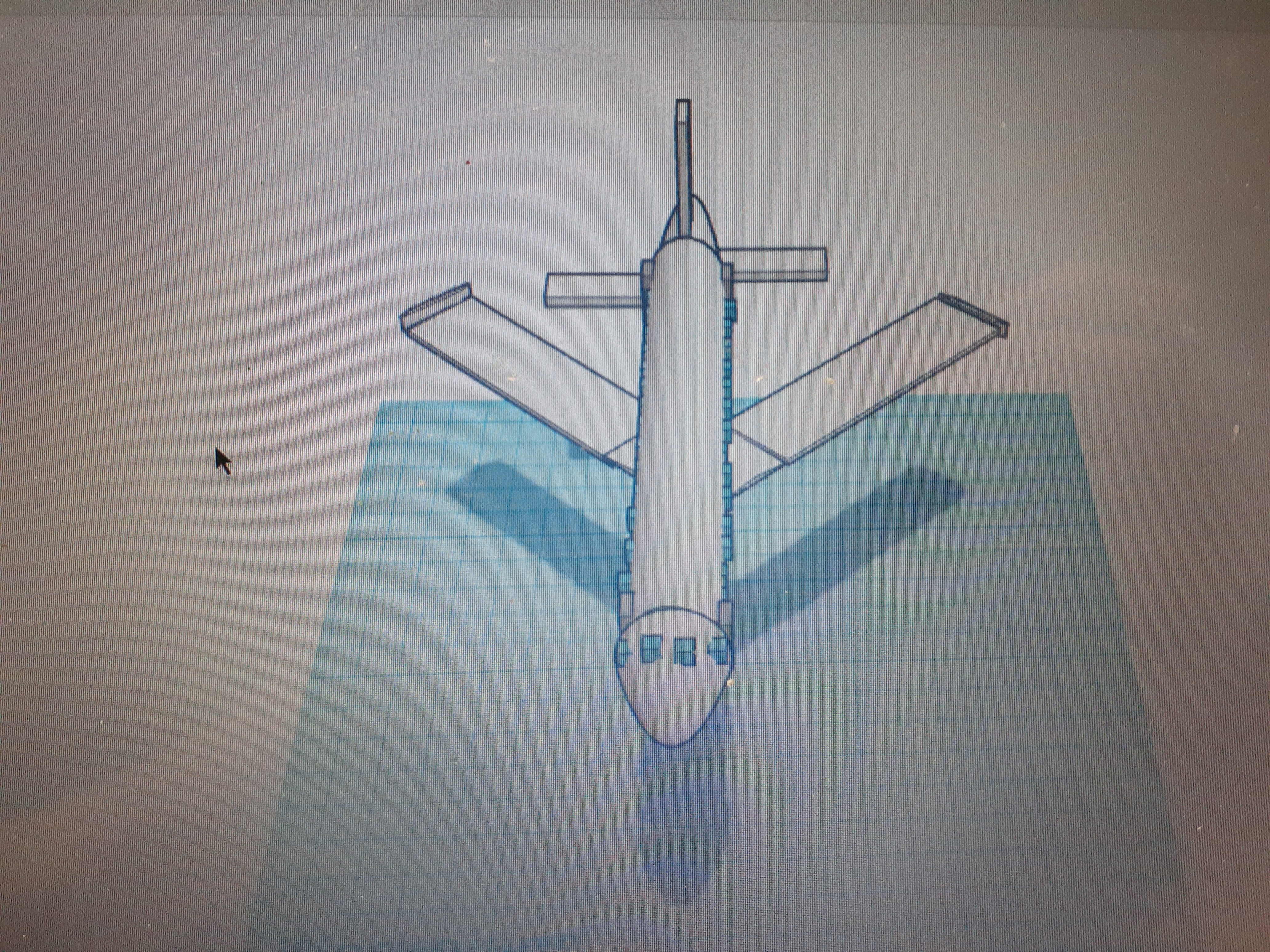

attach the one plane wings to one side each and group it all together

Step 9


you need 32 light blue box shape for window , 4 dark grey box shape for the door

( measurement : 3 mm for length, width and height ) for window

( measurement : 12 mm for length, 6 mm for width and 2 mm for height ) for door

Step 10

20200630_190156 (1).jpg

rotate the 4 dark grey shape 90 degrees vertically

Put 14 windows on each side, 2 door at the end each on cylinder

Step 11


Put 2 cubes in front and 1 cubes each side of the short paraboloid

Step 12


You need 3 white cylinders and 3 black tubes as wheel of the plane

( measurement : 5 mm length, 4 mm width and 20 mm height ) for cylinders

( measurement : 5 mm width, 6 mm length and 6 mm height ) for tubes

Step 13


Attach tube and cylinder together, rotate it 90 degrees clockwise or anticlockwise vertically

Step 14

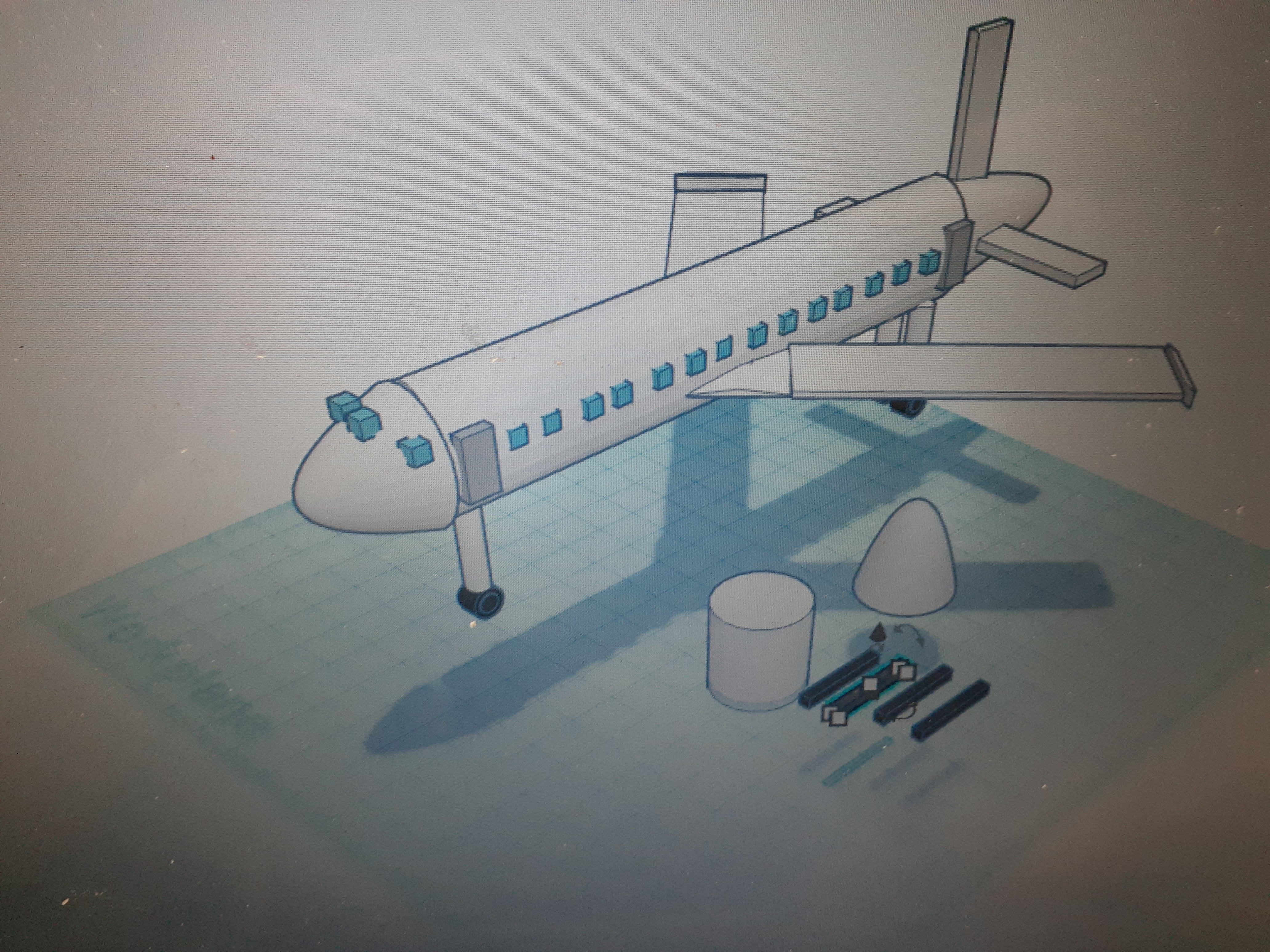

Put one wheel in front and other two wheels on the back

Step 15


You need two white cylinders, two white paraboloids and eight black box shapes for to combine as jet

( measurement : 20 mm length, width and height is 21 mm ) for cylinder

( measurement : 20 mm length , width and 20 mm in height ) for paraboloid

( measurement : 18.50 mm length, 2 mm width and height ) for box shape

Step 16


Rotate one box shape normal, one 45 degrees, one negative 45 degrees, another 90 degrees, rotate cylinder 90 degree, paraboloid and combine all together.

Step 17


Put one jet on one wing each and you are finish.
