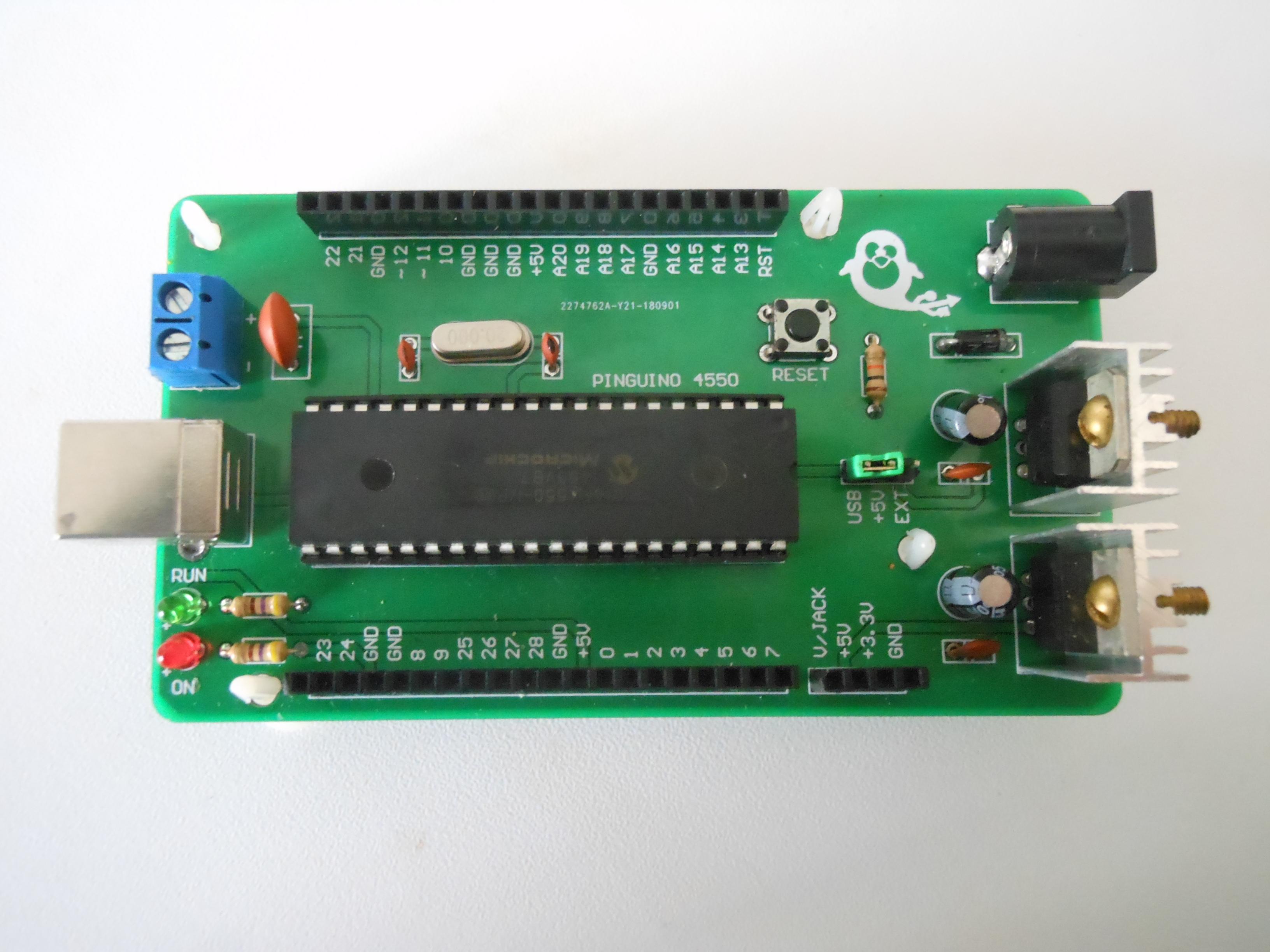

Pinguino Pic18F4550

The well know Pinguino based on the Pic 18F4550

Main features:

• Open Source Programmable by his own IDE
• Pinguino IDE Language of programming : Arduino (Some little changes)
• 28 Digital Outputs
• 5 Analog Inputs
• 2 PWM Outputs
• +5V Power Pin
• +3.3V Power Pin
• Powering by USB or External Source 9-12V

JLCPCB: https://jlcpcb.com/IAT

Pinguino: https://pinguino.cc/

First at all, the Pinguino Project is Open Source which means that We can access the project information from the officila website : https://pinguino.cc/

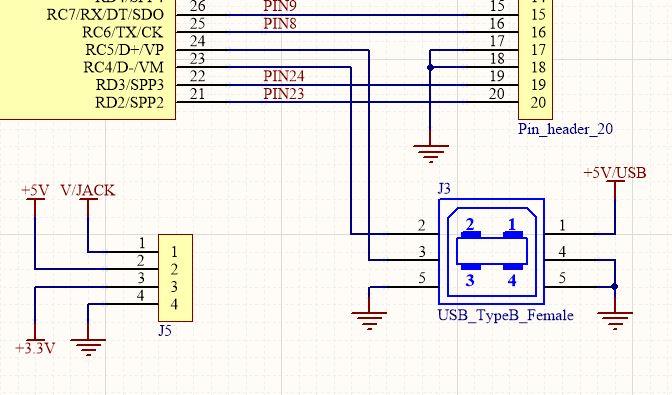

We will find a different models of boards, in this case first We need to go to the basic schematic circuit and based on it, we are going to make changes or add additional circuit, but the the basic circuit will always stay. So in the next image We can take a look of the basic pinguino board circuit based on pic18F4550

We have to pay attention to a very important aspect, and this is the power supply, We can see that just it shows an USB power supply, so We need also to supply by external source. Now We are going to make some changes and add other circuit part to have our final Pinguino 18f4550 board.
You can also download the Schematic in PDF : https://drive.google.com/open?id=1NJqQvpIOKpWS3L5f...

So let's take a brief look of the schematic circuit, and let's begin from the USB connector, We use and Femlae USB Type B, which is big but really easy to solder and place. You can change it for another SMD USB connector but pay attention to the correct because you can have surprises.

The next part is the External power supply, and for that You are using the very common chip 7805 (We can supply 9-12V for detail info please consider to check the datasheet).
Another good alternative for 5v regulator is the Chip 1117-5V the same chip that the Arduino boards use

Also We placed a +3.3V regulator, with the chip 1117-3.3V, please be carefully when you buy it, because also these chips come for negative voltages.

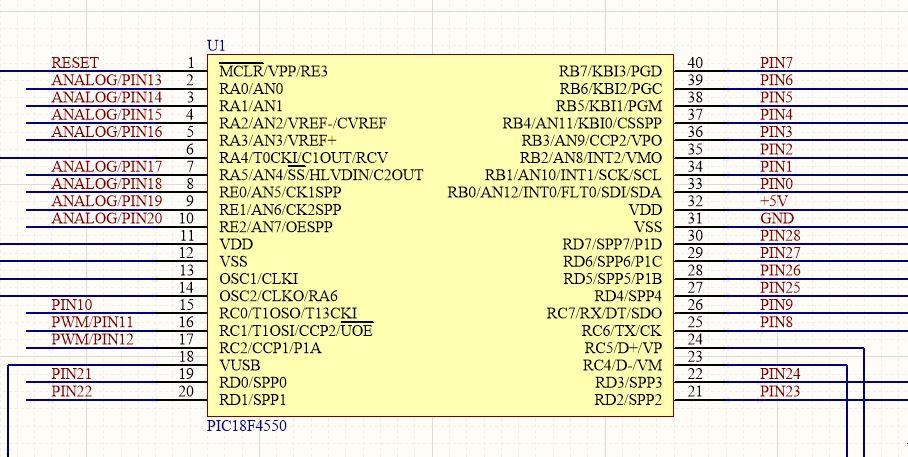

And the other important part is our beautiful Pic18F4550, DIP version, easy to get cheap and easy to solder. so basically We can see the Pinout and what the Pinguino offers in this microcontroller.

Before We continue with the PCB layout, it is important to indicate that You can use any software for PCB Desing, believe me there are many options, even if you use the best software it will not mean that you are the best pcb desinger, so in this case We are going to use the Powefull Altium Designer highly recommended if you want to enter in the pcb design world.

So after We finished and check our schematic circuit We need to switch from schematic to PCB layout.

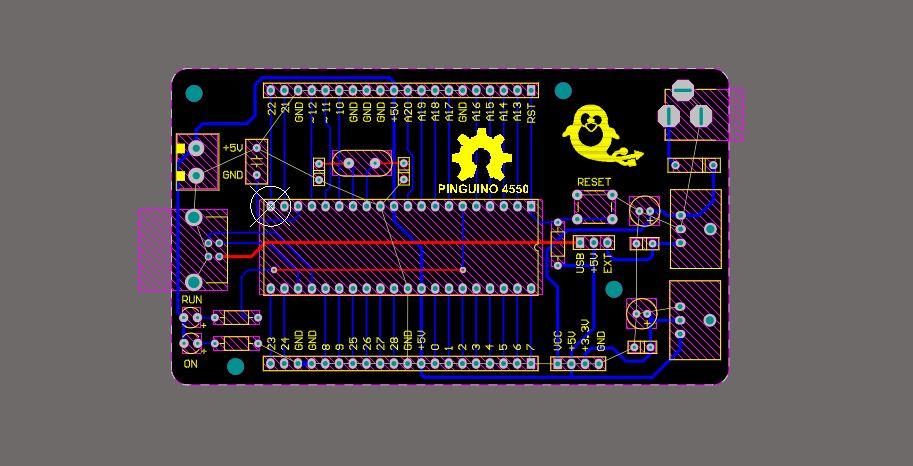

In the next image we can see the PCB with the Ground Plane, this helps for noise filter on the pcb.

Here after we finish the pcb layout We can get the Gerber files, there are two kind of gerber files we have to pay attention to it, the first GerberX2 and the other Gerber RS274X, most of the manufacturer use the second one Gerber RS274X, in some software we will just GerberX2 and Gerber (In the case of Altium Designer).
You can also download the GerberFiles: https://drive.google.com/file/d/1yC0TuM9uLK201JNJe...

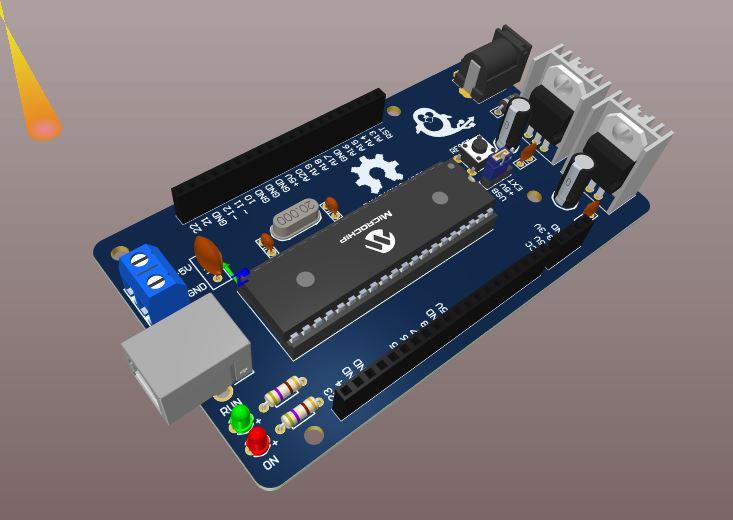

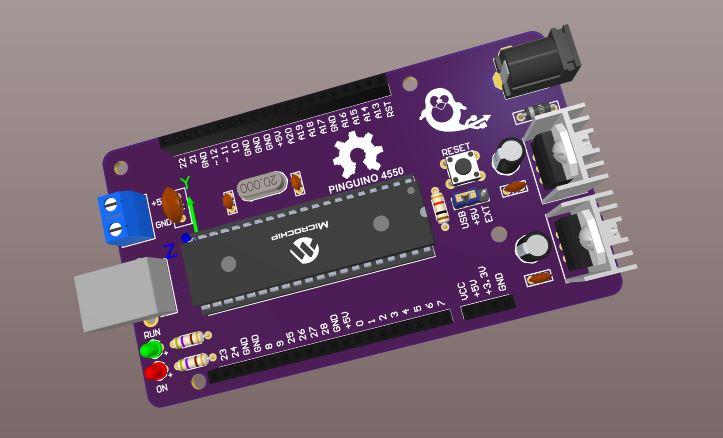

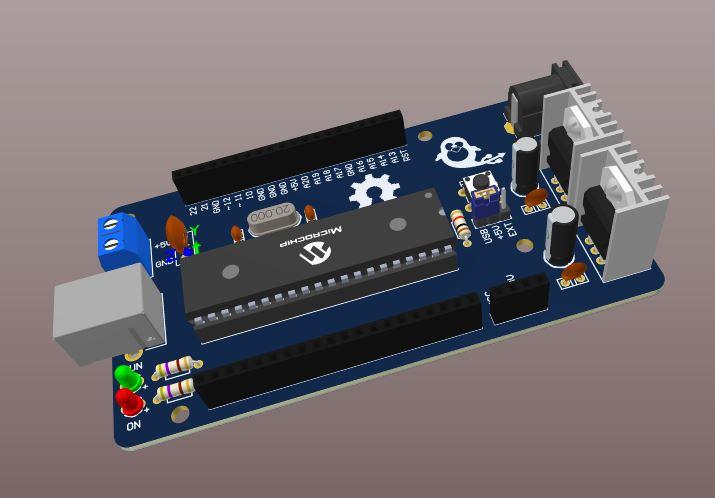

One of the features of Altium Designer is the 3D visualization, the 3d visualization is important and it give us the posibility to see and check our PCB and how it would be in real, also it can show us the components distribution and dimensions.

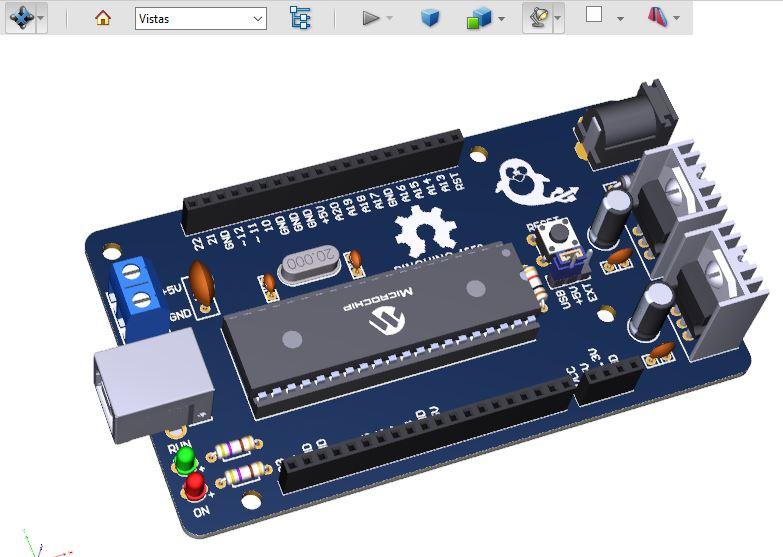

Something very powerful from Altium Designer is the 3d PDF, You can export the 3d view into PDF and open it anyplace you need. You can rotate your 3d view in PDF

You have to create and user account, it is free and will keep all your order historial

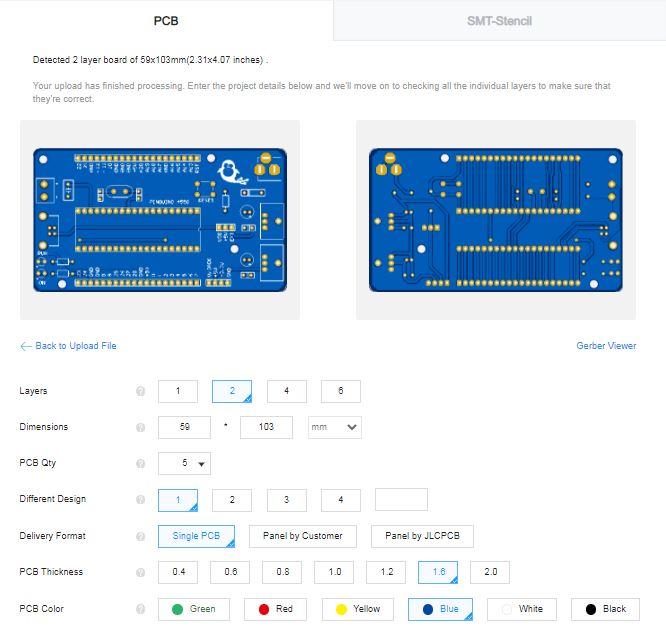

1. Upload the Gerber files: https://jlcpcb.com/IAT

You can also download the GerberFiles:
https://drive.google.com/file/d/1yC0TuM9uLK201JNJe...

2.Indicate the Features

3.Add your shipping address

4.Make the payment and finish the order

5.Receive your PCB

https://jlcpcb.com/IAT

JLCPCB has been at the forefront of the PCB industry. With over 14-year continuous innovation and improvement based on customers' need, we have been growing fast, and becoming a leading global PCB manufacturer, who provides the rapid production of high-reliability and cost-effective PCBs and creates the best customer experience in the industry.

• Most Efficient, Economic, Innovative PCB Solutions
• Higher Quality
• Lower Cost
• Faster Delivery

Attached you will find the BOM (bill of materials) needed to build the PCB, as you can see in the list you can the designator that You can check also with the schematic circuit.

You can donwload the BOM: https://drive.google.com/file/d/1AgsF1ps9nSV1UrnJ...

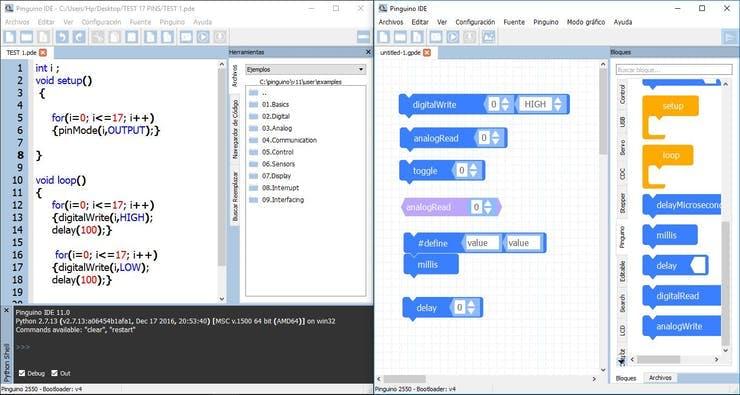

In order to program the board We need to donwload the Pinguino IDE, open source platform which uses the same language than the Arduino. You can download here: https://pinguino.cc/

The Pinguino IDE works with textual programing and also Block programing. IMPORTANT. When you conect the board you have some seconds to upload your program after that You need to press reset boton to load the program again. Once your program is uploaded it will automatically reset and ejecute the program.

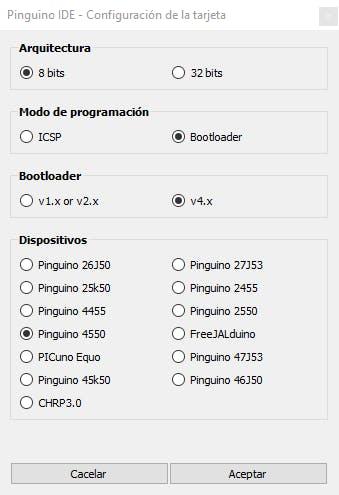

Now We can work with our board like an Arduino. Before you upload the sketch, you should configure the board like the next image

You can donwloadtheBootloader: https://drive.google.com/open?id=1Slk5UCp5sOUGAKS...

void setup()
{ // initialize the digital pin USERLED as an output.

pinMode(USERLED, OUTPUT); }

void loop()

{ toggle(USERLED); // alternate ON and OFF

delay(500); // wait for 500ms}

Thank you JLCPCB and Pinguino Project
