Piggy Bank Smartphone Charger (that Still Saves Money!)

Want to watch your Favorite Instructable in your own language click the link below-
Spanish

German

Japanese

Chinese

"Hello friends Please vote us in the US Mexico Make Energy Contest,Explore Science Contest and in the On a Budget Contest"

Hello dear Money savers,

Here we have a nice idea for all of you to save money while charging your smartphone.

Our Piggy Bank Smartphone Charger charges your phone with the energy generated from your coins that are put in the Piggy Bank. By this way you are encouraging yourself to save money.

The credit of this idea goes to Instructables, as we always want to make energy from simple materials and searched the website for this.

Our Mother loves gadgets but she doesn't like to charge these gadgets after each hour.Also money doesn't stay in her hands for a while. So we Made a small solution for her problem.

DISCLAIMER-The information contained in this website is for general information purposes only. The information is provided by Mr AbAk and while we endeavor to keep the information up to date and correct, we make no representations or warranties of any kind, express or implied, about the completeness, accuracy, reliability, suitability or availability with respect to the website or the information, products, services, or related graphics contained on the website for any purpose. Any reliance you place on such information is therefore strictly at your own risk.

So here's a whole ible of this project.

In this step we are giving you a brief idea of this project.

We have used Piezoelectric transducers for generating electrical energy from kinetic energy of the coins.

We Have used the buzzer circuit for converting the AC of the Piezo Plates To DC...

And we have also made a small dynamo so that you can charge your phone if you don't have money at that time.

Acknowledgement-

ASCAS- For the concept and inspiration

DIY Hacks and How Tos- For their Joule Thief

The MasterThingMaker- For Ferrite toroid subsitute

Sooraj619-For His 5v Regulator

Instructables-For research and information

Abhay And Akshay- For ideas and innovation

Our mom-For inspiration and motivation

Electroschematics- For their help

Youtube-For posting clear videos and motivation; and last but not the least...

You all-For encouraging...

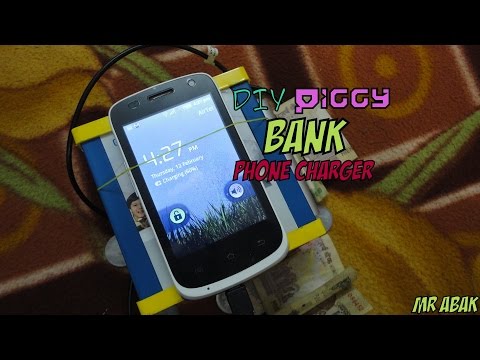

Watch these video to get a glimpse of what we are going to do in a next few minutes....

We need some things for this ible but you can also opt to use whatever you like....

Main Components-

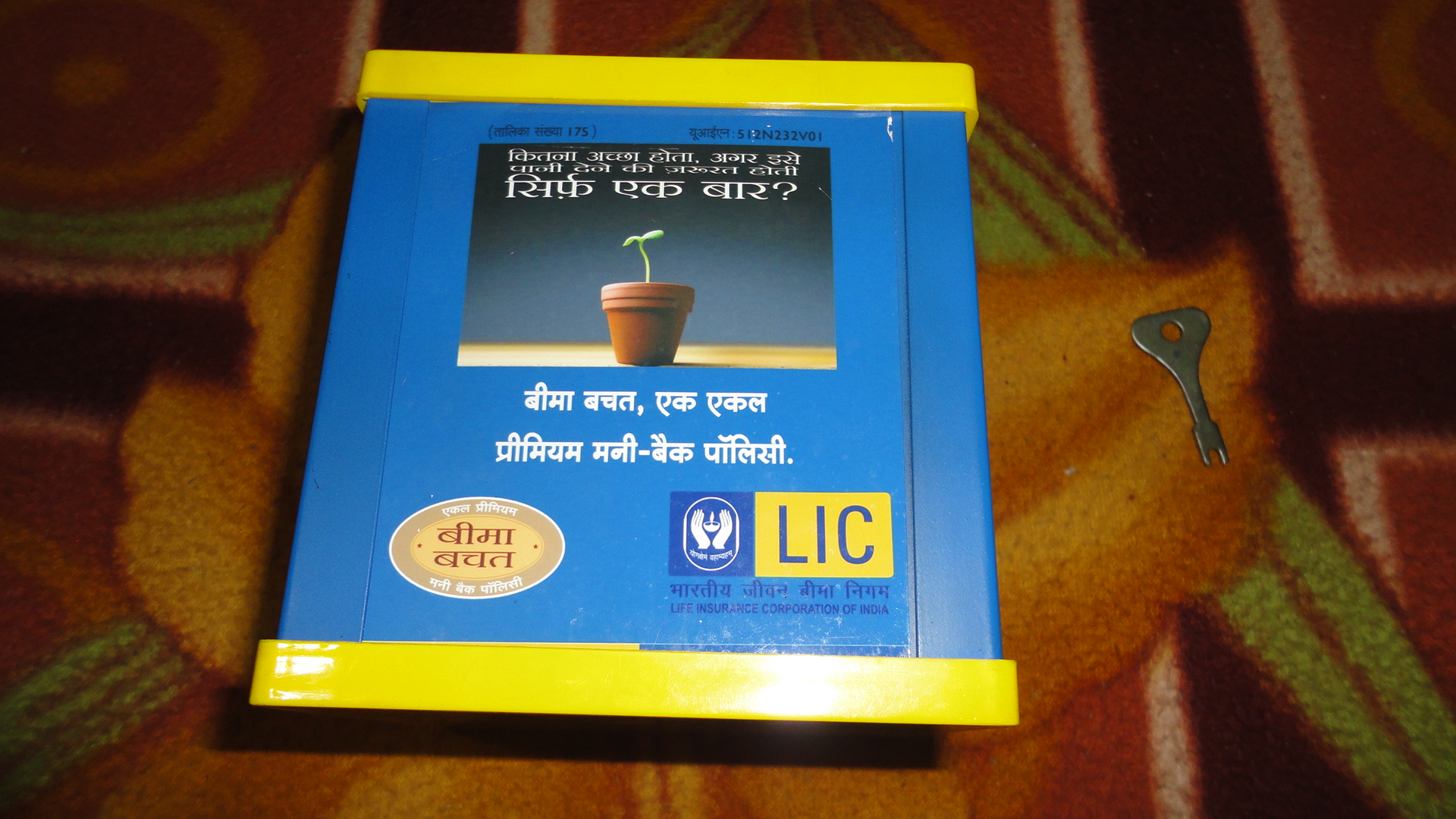

• (x1)-Piggy Bank (Most Important)
• (x1)-Power Bank
• (x1)-Foam Sheet

For the Joule Thief we need-

• (x2)-5m Wires
• (x1)-Ferrite Toroid Ring (If you got this then bring only 2-1m wires)
• (x1)-A Pen
• (x1)-Perfboard
• (x1)-1k Resistor
• (x1)-2N2222 Transistor
• (x1)-6v Zener Diode (Or 5v If you got)
• (x1)-0.01 uf Ceramic Disk Capacitor
• (x1)-1N0004 Diode
• (x1)-330 uf Electrolytic Capacitor
• For More Info Visit Here

For the Piezo Generator we need-

• (x3)-9v DC Buzzer (see images) (For More Info Visit Here)
• (x1)-Some Wires
• For 5v Regulator we need-
  • (x1)-L7805CV Transistor
  • (x2)-10 uf Electrolytic Capacitor
  • (x1)-0.1 uf Ceramic Disk Capacitor
  • (x1)-USB Cable

For the CD Drive Dynamo Generator we need-

• (x1)-CD Drive Assembly (see images) (For More Info Visit Here)

For the Phone Stand we need-

• (x1)-Rubber Band (Big one)

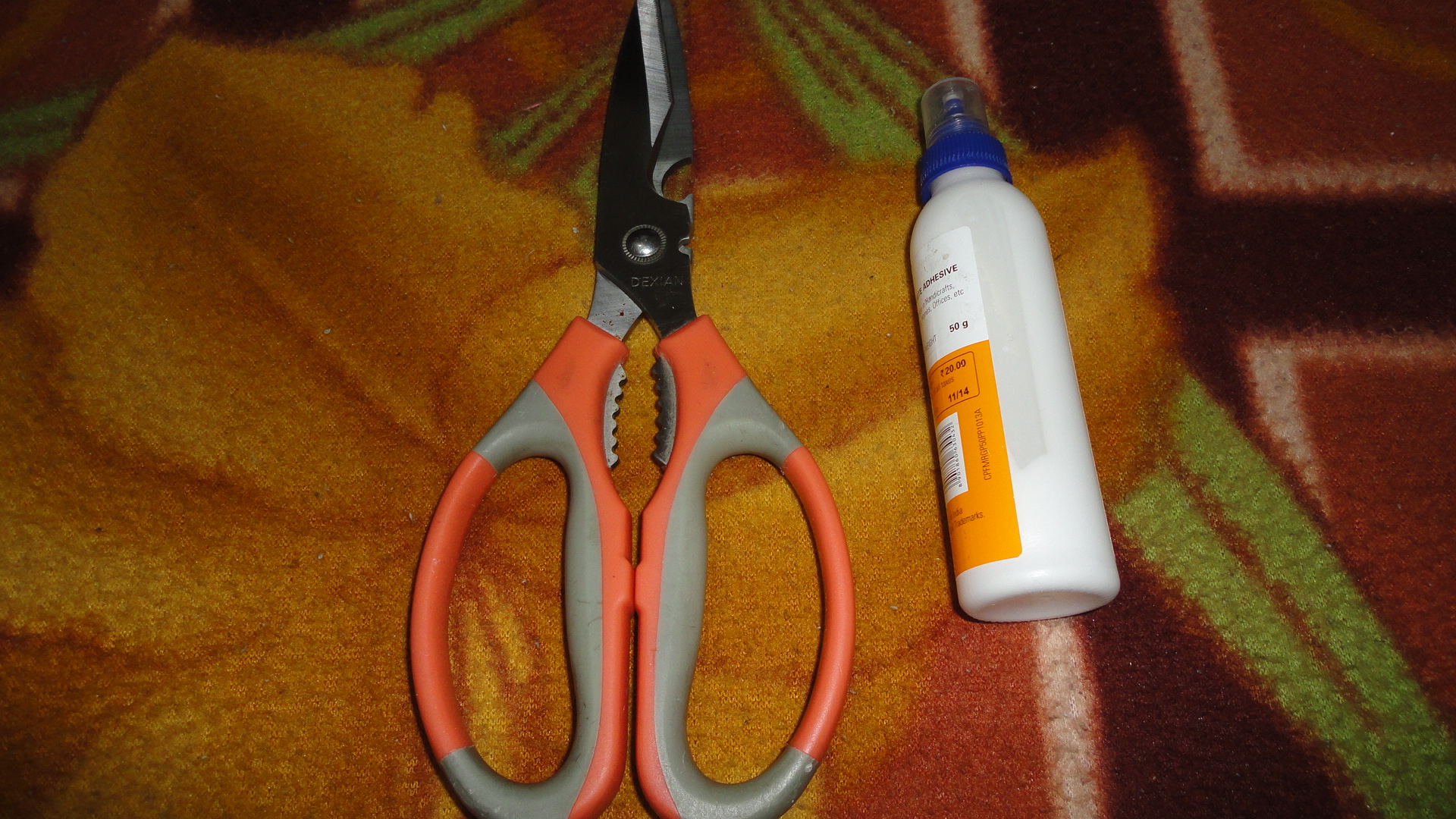

Tools Needed-

• Soldering Iron
• Pliers
• Wire Cutter
• Glue
• Hot Glue
• Tape
• A pair of Scissors
• Dremel
• Multimeter
• 9v Battery (for testing purpose)

Now let's Work on this Interesting project....

Let's start making the circuit of this joule thief...

See the circuit above and the place all the components on a perfboard...

Firstly add all the capacitors followed by the resistor and the transistor....

Now place the diodes...

After placing solder all the components at their place with the respective circuit...

Attach wires for input, output and then attach the wires for the ferrite toroid....

For more information visit here....

After making Circuit let's move to next step....

If you haven't got a ferrite toroid like us then follow this step but if you have got then follow this ible....

First take the pen with a diameter roughly equal to the diameter of AA Cell...

Then Start Coiling the wires around the pen in a group of 2 as shown in images...

Continue to coil the wire till 5 meters of a wire (means 10m altogether) end..

Tape All the coil stiffly to ensure that it does not bends...

Then slide out the pen to get a coil...

For More Info visit Here

UPDATE- We have made a small coil using two copper wires..

Visit the link above for more Information...

Now take the PCB and the coil...

Solder the wires from the PCB to the coil as shown in the circuit..

Now keep this unit aside and now let's start working on the piezo generator...

Want to ask some questions ask them here

First Take all the buzzers and break apart their bodies...

Be Careful to not to harm their circuits.

For Making Your Own Buzzer Circuit if you have broken it or could only find the piezo plates visit here or see the circuit diagram above..

Now cut off the circuits from two piezo plates as we do not need these circuits...

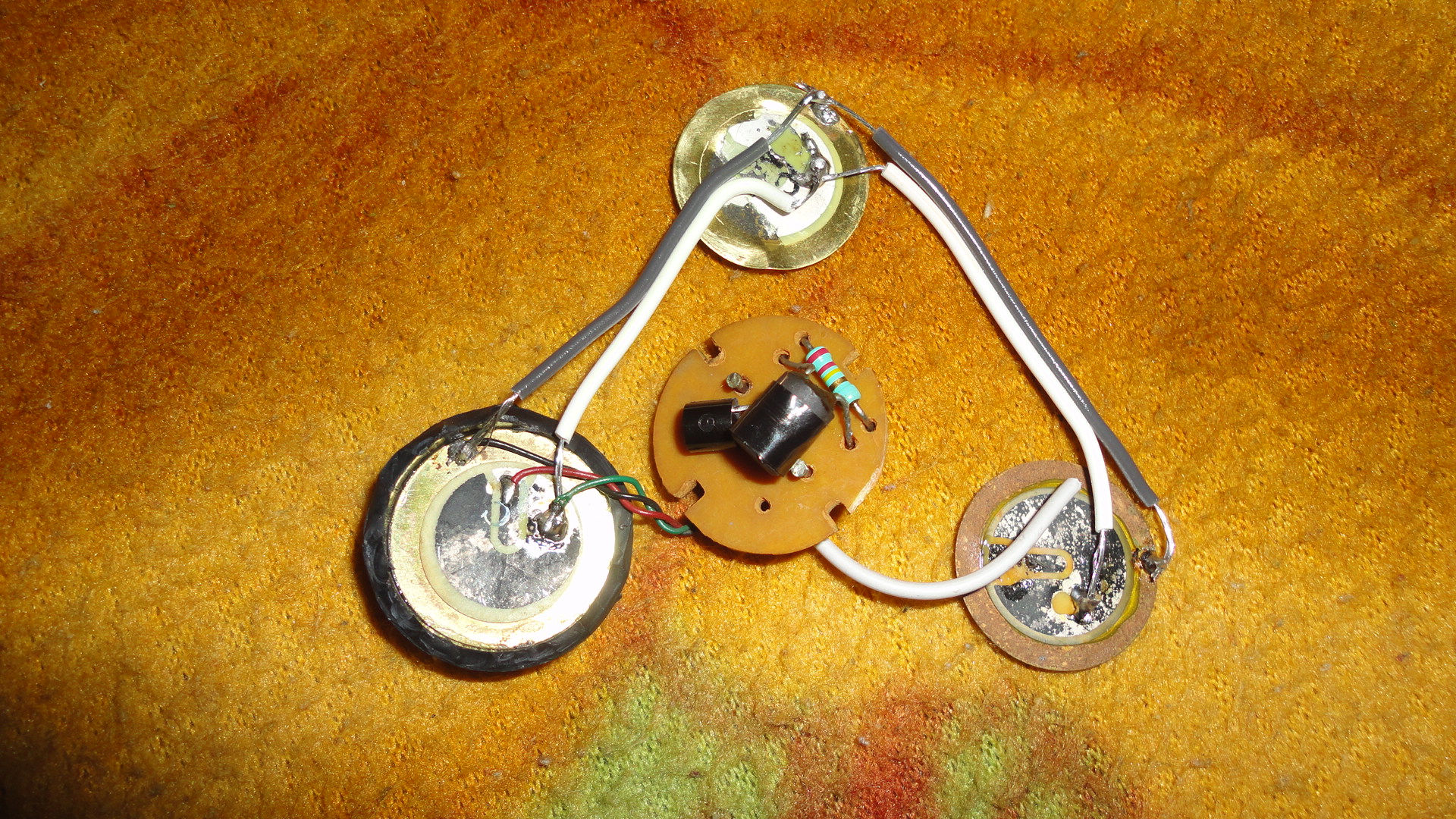

Now solder all the piezo plates parallely which means that connect all the three wires of a piezo to the another on its place like + to + and - to -....

Now glue a piece of foam to every plates as shown in the images...

After gluing the foam move to the next step...

This video shows you the working of the Piezo Generator....

Take Both the capacitors and and the transistor and place them on the perfboard as shown in the images...

Now solder them accordingly to the circuit...

Make sure that your circuit works with a multimeter and a 9v battery....

If everything works alright just put it aside and move to the next step...

Now take the CD Drive Assembly And take the wires from the motor which is connected to the gearbox as shown in images...

Now with the help of multimeter measure the voltage produced by dynamo...

It should be 4-6v.....

Now let's move to the next step...

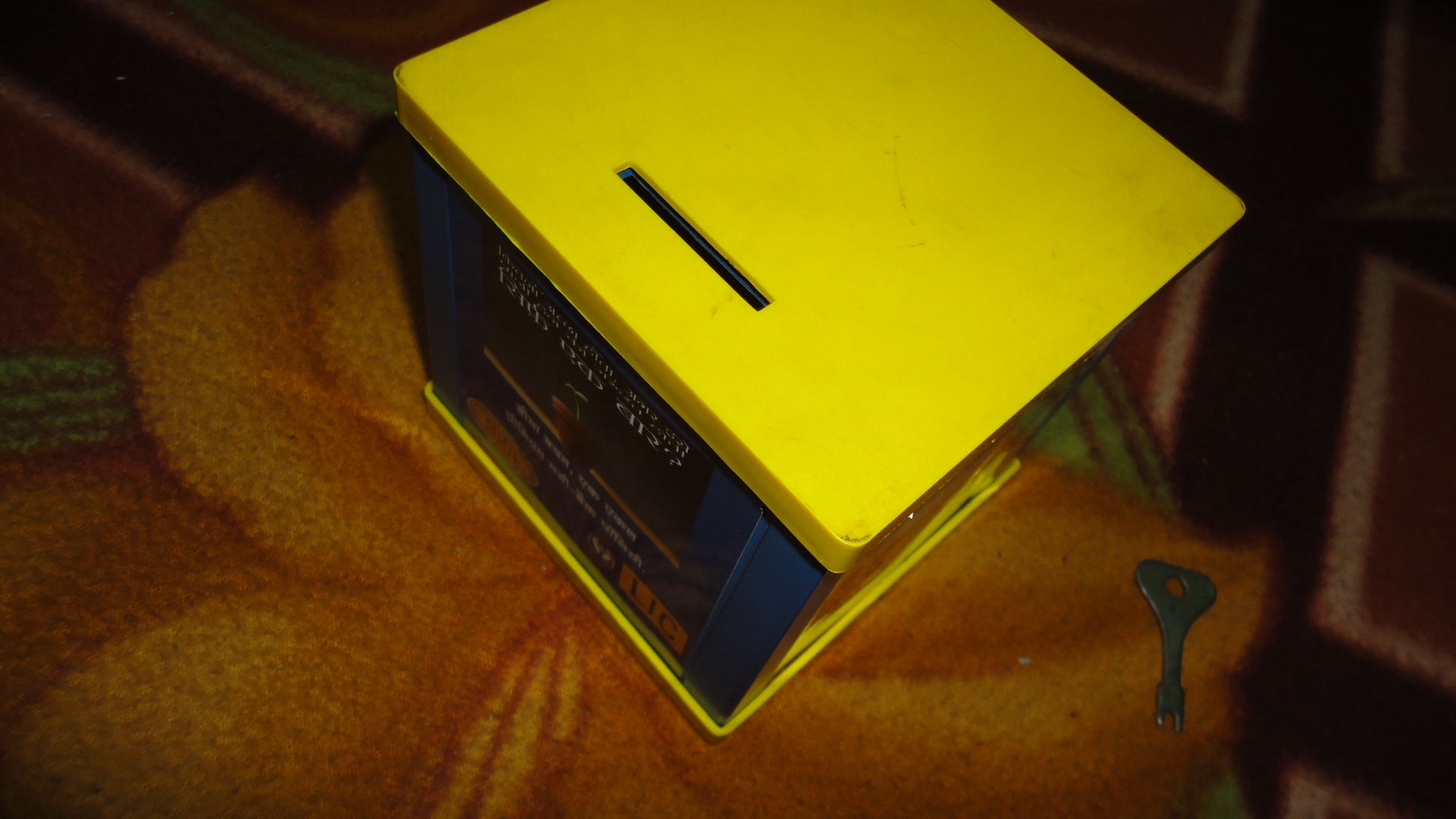

Now take the piggy bank...

First open it up....

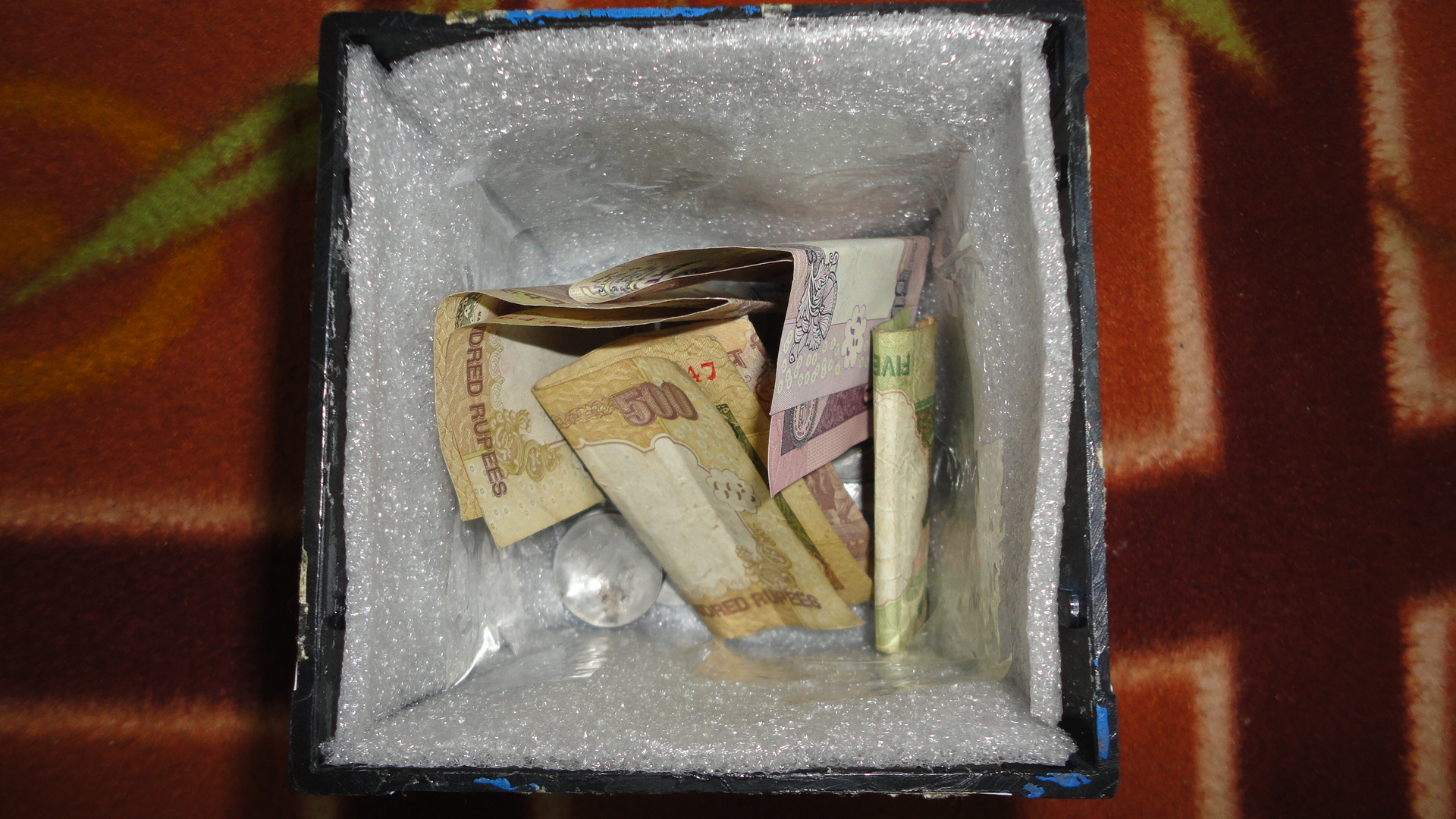

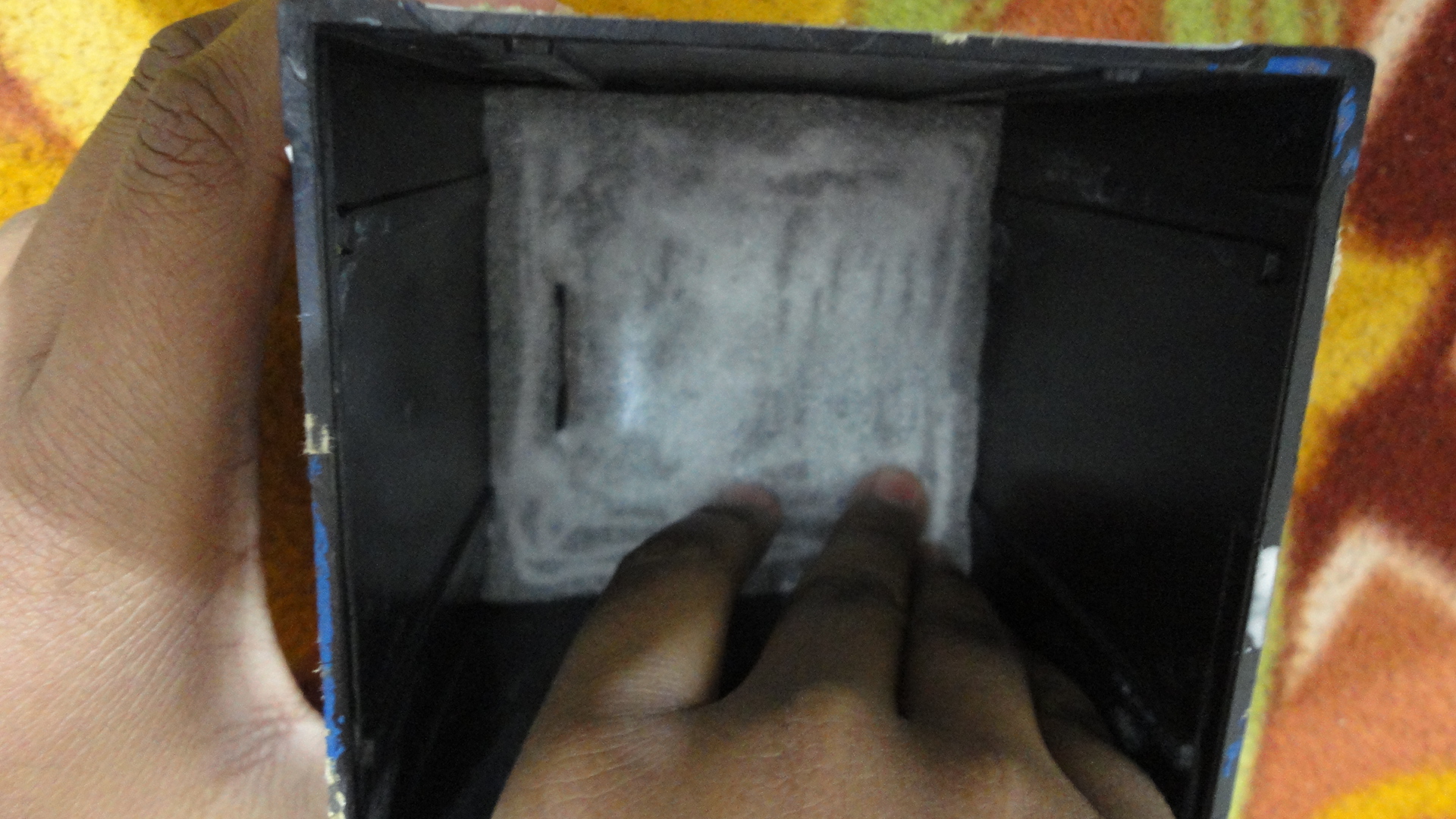

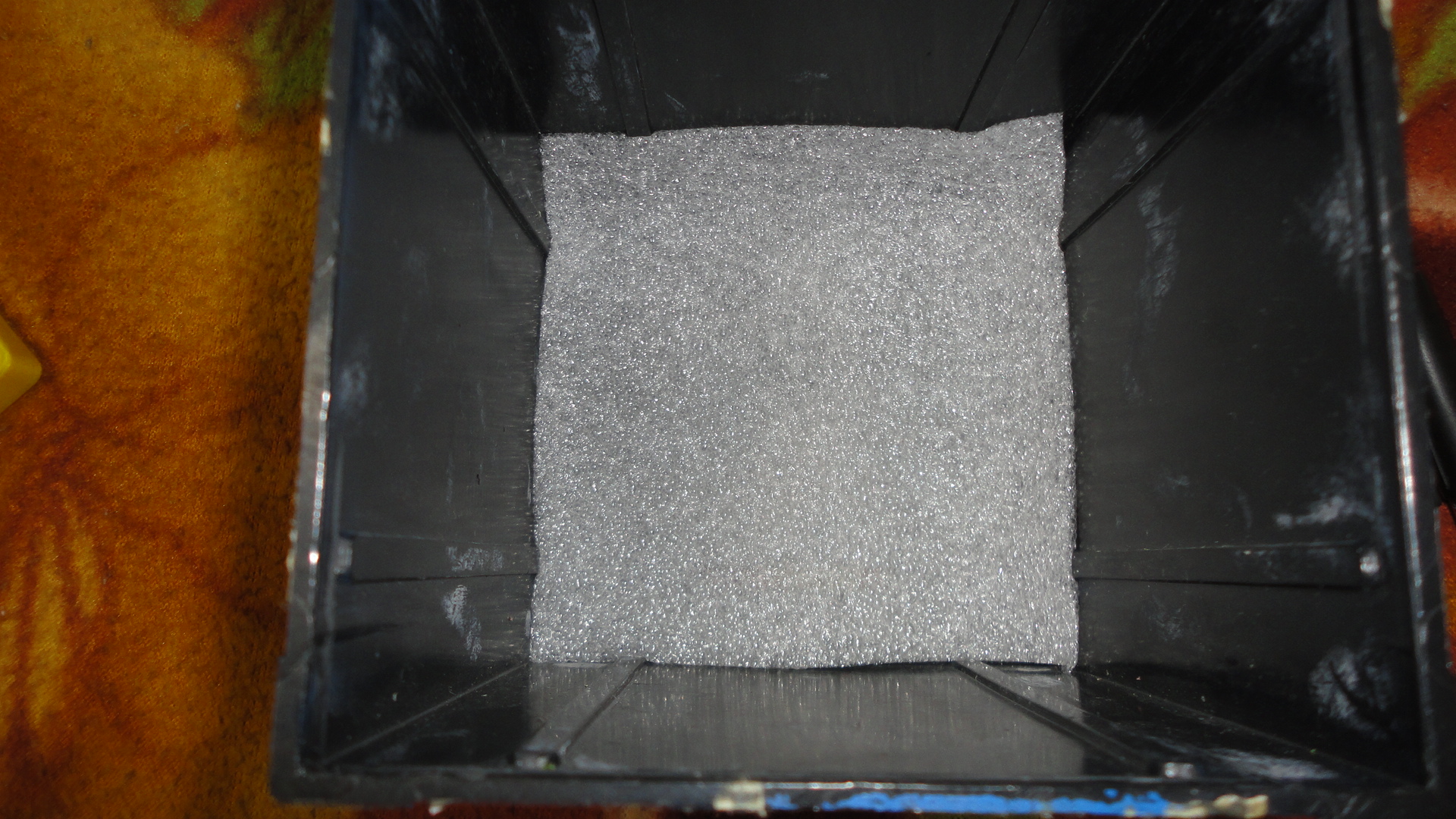

Then take the foam sheet and add padding to the inner sides of the piggy bank...

Now take the base of the piggy bank and attach the piezo plates to it as shown in images...

Now take the wires from the Piezo plates and attach them to the joule thief input....

Then take the Joule Thief output wires and attach it to the 5v regulator..

Now take the CD Drive Dynamo and attach its output wires to the same 5v regulator...

Now take the output wires from the 5v regulator and attach a Micro USB To it...

Now Connect the Micro USB to the Power Bank...

Now enclose everything as shown in images...

Take the rubber band and slide it through the piggy bank and put your smartphone in it as shown in the images...

Now your DIY Piggy Bank Smartphone Charger is Ready so you can now use it on your own or gift it to someone as we did it to our Mom....

Now just put it on your work space and you can charge your phone by saving money....

For future we think to add solar panels and and some peltier plates to enhance its functionality...

Thanks for Watching And if you like this idea please vote us by clicking in the top right corner of this page where a vote button appears...

Thank You And Have A Nice Day!!☺☺☺☺
