Pi on a Stick!

14, 11:03 AM.jpg
14, 12:05 PM.jpg
14, 11:03 AM.jpg

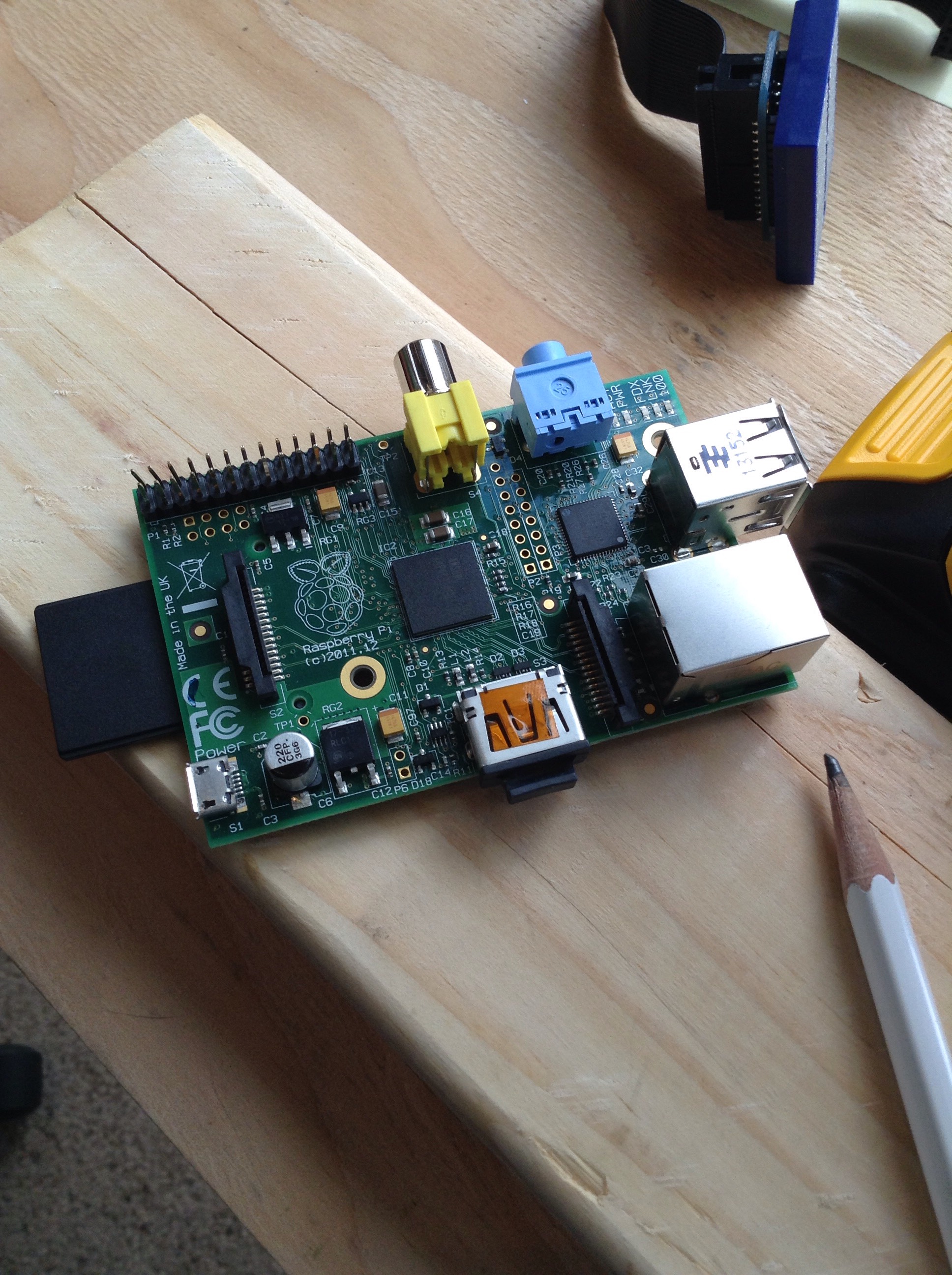

This is a quick project for the Raspberry Pi. It is a quick guide on how to mount a Raspberry pi on a piece of wood.

Materials for the Project

14, 11:03 AM.jpg
14, 11:03 AM.jpg
14, 12:05 PM.jpg
What you need
Wood
Drill
Screws
Nuts
Raspberry Pi
Breadboard
Just a little bit of common sense!!! ;)

Measure the Holes on the Pi

14, 11:02 AM.jpg
14, 11:02 AM.jpg
So measure the holes on the Pi and drill the holes!

Then You Put the Screws on the Pi and Knuts on the Screws!

14, 11:02 AM.jpg
14, 11:02 AM.jpg
So put the screws on the Pi and the knuts on the screws.

Screw the Screws Down Into the Wood

14, 12:05 PM.jpg
14, 12:05 PM.jpg
14, 12:06 PM.jpg
14, 12:06 PM.jpg
14, 12:07 PM.jpg
Just screw down the Pi and BE CAREFUL NOT TO SCREW DOWN TO HARD!!!!! It will snap!!!

Optional- Adding a Bread Board!

14, 12:09 PM.jpg
14, 12:09 PM.jpg
Simply place the board on the wood and screw down around the outside of the board!
