Photography Box

by FABLABJubail in Workshop > Lighting

6579 Views, 77 Favorites, 0 Comments

Photography Box


2D Design

Zone Instructables Project l FABLAB Jubail Female Section

For This Project You Will Need:


Project Description

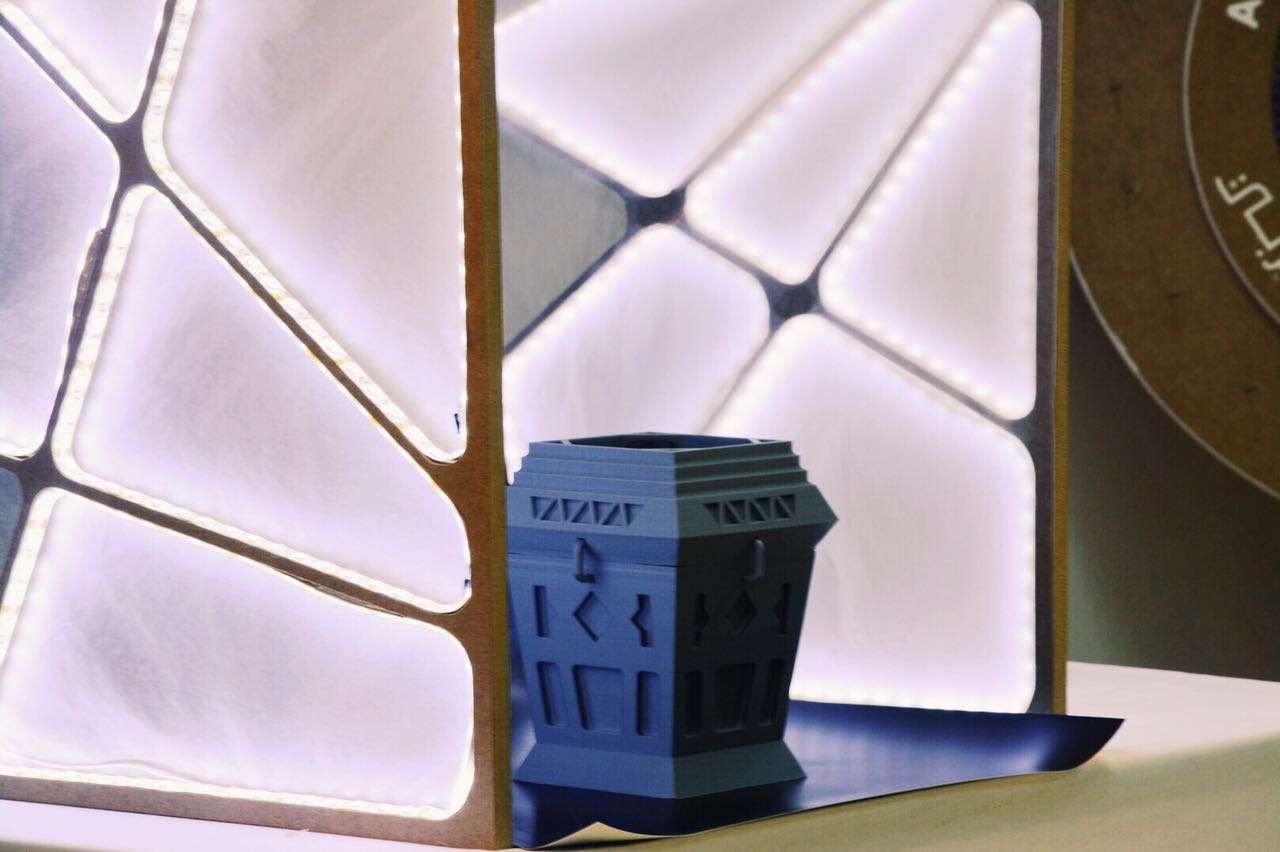

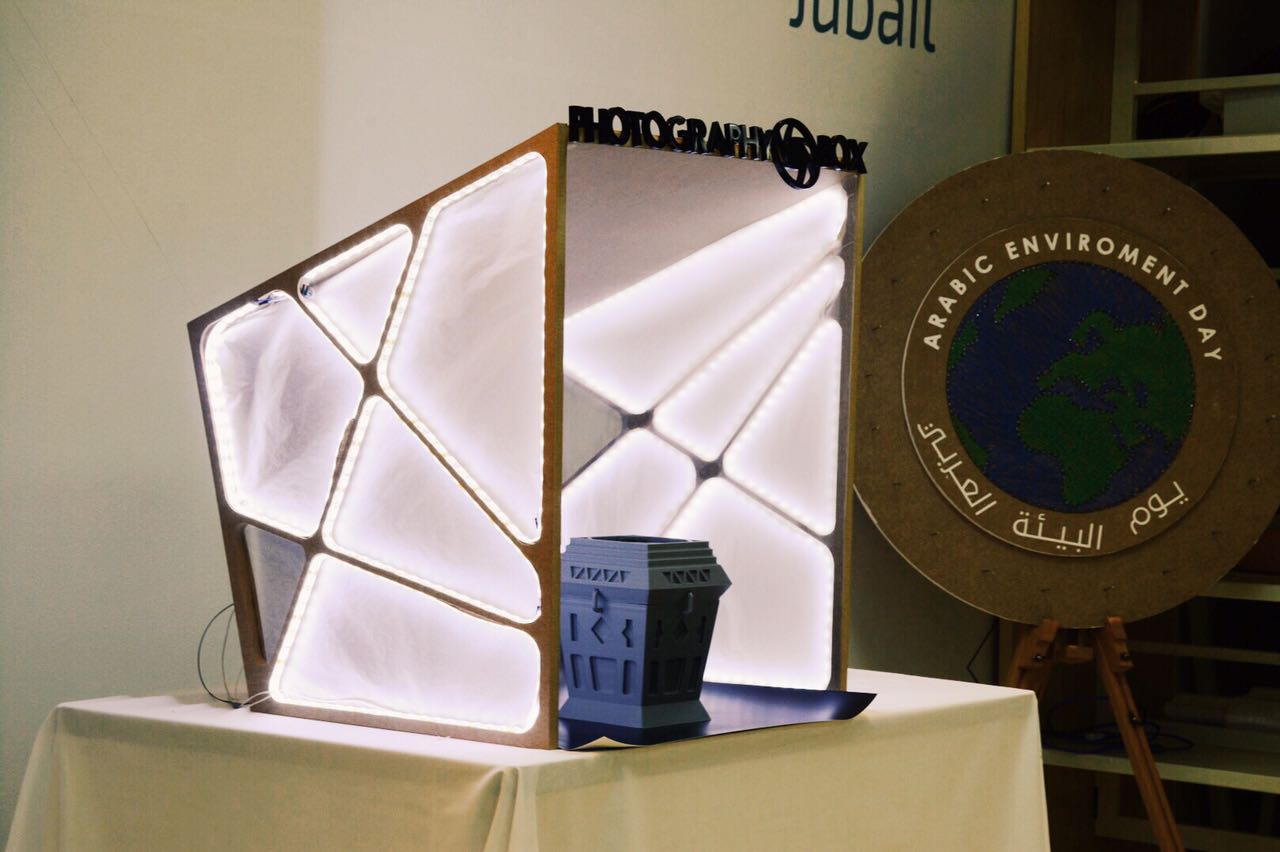

The photography box was done to show the prototypes in a better view of lighting and to show all details of the object. The design of the box was inspired by the logo of Fablabjubail. The project was done by the CNC machine, where the pieces of wood was cut according to the design, and was put together to make a whole box. The LED light was glues to the wood base, and programmed by sensor to work when an object was placed in front of it. The white transparent trash paper was placed in the box to show a better view of the object when photographed & to reduce the brightness of LED strips.

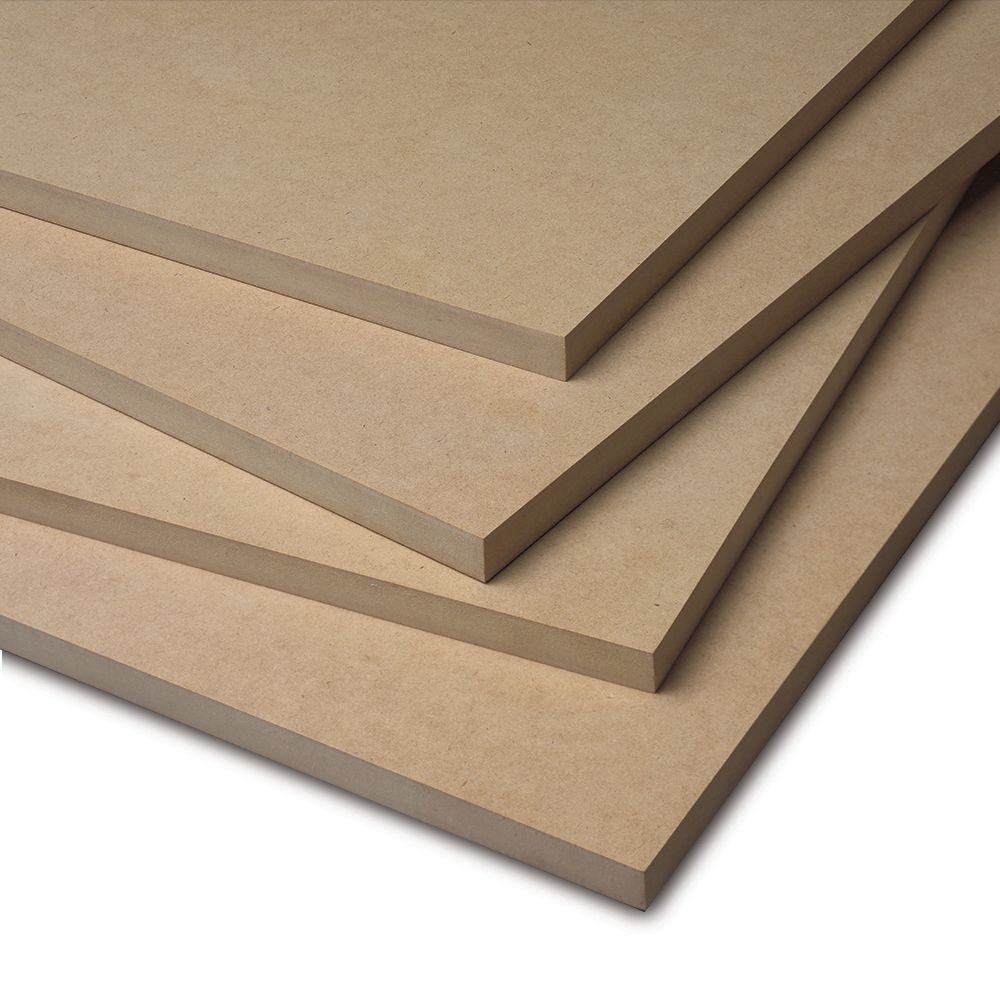

1. Cutting Photography Box Sides

photography box-Model.jpg

2. Installation

2016-08-28 16.22.51 (1).jpg

By using wood glue up jig!

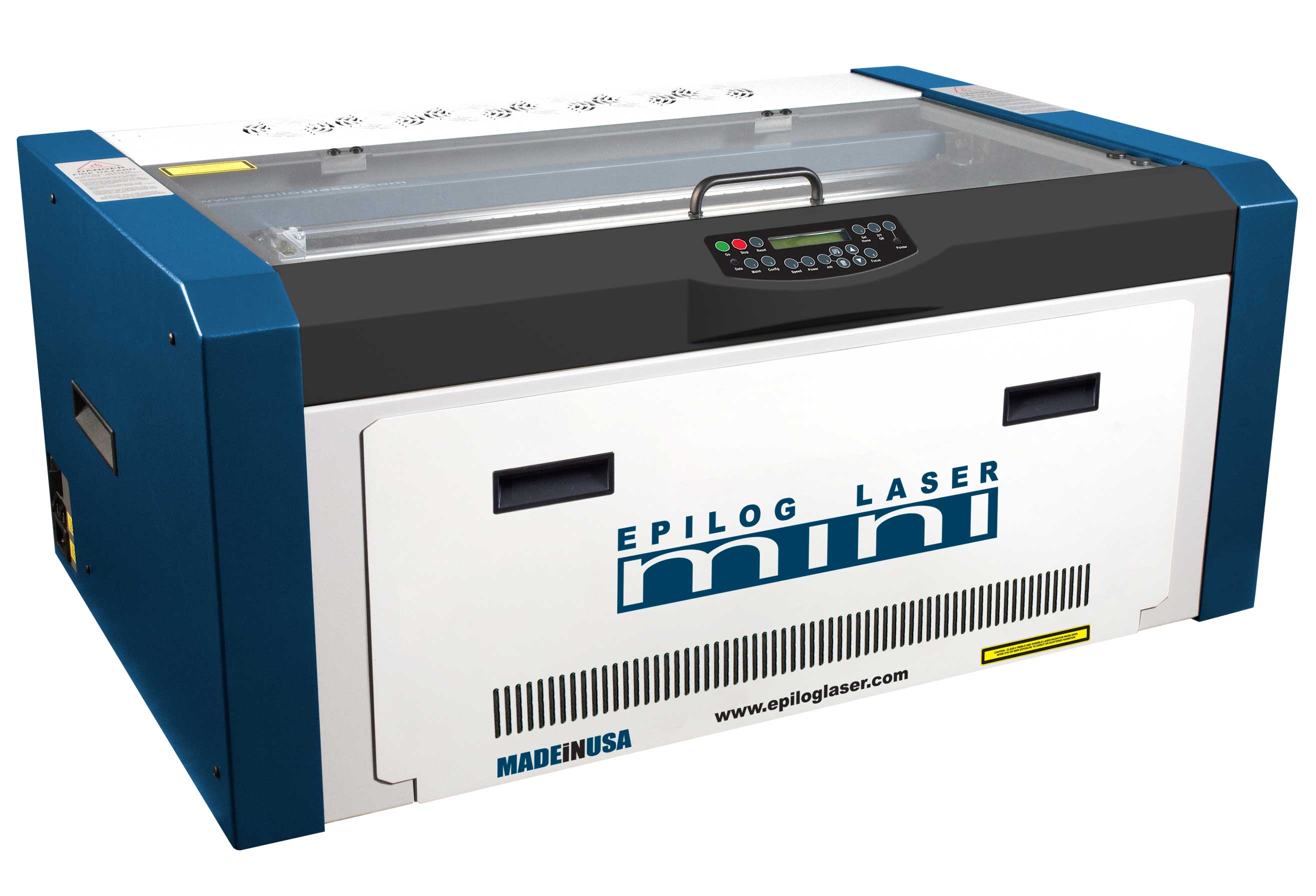

3. Labeling by Using Laser Cutter

PHOTOGRAPHY BOX.jpg

4. Electronic Part

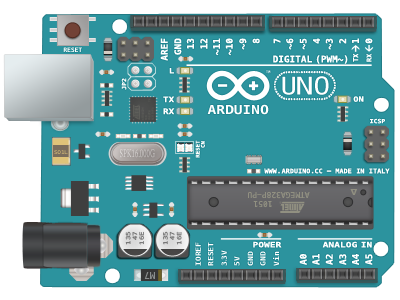

The LED light was glues to the outside edges, and programmed by sensor to work when an object was placed in front of it in a certain distance. (You can just copy & paste the codes to have same result)

//ULTRASONIC SENSOR
CODE

#include

const int trigger = 11; const int echo = 12; int distance; long duration;

void setup() {

pinMode (13, OUTPUT); pinMode (trigger, OUTPUT); pinMode (echo, INPUT); Serial.begin(9600);

}

void loop() { //At the beginning, the trigger must be set low digitalWrite(trigger, LOW); delayMicroseconds (2);

digitalWrite(trigger, HIGH); delayMicroseconds (10); digitalWrite(trigger, LOW);

//pulseIn function reads if a pin is either high or low //echo pin outputs the time it took the wave to hit the object and comeback in microseconds (us) duration = pulseIn (echo, HIGH);

//Speed of sound = 340m/s or 0.034cm/us

//Distance will be in
cm distance = duration * 0.034/2;

Serial.println("distance "); Serial.println(distance); delay(500);

if (distance <=45){

while (distance <=45) { digitalWrite(13,HIGH); delay(1000); digitalWrite(trigger, LOW); delayMicroseconds (2);

digitalWrite(trigger, HIGH); delayMicroseconds (10); digitalWrite(trigger, LOW);

//pulseIn function reads if a pin is either high or low //echo pin outputs the time it took the wave to hit the object and comeback in microseconds (us) duration = pulseIn (echo, HIGH);

//Speed of sound = 340m/s or 0.034cm/us //Distance will be in cm distance = duration * 0.034/2;

Serial.println("distance "); Serial.println(distance);

} } else digitalWrite(13,LOW);

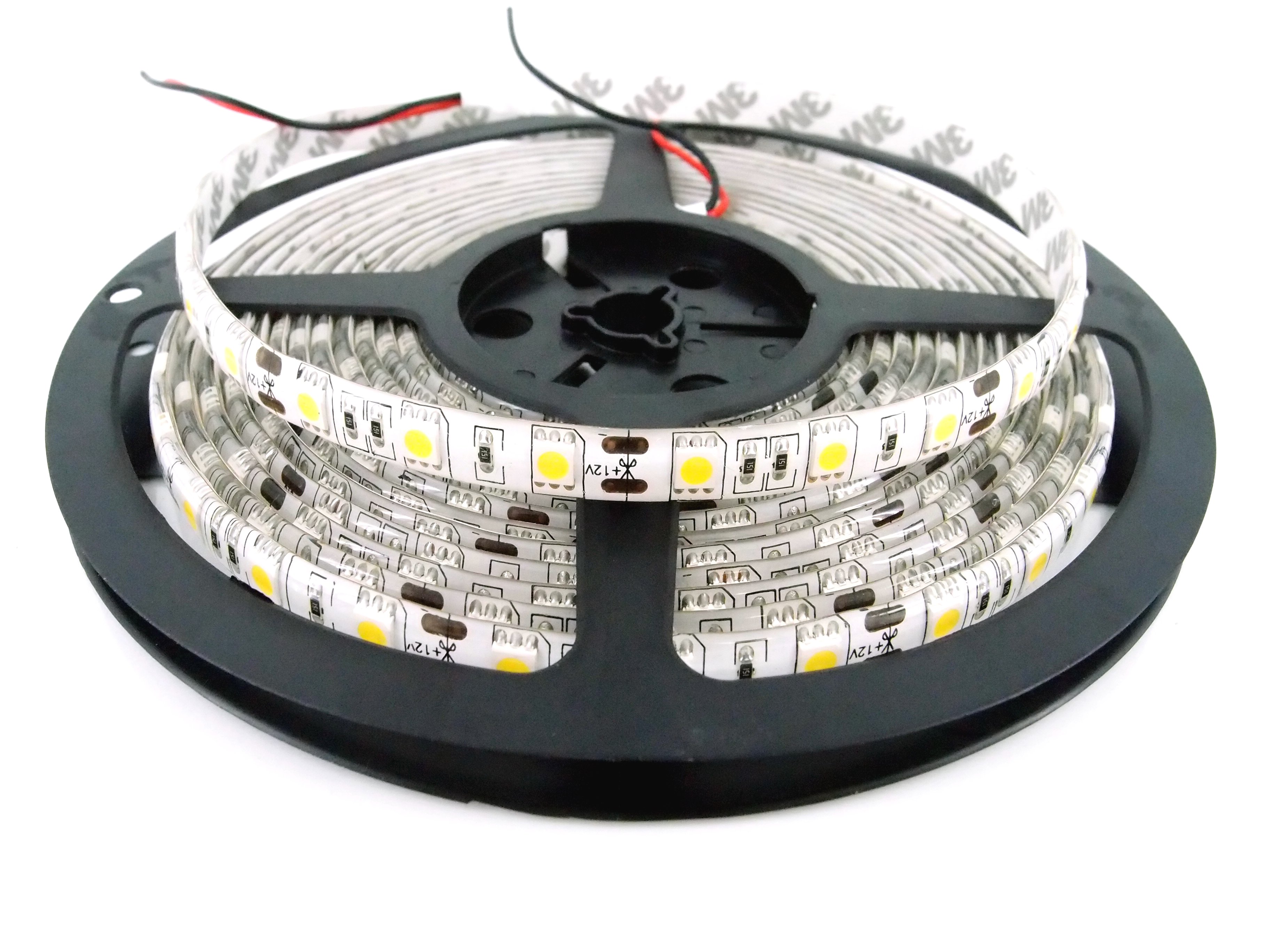

5. Installing LED Strips at the Edges From Outside Object

IMG_9346 (1).JPG

6. Installing Trash Wight Paper From Inside to Reduce the Brightness of LED Strips


7. Print Out Your Background Banner


46 cm * 80 cm

(Matt material, neutral colors) & then attach it to your box.

ENJOY PHOTOGRAPHING YOUR AWESOME WORK!
