Photoelasticimetry : Seeing Mechanical Stress With Optics

Photoelasticimetry is a way to visualize strains in materials. In this Instructable, we will see how you can do some samples to experimentally determine the stress distribution in some materials under mechanical load !

A "birefringent" material is a material in which the refractive index (i.e. the speed of light) depends on the polarization and propagation direction of light.

When you apply some mechanical stress, the birefringence of the material changes locally depending on the strain, and at some points it acts like a "wave plate" that change the polarization state of the light.

A "polarizer" is an optical component that only let some types of polarization to pass through it. If you superpose two "linear" type polarizers oriented in the perpendicular directions, the light will be blocked but if you add a "wave plate" conveniently oriented between them, the light will pass through and you will see light.

Combining these two effects allows to see in real-time different colors that pass or not (as the modification of polarization also depends here on the wavelength of light)

To better understand how a wave plate allows to change the polarization of light, you can read the following article :

https://en.wikipedia.org/wiki/Waveplate

The photoelasticimetry article also goes further than my lightweight explanation :

https://en.wikipedia.org/wiki/Photoelasticity

Here are some frames and samples I imagined to visualise frames

Thanks to a french I.U.T. Fablab in the city of Cachan (at the south of Paris), the InnovLab ( http://innovlab-iut-cachan.blogspot.com/ ), I had the chance to have access to a waterjet cutter in order to realize the frames !

http://innovlab-iut-cachan.blogspot.com/2018/10/po...

If you want to do the sames, you could water cut them or maybe use others types of C.N.C. machining. Here, I used a 12mm thick aluminum material.

Then, you can drill some holes and tap them to add some screws that will help you to press the samples. You can also do a mechanical deformable structure that will locally press your sample.

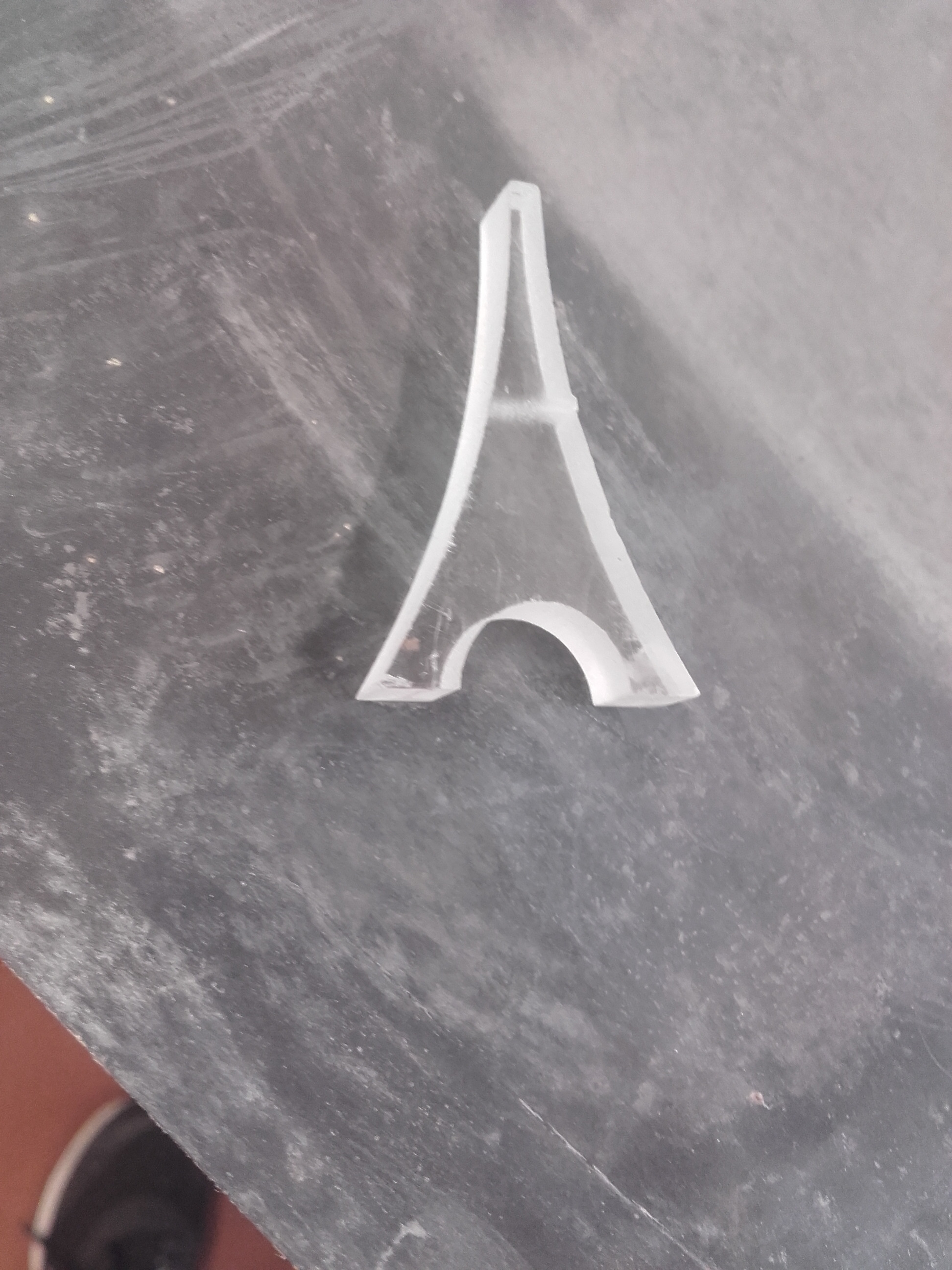

You can also cut some samples (some bars, or an Eiffel-like tower) in plastic (I successfully used some 7mm thick PolyCarbonate sheet, glass also works but breaks more easily)

Put your sample in the frame and view it between an L.C.D. screen (that emit polarized light) and a polarizer (I got mine there : https://www.ebay.com/itm/123232829944 )

Then apply you strain and watch the colors change.

Enjoy !
