Photocell Sensor Garment

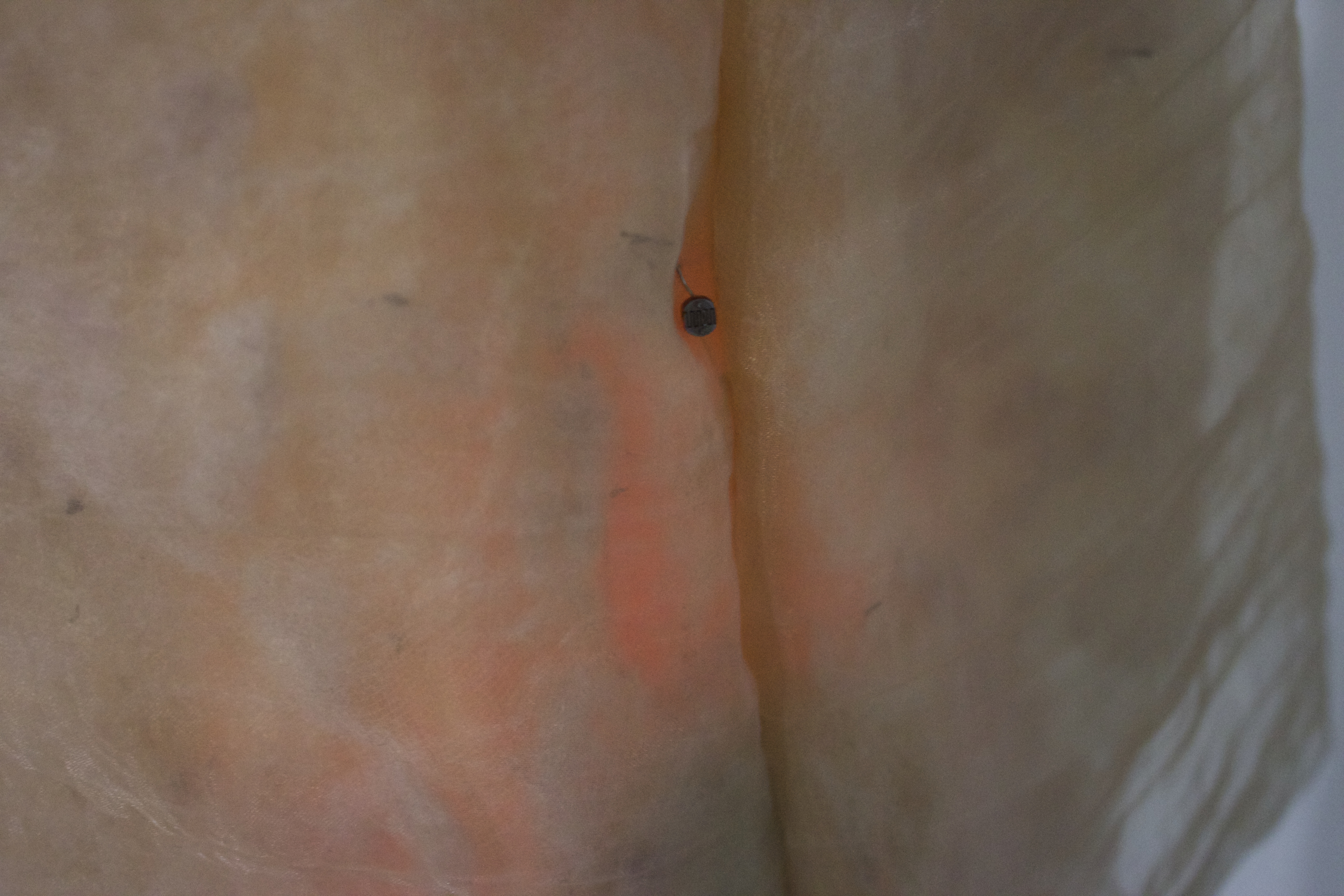

Photocell sensor garment connected to sewable LEDs // Coded with Arduino UNO

Create the Garment


For my garment I used:

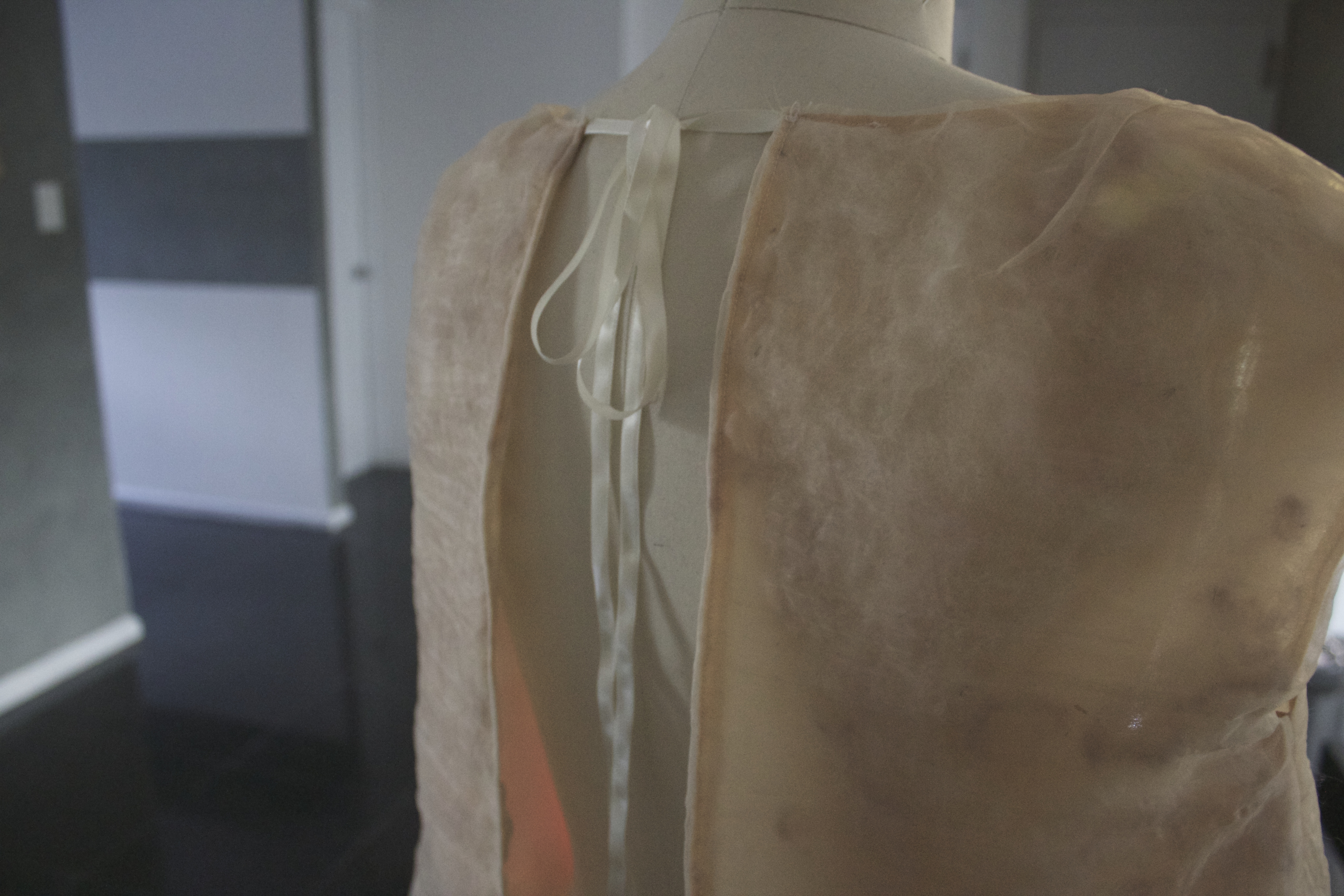

- Organza, wool roving (felted on tulle), and polyester lining with a ribbon to tie the back

Code the Photocell With Arduino + Test It Out


This is the code I used:

// Pins

int sensorPin = A0; int lightPin = 3;

// Variables int lightState = 0; int lowThreshold = 70; int highTreshold = 250;

void setup() { // Start Serial & set pin to output Serial.begin(9600); pinMode(lightPin,OUTPUT); }

void loop() {

// read the sensor: int sensorValue = analogRead(sensorPin);

// If light level is low is detected, switch light on if (sensorValue < lowThreshold){ digitalWrite(lightPin, HIGH); } // If light level goes up again, switch the lights off if (sensorValue > highTreshold){ digitalWrite(lightPin, LOW); }

// read the sensor: sensorValue = analogRead(sensorPin);

// apply the calibration to the sensor reading sensorValue = map(lightState, lowThreshold, highTreshold, 0, 255);

// in case the sensor value is outside the range seen during calibration sensorValue = constrain(sensorValue, 0, 255);

// fade the LED using the calibrated value: analogWrite(lightPin, sensorValue);

}

Sew the LEDs on With the Circuit + the Photocell

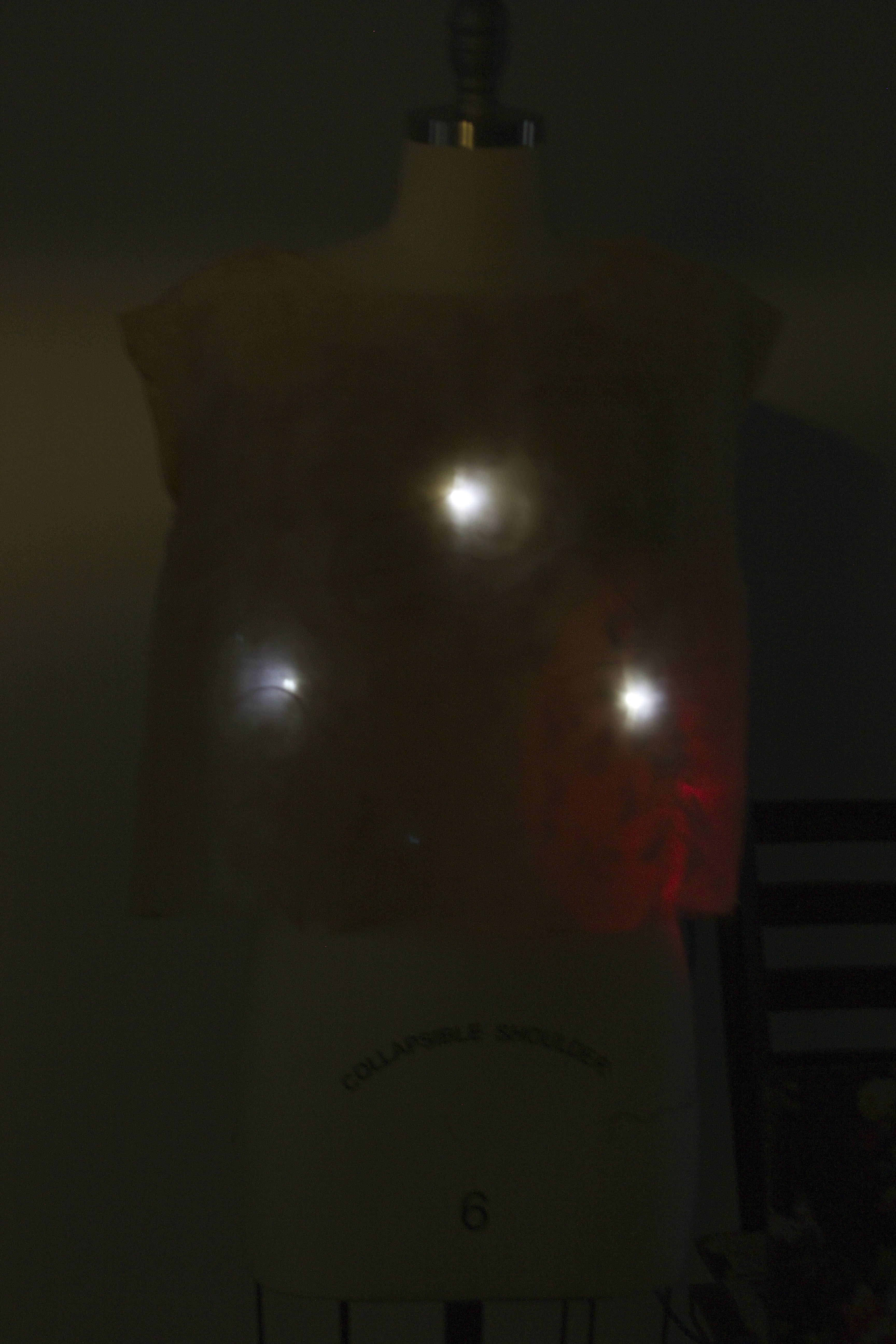

Light It Up!


Video:

https://vimeo.com/166504763
