Phone Light
![DSC00024.JPG](/proxy/?url=https://content.instructables.com/FDU/P57Z/KER3XS70/FDUP57ZKER3XS70.jpg&filename=DSC00024.JPG)
![DSC00028.JPG](/proxy/?url=https://content.instructables.com/F0Z/D9OH/KER3XS7M/F0ZD9OHKER3XS7M.jpg&filename=DSC00028.JPG)
![DSC00029.JPG](/proxy/?url=https://content.instructables.com/FV3/PTLJ/KER3XSWX/FV3PTLJKER3XSWX.jpg&filename=DSC00029.JPG)
![DSC00035.JPG](/proxy/?url=https://content.instructables.com/FIK/K4Z7/KER3XSYL/FIKK4Z7KER3XSYL.jpg&filename=DSC00035.JPG)
![DSC00033.JPG](/proxy/?url=https://content.instructables.com/F9N/TIQX/KER3XSYD/F9NTIQXKER3XSYD.jpg&filename=DSC00033.JPG)
With this project i just want to do a light device for my smartphone.
Supplies
- Led light strip (white).
- Wood box.
- Soldering wire.
- Connection wires.

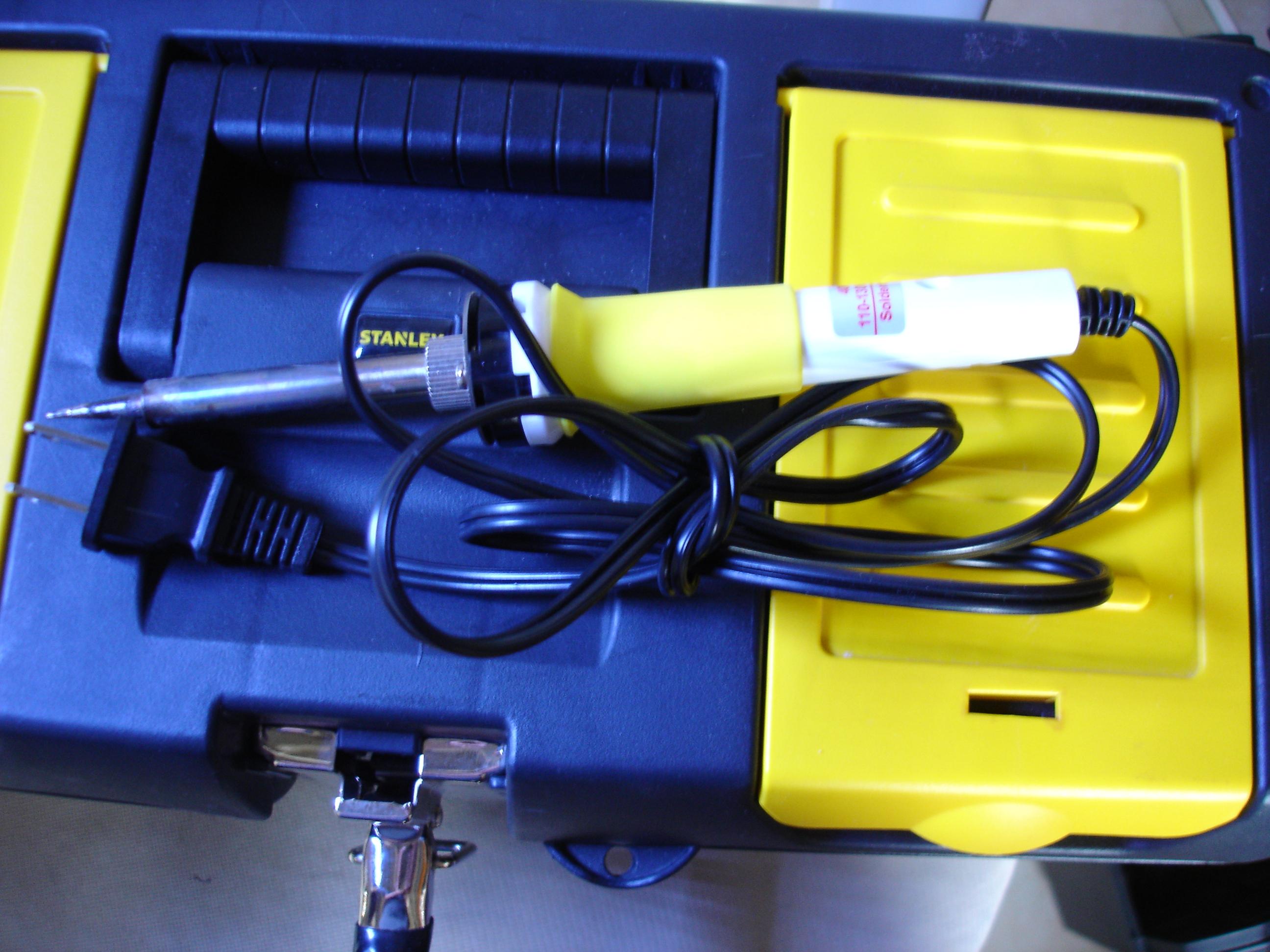

- Soldering gun.
- Some nuts and bolts.

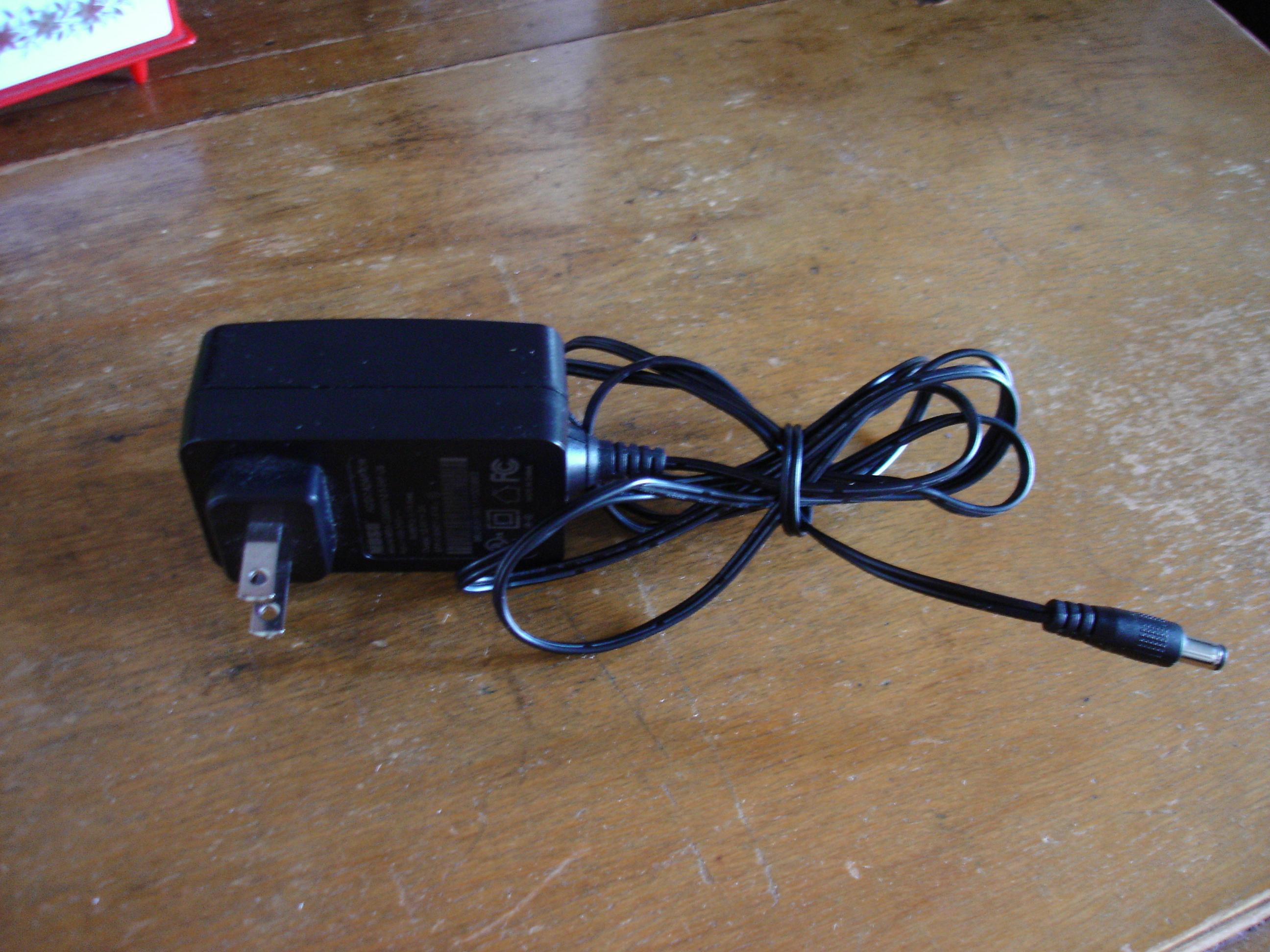

- 12 volt power supply cable.
Procedure
![20200904_140412.jpg](/proxy/?url=https://content.instructables.com/FUY/AR9J/KER3XS86/FUYAR9JKER3XS86.jpg&filename=20200904_140412.jpg)
![20200904_140403.jpg](/proxy/?url=https://content.instructables.com/FE7/53CN/KER3XS8A/FE753CNKER3XS8A.jpg&filename=20200904_140403.jpg)
![DSC00020.JPG](/proxy/?url=https://content.instructables.com/FVK/JC9N/KER3XS6D/FVKJC9NKER3XS6D.jpg&filename=DSC00020.JPG)
![DSC00019.JPG](/proxy/?url=https://content.instructables.com/F3G/VCX9/KER3XS6B/F3GVCX9KER3XS6B.jpg&filename=DSC00019.JPG)
I take the measures of my cell phone and punch a hole trough the wood box. After this i put some white paint over it.
Placing the Lights
![DSC00003.JPG](/proxy/?url=https://content.instructables.com/F2E/4KMB/KER3XS7R/F2E4KMBKER3XS7R.jpg&filename=DSC00003.JPG)
![DSC00005.JPG](/proxy/?url=https://content.instructables.com/FGY/TTY5/KER3XS7V/FGYTTY5KER3XS7V.jpg&filename=DSC00005.JPG)

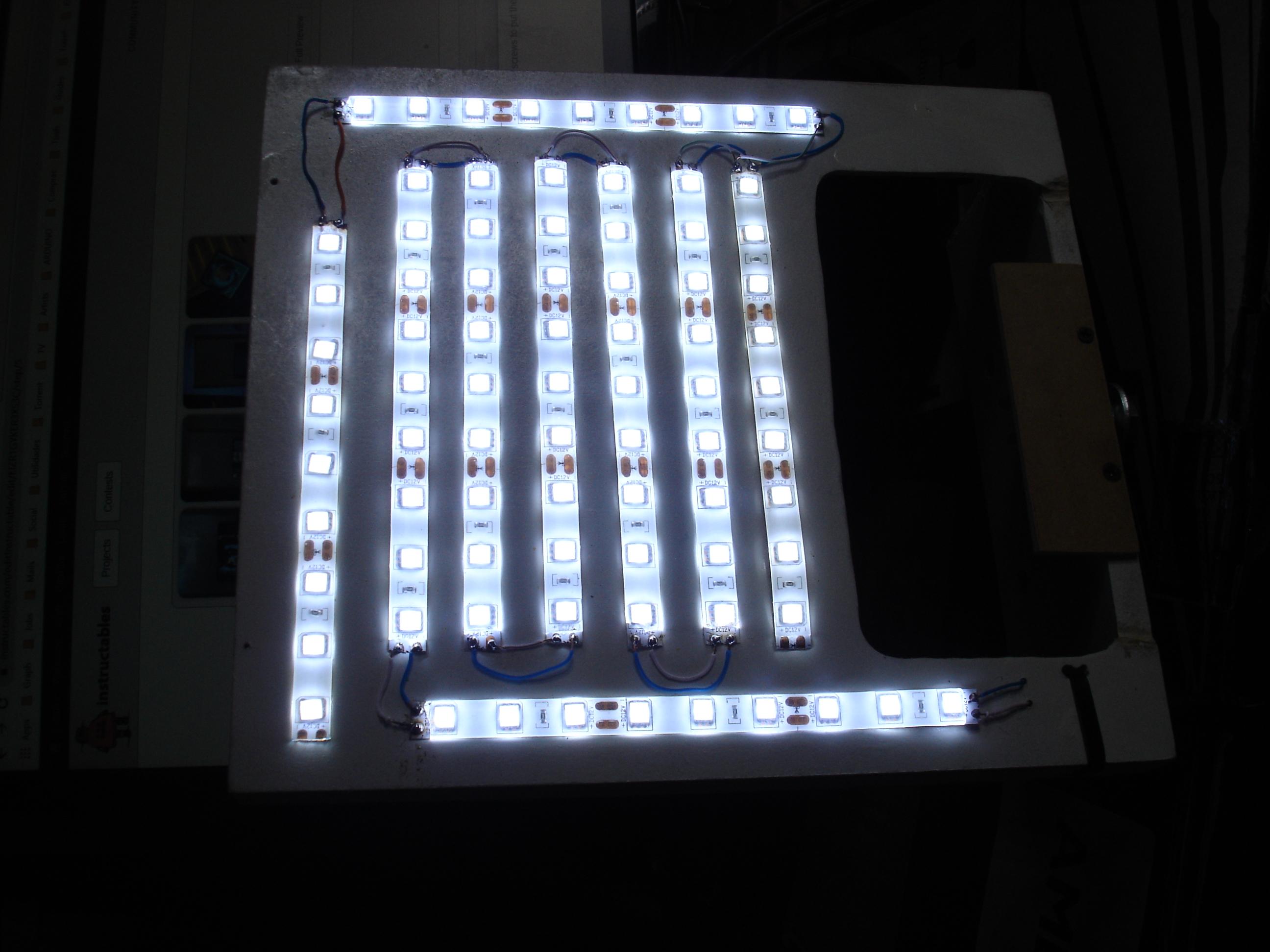

Split the light strip, i divide it in segments of 3 each. Take the total distance of the remaining surface and spread the light segments in a uniform way.
Place the Power Supply Connection
![DSC00023.JPG](/proxy/?url=https://content.instructables.com/F44/ZY5B/KER3XS6N/F44ZY5BKER3XS6N.jpg&filename=DSC00023.JPG)
![DSC00037.JPG](/proxy/?url=https://content.instructables.com/F29/J9FY/KER3XTE4/F29J9FYKER3XTE4.jpg&filename=DSC00037.JPG)
In this step i punch another hole (with a drill) in the lower right part of the wood to place the holder of the 12 volt connection.
Soldering the Lights
![DSC00015.JPG](/proxy/?url=https://content.instructables.com/FTO/Y68L/KER3XS67/FTOY68LKER3XS67.jpg&filename=DSC00015.JPG)
![DSC00043.JPG](/proxy/?url=https://content.instructables.com/FAE/FJPI/KER3XT3J/FAEFJPIKER3XT3J.jpg&filename=DSC00043.JPG)
![DSC00026.JPG](/proxy/?url=https://content.instructables.com/F4C/NW6D/KER3XS74/F4CNW6DKER3XS74.jpg&filename=DSC00026.JPG)
Be careful to place the positive an negative poles of the strip to the same polarity, i usually test the light every time i place soldering wire.
And That's It...
![DSC00006.JPG](/proxy/?url=https://content.instructables.com/FCH/AQ8P/KER3XS5O/FCHAQ8PKER3XS5O.jpg&filename=DSC00006.JPG)
![DSC00045.JPG](/proxy/?url=https://content.instructables.com/FJ0/TOC1/KER3XT3K/FJ0TOC1KER3XT3K.jpg&filename=DSC00045.JPG)
![DSC00040.JPG](/proxy/?url=https://content.instructables.com/F9Q/RTXA/KER3XT2S/F9QRTXAKER3XT2S.jpg&filename=DSC00040.JPG)
![DSC00039.JPG](/proxy/?url=https://content.instructables.com/FU0/HQLH/KER3XT2O/FU0HQLHKER3XT2O.jpg&filename=DSC00039.JPG)

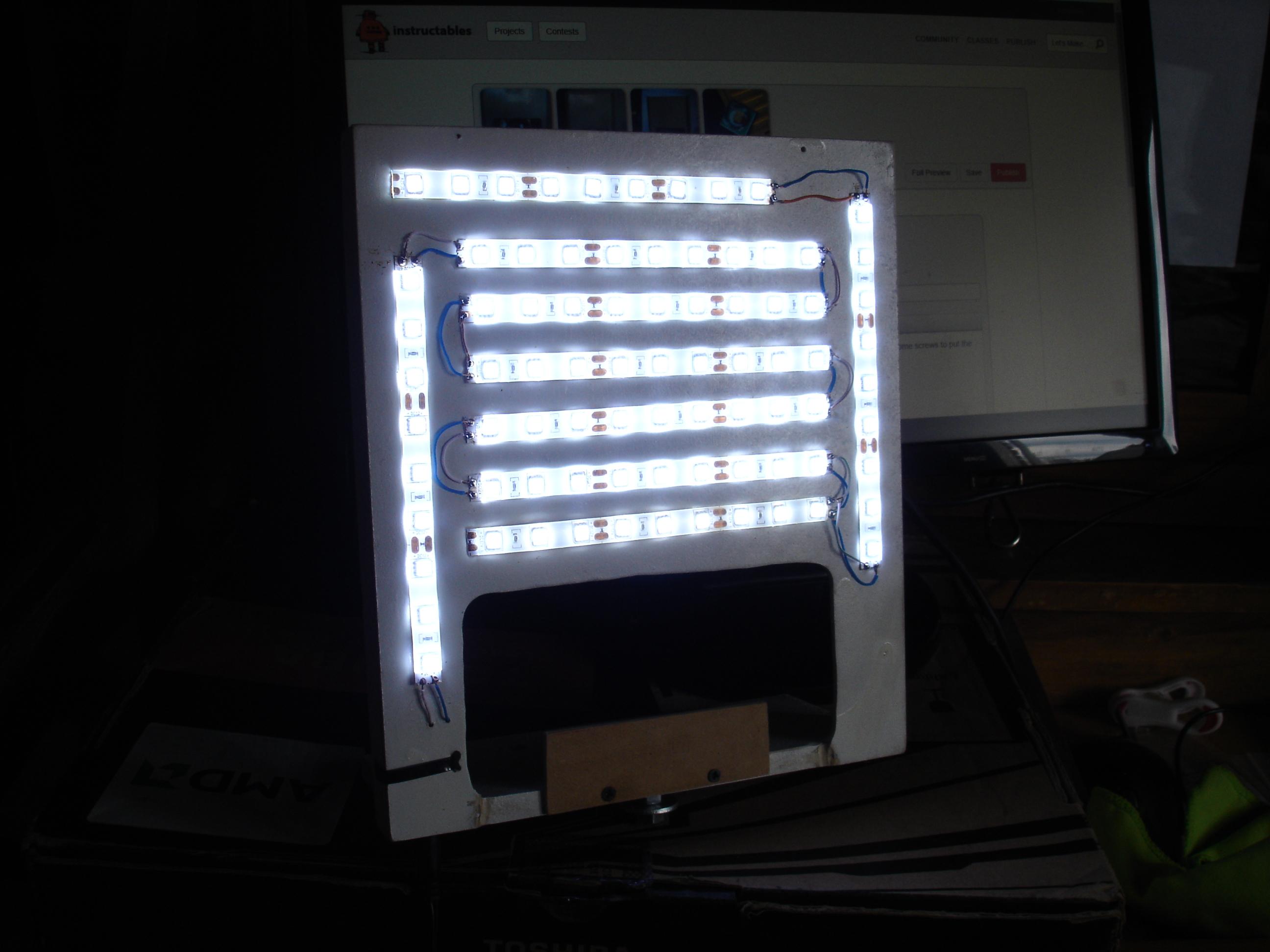

This is the way it look the device when is finished. After that i just try to set up a bolt and some screws to put the light on a tripod.
