Phone Away


This is a product that can allow people to focus more when they need to. Why?

Nowadays, people are addicted to their phones really much. This product could help by keeping the phone in a box, and you can enter the time you want to focus then put your phone in, if you really want to open it, the siren will ring.

It works by Timer + LCD displays how long it takes to unlock. The electric motor used when using the device will cover the phone The horn that will sound at the end of the countdown An alarm will sound after picking up the phone (when the countdown is still counting)

Procedures

- Box that can fit in Arduino and the breadboard x1

- Cardboard x1

- Arduino Leonardo Board x1

- Breadboard x1

- Botton x1

- Motor x1

- LED light x2 (one red, one other color)

- Photoresistor x1

- LCD screen x1

- Resistance x4 (1blue and 3 yellow)

- Wire x19

- Speaker x1

- Scissors x1

- Blade x1

- Tape x1

- Glue Gun x1

Methods

截圖 2021-05-11 下午1.32.23.png

1. Build the wire as the picture shown.

2. Cut 7 holes in total on the box.

3. Stick the motor on the side of the box.

4. Stick the cardboard on the side that the motor will turn.

5. Copy the code in the next step.

6. Connect your laptop and Arduino together then it's done!

(The first two pictures are the outlook of Arduino, the first one is the top, and the second one is the side.)

Code

截圖 2021-05-11 上午10.47.12.png
截圖 2021-05-11 上午10.47.21.png
截圖 2021-05-11 上午10.47.28.png
截圖 2021-05-11 上午10.47.40.png
截圖 2021-05-11 上午10.47.50.png

Final Product

May 11, 2021

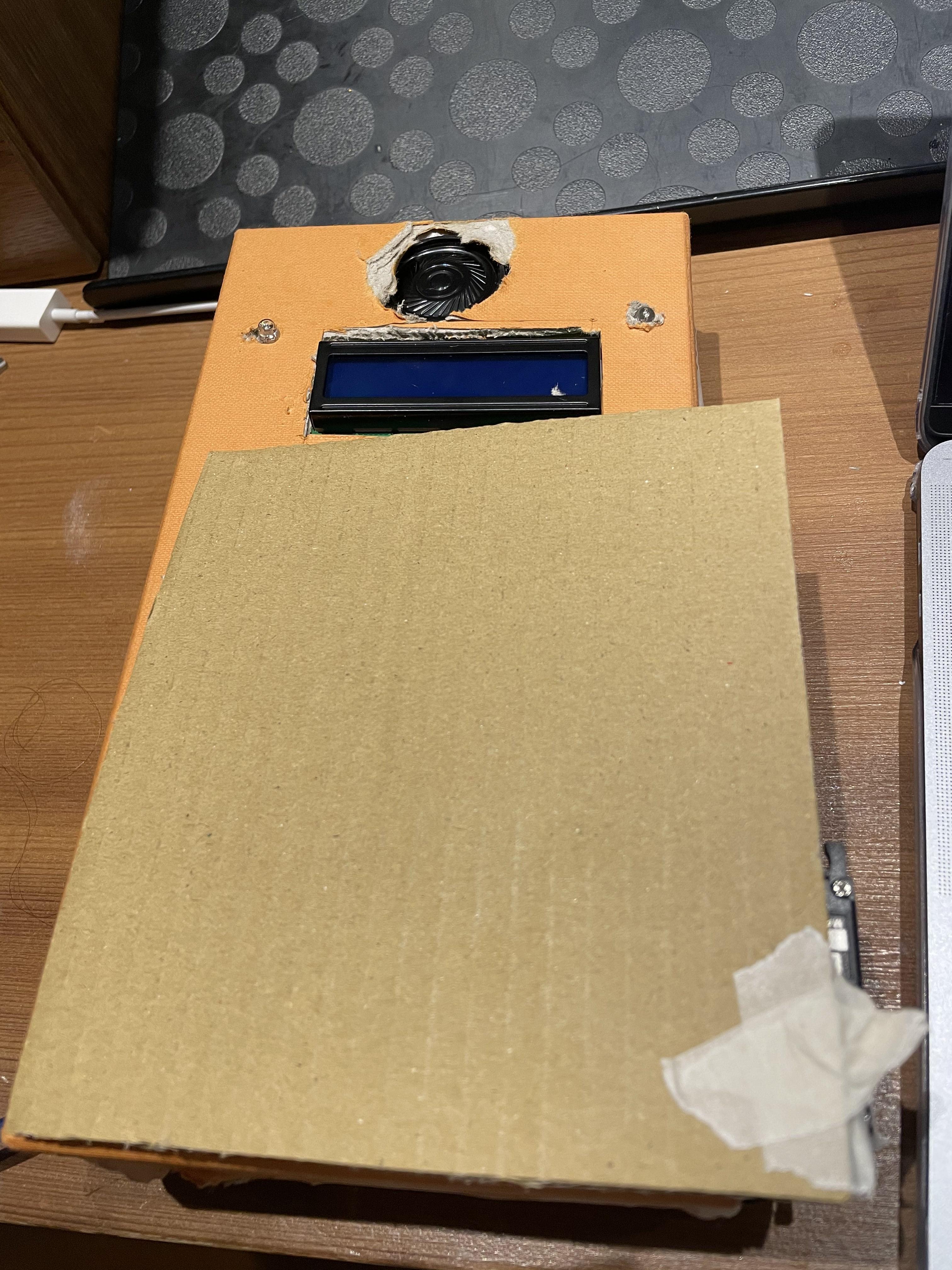

The first picture is the image of the top view of my Arduino project. As we can see, I put the speaker on top instead of the side.

The second picture is at the bottom.

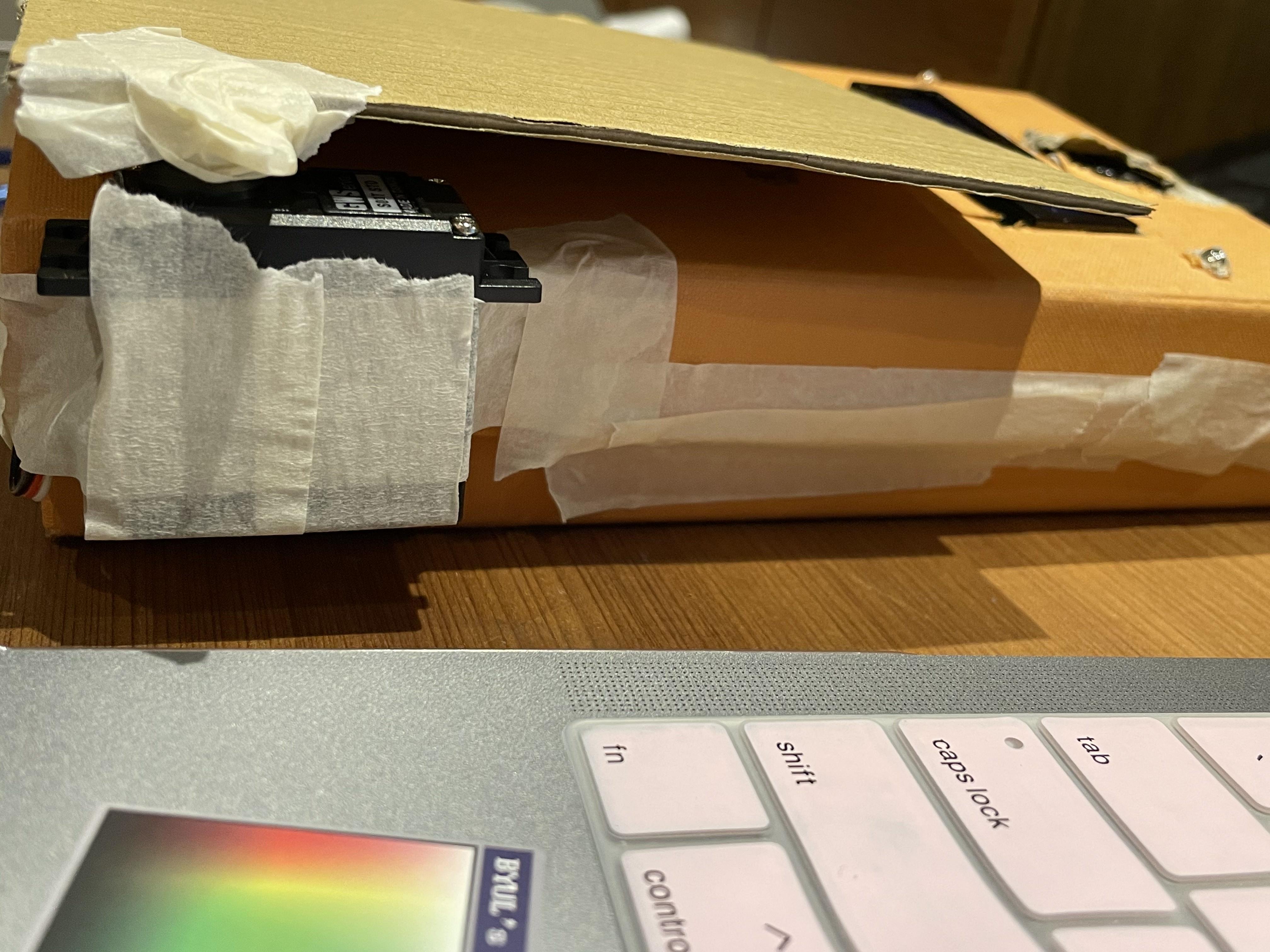

The third picture is where did I stick my motor.

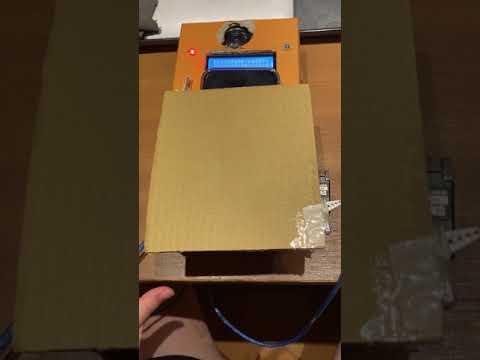

The video is how it works. (You can change the time from the code, I used 15second is to make an example) When you put your phone in, and you press the button to start, it will start the timer, and after the timer has done, it will open and you can take your phone out.
