Pendant


This is just a small pendant I nicknamed "halfway to forever" based off of something from when I was a kid


Supplies

Onshape

like 1.5 hours free

something to make it a necklace

Sketch


make 1/4 of the project and put the in between lines as a guide for later


Extrude


self explanitory

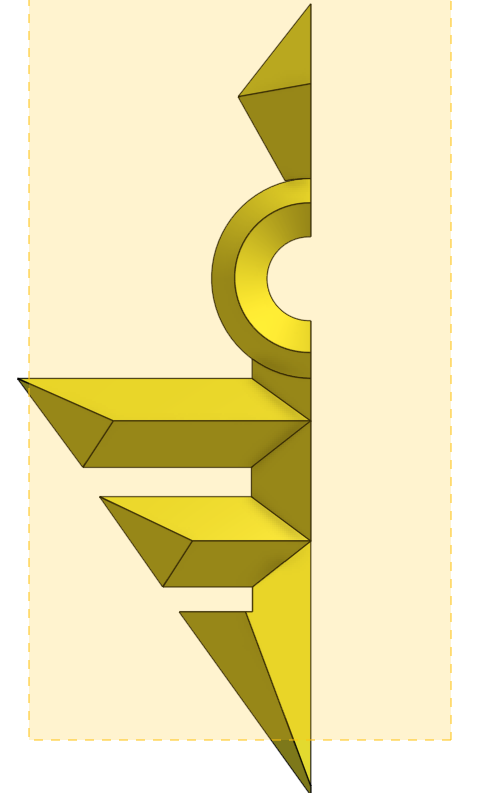

Chamfer


hit every edge on the top and bottom

after chamfer the ring section separately

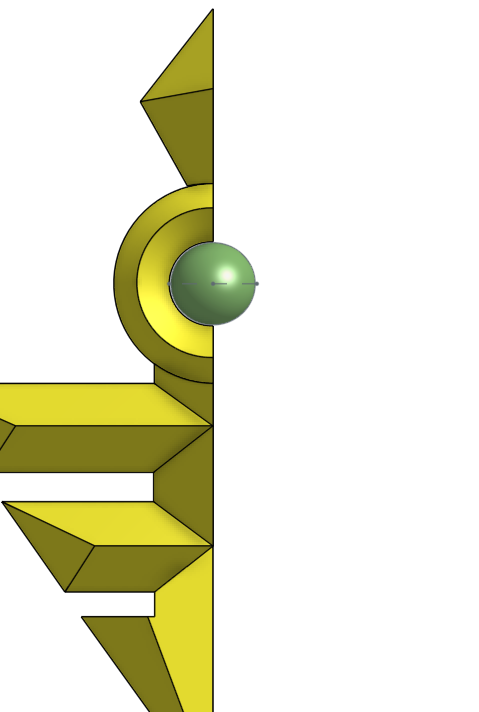

Sketch 2


make a half circle with a line in the middle then use it to revolve

Mirror


mirror the extrudes across the front and right planes

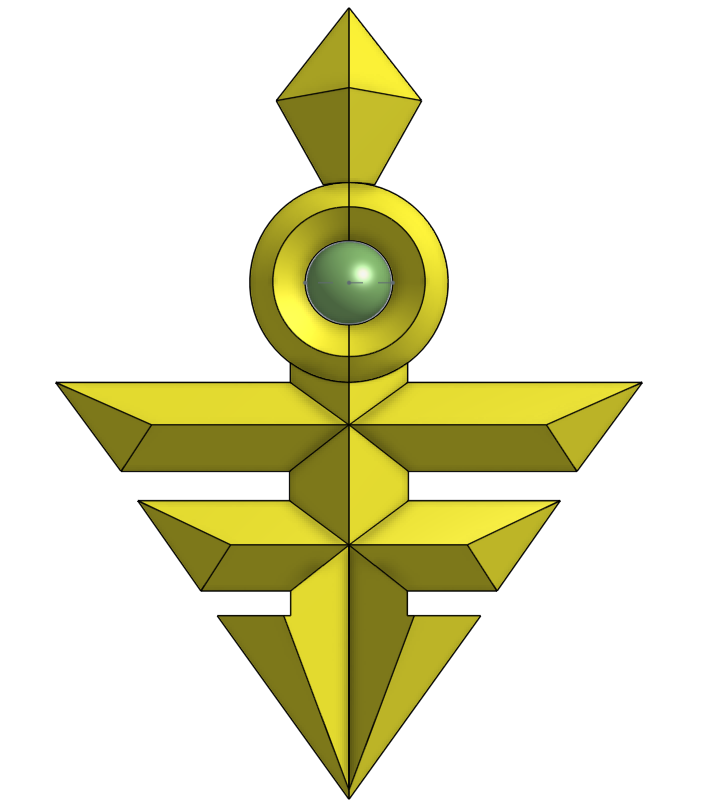

Done

print and enjoy
