Pen & Pencils Box (3D Printed)

Do you want to keep clear your pencils? This project can keep 1 pen & 8 pencils. Just screw holder to cover and keep your equipment tight and clear.
Perfect for using at home, school or office It is lightweight and has a suitable size, very easy and convenient for you to carry and put in your schoolbag or handbags

Like for every projects we need something to create it. List you can find below. :p

Project .stl files - link

Printing Model using FDM Printer:

3D Printer Qidi X-Max -https://s.click.aliexpress.com/e/_APV5m1

Wood PLA Filament -https://s.click.aliexpress.com/e/_A3jTwN

Post-Processing print:

Nail Files or Sandpaper

Wood Stain - https://www.amazon.co.uk/Furniture-Clinic-Wood-St...

Kitchen Sponge

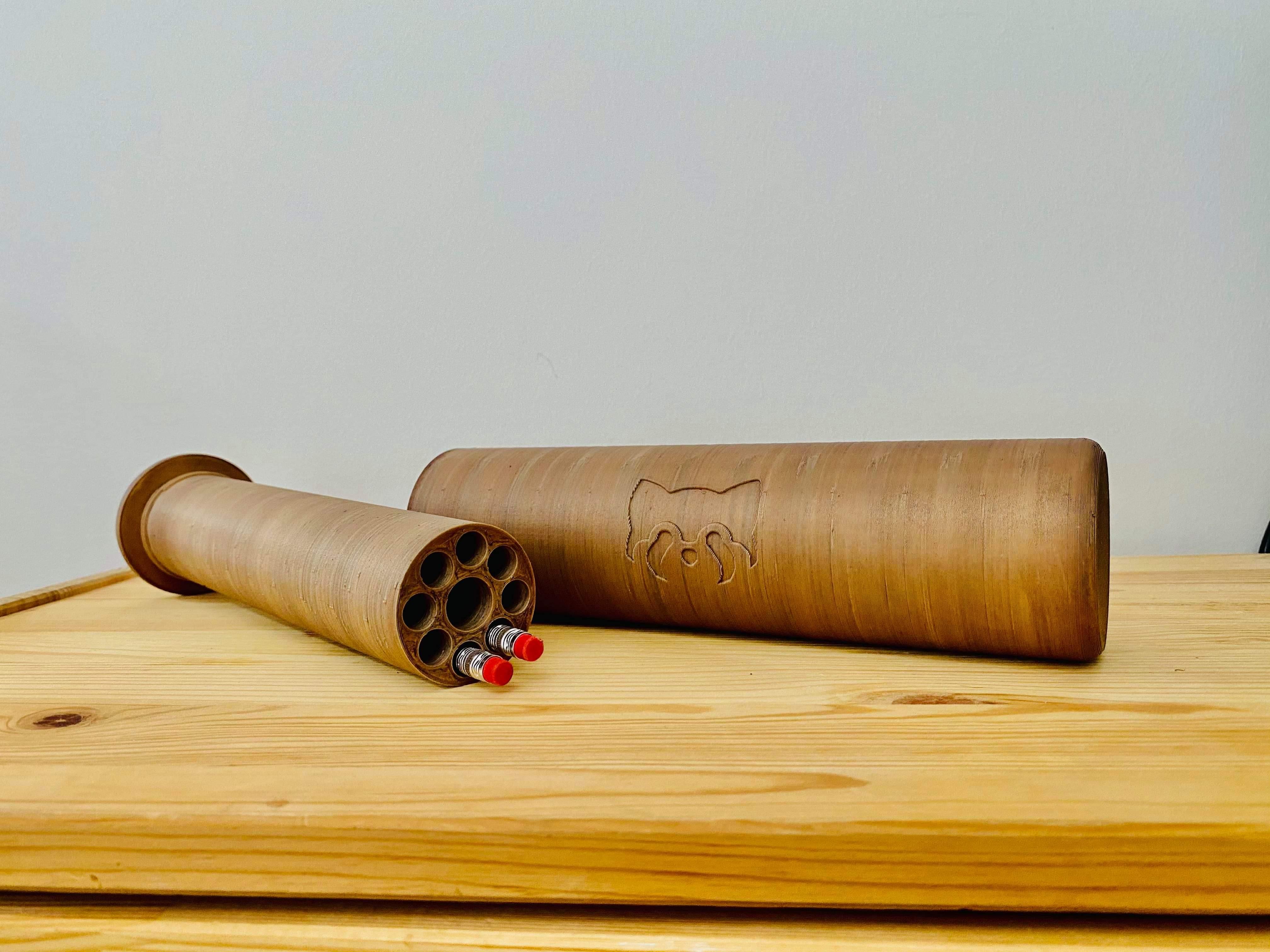

When I remember school time always in my backpack I have pencils everywhere they move there freely. After when I need them most was broken and I need to sharp before use. As a designer, I use more pencils than a pen why there is space for eight pencils and one pen. This pencil case has two parts one cover where you need screw second part with holes for equipment and your box never open alone will just simply hold your equipment clear at your backpack.

Dimension of Pencil Box is 64mm x 64mm x 226mm

Printer: Qidi X-MAX

Filament: Sunlu Wood PLA

Slicer: Cura

Retraction Distance: 3mm

Retraction Speed: 30mm/s

Layer Height: 0.3mm

Wall Line Count: 3

Top Layers: 3

Bottom Layers: 2

Print Thin Wall: Yes

Infill Density: 10% - 20%

Infill Pattern - Gyroid

Z Seam Alignment: Sharpest Corner

Seam Corner Preference: None

Print Speed: 40mm/s

Minimum Layer Time: 20s

Printing Temp: 195 C

Build Plate Temp: 50 C

Support: Support FREE

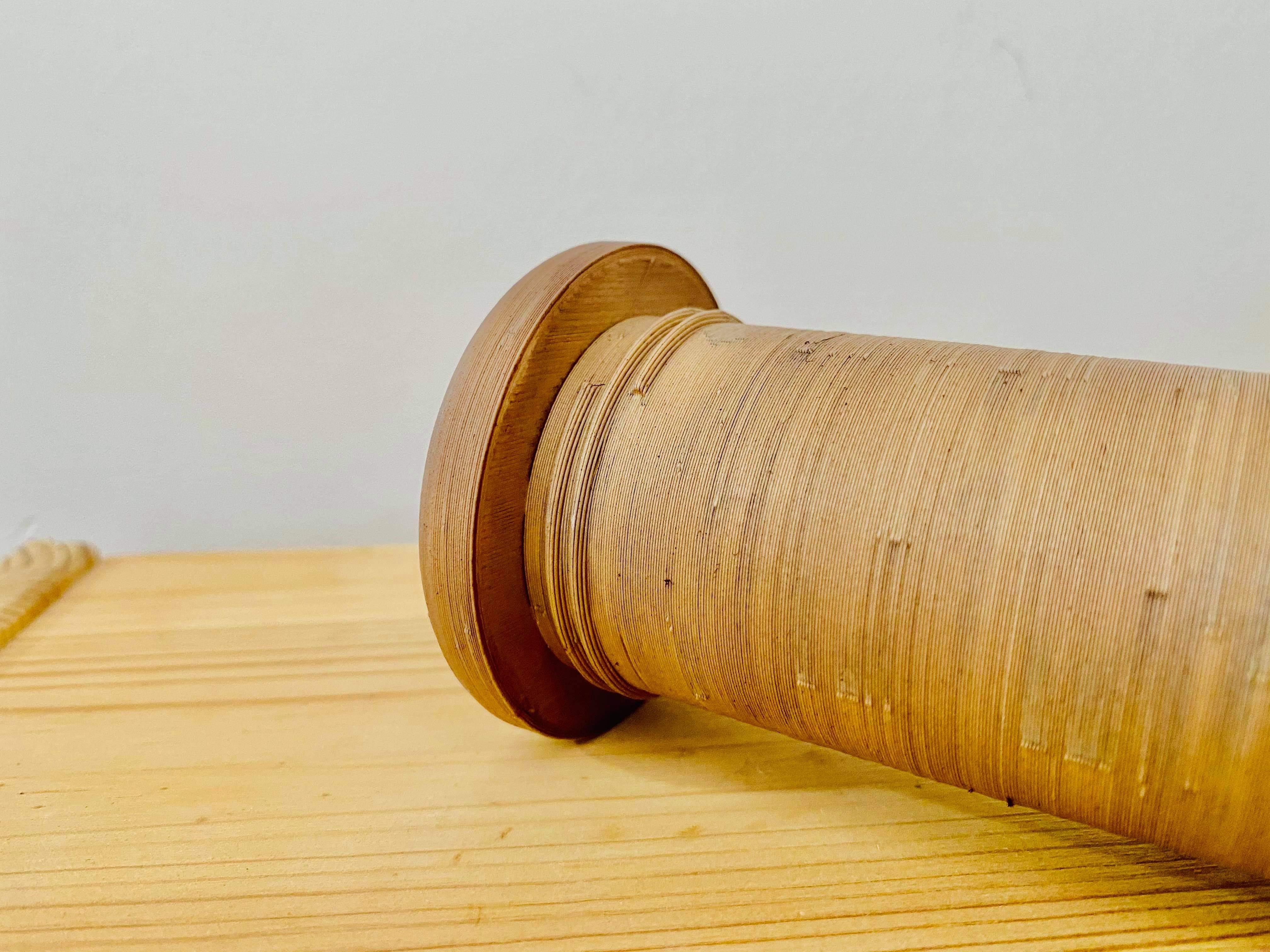

Ok, for us just one day of print and we can start post-process our model, because we don't use support in this design there is not a lot to do. Maybe just little strings or small blobs. We grab our magical nails file and the little sand surface where needed. Like I write before there shouldn't be a lot of work.

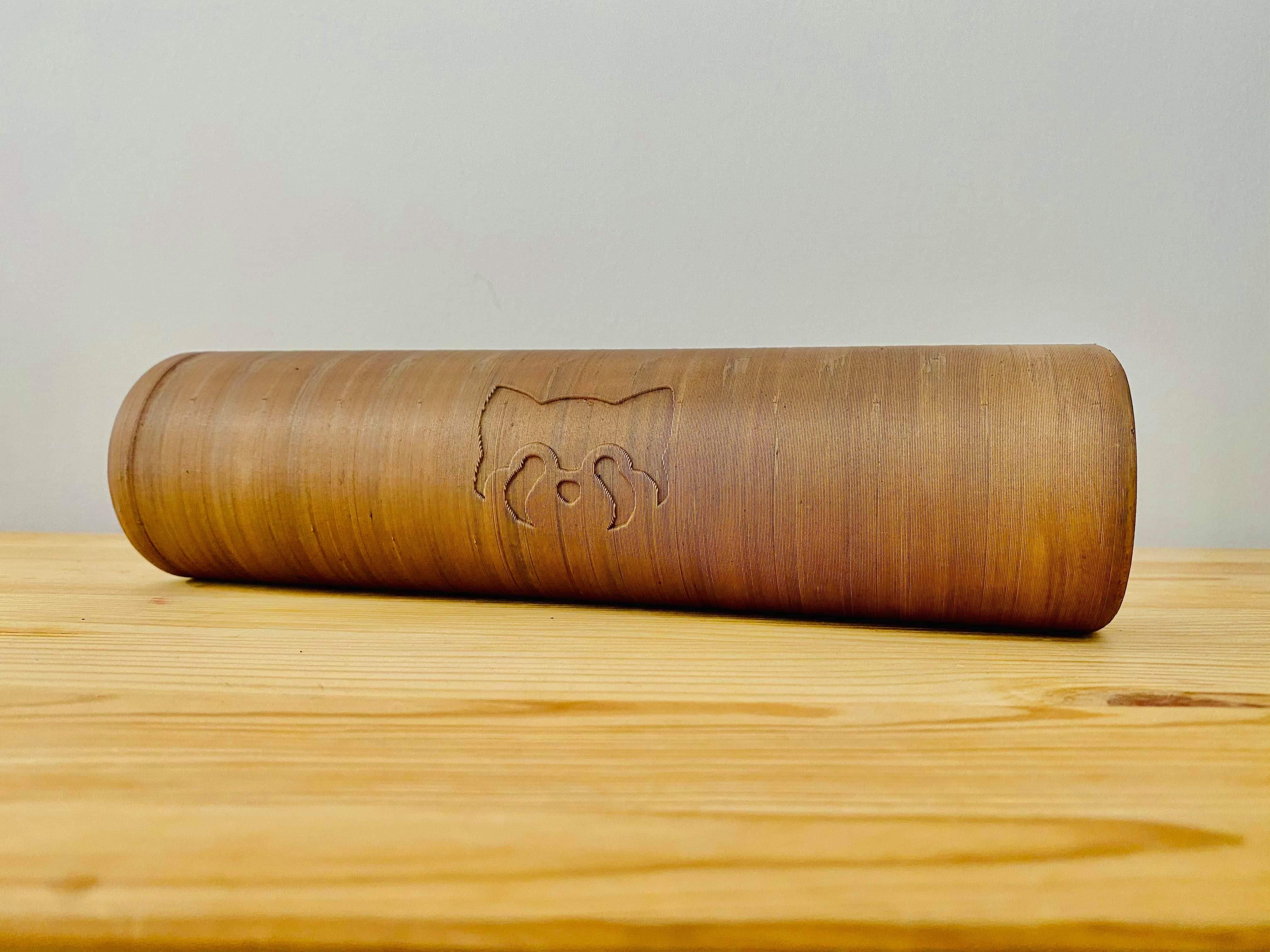

When we finish sanding the model come time for staining. Of course, is optional, but will look very raw and depend on how dark was filament. We prefer to do staining on every our design to give it look real wood. We used a sponge to stain the box you can use the brush but it leaves marks on the model. We just apply a little on the sponge and start stain box is nothing hard. We apply just one layer and give us a nice result. We leave it for 24h to completely dry and now we can use a pencil case.

Like you can see we don't spend a lot of time on post-process this model is easy and recommend for everyone who has 3D Printer. Our picture show how you can make good looking items on the printer without spending a lot of money.

Please follow us for more instrutables. Visit our store for more great ideas which you can print at home for home. Thank you for your time and see you soon. :)
