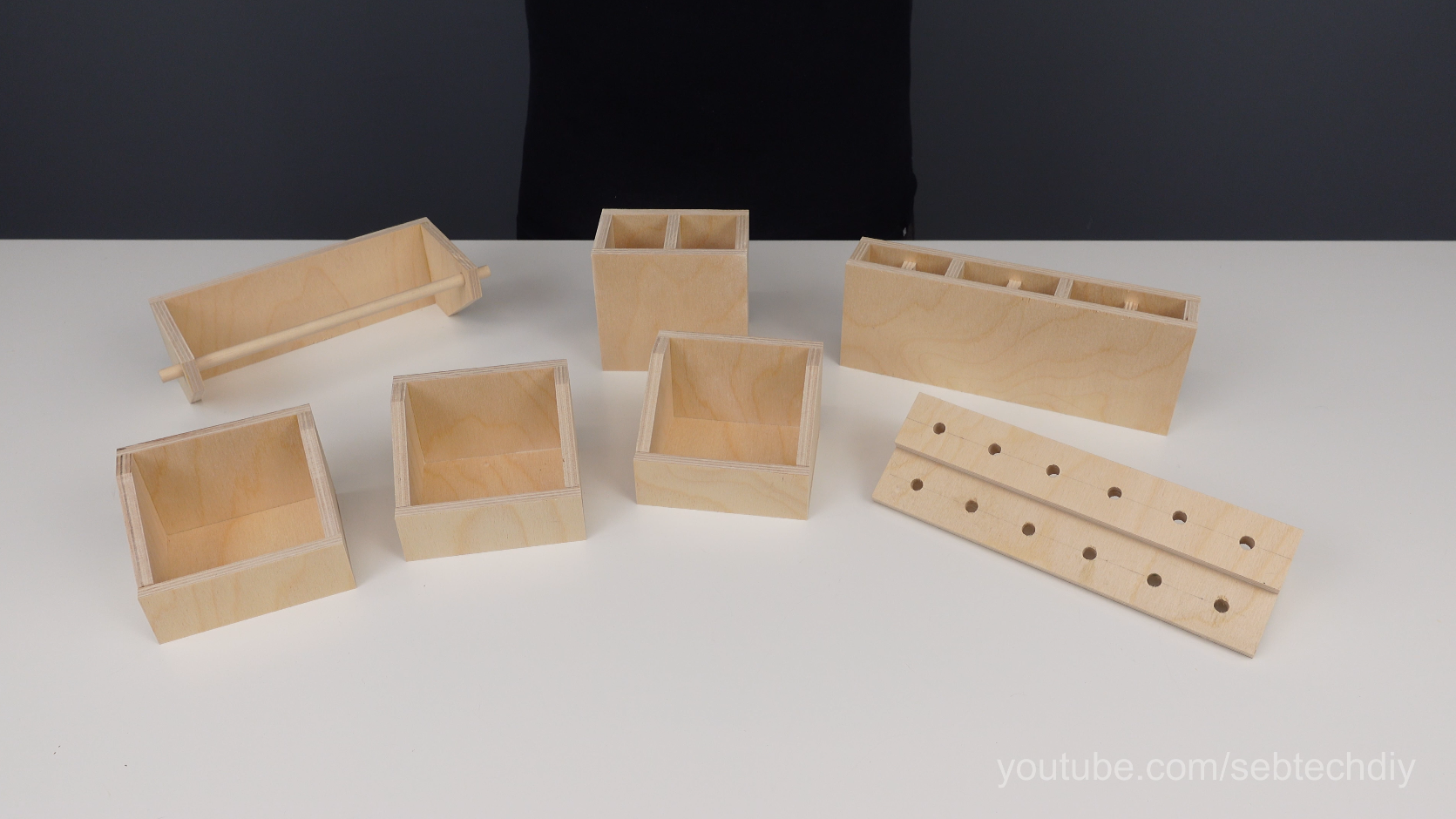

Pegboard? Do you guys like pegboard for your tools storage? I agree that regular pegboard hooks can be boring, plus they always fall off when you grab your tools? Well, that's why I made some custom pegboard organizers with some plywood. It is easy to make, they are custom so you can adapt to any tools, they are heavy duty and they don't fall easily. These are some examples I made but but the possibilities are endless. Be creative and have fun.

Be sure to watch my youtube video, it really help me bring you more projects! :-)

Material :

- 3/8'' Plywood ( I used high quality birch plywood )

- Screwable L-Hooks

- Wood glue

Tools :

Saw ( Table saw is the best, but can be made with a skilsaw. )

Drill ( To drill holes for L-Hooks )

Clamps

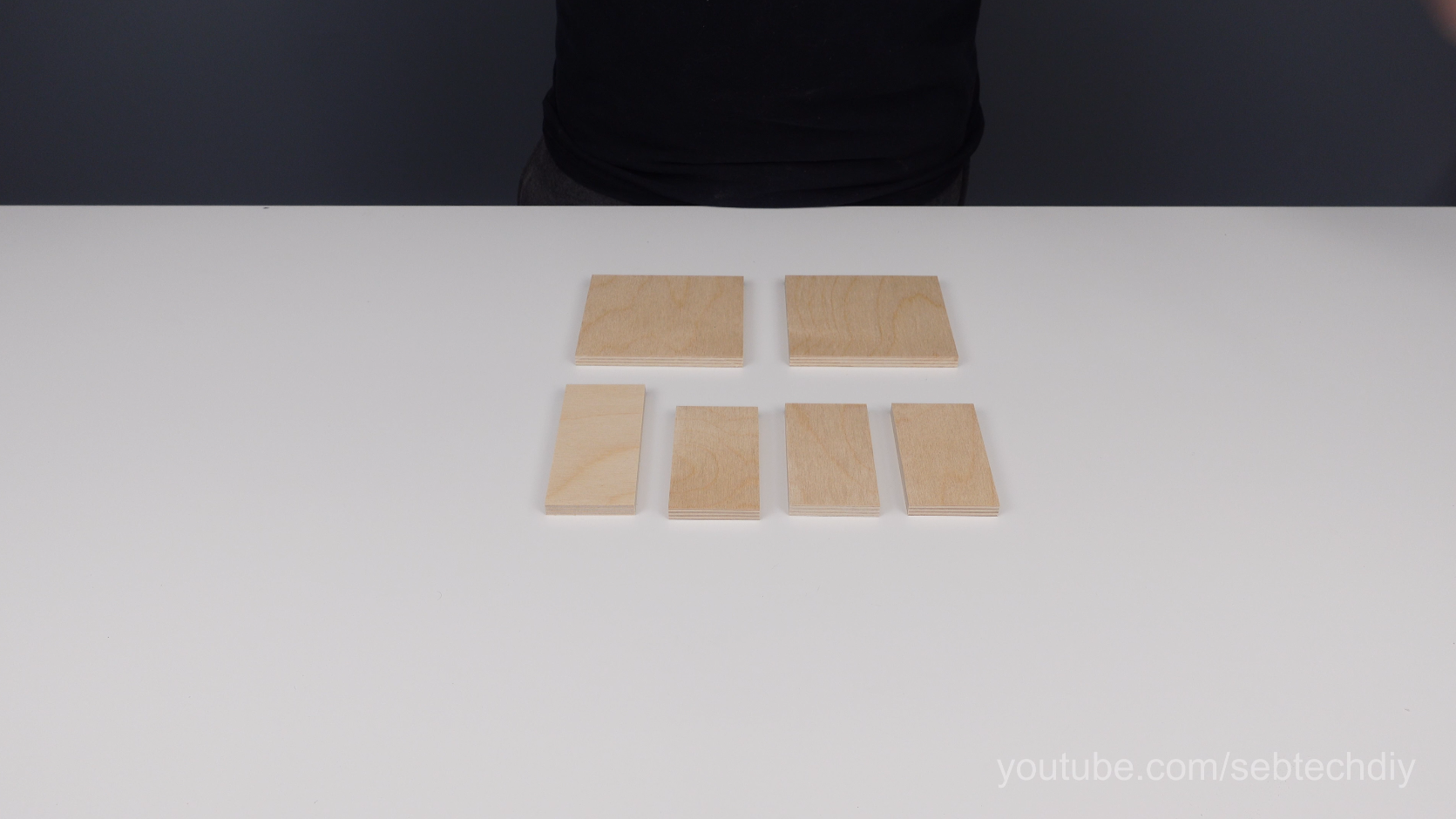

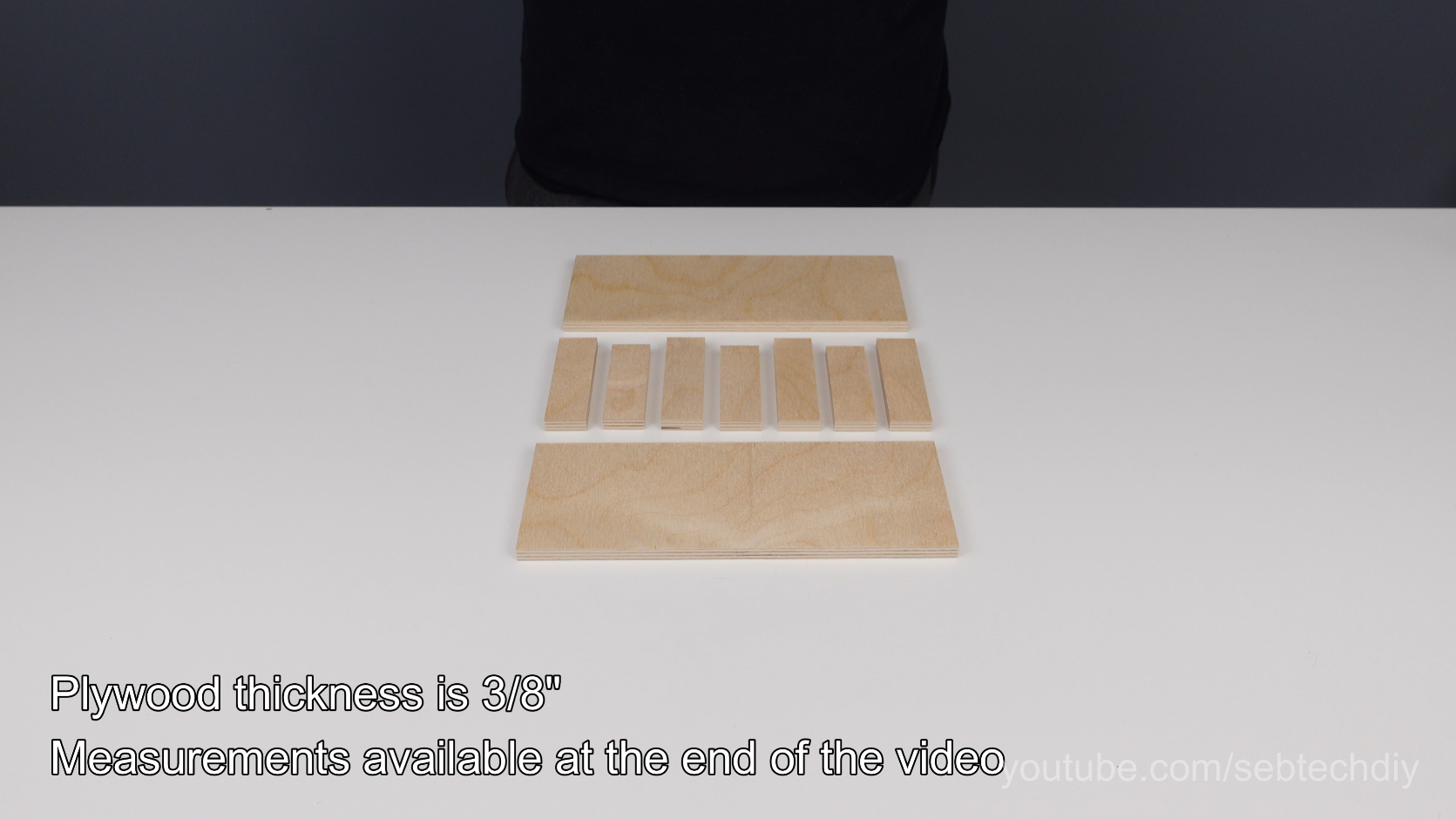

Alright, so the first step is to cut the plywood to the right size. I made these organizer for my tools, you can draw your own designs or check the pictures included here, I put all the measurements for each pieces. All the plywood used in this project is 3/8'' thick.

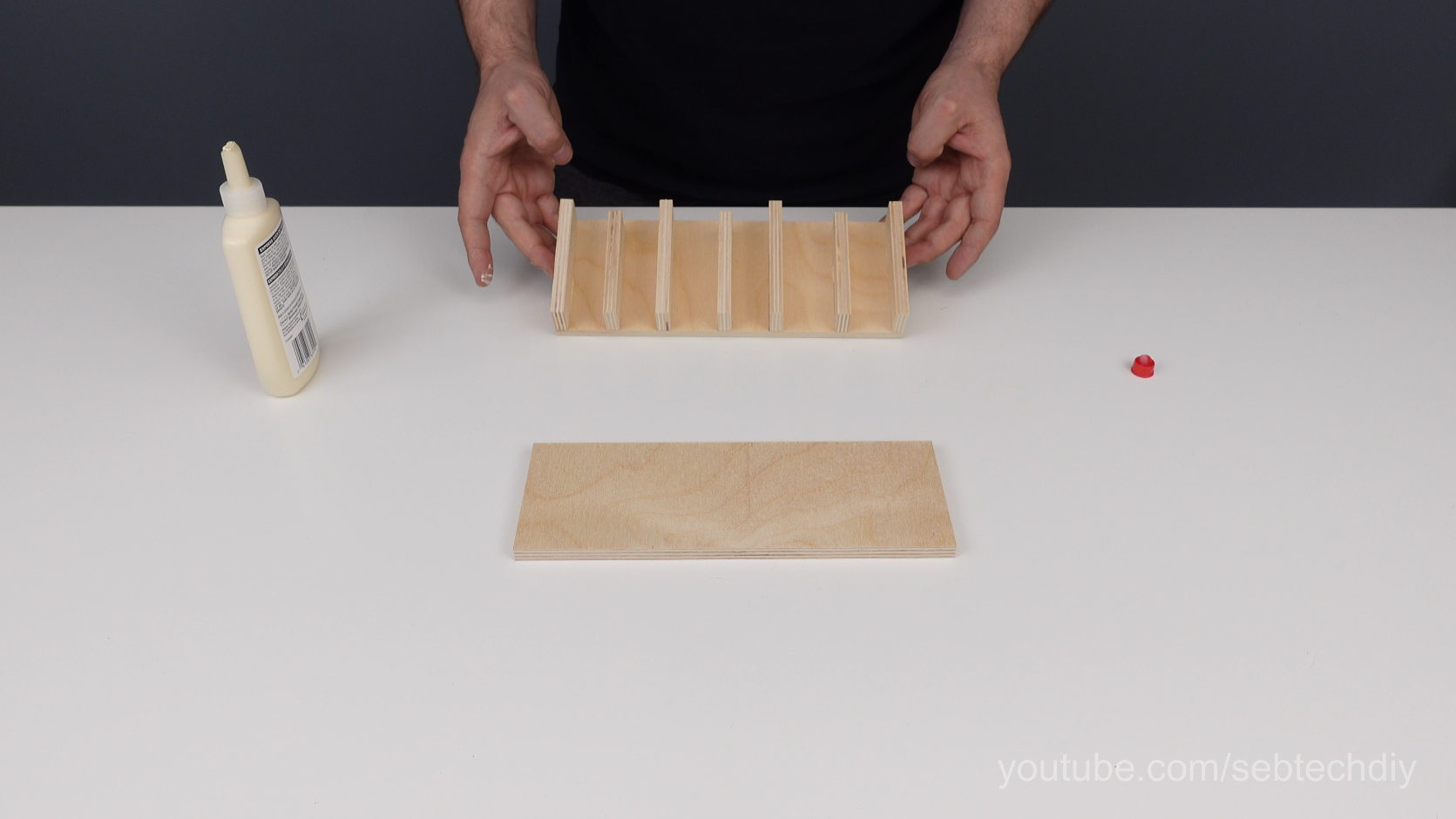

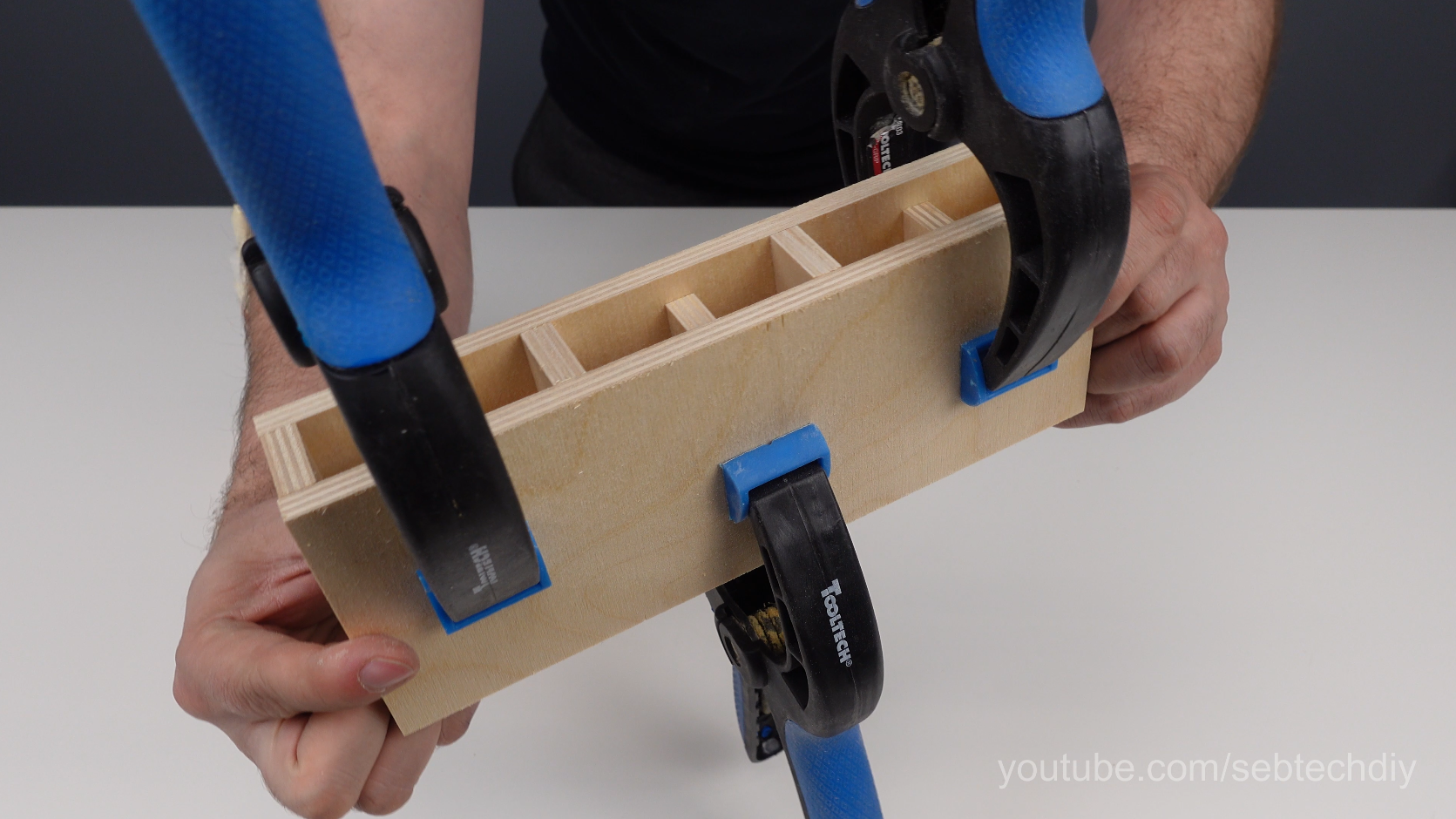

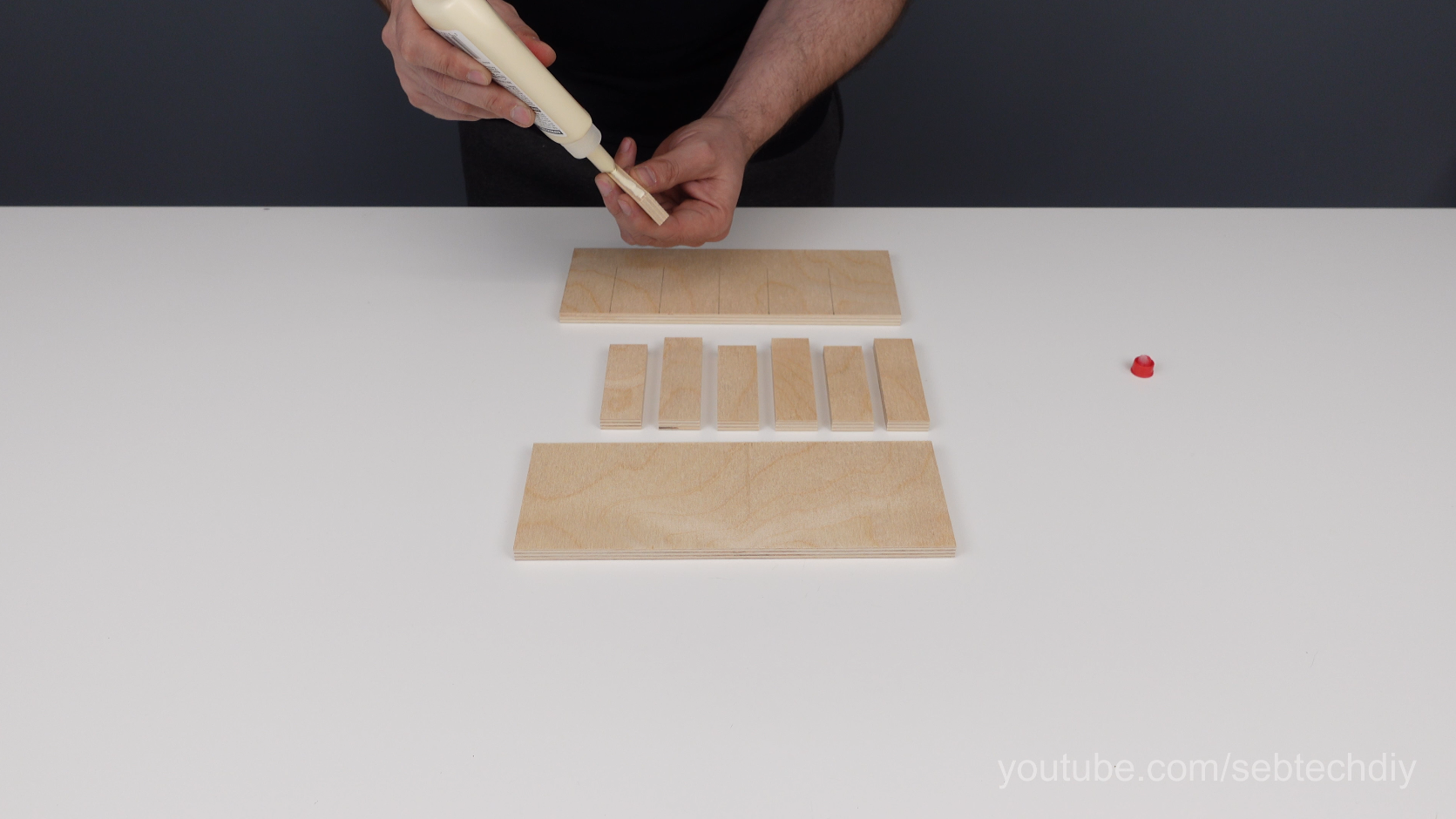

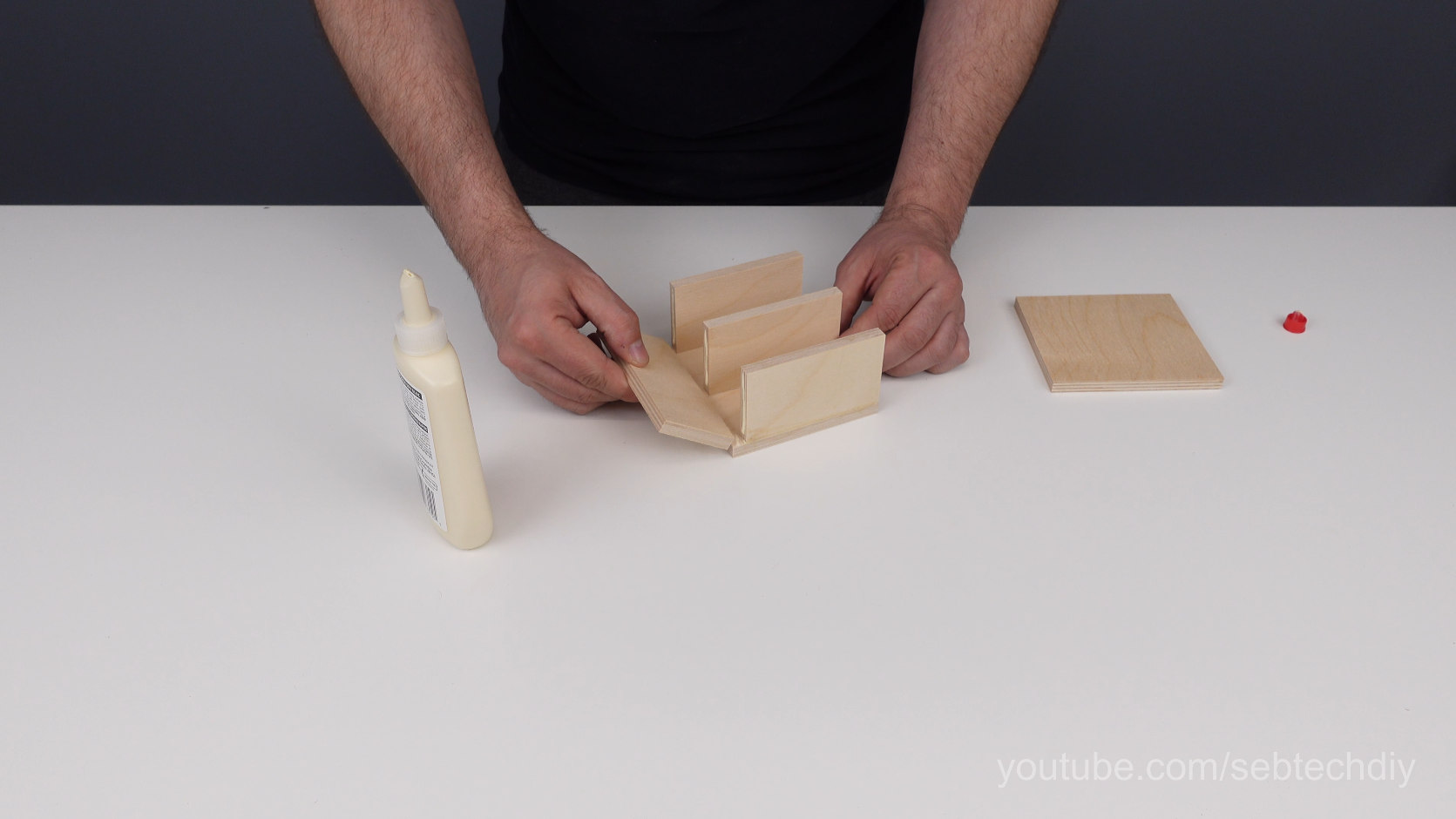

This custom pliers organizer is for my 3 channel locks pliers. They fit nicely in their respective slot and are always easily reachable when I need them.

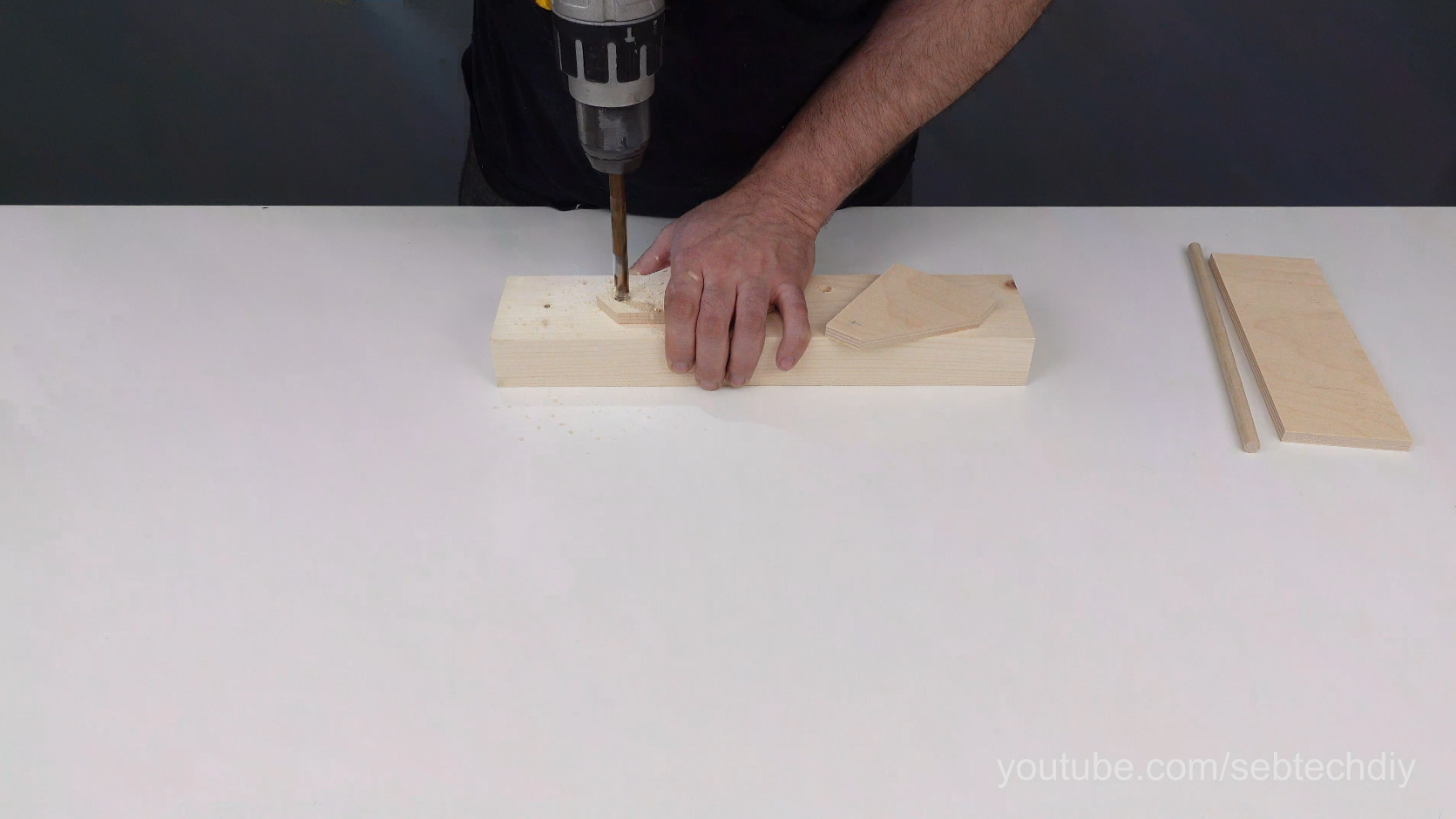

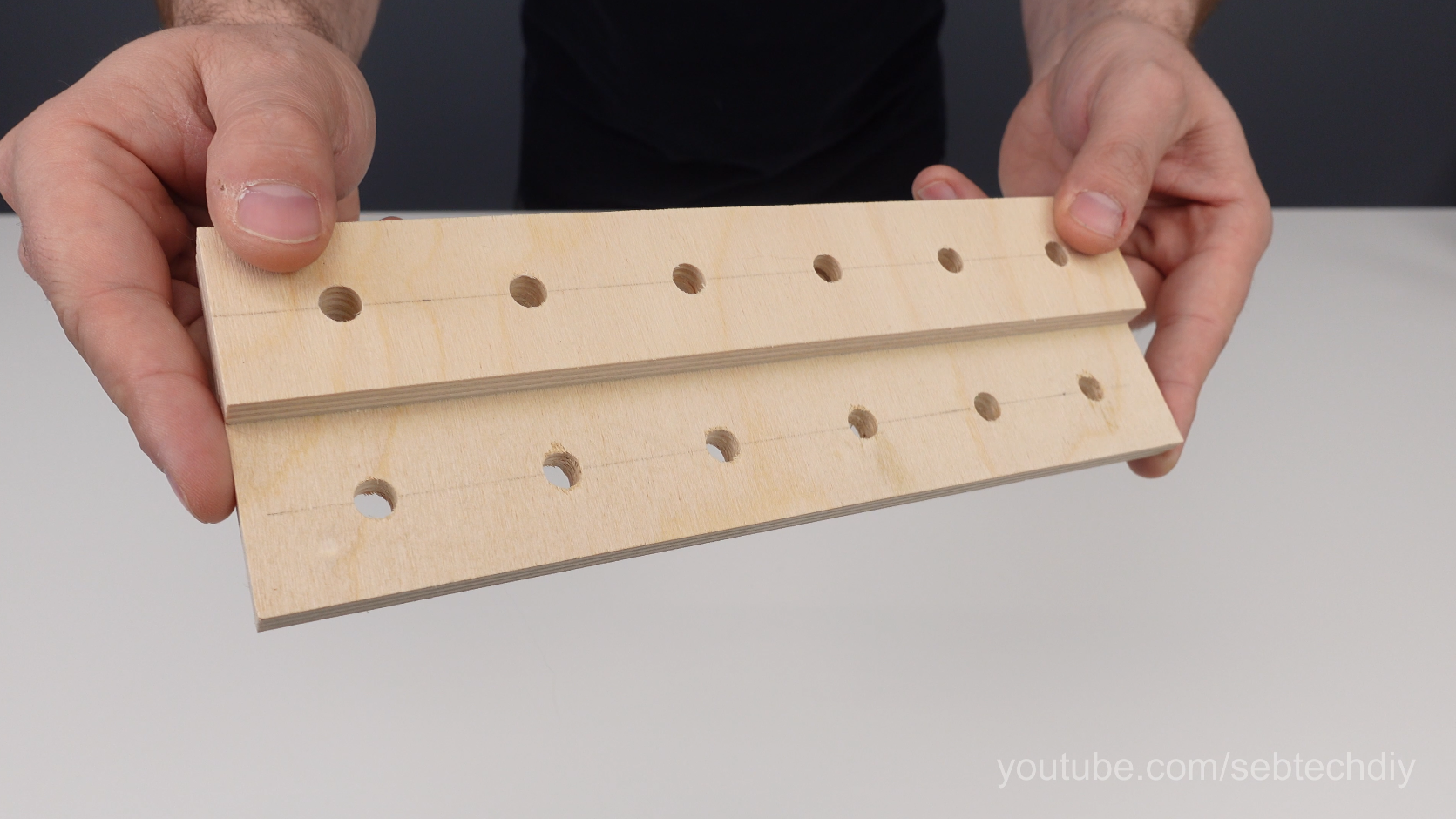

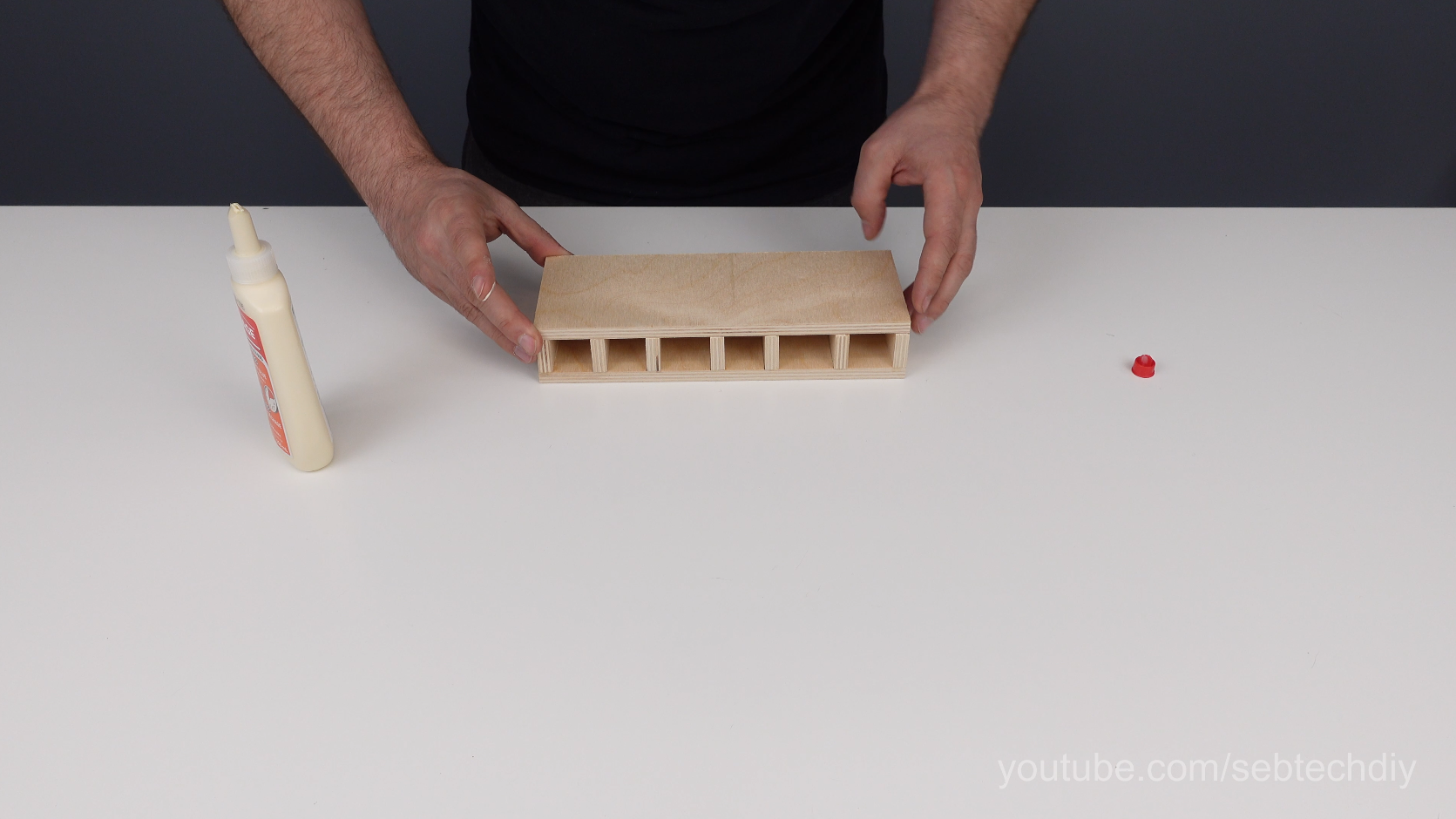

This simple screwdriver organizer is easy to make, just drill some holes, add some supports , glue everything together and you're done! :-)

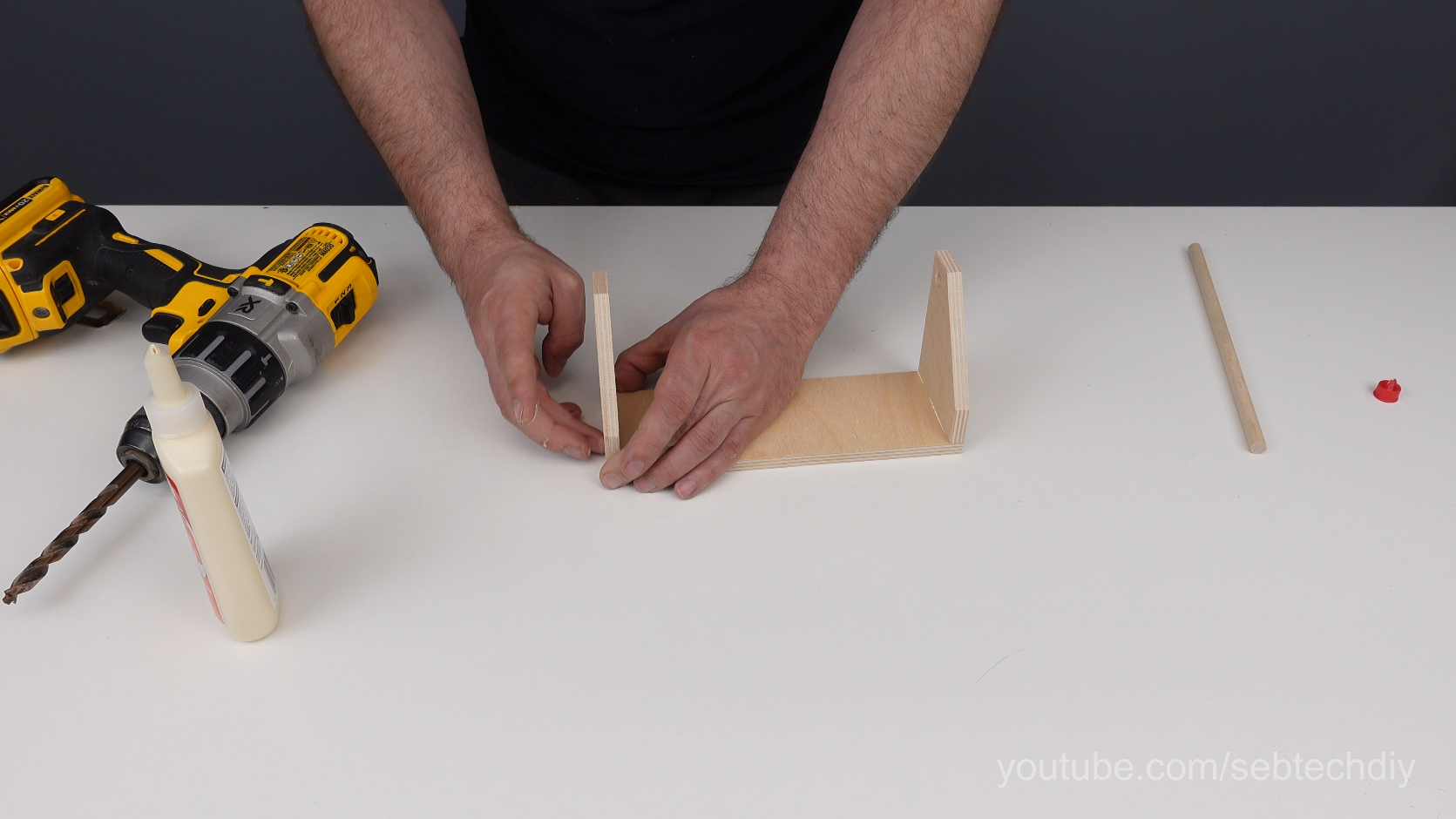

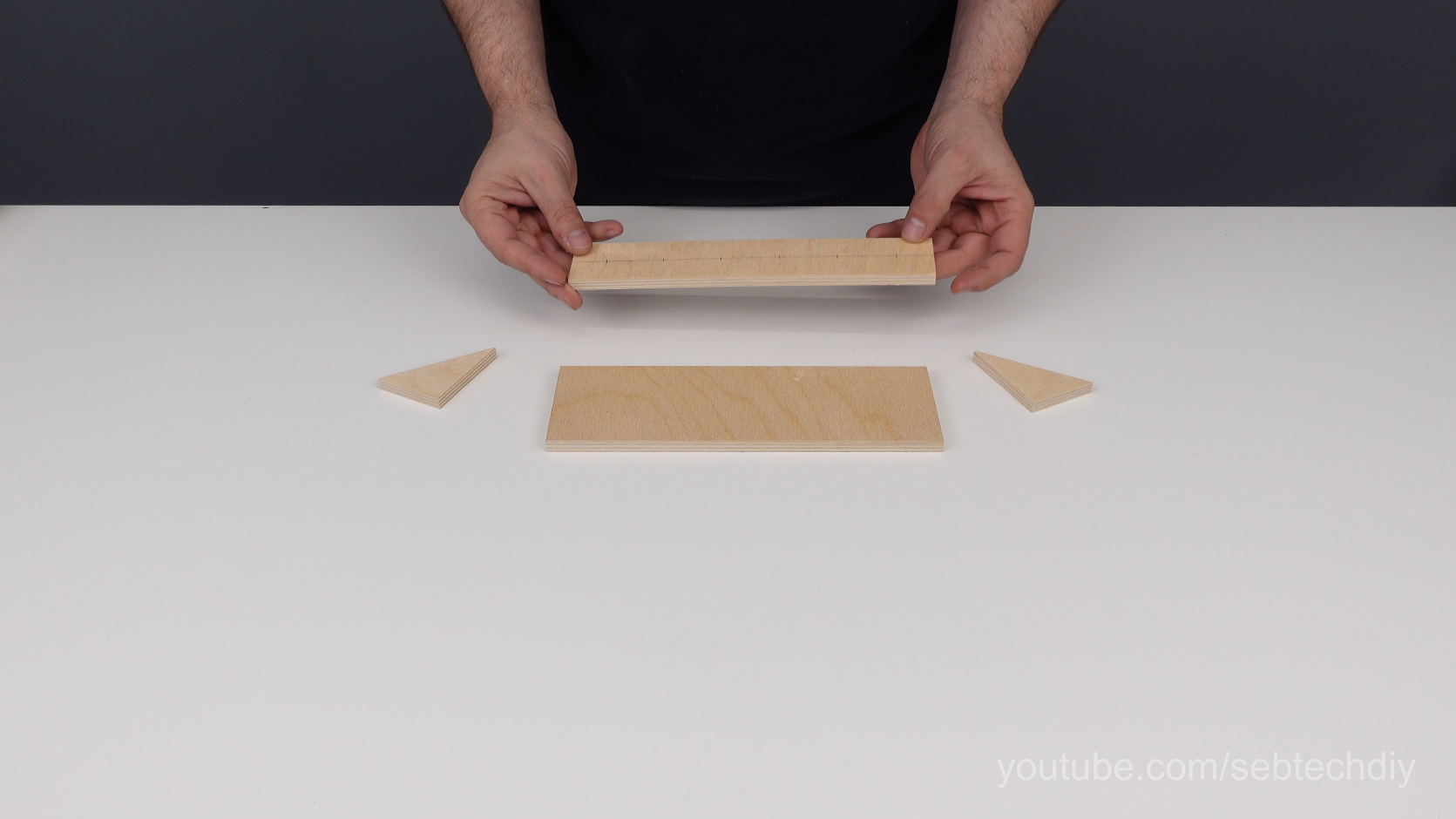

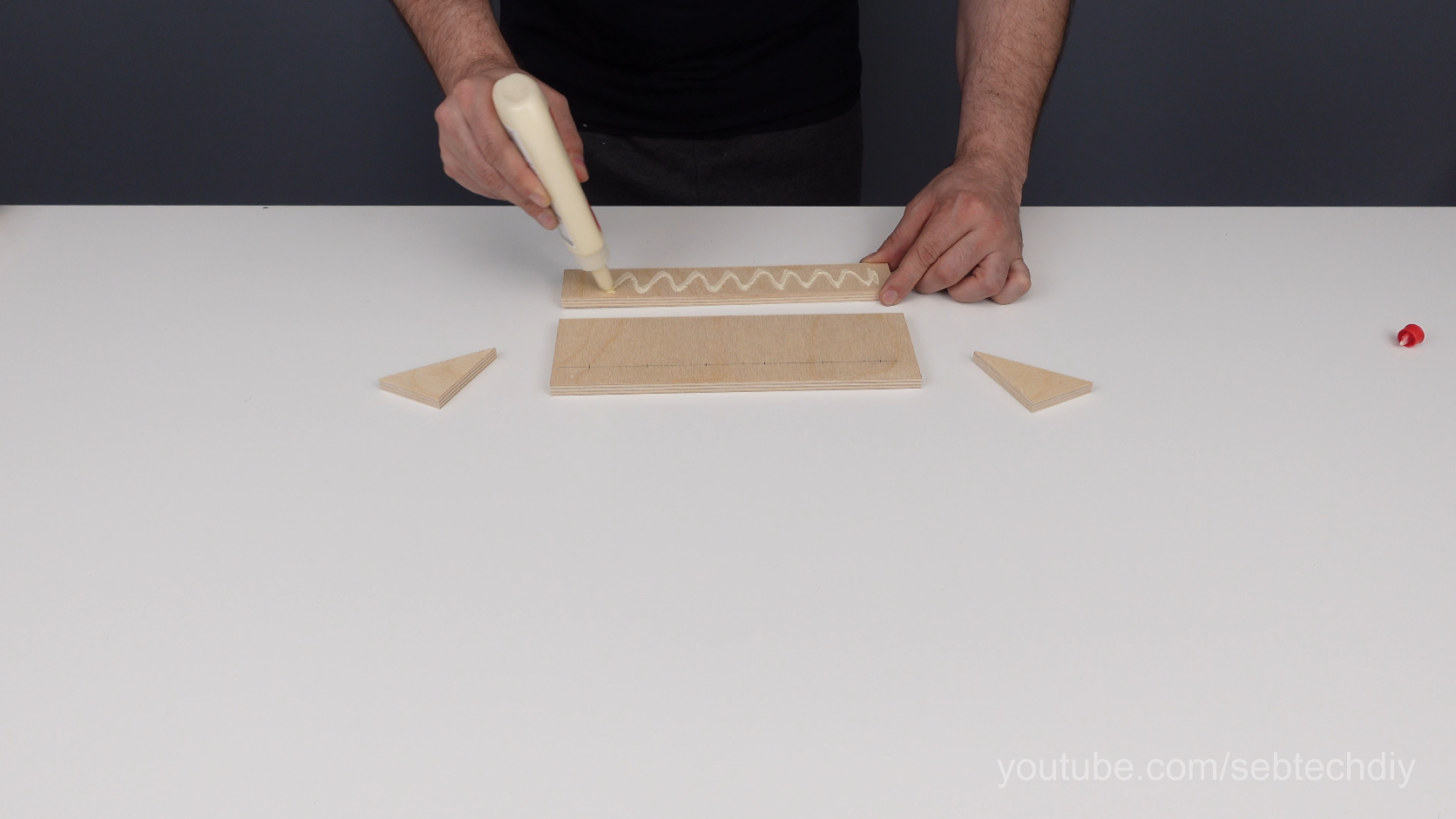

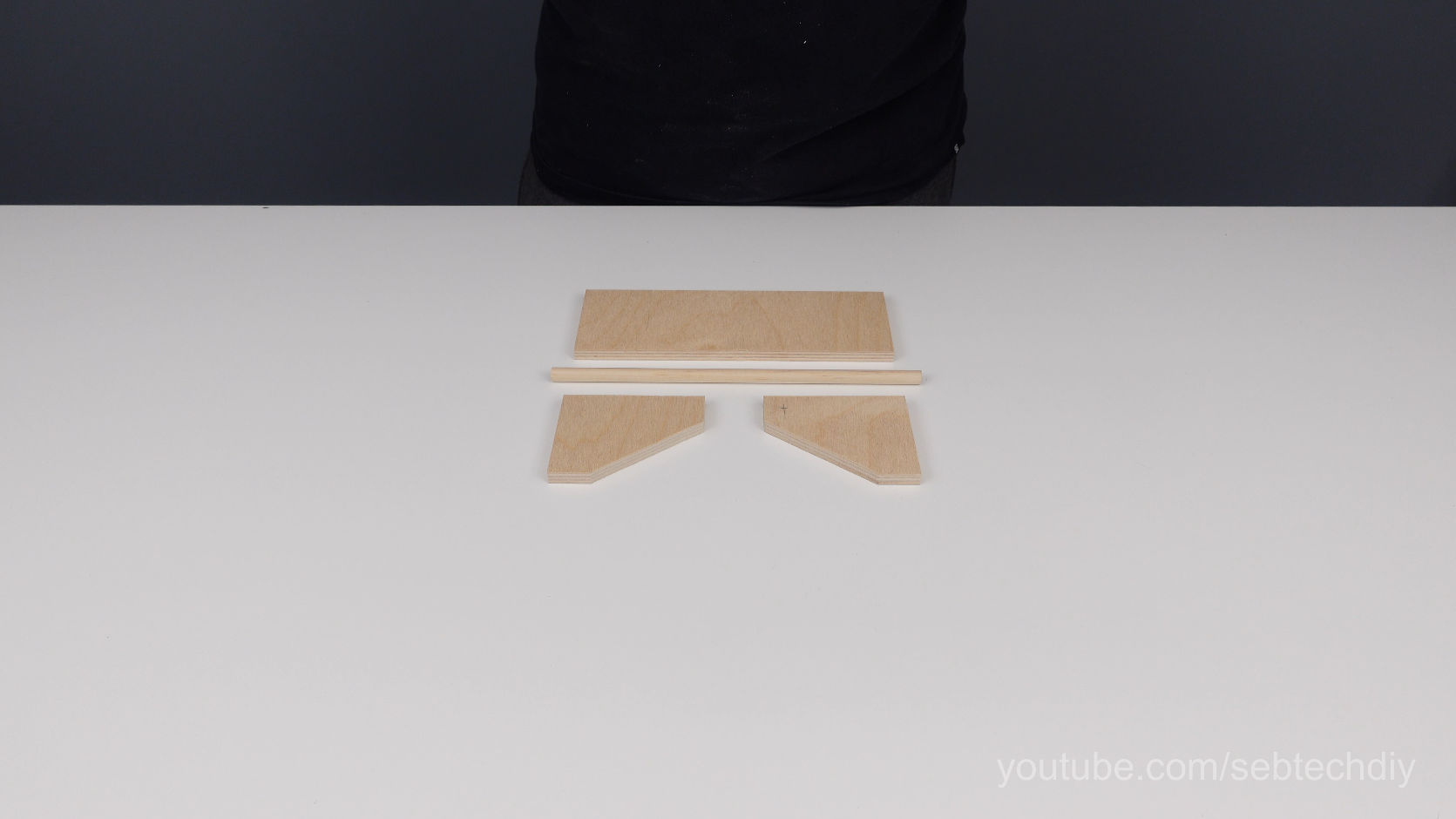

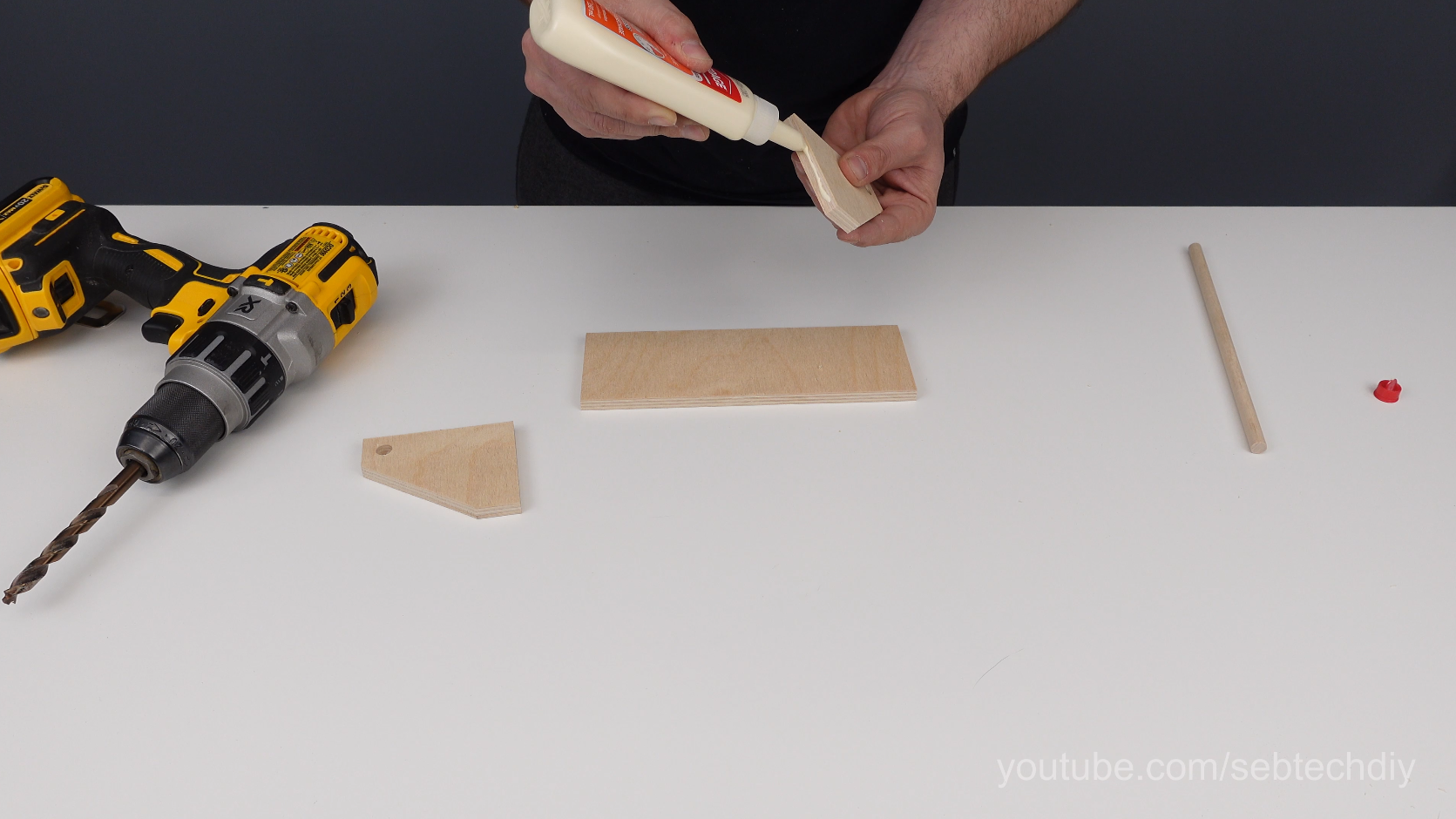

Simply made, it's an easy way to keep your tape organized. 2 sides supports and a 3/8 rod and voila! :-)

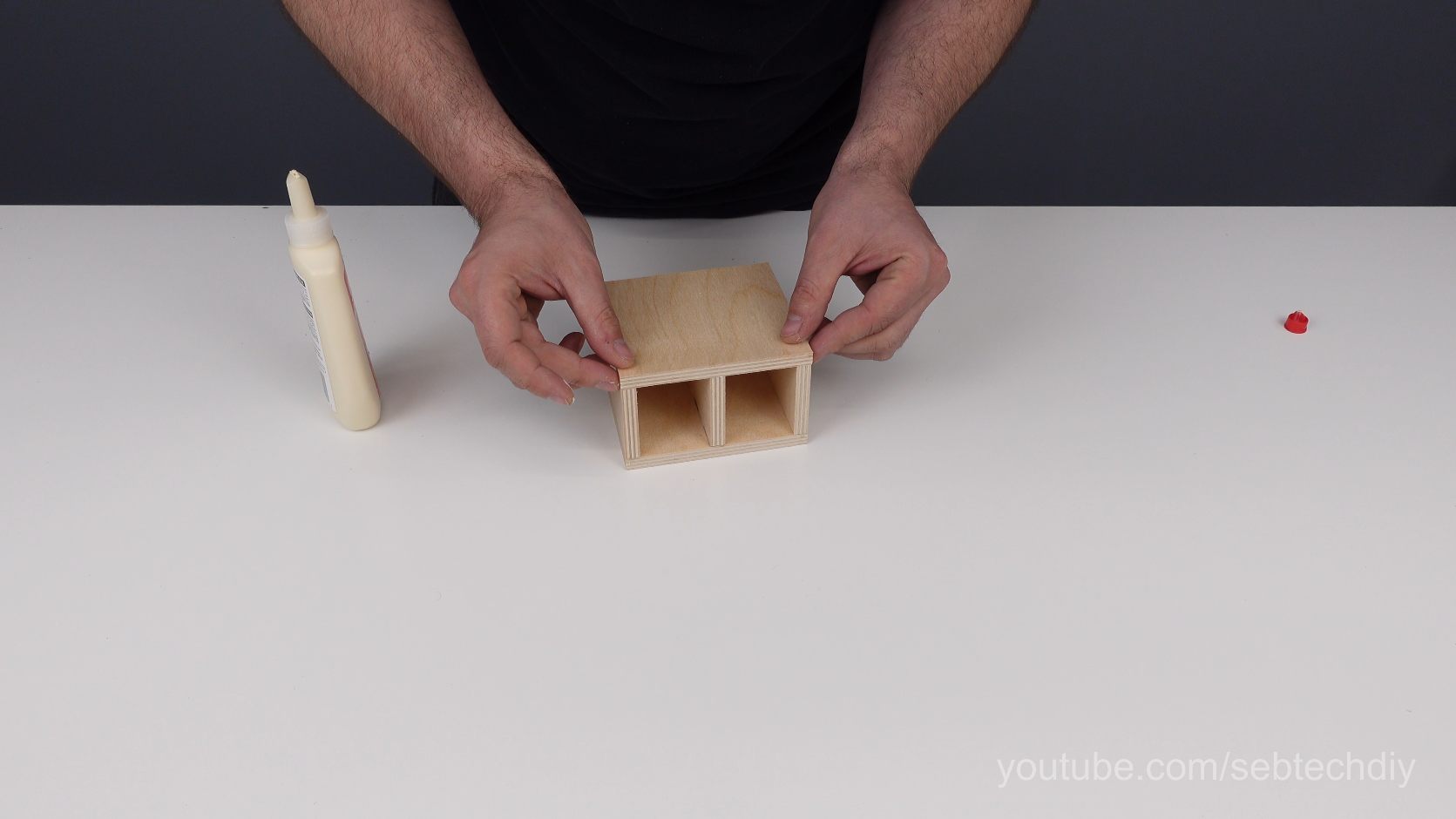

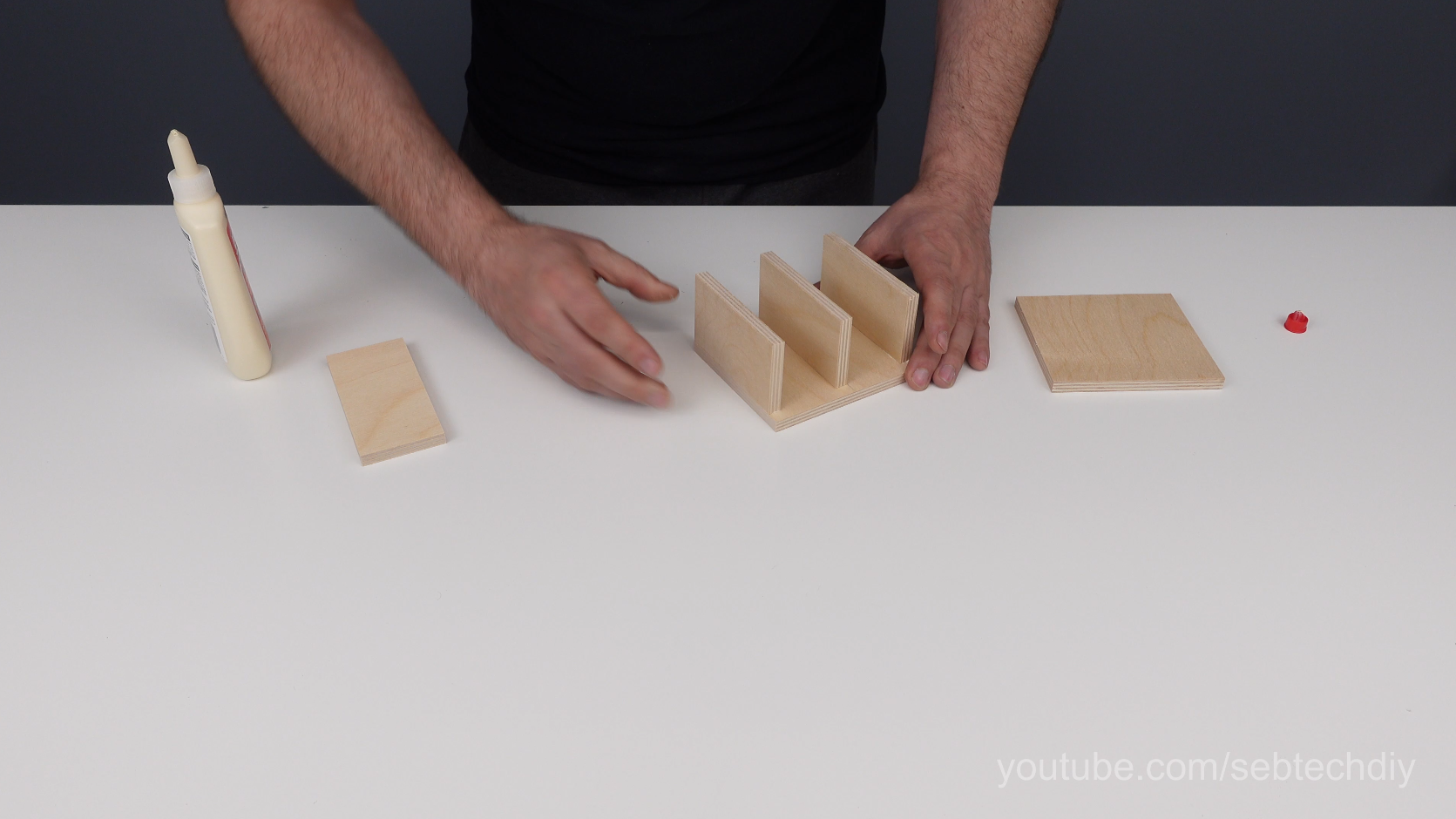

I made this organizer for pencils, markers, small tools etc , this one is 2 cases wide, but you can make a bigger one to suit your needs. It is another pretty simple organizer but a really useful one. :-)

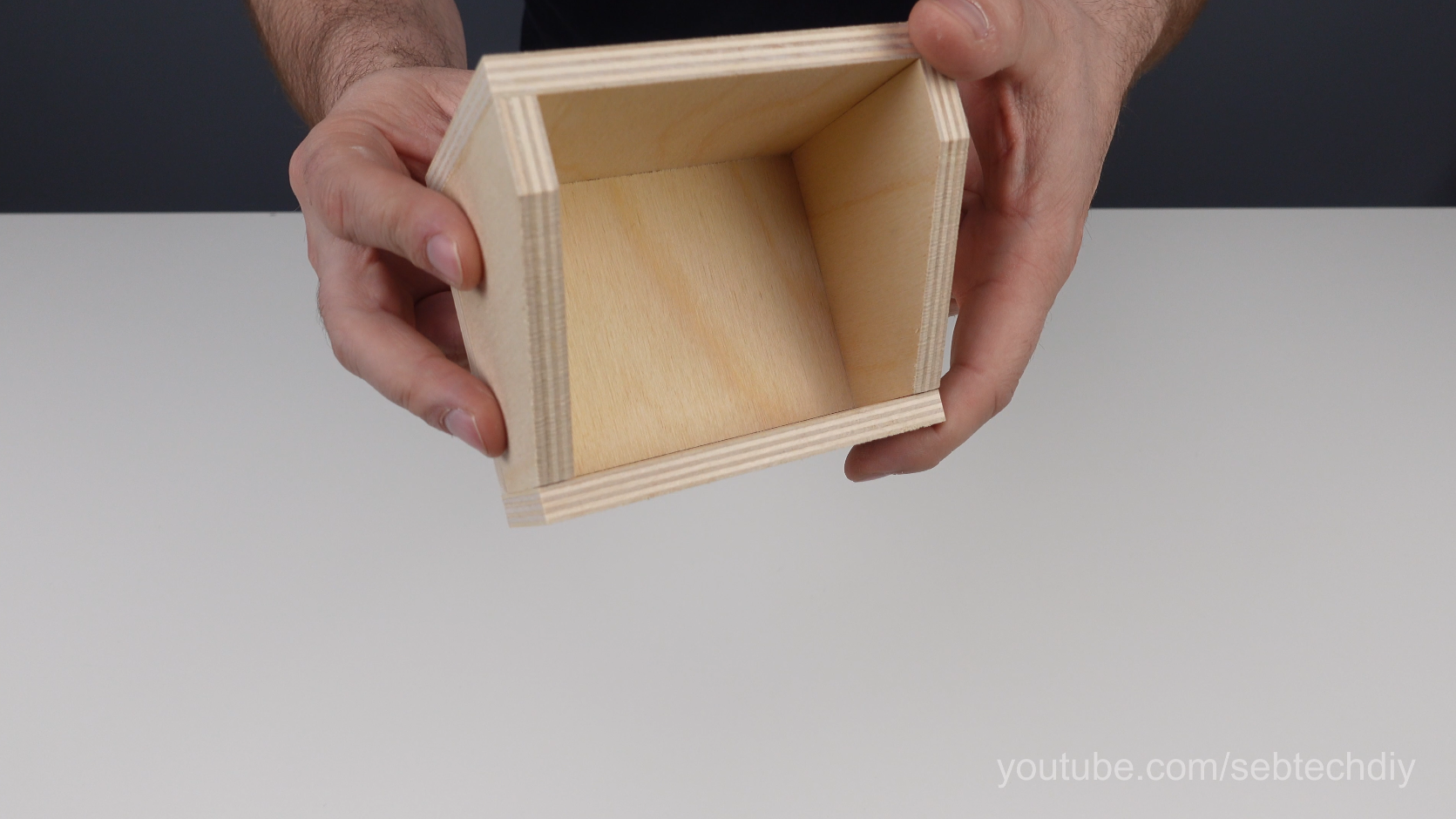

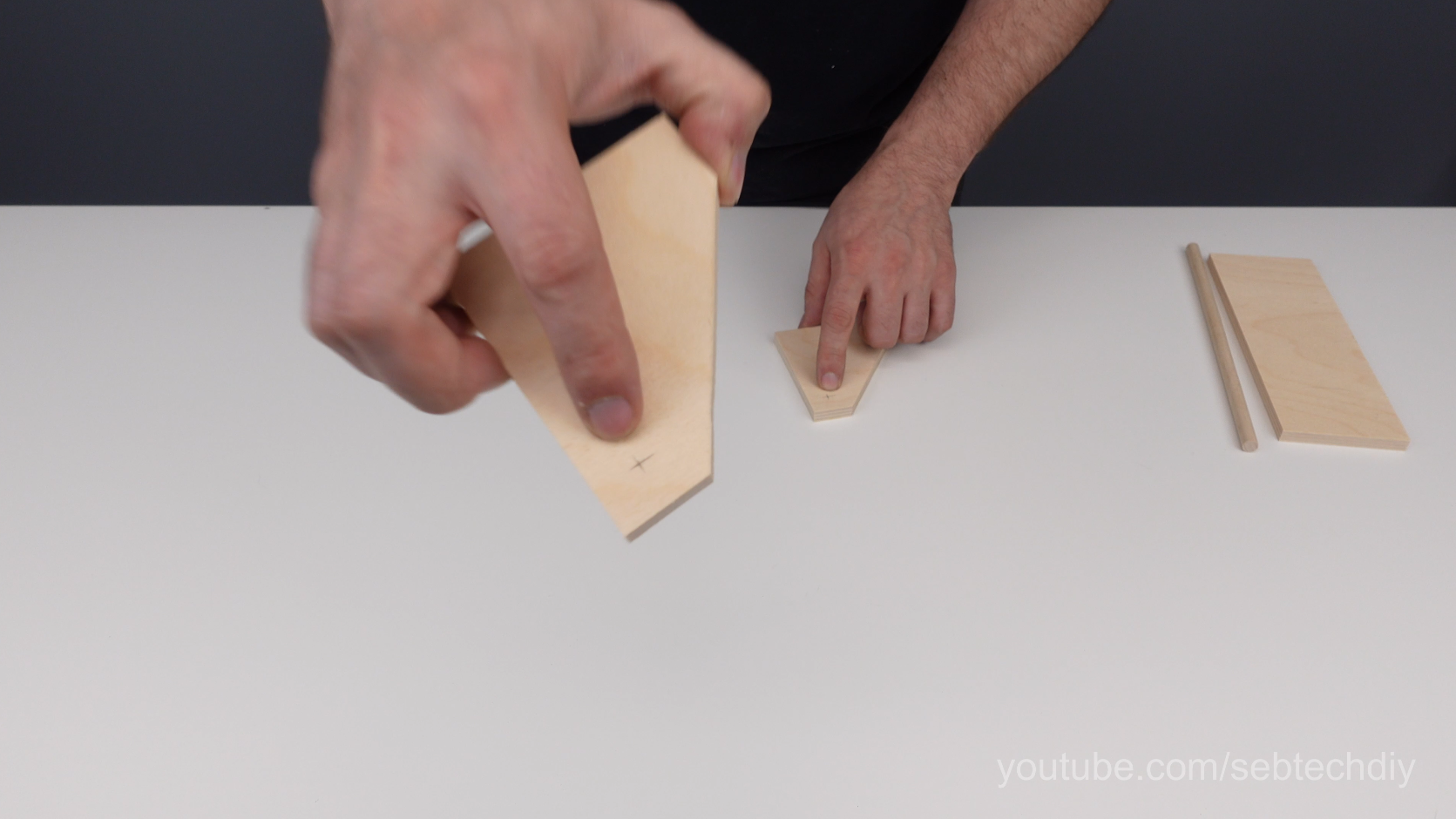

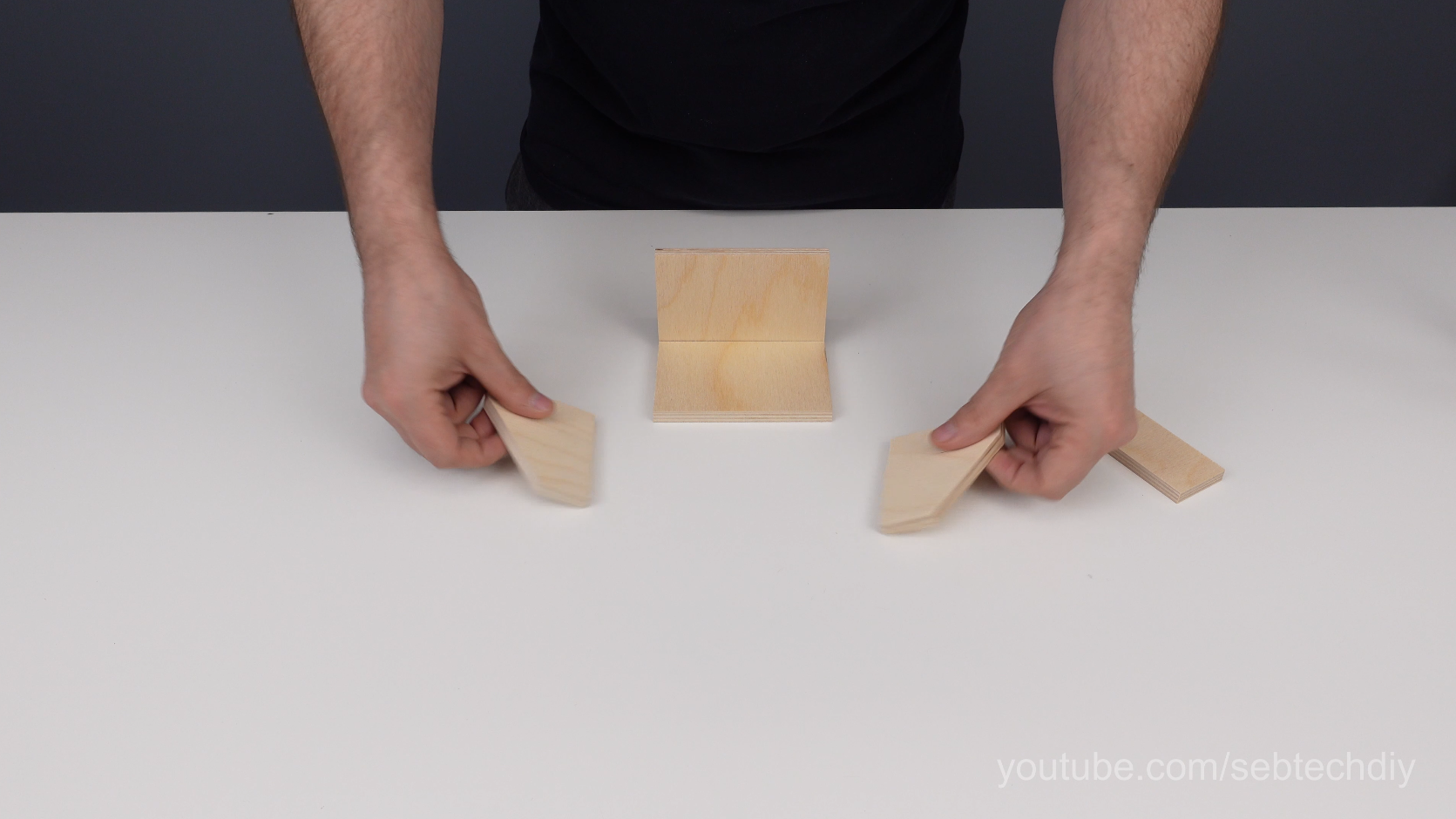

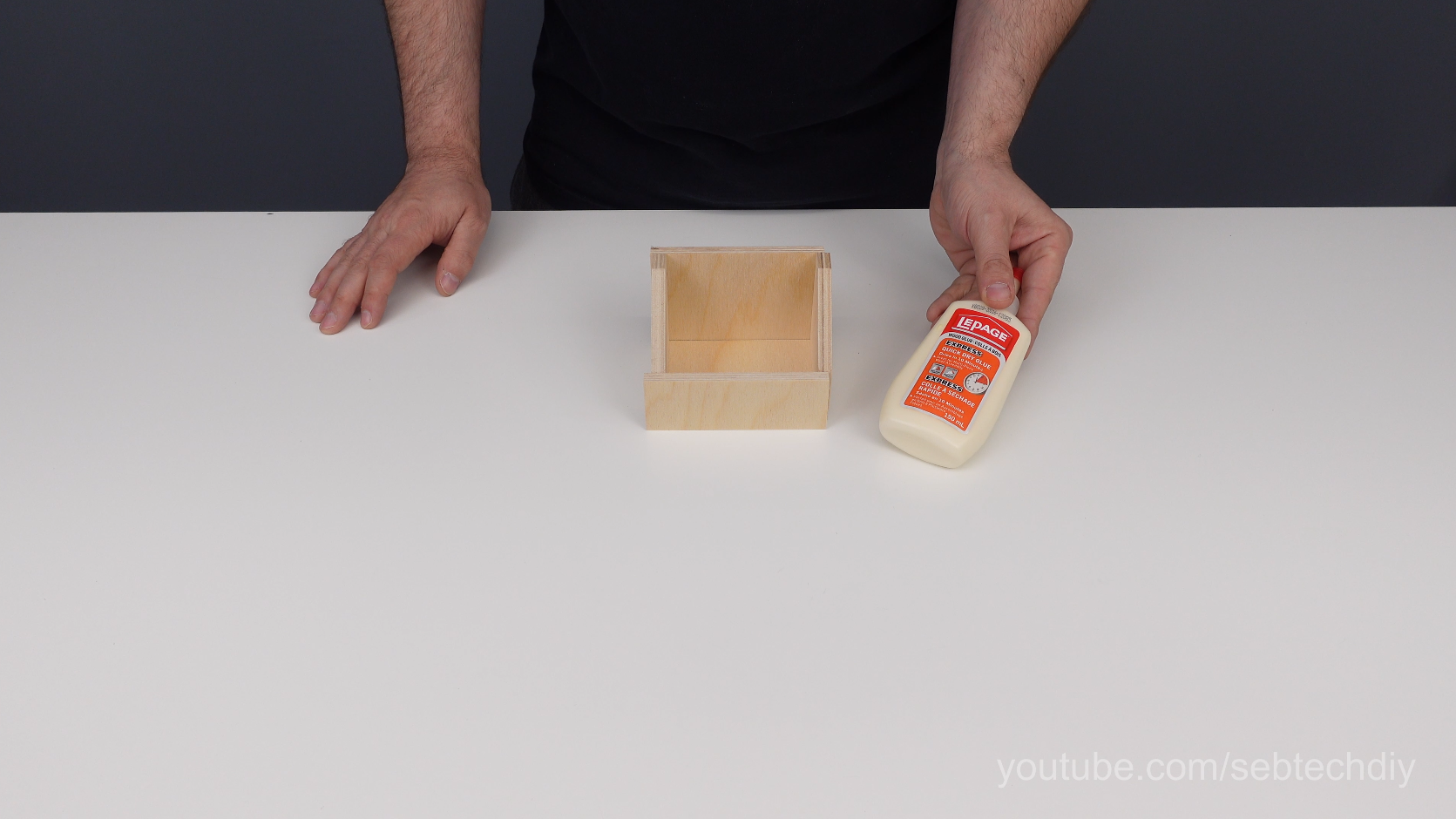

Oh, storage bin, and this one is not a cheap one. It is heavy duty, will never break like plastic ones.

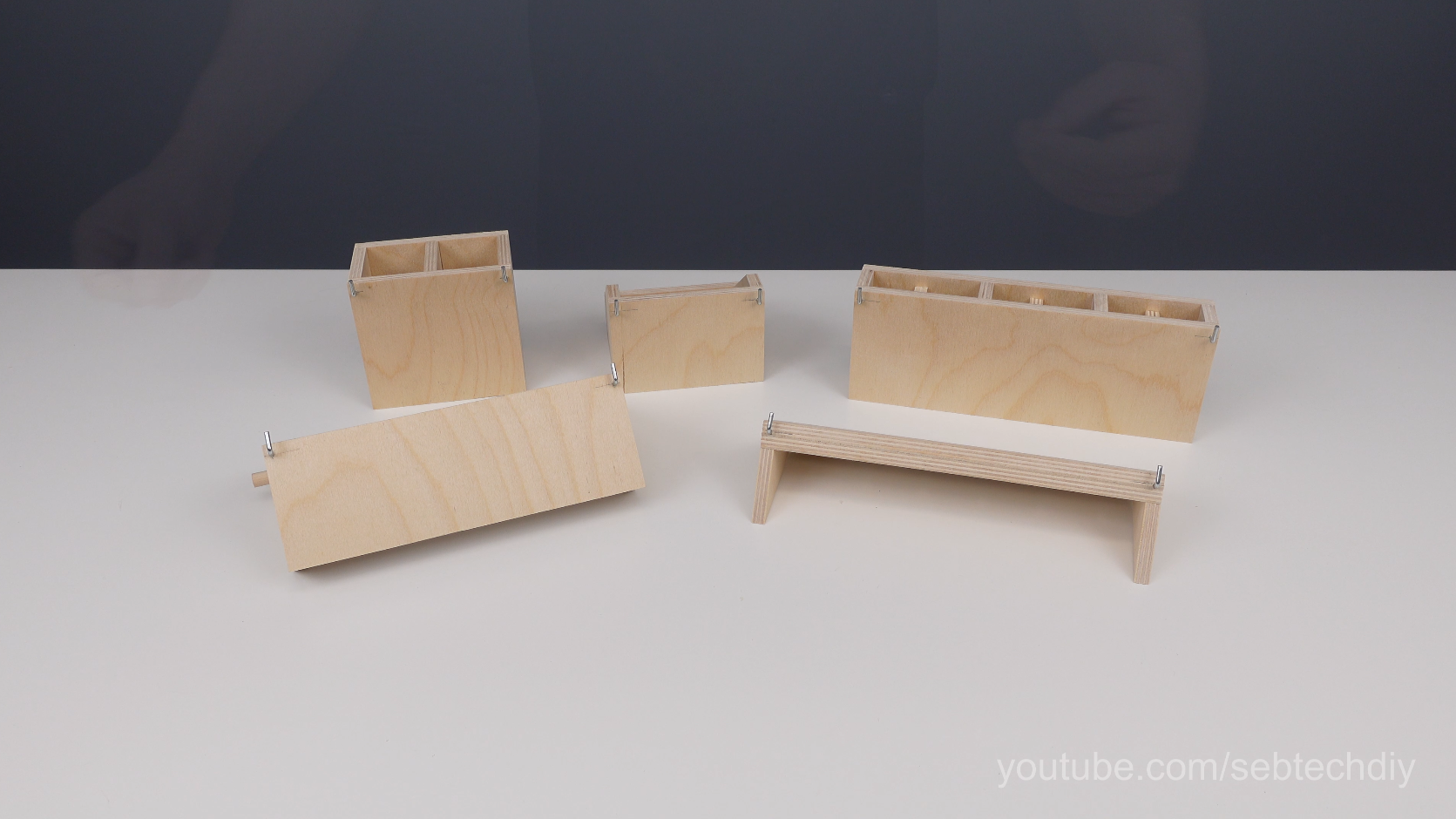

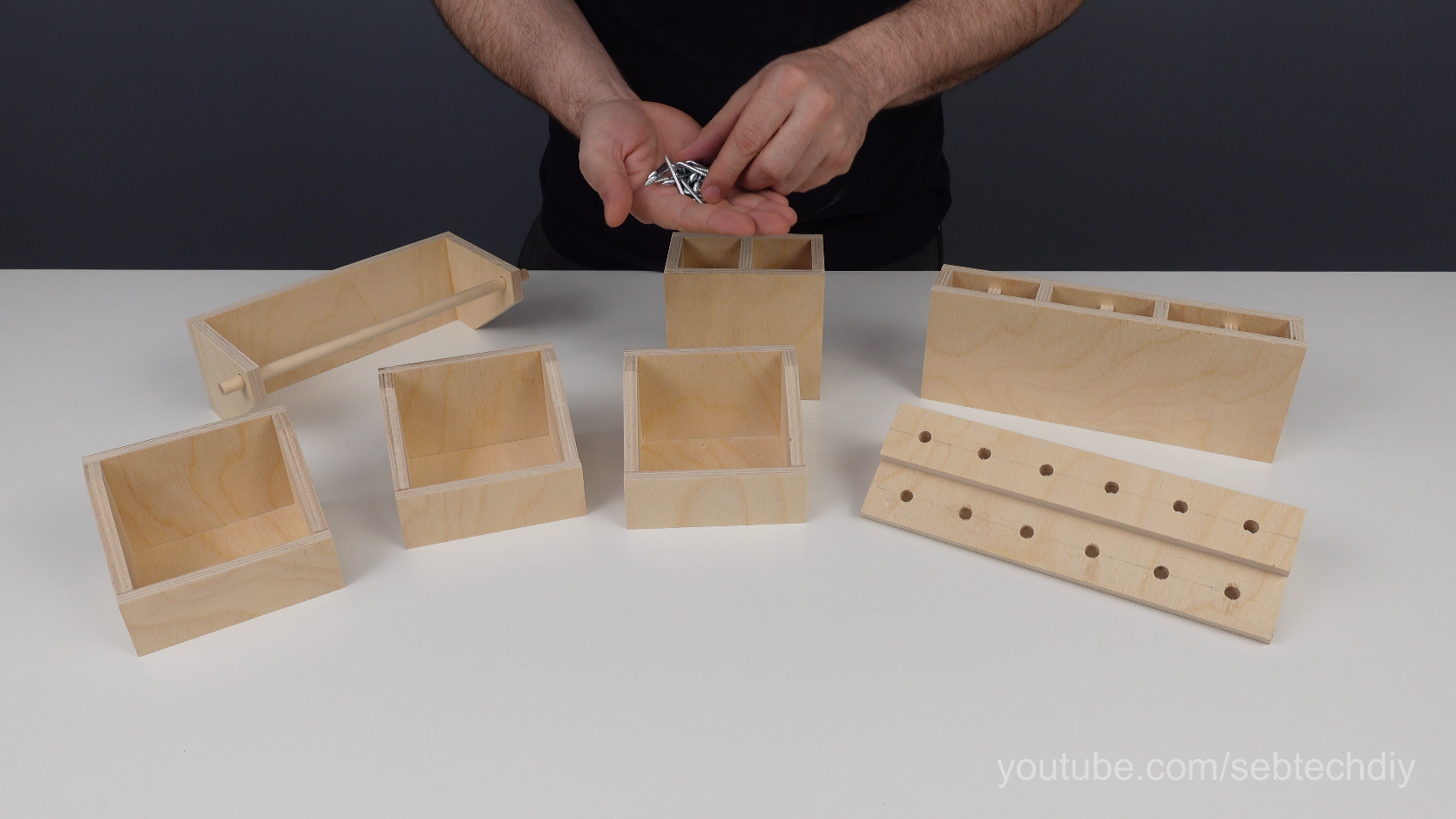

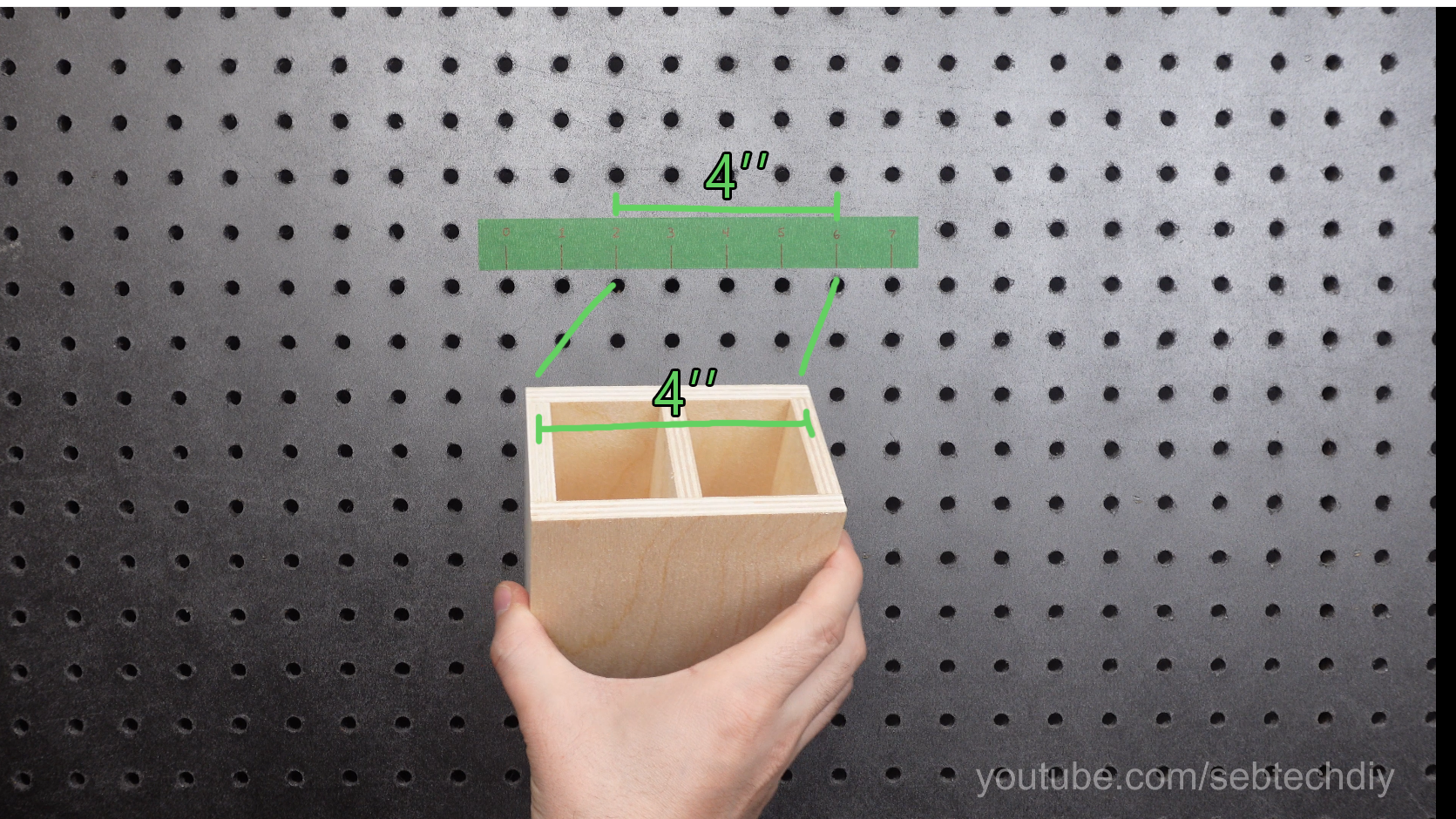

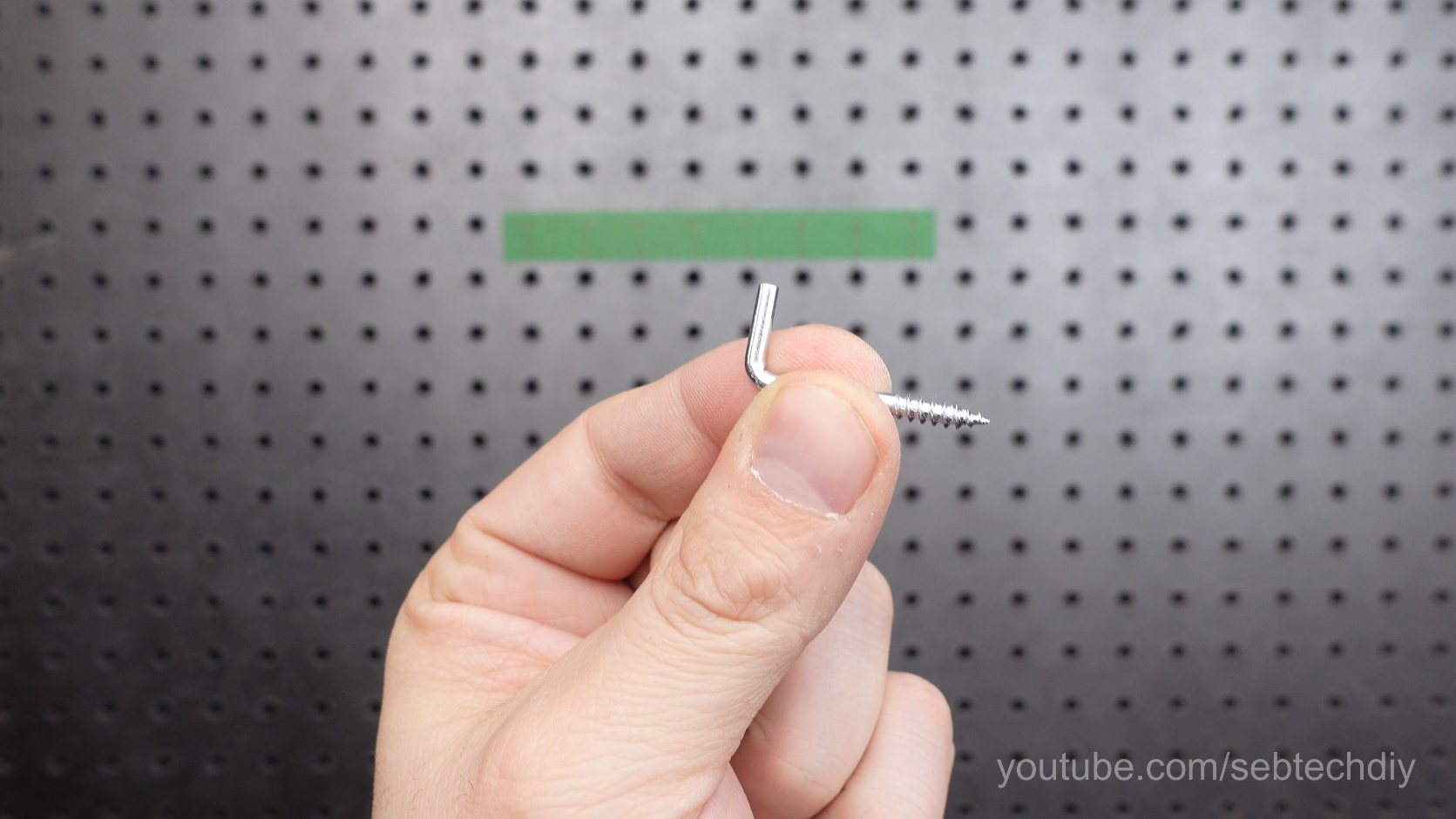

Now that all our custom organizers are made, we need to hang them to the pegboard. To do so, I am using some L-hooks that you can screw on the back of each organizers. Keep in mind that any organizers you will make, the sides of the organizer need to be at every one inches center to center. I can be 1 in wide to 12 inches wide if you want, but make sure all the sides are at every one inches or otherwise the L-hooks won't be align with the holes on the pegboard. Now, if the distance between each holes of your pegboard is different than mine, modify accordingly to your dimensions.

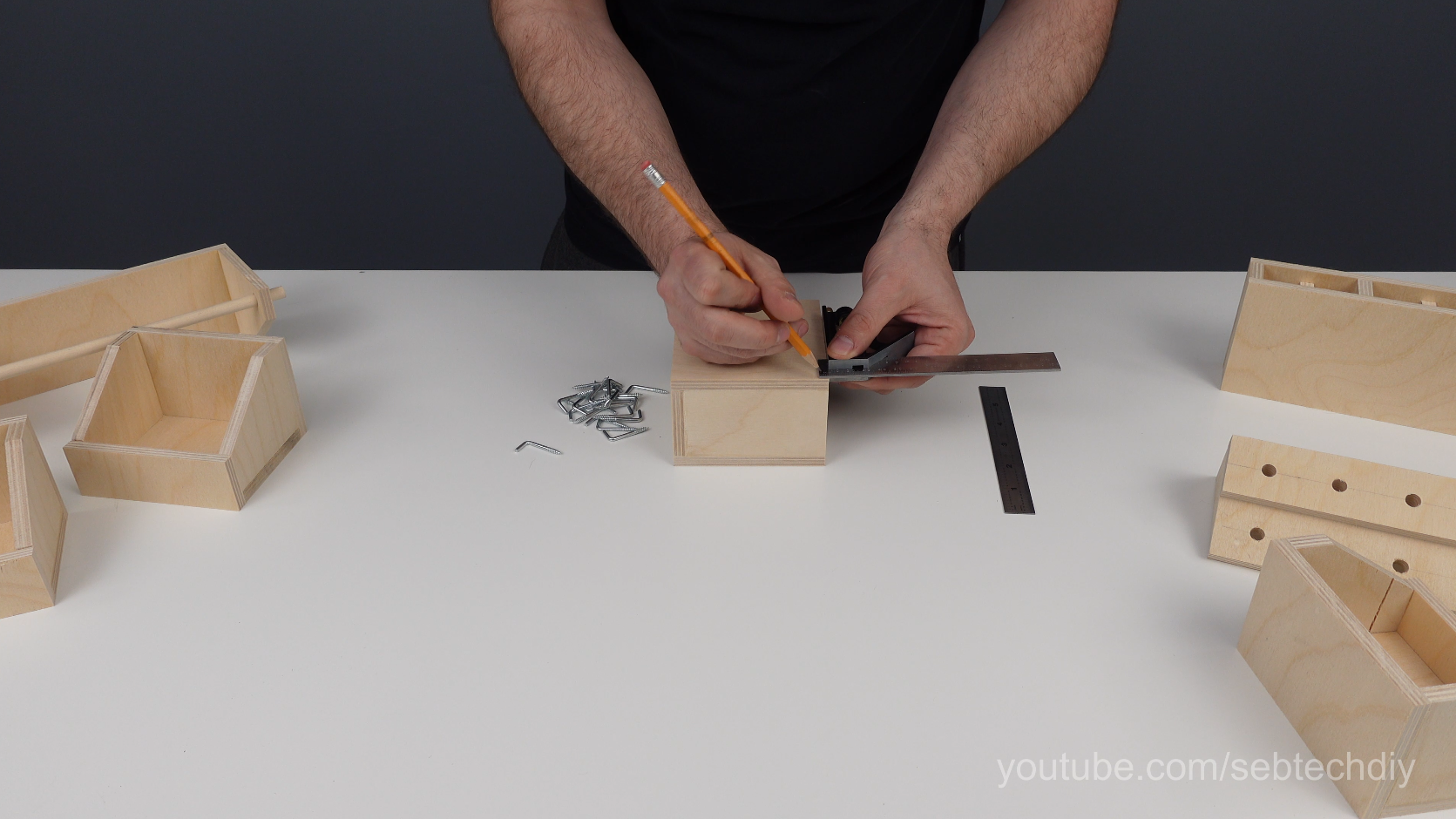

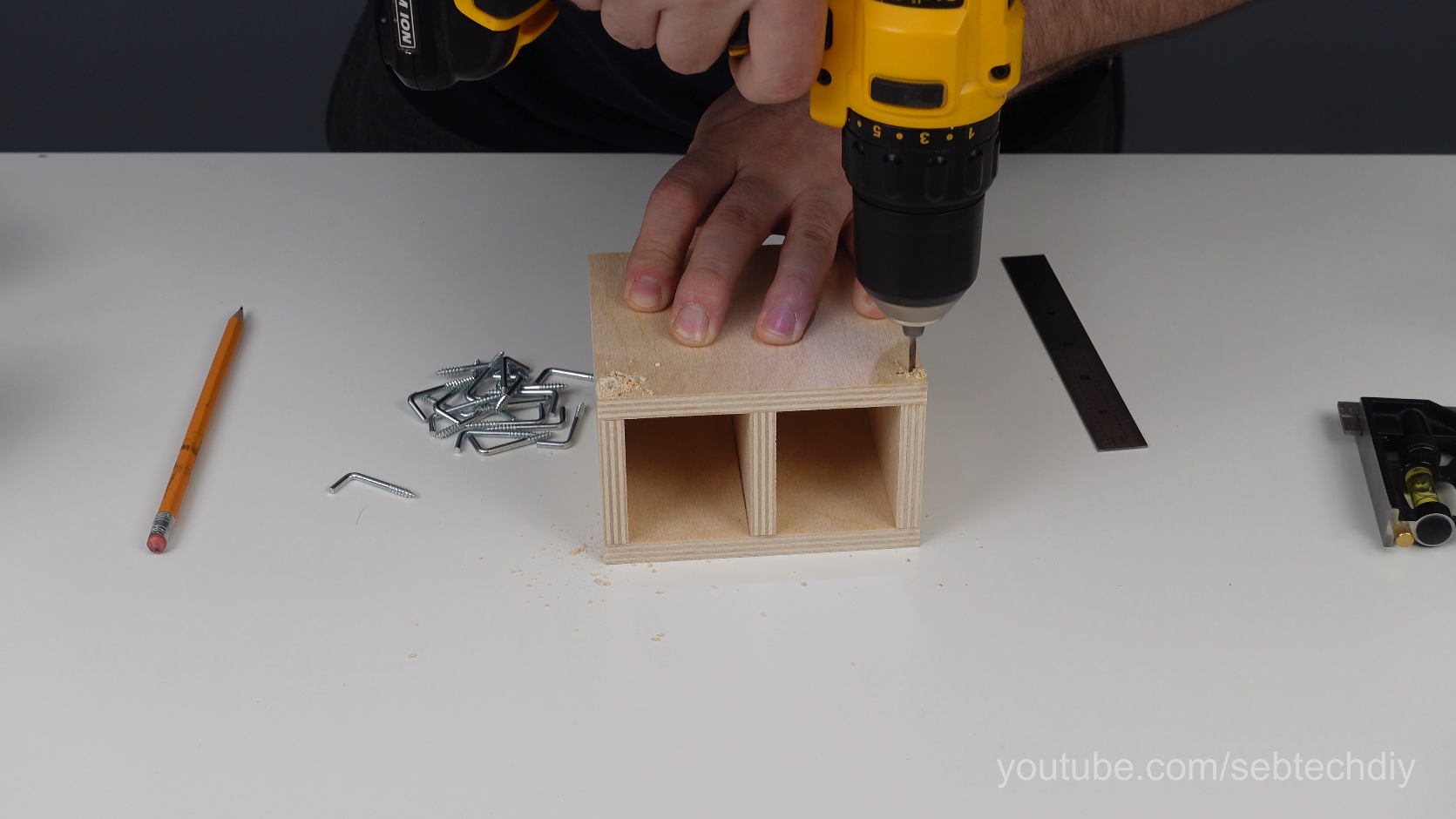

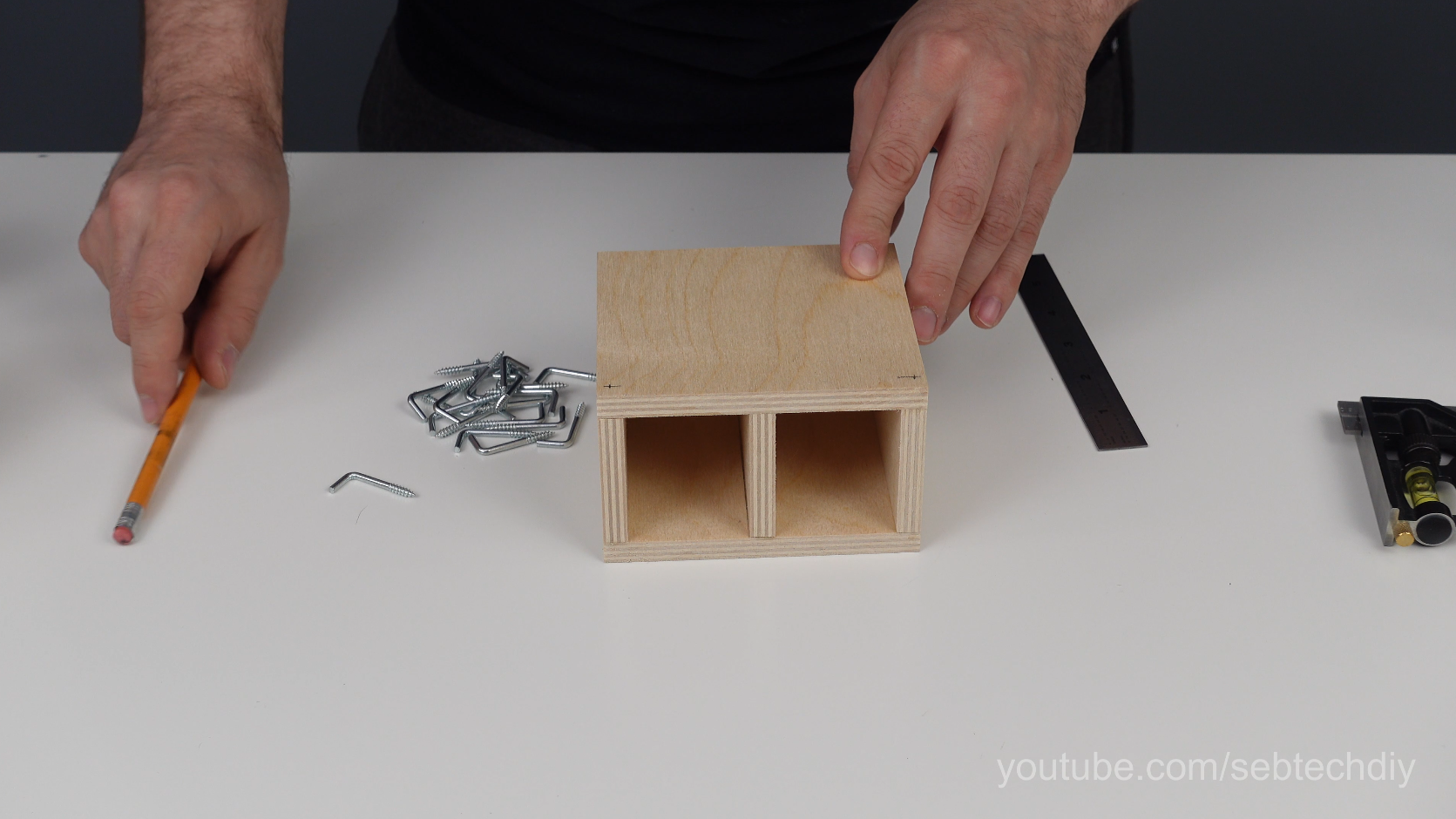

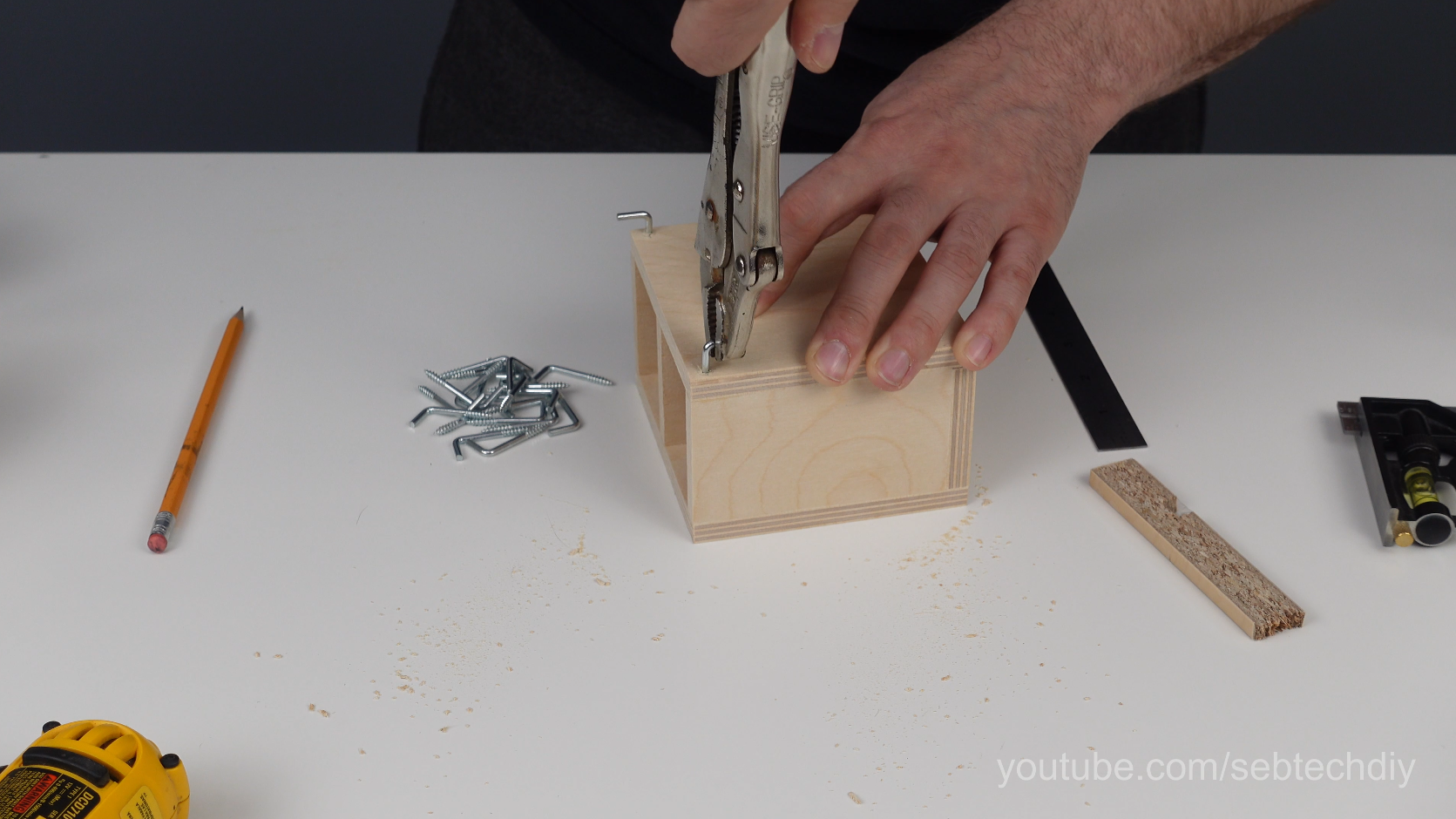

Before screwing the L-hooks in place, I drill some holes to make sure the wood don't split. Holes are drilled 1/4'' from the top of the organizers. I use my vicegrip to screw them in place, and the depth will depend on the thickness of your pegboard. Adjust it, try it, then adjust it again until the organizer are tight to the pegboard.

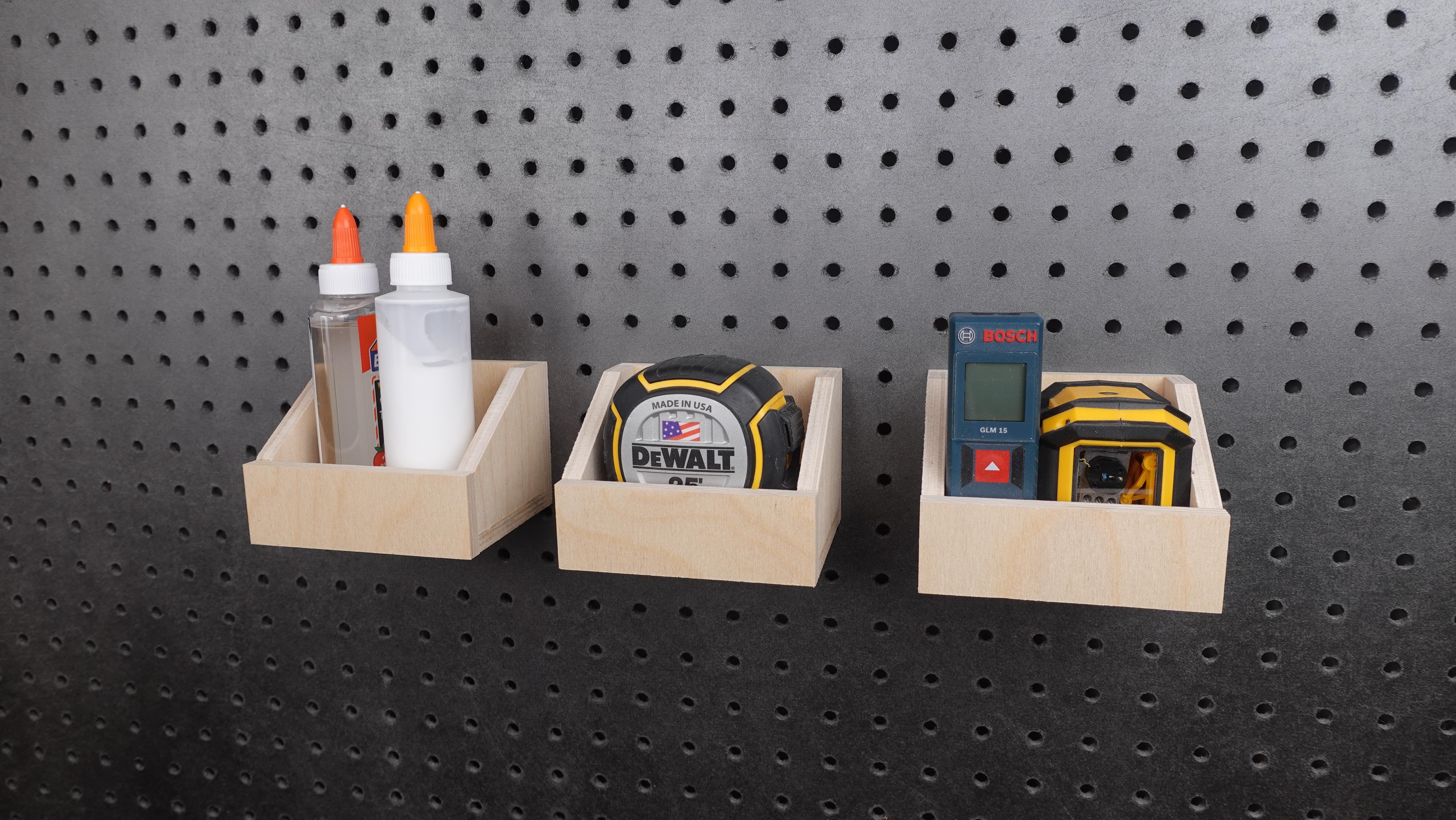

Now the fun part, hook them on your pegboard and get organized.

Thanks for watching my video and my instructable! :-)

Youtube video here : https://youtu.be/nAZN17cJtGQ

Hope you enjoyed this project and I hope it give you ideas to build your own custom organizer.

After all, pegboard can be a good solution for tools storage.
