Parts Storage Solution
Great parts storage and indexing solution.
Features:
-Simple to construct
-Inexpensive
-High density
-Floor or bench space NOT required.
-Scaleable, go as big as you like
-Easy to index new parts
Features:
-Simple to construct
-Inexpensive
-High density
-Floor or bench space NOT required.
-Scaleable, go as big as you like
-Easy to index new parts

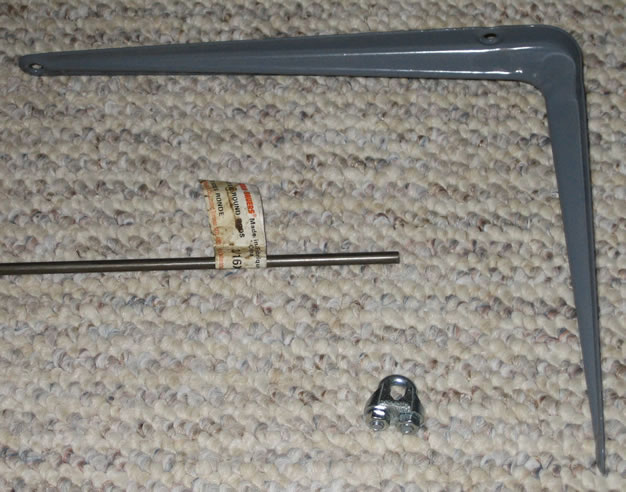

Parts Required #1
-3/16" x 36" Metal rod
-2 Small U-Clamps
-2 Utility shelf mounting brackets
-2 Small U-Clamps
-2 Utility shelf mounting brackets
Parts Required #2
-Self adhesive plastic J-hook hanging tabs
-Poly zip lock bags
-Poly zip lock bags
Drill Shelf Bracket
Drill a hole to accept the U-Clamp
Attach the U-Clamp
Attach the U-Clamp to the shelf bracket
Mount Shelf Brackets
-Screw the shelf brackets to wall studs
-Insert metal rod
-Tighten U-Clamps
-Insert metal rod
-Tighten U-Clamps
Attach Hanging Tabs to Bags
-Place the hanging tab between the flaps of the bag with adhesive side facing down
-I made some reference marks so tabs were consistent
-I made some reference marks so tabs were consistent
Press Firmly
Press the hanging tab against the bag, opposing thumbs come in handy for this step.
Add a Staple
Add a staple or two in case the adhesive lets go one day

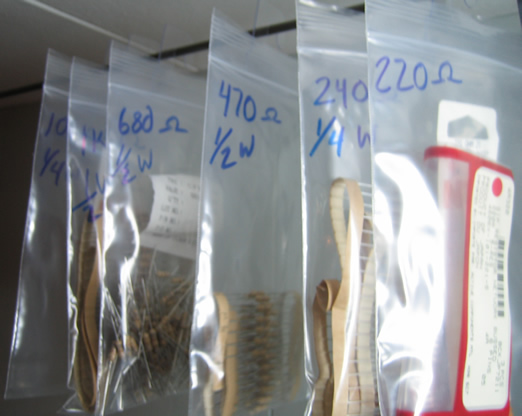

Start Hanging Parts!
Ah...the fun part. Getting all those parts off your bench and out of all those little drawers.
