Parkside X20V Battery Powerbank USB Charger
by powerusertutorials in Workshop > 3D Printing
6597 Views, 14 Favorites, 0 Comments
Parkside X20V Battery Powerbank USB Charger
![20201021_002755.jpg](/proxy/?url=https://content.instructables.com/FU7/P12U/KGQJZ6SZ/FU7P12UKGQJZ6SZ.jpg&filename=20201021_002755.jpg)
![20201021_011110.jpg](/proxy/?url=https://content.instructables.com/F6K/RCJQ/KGQJZ6T5/F6KRCJQKGQJZ6T5.jpg&filename=20201021_011110.jpg)
![Parkside USB Charger](/proxy/?url=https://content.instructables.com/FYI/7URS/L1NL1ROJ/FYI7URSL1NL1ROJ.jpg&filename=Parkside USB Charger)

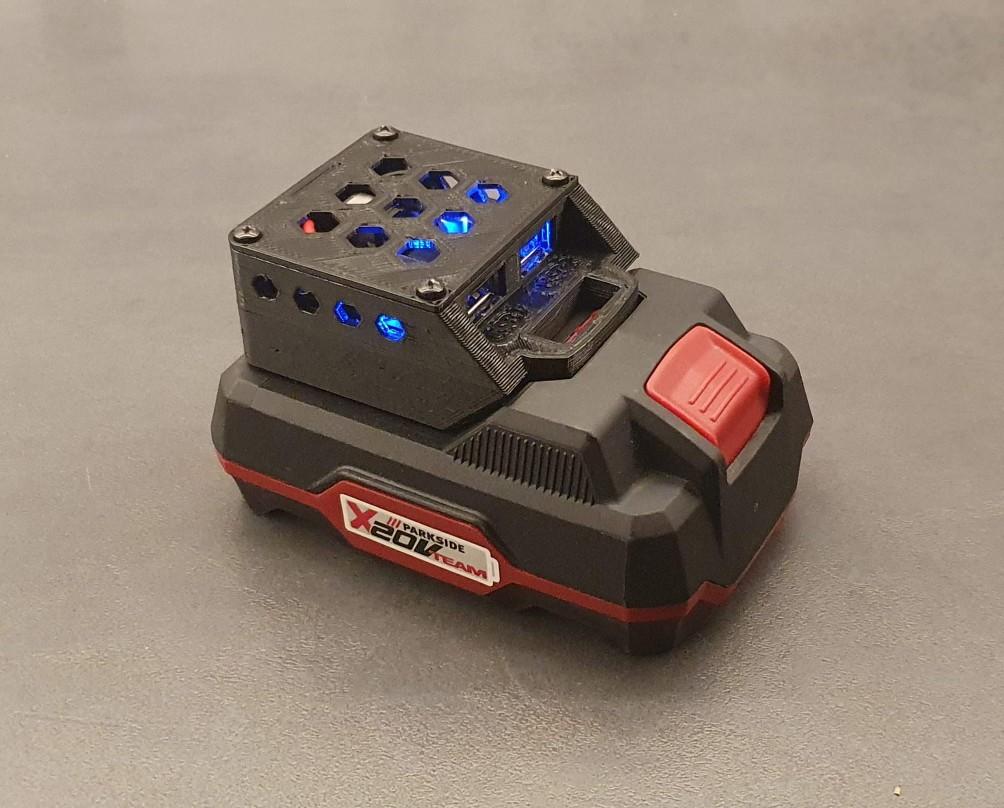

This is a simple DIY power bank project which combines a cheap quick charge charging module with a Parkside 20V battery.
The module I used is here (2 ports, affiliate link):
The module is great and the quick charge is working like a charm on Samsung Galaxy 9 and 10.
I designed it using the fantastic Autodesk Tinkercad free online 3D modeling tool and I encourage you to try it by yourself, especially if you are a beginner. If you are looking for a more powerful 3D modeling tool, take a look at the Autodesk Fusion 360.
Supplies
3D Printing
Print your files from Thingiverse (top, middle, and bottom part):
https://www.thingiverse.com/thing:4629874
When you finished printing, remove supports. There will be a little struggle with supports where the front corners of the board go, as they are just 2 mm high.
I used draft/rough settings, with support. The thing is divided into two big pieces (middle and bottom) in order to save filament - to prevent unnecessary support.
Assembly
![20201021_005153.jpg](/proxy/?url=https://content.instructables.com/FZB/DKTV/KGQJZ6T0/FZBDKTVKGQJZ6T0.jpg&filename=20201021_005153.jpg)
![20201021_011013.jpg](/proxy/?url=https://content.instructables.com/FAT/OKSK/KGQJZ6T2/FATOKSKKGQJZ6T2.jpg&filename=20201021_011013.jpg)
![20201021_011001.jpg](/proxy/?url=https://content.instructables.com/FSC/RPD4/KGQJZ6T1/FSCRPD4KGQJZ6T1.jpg&filename=20201021_011001.jpg)
- Holes in printed parts are a little bit tight, you can (pre)screw the screws (screw-unscrew), it will be easier later
- Put wire terminals and place them in place, using hot glue.
- Solder another side of the wire to the charger board. Be careful with +- and before soldering put the module in the printed housing
- Screw the screws :)
Test
![text877-4.png](/proxy/?url=https://content.instructables.com/FYG/9D1E/KGUUB6B8/FYG9D1EKGUUB6B8.png&filename=text877-4.png)
To confirm that this thing is working, I took a few measurements. I used the simple Android app Ampere and compared 3 kinds of charging - using this charger, original Samsung wall charger, and PC USB port. Every time, I used the same USB cable (Samsung OOTB).
Also, I was able to fully charge my phone (0-100%) 2 times. To be honest, there is a little bit more juice in the Parkside battery, but I didn't want to push it.
If you're interested to take a look at the Parkside battery, here is a nice video. We can see that there are five 18650 cells inside.
The End
![20201021_011045.jpg](/proxy/?url=https://content.instructables.com/FM0/6AFV/KGQJZ6T3/FM06AFVKGQJZ6T3.jpg&filename=20201021_011045.jpg)
![20201021_011056.jpg](/proxy/?url=https://content.instructables.com/FAB/5EDQ/KGQJZ6T4/FAB5EDQKGQJZ6T4.jpg&filename=20201021_011056.jpg)
If you decide to make this thing, please share your work :)

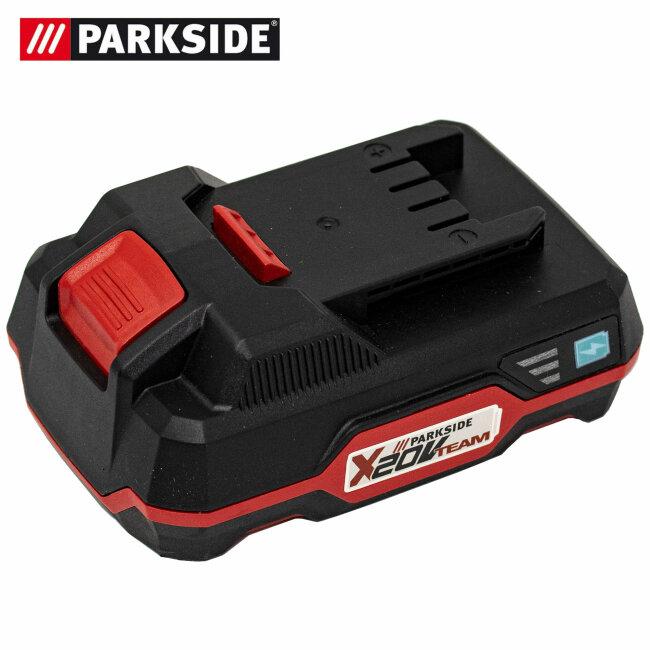

Original Parkside USB Charger and Battery
![parkside-20v-akku-20-ah-pap-20-b1-li-ion-batterie-eu-fuer-geraete-der-parkside-x-20v-familie.jpg](/proxy/?url=https://content.instructables.com/FG5/4X1V/L1NL1RB2/FG54X1VL1NL1RB2.jpg&filename=parkside-20v-akku-20-ah-pap-20-b1-li-ion-batterie-eu-fuer-geraete-der-parkside-x-20v-familie.jpg)
![s-l1600.jpg](/proxy/?url=https://content.instructables.com/FBL/6UN6/L1NL1RB3/FBL6UN6L1NL1RB3.jpg&filename=s-l1600.jpg)
If you are looking for the original products, you can find them here:
