Parabolic Curve Antenna 2 4GHz
by andrew mcneil in Circuits > Wireless
1635 Views, 17 Favorites, 0 Comments

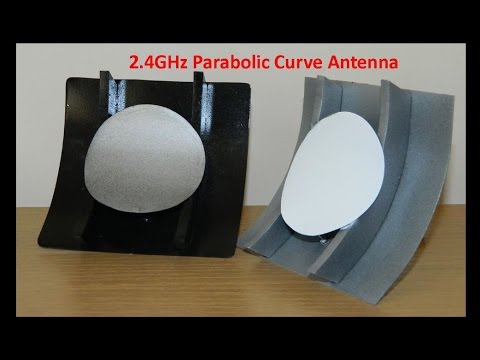

Parabolic Curve Antenna 2 4GHz
![Parabolic Curve Antenna 2 4GHz](/proxy/?url=https://content.instructables.com/F7E/CNUF/IBTETRQJ/F7ECNUFIBTETRQJ.jpg&filename=Parabolic Curve Antenna 2 4GHz)
Parabolic Curve Antenna 2.4GHz
So here we have the 2.4GHz version of this antenna. Operating at 11dbi it is a powerful antenna for its size, again as shown in the last video this is due to the parabolic curve of the reflector. Template: https://drive.google.com/file/d/0BzmJxxD-Z4B6dHdqUVhnUWpqYmM/view?usp=sharing
