Paper Mechanical Iris

I also got featured on HackADay! Link: http://hackaday.com/2011/03/22/paper-mechanical-iris/

Please rate and comment!
I posted a picture Instructable of this, and someone wanted me to make an instructable.
This mechanical iris has 6 segments, I plan to add more, it is "upgradable", as for that I can add more segments and fix broken ones. It can open and close smoothly, and it had a detachable strap to make it a monicle but I broke it a while ago


New thing: the first 2 people who make this will get a patch!
Edit: Win Guy already made one! look at the top comment and you will see it. There is only 1 patch left!

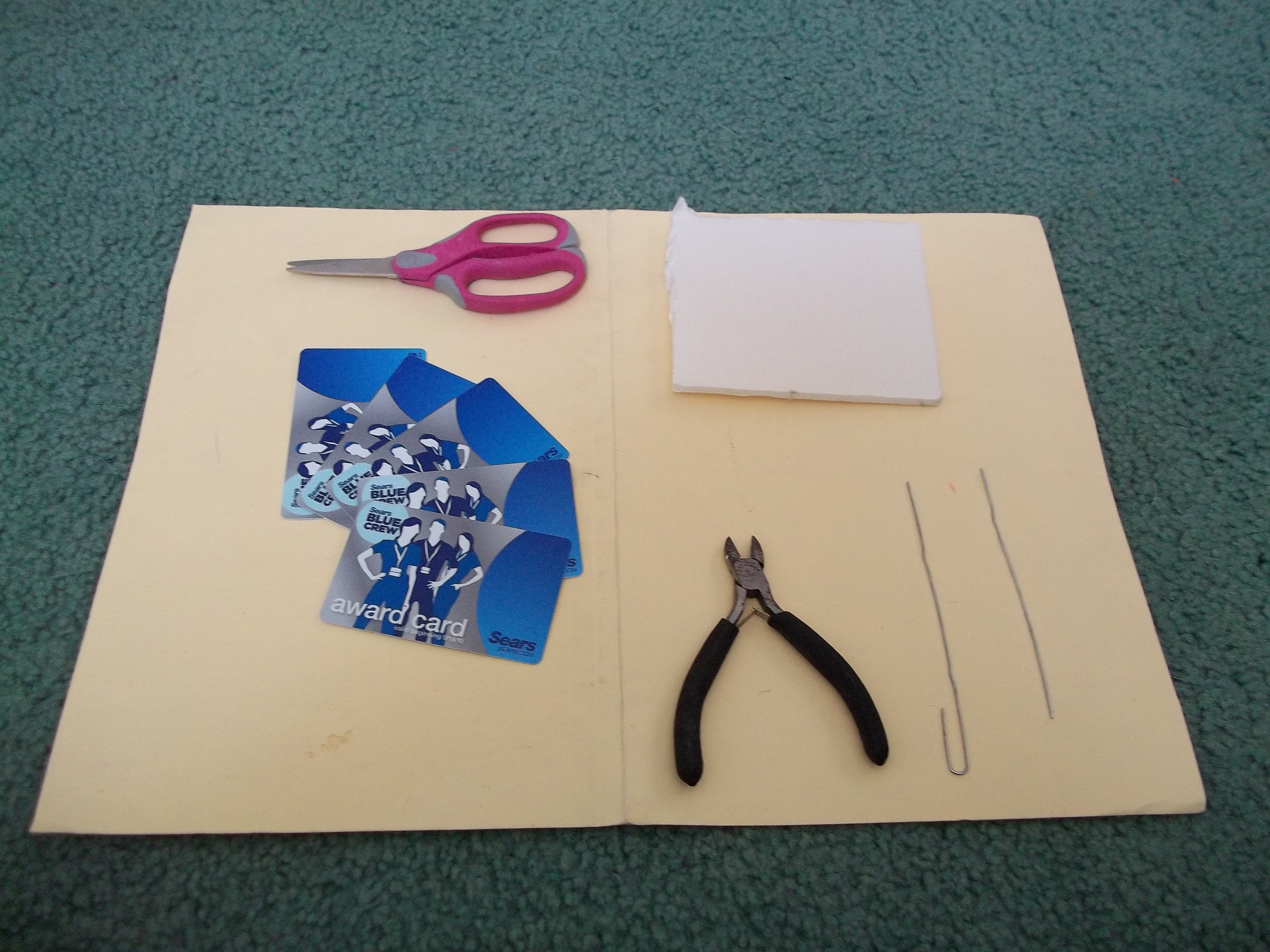

Here is what you need:

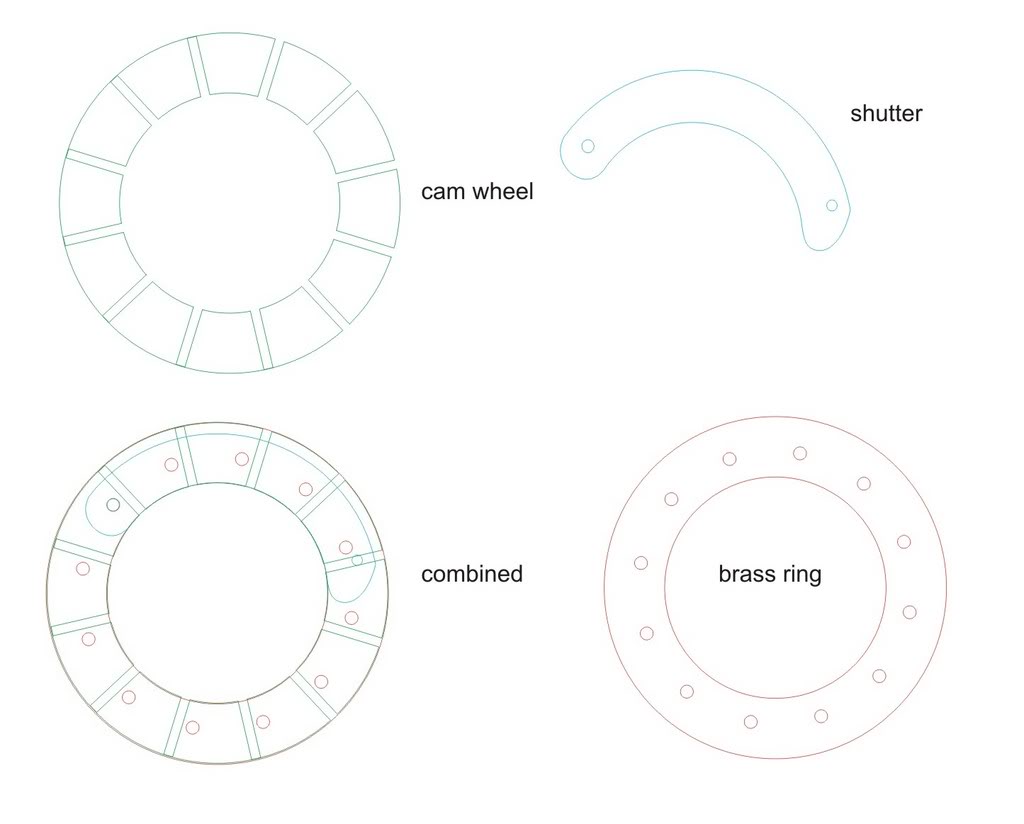

-Printout, image below
-scissors and hobby knife(Xacto Knife)
-snippers or plyers
-foam core, I used 1/4 in
-credit cards or gift cards with no protruding objects( I don't know now many I used, but I guess i used 3-4)
-paperclips

I suggest that you print out more than one copy, incase if you mess up.
UPDATE: I finally made a real thing that you can print out instead of this image. Just print that out instead

Cut the paper out, for the "cam wheel" only cut out a circle like the "brass ring" it would be hard to realign then again.
For the "combined" only cut out the shutter part of it
also keep the "extra cam wheel"s , they are need for alignment

Get the foam core, the piece in the first picture is too small, it is only big enough for one part.
Using larger foam core, glue on the cam wheel and brass ring separately(far apart), also from the extra paper you have, cut out an extra cam wheel and glue it on, it is used later on to hold the cam wheel together.

With the foam core glued on with the design, cut all the pieces out, except for the second "cam wheel"(Cut out the first one)
For the second "cam wheel cut it out like the "brass ring" a circle
Make sure to cut out the inside also, thats what the xacto knife is for.

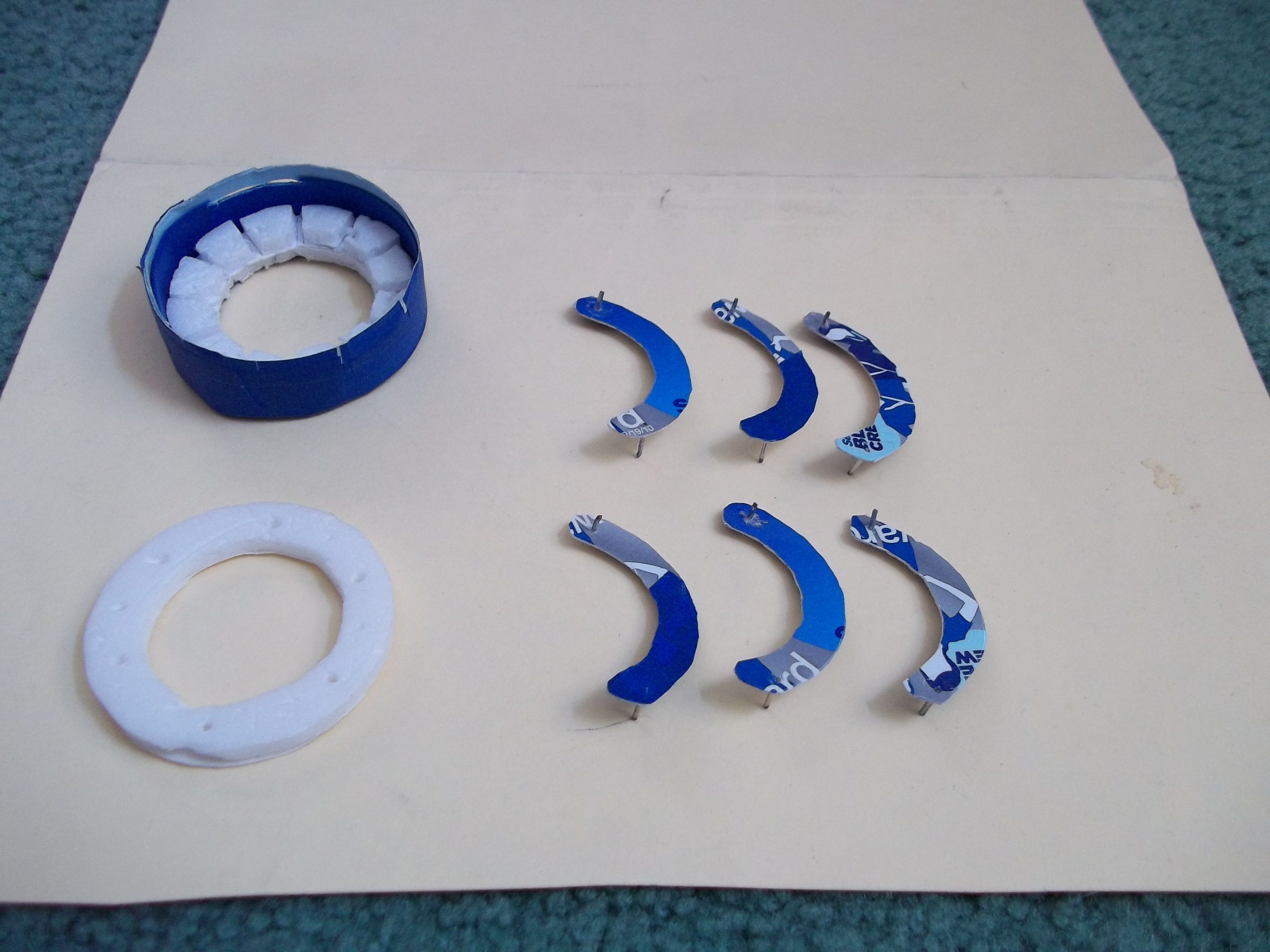

When you are done cutting it all out, glue on the  "cam wheel" segments to their place on the second cam wheel(it has markings for where they should exactly go(I dont have any pictures of that because i made it a while ago(The second picture should help, you can see the lines)))
Then get a piece of paper and wrap it around the "cam wheel" like shown in the picture and glue it

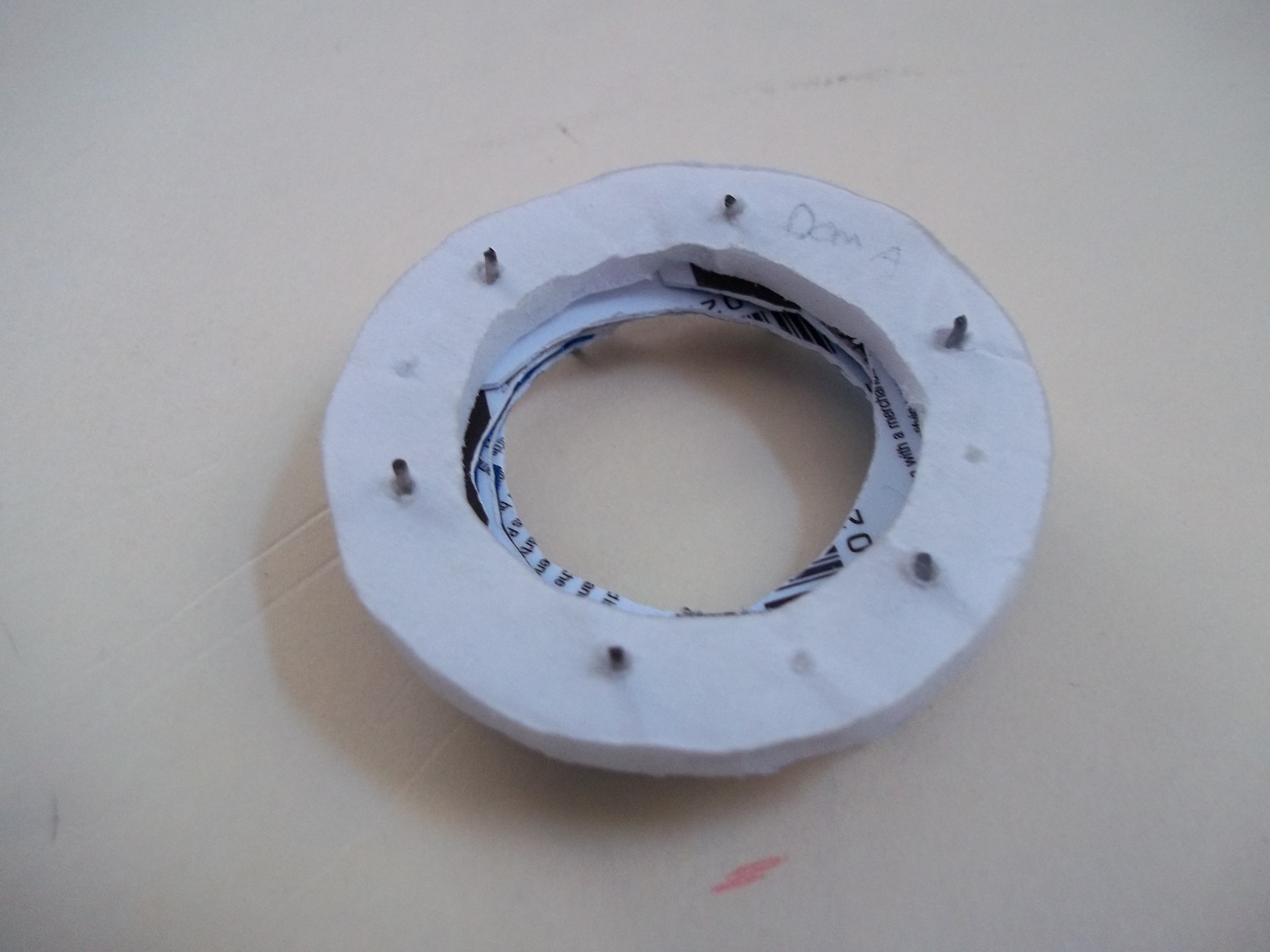

With a pin poke holes in the "brass ring" where it is marked.(3th picture)(every other hole)

Glue on the shutter piece to the gift cards or credit cards. Cut them out and with a pin poke a hole to the place where the paper shows as a circle on each end, try to get it near the middle of each hole as close as possible.

Using the snippers, cut the paperclip into these sizes:
6 each and each about 7 mm(close to exact)
Another 6 each and each about 10mm(it could vary, but not much)
Sorry for the conversion(inches to milimeters) The milimeters are more exact

In the picture,the top one, the paper clip to the left is the 10mm and on the bottom one the one to the right is the 7mm one
Then put the paper clip pieces through the holes you made and use super glue to secure the hold of the paper clip to segment

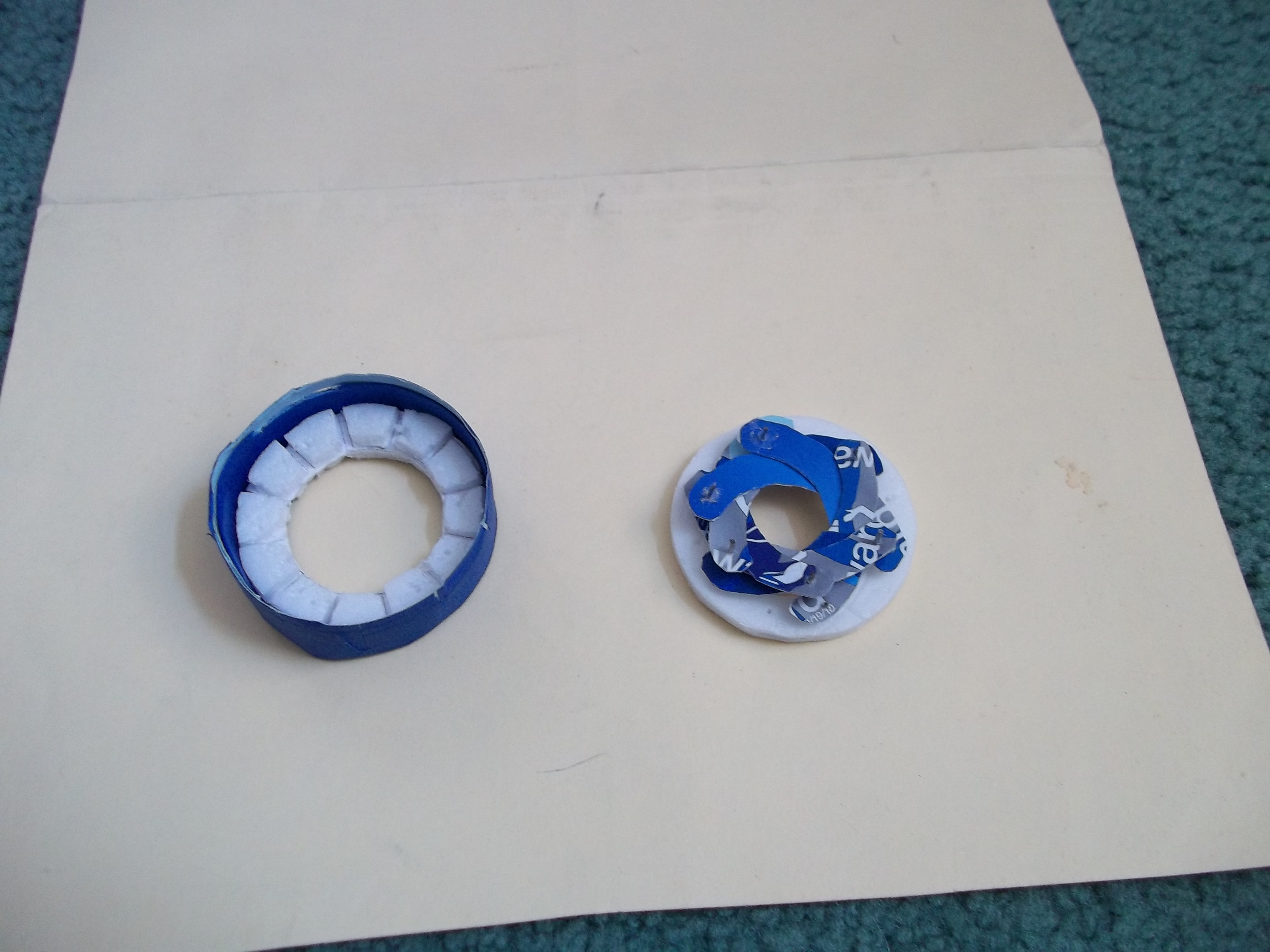

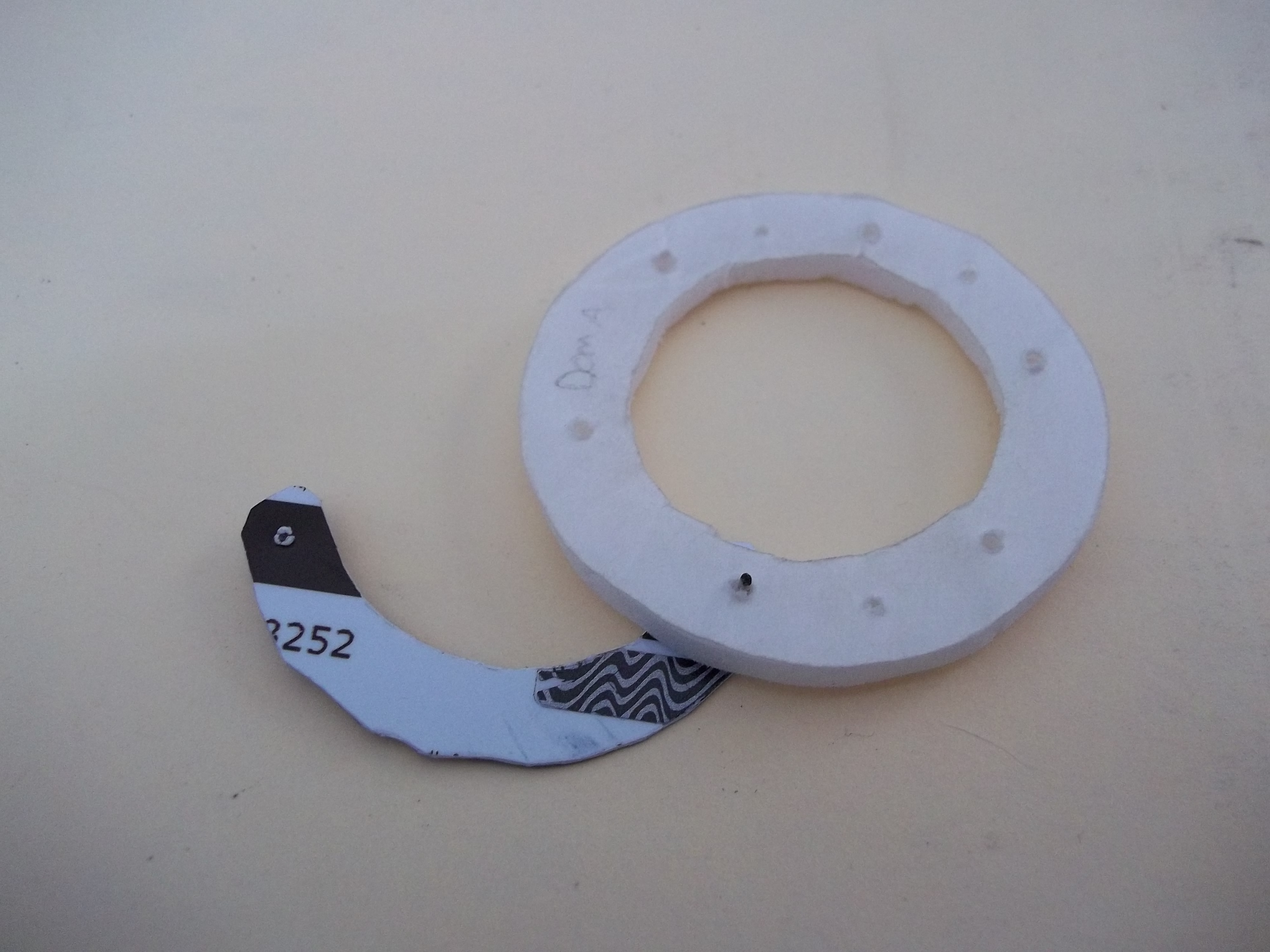

Put the segments on with the part with not rounded edge on the "brass ring" as shown in picture 2 to picture 4
Then put it in the "cam wheel" and line up the paperclip on the segment with every other line(this is meant for a 12 segment iris)

Please tell me if there is an error and comment on how you like it!
