Hi All,
It is Diwali time in India, festival of lights. I make a lamp every year to celebrate Diwali and decorate my house.
This design is based on Paper-Lamp-cathedral-Light by EzyCraft, beautiful and attractive lamps from paper
Differences
- I am not using A4 Size paper, So that to modify it to best fit for the sheet size available for me locally
- Optimized Support system
- Super glue not used as I always end up sticking myself
Also I wanted kids to be able to make it under adult supervision
What Do We Need ?
![temp_2027751590.jpg](/proxy/?url=https://content.instructables.com/FNA/SOJ2/J8OR68SQ/FNASOJ2J8OR68SQ.jpg&filename=temp_2027751590.jpg)
![temp_755209622.jpg](/proxy/?url=https://content.instructables.com/FCE/7B9K/J8OR68SY/FCE7B9KJ8OR68SY.jpg&filename=temp_755209622.jpg)
Material
- A1 size cartridge paper
- Cutting Mat
- PVA Glue / Fevicol
- Glue stick
- Steel scale
- Paper cutter
- Scissors
- String lights
Template
![image00619.jpg](/proxy/?url=https://content.instructables.com/FNW/9KZF/J8UGXSPU/FNW9KZFJ8UGXSPU.jpg&filename=image00619.jpg)
![image00620.jpg](/proxy/?url=https://content.instructables.com/FQC/BGF4/J8UGXSNX/FQCBGF4J8UGXSNX.jpg&filename=image00620.jpg)
The cartridge sheet I got was smaller than A1. So that to come up with different template solution to get 9 sheets out from the sheet available. Details of the templates shown in the images. Template is not to scale, one needs to hand draw it.
Cutting
![temp_-1974855956.jpg](/proxy/?url=https://content.instructables.com/FPV/ZC2Z/J8OR68U5/FPVZC2ZJ8OR68U5.jpg&filename=temp_-1974855956.jpg)
![temp_1326217298.jpg](/proxy/?url=https://content.instructables.com/FKA/BQOG/J8OR68TE/FKABQOGJ8OR68TE.jpg&filename=temp_1326217298.jpg)
![temp_-282714602.jpg](/proxy/?url=https://content.instructables.com/FEA/8ELK/J8OR68W1/FEA8ELKJ8OR68W1.jpg&filename=temp_-282714602.jpg)
![temp_1509860937.jpg](/proxy/?url=https://content.instructables.com/F0A/21QW/J8OR68XL/F0A21QWJ8OR68XL.jpg&filename=temp_1509860937.jpg)
- Cut three strips at 171 MM height or width along the long side of the sheet
- On plain A4 sheet, draw and cut based on template
- Using the above as master cut rhombus as shown in pictures
Assembly
![temp_489381119.jpg](/proxy/?url=https://content.instructables.com/FZE/DNJ5/J8OR68YL/FZEDNJ5J8OR68YL.jpg&filename=temp_489381119.jpg)
![temp_323753014.jpg](/proxy/?url=https://content.instructables.com/F9M/KFOB/J8OR68Z7/F9MKFOBJ8OR68Z7.jpg&filename=temp_323753014.jpg)
![temp_959771242.jpg](/proxy/?url=https://content.instructables.com/FWL/8GC8/J8OR6910/FWL8GC8J8OR6910.jpg&filename=temp_959771242.jpg)
![temp_1104817610.jpg](/proxy/?url=https://content.instructables.com/F57/TMIN/J8OR6911/F57TMINJ8OR6911.jpg&filename=temp_1104817610.jpg)
- We have 3 cuts at
- 83 MM : Interlock within same sheet
- 53 MM : Interlock with the next sheet ( N )
- 24 MM : Interlock with N + 1
- It makes a design as shown with 9 sheets and then connect the first and last sheet to make a circle
- Place a bottle is between to give shape and support while we work
- Using glue stick, stick the outermost edges
Using a bottle really helped
Supporting
![temp_-1243714617.jpg](/proxy/?url=https://content.instructables.com/FBP/NPBQ/J8OR691Q/FBPNPBQJ8OR691Q.jpg&filename=temp_-1243714617.jpg)
![temp_-897359231.jpg](/proxy/?url=https://content.instructables.com/FUX/JPZR/J8OR692I/FUXJPZRJ8OR692I.jpg&filename=temp_-897359231.jpg)
![temp_1241434619.jpg](/proxy/?url=https://content.instructables.com/FIL/XXIT/J8OR692J/FILXXITJ8OR692J.jpg&filename=temp_1241434619.jpg)
![temp_1751927493.jpg](/proxy/?url=https://content.instructables.com/FB8/YN5D/J8OR693M/FB8YN5DJ8OR693M.jpg&filename=temp_1751927493.jpg)
- Cut 1 strip : 235 mm and stick it to overlap 5 mm as shown
- Cut a 8 circles with diameter 74mm
- Stick all the circle pieces together and cut a small opening to pass "string light plug "
- Glue the stip and circle using PVA glue or fevicol as shown
- Leave it to dry for 1 hr
Electrical
![temp_-1112431931.jpg](/proxy/?url=https://content.instructables.com/F50/JBRC/J8OR6941/F50JBRCJ8OR6941.jpg&filename=temp_-1112431931.jpg)
![temp_812051901.jpg](/proxy/?url=https://content.instructables.com/F21/E9Z6/J8OR694X/F21E9Z6J8OR694X.jpg&filename=temp_812051901.jpg)

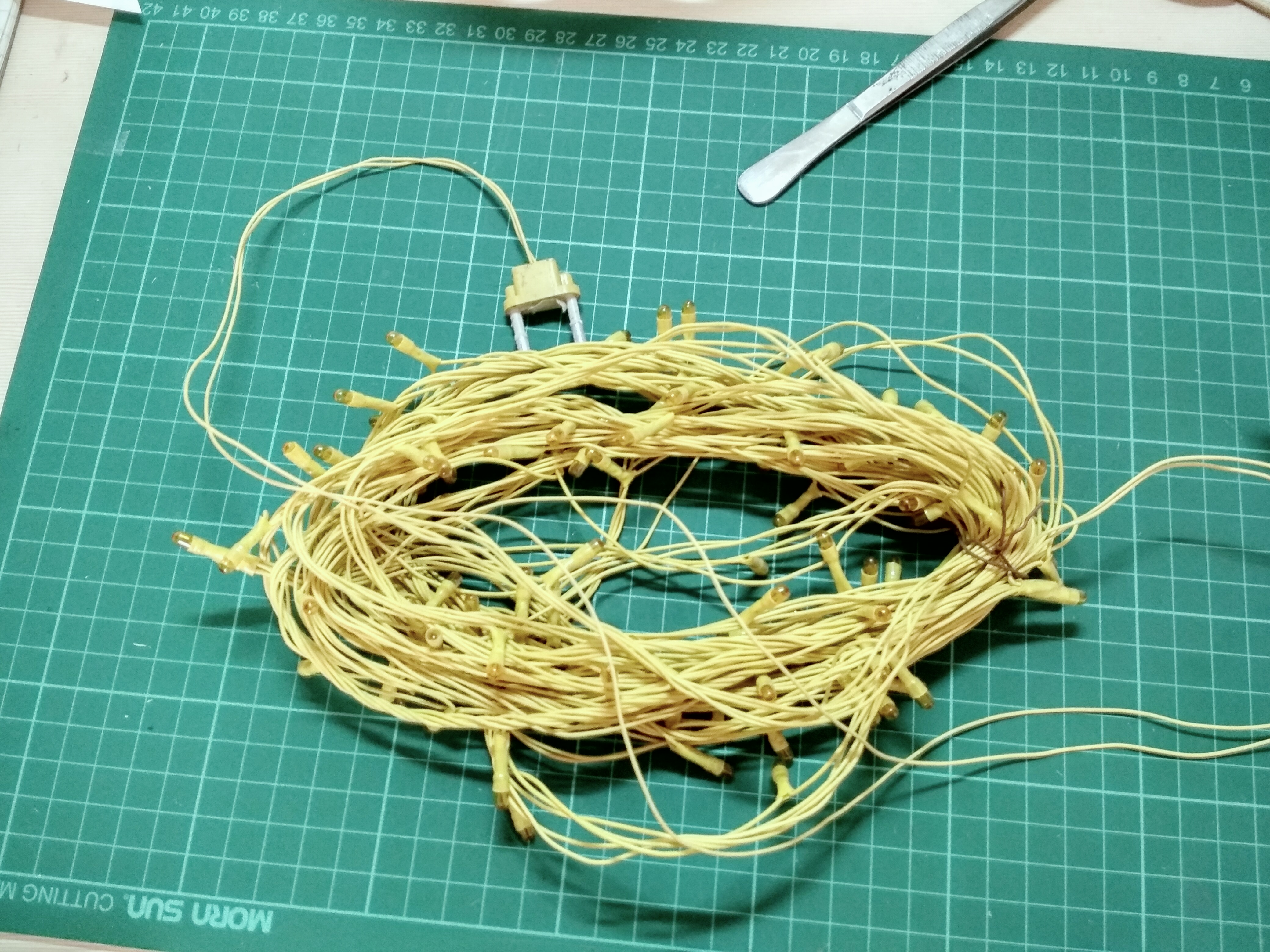

I used old rice bulb string light with 120 bulbs.

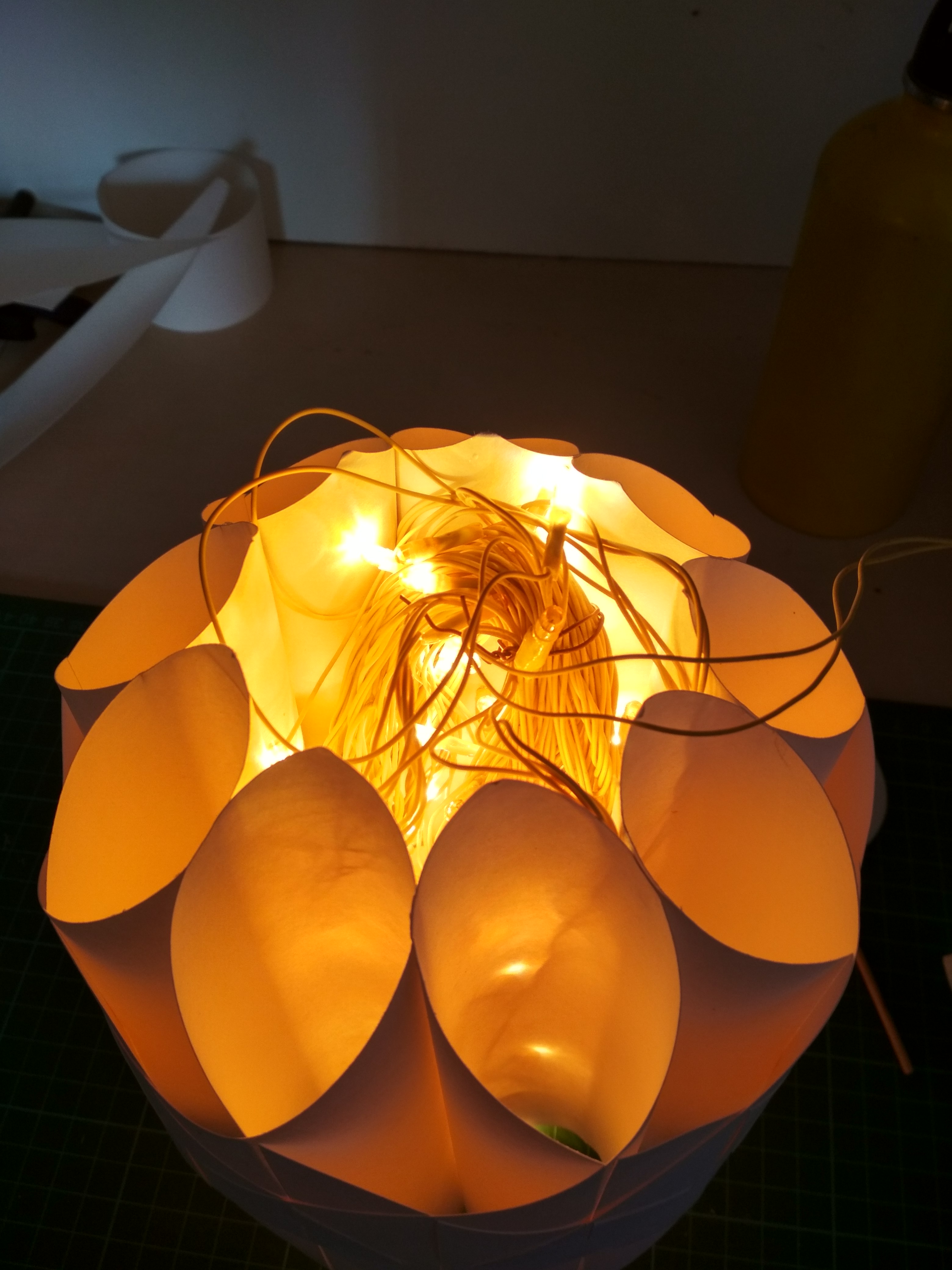

Tie it in a bundle that is smaller and compresses inside the lamp as shown
May have to add a guide circle to center the lights
Hang It
![temp_271547798.jpg](/proxy/?url=https://content.instructables.com/FAB/FKA7/J8OR6964/FABFKA7J8OR6964.jpg&filename=temp_271547798.jpg)
![temp_1363192152.jpg](/proxy/?url=https://content.instructables.com/F33/HWZ7/J8OR697A/F33HWZ7J8OR697A.jpg&filename=temp_1363192152.jpg)
The string lights are strong enough to bear it's and the paper lamp's weight or Using a string hang from the ceiling
Test the lamp with different color string lights
Please share your comments
