Paper Deer Lamp

Hi All,

In this instructable, I will share how to make this beautiful paper deer lamp at home.

It does not need any special tools or power tools.... just paper cutter and soldering iron

Please vote for me

Materials

• Cartridge paper
• Template ( Link in next step)
• Paper cutter
• LED Strip
• LED 12V driver
• Wires
• Glue stick
• Soldering iron

This project is inspired by Carlo DC's work, the download link is embedded in description of the video

Alternatively click here

Deviations in approach :

• Used cartridge paper instead of a cardboard

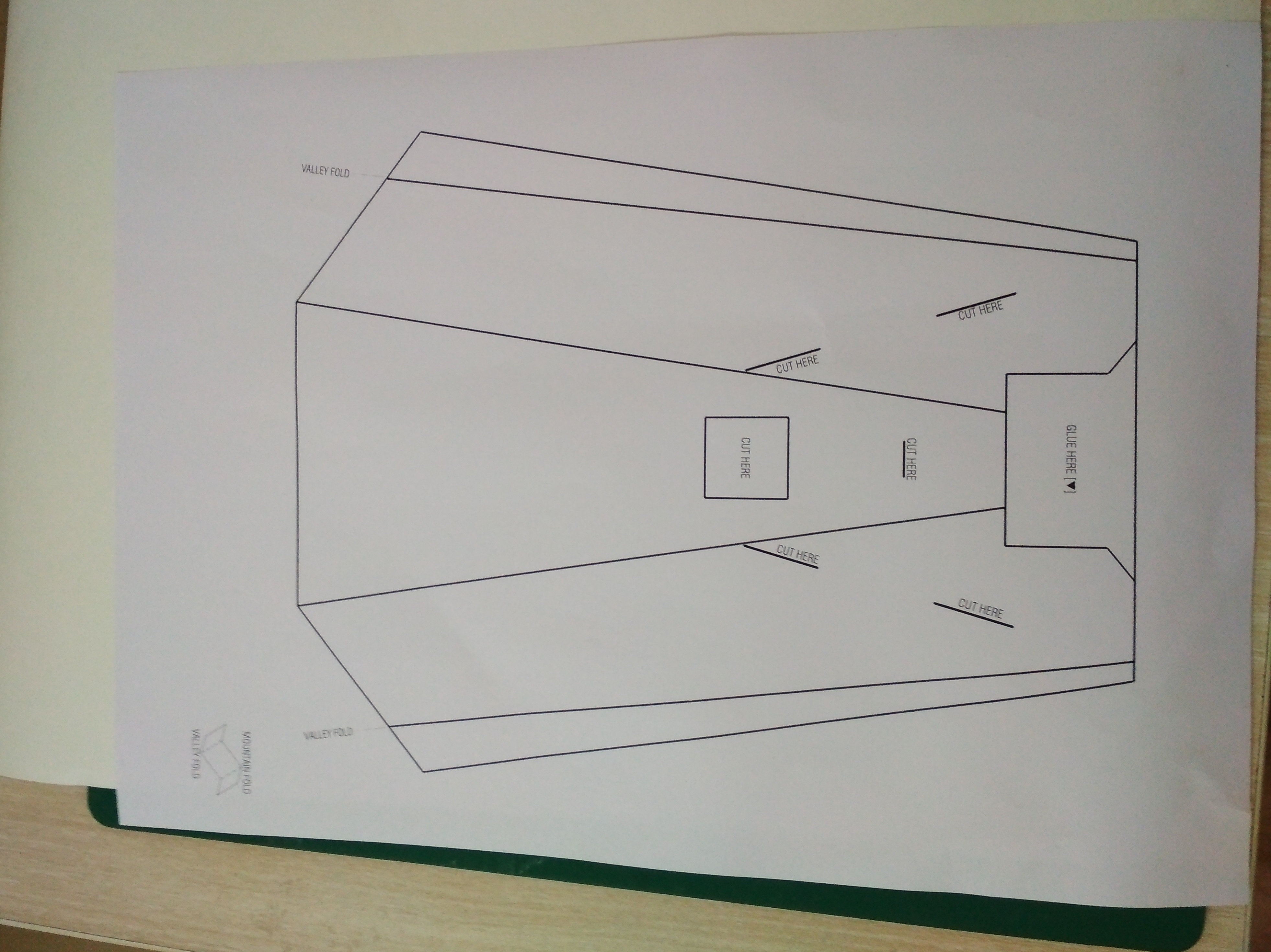

• Printed on A4 sheet scaling set at "fit to page"

• Stick the 4 corners of the templates to cartridge paper
• We want to remove the template later so do not apply glue in the main area
• Always print two copies of template

• Before we start cutting, use an old pen to trace impression of the lines
• This will help later as guide to fold and stick

• Before we cut the outer edges, we must cut the inside sections
• If you are using a cartridge paper as me, then just cut the slots and horn
• Skip the square cut from the base section
• If using cardboard, cut as per the template

• Cut the edges as per template
• Fold and stick the edges

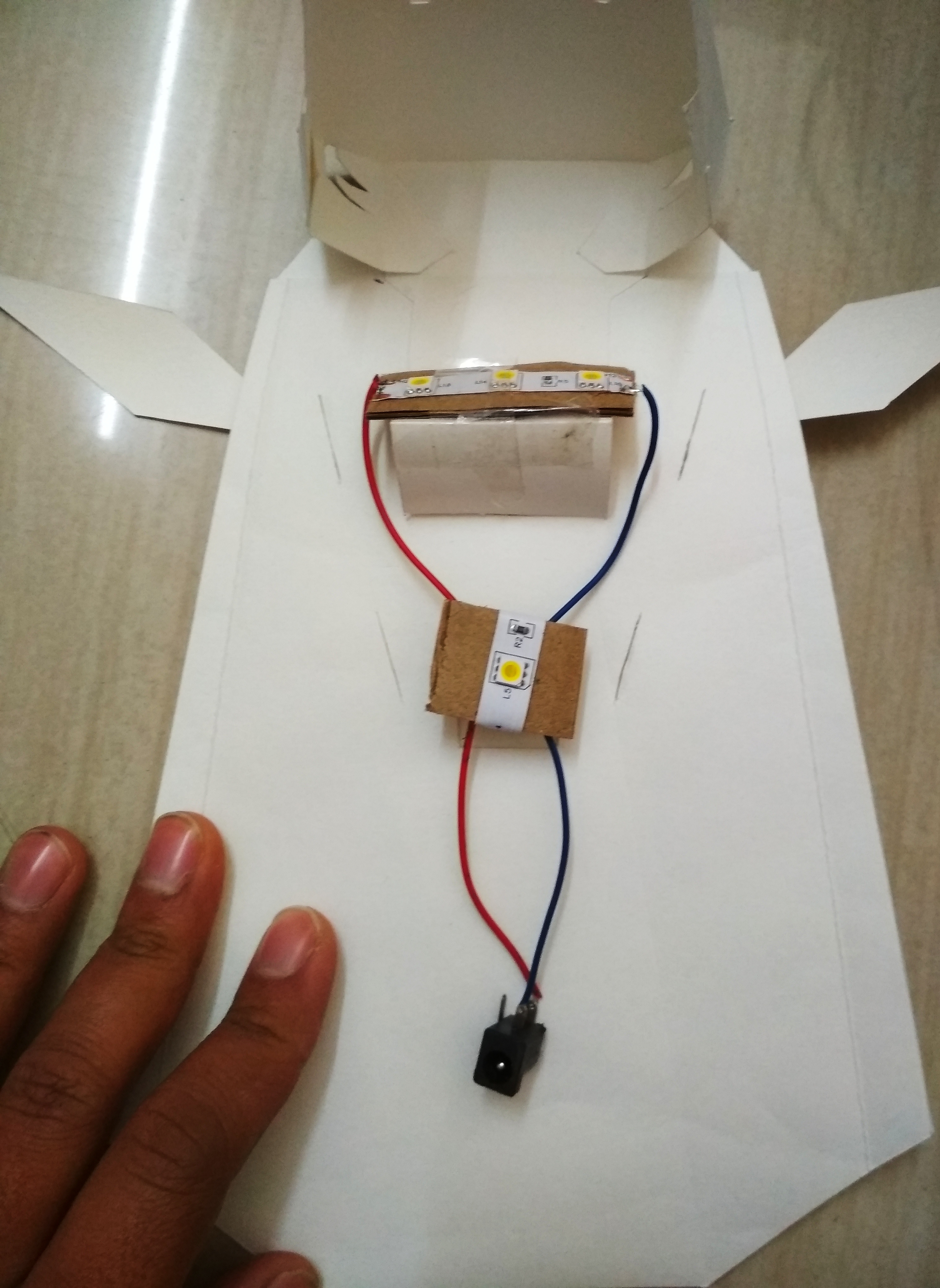

• I used 2 pieces of LED strips ( each pieces has 3 LEDs and runs at 12V )
• One piece goes on the top for horns and second for face
• Connect them in parallel and with 5.5mm DC connector

This is the most important step before we continue, one must cleanup all the mess

• Plug the lamp to the 12V adapter or 12V LED driver
• Hang it on the wall
• Admire!!!!

Future : Paper is bit delicate to work, I am thinking to make this with cardboard as Carl DC did. And bigger LED rather than a strip

Please share your suggestions and comments
