Panel Mount USB Power/charging Station
by somewhereinusa in Circuits > USB
6316 Views, 83 Favorites, 0 Comments
Panel Mount USB Power/charging Station
![webUSBfrontSide4933.jpg](/proxy/?url=https://content.instructables.com/FED/MOQI/HS0D0ARI/FEDMOQIHS0D0ARI.jpg&filename=webUSBfrontSide4933.jpg)
I wanted a USB charging/power jack in my motorhome. All of the ones I found were too expensive and ugly. I built this one for about $2.00.
Parts and Tools
![nibblers.jpg](/proxy/?url=https://content.instructables.com/F1R/EJXS/HS0D0CN1/F1REJXSHS0D0CN1.jpg&filename=nibblers.jpg)
Parts
I usually buy too many of some parts, just because I might ruin one, or might need it for something else. It helps keep the shipping costs down. If you run down to Radio Shack for the parts, this will cost a lot more
- 1 LM7805 voltage regulator $ .31
- 2 PCB mount usb jacks 1.20
- 1 heat sink .24
- 1 PCB mount screw terminal .25
- 1 capacitor 0.1uF .10
- 1 capacitor .33uF .10
- JB weld epoxy
TOTAL $2.10
The PCB board and aluminum were out of the scrap box.
Tools
- Hand nibblers to make a nice square hole
- Soldering iron
Assemble Board
![webboardConnection4930.jpg](/proxy/?url=https://content.instructables.com/FOQ/7N5X/HS0D0CZI/FOQ7N5XHS0D0CZI.jpg&filename=webboardConnection4930.jpg)
![webbackofboard4926.jpg](/proxy/?url=https://content.instructables.com/FQL/TKFU/HS0D0CZJ/FQLTKFUHS0D0CZJ.jpg&filename=webbackofboard4926.jpg)
Assemble the board using the schematic for wiring connections. I soldered all of the connections on the USB jacks just to make a more solid mount. I also bent over the mounting tabs and soldered them.
Downloads
​Cut the Panel and Mount the Board
![webUSBbackSide4938.jpg](/proxy/?url=https://content.instructables.com/F8K/LBVL/HS0D0ARL/F8KLBVLHS0D0ARL.jpg&filename=webUSBbackSide4938.jpg)
I use a table saw to cut aluminum, you can use an old blade that you don't want to use for making nice cuts in wood.Be sure to wear your safety glasses. I really like those nibblers for making nice square holes. To make everything nice and solid I added the extra braces made out of scrap PCB board..
A LM7805 will handle two usb devices, it is rated at 1 amp, and USB device specification calls for a 0.5 amp draw. You can use input voltages from 8 to 35 volts. My heat sink is probably a little big, but I had it and better safe than sorry. The next ones I will make up PCB boards for so I don't have to solder all of the wiring together.
Update
![webboardTop4946.jpg](/proxy/?url=https://content.instructables.com/FEL/MER5/HS3GV0FZ/FELMER5HS3GV0FZ.jpg&filename=webboardTop4946.jpg)
![webnewBack4955.jpg](/proxy/?url=https://content.instructables.com/FDS/W0N2/HS3GV1CS/FDSW0N2HS3GV1CS.jpg&filename=webnewBack4955.jpg)
![webboardTop4953.jpg](/proxy/?url=https://content.instructables.com/F4Y/3E6F/HS3GV0F0/F4Y3E6FHS3GV0F0.jpg&filename=webboardTop4953.jpg)

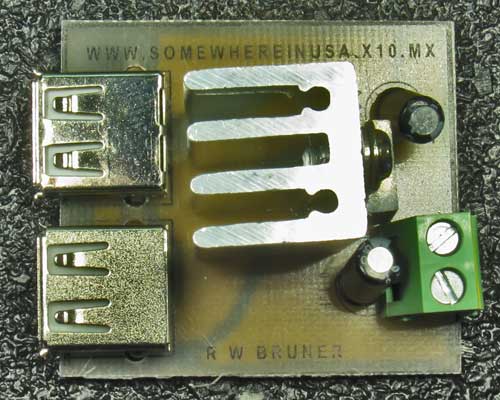

I don't like the way my boards look when I just solder them up so I made a printed board for the next one. While I was at it I made a sled to cut PCB board with my table saw. Here is the instructable Easliy cut PCB with your table saw.
