Pallet Wood Bench

end grain.jpg

This is a small bench I made for my parents out of pallet slats.

Collect Pallets


The apartments up the road from me had several of these half pallets sitting by their dumpster. I guess someone had some appliances delivered.

Process Wood


Once I broke down the pallets, I ran the slats through the thickness planer to clean them up.

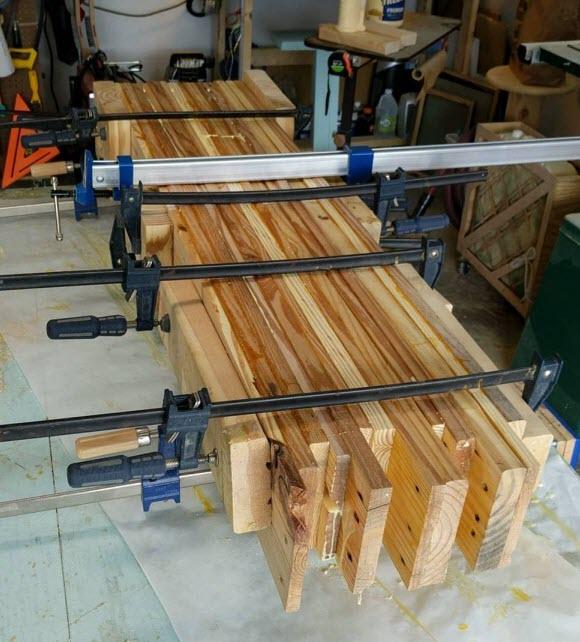

Glue-Up

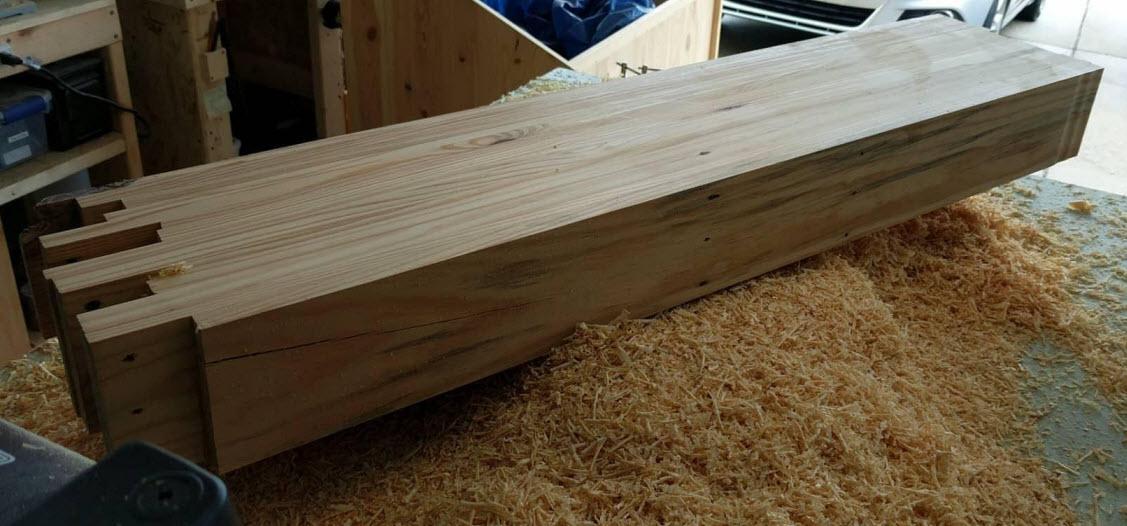

I first glued them up in three sections to make clamping a little easier, then glued those sections together making this butcher-block slab thing.

Plane the Surface


It was heavy and a bit unruly, but I ran the whole slab through the thickness planer until the top and bottom were smooth and even.

Cut to Length


I decided to cut the ends at an angle to make things look a little more modern and funky.

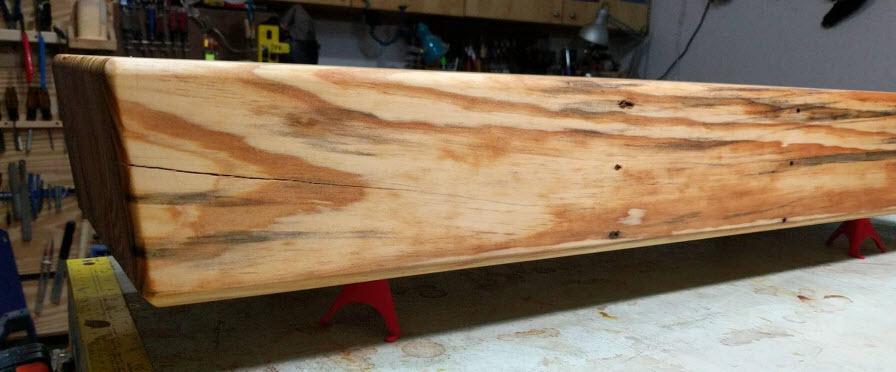

Round-Over and Seal


After sanding it and rounding over the edges with a router, I sealed it with a couple coats of Danish Oil.

Done With the Slab


Before the glue-up, I made sure the two most interesting looking slats were on the outside.

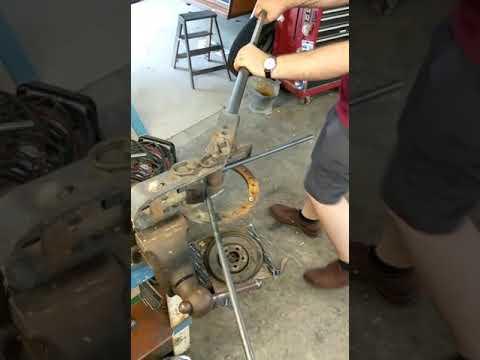

Bending the Legs

Palletwood Bench - Bending Legs

The hairpin style legs were bent out of 1/2" round steel rod.

Leg Mounting Bracket


They were welded to a "T" shaped mounting plate made out of flat stock.

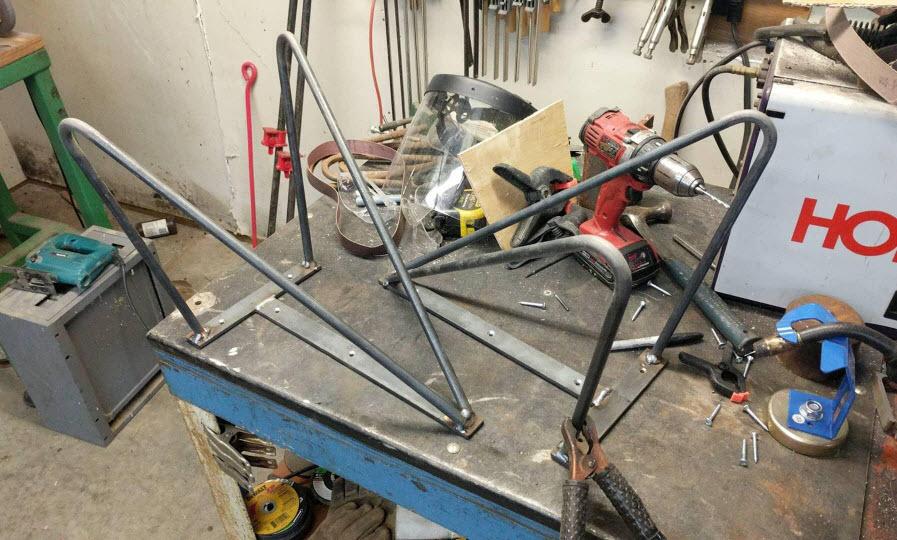

Welding the Legs


I clamped the legs to this plywood template to make sure they were angled and spaced correctly.

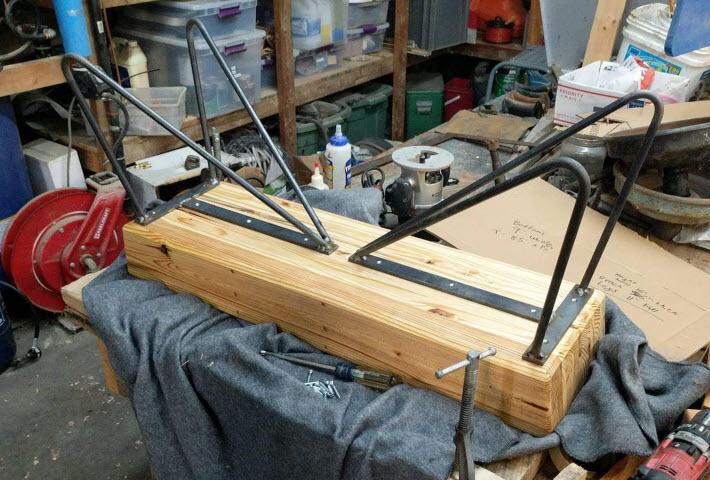

Attaching the Legs


I wanted the legs to angle out a bit to mirror the angle in the slab.

Finished!


I am very happy with how this turned out! I especially like the contrast between the rustic coloration and texture of the wood with the more modern silhouette.

Approved by the Dogs


The dogs seem to like it, too!

View project on Instagram.

This project was completed July 25, 2018.
