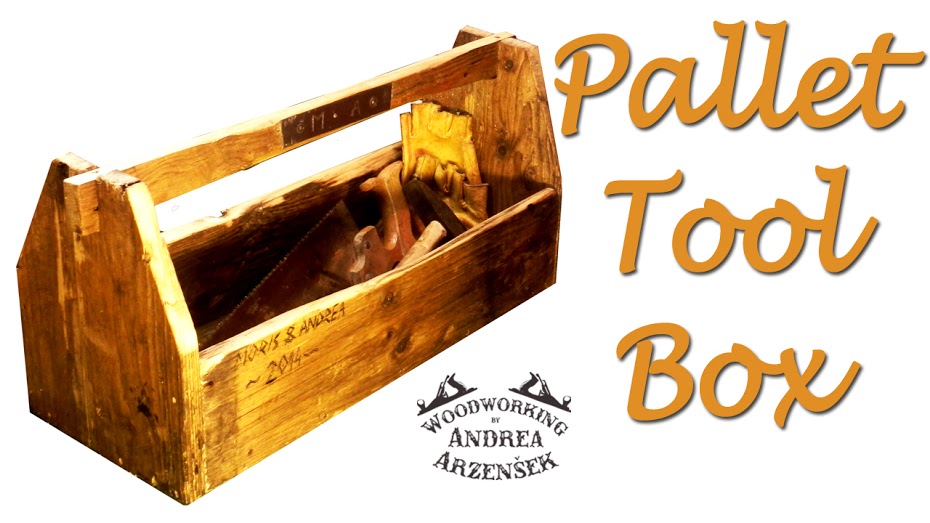

Pallet Toolbox (and Simple Metal Etching)

Tool Box (Pallet Up Cycle Challenge 2014.) - Ep 021

My brother and I made a pallet toolbox with some very simple metal etching.

Taking Apart the Pallet


We used axe, hammer, garden tools and everything we could find to dissemble the pallet.
It made a lot of mess.

Prepping the Parts


Take out all the nails and metal parts in your pallet.
Plane the pieces square (as best as you can) you will be joining later.

Bottom of the Box

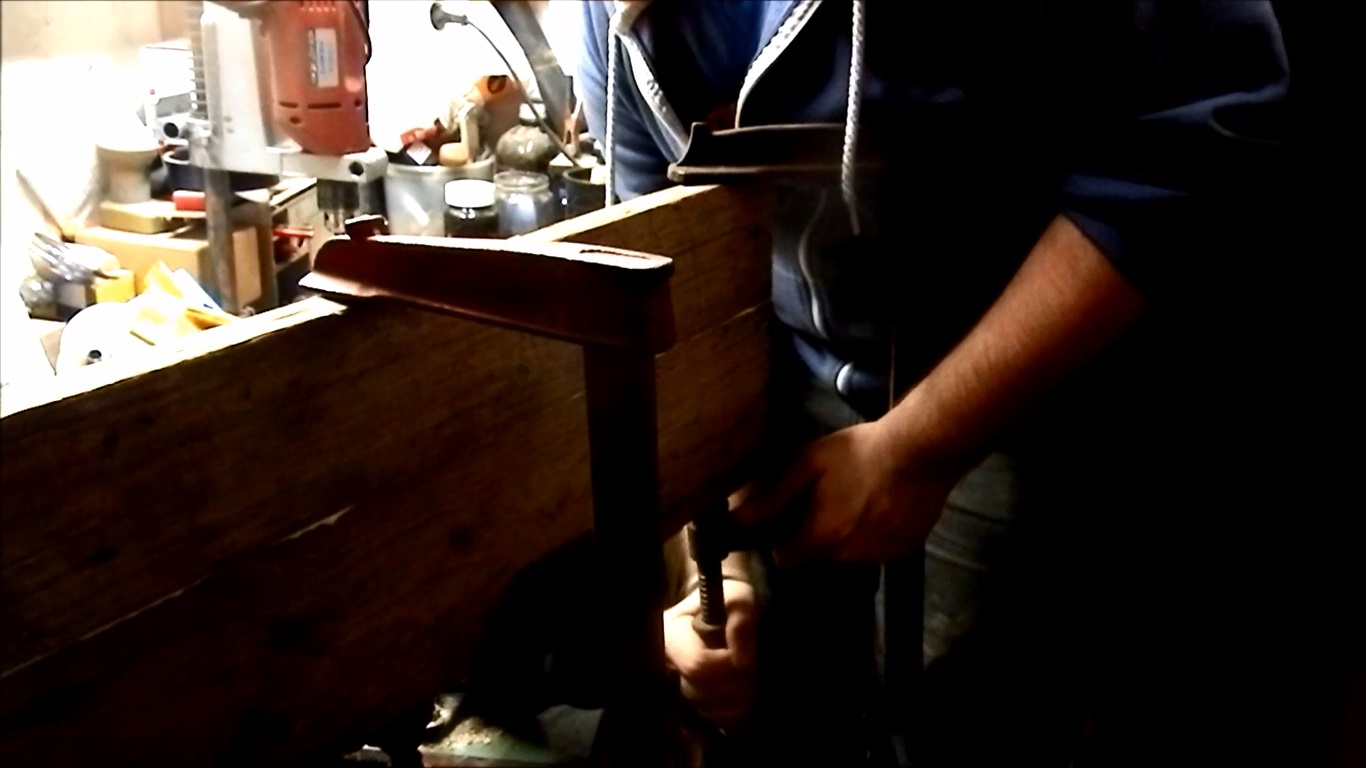

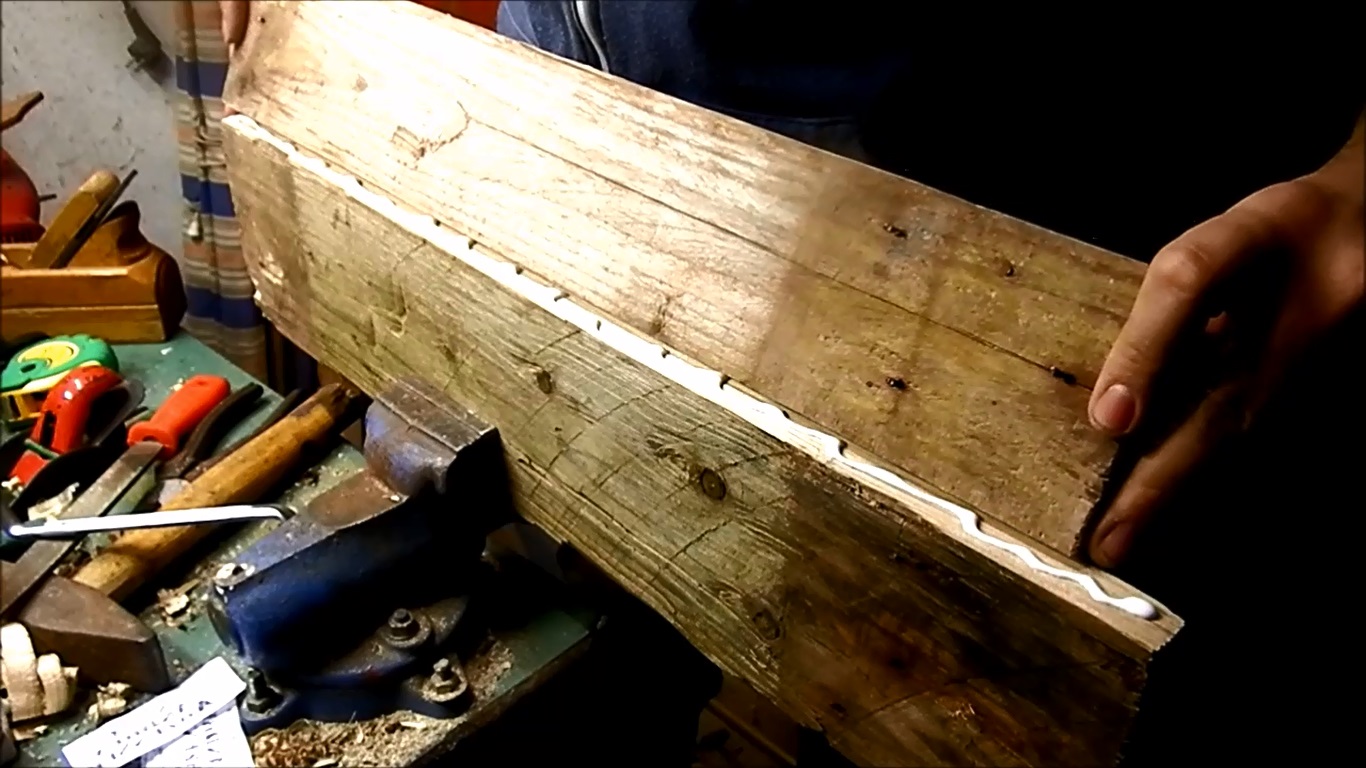

Cut the pieces to size and glue/clamp the pieces together.
Leave them a little longer than you need and when the glue is dry cut to size.

Sides and a Handle


Cut the tall sides from the same bottom part.
Notch out for the handle.

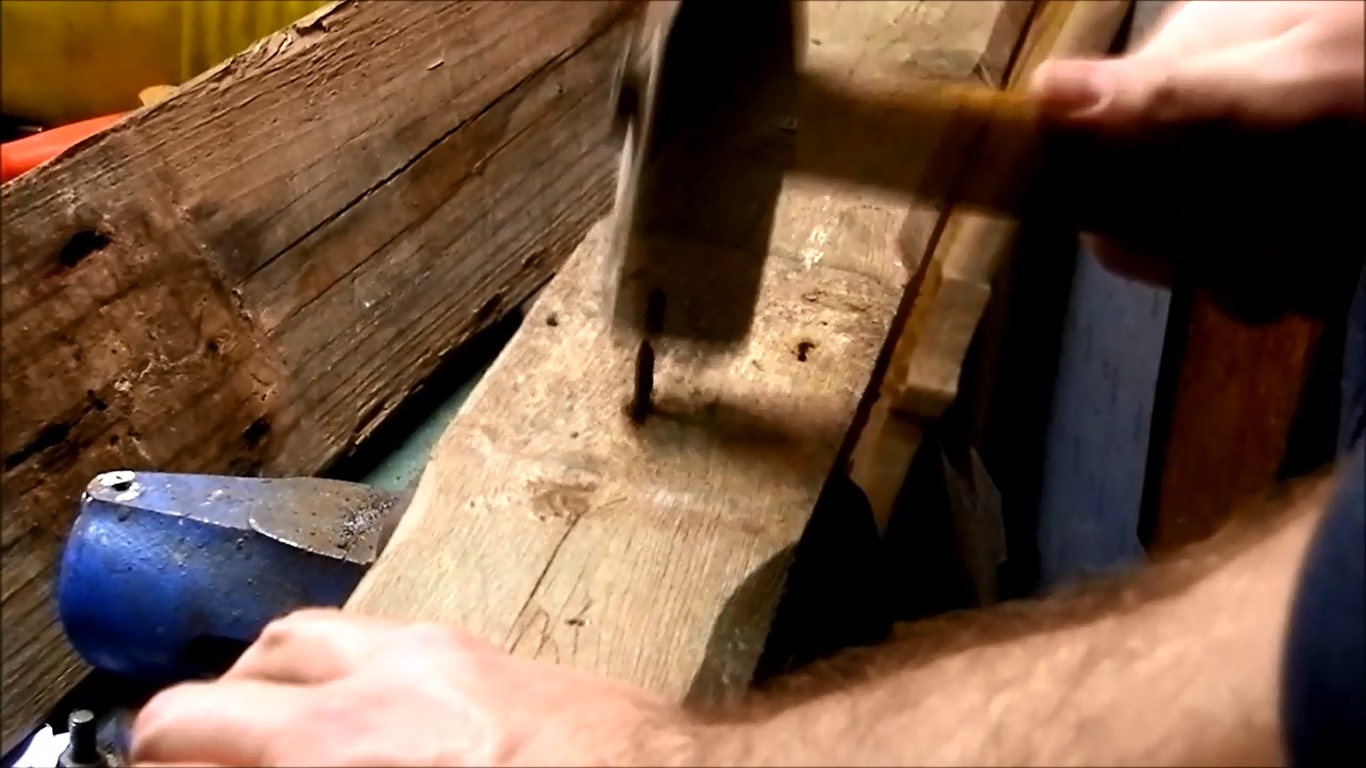

Nail and glue the long sides.

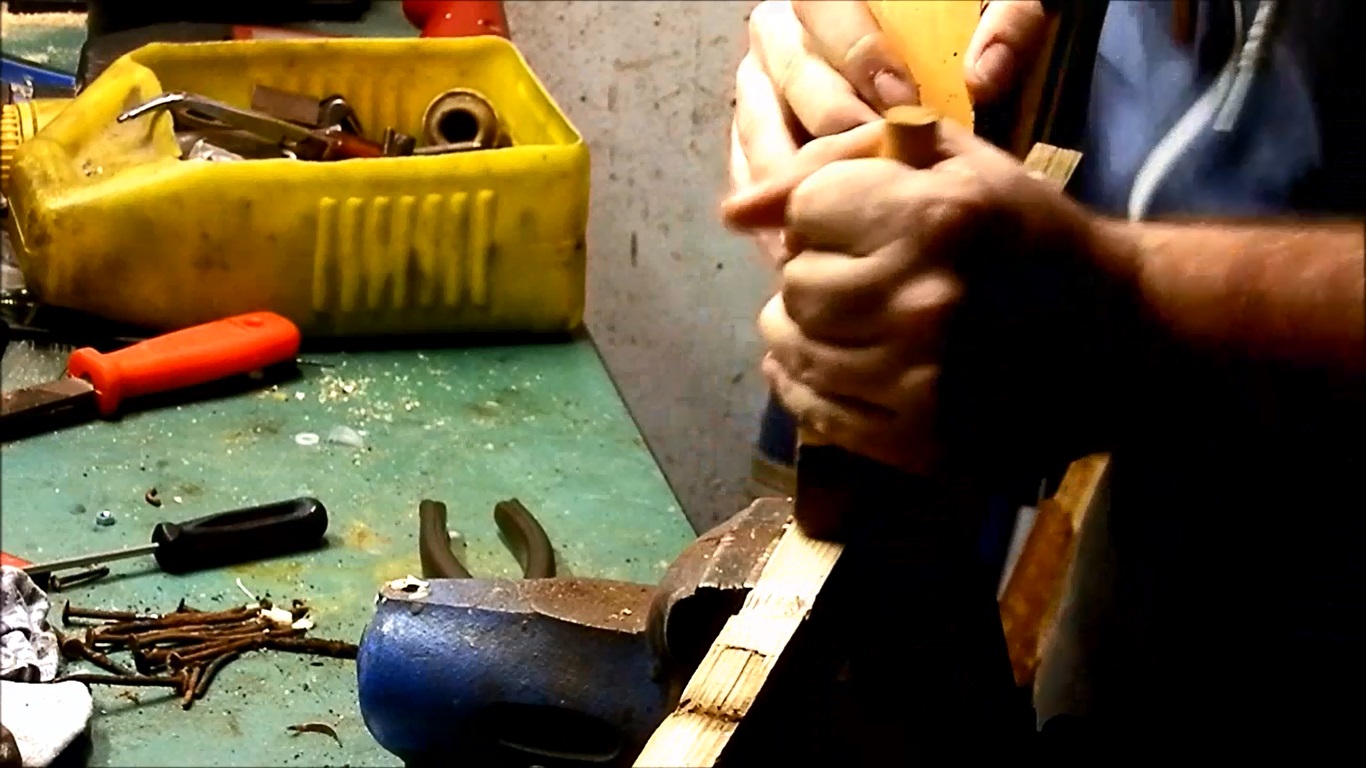

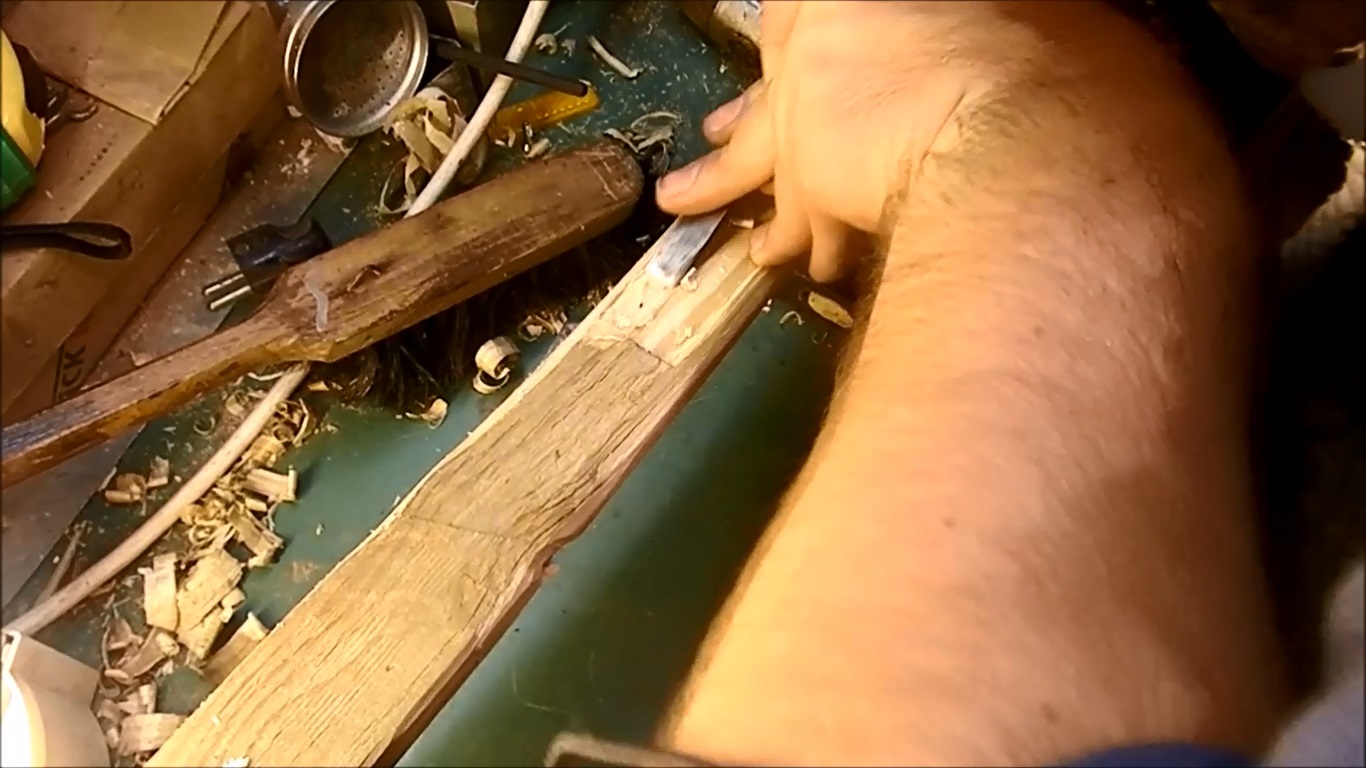

Then cut the handle to length and shape it with spoke shave (or with a knife like we did)

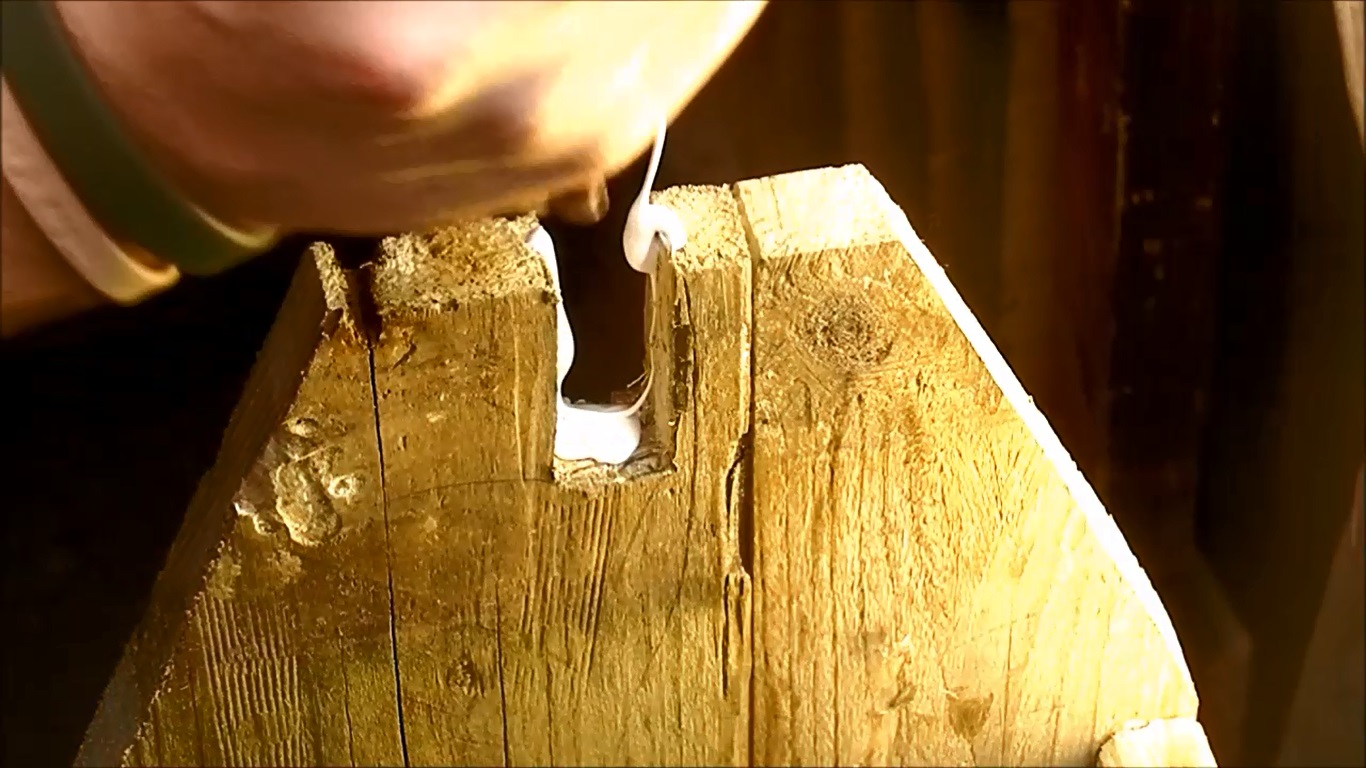

Glue and toenail the handle in place.

Glue and nail the bottom at the end through the sides (plane the bottom to size so it fits snugly between the sides)

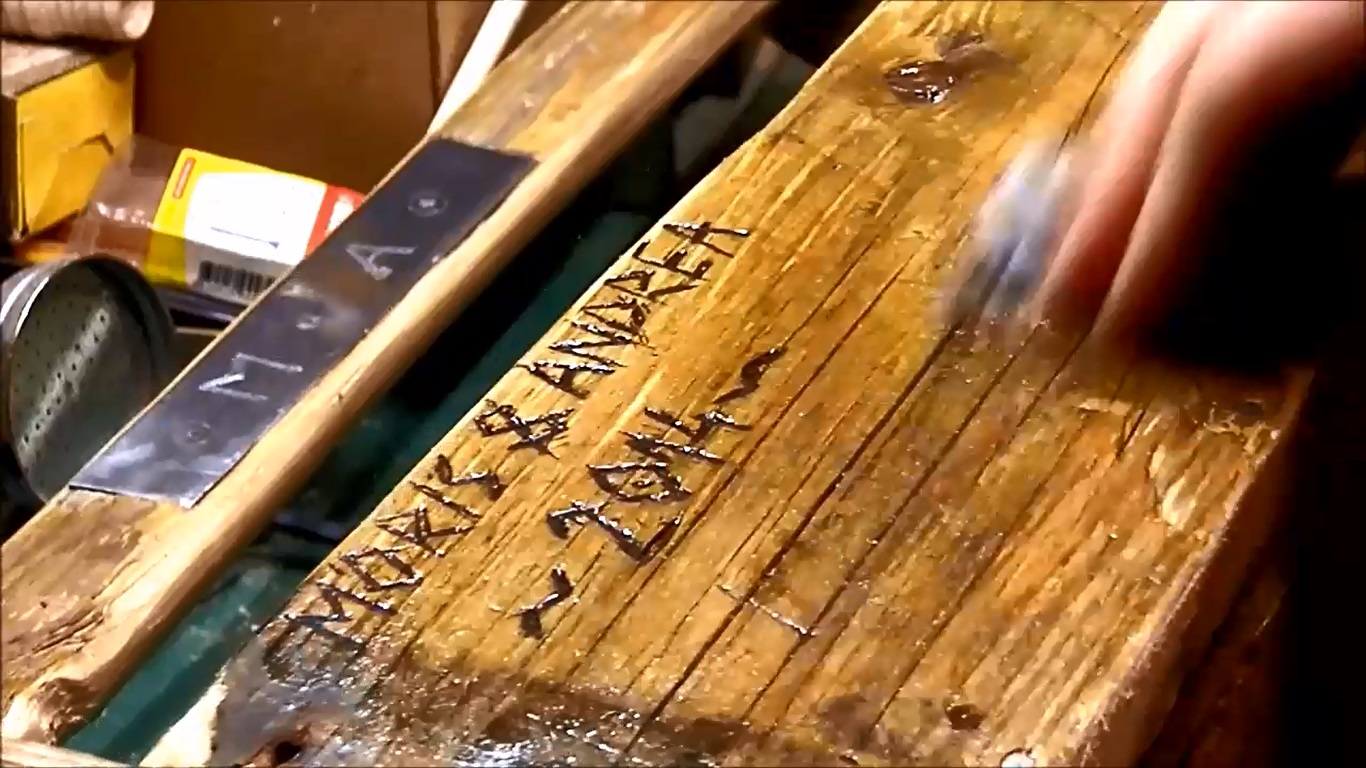

Burn in Your Name(s)


We used a soldering iron to burn in our names.
You can use any method you feel comfortable with.

Metal Etching


Moris (my brother) decided to do some metal etching for the metal piece that will go into the handle.

First apply nail polish (any color) and then scratch it with a toothpick to create what you want to etch.
Mix some vinegar and salt in a cup.

Put the connectors of the charger/9V battery in the following places:

One attach to the metal piece you're etching.
The other one attach to some cotton.

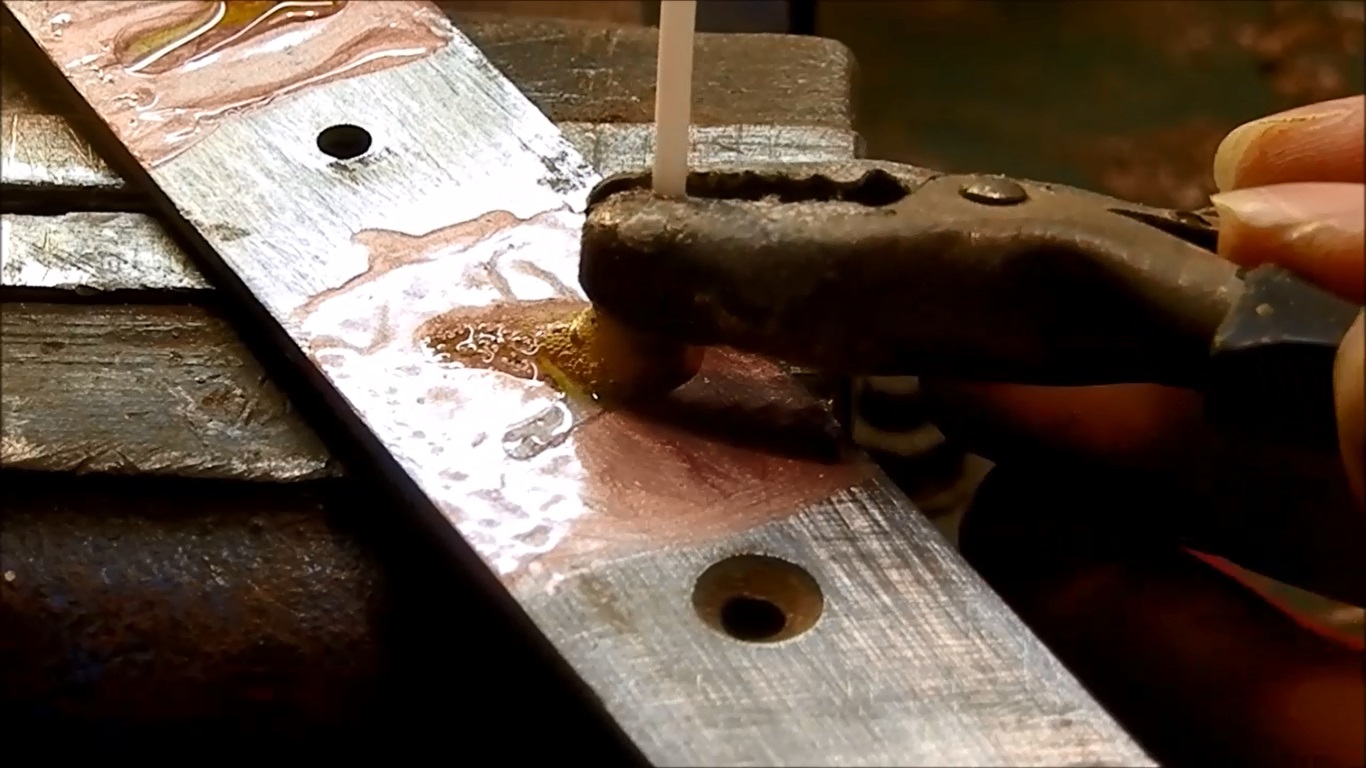

Dip in the cotton into the vinegar-salt mix, turn on the charger and press onto the metal where you want to etch it.

Clean the nail polish with some acetone when done.


It is trial and error, be patient and I urge you to check on YouTube videos on: metal etching, before attempting any.

Add the Metal Plate Into the Handle


Use chisels to carve out the hole for the metal plate.
Screw it in place and if necessary clean it with a file.

Finish It and Carry Some Tools!


Use your favorite finish and fill it with tools!

We used some chainsaw oil as we had it handy, it was a bit too greasy for the wood in the beginning but when it was absorbed we cleaned off the excess and it was fine.
