Pallet End Table

by mtairymd in Workshop > Pallets

273115 Views, 1522 Favorites, 0 Comments

Pallet End Table


Below are directions for a simple end table made from pallets.

Find Pallets


Find free pallets from Craigslist. If not available, you can purchase them locally for very little money.

When searching through the pallet stack, look for the pallets with the most usable wood. The length of the slats is ~ 3 feet. The thickness varies from ½ to ¾ thick. The width of the slats can vary from 2.5 to 6 inches.

Deconstruction


Breaking the pallets apart takes a decent amount of work. Use a jig or circular saw to cut the ends. Pry the wood from the center support. This should give you 8 to 14 boards per pallet. Remove nails from slats.

Before you start cutting, determine the best pieces to get the desired width (see drawing). I had multiple long pieces with cracks and/or damage down one side. I was able to cut the damage off and still have usable pieces.

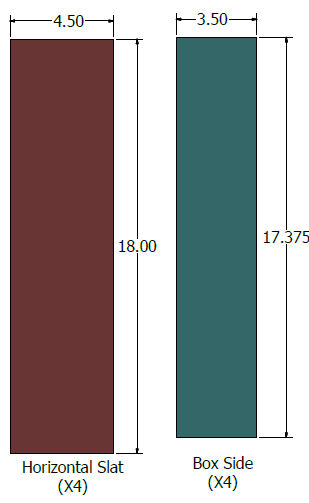

Cut Pieces

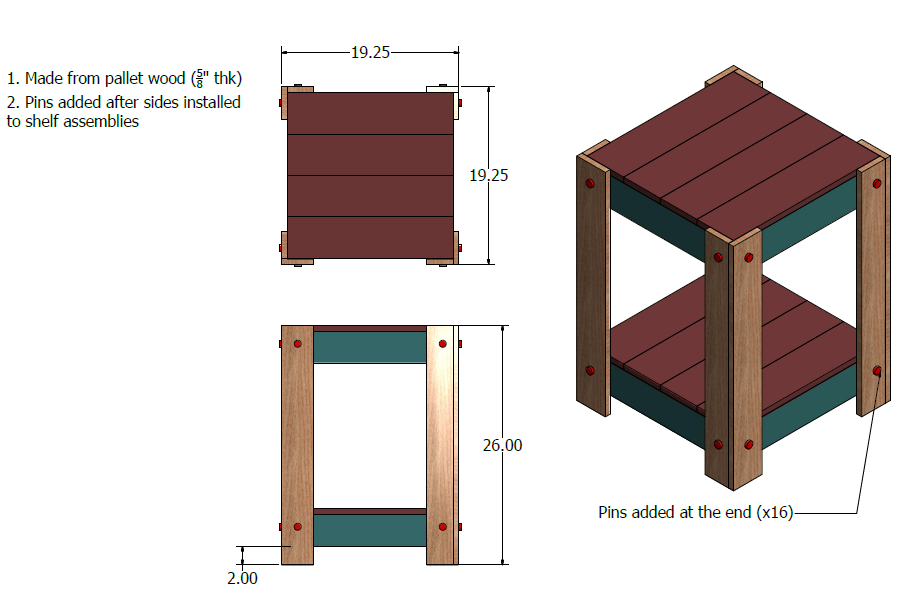

Cut pieces per drawings. After cutting, sand with course sandpaper to remove rough spots or major staining/paint…unless that is your desired look.

Assemble Frames


Assemble the two frames (nail & glue). Note how it is put together – should be a square

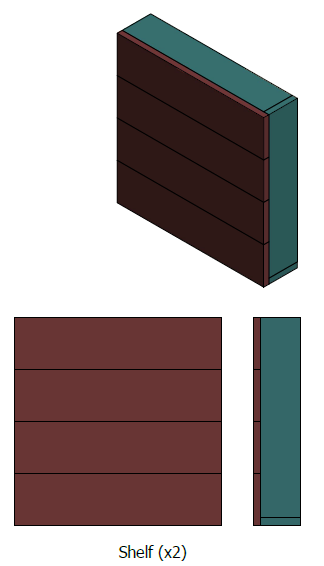

Add Horizontal Slats


Attach horizontal slats to frames (nail & glue).

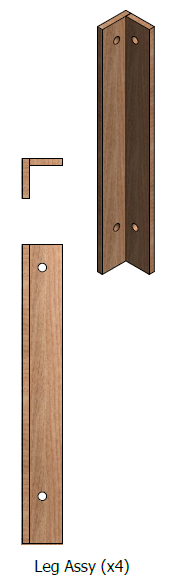

Leg Assemblies


Nail and glue legs as shown.

Ready for Final Assembly


Add Legs & Pins


Attach the legs as shown (nail & glue). Drill holes for the pins. Insert and glue into place.

Final Product


Drawing File:

https://googledrive.com/host/0B21TbB8gGNQbX2dlNGdxR0NuOE0/end_table_RevA.pdf

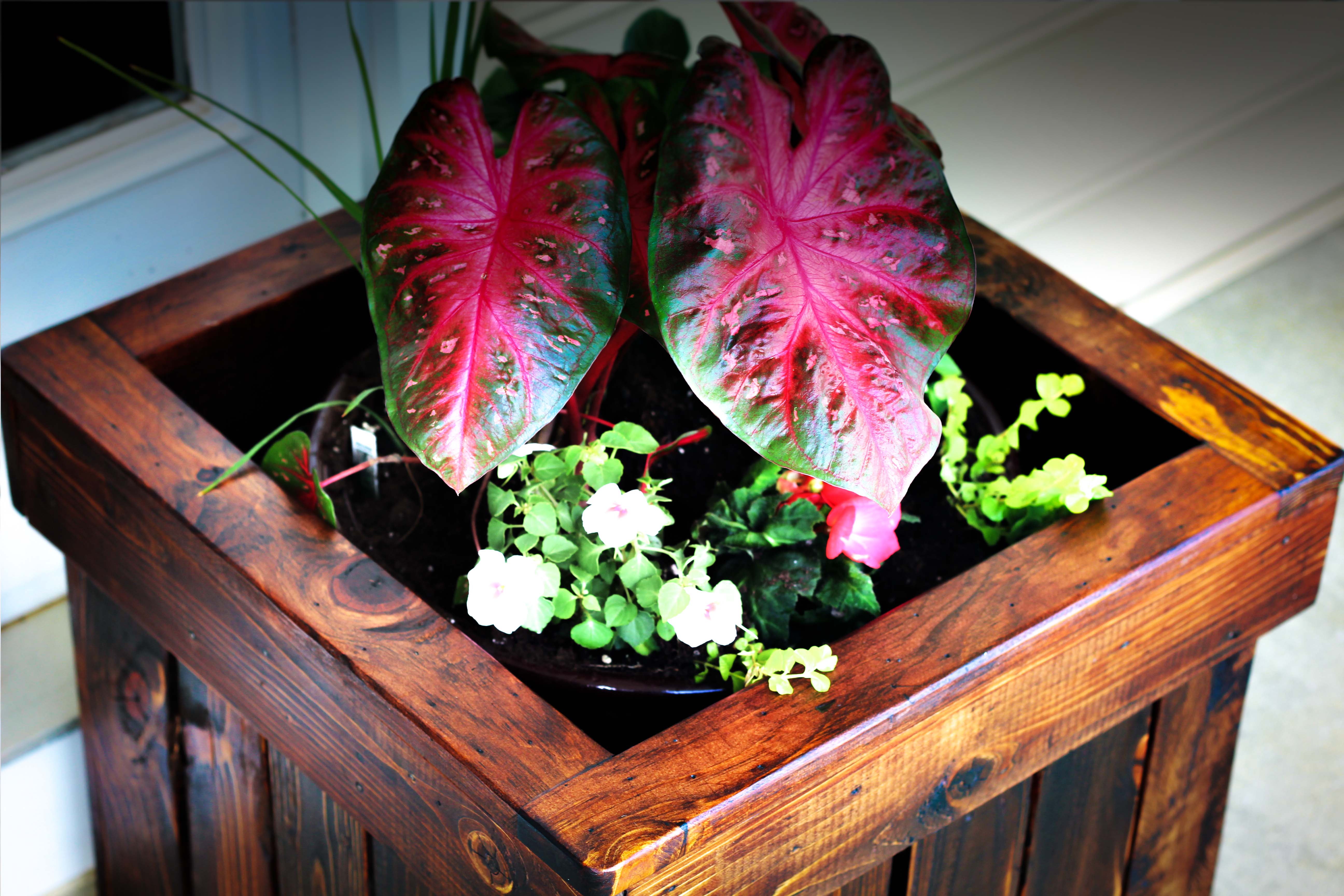

See Matching Planter Boxes!


If you liked this, see matching planter boxes.

https://www.instructables.com/id/Planter-Box-from-P...
