Painless WiFi on Arduino

Communication with the outside world is a great feature for Arduino Projects and mandatory for many of them.

In this instructable, we will, painlessly, create an Arduino WiFi project that allows you to send it commands to turn on/off LED's connected to the Arduino from a computer over your WiFi.

The development cycle will be as follows:

1. we will use an Arduino Mega+ESP8266 WiFi board for development and debugging.
2. Once it is working properly we will move that project to an Arduino Uno + ESP8266 WiFi Shield.

You could also use an Arduino Uno+ESP8266 WiFi board at step 2 or any other combination that uses the ESP WiFi shield.

This Instructable is also readily adaptable to other hardware that, like the ESP8266 WiFi uses the main "Serial" device on Arduino to interact with it - e.g. many Bluetooth modules.

If your preference is to jump right in and wish to skip the background, simply jump to the next step and start hooking things up, uploading code and entering commands. You can always come back and revisit this later if you wish to.

There are lots of options for Arduino communications, I often use Wired Ethernet or USB because I have that infrastructure available to me, it is generally easy to use and works for me. But there are times when a Wireless approach would be much easier.

There are plenty of wireless connectivity options available such as LoRa, Bluetooth, IR, WiFi and more. Each of them have different attributes and ideal use cases. Arguably the most ubiquitous is WiFi which is what this article is about.

However, all of the WiFi solutions for Arduino that I have (ESP-8266 solutions) and others that I have read about online seem, IMHO, quite tedious (i.e. painful) to work with. The Arduino project development cycle requires hardware hacks and / or constant switching of DIP switches to work with them.

The tediousness that I allude to is due to the fact that interaction between the Arduino and the WiFi hardware is via the Arduino's "Serial" device. The Arduino Serial device is, by default, used for two things:

• The IDE's Serial monitor for interaction with the program running on the Arduino (e.g. debug messages)
• and
• the uploading of new programs to the Arduino.

The shared use of Serial by Arduino and the WiFi is to all intents and purposes a conflict - that is, is Serial being used to upload a new program(/sketch) to Arduino, or is it being used to send commands to the WiFi or is it being used to output debug messages? The solution to this conflict implemented on many WiFi board is to use a series of DIP switches or require additional hardware to resolve the dilemma of what the Serial port is being used for.

This means that when you are developing your Arduino program and want to upload it after making a change, you need to set the DIP switches to a "certain configuration" (Serial device is connected to the USB) to allow the updated program to be uploaded.

When you are done uploading and want to run your new code, you need to set the DIP switches to a different "certain configuration" (Serial device is connected to the WiFi) and reset your Arduino so as to restart the program - or have some other mechanism that causes the program to wait before starting to issue WiFi directives (e.g. a delay to allow you time to reset the switches or the press of a button etc).

Of course if you have debug messages in your program that normally are output to the Serial device and thus visible in the Arduino IDE's Serial Monitor, you are out of luck as the these debug messages will be sent to, you guessed it, to the WiFi device which will unlikely be able to process them.

After testing, you identify a new code change, add a new feature or whatever then need to reset the switches for upload then re-reset the switches to run your modified ode. You need to repeat this cycle every time you change your code - no matter how small the change is.

To me, this is extremely tedious and on some boards, the switching of the switches has a risk of damaging it if you are not careful - or put another way, this, IMHO, is extremely painful!

One option is to use a SoftwareSerial or if you have it, another Serial port (e.g. Serial1 on Leonardo) for debug messages or WiFi interaction, but this would require some sort of converter (e.g. another Arduino, a FTDI USB-Serial converter etc) to connect the SoftwareSerial/Serial1 "port" to a PC and so on. And doesn't resolve the main problem of the main Serial device being used for both program upload as well as communication with the WiFi module.

Another potential problem that I have encountered when using SoftwareSerial, which I found particularly frustrating, is that for each communication with the WiFi board I often need to output several debug messages to isolate a problem. This can (and has) resulted in loss of data, corrupted messages on the Serial monitor and other issues. Which means that you might be trying to debug a problem that really doesn't exist as it is simply caused by the load passed through SoftwareSerial. In my testing, this "data overrun" problem did not seem to occur when the same debugging messages were sent via a hardware serial port.

So this article is about how to avoid the pain and have a normal development cycle of code, upload, test, repeat as needed - without the DIP switch pain to workaround the Serial conflict problem.

If you find my projects helpful, please consider supporting me by buying me a coffee.

This project primarily uses the Arduino Mega + WiFi for the development cycle.

Once your project is done, we will port our code to an Arduino Uno + WiFi (or any other Arduino with the ESP WiFi shield).

So the parts list is:

• Arduino Mega + WiFi board (available from Jaycar XC-4421)
• One medium sized Breadboard
• 3 LED's
• 3 current limiting resistors (440+ ohm)
• hookup wire

Optionally

• Arduino Uno
• Duinotech ESP13 WiFi shield or similar (available from Jaycar XC-4614)
• or
• Arduino Uno + Wifi board (available from Jaycar XC-4411)
• You will also need a power supply for your Uno. I just use an old phone charger and the USB cable that you used for your Arduino. But you could also use, say, a suitable 9V power pack with a barrel plug - please check that it is Arduino friendly (DC, voltage is OK, polarity of the plug etc) before plugging it in!

You will also need a network communications program. I use netcat which is available for

• Linux - sudo apt-get install netcat
• MacOS - brew install netcat
• Windows - while there are standalone versions "out there", I use the version that comes with cygwin.

In this project, we will build software on the Mega and later migrate the code (and test circuit) to the Uno.

You will need the following components:

• Arduino Mega+WiFi
• Breadboard
• 3 LED's and current limiting resistors
• Hookup Wire

The circuit is fairly straightforward (refer to the diagrams), so I won't explain it in any detail. Make sure you connect the LED's with the flat side/short leg to the resistors, which are in turn connected to ground.

The test program uses Digital I/O pins 5, 6 and 7, so connect the LED's (via the long legs) to these pins on the Arduino Mega. I used different colour LED's, but you don't have to if you do not have multiple colours. Also, if you do have different colours, the order doesn't really matter, simply connect one LED (+ current limiting resistor) to each of the DIO pins 5, 6 and 7.

The photo, breadboard and circuit diagrams illustrate how the connections are made.

On the Arduino Mega+WiFi, you should find 2 sets of switches that I have highlighted in the photo. On my board one switch is a 8 way DIP switch block (with tiny little switches that require a tool - e.g. small screwdriver - to move). The other switch is a larger switch which is in the form of a slider.

To try to minimise confusion, I will refer to the main serial port that is available on all Arduino boards as Serial(0). In code, this is the serial device that is named Serial and is normally connected to the USB port on Arduino boards.

The first block of 8 switches control the primary communications paths on the board. The options include:

• Connect the Mega's Serial port to the ESP (switches 1&2 on)
• Connect the USB to the Mega's Serial(0) port (switches 3&4 on)
• Connect the USB to the ESP (switches 5&6 on)
• Cause the ESP to enter programming mode on next reset (switch 7 on)
• Switch 8 is unused.

The second large switch determines how (i.e. by which path) the Mega is connected to the ESP (switches 1&2 on). This switch controls which of the Mega's Serial ports is used to communicate with the ESP. The choices are Serial(0) or Serial3.

What this means is that we can:

1. use the Mega's Serial3 port to communicate with the ESP and hence utilise its WiFi capabilities.
   and
2. Use the USB in the traditional way to upload code to the Mega and interact with the Mega's program via the Serial Monitor without having to constantly adjust switches 1&2 and switches 3&4 while programming and testing.

In short, this switch resolves the hardware conflict associated with the Serial(0) port that I outlined in step 1.

To set this up, configure the switches as follows:

• Turn switches 1, 2, 3 & 4 -> ON.
• Turn switches 5, 6, 7 & 8 -> OFF.
• The big slider should be set to the end with the TXD3 and RXD3 end (i.e. positioned away from the USB connector and the 8 way DIP switch).

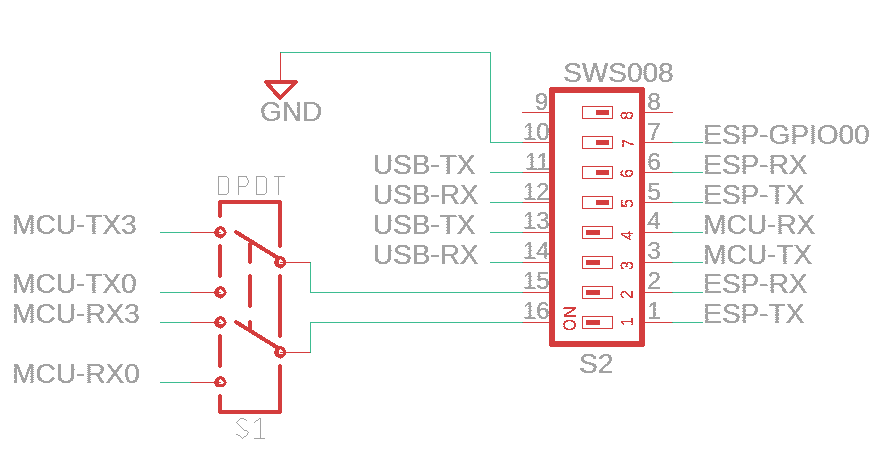

The circuit diagram shows how I believe that the two switches are likely to be connected. I say this because I've found lots of diagrams online that (how can I say this?) do not appear to accurately reflect the actual circuitry on the board - some might say that the diagrams I found were "completely wrong".

I produced this circuit diagram from extensive testing/trial and error. In my diagram, it is possible that I have the TX and RX lines reversed on each switch pair, but this shouldn't matter as the switches should always be used in pairs (i.e. switches 1&2 should be set the same way, similarly 3&4 should be set the same way as should switches 5&6).

Since I will provide the Arduino code, there won't be much of a development cycle, but I will try to illustrate the development cycle by suggesting a change to illustrate that we can painlessly re-upload and run the modified code in the next step.

The key takeaway is that we can do this without constantly changing the switches and without extra supporting hardware. We will see how to configure the Arduino Mega + WiFi so that you can use the Arduino <-> PC USB connection to:

• upload compiled code,
• interact with the code running on Arduino via the Serial Monitor
  and
• use the WiFi.

All without having to constantly change the DIP switches on the board.

Having said that, we will need to do an initial setting of the switches on the Arduino Mega+WiFi to support this development process (as described in the previous step). If you haven't set the switches yet, please go back to the previous step and do so now.

The code we will use for our development can be downloaded from my GitHub or copied and pasted from below.

Note there are two files. The first file can be named anything you like (I called mine ArduinoESPInteractive.ino). The second file must be named NullSerial.h.

Simply create a new project in the Arduino IDE and use the code from the two files shown below or from GitHub.

If you are entering the code manually or copy/pasting then you will also need to manually add the second file. To add the second file, simply click the little down arrow on the top right hand side of the Arduino IDE editor and choose "new tab" then name it NullSerial.h

Ensure that you have set the DIP switches on your Mega+WiFi as described in the previous step.

Upload the Code as per usual. Open the Serial Monitor, set the baud rate to 115200, observe some startup messages which I will describe in the next step.

Here is the main program (ArduinoESPInteractive.ino):

/***********************************************
 * MegaESPInteractive
 * ------------------
 *
 * This program is designed for use with an Arduino Mega + ESP 8266 combo board.
 * It allows you to:
 * - interact with the ESP 8266 via the Arudino
 *   and
 * - upload programs to the Arduino
 * without constantly switching the DIP switches to connect the Arduino to the ESP
 * and/or the USB.
 *
 * If you want to upload a program to the ESP, you will still need to set the DIP
 * switches.
 *
 * The ability to have a development cycle that does not involve switching DIP
 * switches expedites the program/debug cycle of WiFi based apps because the very
 * tedious and fiddly step of constantly having to change them is eliminated. This
 * will also probably extend the life of the board as you don't have as much
 * mechanical wear and tear on them.
 *
 * Hardware required:
 * - Arduino Mega + ESP 8266 wifi combo board such as the Jaycar XC4421:
 *      https://www.jaycar.com.au/mega-with-wi-fi/p/XC4421.
 * - optionally an FTDI USB - Serial board such as the Jaycar XC4672:
 *      https://www.jaycar.com.au/isp-programmer-for-arduino-and-avr/p/XC4627)
 *
 * The development cycle works as follows:
 * 1) Develop your code and upload using the standard Arduino IDE upload mechanism.
 * 2) use Serial3 (via a preprocessor #define constant) for interaction with the
 *    ESP.
 * 2) Optionally interact with your Arduino program via Serial2 or Serial (also via
 *    a preprocessor constant)
 * 3) Output Debug messages to Serial (via a preprocessor constant).
 *
 * Preprocessor symbols are used to represent the two Serial ports used as follows:
 *   ESP -> Serial3
 *   HOST-> Serial or Serial2
 *
 * Once your program is complete and can operate standalone, you can transfer to a
 * smaller device (e.g. the Arduino UNO + Wifi board). Simply redefine the constants
 * so that ESP is Serial and HOST is an instance of softwareSerial.
 *
 * To use this program, two sets of switches on the Arduino Mega+ESP8266 Wifi must
 * be set as follows:
 *
 * The large DPDT switch with labels RXD0 & TXD0 at one end and RXD3 & TXD3 must be
 * set to the RXD3 & TXD3 end. This enables the Mega Serial3 port for communications
 * with the ESP.
 *
 * The 8 position DIP switch must be set as follows:
 *
 *    on      o  o  o  o
 *    off                 o  o  o  o
 * Number     1  2  3  4  5  6  7  8
 *
 * That is, switches 1, 2, 3 & 4 are be turned on and
 * switches 5, 6, 7 & 8 are turned off.
 * These switch configurations:
 * - Connect the Mega Serial3 to the ESP (for WiFi access)
 * - Connect the Mega Serial to the USB (for programming and debugging).

 */
#include "NullSerial.h"

#define VERSION "1.1.0.1"
/*
 * Revisions.
 * 1.1.0.1
 *    Corrected bug for LED on/off debug messages.
 *
 * 1.1.0.0
 *    Added concept of debug messages.
 *    Added initialisation of WiFi to station mode and connect to WiFi boiler
 *    plate code.
 *
 */

#if defined(ARDUINO_AVR_MEGA2560)
  #define HOST_BAUD 115200
  #define HOST_RX  "USB(0)"
  #define HOST_TX  "USB(1)"
  #define HOST  Serial
  #define DEBUG Serial

//  NullSerial _debug(1, 2);
//  #define DEBUG _debug

  #define ESP_BAUD  115200
  #define ESP_RX  15
  #define ESP_TX  14
  #define ESP   Serial3

#else if defined(ARDUINO_AVR_UNO)
/*
 * On Uno, we only have one hardware serial device.
 * So, we will use SoftwareSerial for any interactions that may be required with
 * the host.
 */
  #include <SoftwareSerial.h>
  #define HOST_BAUD 115200
  #define HOST_RX  10
  #define HOST_TX  11
  SoftwareSerial _host(HOST_TX, HOST_RX);     /* (my_RX, my_TX) */
  #define HOST  _host

  NullSerial _debug(HOST_TX, HOST_RX);
  #define DEBUG _debug
//  #define DEBUG _host

  #define ESP_BAUD  115200
  #define ESP_RX  "USB(0)"
  #define ESP_TX  "USB(1)"
  #define ESP   Serial

#endif

/* A pair of macros that allows the value of symbols defined in #define
 * preprocessor directives (e.g. HOST) to be output as strings (e.g. in
 * print function calls).
 */
#define _STRING(x) (#x)
#define STRING(x) _STRING(x)

/*****************************
 * The hasEOLJustBeenSent is used to track whether an end of line has been sent to
 * the ESP.
 * The version of code shipped with the device requires a Carriage Return (CR)
 * followed by a Line Feed (LF) - in that order - to mark the end of a line (EOL).
 * That is, the ESP requires a CRLF end of line (EOL) sequence.
 *
 * This program allows you considerable flexibility of windows terminal programs
 * (I use Putty, CoolTerm, the Arduino Serial monitor and others) in their default
 * configurations. These programs all generate various combinations of the common
 * line endings CR only, LF only and CRLF.
 * When it sees a CR ('\r') or LF ('\n'), the program will send an EOL to the ESP.
 * To allow for terminal programs that send both a CR and a LF, the
 * hasEOLJustBeenSent is used to track that an EOL has been sent when either the CR
 *  or LF is received from the HOST.
 * To prevent doubling up on EOL's, if we have just received a CR or LF, and the
 * next character is also a CR or LF, then it will simply be ignored.
 */
boolean hasEOLJustBeenSent = false;
char buf[100];
int bufPtr = 0;

boolean OKseen = false;
boolean ERRORseen = false;
boolean FAILseen = false;
boolean TIMEOUTseen = false;


/*
 * processInput(msg)
 * -----------------
 *
 * Processes a message received from the ESP.
 * This includes processing responses to commands (e.g. OK, FAIL etc)
 * Processing input from a client.
 * Processing client connection/disconection messages.
 * And others as required.
 *
 */
void processInput (const char * msg) {
  DEBUG.println();
//  DEBUG.print(F("Received: "));
//  DEBUG.println(msg);

  OKseen = false;
  ERRORseen = false;
  FAILseen = false;

  if (strncmp(msg, "+IPD", 4) == 0) {   // Client message?
    DEBUG.println(F("Received input from client"));
    char led = msg[9];                  // Extract the LED number
    char setting = msg[10];             // Extract the setting (on/off)
    if (led >= '1' && led <= '3') {     // Check the LED number for validity (i.e. 1, 2 or 3)
      led = led - '1';                  // if valid, convert to an integer.
    } else {                            // Otherwise print an error message to the USB.
      HOST.print(F("Invalid LED: ")); HOST.println(led);
      return;
    }

    DEBUG.print(F("Setting LED ")); DEBUG.print(led);
      DEBUG.print(F(" on DIO ")); DEBUG.print(led + 5);
      DEBUG.println(setting == '+' ? " on" : " off");
                                              // FInally, turn the requested LED on or off
    digitalWrite(led + 5, setting == '+');    // depending upon the value in "setting".
                                              // The led + 5 adjusts the LED value (0, 1 or 2)
                                              // to the corresponding Arduino digital I/O pins
                                              // which that have LED's connected whihc are pins 5, 6 & 7.
  }
  OKseen = strcmp(msg, "OK") == 0;
  ERRORseen = strcmp(msg, "ERROR") == 0;
  FAILseen = strcmp(msg, "FAIL") == 0;
}

/*  accumulateESPData
 *  =================
 *
 *  Check if a character is available on the ESP Serial port.
 *  If it is, accumultate the character in a buffer.
 *  When a newline is observed, process the input.
 *
 *  Returns true when a newLine has been seen and the input processed.
 *          false otherwise
 */
boolean accumulateESPData() {
  boolean newLineSeen = false;

  if (ESP.available()) {
    char ch = ESP.read();
    HOST.write(ch);
    if (ch == '\r' || ch == '\n') {
      buf[bufPtr] = '\0';           // Null terminate the input;
      if (bufPtr > 0) {
        processInput(buf);
        newLineSeen = true;
      }
      bufPtr = 0;
    } else {
      if (bufPtr < sizeof(buf) - 1) {   // Append the character to
        buf[bufPtr++] = ch;         // the input buffer if space permits.
      }
    }
  }
  return newLineSeen;
}


/**
 * sendESP(msg)
 * ============
 * Send the supplied msg to the ESP along with a CRLF line ending.
 * Wait for a response of OK, ERROR, FAIL or a TIMEOUT.
 * The timeout period is specified by the toPeriod constant value.
 */
const unsigned long ESP_TO_PERIOD = 30000;    // millis to wait for reply (30 secs).
void sendESP(const char *msg) {
  ESP.print(msg);
  ESP.print("\r\n");
  OKseen = false;
  ERRORseen = false;
  FAILseen = false;
  TIMEOUTseen = false;
      // Establish the initial timout period.
  unsigned long timeout = millis() + ESP_TO_PERIOD;
      // Loop until we get one of the expected replies
      // or a timeout occurs (without getting one of the expected replies)
  while (!OKseen && !ERRORseen && !FAILseen && ! TIMEOUTseen) {
    if (accumulateESPData()) {
            // A response has been recieved.
            // Debug output the status of the expected replies
      DEBUG.print(F("O,E,F="));
        DEBUG.print(OKseen); DEBUG.print(ERRORseen);
        DEBUG.println(FAILseen);
      timeout = millis() + ESP_TO_PERIOD;    // message rcvd, reset the timer.
    }
    if (millis() >= timeout) {
      TIMEOUTseen = true;
      DEBUG.println(F("*** Timeout waiting for ESP reply"));
    }
  }
}


/**
 * AccumulateHOSTData
 * ==================
 *
 * Check for data being available from the host. If there is data, simply pass it on
 * to the ESP.
 * If a CR or a LF is observed in the HOST data, send the ESP a CRLF.
 */
void accumulateHOSTData() {
  if (HOST.available()) {
    char ch = HOST.read();
//    HOST.write(ch);                   // Perform local echo to HOST (or not)
    if (ch == '\n' || ch == '\r') {   // Do we have a LF or CR?
      if (!hasEOLJustBeenSent) {      // Yep, did we just send one?
        ESP.write('\r');              // Nope, so send a CRLF to the ESP.
        ESP.write('\n');
        hasEOLJustBeenSent = true;    // Track that we've sent an EOL
      }
    } else {                          // Not a CR & not a LF, so
      ESP.write(ch);                  // Write the character to the ESP
      hasEOLJustBeenSent = false;     // Since not a CR & not a LF, track that
                                      // we didn't just send an EOL to ESP.
    }
  }
}


/**
 * setup
 * -----
 *
 * Initialise our Serial devices, output some configuration information
 * and set the BUILTIN_LED for output.
 */
void setup() {
  ESP.begin(ESP_BAUD);
  HOST.begin(HOST_BAUD);
  while (!HOST) {
    delay(1);
  }

  HOST.print(F("Version: ")); HOST.println(F(VERSION));
  HOST.print(F("ESP  Ready on: ")); HOST.print(STRING(ESP));
    HOST.print(F(" @ ")); HOST.print(ESP_BAUD);
    HOST.print(F(" bps. RX, TX: "));
    HOST.print(ESP_RX); HOST.print(F(", ")); HOST.println(ESP_TX);

  HOST.print(F("HOST Ready on: ")); HOST.print(STRING(HOST));
    HOST.print(F(" @ ")); HOST.print(HOST_BAUD);
    HOST.print(F(" bps. RX, TX: "));
    HOST.print(HOST_RX); HOST.print(F(", ")); HOST.println(HOST_TX);

  DEBUG.println(F("**** Debug messages enabled ****"));
  HOST.println();

  pinMode(5, OUTPUT);             // Set some pins to output for LEDs.
  pinMode(6, OUTPUT);
  pinMode(7, OUTPUT);

  DEBUG.println(F("Sending GetVersion"));
  sendESP("AT+GMR");              // Get Version Info.
    // Once off set mode and join the WiFi.
  DEBUG.println(F("Setting the mode"));
  sendESP("AT+CWMODE=1");         // Set operating mode to "station"
  DEBUG.println(F("Connect to my WiFi"));
  sendESP("AT+CWJAP=\"YourWiFi\",\"yourpassword\"");

  DEBUG.println(F("Sending Max Connections=1"));
  sendESP("AT+CIPMUX=1");         // Enable Server
  DEBUG.println(F("Sending Start Server on Port 80"));
  sendESP("AT+CIPSERVER=1,80");   // Open port 80

  HOST.println(F("Ready"));
  HOST.println();
}

/* Loop
 * ====
 *
 * Accumulate characters from the HOST and ESP.
 * Process them as necessary.
 */
void loop() {
  accumulateHOSTData();
  accumulateESPData();
}

Here is the second file. It must be named NullSerial.h and be in the same folder as the main program (from above). I will explain the purpose of this file when we move our project to the Arduino Uno + WiFi.

/*
 * NullSerial
 * ----------
 *
 * An empty implementation of a Serial Interface.
 *
 * The idea for this NullSerial class is to, via conditional compilation,
 * eliminate any Debug messages from released code.
 *
 */

 #ifndef NullSerial_h
 #define NullSerial_h

class NullSerial {
  public:
    NullSerial(uint16_t receivePin, uint16_t transmitPin, bool inverse_logic = false) {}
    NullSerial() {}
    void begin (long speed) {}
    bool listen() { return false; }
    void end() {}
    bool isListening() { return false; }
    bool stopListening() { return false; }
    bool overflow() { return false; }
    int peek() { return -1; }

    void println() {}
    void print() {}
    void println(const void * msg) {}
    void print(const void * msg) {}
    void println(const int i) {}
    void print(const int i) {}
};

#endif   //NullSerial_h

If everything in the previous step has gone well, you should see something like the following on your computer (in the Serial Monitor).

Version: 1.0.0.0
ESP  Ready on: Serial3 @ 115200 bps. RX, TX: 15, 14
HOST Ready on: Serial @ 115200 bps. RX, TX: USB(0), USB(1)
**** Debug messages enabled ****

Sending GetVersion
AT+GMR
OK, ERROR, FAIL = 000
AT version:0.21.0.0
OK, ERROR, FAIL = 000
SDK version:0.9.5
OK, ERROR, FAIL = 000
OK
OK, ERROR, FAIL = 100
Ready

The messages shown above are debugging messages that show the configuration of the Arduino and the version of software running on the ESP.

If you wish, you can send the Arduino some text by entering it into the Serial Monitor's input text box and clicking the "Send" button. Any text you send will be sent directly to the ESP. So, it is best to send AT commands such as "AT+GMR" (without the quotes) which requests the ESP to report the version of software it is running . I will show some useful commands in the rest of this Instructable.

If you are not particularly interested in what the above output means and just want to get connected, jump to the next section named "Connect to your WiFi".

Analysis of the initial debug messages

The first several lines of the above output show the configuration that the Arduino is using to interact with you and the ESP. These are the lines starting with "ESP" and "HOST". The contents are:

• The Serial port being used
• The baud rate
• The pins that this port are connected to on the Arduino

Next, the AT+GMR command (mentioned earlier) is sent to the ESP.

The "OK, ERROR, FAIL ..." messages are debug messages generated by the Arduino code as messages are received back from the ESP. These messages show the status of 3 flags maintained in the Arduino program that are set or cleared depending on whether the message "OK", "ERROR" or "FAIL" is received from the ESP. Normally, the ESP will end it's output with an OK, ERROR or FAIL message so these are used as markers to determine when the ESP is done responding to a command and is ready for the next one. We can see this just before the "Ready" message where the OK bit is set to 1.

The other messages, "AT version: 0.21.0.0" and "SDK version:0.9.5" are the actual output generated by the ESP. The Arduino program relays everything it receives from the ESP to the IDE's Serial monitor.

The ESP8266 WiFi is driven by AT commands. If you are interested in the history of this, there is a Wikipedia article that covers it quite well. The ESP8266 WiFi solution uses a different command set from those mentioned in the Wikipedia article, mostly because it isn't a dial-up modem - which is what the Wikipedia article is talking about. However, the structure of the AT commands is similar to those described in the article. In reference to the Wikipedia article, it appears that the ESP8266 WiFi only operates in command mode.

In other words, you must always type "AT+" followed by a valid command. The "AT+" part may seem a bit redundant if it only ever operates in command mode, but, "thems the rules".

There seems to be quite a few different versions of the AT commands on the ESP8266 WiFi, but the versions that were shipped on my hardware are mostly covered by these manuals:

• From espressif - https://www.espressif.com/sites/default/files/documentation/4b-esp8266_at_command_examples_en.pdf
• From Jaycar - https://www.jaycar.com.au/medias/sys_master/images/images/9481827254302/XC4614-manualMain.pdf

Connect to your WiFi

Connecting to your WiFi involves doing some "one off things" and for this program, establishing a service that you can connect to from your computer over the WiFi.

The "once off things" are:

• Putting the ESP into "station mode" - "AT+CWMODE=1" command
• Joining your WiFi network - "AT+CWJAP=..." command

Once on the network, we will want to establish a service using the following commands:

• Turn on "server mode" - "AT+CIPMUX=1"
• Start listening on a port - "AT+CIPSERVER=1,80"

Note that these last two commands (turn on server mode & start listening on a port) must be executed every time the ESP is reset. The easiest way to do this is to run them in the Arduino's setup() function. The settings from the first two commands (station mode & join WiFi) are "remembered" by the ESP across resets. So once, run successfully, you could comment them out if you want to do so. There is no harm to run them each time the Arduino is reset and we will definitely need to run them when we move to the Uno and/or if for some reason the WiFi hardware is swapped out (e.g. a faulty WiFi shield is replaced with a good one). So, I would be inclined to not comment them out and run them every time the Arduino starts just to be sure we have the operating environment we are expecting.

In the setup function of the main Arduino program, at about line 330, you will note the following code:

  DEBUG.println(F("Sending GetVersion"));
  sendESP("AT+GMR");              // Get Version Info.
    // Once off set mode and join the WiFi.
  DEBUG.println(F("Setting the mode"));
  sendESP("AT+CWMODE=1");         // Set operating mode to "station"
  DEBUG.println(F("Connect to my WiFi"));
  sendESP("AT+CWJAP=\"YourWiFi\",\"YourPassword\"");

  DEBUG.println(F("Sending Max Connections=1"));
  sendESP("AT+CIPMUX=1");         // Enable Server
  DEBUG.println(F("Sending Start Server on Port 80"));
  sendESP("AT+CIPSERVER=1,80");   // Open port 80

You will need to modify the "AT+CWJAP" line (shown below) to include your WiFi and password by replacing YourWifi and YourPassword:

  sendESP("AT+CWJAP=\"YourWiFi\",\"YourPassword\"");

Note don't get rid of the backslashes or the double quotes that surround YourWiFi and YourPassword. These are required to ensure that the compiler inserts the double quotes into the string that is sent to the sendESP function.

Once you have done this, re-upload the program. Remember the key takeaway here is that you simply upload the code after editing it in the normal way, you do not have to adjust any switches and do not need any extra hardware to debug your program.

When it finishes uploading, you should see a lot more messages on the Serial monitor.

The main two messages that we are looking for are an "OK" response to the commands to join the WiFi network (AT+CWJAP=...) and start listening on a port (AT+CIPSERVER=...).

If all goes well, you can try entering the following "query network configuration command" (AT+CIFSR) into the Serial Monitor. You should see something like this:

AT+CIFSR<br>+CIFSR:STAIP,"192.168.3.160"<br>+CIFSR:STAMAC,"18:fe:34:2c:70:45"<br>OK

The important part is the line containing the text "+CIFSR:STAIP" which is our IP address. We will need the IP address in the next step where we turn on and off some LEDs!

In my case, the address is 192.168.3.160 - your IP address will almost certainly be different. Make a note of your IP address, not mine.

Now that we've connected to the WiFi and started our service, we will attempt to contact it and get those LED's dancing - well maybe not quite dancing, but definitely turning on and off.

Before we do, lets examine the structure of the "start listening on a port" command (AT+CIPSERVER=1,80).

This command means can be broken down as follows:

• AT+ - the required preamble for all commands.
• CIPSERVER= start (or stop) listening on a specified network port. I.e. start (or stop) a service/server.
• 1, - start listening (use 0, to stop listening)
• 80 - the network port that we want to which we want to listen for incoming connection requests - specifically, port 80. You can use any valid port number here. Note that many port numbers are commonly used for specific functions (port 80 is commonly used by web servers) as described in this Wikipedia article.

So, from the previous step, we know the IP address we need to use to connect to our Arduino (mine was 192.168.3.160), we now also know that we must use port 80 when establishing that connection.

The following transcript, using netcat, shows the connection to the Arduino using my IP address. You will need to replace 192.168.3.160 with your IP address. If you do not already have it, information about obtaining netcat can be found at the bottom of of step 1.

Enter the following into a Shell (Mac, Linux or Cygwin) prompt or the windows command prompt. Remember, use your IP address in place of 192.168.3.160.

nc 192.168.3.160 80

If all goes well, nothing much else will happen in netcat at this point. All the action is over on the Arduino. In the Serial Monitor, you should see something like the following in response to the netcat command:

0,CONNECT<br>

This means that a client has connected and it has been assigned session ID 0. If another client connects, you will see a message of the form "1,CONNECT". This means that a client has connected and will be assigned session ID 1.

Next, flip back over to netcat and enter the text "1+" (no quotes) and hit enter. Your terminal session should now look like this:

$ nc 192.168.3.160 80
1+

Again, not terribly exciting, but once again the action is all over on the Arduino Serial Monitor and your breadboard. If all goes well, the LED connected to DIO port 5 will turn on and you will see something like the following in the Serial monitor.

+IPD,0,3:1+
Received input from client
Setting LED on DIO 5 on

The text "+IPD,0,3:1+" is what the ESP WiFi has sent to the Arduino. This can be interpreted as follows:

• +IPD - incoming data has been received from a client.
• 0 - the data was received from the client with session ID 0.
• 3: - three bytes of data have been received from the client. The actual data follows the ":" character.
• 1+ (followed by a newline character which does not show) is the data from the client - i.e. what you entered into netcat.

The Arduino program interprets the data as follows:

• + turn on an LED (or - turn off an LED)
• 1 (or 2 or 3) turn on the 1st (DIO 5), 2nd (DIO 6) or 3rd (DIO 7) LED.

If you want to, you can send data back to netcat by entering the AT+CIPSEND= command into the Arduino Serial Monitor. Note that two lines of input are required. The first is the command to send some data to session 0 along with the length of the data, followed by the actual text to send (which will be given a "> " prompt).

AT+CIPSEND=0,5
hello

The breakdown of the AT+CIPSEND=0,5 command is a request to send 5 bytes of data to the client identified by session ID 0.

In the Serial Monitor's output, you should see something like the following:

AT+CIPSEND=0,5
OK
hello
busy s...
SEND OK

And on your computer in the netcat session you should see something like this:

$ nc 192.168.3.160 80
1+
2+
hello

You've done the hard work to build your application, now you are ready to release it. You want to move it to a (physically) smaller platform such as an Arduino Uno, or even a custom circuit. So now we need to migrate the code to that hardware.

This is an optional step, but it is what this article is all about. Specifically, how to develop your Arduino WiFi App relatively pain free and once completed, move it to a smaller platform. A platform that, if you used for the original development, would require you to constantly be switching switches every time you uploaded the code, resetting those switches when you want to run it and would require extra hardware to observe debugging messages. Indeed, writing this step took longer than all of the rest of the steps combined due to some headache I encountered with the WiFi Shield and the Arduino not communicating properly and therefore having to debug that via the tedium of switching the DIP switches on the Uno to try to work out what was going on. The problem was that the ESP software had somehow corrupted itself and was continously rebooting.The solution was to reimage the ESP module.

Note that you may still encounter a problem on the smaller hardware platform, like I did, which requires some troubleshooting and consequently the "painful things" that I just mentioned, but at this stage the bulk of the development is done. So, the final troubleshooting pain is, or at least should be, substantially less than that compared to the pain of doing the full development on the smaller platform.

In this step we will migrate our App to an Arduino Uno with a WiFi shield. However, you could also use an Arduino Uno+WiFi integrated board such as the Jaycar XC-4411 or other combination. The sub-steps will broadly be:

1. Connect our test circuit to the Uno + WiFi board.
2. Upload the code to our Arduino Uno + WiFi.
3. Work out the IP address assigned to this device (this step)
4. Enjoy your shiny new App and make those LEDs glow!

Connect the test circuit

For this sub-step, simply connect your test circuit to the UNO as described in step 1. The connections are identical as described in step 1. Specifically, connect the 3 LED's to DIO pins 5, 6 and 7. Then connect the Ground wire to one of the GND pins on the Arduino Board.

Upload the code - MCU to USB

This sub-step ("Upload the code") and the following sub-step ("Running the code") are time critical, so please read both of them completely before starting.

For this step, I am assuming that you didn't comment out the code to set the operating mode and join the WiFi (step 4). If you did, uncomment it before continuing. Once you have successfully joined your WiFi using the Uno, you can re-comment out the setting of the operating mode (AT+CWMODE=1) and the joining of the WiFi (AT+CWJAP="...","...") as the ESP will remember these settings even when powered off. Again, I would recommend not commenting this out, but if you really really want to, then do so once it has run successfully on the new hardware.

On the Uno, the one and only hardware Serial port is used to either upload code, interact with the serial monitor -or- communicate with the ESP - but not all at the same time. This is a conflict. To resolve this conflict we need to tell the board what we are doing (uploading or talking to ESP) using the DIP switches on the WiFi Sheild (or Uno+WiFi's) board.

In brief, we set the switches to allow the Arduino code to be uploaded via the USB. Once the upload has fully completed, we need to reset the switches to allow the Arduino to communicate with the ESP (this is the time critical bit).

To set the switches for upload, hold the Arduino Uno + ESP WiFi shield so that the USB is on the left hand side, you will notice 2 DIP switches near DIO pins 1&2 on the top right hand side of the board. Switch both of these to the off position. Refer to the image with the blue circuit board containing just 2 DIP switches.

If you are using an Uno + WiFi integrated board, there is an 8 way DIP switch in a similar position to that as on the integrated Mega + WiFi board. Refer to the image with the black circuit board containing 8 DIP switches. When uploading code to Arduino, you must switch the switches as follows:

• Switches 1 & 2 - Off
• Switches 3 & 4 - On
• Switches 5, 6, 7 & 8 - Off.

Upload the code in the normal manner. Unless debug mode is turned on, you will not see anything relating to the sending of the AT+GMR command - however, it will have been sent and the Arduino will be waiting for a reply - which will never come. We need to reset the DIP switches to Running the code mode before the Arduino times out waiting for the AT+GMR response. This is the time critical bit, so please - read on...

Running the code - MCU to ESP

Before the Arduino times out waiting for the AT+GMR response, we need to reconfigure the Board for running the code. As an alternative, you can just set the switches as described here and restart the Arduino (use the Arduino reset, not the ESP reset - or just power it off and then back on again).

If you are using the Arduino Uno + WiFi shield, turn the 2 DIP switches mentioned above to the on position.

If you are using the integrated Arduino Uno + WiFi board, set the block of 8 DIP switches as follows:

• Switches 1 & 2 - On
• Switches 3 & 4 - Off
• Switches 5, 6, 7 & 8 - Off - i.e. no change from the previous sub-step.

If you were quick enough, or you used the alternative (set the switches and restart), your Arduino should join your WiFi network.

Make the LEDs dance

The final Arduino sub-step is access our Arduino LED service. To do this, you will need to find out what the IP address allocated to your device.

In my case, I can access the WiFi router admin console. I simply make note of the new device that appears in the list of assigned addresses (a bit like the process of determining which comms port the Arduino gets assigned in the Arduino IDE). It is relatively easy as, for the WiFi modules that I have, the system name is either the MAC address of the WiFi hardware or it has the letters ESP in its name. These two examples can be seen from the screen shots of my WiFi routers admin console.

NB: Sometimes the inline pictures here seem to disappear, but I've included them in the header of this step.

Note that the first one contains the IP address for the Mega (192.168.3.160), so the other one (192.168.3.94) is the Uno.

As before, we can use netcat to contact the Uno on port 80 and issue the commands to light up or turn off the LEDs.

$ nc 192.168.3.94 80
1+

Hopefully this article has been helpful to you and will enable you to easily build Arduino based WiFi Apps. If you did, please let me know by clicking the "I built this" link. Also any feedback to improve the article - e.g. based upon your experience and challenges you faced while trying to do this yourself would be greatly appreciated.

As mentioned in the openning, this technique could also be used when working with other devices that use Serial communications - such as Bluetooth modules.

The best next step is to take this foundation to the next level.

To add functions to the Arduino code. The process of turning LED's on or off is all handled in the processInput(...) function at about line 166 in the main Arduino code.

Within this processInput(...) function, you will see the following block of code at about line 175:

  if (strncmp(msg, "+IPD", 4) == 0) {
    HOST.println(F("Received input from client"));
    char led = msg[9];
    char setting = msg[10];
    if (led >= '1' && led <= '3') {
      led = led - '1';
    } else {
      HOST.print(F("Invalid LED: ")); HOST.println(led);
      return;
    }

    /*************************************
     *  Comment out/Uncomment this block of print
     *  statements to represent out "development cycle".
     *************************************/
    DEBUG.print(F("Setting LED ")); DEBUG.print(led);
      DEBUG.print(F(" on DIO ")); DEBUG.print(led + 5);
      DEBUG.println(setting == "+" ? F(" on") : F(" off"));

    digitalWrite(led + 5, setting == '+');
  }

This starts by identifying that the message is input from the client. If the incoming message (msg) starts with "+IPD", then we know it is a message from the client.

The remainder of the if block processes the message. The comments explain what is happening, so I refer you to the code for that explanation.

You can change this to identify and process your own messages. As you do so, you can control whatever you want including sending a message back to the client.

Finally, how does the program port from the Mega to the Uno without sending all of the debug and status messages to the WiFi. Remember:

• The Mega uses Serial 3 for WiFi interaction and Serial(0) for debug/status messages.
• The Uno uses Serial(0) for WiFi interaction and thus can not generate debug/status messages.

The trick is in the use of the constants DEBUG, HOST (which can be seen in the code above) and ESP (which can be seen in the rest of the program).

These constants are defined near the top of the program using conditional compilation pre-processor directives (i.e. compiler #if statements). This appears at about lines 79 through 116 in the main Arduino code.

When compiling for the Mega, DEBUG and HOST are defined to be Serial(0) and ESP is defined to be Serial3.

When compiling for the Uno, DEBUG and Host are defined to be NullSerial (i.e. a reference to the code in the extra file we created in step 3) and ESP is defined to be Serial(0).

In both cases, some additional constants (such as the pin numbers and baud rates) are defined to define the operating environment.

So, when running on the Uno, the debug and status messages go to this NullSerial thing. The NullSerial is a C++ class that defines something with a similar set of methods that the real Serial device definitions that Arduino supplies. For example, the NullSerial has a println() method. The NullSerial's println method does nothing. So as a result, the debug and status messages sent to DEBUG and HOST are simply discarded as there is nowhere to send them.

If you wanted to, you could do something else with NullSerial (although I would also give it a different name). For example if you had an SD card, you could maybe create an SDCardSerial. Any messages printed to this would be recorded in a file on the SD card. Or perhaps you have an LCD display in this case if you created an LCDSerial, the debug and status messages could be displayed on it. It is entirely up to you.

Again, I hope this article has been helpful to you. I'd love to hear in the comments and/or the "I built this" if you found it useful (or not).
