Video link below, for some reason video link above doesn't work on mobile. I'm new to instructables so I might be doing something wrong.
https://www.youtube.com/watch?v=3o0aVanmPxw
I originally wanted to make these as a gift but my wife and kids liked them so much we decided to keep them. I will probably end up make a few sets the people that have seen them really seem to like them. If you like them and would like to make some for yourself check out the video below.
![IMG_4702.JPG](/proxy/?url=https://content.instructables.com/FG7/T6DN/IIGC6AAR/FG7T6DNIIGC6AAR.jpg&filename=IMG_4702.JPG)
![IMG_4703.JPG](/proxy/?url=https://content.instructables.com/F82/RDB8/IIGC6AAW/F82RDB8IIGC6AAW.jpg&filename=IMG_4703.JPG)
![IMG_4733.JPG](/proxy/?url=https://content.instructables.com/F16/CULT/IIGC6AB1/F16CULTIIGC6AB1.jpg&filename=IMG_4733.JPG)
![IMG_4745.JPG](/proxy/?url=https://content.instructables.com/FRR/KTZO/IIGC6AB3/FRRKTZOIIGC6AB3.jpg&filename=IMG_4745.JPG)
These are the templates I used to trace on to wood.
![5678f27f4fbade28be0005a3.jpeg](/proxy/?url=https://content.instructables.com/FLW/LOW2/IIGC6B59/FLWLOW2IIGC6B59.jpg&filename=5678f27f4fbade28be0005a3.jpeg)
I cut out all the shapes with a jigsaw.
![IMG_4771.JPG](/proxy/?url=https://content.instructables.com/FQD/5J4E/IIGC6ABF/FQD5J4EIIGC6ABF.jpg&filename=IMG_4771.JPG)
![IMG_4770.JPG](/proxy/?url=https://content.instructables.com/FNU/3YWZ/IIGC6ABC/FNU3YWZIIGC6ABC.jpg&filename=IMG_4770.JPG)
![IMG_4798.JPG](/proxy/?url=https://content.instructables.com/F0Z/Q1E2/IIGC6ABG/F0ZQ1E2IIGC6ABG.jpg&filename=IMG_4798.JPG)
I used a disk sander to smooth out the jigsaw cuts. You could do this step with a palm sander but it might take a little longer. I then sanded all the pieces by hand beginning with 80 grit then 150 and finishing with 220 grit.
![IMG_4811.JPG](/proxy/?url=https://content.instructables.com/FH0/E8YR/IIGC6ABH/FH0E8YRIIGC6ABH.jpg&filename=IMG_4811.JPG)

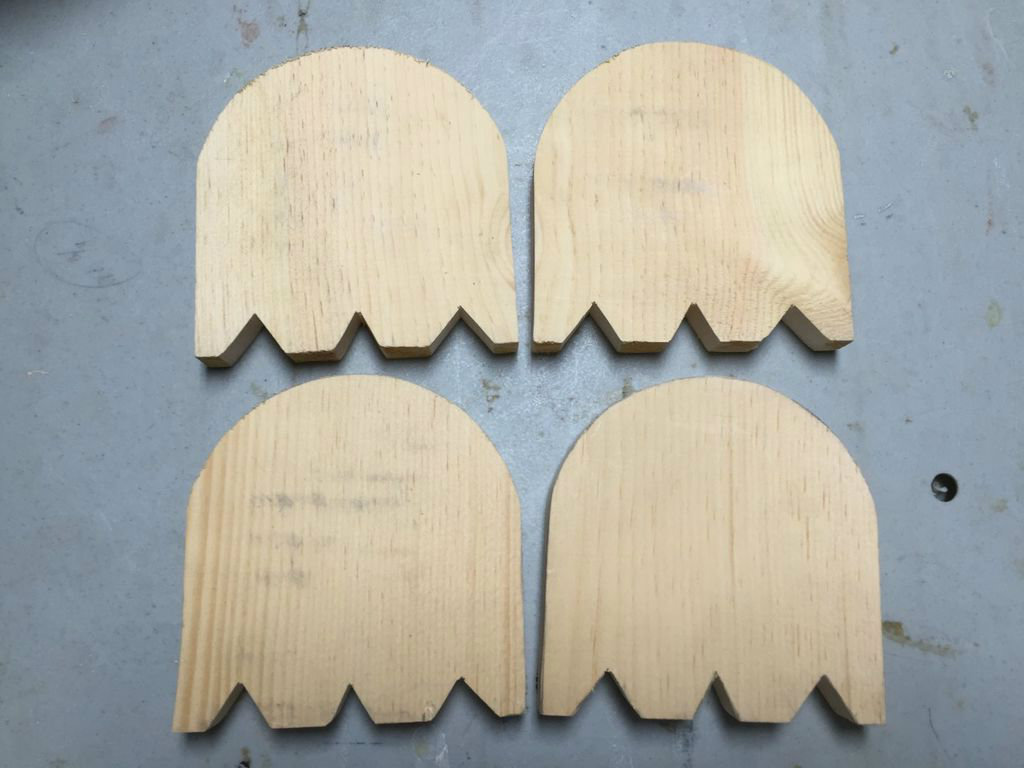

Here are the pieces all sanded
![IMG_4812.JPG](/proxy/?url=https://content.instructables.com/FC7/3MLB/IIGC6ABK/FC73MLBIIGC6ABK.jpg&filename=IMG_4812.JPG)
![IMG_4815.JPG](/proxy/?url=https://content.instructables.com/F21/4NWH/IIGC6ABO/F214NWHIIGC6ABO.jpg&filename=IMG_4815.JPG)

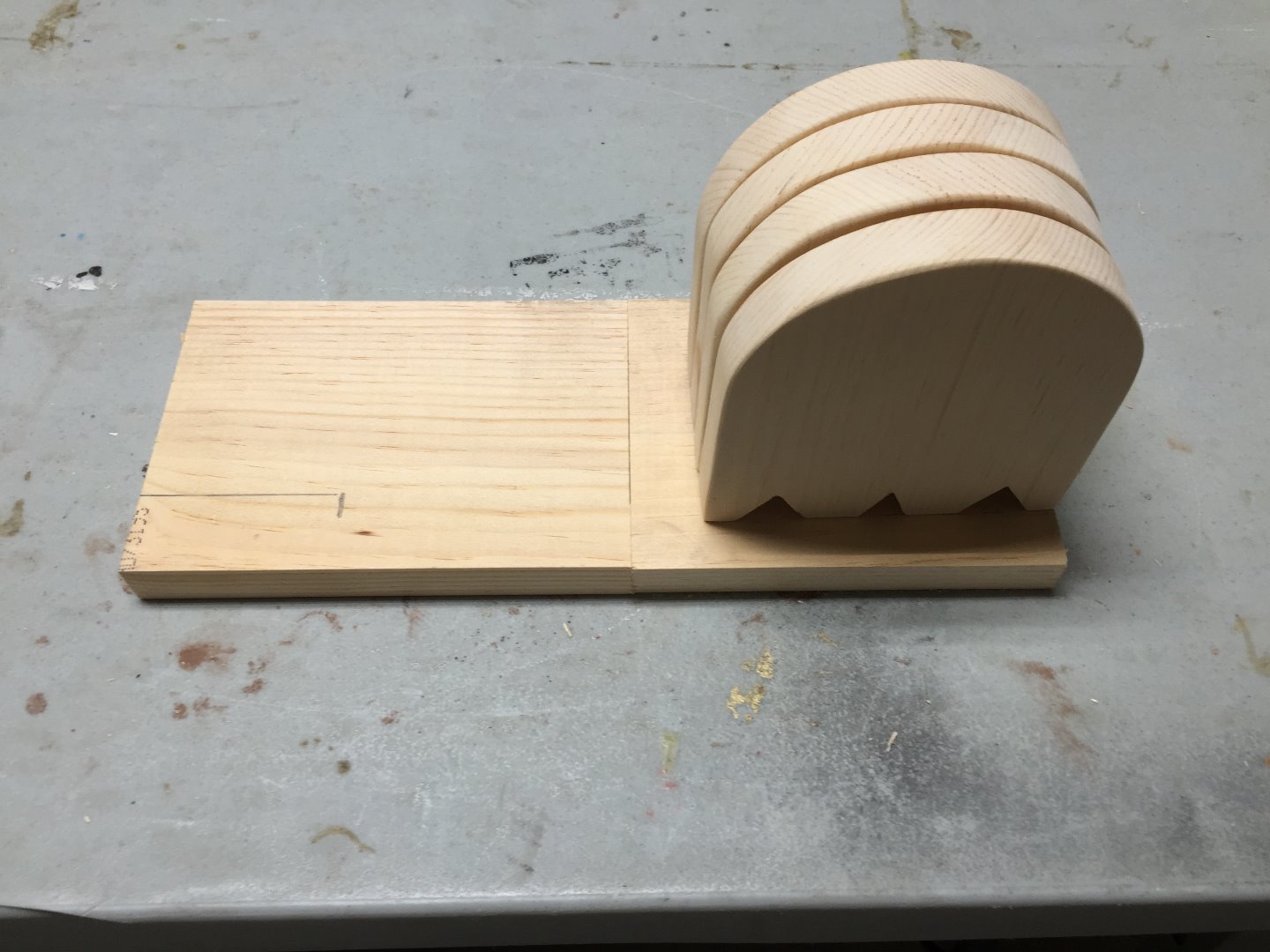

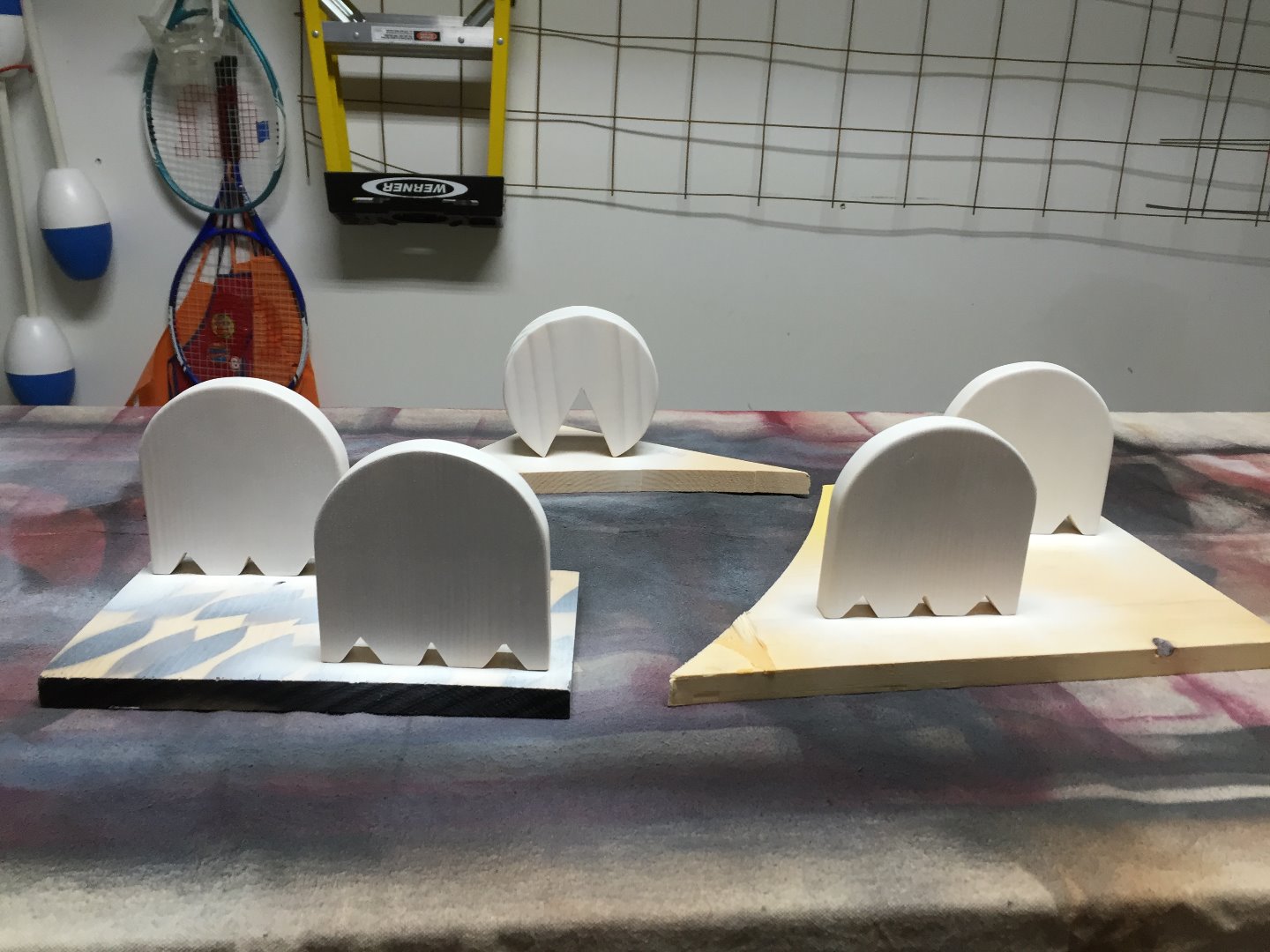

Here I am mocking up the stand they will sit on. The second picture shows what the stands will look like. They measure 5 inches wide the horizontal bottom piece is 6 inches long the vertical piece is 7 inches long.
![IMG_4822.JPG](/proxy/?url=https://content.instructables.com/FR7/5YZE/IIGC6ABQ/FR75YZEIIGC6ABQ.jpg&filename=IMG_4822.JPG)

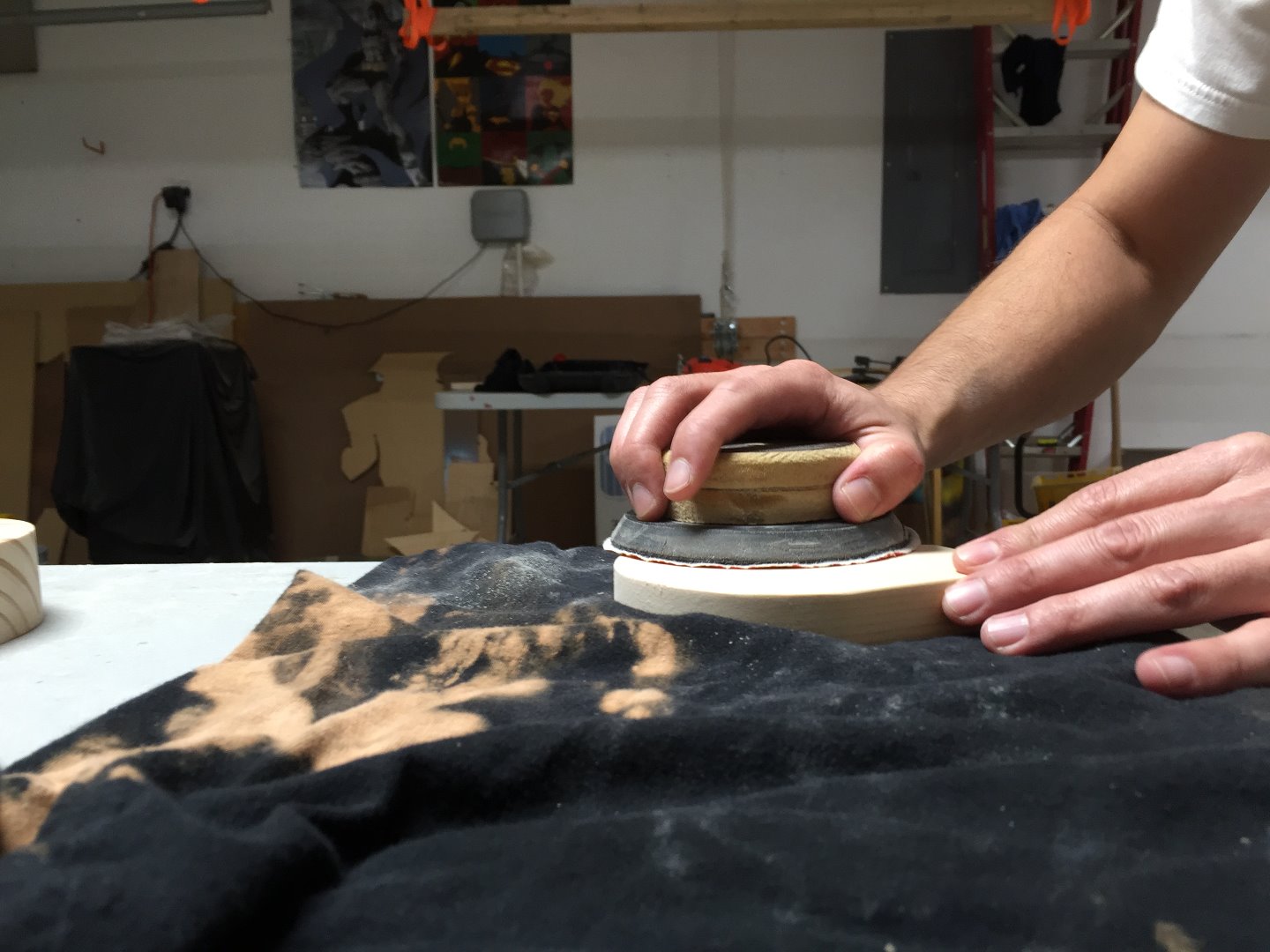

In this step I sanded all the edges over to make them rounded I was trying to mimic the look of the arcade game maze.
![IMG_4826.JPG](/proxy/?url=https://content.instructables.com/FSE/ZAQX/IIGC6ABR/FSEZAQXIIGC6ABR.jpg&filename=IMG_4826.JPG)
![IMG_4828.JPG](/proxy/?url=https://content.instructables.com/FTH/OPMQ/IIGC6ABS/FTHOPMQIIGC6ABS.jpg&filename=IMG_4828.JPG)

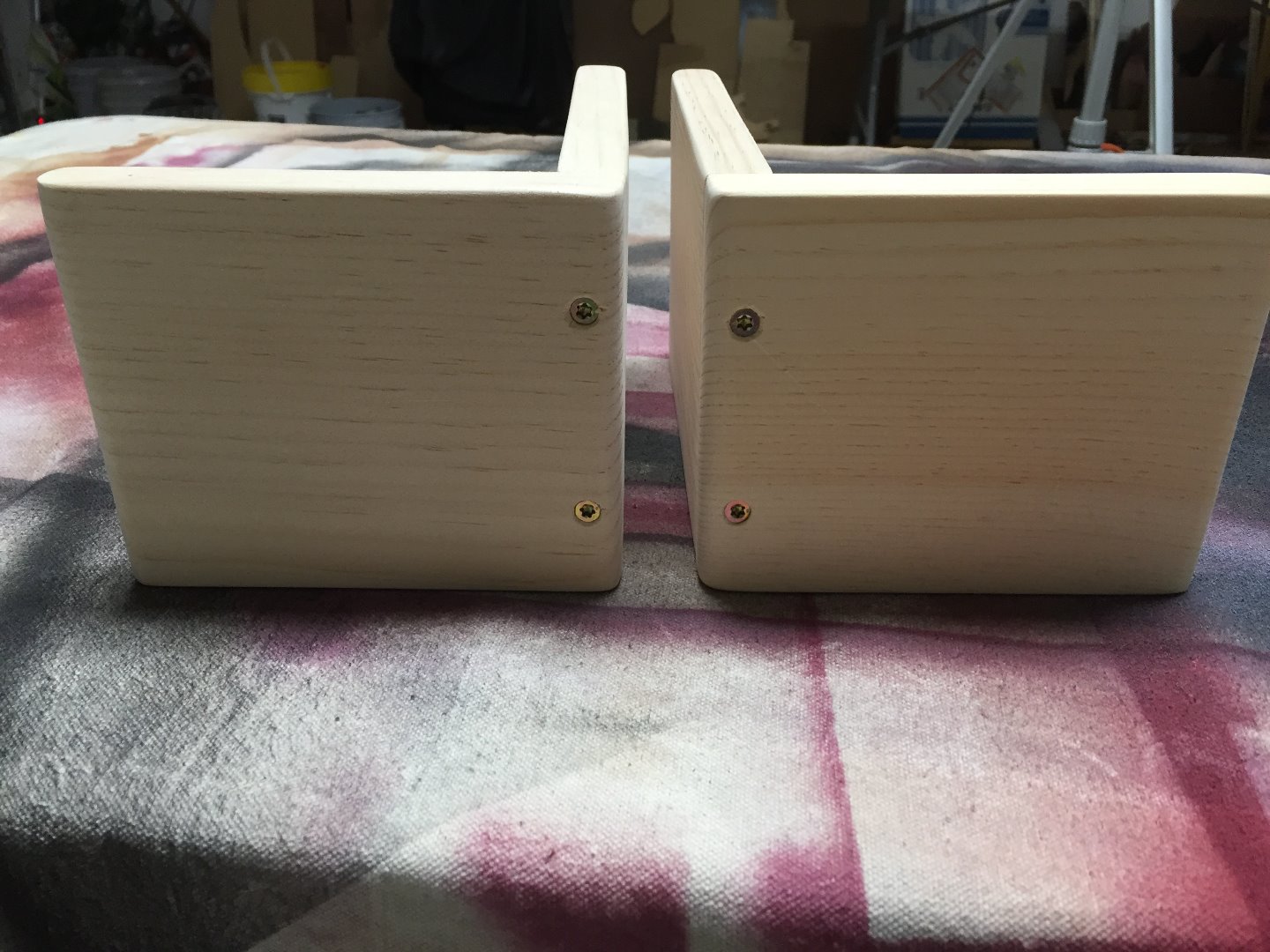

Here you can see the rounded over edges. I pre-drilled, countersunk and glued the two pieces together.
![IMG_4831.JPG](/proxy/?url=https://content.instructables.com/FCE/8TAS/IIGC6ABT/FCE8TASIIGC6ABT.jpg&filename=IMG_4831.JPG)

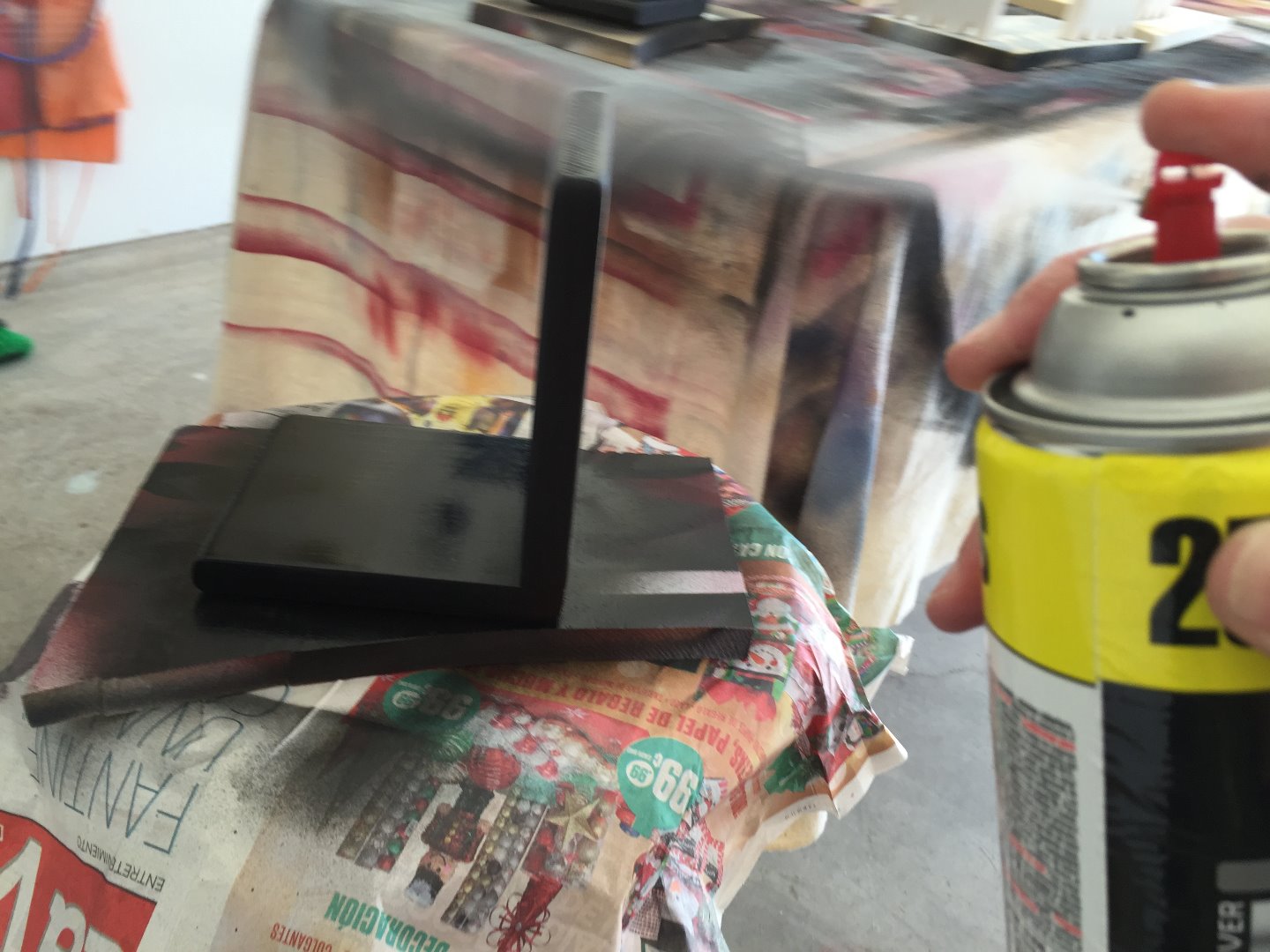

I primed all the pieces before painting them their final color and sanded them with 320 grit to try and make them extra smooth.
![IMG_4848.JPG](/proxy/?url=https://content.instructables.com/FJT/ZB48/IIGC6AC2/FJTZB48IIGC6AC2.jpg&filename=IMG_4848.JPG)
![IMG_4851.JPG](/proxy/?url=https://content.instructables.com/F4A/2MWQ/IIGC6AC7/F4A2MWQIIGC6AC7.jpg&filename=IMG_4851.JPG)

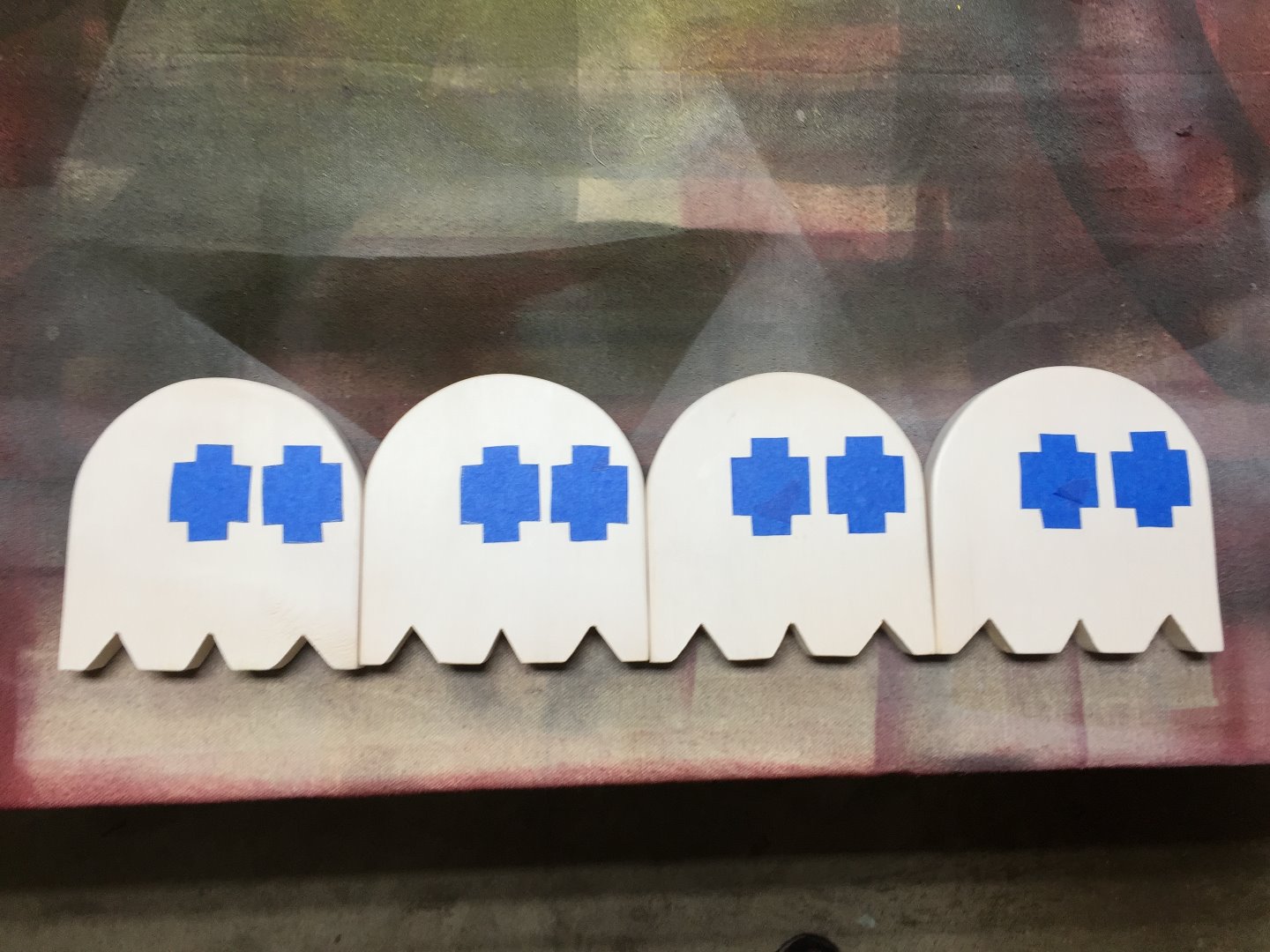

Before I painted the ghost I used the paper template to make individual tape stencils for the eyes. I just eyeballed the placement of the tape to were it looked pretty good.
![IMG_4852.JPG](/proxy/?url=https://content.instructables.com/FF5/KOR7/IIGC6ACY/FF5KOR7IIGC6ACY.jpg&filename=IMG_4852.JPG)
![IMG_4853.JPG](/proxy/?url=https://content.instructables.com/F1U/AGOO/IIGC6ACZ/F1UAGOOIIGC6ACZ.jpg&filename=IMG_4853.JPG)
![IMG_4838.JPG](/proxy/?url=https://content.instructables.com/FXV/QL38/IIGC6ABZ/FXVQL38IIGC6ABZ.jpg&filename=IMG_4838.JPG)
These pics show some of the painted pieces.
![IMG_4856.JPG](/proxy/?url=https://content.instructables.com/FVY/NTME/IIGC6AD0/FVYNTMEIIGC6AD0.jpg&filename=IMG_4856.JPG)
![IMG_4859.JPG](/proxy/?url=https://content.instructables.com/F4B/YDNW/IIGC6AD6/F4BYDNWIIGC6AD6.jpg&filename=IMG_4859.JPG)
This shows the blue detail around the edge of the stands. Again this is to try and mimic the arcade game maze pieces. I also realized that I had made them crooked. So I had to re-make them except this time I didn't eyeball the right angles I made sure to square up the pieces before gluing and screwing them together.
![IMG_4857.JPG](/proxy/?url=https://content.instructables.com/FM5/514M/IIGC6AD2/FM5514MIIGC6AD2.jpg&filename=IMG_4857.JPG)
Tape off the area for the blue pupils on the ghosts. I did cover up the rest of the ghost before painting the pupils.
![IMG_4868.JPG](/proxy/?url=https://content.instructables.com/FMO/EWI0/IIGC6AD7/FMOEWI0IIGC6AD7.jpg&filename=IMG_4868.JPG)
![IMG_4871.JPG](/proxy/?url=https://content.instructables.com/F64/3BF8/IIGC6ADA/F643BF8IIGC6ADA.jpg&filename=IMG_4871.JPG)
![IMG_4869.JPG](/proxy/?url=https://content.instructables.com/FQ5/QVKN/IIGC6AD8/FQ5QVKNIIGC6AD8.jpg&filename=IMG_4869.JPG)

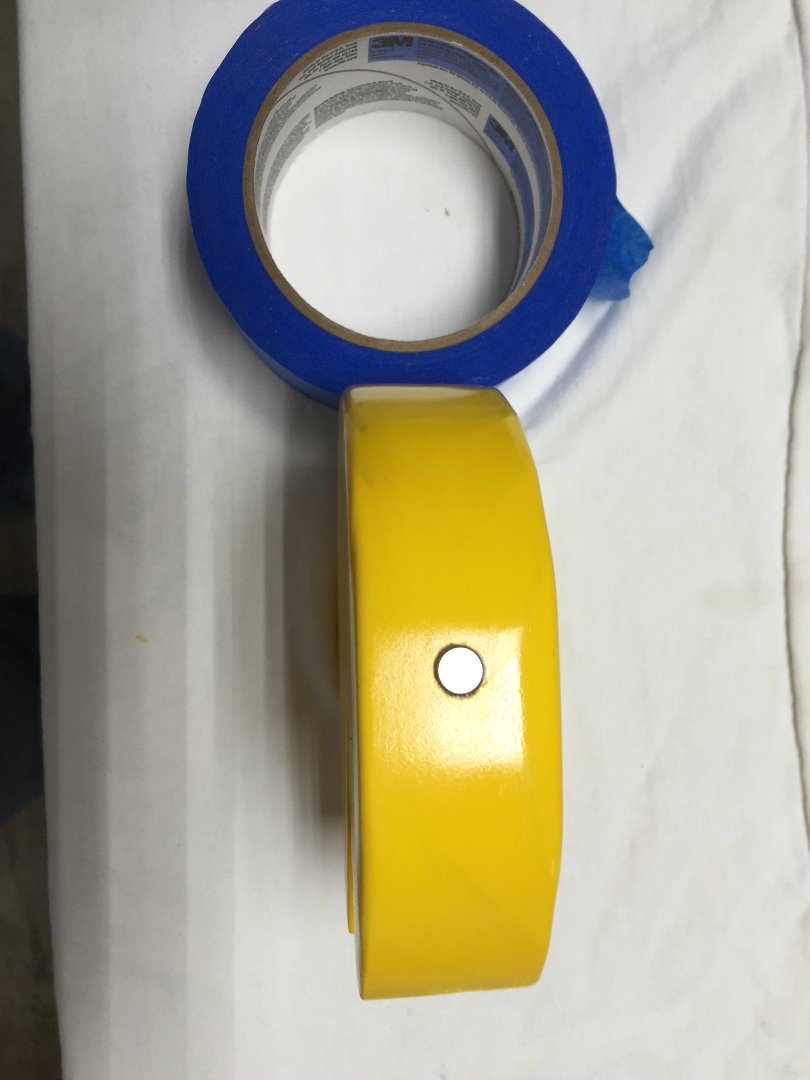

I drilled a shallow hole in the bottom of the ghosts and Pac-man to add a magnet so that the pieces would sit securely on the stands. I used epoxy to attach the magnets. Then in the base I pre-drilled, countersunk and screwed in some screws for the magnets to attach to. I made sure to make all the magnets and screws flush to the surface I was attaching them too.
![IMG_4877.JPG](/proxy/?url=https://content.instructables.com/FYP/VU59/IIGC6ADB/FYPVU59IIGC6ADB.jpg&filename=IMG_4877.JPG)
I did end up painting the other side of the ghosts with the blue scared face. The process for painting them is the same as the other side just need a paper template to use to cut the masking tape. I used pink paint for the eyes and mouth then masked off the areas and painted them blue.
![IMG_4878.JPG](/proxy/?url=https://content.instructables.com/FPH/UMMX/IIGC6ADD/FPHUMMXIIGC6ADD.jpg&filename=IMG_4878.JPG)
![IMG_4883.JPG](/proxy/?url=https://content.instructables.com/FVM/KGTU/IIGC6AEV/FVMKGTUIIGC6AEV.jpg&filename=IMG_4883.JPG)
And here I was just fooling around try to get a few cool pics. I did not succeed but it was fun just moving them around.
![IMG_4896.JPG](/proxy/?url=https://content.instructables.com/FH9/D8D3/IIGC6AGC/FH9D8D3IIGC6AGC.jpg&filename=IMG_4896.JPG)

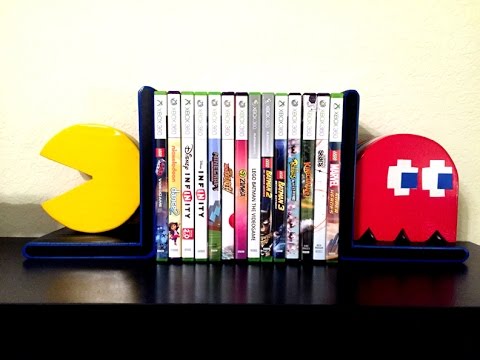

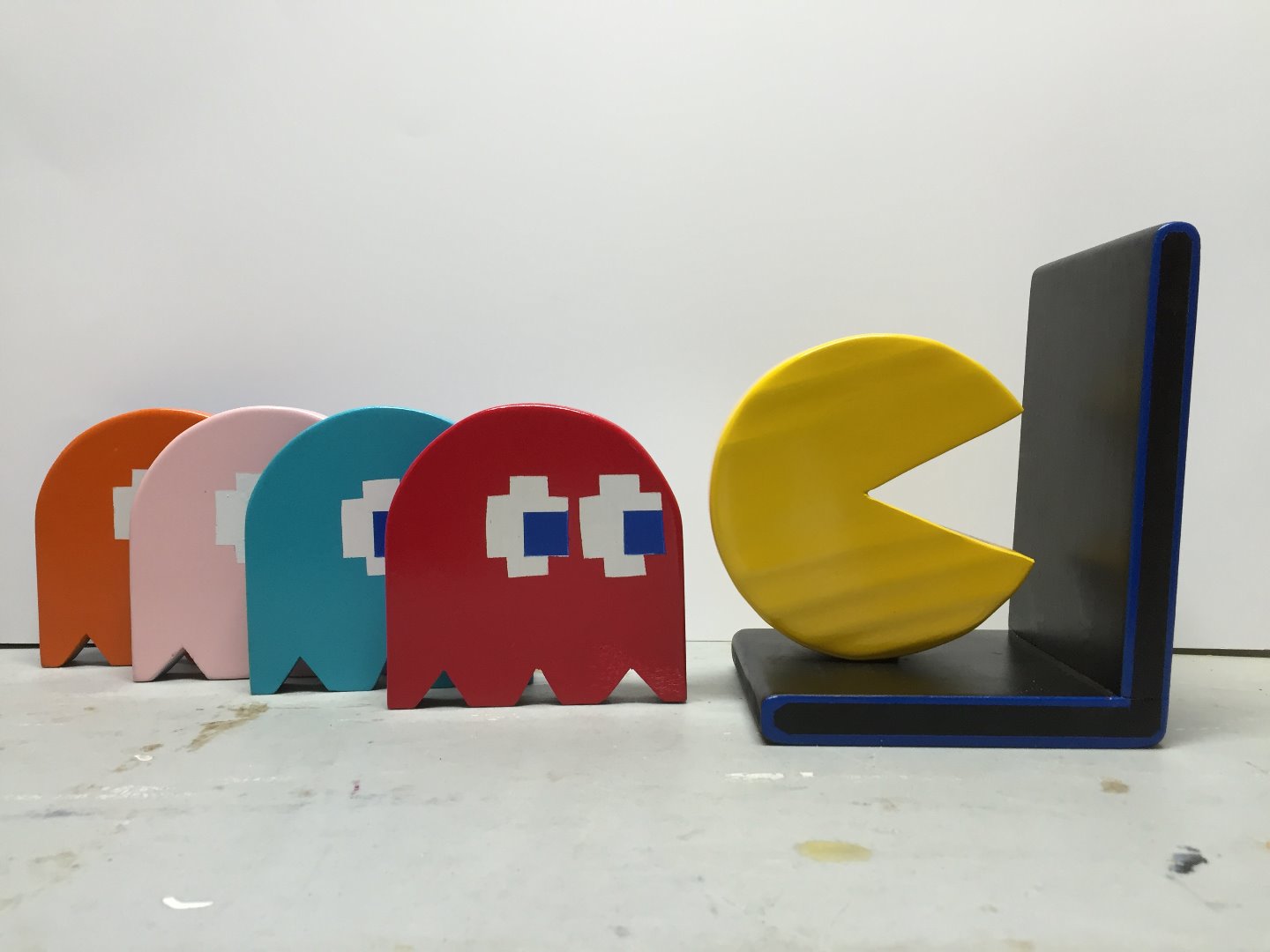

And here is the finished piece. I hope this inspires you to make your own. My kids and my wife really liked these. My son likes playing with them like he's playing the game.
