PWM Arduino Fan Speed Controller
by recwap in Circuits > Arduino
45124 Views, 40 Favorites, 0 Comments
PWM Arduino Fan Speed Controller
Simple dual channel PWM Arduino fan speed controller shield

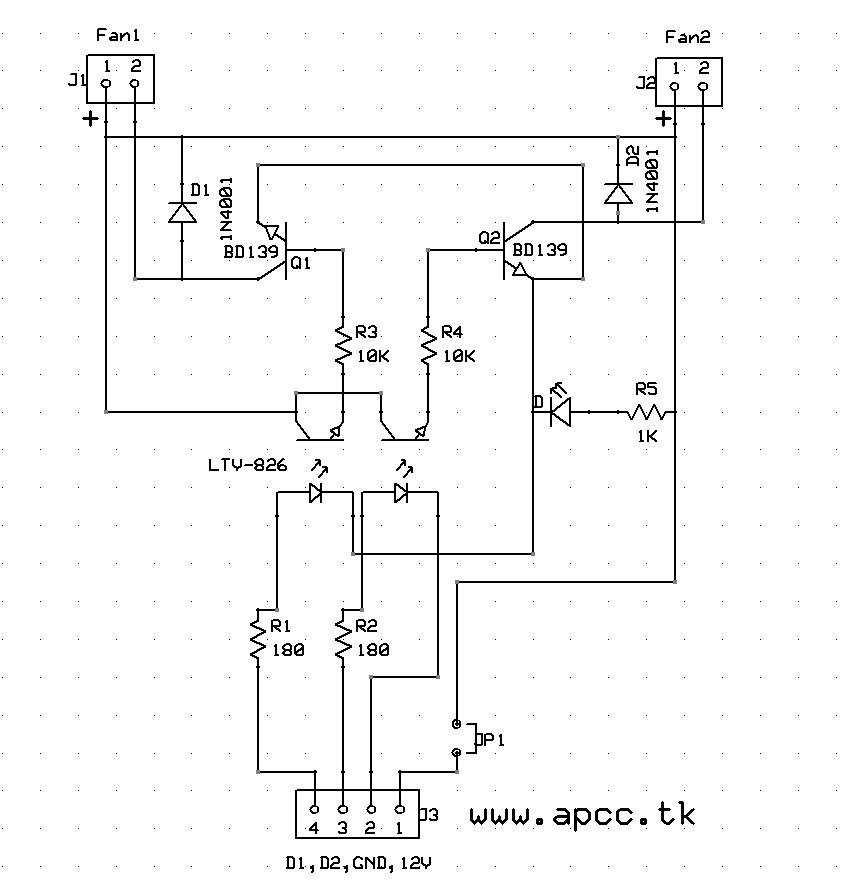

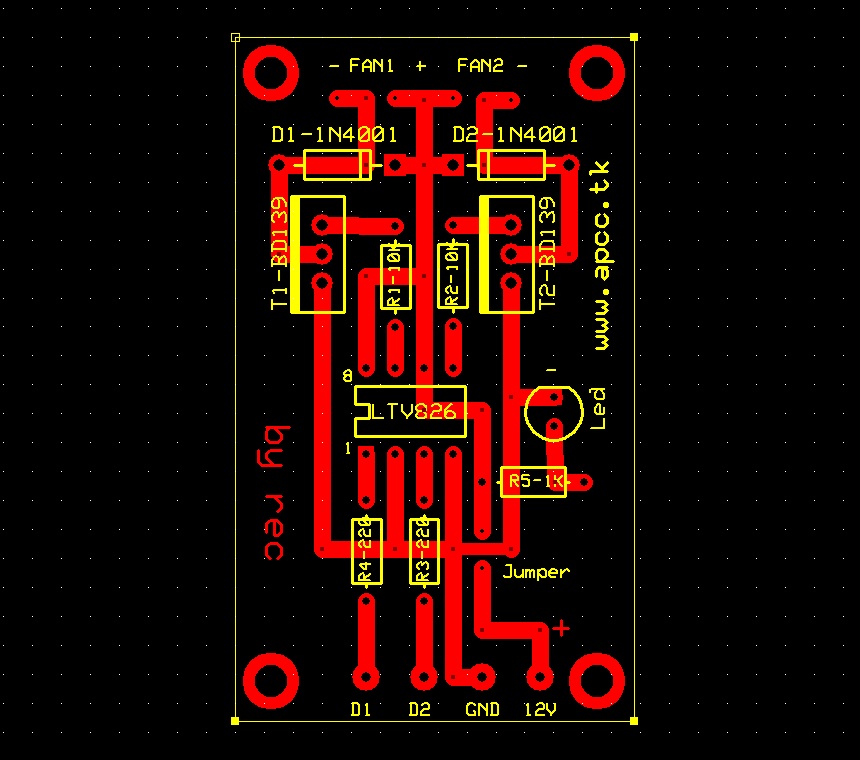

You can download the pcb an sch (made with expresspcb) from my website (download section): http://www.apcc.tk
You can download the pcb an sch (made with expresspcb) from my website (download section): http://www.apcc.tk
Part List
Part list:

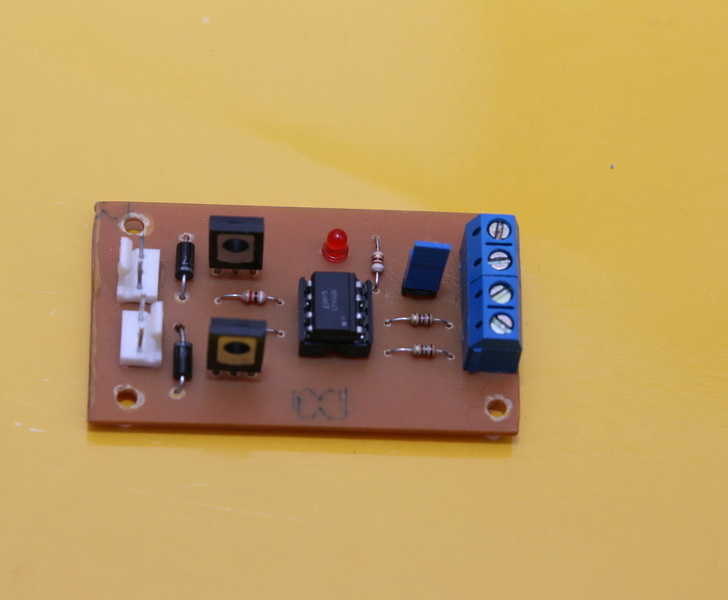

- 3.5cm x 6cm single sided PCB
- 2pcs BD139 Power transistor
- 2pcs N4001 diode
- 1pcs LTV 826 2 channel Optocoupler
- 2pcs 10K ohm resistor
- 2pcs 220 ohm 0.5w resistor
- 1pcs 1K ohm 0.5w resistor
- 1pcs 3mm Red LED
- 2pcs of 2 wire connector
- 2pcs JST 3-Pin Connector Plug
- 3.5cm x 6cm single sided PCB
- 2pcs BD139 Power transistor
- 2pcs N4001 diode
- 1pcs LTV 826 2 channel Optocoupler
- 2pcs 10K ohm resistor
- 2pcs 220 ohm 0.5w resistor
- 1pcs 1K ohm 0.5w resistor
- 1pcs 3mm Red LED
- 2pcs of 2 wire connector
- 2pcs JST 3-Pin Connector Plug

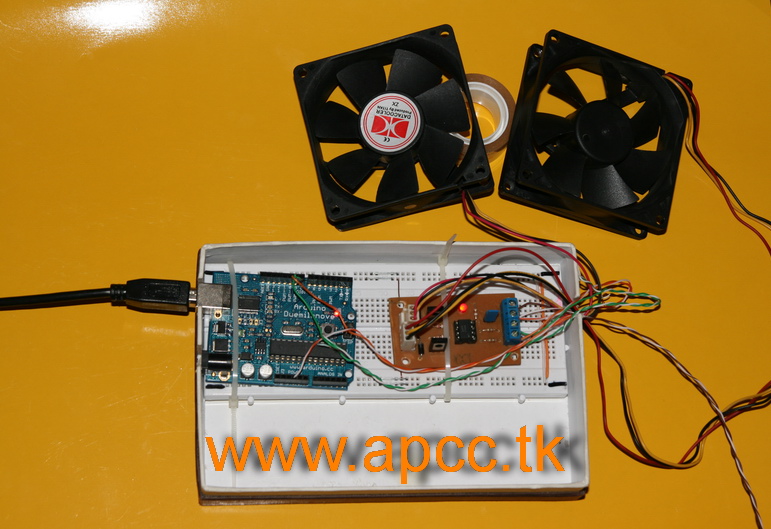

Testing PWM Arduino Fan Speed Controller
With this simple arduino shield also you can driver 3 watt power leds.
Read more about this project on my DIY web site: PWM Arduino
