PVC Letters N, Y

- This project is creating the capital letters Y , and N using 1/2 inch PVC pipe, and 1/2 inch sized connectors.
- This project is easy to complete, and quite cheap.

The Materials needed for each letter are as follows.

- Y
- 1, 9 1/4" inch piece of PVC pipe
- 2, 6" inch pieces of PVC pipe
- 1, Tee Connector
- 4, 45 degree elbow PVC connectors

The Materials needed for each letter are as follows.

- N
- 2, 8" inch pieces of 1/2 inch PVC pipe
- 1, 9 3/4" inch piece of 1/2 inch PVC pipe
- 2, 90 degree elbow PVC connectors
- 2, 45 degree elbow PVC connectors

- First Step: Is to connect 1 of the 8" pieces to a 90 degree elbow.

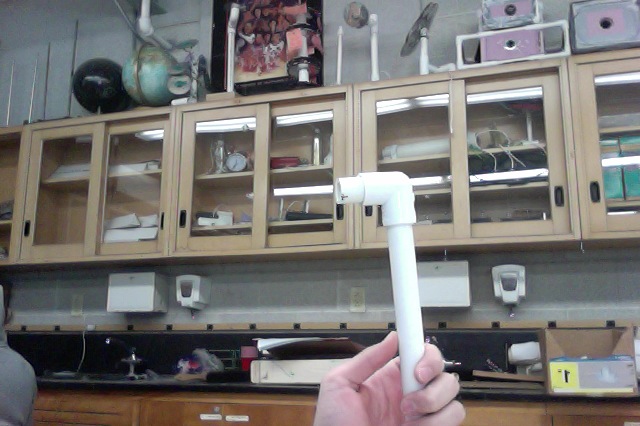

- Second Step: Connect 1 1/2" inch piece to the existing 90 degree elbow.

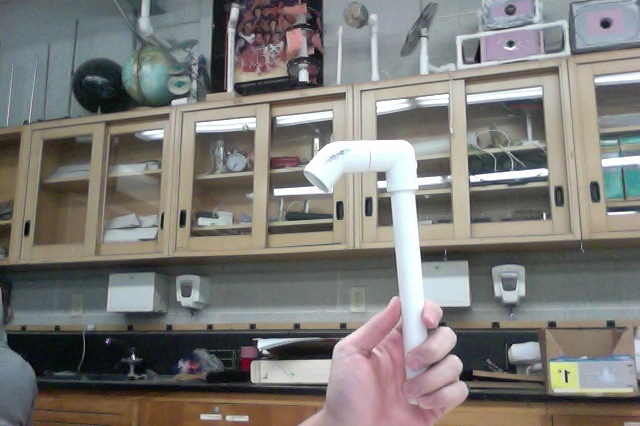

- Third Step: Connect a 45 degree elbow, to the 1 1/2" inch pipe.
- Fourth Step: Connect 9 3/4" inch pipe to the 45 degree elbow.

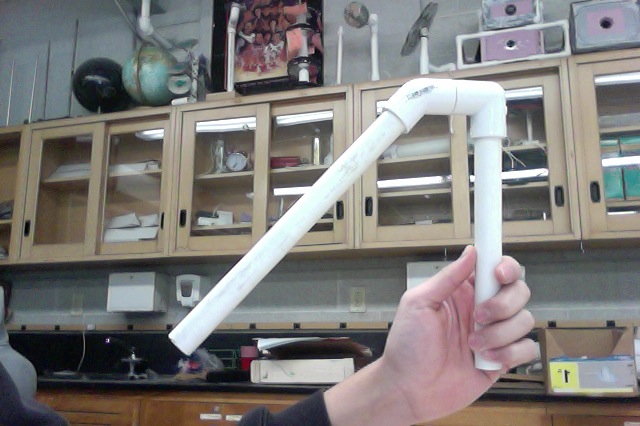

- Fifth Step: Connect the second 45 degree elbow to the 9 3/4" inch pipe.
- Sixth Step: Connect the second 1 1/2" inch pipe to the 45 degree elbow.
- Seventh Step: Connect the second 90 degree elbow to the 1 1/2" inch pipe.
- Last step: Connect the last 8" inch piece to the second elbow.
- Finished!

- First Step: Take the 9 1/4" inch pipe and connect it to the Tee connecter, by the single side outlet.
- Second Step: Take 1 1/2" inch pipe and connect it to the left side of the Tee connecter, do the same for the right side
- Third Step: Take one 45 degree elbow, and attach it to the 1 1/2" inch pipe on the left side. do the same for the right side, mirroring everything that happens on the left.
- Fourth Step: Take another 1 1/2" inch pipe and connect it the exposed 45 degree elbow on the left side, do the same for the right.

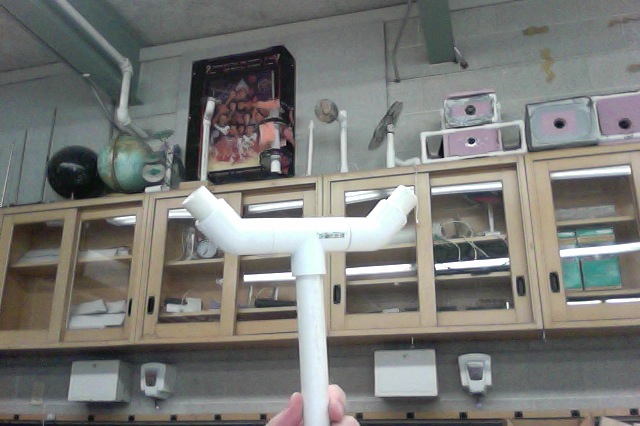

- Fifth Step: Take the last of 45 degree elbows, and attach them to the 1 1/2" inch pipe, doing the same on the left and the right.
- Last Step: take both 6" inch pieces and attach them to the exposed 45 degree elbows, doing the same on the left and the right.
- Finished.

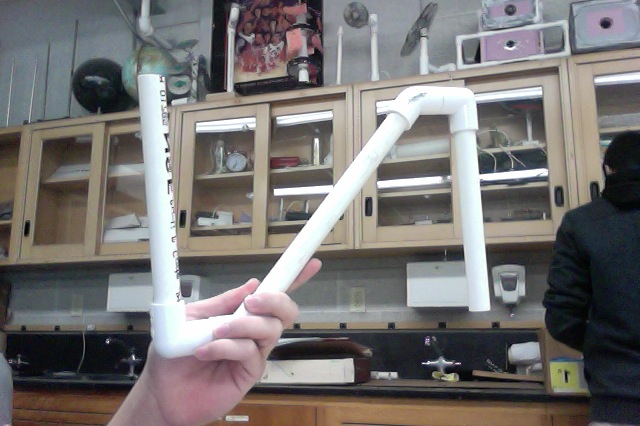

Final Products!
