PVC USB/FM/Bluetooth Player

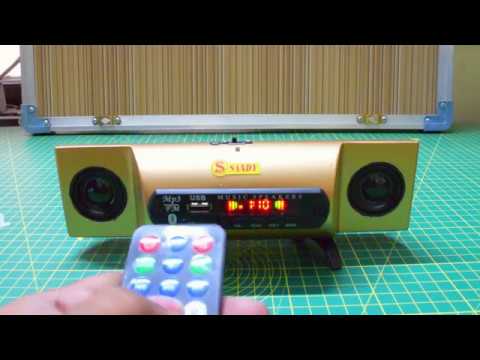

I wanted to make a home made gift article which is custom made by me. I found a piece of junk PVC pipe in my backyard, then I got an idea to make a USB player with this PVC pipe. I cut the PVC pipe and made the enclosure and painted. This is a mini, handy, portable, battery powered remote controlled player which plays music from different inputs. It plays from USB, SD card, FM, Bluetooth, AUX inputs. It is light weight, handy and easy to carry while camping also. It charges quickly because of using lithium battery. Let us start making it.

Materials Needed

PVC pipe 2.5"

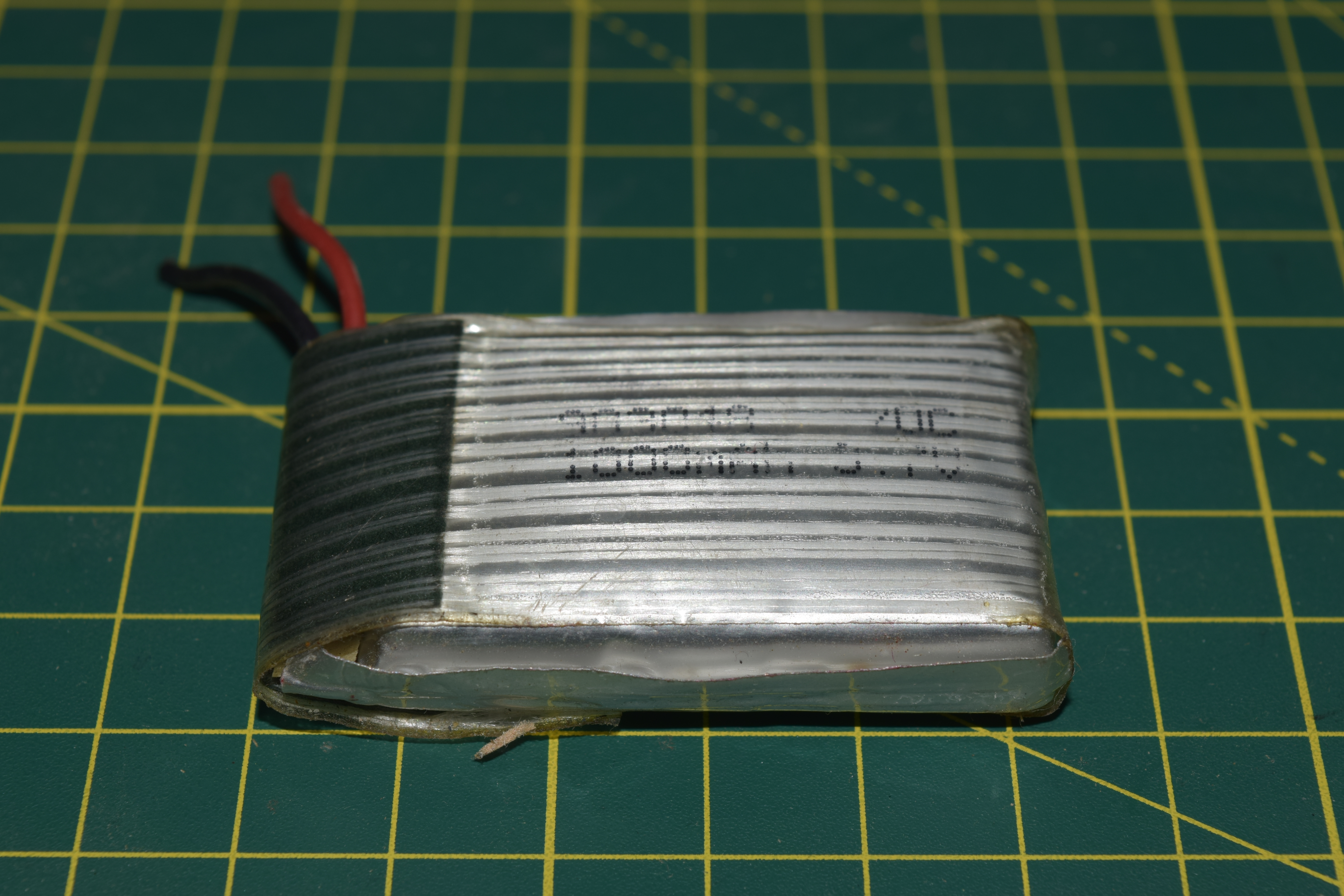

Lithium Battery Alexpress

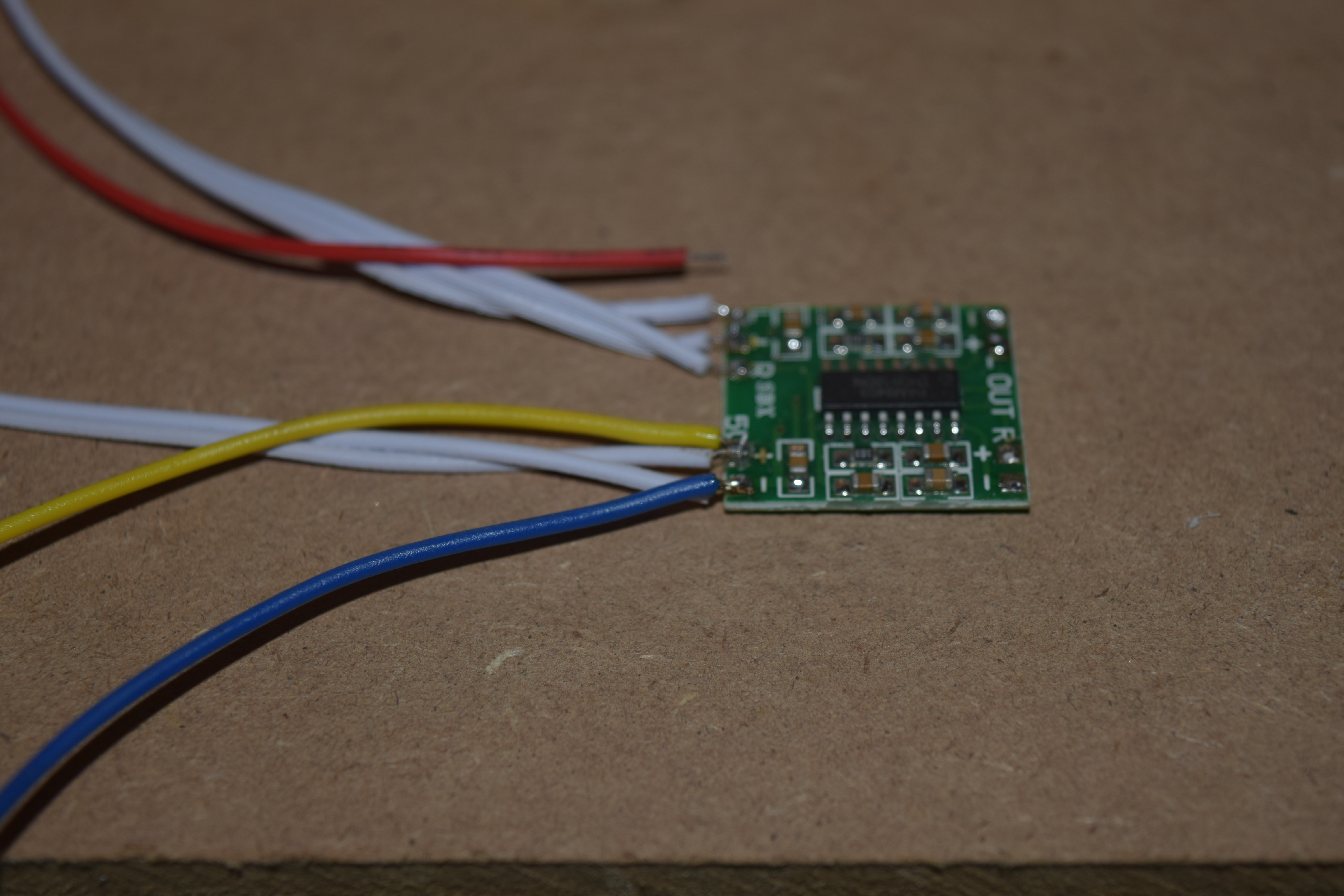

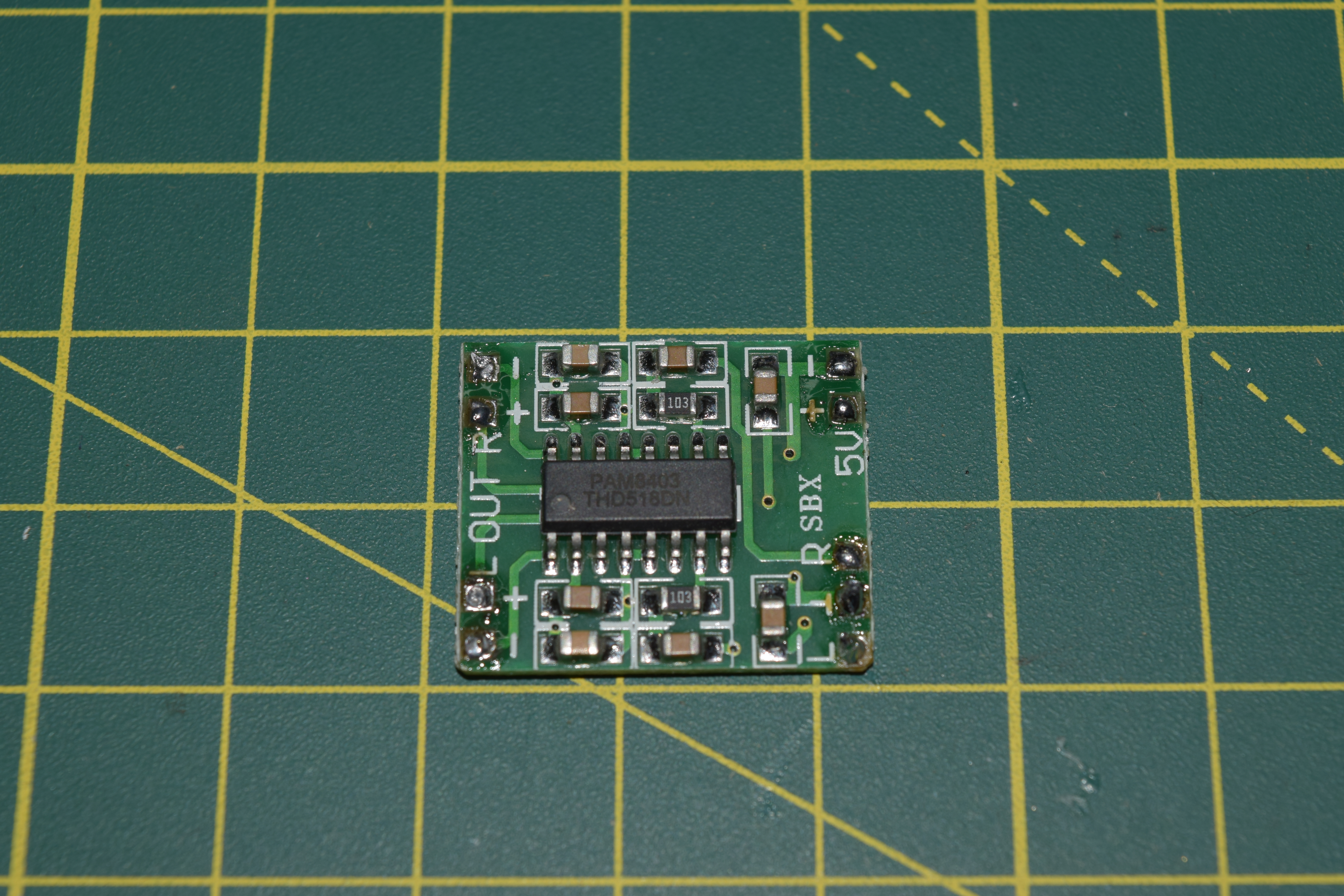

PAM 8403 Amplifier Aliexpress

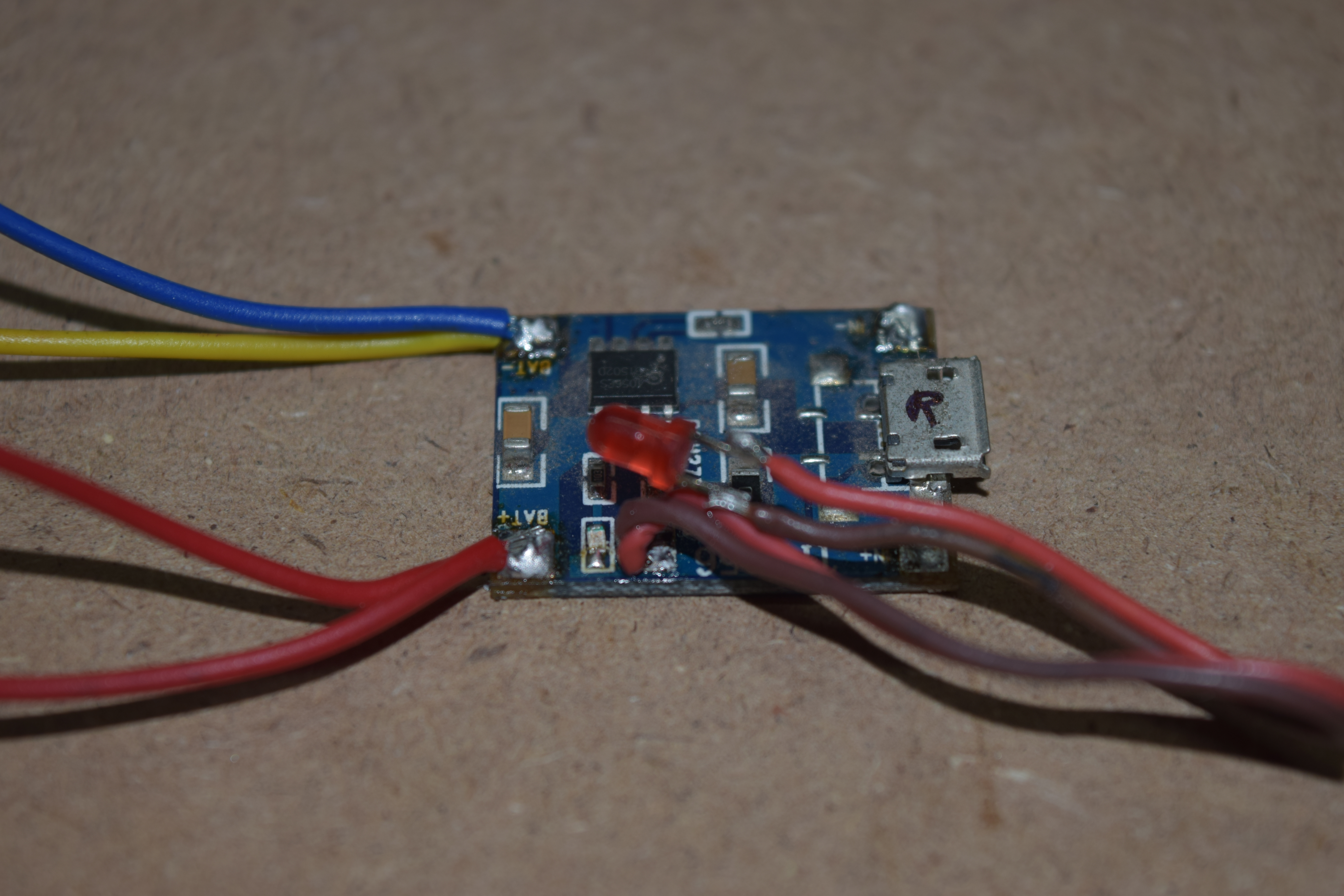

TP 4056 Lithium charging board Aliexpress
MT 3608 Step up module Aliexpress
1S BMS Aliexpress

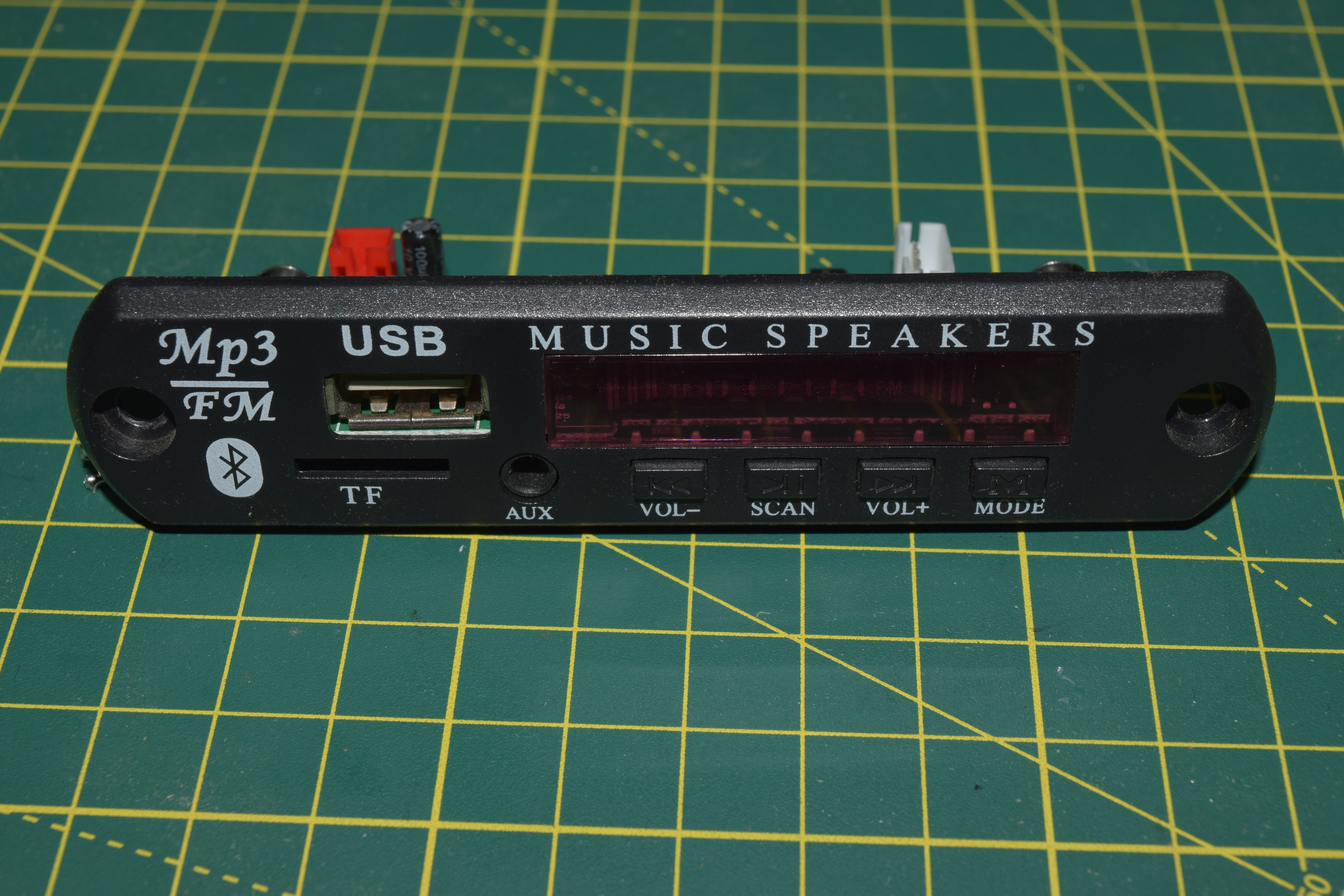

Mp3 Decoder board with built in bluetooth receiver Aliexpress
2* 4ohm 3watt Speakers Aliexpress
Slide Switch Aliexpress
FM Antenna Aliexpress

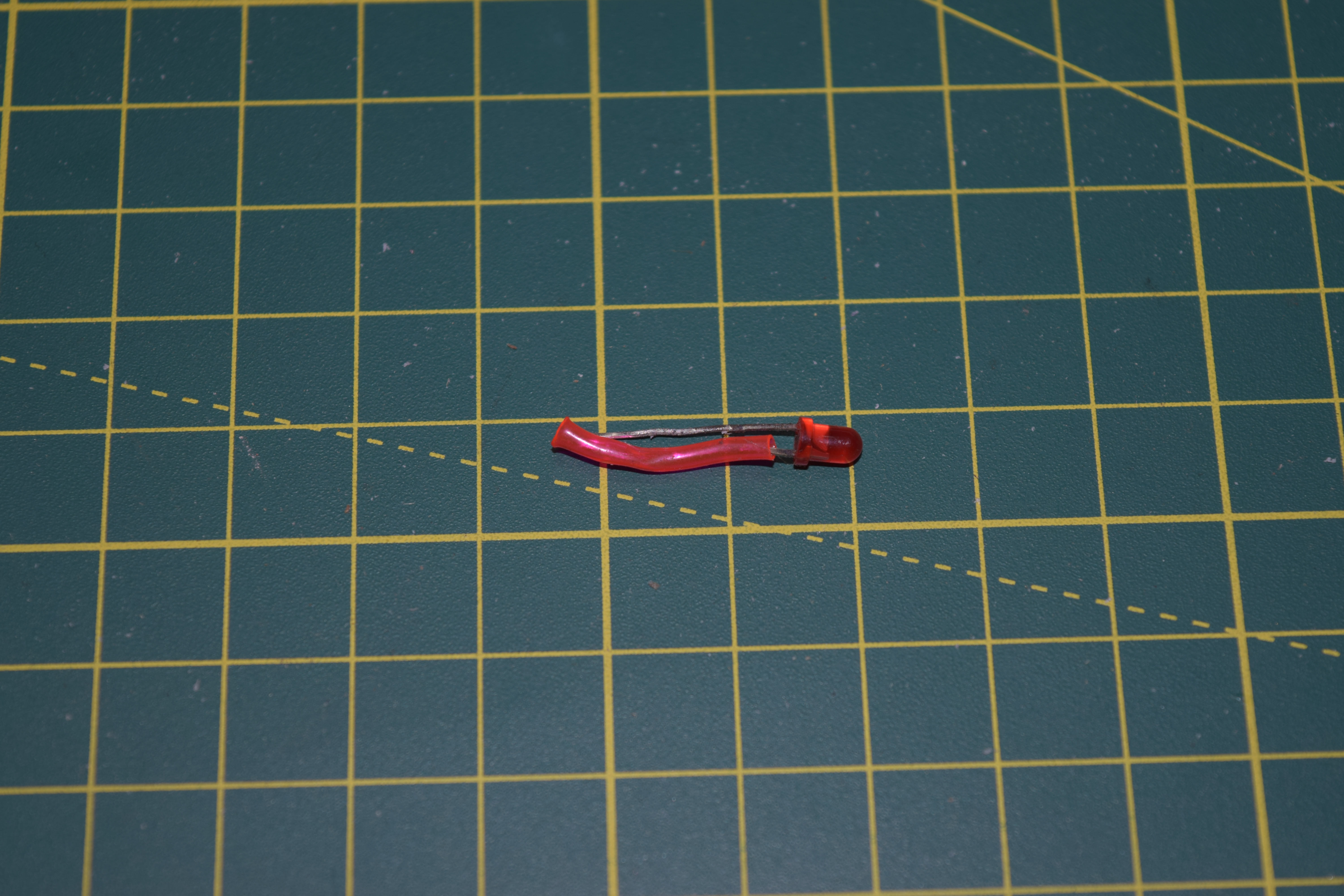

3mm LED Aliexpress

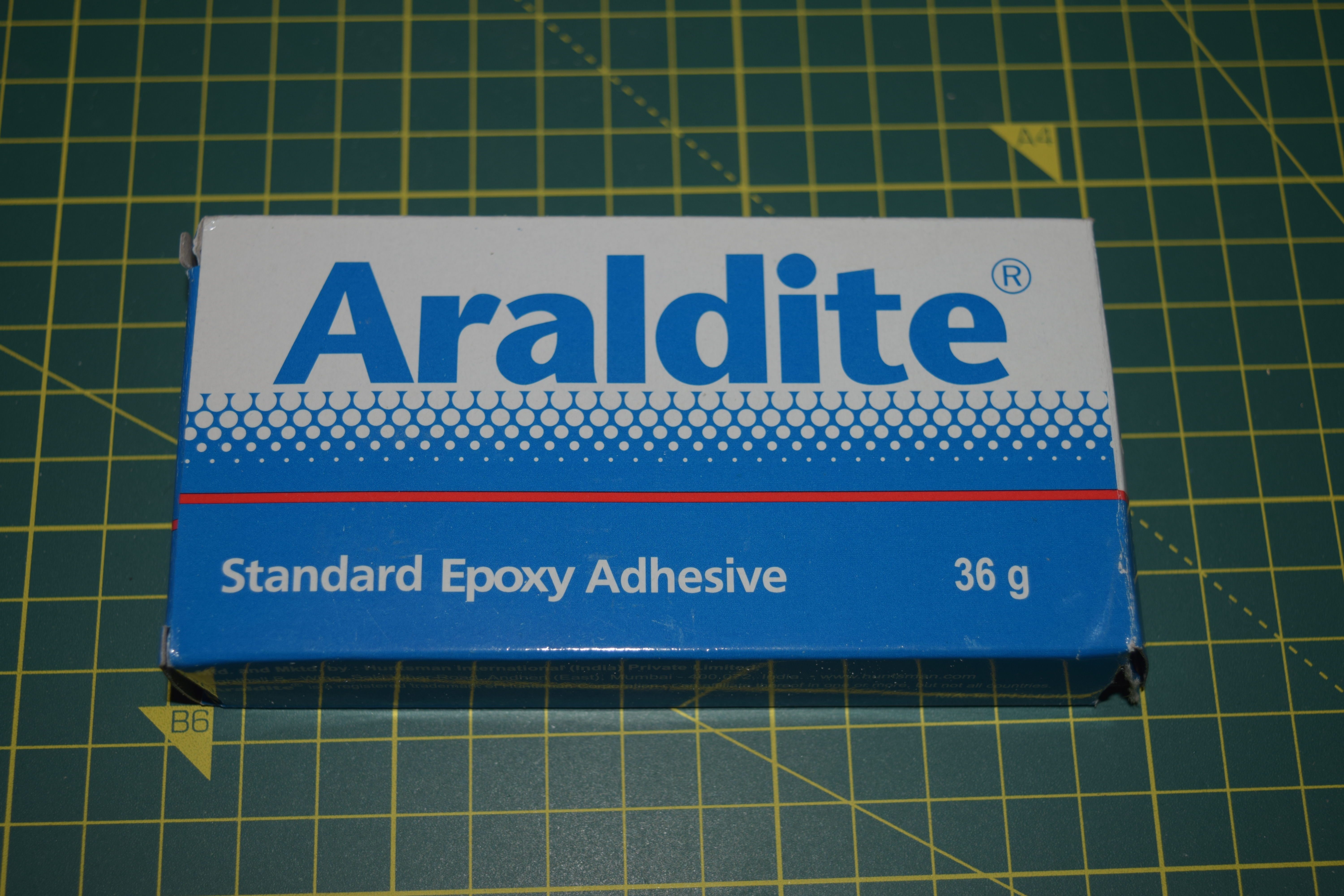

Epoxy glue (I used Araldite)
Wires

Design

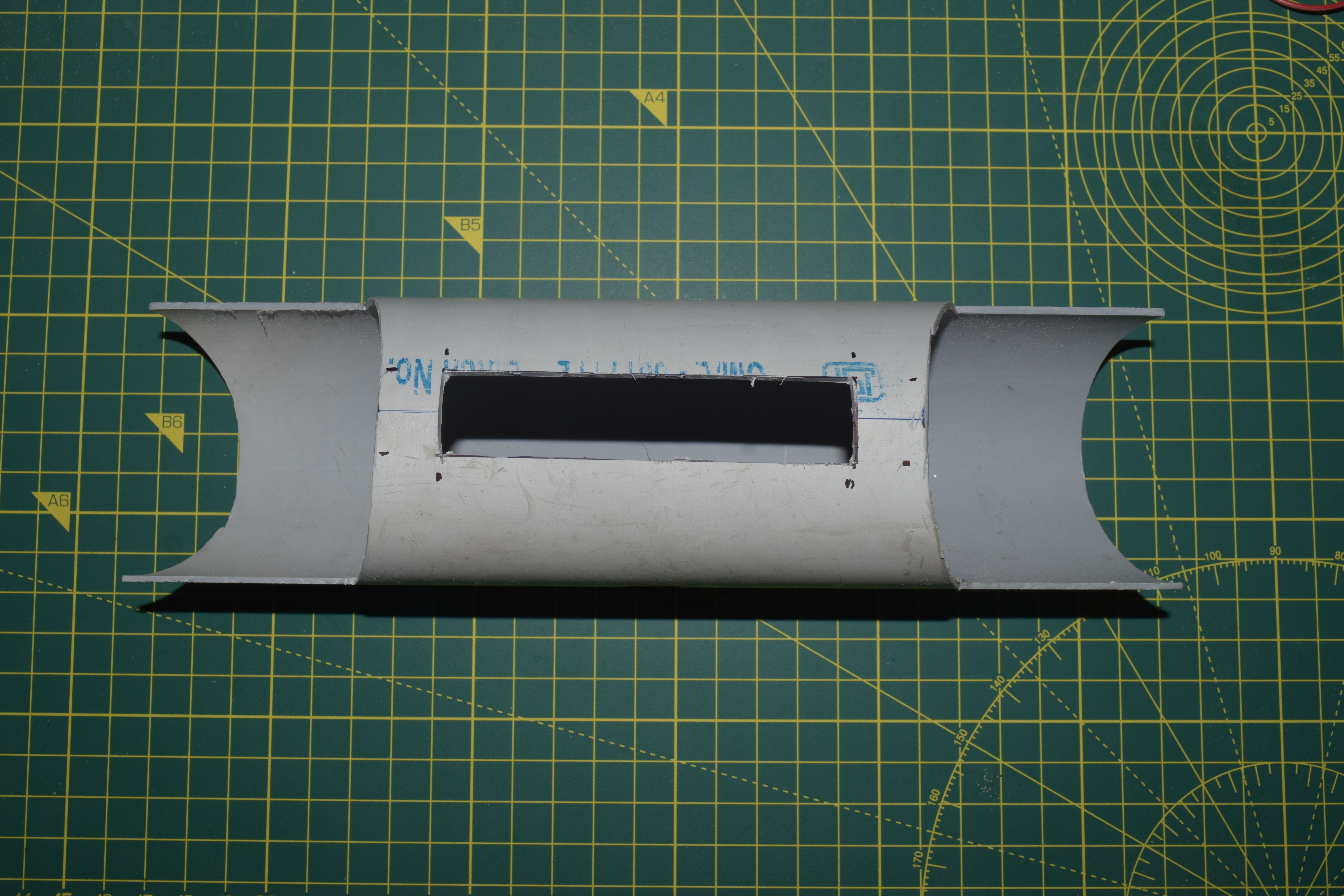

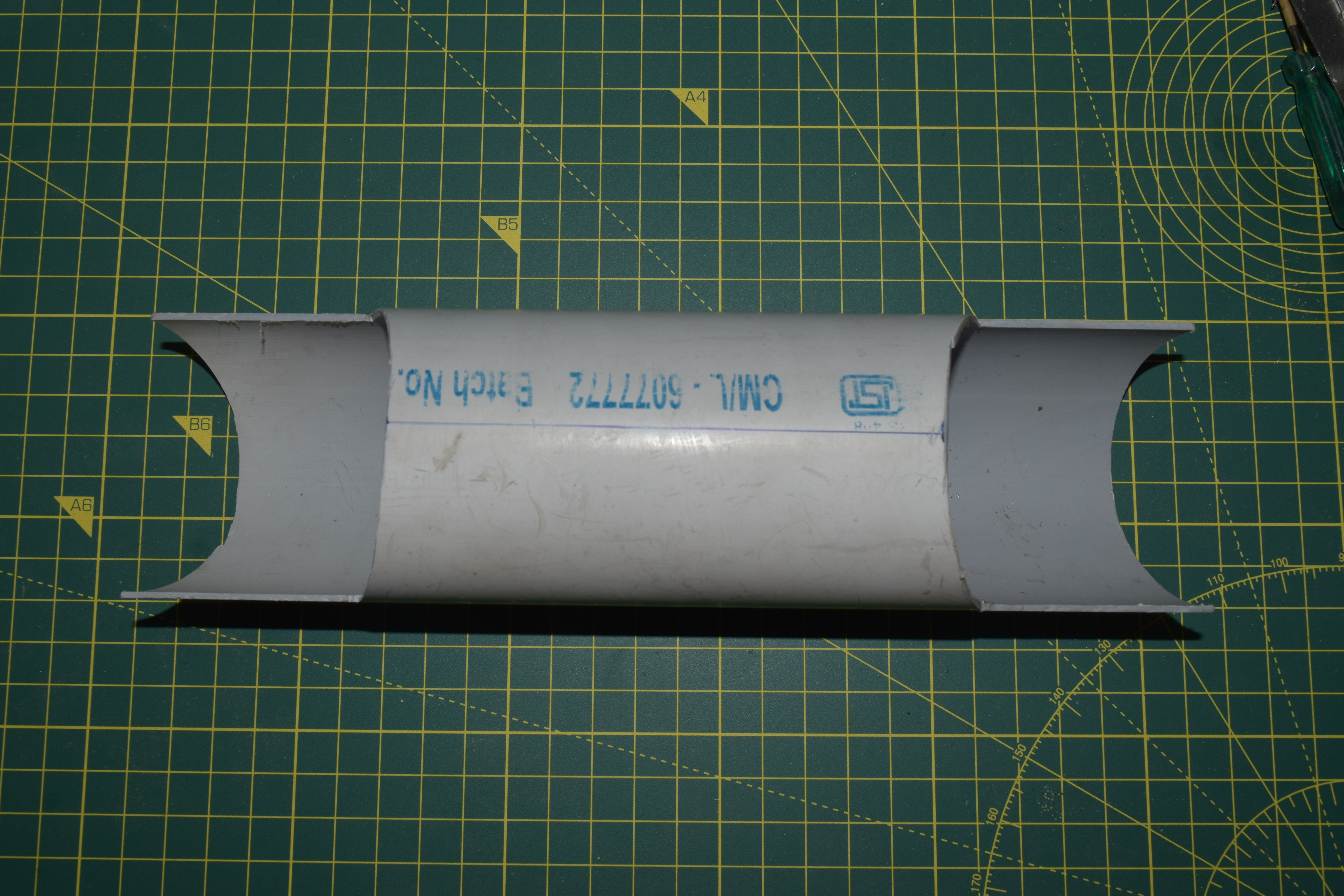

Cut the PVC according to the design given and cut holes for the electronics.

Side Pannels

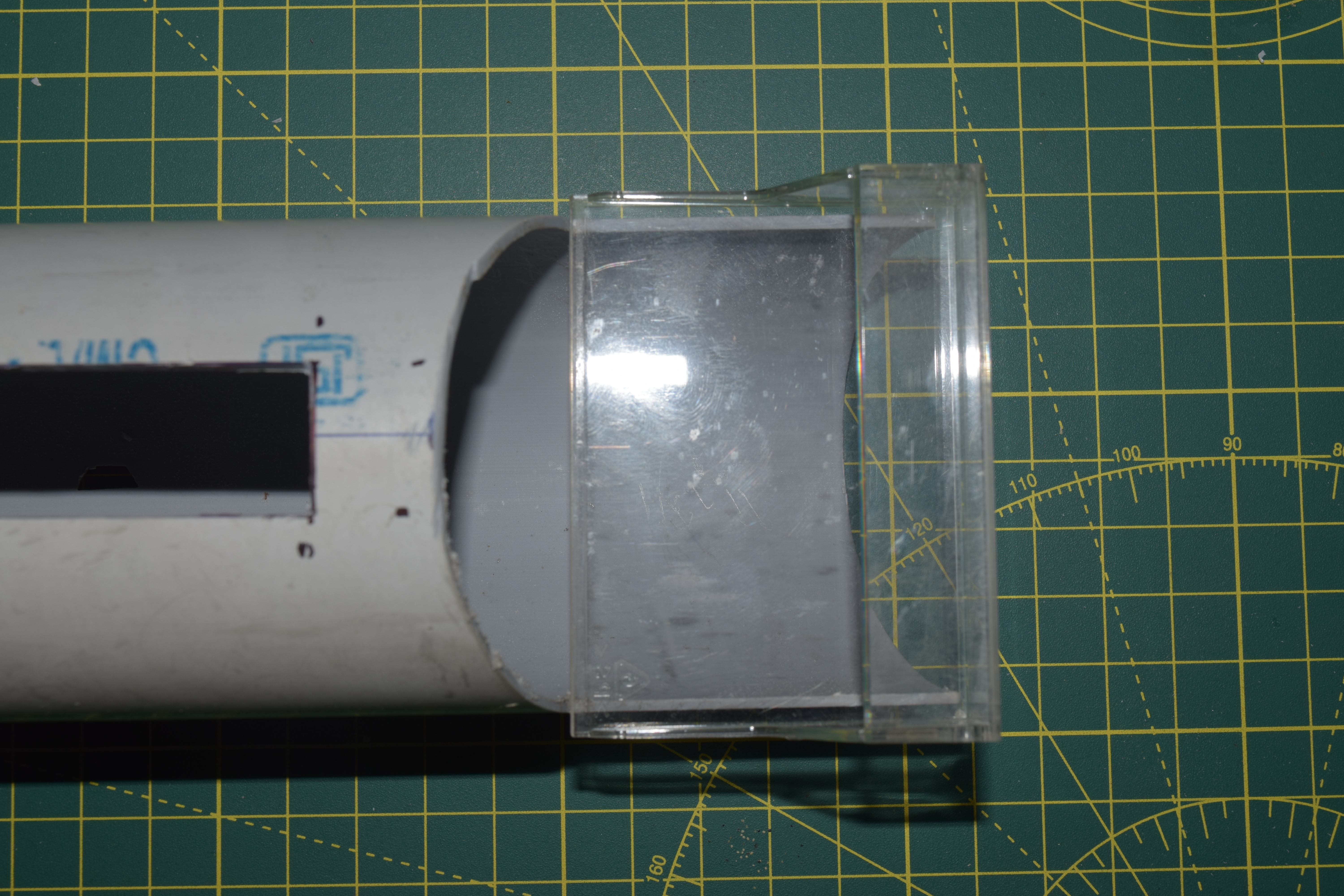

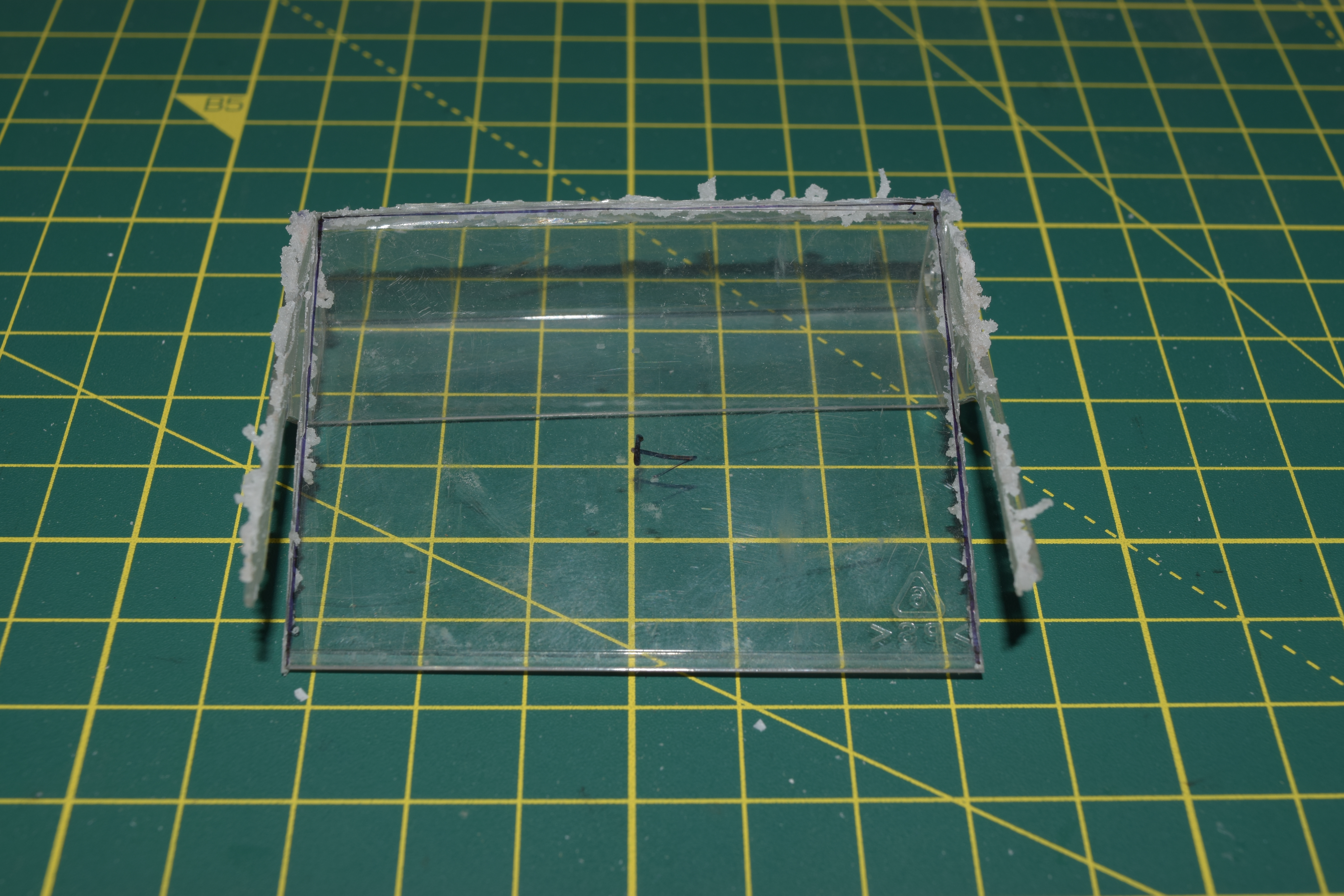

I took plastic casings from old DVR Tape. Mark and cut the plastic as per requirement as shown in pictures.

Making the Door

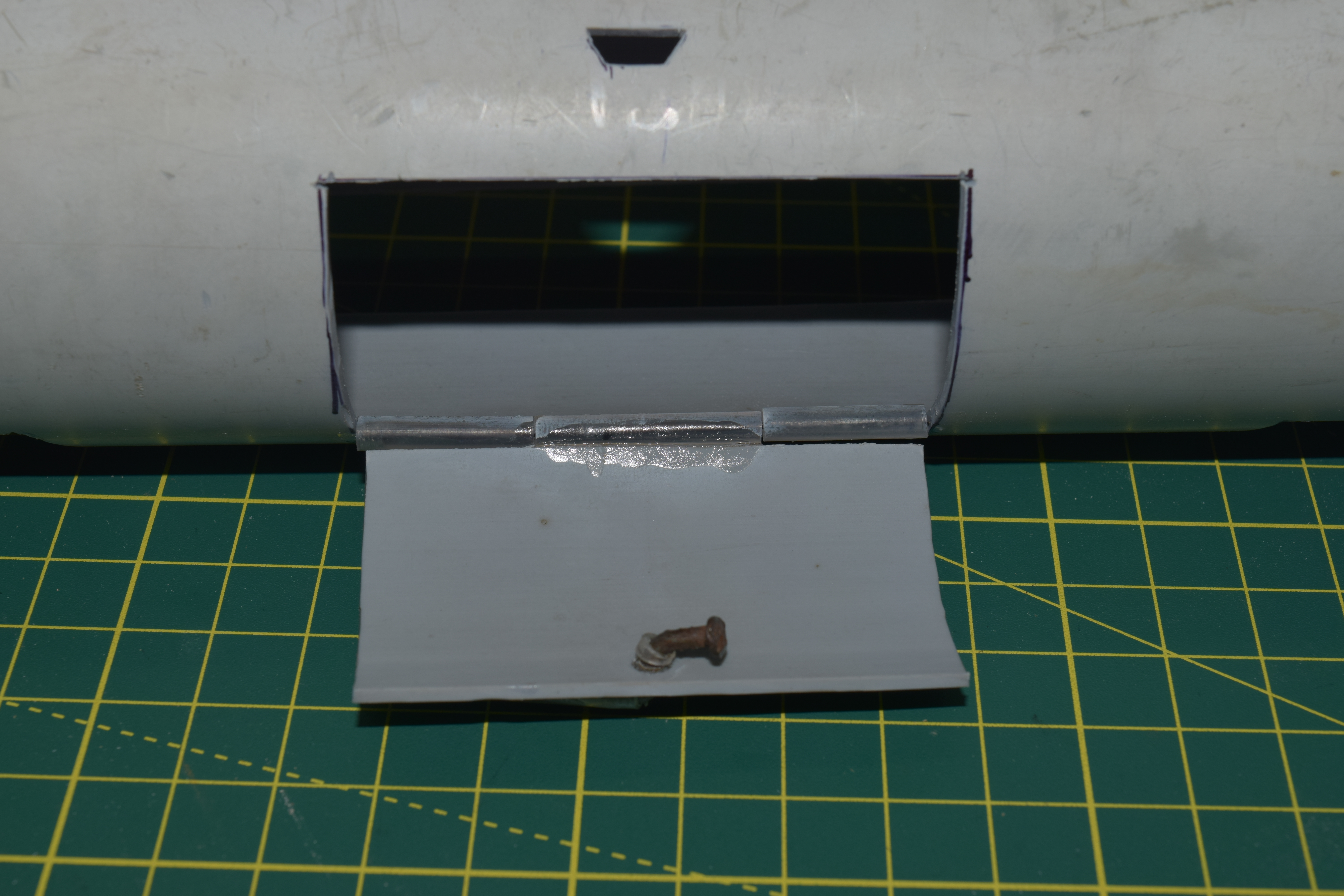

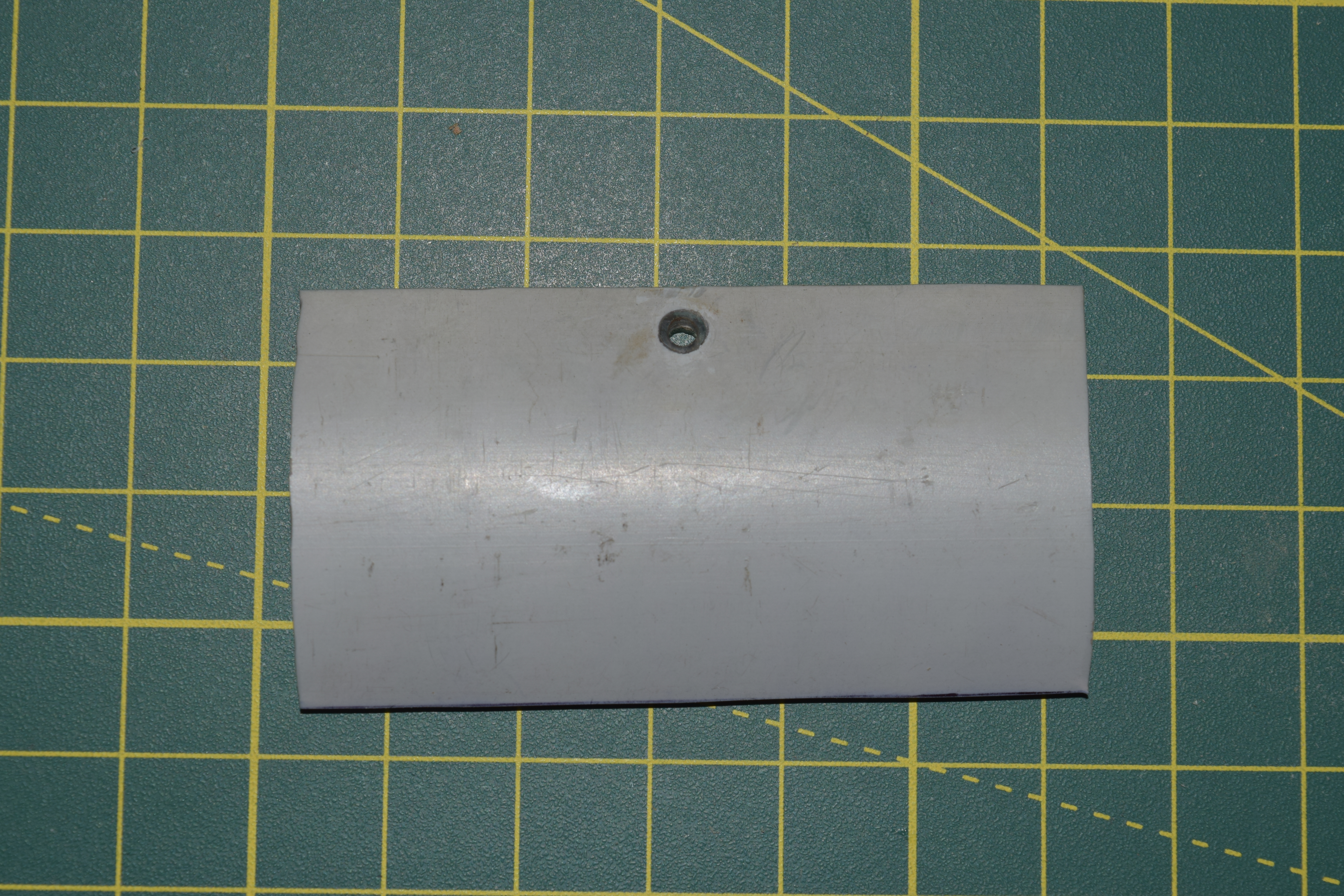

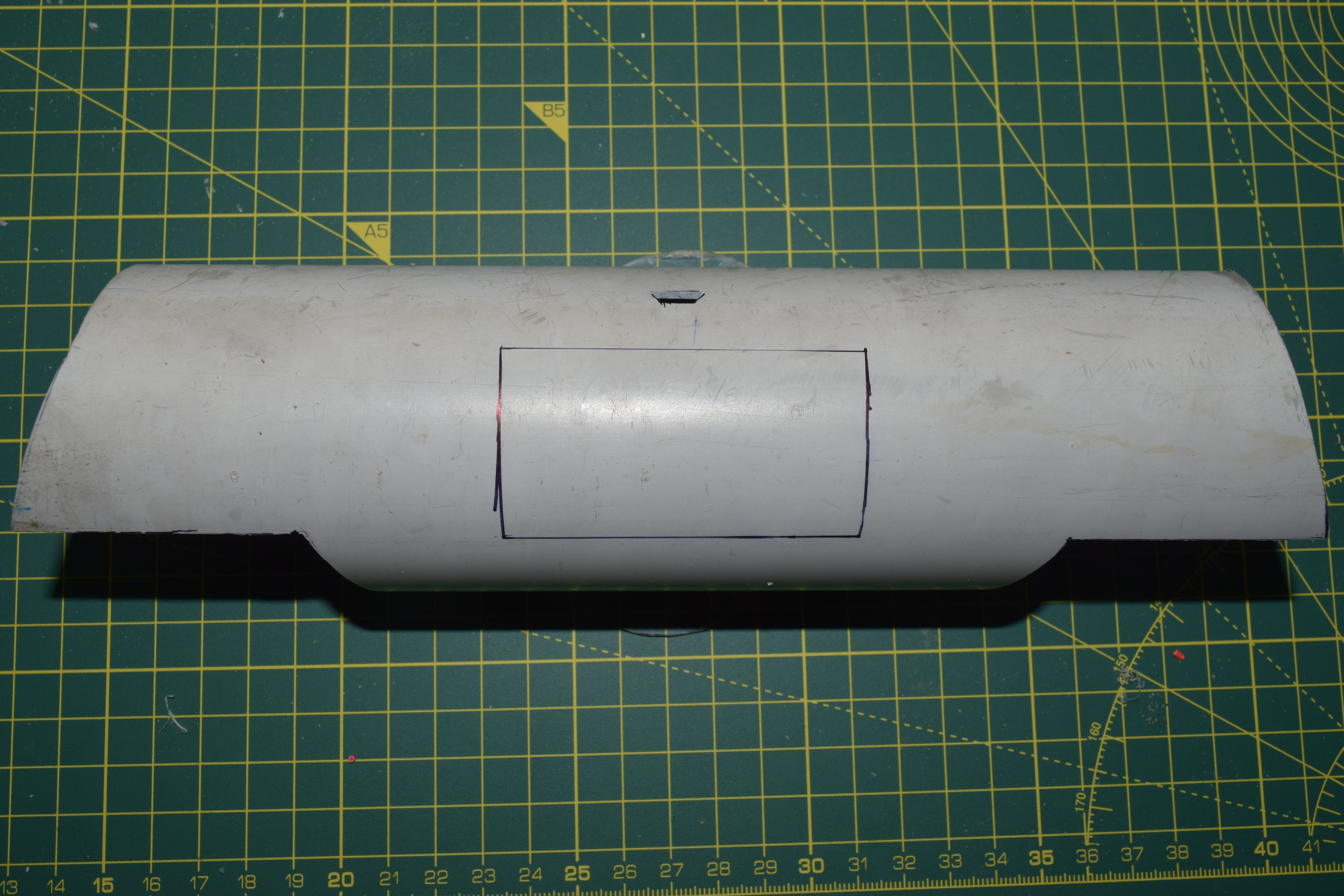

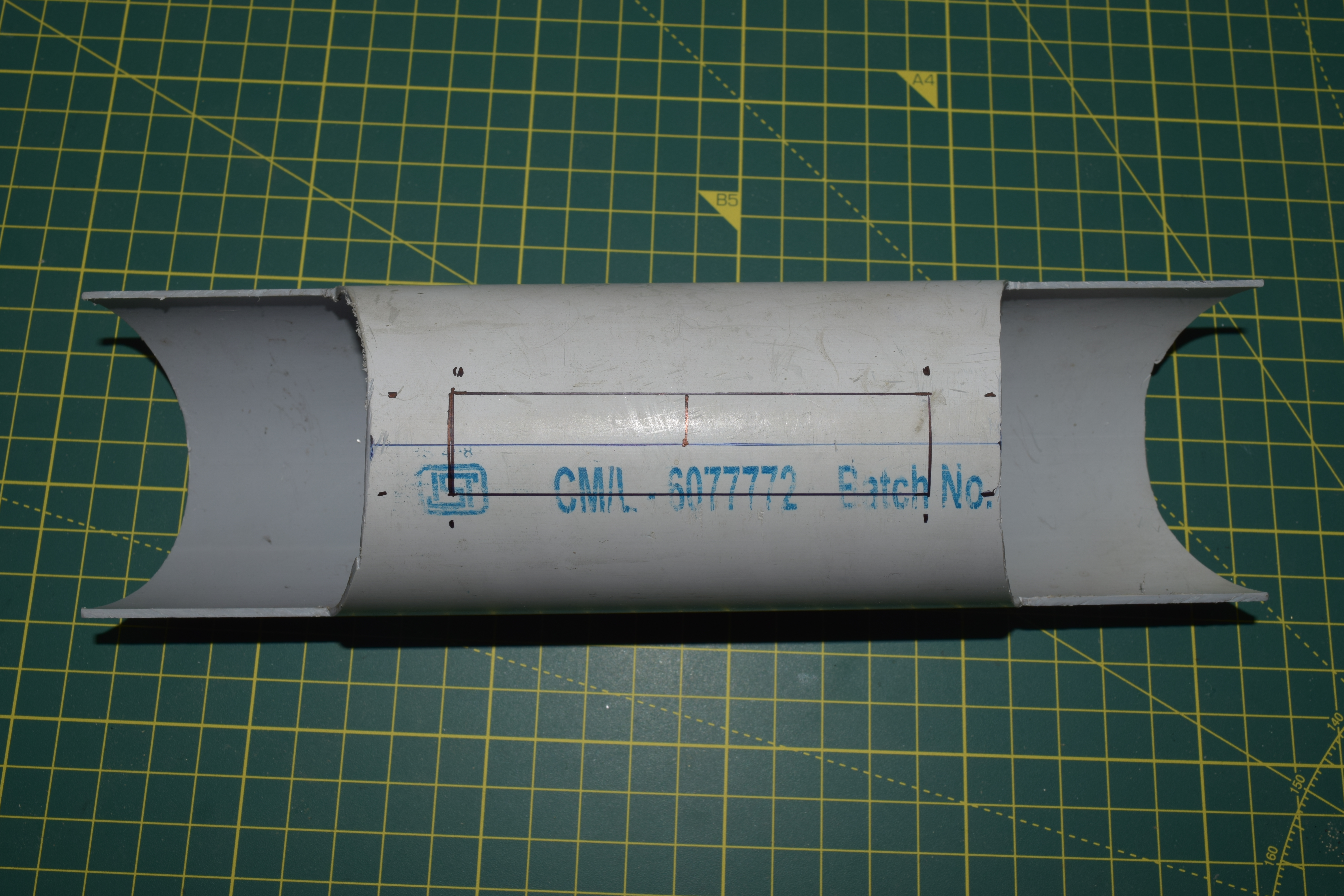

Mark square area to make a door and cut (Pics 1 to 4).

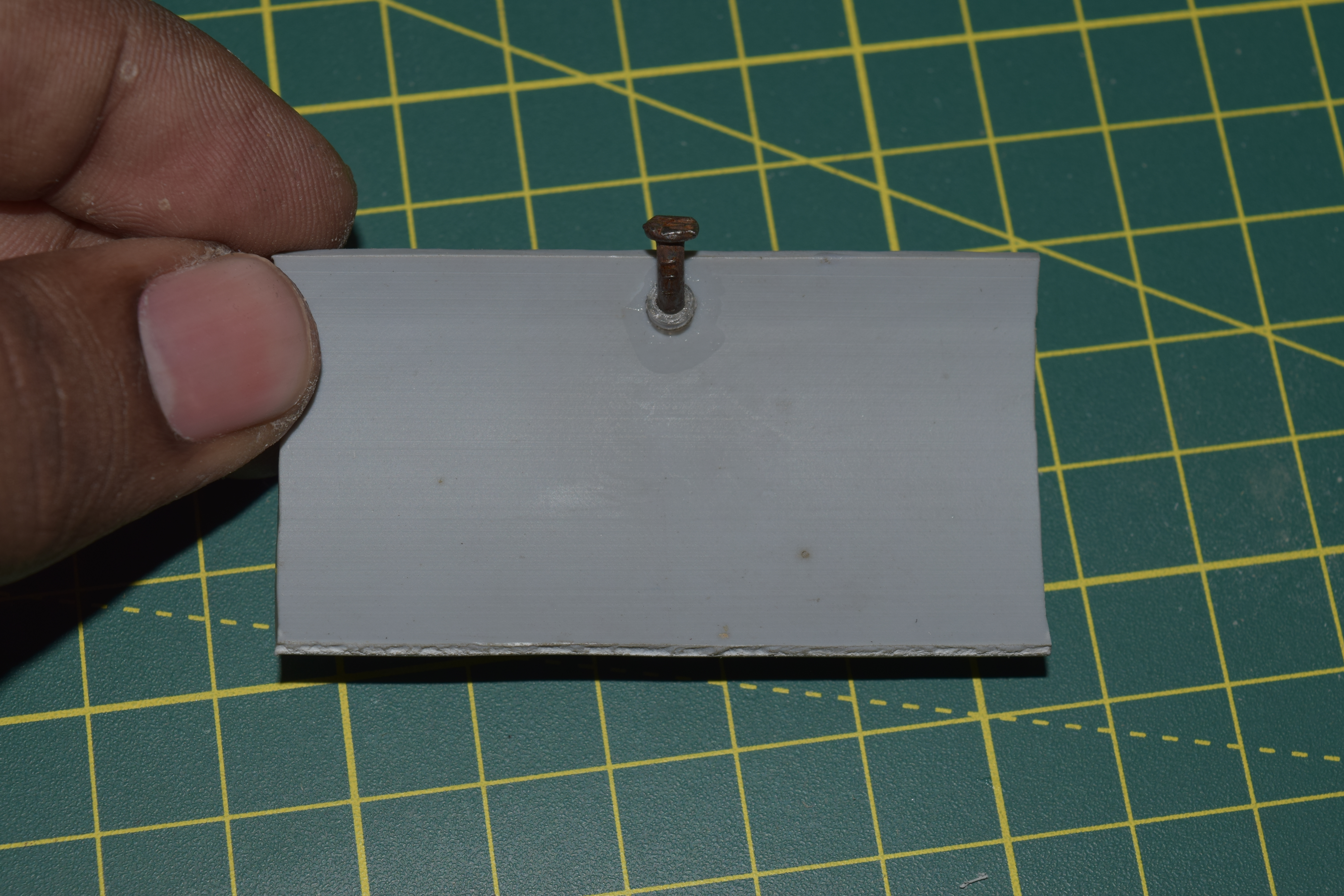

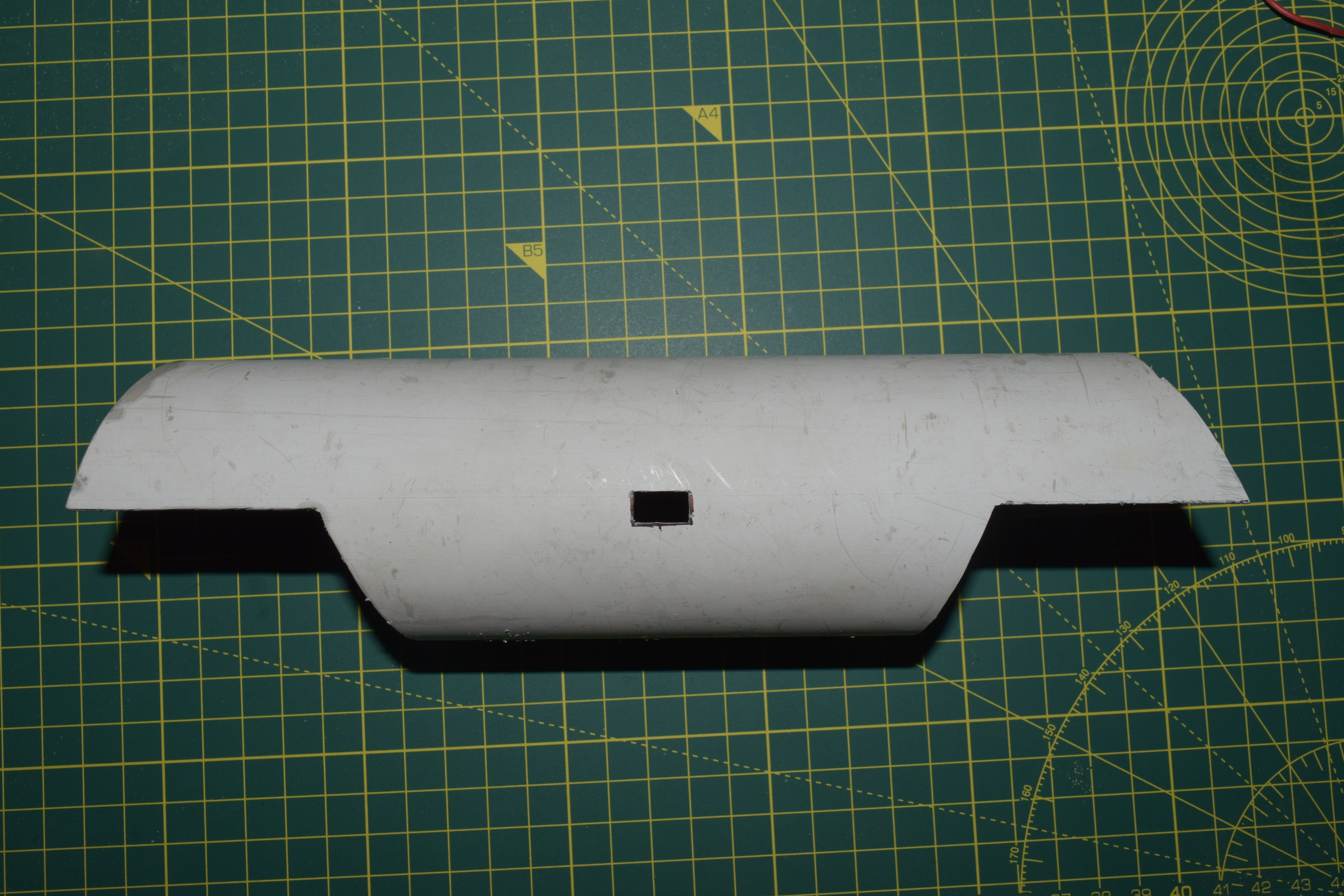

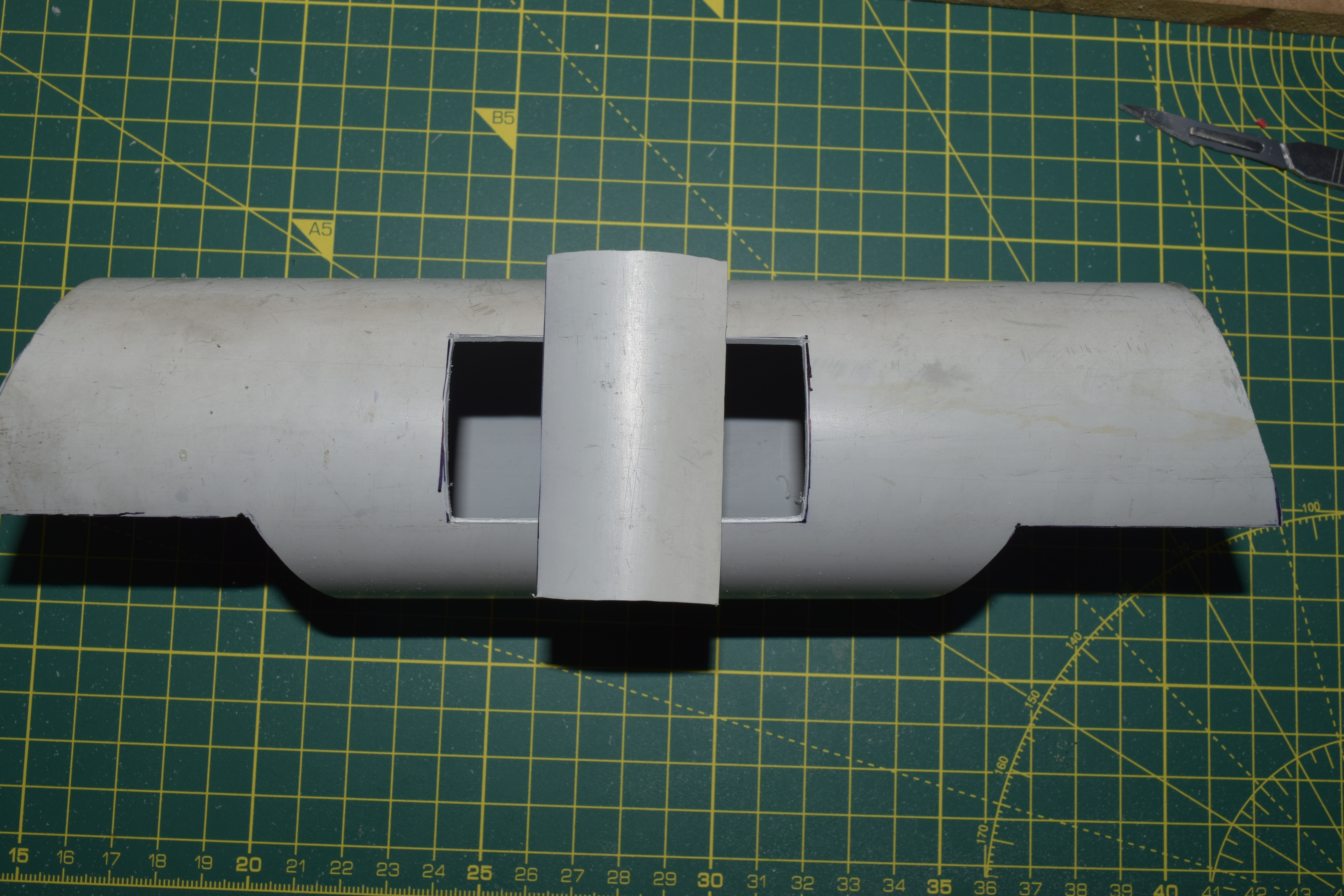

Drill a hole for making a lock (Pic 6).

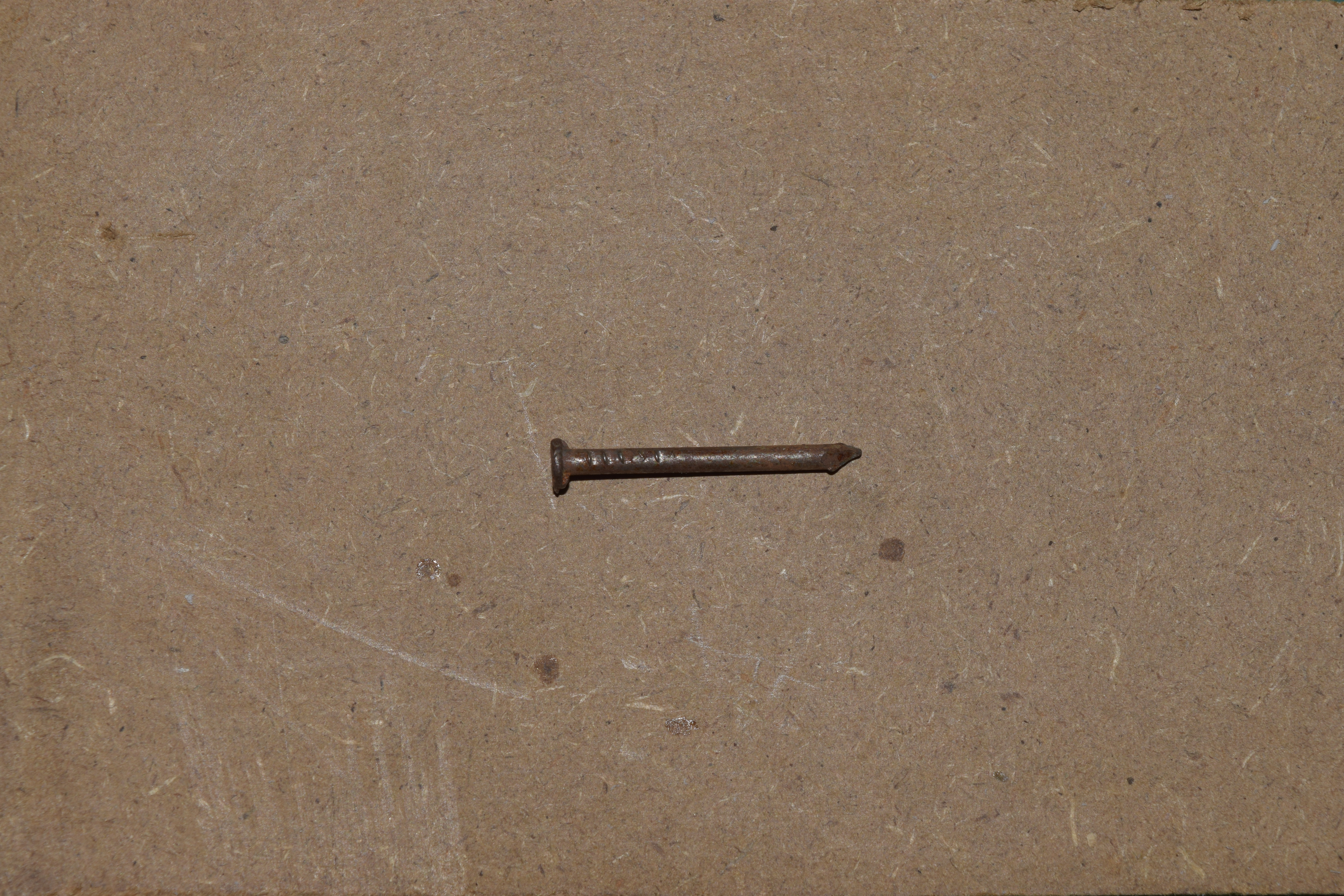

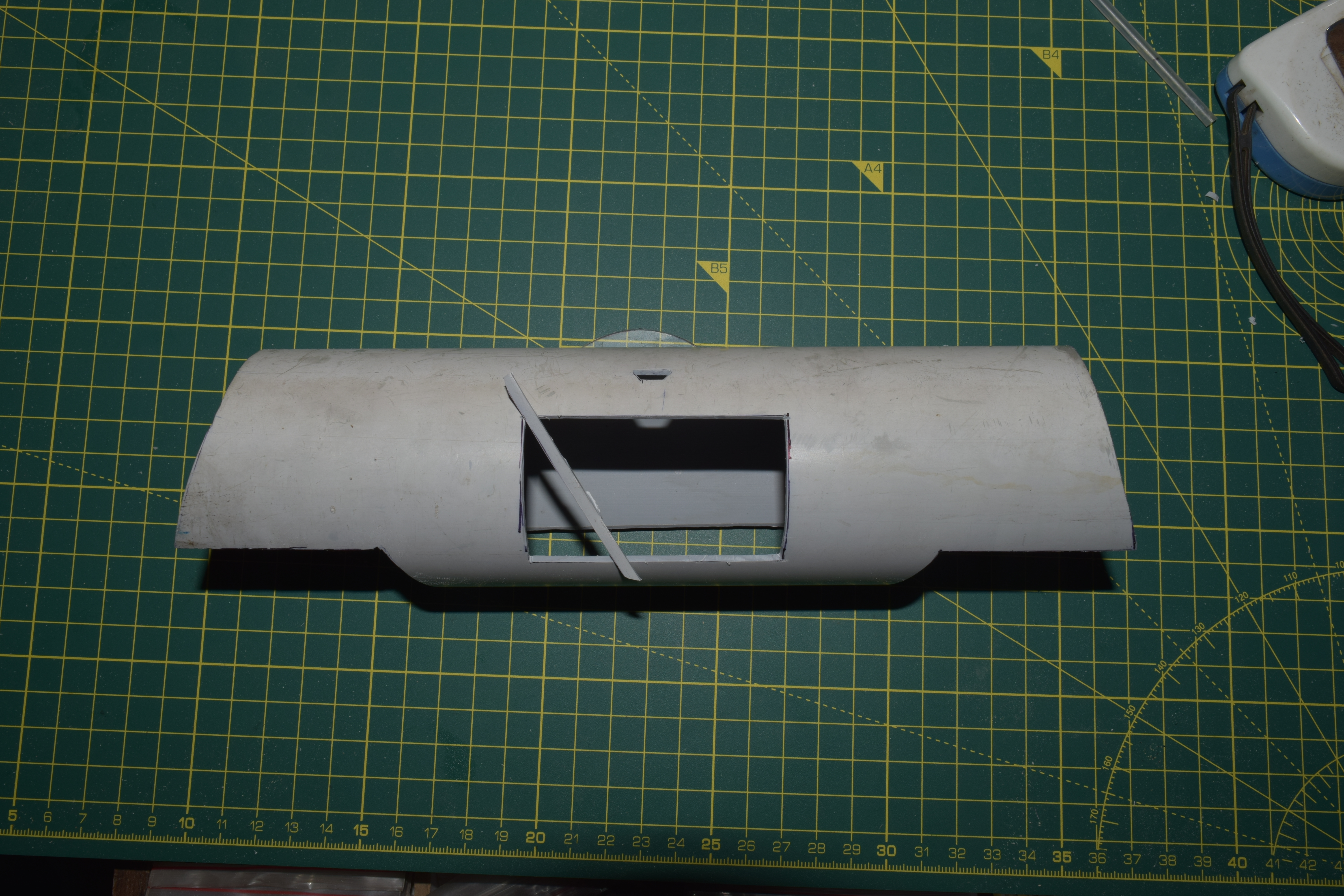

Take a nail, bend and insert into the hole to make it as a lock (pics 7 to 11).
Take plastic empty refill from a pen and cut into 3 parts, insert metal rod / wire into the refill and then glue both the ends (Pics 12 to 14).
Glue the center part of the refill to the door and remaining two to the body(Pics 15,16).

Speaker Holes

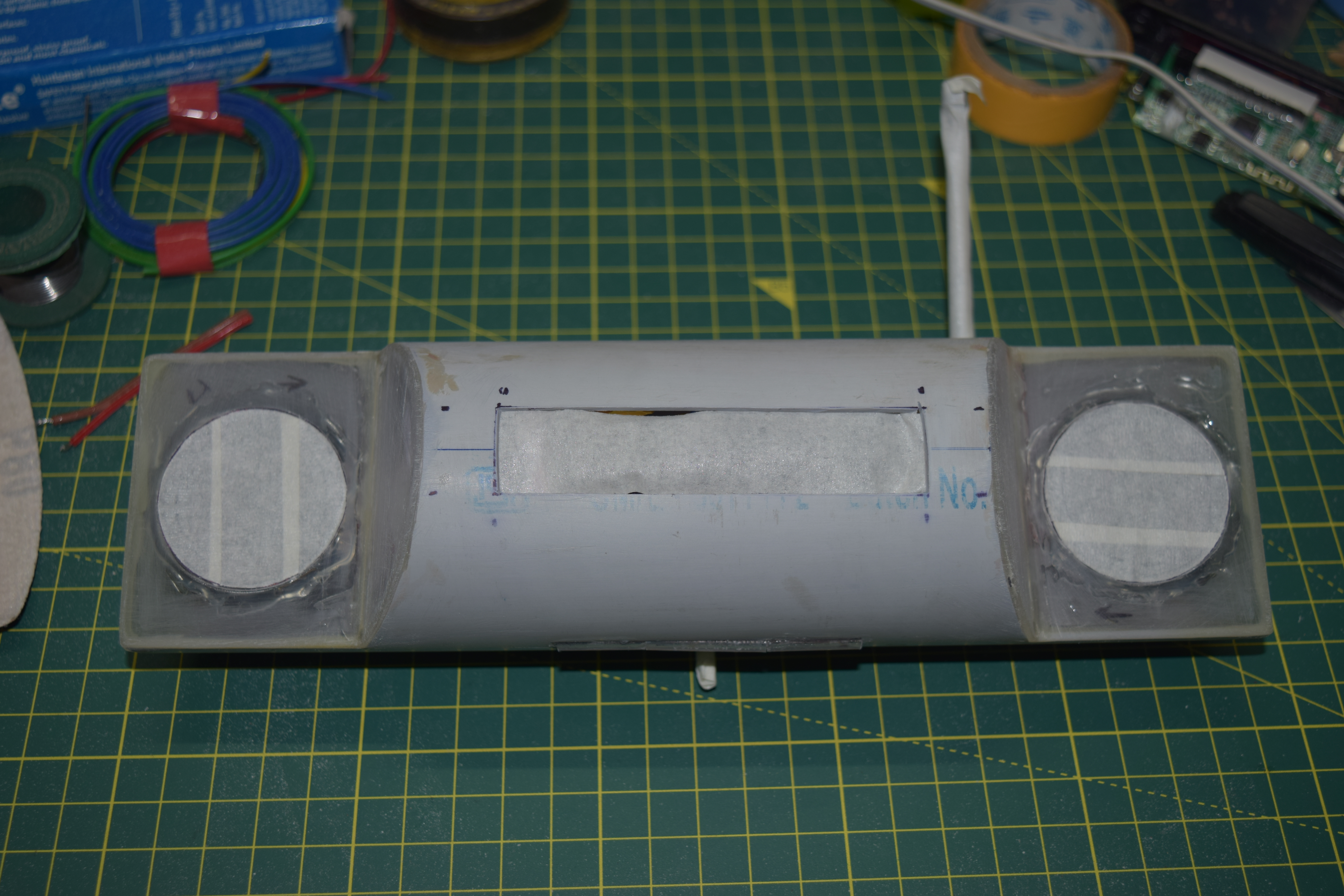

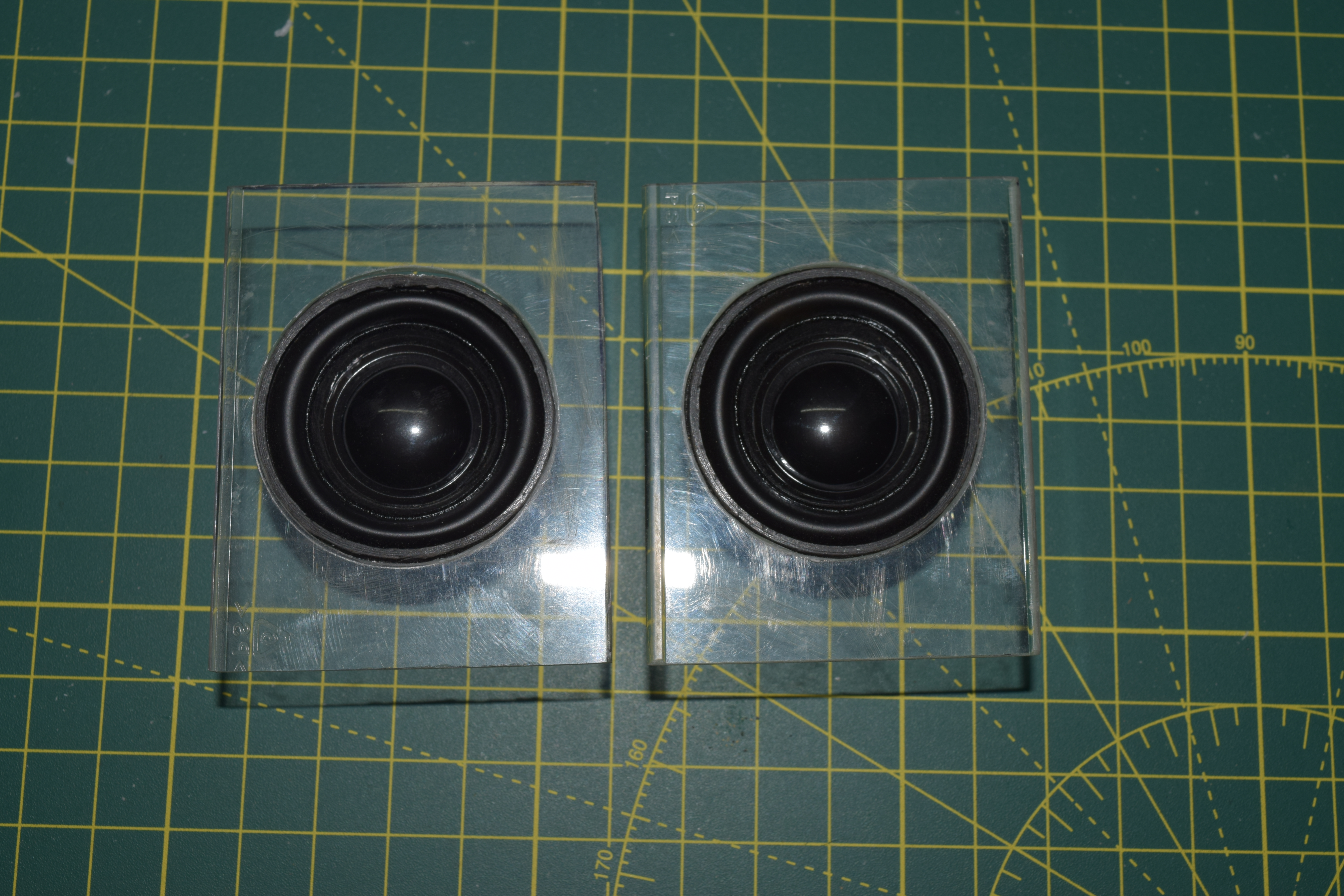

Drill speaker size hole with hole saw. Insert the speakers, apply hot glue and then solder wires.

Wiring

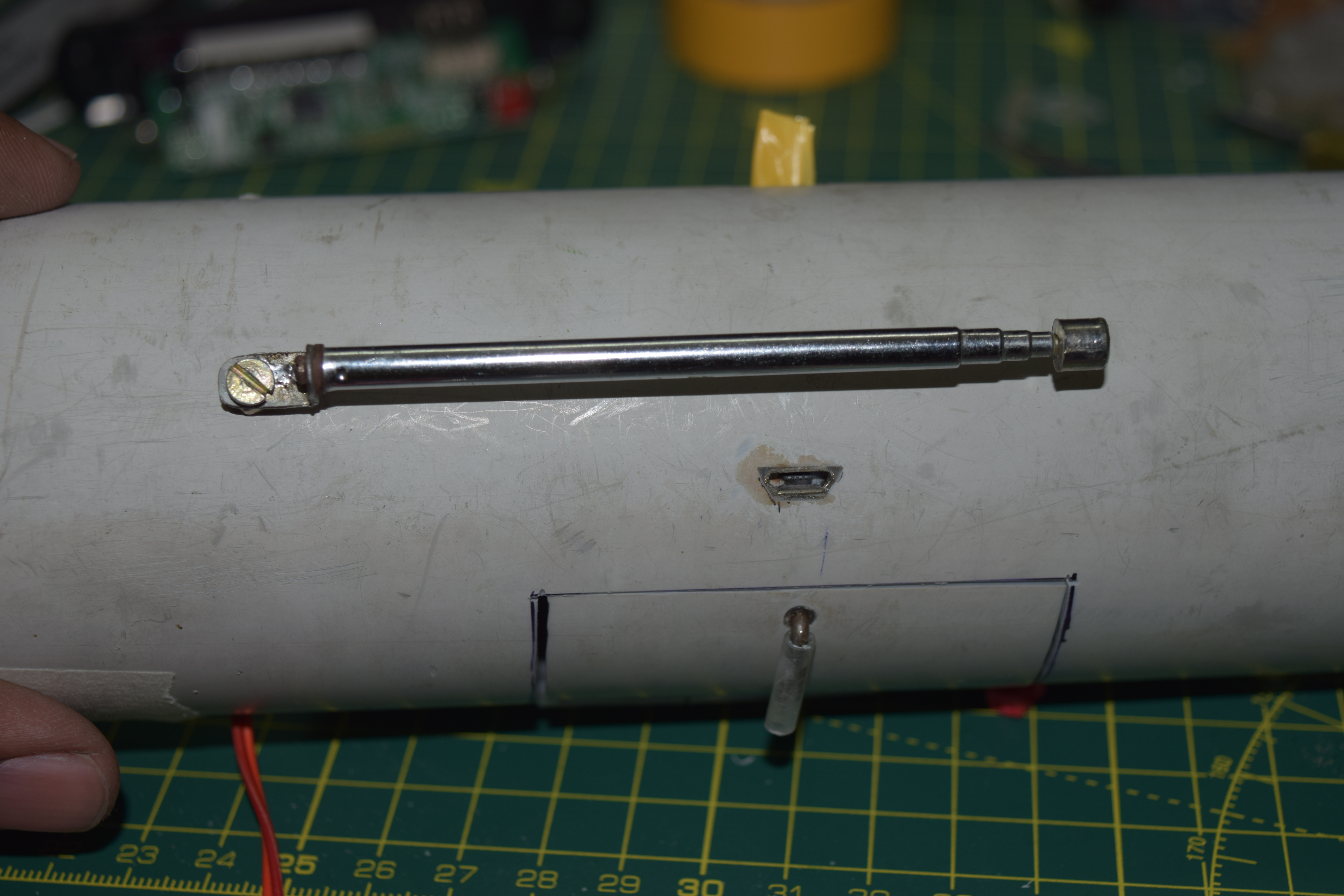

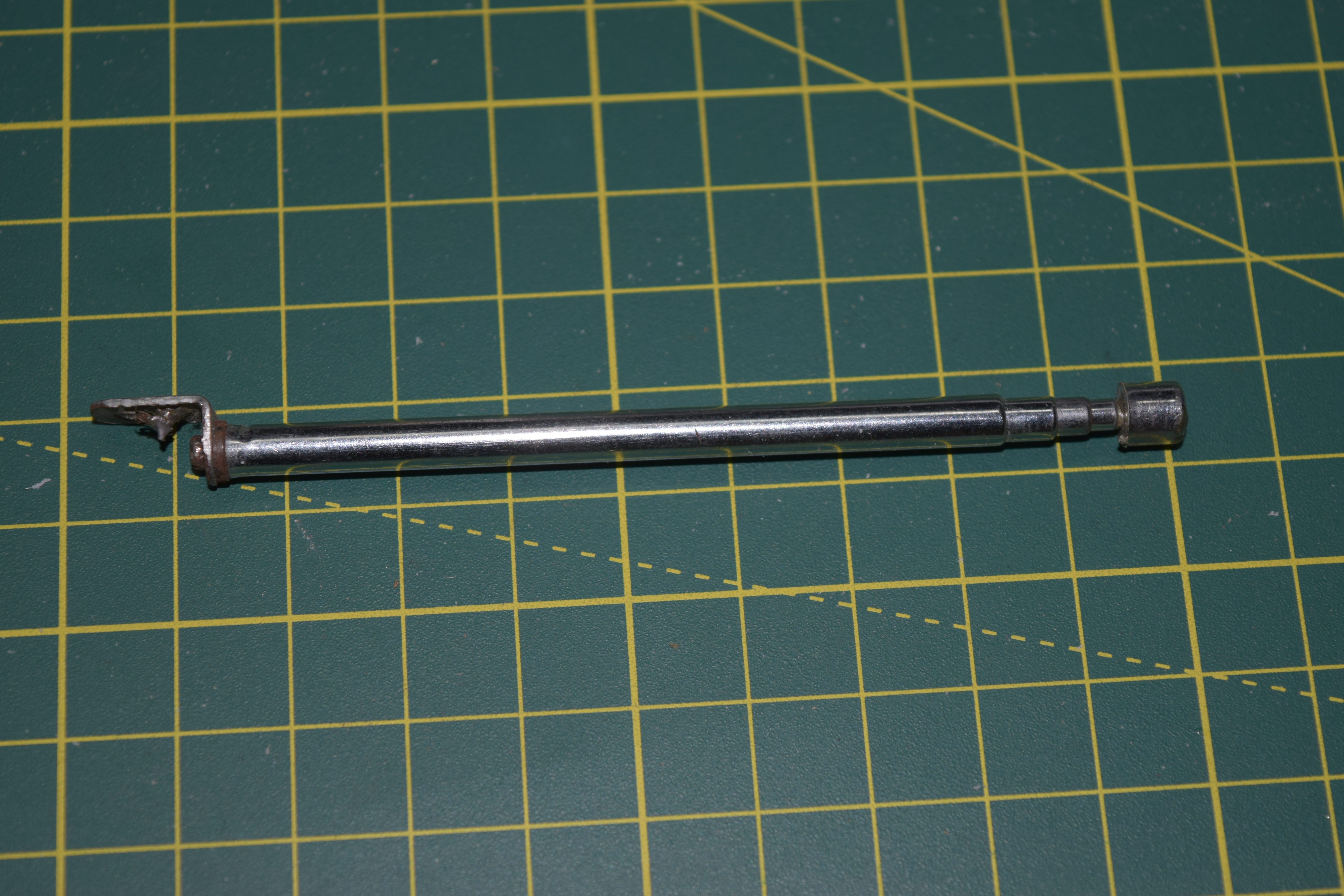

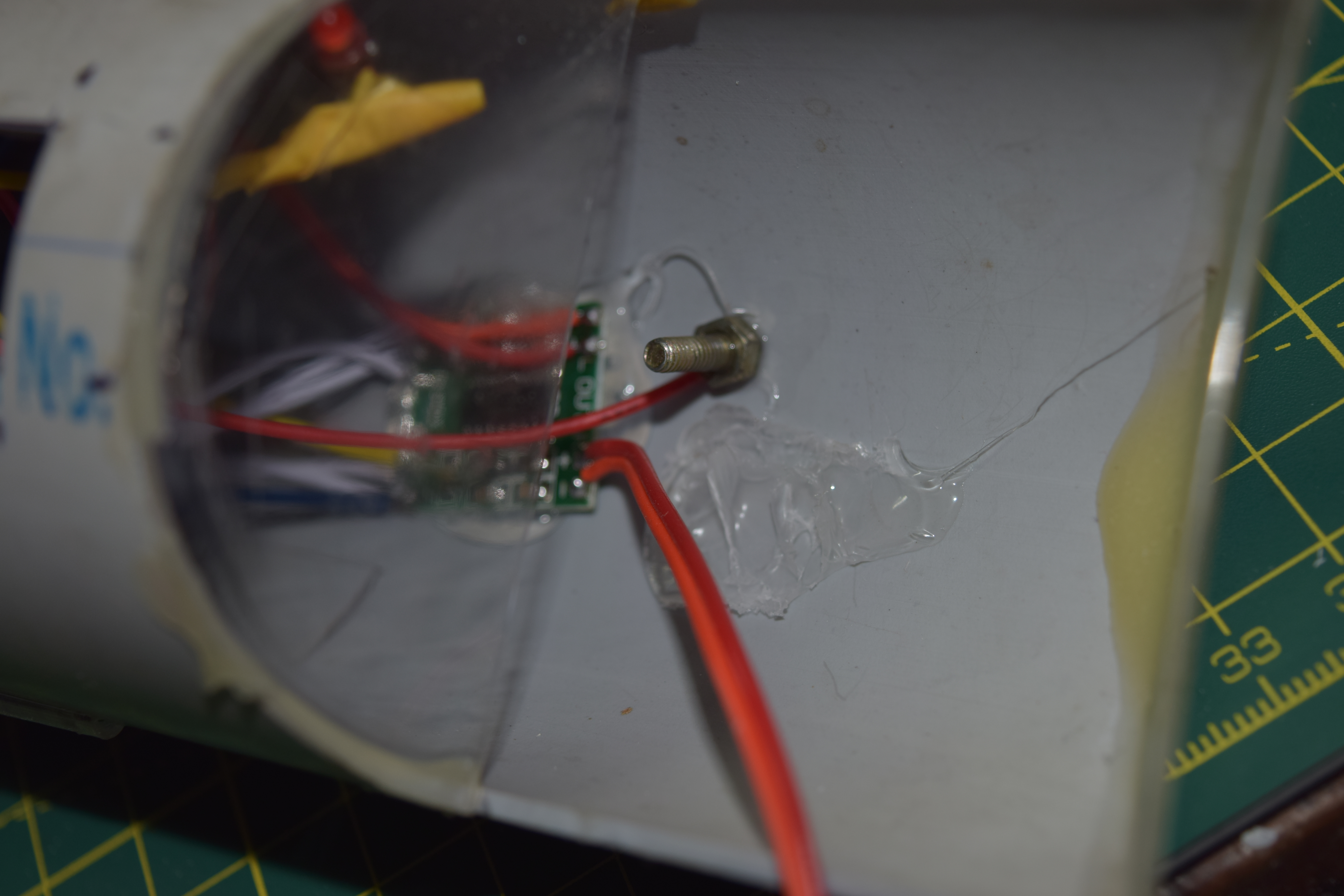

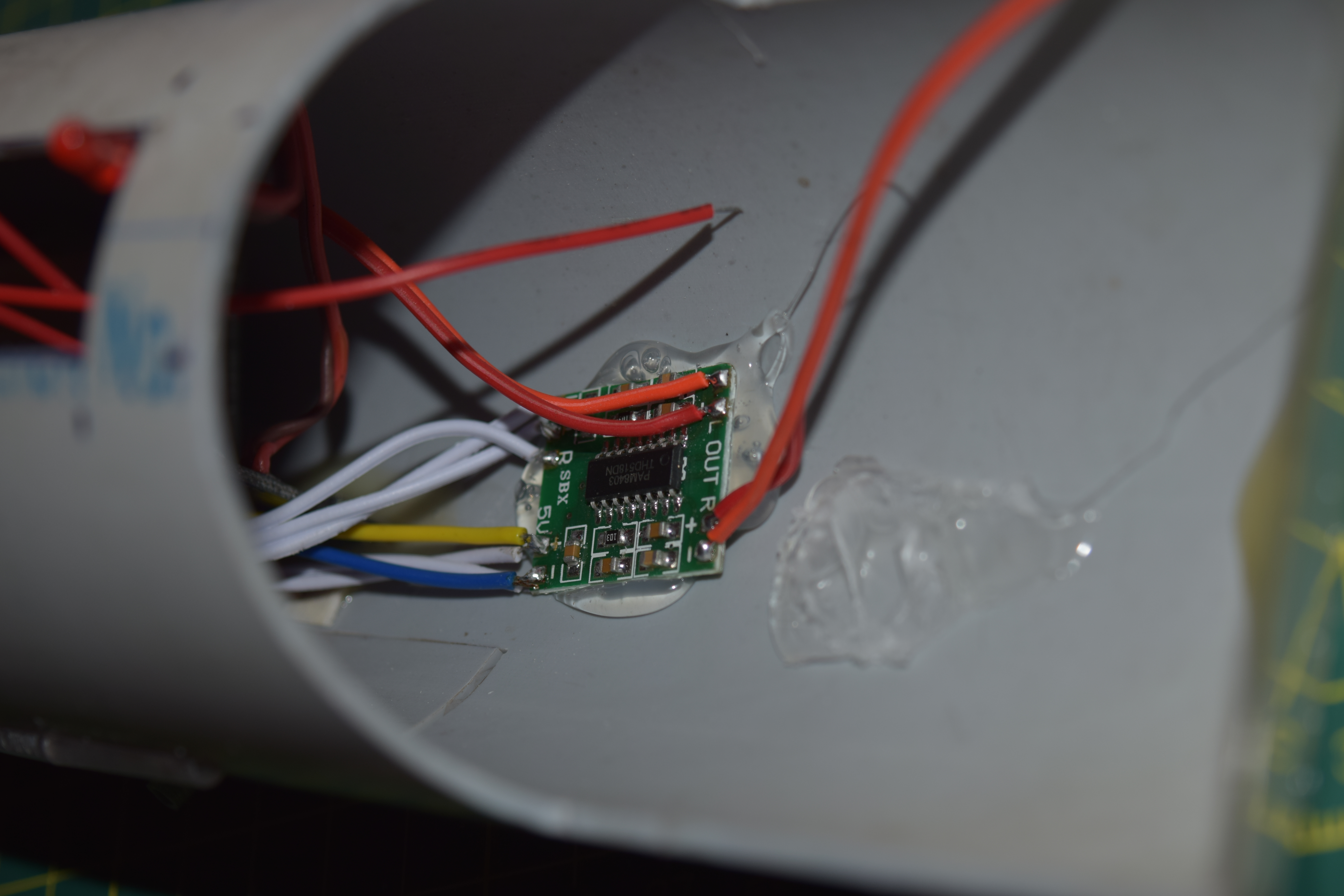

Wire according to the schematics. Drill a hole for FM antenna and connect the wire. Hot glue all the electronics components inside PVC.

Gluing

After wiring, except mp3 decoder and slide switch, I sealed everything by gluing with araldite.

Paint Job

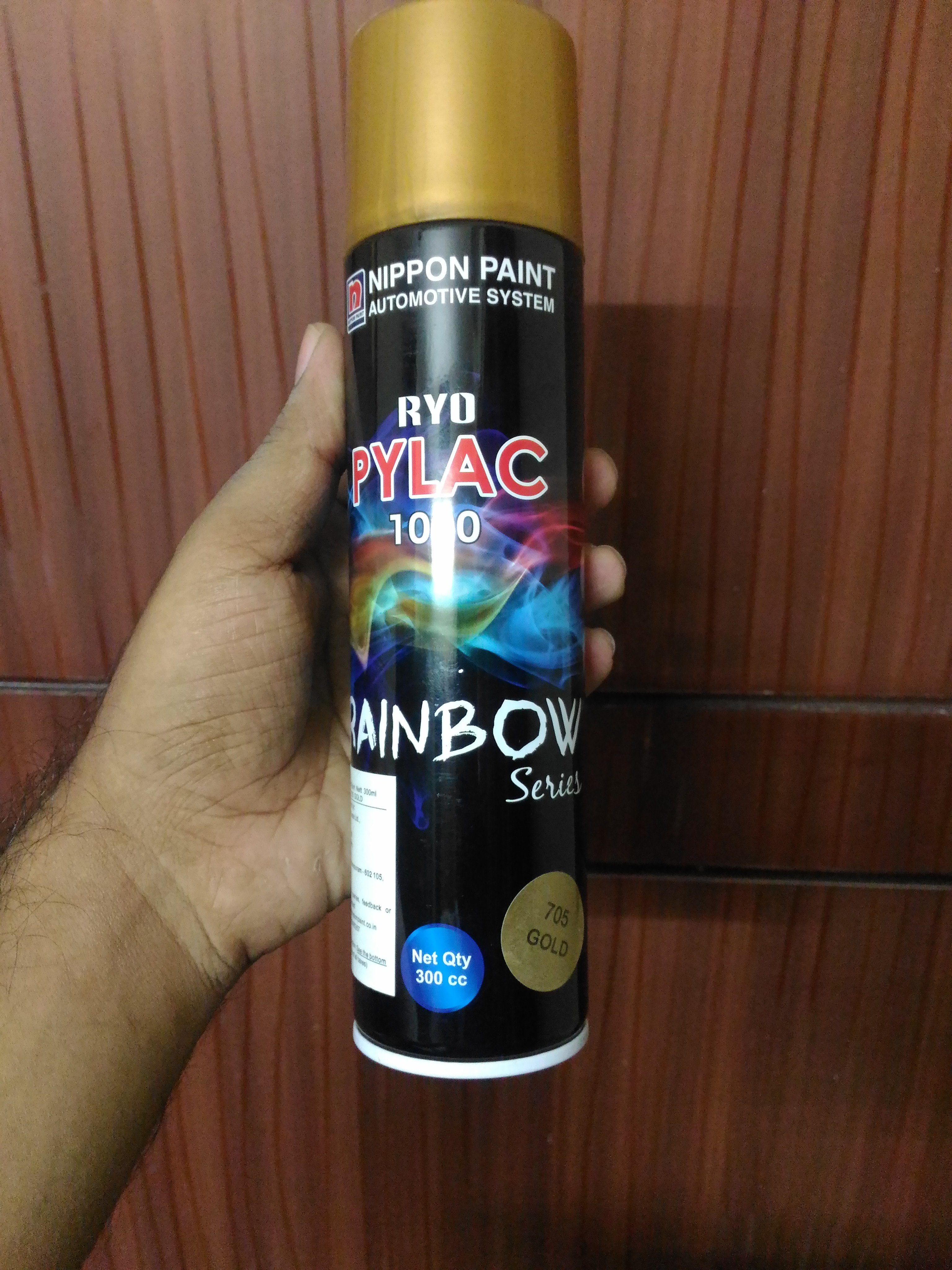

Sand everything and paint with white color. It is good to use plastic primer for even better finish. Paint top coat with 705 GOLD and apply clear coat.

Finally

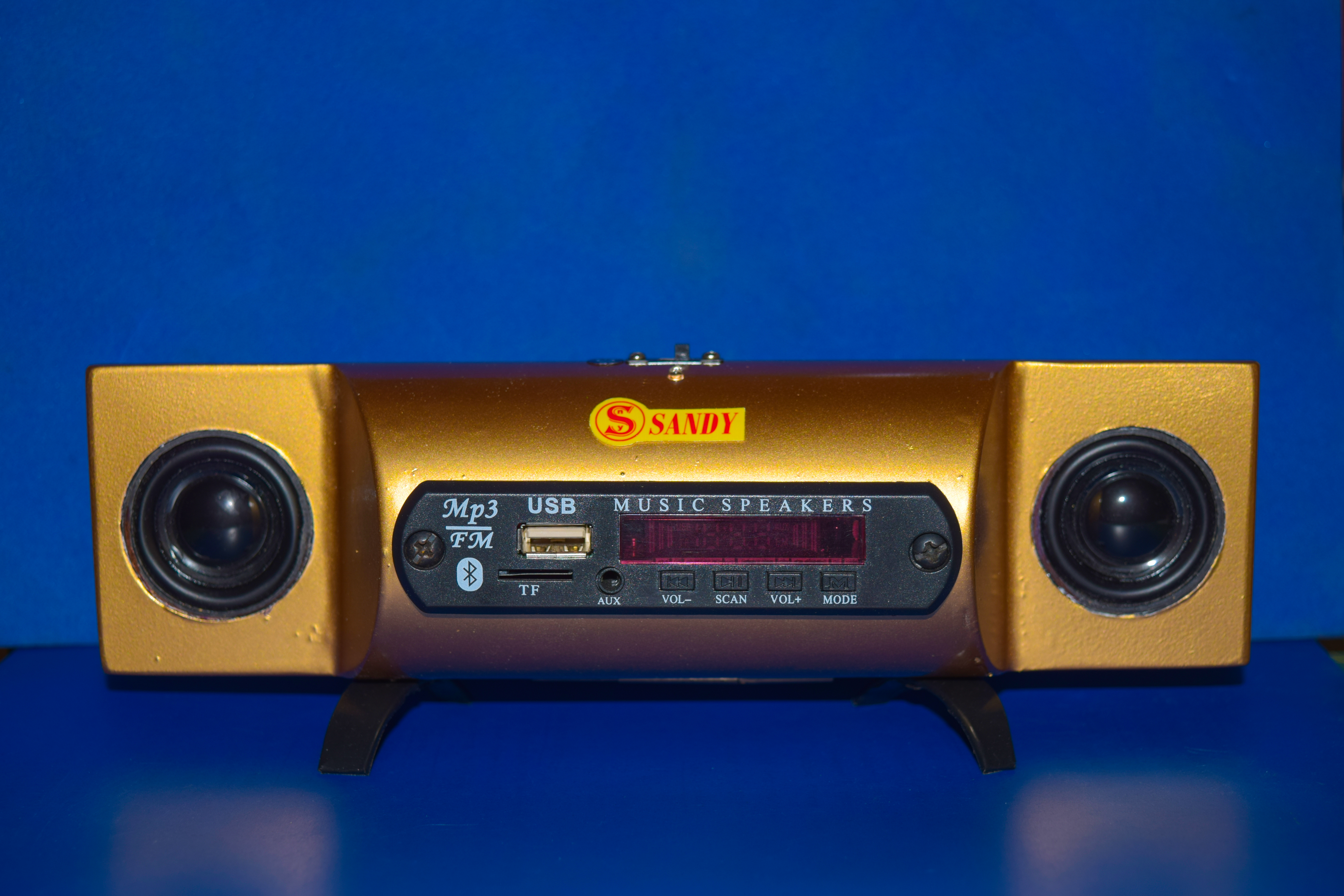

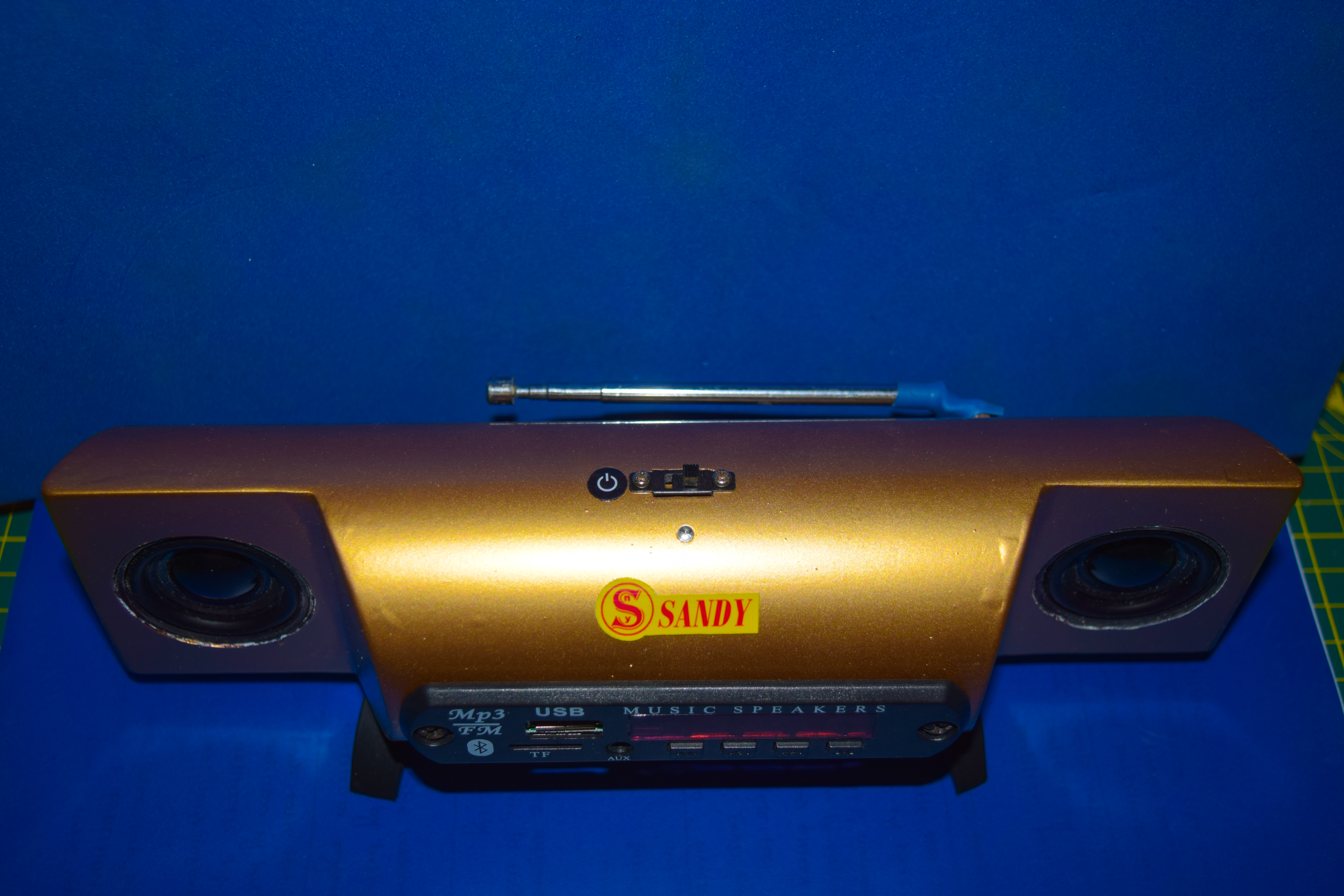

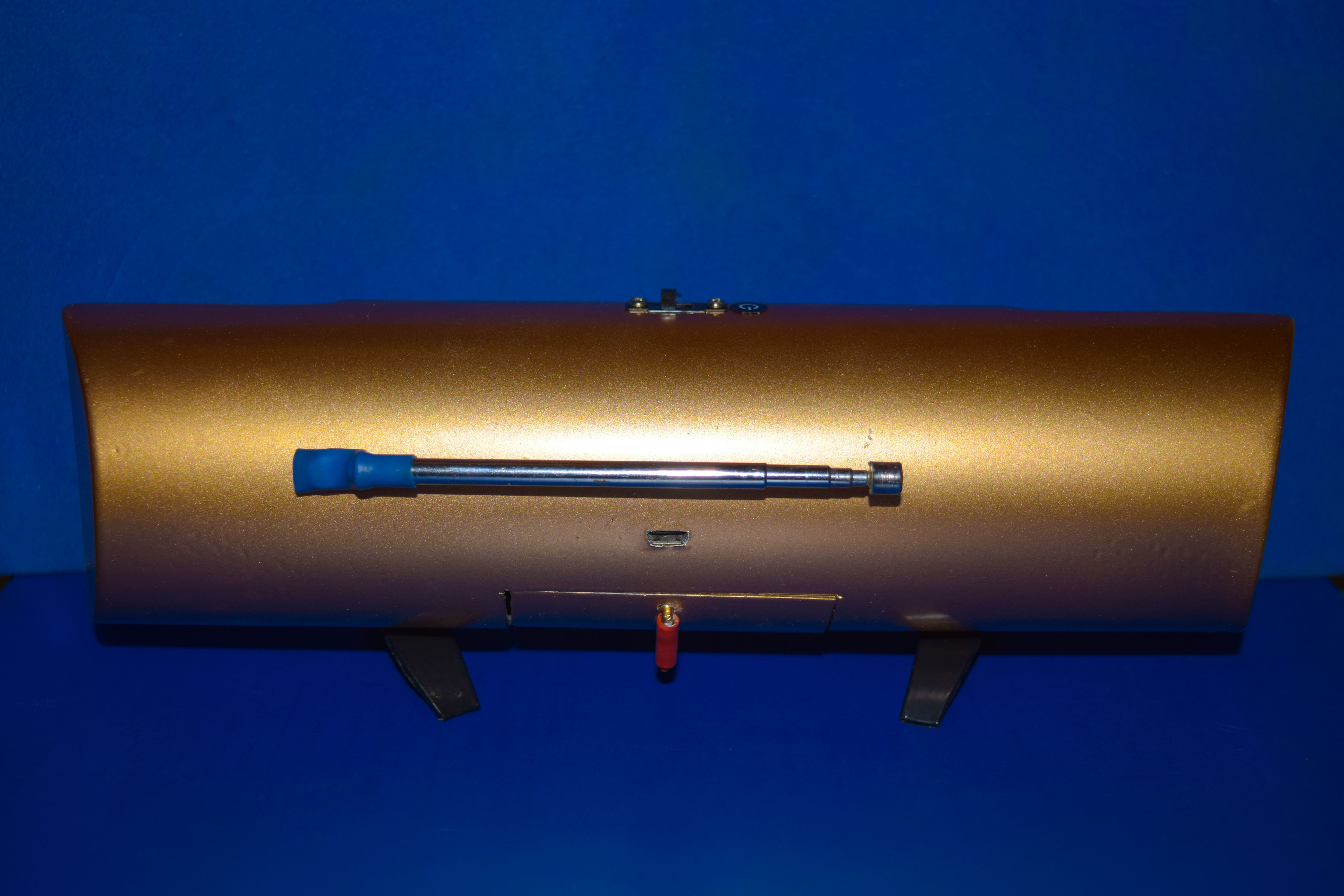

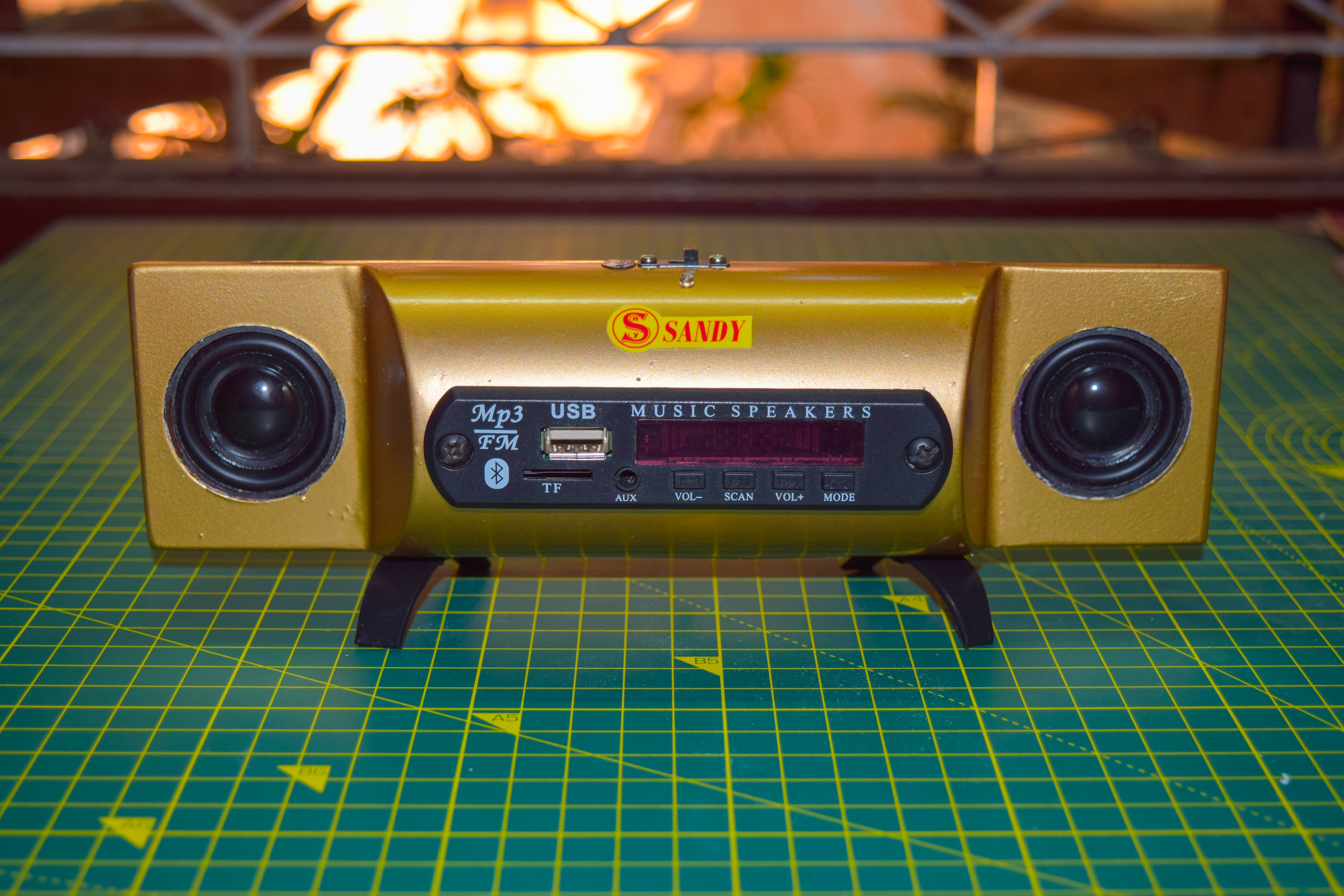

Use the left over PVC that you cut previously for the legs. Paint the legs and attach to the player with screws. Finally it's done....!
