PVC Seed Planting Tool / Clod Maker
by jinn_10 in Living > Gardening
6677 Views, 112 Favorites, 0 Comments
PVC Seed Planting Tool / Clod Maker
![a_00 principale.jpg](/proxy/?url=https://content.instructables.com/F2W/61HT/L01BW4ZN/F2W61HTL01BW4ZN.jpg&filename=a_00 principale.jpg)
Spring is coming soon and it's time to start sowing seeds for a successful garden!
The idea here is to build a clod maker easy to make and cheap (even for free with recycled materials in my case).

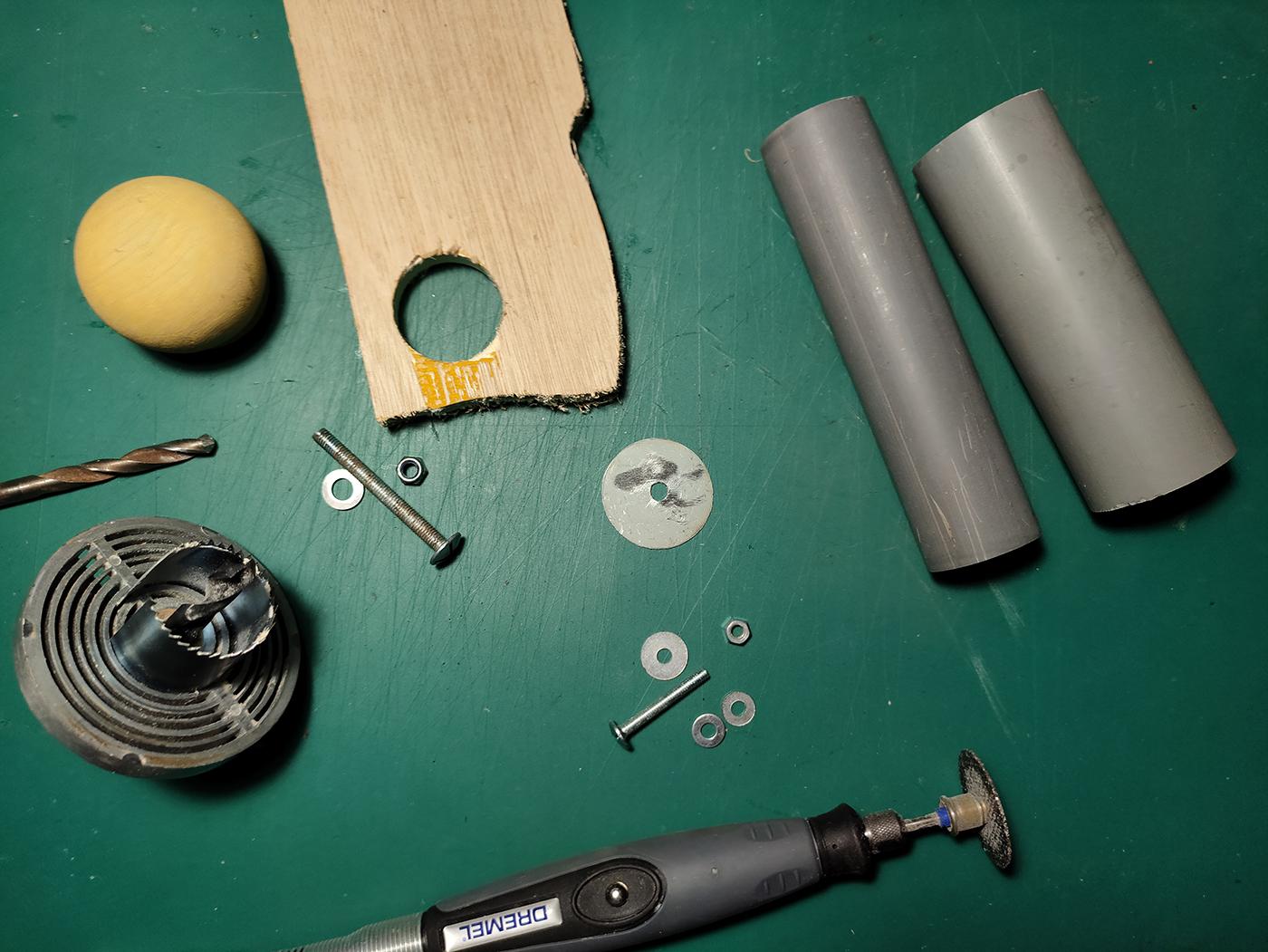

Supplies
![a_1.jpg](/proxy/?url=https://content.instructables.com/FFP/OK3L/L01BW4ZW/FFPOK3LL01BW4ZW.jpg&filename=a_1.jpg)
1x 11cm pvc pipe Ø 40mm
1x 13cm pvc pipe Ø 32mm
1x screw Ø 5mm (5cm long) + 1 washer + 1 self blocking nut
1x screw Ø 4mm (2cm long mini) + 3 washers (with the same diameter than the screw's head) + 1 nut
1x washer Ø 32mm
1x piece of plywood (1cm thick mini)
1x something to use as a handle, the ideal would be a pvc T but i used an old curtain rod end.
![a_2.jpg](/proxy/?url=https://content.instructables.com/FMP/4SH2/L01BW4ZX/FMP4SH2L01BW4ZX.jpg&filename=a_2.jpg)
![a_3.jpg](/proxy/?url=https://content.instructables.com/FTA/EEU0/L01BW4ZY/FTAEEU0L01BW4ZY.jpg&filename=a_3.jpg)
bore the Ø 40 pipe with a 6mm drill as shown on the picture. Do the same on the other side.
![a_4.jpg](/proxy/?url=https://content.instructables.com/FAO/OZIJ/L01BW4ZZ/FAOOZIJL01BW4ZZ.jpg&filename=a_4.jpg)
![a_5.jpg](/proxy/?url=https://content.instructables.com/F32/LR1Q/L01BW500/F32LR1QL01BW500.jpg&filename=a_5.jpg)
![a_6.jpg](/proxy/?url=https://content.instructables.com/FBB/9TZX/L01BW501/FBB9TZXL01BW501.jpg&filename=a_6.jpg)
draw lines between the the 2 holes and cut (i used a dremel). Do the same on the other side.
![a_7.jpg](/proxy/?url=https://content.instructables.com/F3R/DM8N/L01BW502/F3RDM8NL01BW502.jpg&filename=a_7.jpg)
![a_8.jpg](/proxy/?url=https://content.instructables.com/FP3/5IFD/L01BW503/FP35IFDL01BW503.jpg&filename=a_8.jpg)
bore the Ø 32 pipe with the 6mm drill (see picture for measure).
![a_9.jpg](/proxy/?url=https://content.instructables.com/FCX/RG4I/L01BW504/FCXRG4IL01BW504.jpg&filename=a_9.jpg)
![a_10.jpg](/proxy/?url=https://content.instructables.com/FLK/B6R5/L01BW505/FLKB6R5L01BW505.jpg&filename=a_10.jpg)
![a_11.jpg](/proxy/?url=https://content.instructables.com/F3E/XE84/L01BW506/F3EXE84L01BW506.jpg&filename=a_11.jpg)
cut the plywood with a Ø 32 hole saw and gather in this order : the Ø 4 screw, 2 washers, the Ø 32 washer, the plywood piece, the last washer and the nut.
![a_12.jpg](/proxy/?url=https://content.instructables.com/FYS/CSPL/L01BW507/FYSCSPLL01BW507.jpg&filename=a_12.jpg)
![a_13.jpg](/proxy/?url=https://content.instructables.com/F9K/17PQ/L01BW508/F9K17PQL01BW508.jpg&filename=a_13.jpg)

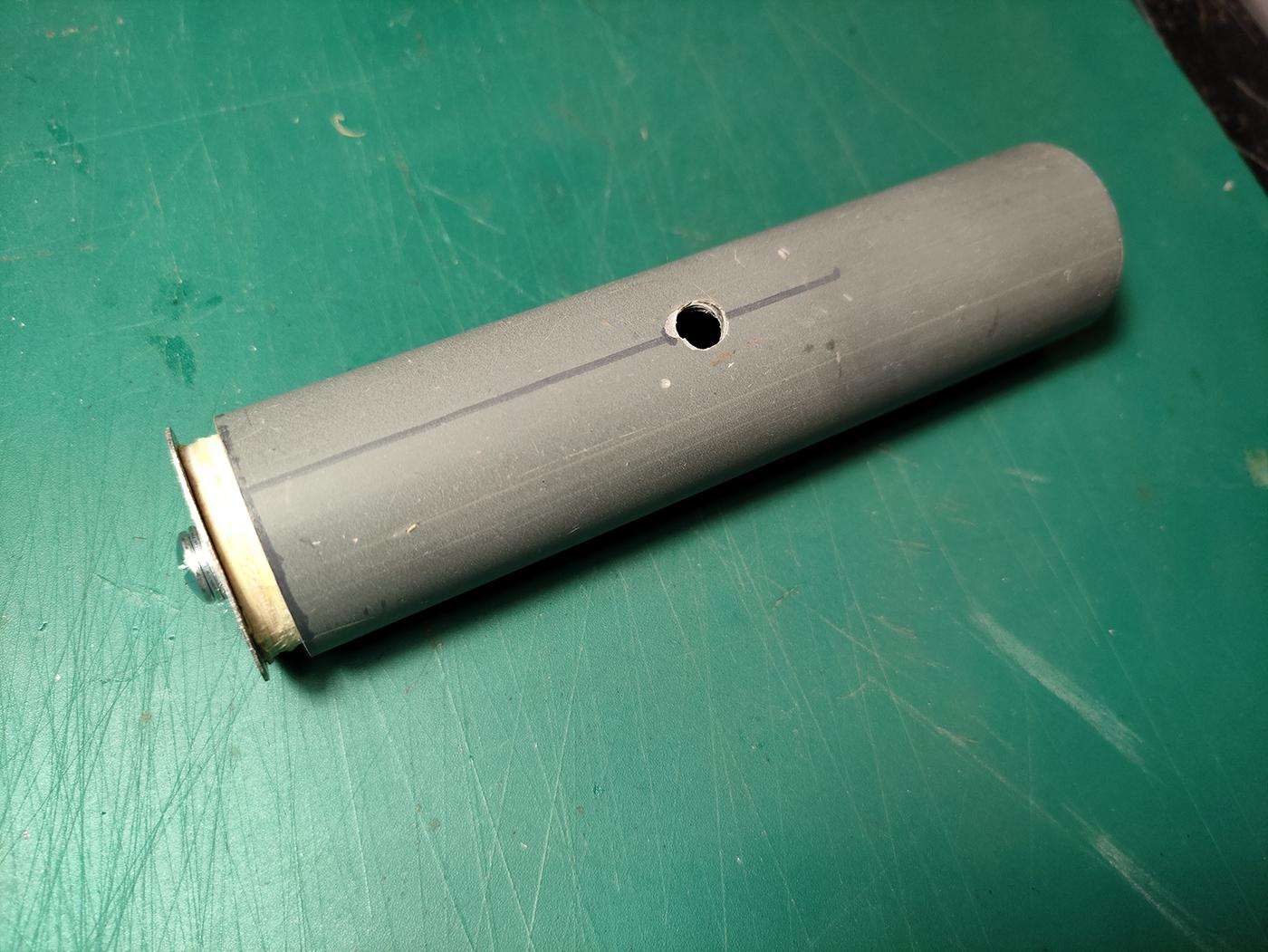

insert the piece of the step 4 in the Ø 32 pipe.
![a_14.jpg](/proxy/?url=https://content.instructables.com/FU1/3O48/L01BW50F/FU13O48L01BW50F.jpg&filename=a_14.jpg)
![a_15.jpg](/proxy/?url=https://content.instructables.com/FXF/5LL8/L01BW509/FXF5LL8L01BW509.jpg&filename=a_15.jpg)
![a_16.jpg](/proxy/?url=https://content.instructables.com/FSE/VXMH/L01BW50A/FSEVXMHL01BW50A.jpg&filename=a_16.jpg)

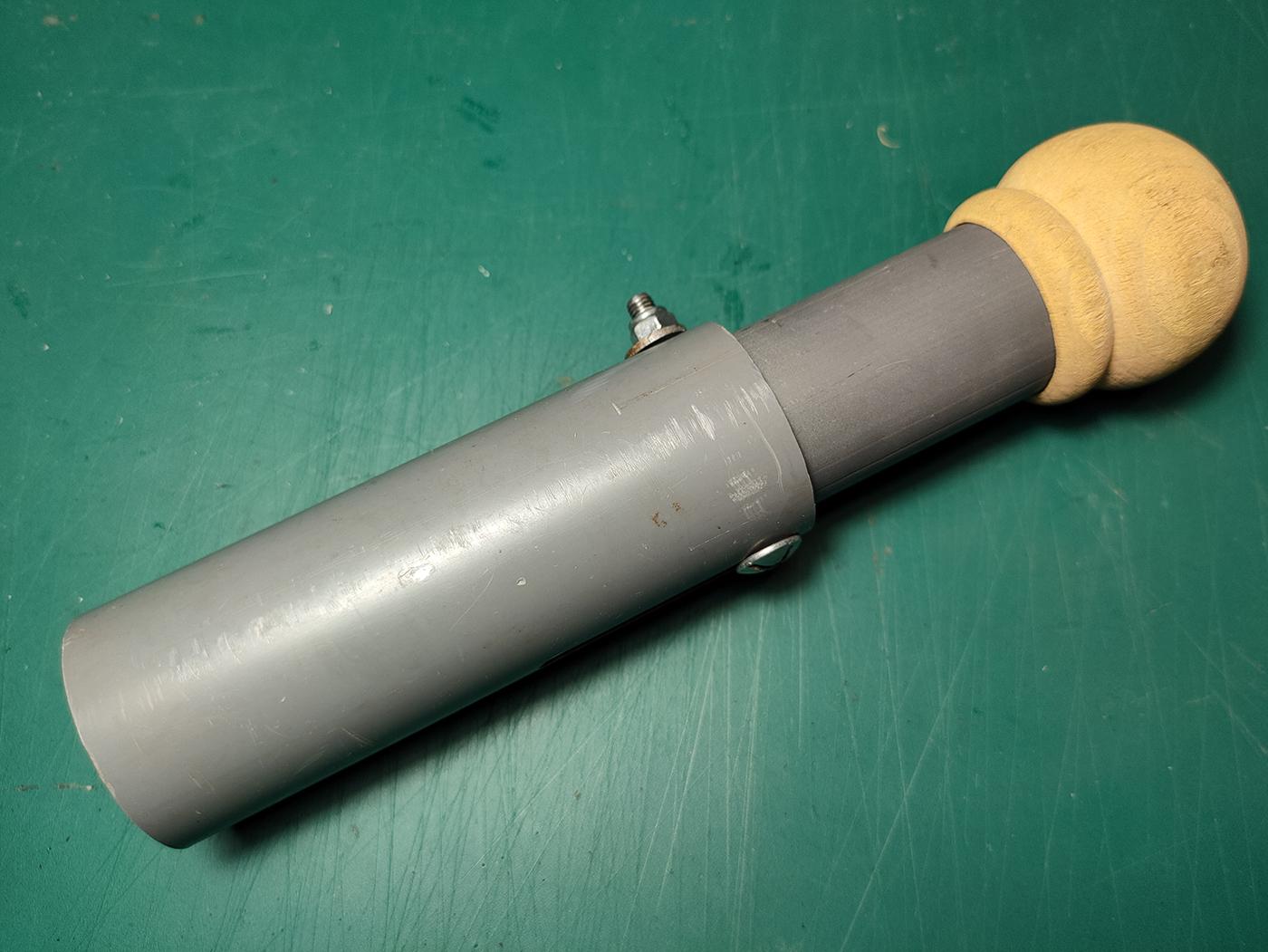

insert the Ø 32 pipe in the Ø 40 pipe and put the Ø 5 screw. Put the washer and the self blocking nut on the other side but don't squeeze too much, the 2 pipes must slide.
To complete the clod maker, slot the handle on the Ø 32 pipe.
The job is done!!
![a_17.jpg](/proxy/?url=https://content.instructables.com/FC8/X8YW/L01BW50B/FC8X8YWL01BW50B.jpg&filename=a_17.jpg)
![a_18.jpg](/proxy/?url=https://content.instructables.com/FOS/TIB4/L01BW50C/FOSTIB4L01BW50C.jpg&filename=a_18.jpg)
![a_00 principale.jpg](/proxy/?url=https://content.instructables.com/FW1/UVQM/L01BW529/FW1UVQML01BW529.jpg&filename=a_00 principale.jpg)
![s_1.jpg](/proxy/?url=https://content.instructables.com/FAT/EP5Y/L0QPVP9T/FATEP5YL0QPVP9T.jpg&filename=s_1.jpg)
![s_2.jpg](/proxy/?url=https://content.instructables.com/FS3/YBTS/L0QPVPA2/FS3YBTSL0QPVPA2.jpg&filename=s_2.jpg)

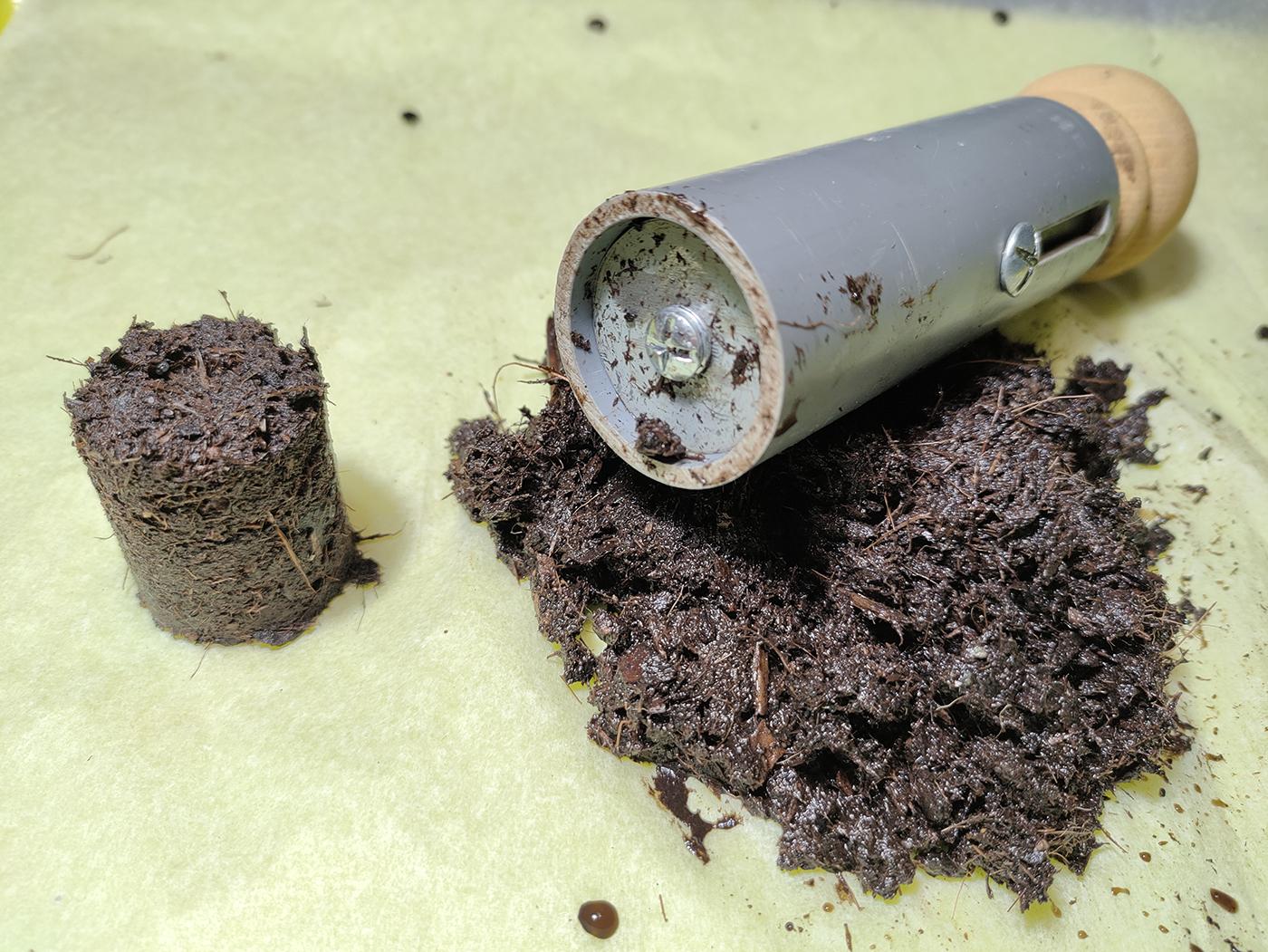

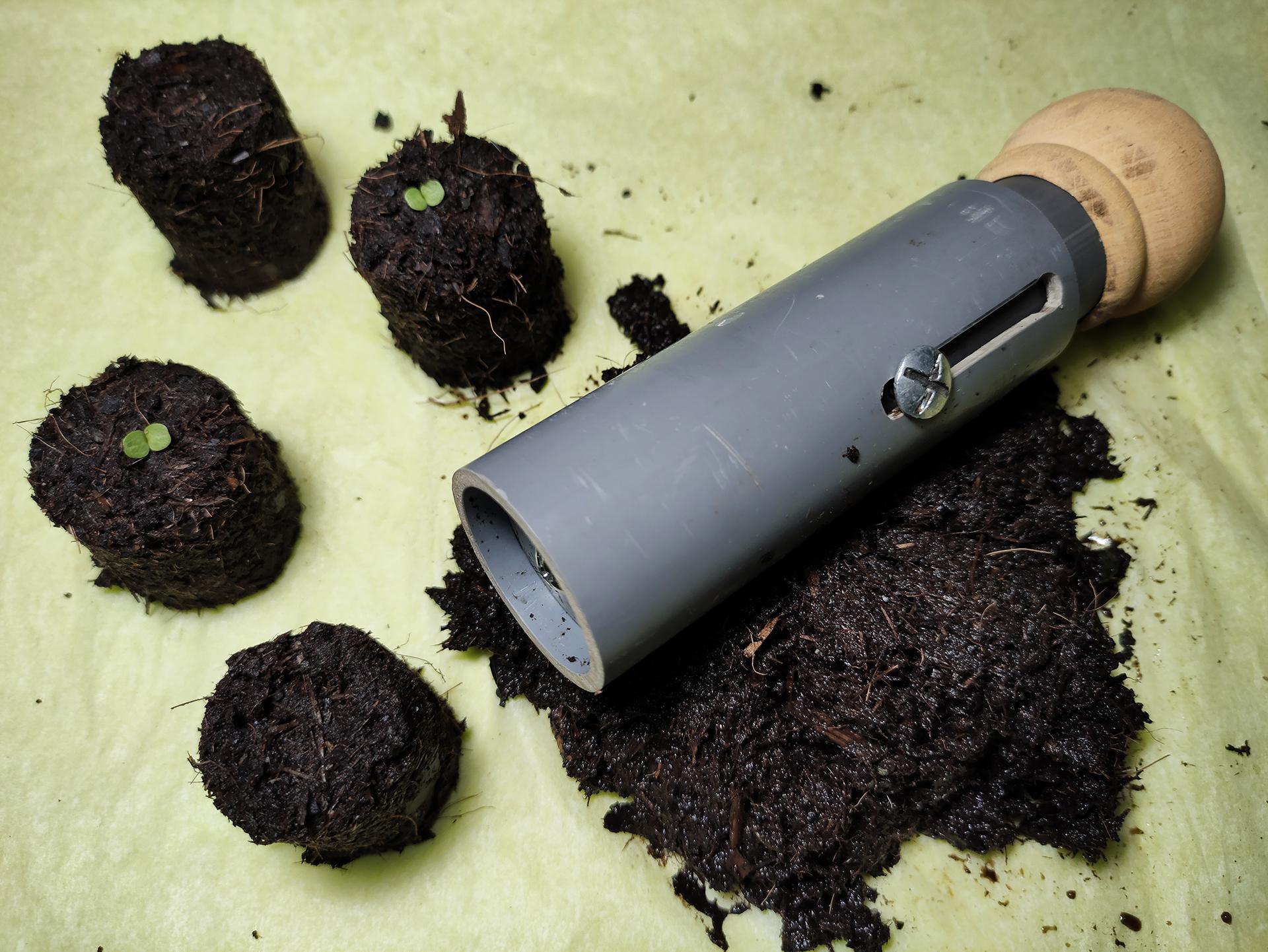

Now put some drenched loam on the clod maker, compact well and press the handle to unmold.
All that's left is to put a seed inside the hole and to fill in with a bit of loam.
No need to sprinkle immediately, it's wet enough!
Enjoy!
