PVC Air Cannon
About a month ago, my friends and I had too much time on our hands. And, as most devious college students are wont to do, we decided to make something that went BOOM! And so, we came up with plans for what we now call the Thompson's Nightmare Class Air Cannon. Our version has been known to launch water balloons over 250 feet!
This also happens to be my first instructable. I hope you enjoy!
Here's how to make one:
This also happens to be my first instructable. I hope you enjoy!
Here's how to make one:

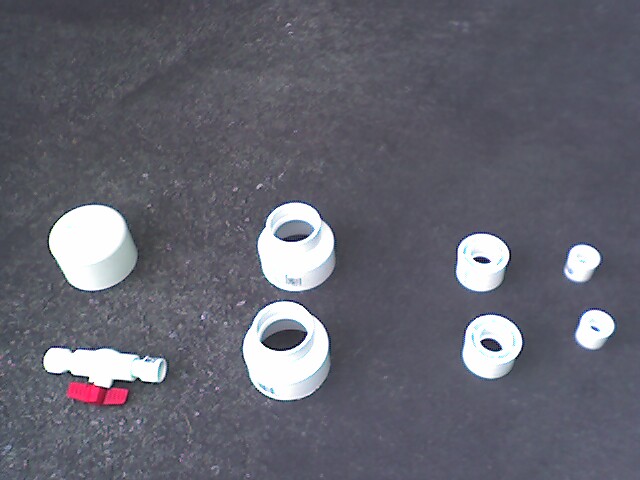

The Parts
For the cannon, you will need a bike, an air pump, and PVC (hence the PVC air cannon). Here's a full list of parts:
6 feet of 3" diameter PVC pipe
1 1 1/4" PVC ball valve.
1 3" PVC end cap
2 3-2" PVC reducers
2 2 - 1 1/4 PVC threaded reducers (the 1 1/4" end needs to be threaded to fit the ball valve)
1 Husky 12V inflater with light
All the above can be bought at Home Depot for about $40.
You'll also need an old bike tire.
Tools for this project:
PVC glue
electric drill
hacksaw
file
boxcutter or X-Acto knife
super glue
6 feet of 3" diameter PVC pipe
1 1 1/4" PVC ball valve.
1 3" PVC end cap
2 3-2" PVC reducers
2 2 - 1 1/4 PVC threaded reducers (the 1 1/4" end needs to be threaded to fit the ball valve)
1 Husky 12V inflater with light
All the above can be bought at Home Depot for about $40.
You'll also need an old bike tire.
Tools for this project:
PVC glue
electric drill
hacksaw
file
boxcutter or X-Acto knife
super glue
Cut the PVC
Simple enough. You will need one length of 3" diameter about 4 feet long for the barrel, and one about 1.5 feet long for the air tank. File the edges down once you're done to make gluing easier.
Modify the End Cap
This is the trickiest step in the whole build. First, you need to cut out the valve part of the old bike tire. Try to make it square, but its no big deal if its not. Make sure to leave a lot of the surrounding rubber though.
Next, drill a hole about the size of the stem of the valve into the center of the end cap. A 5/16" bit worked well for me, but check for yourself before you drill. The important thing is that there's a really snug fit when the stem goes through the end cap. Remember, there's going to be 100+ psi of pressure there.
Once you have a nice snug hole for the valve to go into, put some super glue on the rubber surrounding the valve, and stick the valve into the end cap. Smooth out the rubber so there is a tight and smooth seal against the PVC.
Next, drill a hole about the size of the stem of the valve into the center of the end cap. A 5/16" bit worked well for me, but check for yourself before you drill. The important thing is that there's a really snug fit when the stem goes through the end cap. Remember, there's going to be 100+ psi of pressure there.
Once you have a nice snug hole for the valve to go into, put some super glue on the rubber surrounding the valve, and stick the valve into the end cap. Smooth out the rubber so there is a tight and smooth seal against the PVC.

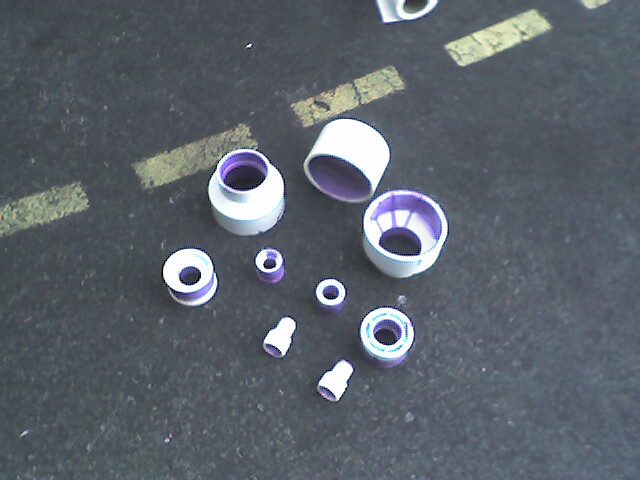

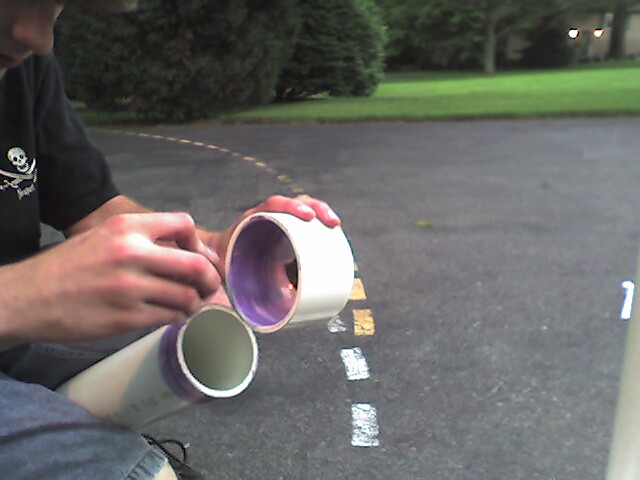

Prime It and Glue It
Another simple step. First, use some purple primer on any surface that you're going to glue. This cleans it up and readies it to be glued.
Once the primer has dried, glue one 2-1 1/4" into one 3-2" reducer. Then do the same to the other reducers. Glue one reducer assembly to the 4 foot barrel, and the other to the 1.5 foot air tank. Finally, glue the end cap to the other end of the air tank.
Watch out for the PVC glue. It stinks to high hell and can really mess you up. And don't smoke while gluing either.
Once the primer has dried, glue one 2-1 1/4" into one 3-2" reducer. Then do the same to the other reducers. Glue one reducer assembly to the 4 foot barrel, and the other to the 1.5 foot air tank. Finally, glue the end cap to the other end of the air tank.
Watch out for the PVC glue. It stinks to high hell and can really mess you up. And don't smoke while gluing either.

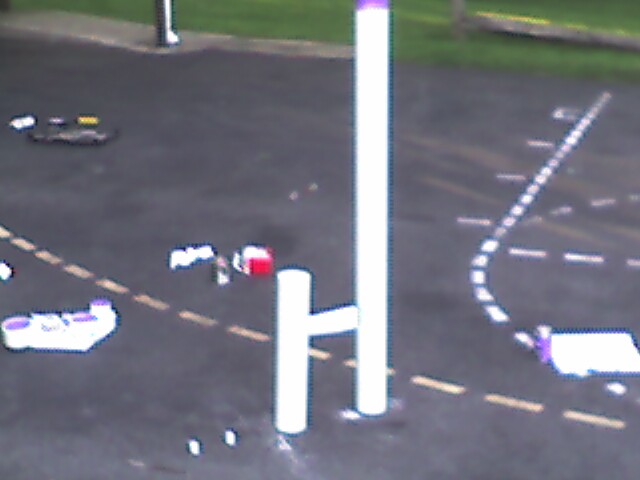

Put It Together
Screw the barrel and the air tank into the ball valve. Congratulations! You've made your own air cannon!
Load It Up and Launch It!
The air compressor can charge the cannon up to 150 psi (which is the most you should charge it to anyways. Ball valves are rated for 150 psi). Simply plug the charger into your car, set it to the target pressure, attach the pump to the valve on the air cannon, and let it charge.
Once you've got it fully charged, load the cannon up with whatever you please. I think water balloons are a lot of fun; just make sure you put a soda can or something in the bottom so the air pressure doesn't pop the balloons. Aim and fire! You can literally launch anything you can fit in the barrel.
You can slap a really cool paint job on it, too. We used a plastic primer and some simple spray paints to do a camo design. Then I did some air brush work to christen it Thompson's Nightmare after our favorite attorney from Florida.
Just keep in mind one thing: anything you launch out of the cannon is coming out at 90+ mph. Don't be stupid. Have fun!
Once you've got it fully charged, load the cannon up with whatever you please. I think water balloons are a lot of fun; just make sure you put a soda can or something in the bottom so the air pressure doesn't pop the balloons. Aim and fire! You can literally launch anything you can fit in the barrel.
You can slap a really cool paint job on it, too. We used a plastic primer and some simple spray paints to do a camo design. Then I did some air brush work to christen it Thompson's Nightmare after our favorite attorney from Florida.
Just keep in mind one thing: anything you launch out of the cannon is coming out at 90+ mph. Don't be stupid. Have fun!
