PU Wheel Friction Drive E-Bike
by fpv99 in Workshop > Electric Vehicles
1616 Views, 12 Favorites, 0 Comments
PU Wheel Friction Drive E-Bike
![9d98575616a78e68ca6ba966fead7849_preview_featured.jpg](/proxy/?url=https://content.instructables.com/FBP/M2S6/JXL58TZA/FBPM2S6JXL58TZA.jpg&filename=9d98575616a78e68ca6ba966fead7849_preview_featured.jpg)
This is a friction drive system I designed that uses PU wheel electric skateboard hub motor. I'm using SONY VTC6 18650 6S2P batteries(22.2v 6000MAH), got a top speed of 15km/hr on flat ground. Plan on doing some more tests with higher voltage batteries.
STL files: https://www.thingiverse.com/thing:2556492
Prepare Parts Needed for the Build
![1.jpg](/proxy/?url=https://content.instructables.com/FJ2/0QXU/JXL58TGG/FJ20QXUJXL58TGG.jpg&filename=1.jpg)
Parts
- Motor : https://amzn.to/2UXlez3
- VESC : https://amzn.to/2GZC4th or https://amzn.to/2GZC4th
- Throttle Grip : https://amzn.to/2H1r5Q7
- Arduino for Analog to PWM converting : https://amzn.to/2H1Ro92
- Screws :
1pcs M8 x 60mm bolt
3pcs M4 x 25mm bolts
3pcs M4 x 35mm bolts
3pcs M4 nyloc nuts
- Battery : SONY VTC6 18650 6S2P (22.2v 6000MAH)
Use 3pcs M4 X 35mm Screw and Nyloc Nuts to Mount TOP.STL and BOTTOM.STL Onto Bike
![2.jpg](/proxy/?url=https://content.instructables.com/FKI/RXGZ/JXL58TGP/FKIRXGZJXL58TGP.jpg&filename=2.jpg)
![3.jpg](/proxy/?url=https://content.instructables.com/F15/V8O2/JXL58THO/F15V8O2JXL58THO.jpg&filename=3.jpg)

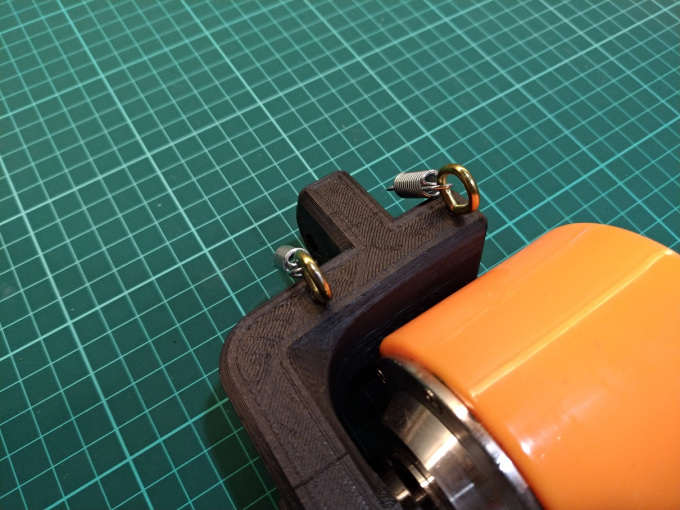

Assemble Motor Mount With 3pcs M4 X 25mm Screws
![4.jpg](/proxy/?url=https://content.instructables.com/FR1/078Z/JXL58THP/FR1078ZJXL58THP.jpg&filename=4.jpg)
![5.jpg](/proxy/?url=https://content.instructables.com/FVH/TANX/JXL58TIM/FVHTANXJXL58TIM.jpg&filename=5.jpg)
![6.jpg](/proxy/?url=https://content.instructables.com/FIT/CQ5P/JXL58TIN/FITCQ5PJXL58TIN.jpg&filename=6.jpg)
![7.jpg](/proxy/?url=https://content.instructables.com/FH6/SA59/JXL58TIO/FH6SA59JXL58TIO.jpg&filename=7.jpg)
Use a M8 X 60mm Bolt and Nut to Hold Everything Together
![8.jpg](/proxy/?url=https://content.instructables.com/FXF/7I6X/JXL58TIX/FXF7I6XJXL58TIX.jpg&filename=8.jpg)

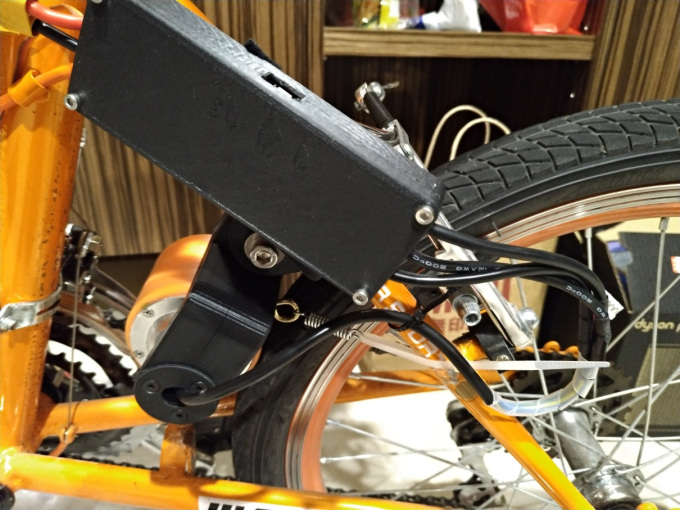

Find a Place to Mount the VESC
![9.jpg](/proxy/?url=https://content.instructables.com/FNZ/EJ49/JXL58TJ7/FNZEJ49JXL58TJ7.jpg&filename=9.jpg)
