PRO Motorized Slider for Cheap!
by focamonca in Workshop > 3D Printing
4986 Views, 33 Favorites, 0 Comments
PRO Motorized Slider for Cheap!
Today we are going to Build a Professional Motorized Slider.
I worked on this project for over two months, so please support my work by Subscribing to my YouTube channel and on Patreon
Youtube: https://www.youtube.com/channel/UCxv6t_Fcq9exHRDejCAO0bg
Patreon: https://www.patreon.com/SuperMaker
Watch the Video
Sorry for my english and if I make somemistake but it's my first video in english :D
SUBSCRIBE TO MY YOUTUBE CHANNEL
WHAT DO WE NEED?
- Carbon Slider from Neewer: http://amzn.to/2qbh2Bg
- Ballhead: http://amzn.to/2rQ8GfJ
- Heavy tripod: http://amzn.to/2rgq7IY
- DPDT SWITCH: http://s.click.aliexpress.com/e/VBqr3Vf
- Motor: https://goo.gl/j3zqkN
- Timing belt: http://s.click.aliexpress.com/e/nm2rjMz
- Timing pulley: http://s.click.aliexpress.com/e/nmIQBY3
- PWM regulator: http://s.click.aliexpress.com/e/UnubQRf
- Bearings: http://s.click.aliexpress.com/e/VfMV3zZ
- Magnets: http://s.click.aliexpress.com/e/aU3zRNF
3D files and STLs on thingiverse:
Tips and Things That Do Not Appear in the Video P.1
the squared hole in the Aluminium.
I made this hole with my plywood Saw.
It tooks me around 1h for both the sides but it went great.
Tips and Things That Do Not Appear in the Video P.2
Perfect fit between the printed parts and the slider.
Tips and Things That Do Not Appear in the Video P.3
Detail of the smooth pulley on the side without any connection.
Tips and Things That Do Not Appear in the Video P.4
the Holes in the main plate where the bolts pass through.
Tips and Things That Do Not Appear in the Video P.5
Details of the Belt Tensioner under the main plate.
Tips and Things That Do Not Appear in the Video P.6

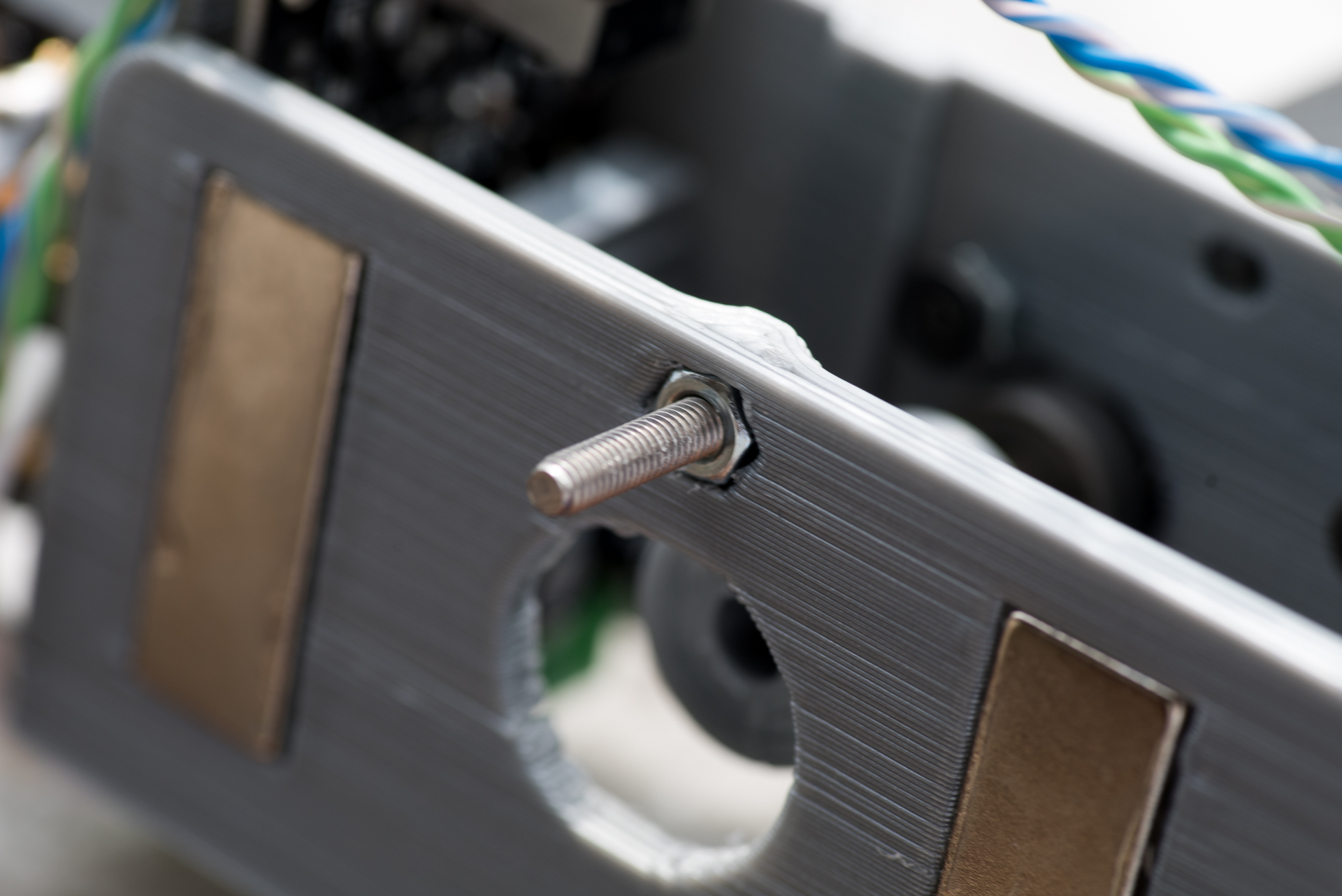

The safety bolt created to avoid twisting or unwanted slippering of the accessoriess.
Tips and Things That Do Not Appear in the Video P.7
Details of the connection Bold after removing the part to make it fit perfectly.
Tips and Things That Do Not Appear in the Video P.8
Remember to do the same with the flywheel pivot.
It's made from a 8mm threaded rod and it screws perfectly on the flywheel.
Tips and Things That Do Not Appear in the Video P.9
You weel need 4€ in 5 cents Coin.
They are 80 coins with a mass of 313.6 grams. Perfect to store kinetic energy.
Tips and Things That Do Not Appear in the Video P.10
The 608zz bearing in place and the bottom of this mounting plate.
Tips and Things That Do Not Appear in the Video P.11
The TWO mounting plate, one with the flywheel and the other with the motor.
That's all.
