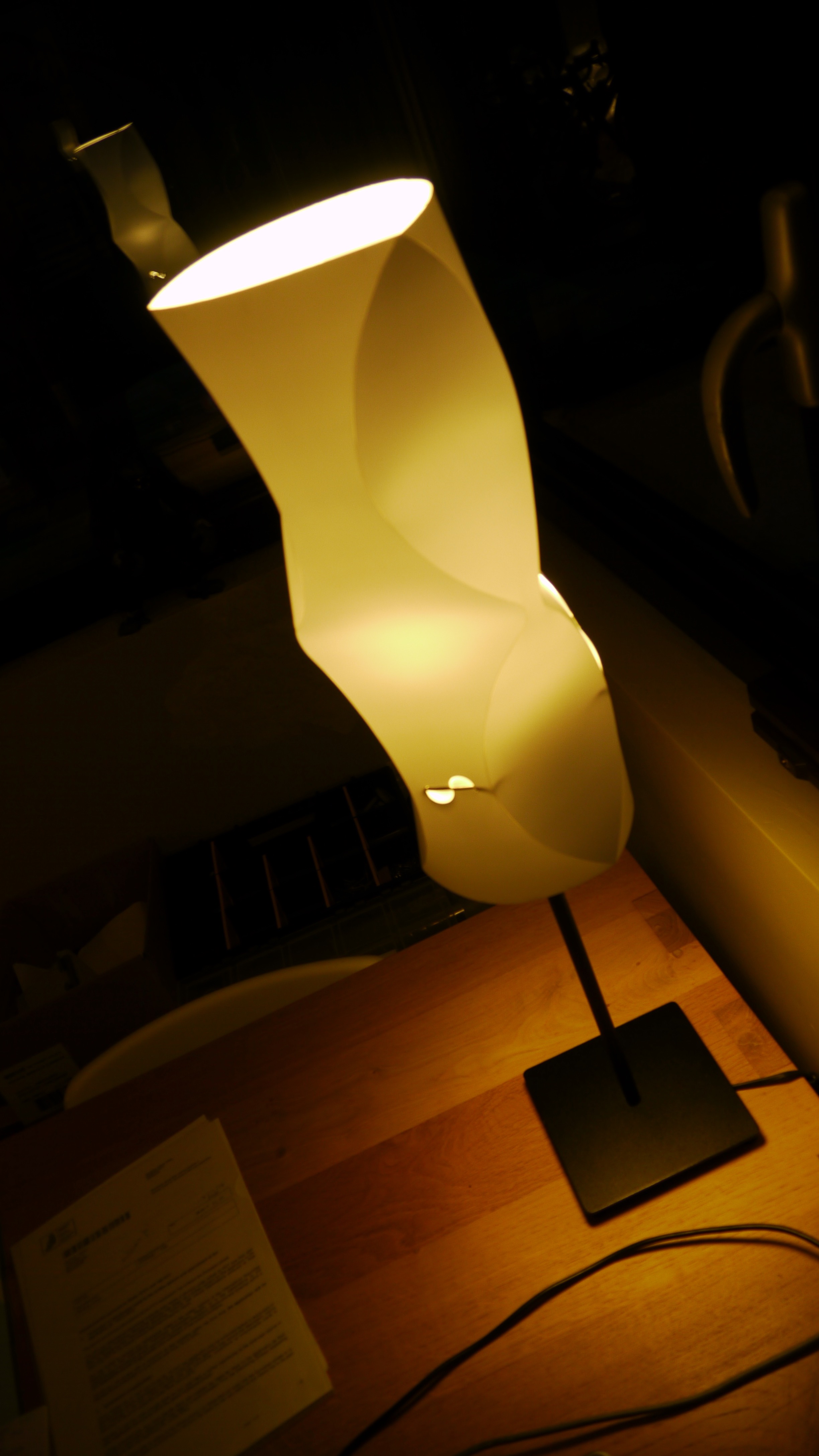

PP Lamp Shade


Lasercut polypropylene lampshade with a vintage look. This lampshade uses the properties of polypropylene to its fullest. Easy to make, flat pack to transport, easy to put together and as little suspension as possible.

What you need:
- 2mm steel wire
- 50cm x 40cm sheet of PP
- lasercutter
- utility knife
- iron file
- (point) welder
- lamp stand
- lightbulb

Make Suspension


The suspension for the shade is made of 2mm steel wire which is shaped to a Y-shape. Use a (point) welder to secure the steel wire in place. Clean up with an iron file.

Lasercut PP Sheet


Use a lasercutter to cut the flat shape of the shade out of the PP sheet (you can also cut out the shape with a utility knife). This includes slots to secure the suspension and connection wings.

Put Together


Put the lamp together:

1. open flatpack
2. insert connection wings in the slots on the other side of the sheet

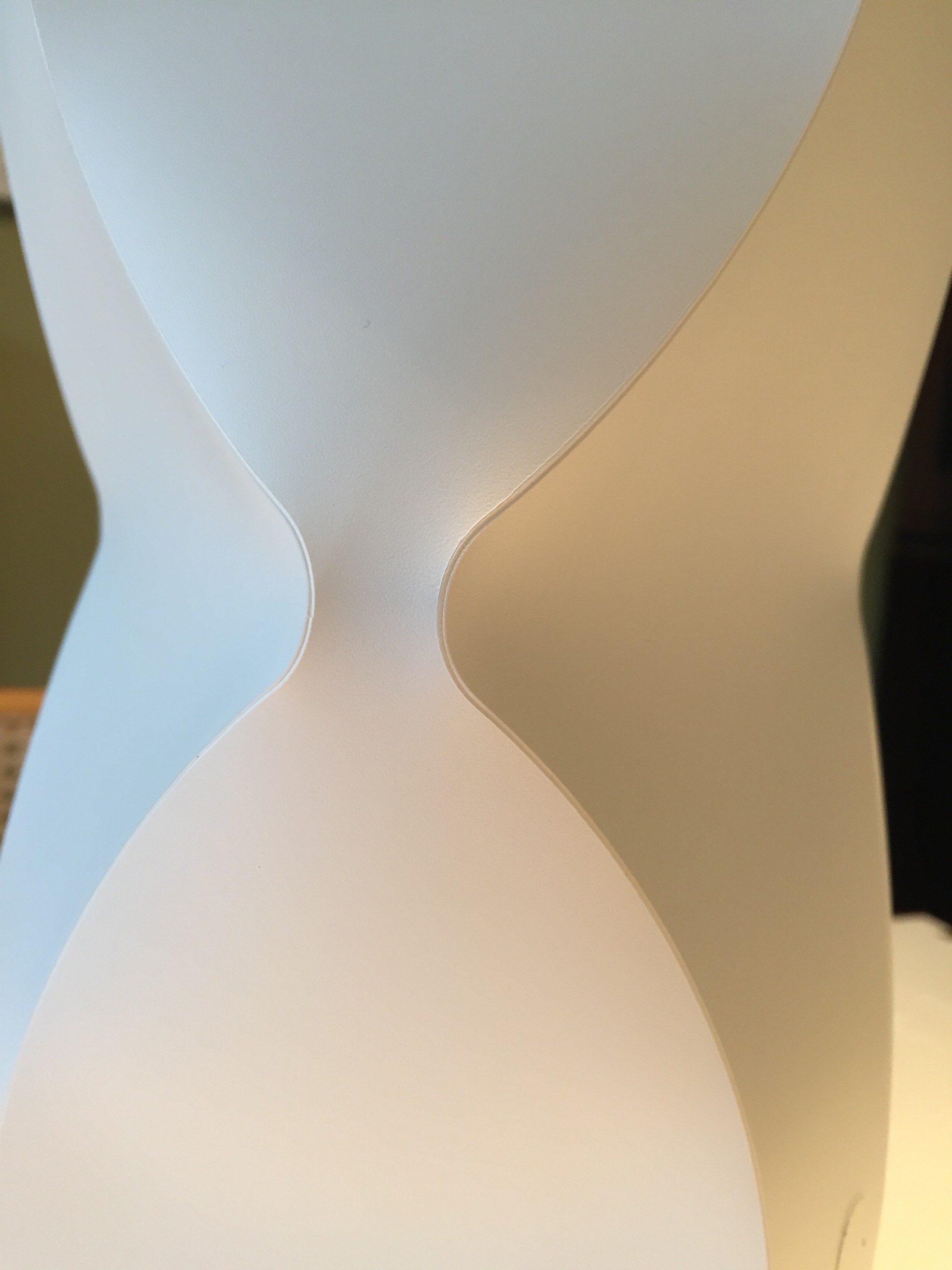

3. press in the right places to shape the curves
4. insert suspension in the lasercutted slots
5. place the suspension on the lamp stand
6. insert lightbulb
7. SWITCH ON THE LIGHT
