POLICE LIGHTS WITH VARIATION OF SPEED

We will make an intermittent circuit with the CI NE555 and we will see the sequence of lights like the police lights

GERBER PCB:

https://mega.nz/file/yQwjEJzT#y0PEId3VH2Qp5NCrYUPhW9UnNQFEDj1gXFnchrmaw8Y

Like all my projects, I share the schematic diagram so that you can do it yourself. The schematic diagram was designed in EASYEDA, a very professional and free electronic circuit design software, we can observe the electronic components that we use for this project and their respective values.Like all my projects, I share the schematic diagram so that you can do it yourself. The schematic diagram was designed in EASYEDA, a very professional and free electronic circuit design software, we can observe the electronic components that we use for this project and their respective values.

This circuit provides voltage pulses that will turn the LED on and off indefinitely. The function of the integrated 555 is clock or CLOCK, that is, it is the component that generates the voltage pulses.

The frequency or speed of the pulses produced by the integrated circuit 555 depends on the values ​​of the resistors R1 and R2 and the capacitor C1.

When pin 3 of the IC is LOW or zero volts, current flows from the positive to the LED, to the resistor, and then to the negative of pin 3. Therefore the LED is turned on.

When pin 3 of the IC is HIGH, no current flows through the LED diode because it has two high voltages across the LED diode and resistor R3. Therefore the LED diode turns off.

So what function does a 555 integrated circuit fulfill?

The 555 integrated circuit is used as a timer, pulse generator, or oscillations. It can also be used as a flip-flop integrated circuit.

• 9 RESISTORS 1/4W 100ohms
• 2 RESISTORS 1/4W 1K
• 1 CI NE555
• 1 500K POTENTIOMETER
• 1 CAPACITOR ELECTROLITO 100uF 50V
• 1 CAPACITOR ELECTROLITO 10uF 50V
• 1 JACK DC
• 16 DIODES LEDS 5MM RED
• 16 DIODES LEDS 5MM BLUE
• 2 TRANSISTORS 2N2222A
• 1 PCB

• VIN 12VDC
• I MAX 100mA
• SPEED VARIATION
• BLINKING LIGHTS
• HIGH OUTPUT FREQUENCY

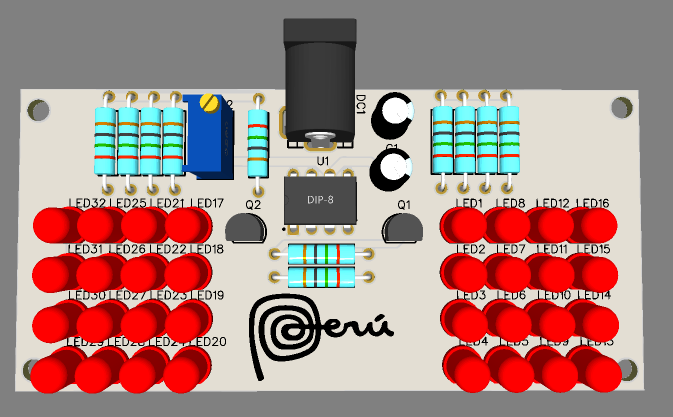

The following project was carried out in the PROTEUS software, we can observe its connection paths and its 3D image
