PLC Programming WPLSoft & ISPSoft Simulator

#WPLSoft & #ISPSoft simulator steps

#WPLSoft #ISPSoft #plc programming #simulator

ISPSoft simulator need to install COMMGR to run a simulator

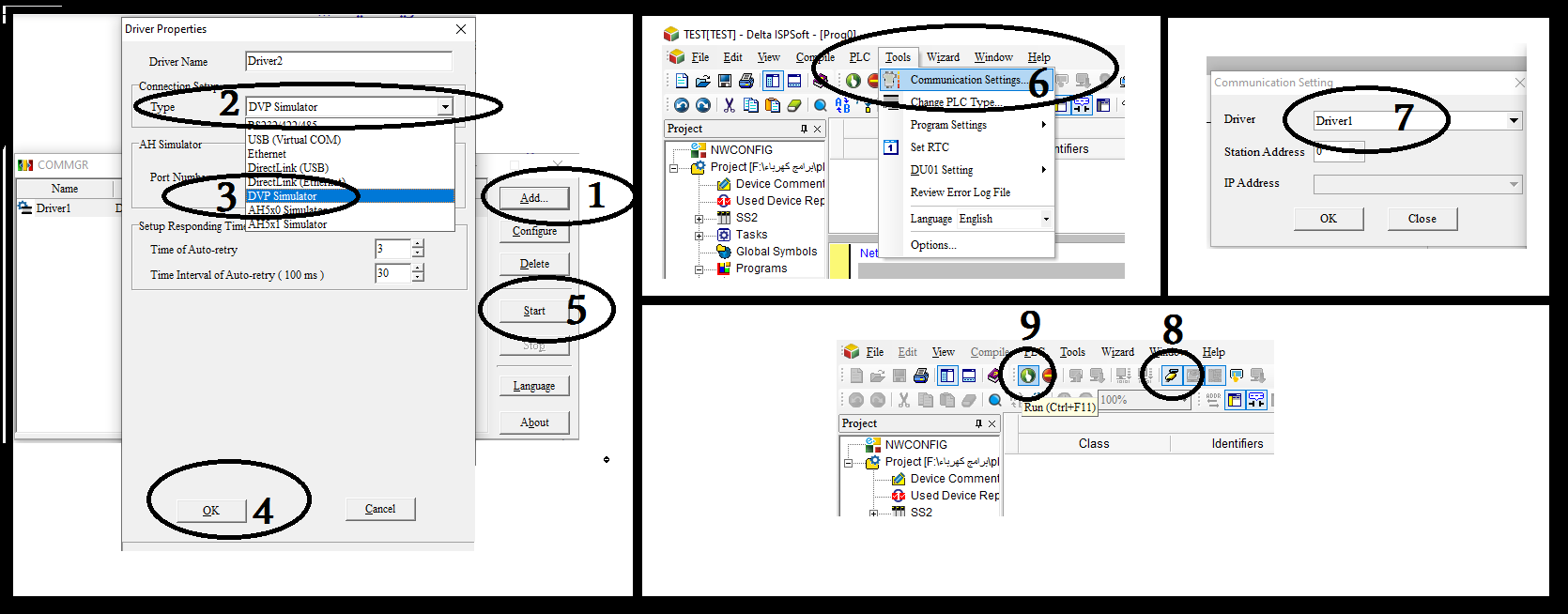

1- open Commgr add driver (#DVP simulator) and start it follow image steps 1 to 5.

2 open ispsoft select communication settings from tools menu image step 6.

3 choose the driver name image step 7.

4 click on online mode then run step 8 then 9.

After programing you can simulate your program click on the below

simulator button 1 on image. to choose a simulator as a communication

Online mode button 2 on image. to start test and simulate your program

to view the input output state you can select (ladder monitoring) or (stop ladder monitoring)

to run the PLC and push an X0 input click the below

run button 3 on image. (put PlC ON Run Mode)

set on 4 on image. (active the input)

set off 5 on image. (de-active the input)
