PLASMA RAY GUN (20000 VOLTS)
by devamparmar000 in Circuits > Electronics
56 Views, 0 Favorites, 0 Comments
PLASMA RAY GUN (20000 VOLTS)
![Screenshot_20210307-125543_Video_Player-02[1].jpeg](/proxy/?url=https://content.instructables.com/FYA/IMD4/KMM133AI/FYAIMD4KMM133AI.jpg&filename=Screenshot_20210307-125543_Video_Player-02[1].jpeg)
HELLO AND WELCOME BACK !!!!
Understanding and playing with plasma arcs ( the 4th state of matter ) is quite interesting but do we have a complete knowledge about it or can we build one on our own !!!!
AS being a fan of plasma arcs I thought why not to create a high voltage plasma power source that could spit out plasma arcs . Plasma arcs are fascinating to look at and can sooth you for a while ! It has a lot of applications and plasma physics is a vast field of study .
So This build is gonna be mind blowing
LET'S GET STARTED !!!!!
Supplies
* FLYBACK TRANSFORMER (OLD CRT TV'S OR TIG MACHINES)
* A RAY GUN KIND OF THING
* 10 - 15 VOLTAGE POWER SOURCE
* T0 220 HEAT SINK
* SOLID CORE WIRES
* IRF Z44 N N CHANNEL MOSFET OR SOME POWER MOSFETS
* 150 OHM RESISTORS
WATCH THE VIDEO FIRST
![20000 VOLTS PLASMA POWER SOURCE ( USING FLYBACK TRANSFORMERS) !](/proxy/?url=https://content.instructables.com/FI1/XW02/KMM131TZ/FI1XW02KMM131TZ.jpg&filename=20000 VOLTS PLASMA POWER SOURCE ( USING FLYBACK TRANSFORMERS) !)
WATCH THE VIDEO FOR BETTER UNDERSTANDING THE PLASMA POWER SOURCE AS WELL AS THE CIRCUIT !!!
FLYBACK TRANSFORMERS
![Screenshot_20210324-150458_Video_Player[1].jpg](/proxy/?url=https://content.instructables.com/FU2/G88X/KMM13376/FU2G88XKMM13376.jpg&filename=Screenshot_20210324-150458_Video_Player[1].jpg)
![Screenshot_20210324-152121_Video_Player[1].jpg](/proxy/?url=https://content.instructables.com/FWZ/S2HQ/KMM1337I/FWZS2HQKMM1337I.jpg&filename=Screenshot_20210324-152121_Video_Player[1].jpg)
Flyback transformers are one of the most widely use high voltage source . SO where can you get it You ask ?? You can find it in OLD CRT TV'S or maybe you can buy it online .
NOTE ON FLYBACKS : Flyback transformer is the a ferrite core transformer with few primary windings and a lot of secondary windings . After supplying a voltage of around 10 volts you will get and output of around 18000 - 20000 volts . There are a lot of videos about flybacks . But one quick note if you are not able to determine the primary windings as they are difficult to find So instead wind 2 turns then center tap the other 2 turns .
GOING THROUGH THE SUPPLIES
![Screenshot_20210324-152140_Video_Player[1].jpg](/proxy/?url=https://content.instructables.com/FRU/52L6/KMM1337R/FRU52L6KMM1337R.jpg&filename=Screenshot_20210324-152140_Video_Player[1].jpg)
![Screenshot_20210324-152145_Video_Player[1].jpg](/proxy/?url=https://content.instructables.com/FDR/UR7O/KMM1337S/FDRUR7OKMM1337S.jpg&filename=Screenshot_20210324-152145_Video_Player[1].jpg)
![Screenshot_20210324-152205_Video_Player[1].jpg](/proxy/?url=https://content.instructables.com/FBI/IW4J/KMM1338C/FBIIW4JKMM1338C.jpg&filename=Screenshot_20210324-152205_Video_Player[1].jpg)
![Screenshot_20210324-150458_Video_Player[2].jpg](/proxy/?url=https://content.instructables.com/F4C/JCXV/KMM1338H/F4CJCXVKMM1338H.jpg&filename=Screenshot_20210324-150458_Video_Player[2].jpg)
The most crucial thing here is a flyback transformer , as you can se i have just burned the primary windings and now have to make my own primary with some thick coated red copper wire !!!!
We need a mosfet as a fast switching device with low rds(on). and a huge heat sink , 150 ohm gate driving resistor . a prototyping board and a ray gun kind of thing salvaged from some old pcb .
UNDERSTANDING THE SCHEMATIC
![flyback transformer.png](/proxy/?url=https://content.instructables.com/F3T/AZPZ/KMM13300/F3TAZPZKMM13300.png&filename=flyback transformer.png)
SCHEMATIC is quite easy to understand ,
FIrstly we supply 12 to 15 volts at the screw terminals , The supplied voltage turns the gate on through the winding and as soon as the gate turns on the drain to source path become active and induces a voltage in secondary and after a while the saturation of ferrite core turns the gate off through a feedback winding
THIS switching madness goes on and on
Switching frequency is around 15 khz and thats where the audible frequency lies .
START BUILDING
![Screenshot_20210324-150130_Video_Player[1].jpg](/proxy/?url=https://content.instructables.com/FAU/A5H1/KMM13399/FAUA5H1KMM13399.jpg&filename=Screenshot_20210324-150130_Video_Player[1].jpg)
![Screenshot_20210324-150114_Video_Player[1].jpg](/proxy/?url=https://content.instructables.com/F5W/JC93/KMM1339C/F5WJC93KMM1339C.jpg&filename=Screenshot_20210324-150114_Video_Player[1].jpg)

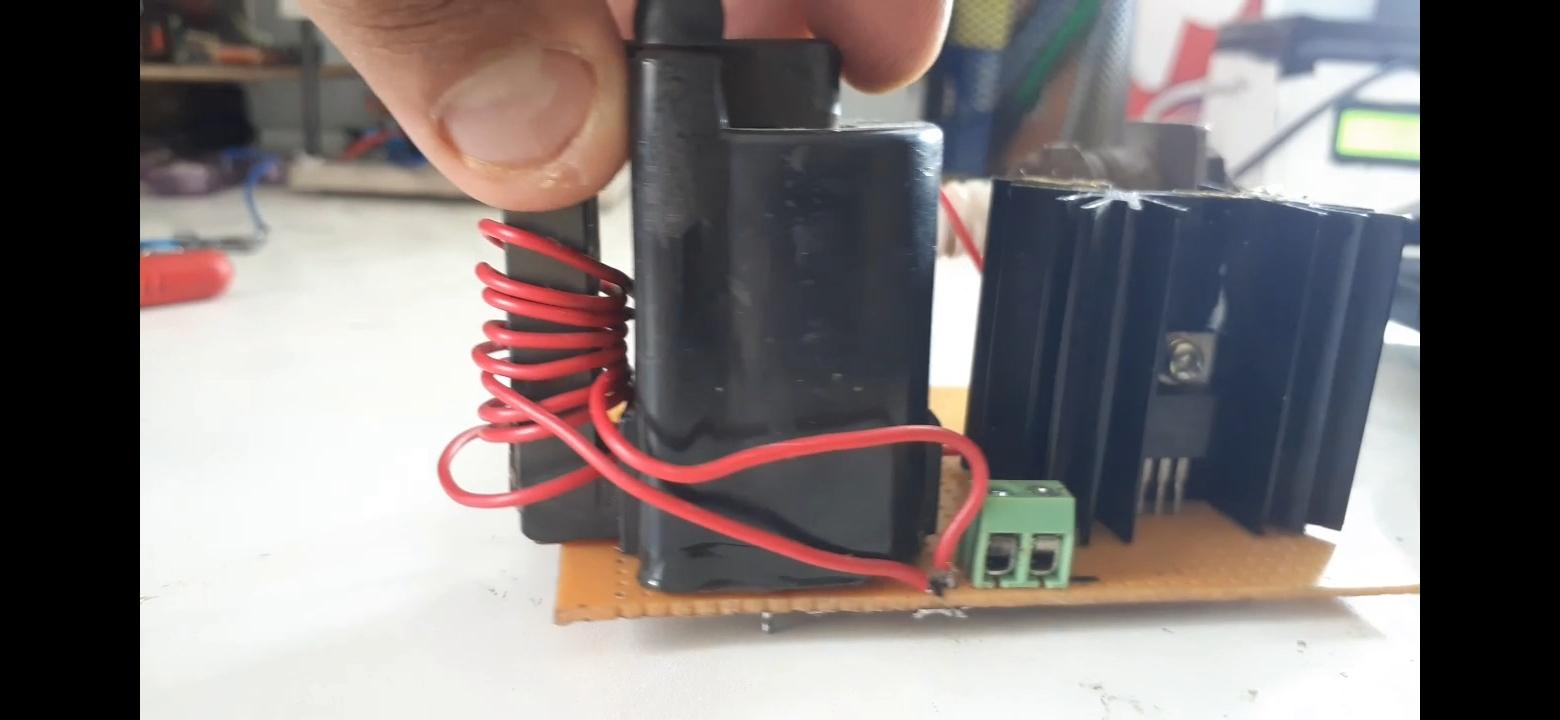

Firstly I started with fixing the ray gun kind of thing and a screw terminal around 5 cm apart and then added the flyback transformer gate driving resistor of 150 ohm and a mosfet with a huge heat sink and lastly added screw terminals for supply .
And basically we are done !!!!
DIFFERENT INERT GASES GLOWING IN PLASMA
![💥 PLASMA REACTING WITH INERT GASES 💥](/proxy/?url=https://content.instructables.com/FJ7/N9FS/KMM13310/FJ7N9FSKMM13310.jpg&filename=💥 PLASMA REACTING WITH INERT GASES 💥)
XENON ARGON NEON AND KRYPTON ARE INERT GASES THAT GLOW IN PRESENCE OF HIGH VOLTAGE !!!
