PIR Motion Sensor (Raspberry Pi)
by piddlerintheroot in Circuits > Raspberry Pi
3713 Views, 24 Favorites, 0 Comments
PIR Motion Sensor (Raspberry Pi)

How to setup a PIR sensor with the Raspberry Pi.
Parts

RPI 3 - https://amzn.to/2VA9pQY
4 Amp Power Adapter - https://amzn.to/2CTptWu
16GB micro SD - https://amzn.to/2SFMwd3
120 pcs jumper cable: https://ebay.to/2VAb9cY
PIR Sensor: https://amzn.to/2RFogdC
LED Assortment - https://amzn.to/2RbLOYa
Miny Breadboard - https://amzn.to/2Ffviz5
Wiring/Schematic

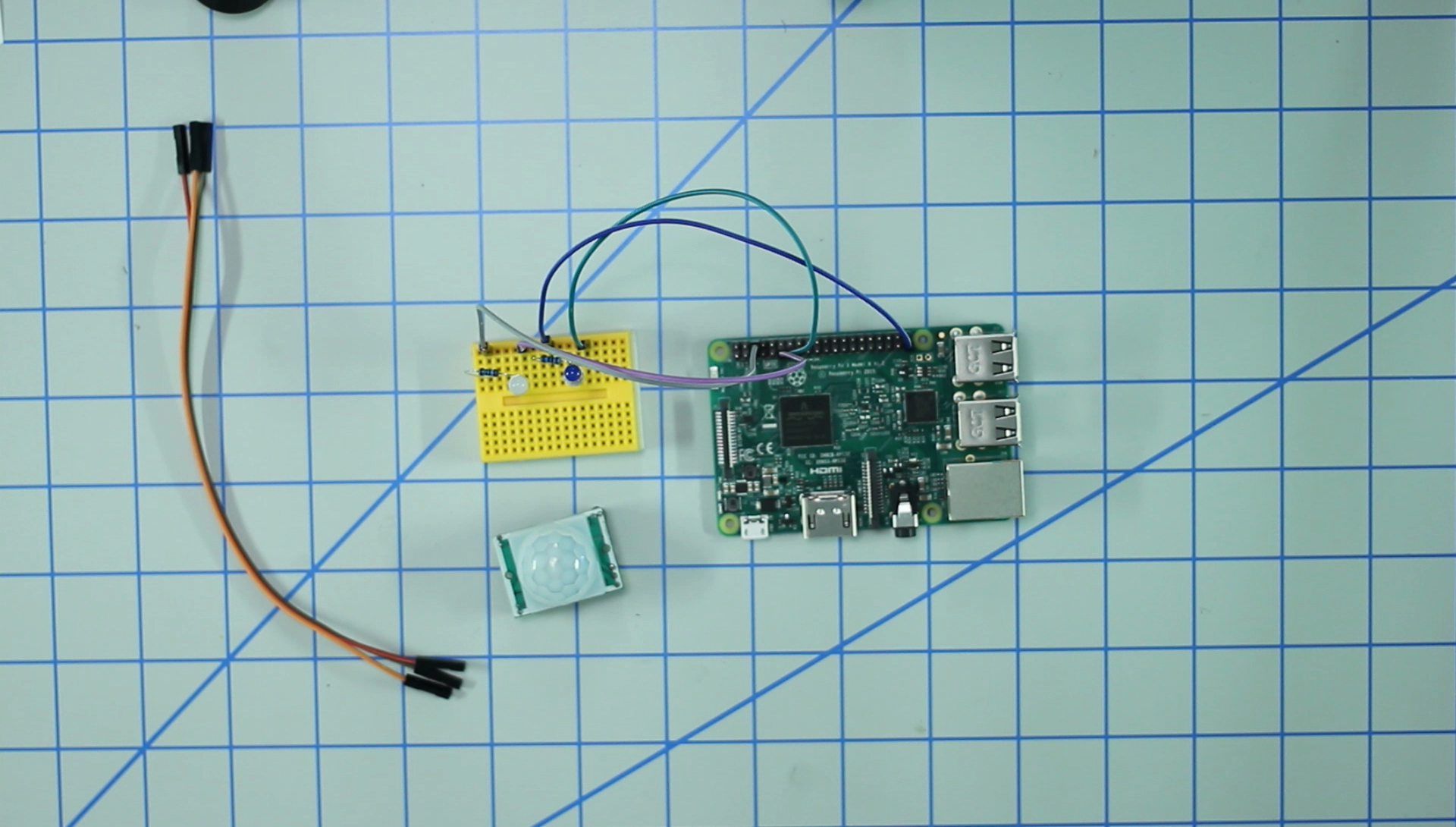

Hook up components to the raspberry pi as displayed in the diagram.
Setup

Follow along in the video to setup the PIR sensor and click the link below for additional information.
Online Guide: http://www.piddlerintheroot.com/pir-sensor/
