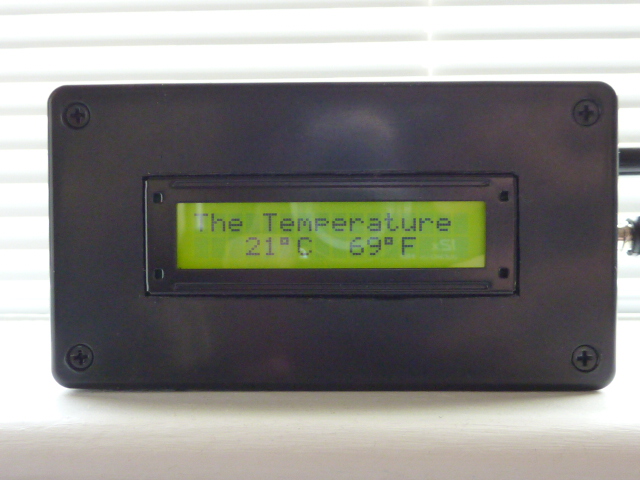

PICAXE - DS18B20 Temperature Sensor to LCD
It may be possible to do this with a lesser processor than the 20X2, however I happened to have some of these available and had experimented with this processor on a breadboard beforehand, so this is what I used.
Before starting I'd like to acknowledge the excellent articles and code examples provided by Ron Hackett in his many Nuts & Volts magazine articles and "Evil Genius" book, which I used to teach myself about Picaxe processors. Ron's articles motivated me to get moving and do some projects! You may also find lots of code examples and help on his website www.jrhackett.net .
Parts List
PICAXE 20X2 Microcontroller
16 X 2 LCD - UniQ/eVision GC-1602I1 or equivalent
DS18B20 Temperature Sensor
5V wall wart - SPS10A-001 or equivalent
(You can also use a battery and clip, e.g. 3 x AAA instead of a wall wart - but do not exceed 5V!!)
A jack which matches the power connector on your wall wart
2.5 mm Stereo Jack - Temperature sensor connection
2.5 mm Stereo Plug -Temperature sensor connection
3.5 mm Stereo Jack - Programming connection
PICAXE USB Programming Cable AXE027
5K Potentiometer
10k resistor
22k resistor
4.7k resistor
Solder
Hook up wire
Scrap Cat5 cable - for connecting the LCD to the circuit board or equivalent multi-conductor cable
2" x 3 " protoboard
4.4" X 2.5" x 1.5" (approx) plastic project box
4 Hex Spacers about 1/2" long
4 Nuts & bolts to fit in the Spacers
Cable ties
Hot Glue
The Circuit

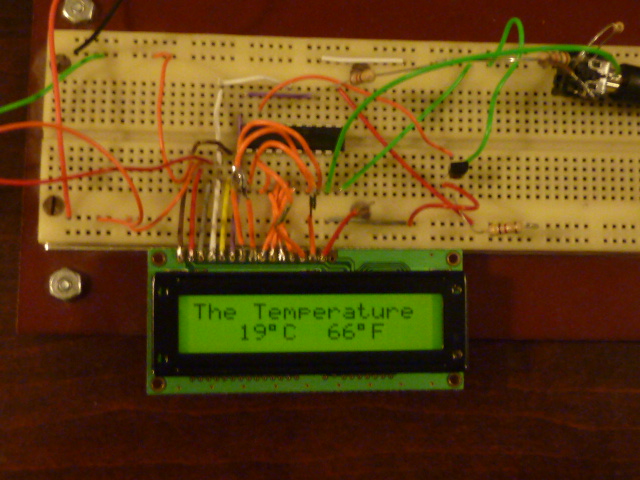

Breadboard It First
In this case I had a spare LCD, which is used for other experiments, don't be afraid to solder jumper wires to the LCD to connect it to the board, even if you only have one. You can easily de-solder them later, and they are reasonably robust as long as you follow basic
ant-static precautions. Here you see how simple it is - just the LCD, PICAXE, Temp sensor and programming jack.
The Program
Below the program is pasted in. You can basically follow how it works by reading the program comments. More experienced programmers will probably know how to write simpler and more efficient code. What can I say, this is my first attempt, and it seems to work.
' ************** TemperatureSensor.bas **************
' This program runs on a PICAXE-20X2 at 4MHz which reads the temperature from a
' DS18B20 temperature sensor & sends it to an HD44780 compatible 16x2 LCD display.
'
' Developed by Simon Carter March 10, 2013.
' *** Constants ***
symbol EnablePin = C.7 ' LCD Enable pin connected to C.7
symbol RegSelPin = C.4 ' LCD Register Selelect pin connected to C.4
symbol TempPin = C.1 ' Temperature sensor data connected to C.1
' *** Variables ***
symbol char = b0 ' character to be sent to LCD
symbol index = b1 ' used as counter in For-Next loops
symbol degc = b2 ' the temperature value received from the DS18B20 sensor
symbol intgval=b3 ' used to temporarily hold each integer value extracted from the number received from the sensor
symbol degflag = b4 ' a flag used when dealing with negative temperature ranges. 0 = Postive range, 1 = Negative range
symbol degf = b5 ' used for holding degrees farenheight values
' *** Directives ***
#com 3 ' specify download port
#picaxe 20X2 ' specify processor
#no_data ' save time downloading
#terminal off ' disable terminal window
' *** Table ***
Table 0, ("The Temperature ")
' *** Main Program ***
dirsB = %11111111 ' set all portB pins as outputs
dirsC = %10111001 ' set C.6 and C.2, C.1 as inputs
pullup %00000010 ' enable C.6 internal pullup resistor
' *** Initialize the LCD ***
pause 200 ' pause 200 mS for LCD initialization as per HD44780 specs
char = 56 ' setup for 8-bits, 2 lines & 5X8 display
gosub CmdLCD ' send instruction to LCD
char = 12 ' display on, cursor off
gosub CmdLCD ' send instruction to LCD
char = 1 ' clear display,go home to line 1 of LCD display
gosub CmdLCD ' send instruction to LCD
wait 1
' *** Send text - "Temperature"to line 1 of the LCD ***
for index = 0 to 15
readtable index, char ' read text characters in the Table
gosub TxtLCD ' send text in the Table to LCD
next index
' *** Main loop - read DS18B20 sensor ***
do
char = 194 ' move cursor to the start of line two
gosub CmdLCD ' send the instruction to LCD
readtemp TempPin, degc ' read the temperature value received from the DS18B20 sensor on pin C1.0
pause 800 ' pause >750 mS for sensor as per DS18B20 specs
' degc = 24 insert temperature test values here to check code function
degflag = 0 ' reset the flag to 0 i.e. assume positive temperature range to start with
gosub BelowZeroC ' check for below zero temperatures
gosub IntgOnly ' extract 10's and 1's integers from DS18B20 data
gosub DegCsign ' generate deg C sign
gosub CheckFlag ' check if dealing with temperatures in the minus range and adjust degc value
gosub BelowZeroF ' check for below zero temperatures
gosub DegFsign ' check for below zero temperatures
' generate deg F sign
loop
' *** Subroutines ***
CmdLCD:
low RegSelPin ' set up LCD for a command byte
goto LoadLCD
TxtLCD: ' set up LCD for text byte
high RegSelPin
LoadLCD: ; execute loading byte into LCD
outpinsB = char ' load byte onto outpinsB
pulsout EnablePin,1 ' load bytes onto LCD
return
LoadIntgLCD: ' execute loading temperature text byte that has been converted to an integer
high RegSelPin ' set up LCD for text byte
outpinsB = intgval ' load byte onto outpinsB
pulsout EnablePin,1 ' execute loading byte into LCD
return
IntgOnly: ' extract 100's, 10's and 1's integers from DS18B20 data
for index = 2 to 0 step -1 ' set index to extract 100's integer first then 10's integer then 1's
let intgval = degc dig index ' Use DIG function to extract integers
if intgval = 0 and index =2 then let intgval =%00100000 'Blank any leading "0" on display
else if intgval = 0 then let intgval =%00110000 ' Convert integers to LCD character codes
else if intgval = 1 then let intgval =%00110001
else if intgval = 2 then let intgval =%00110010
else if intgval = 3 then let intgval =%00110011
else if intgval = 4 then let intgval =%00110100
else if intgval = 5 then let intgval =%00110101
else if intgval = 6 then let intgval =%00110110
else if intgval = 7 then let intgval =%00110111
else if intgval = 8 then let intgval =%00111000
else if intgval = 9 then let intgval =%00111001
endif
gosub LoadIntgLCD ' execute loading temperature text byte that has been converted to an integer
next index
return
DegCsign: ' create Degrees C text on display
intgval =%11011111 ' set character to be sent to LCD to "Degree" Character Code
gosub LoadIntgLCD ' send characters to LCD
intgval =%01000011 ' set character to be sent to LCD to "C" Character Code for Centigrade
gosub LoadIntgLCD ' send characters to LCD
intgval =%00100000 ' set character to be sent to LCD to " " Character Code for a space before the farenheight value
gosub LoadIntgLCD ' send characters to LCD
return
DegFsign: ' create Degrees F text on display
intgval =%11011111 ' set character to be sent to LCD to "Degree" Character Code
gosub LoadIntgLCD ' send characters to LCD
intgval =%01000110 ' set character to be sent to LCD to "F" Character Code for Farenheight
gosub LoadIntgLCD ' send characters to LCD
return
intgval =%00100000 ' set character to be sent to LCD to " " Character Code for a space after farenheight value to clear when minus sign used
gosub LoadIntgLCD ' send characters to LCD
intgval =%00100000 ' set character to be sent to LCD to " " Character Code for a space after farenheight value to clear when intgval>100 used
gosub LoadIntgLCD ' send characters to LCD
DegFcalc: ' derive Farenheight value for positive Farenheight readings
degc=degc*9/5+32 ' calculate Farenheight value from Centigrade value
gosub IntgOnly ' begin process to extract 100's, 10's and 1's integers for Farenheight value
debug
return
DegFcalcPos: ' derive Farenheight value for positive Farenheight readings when celcius is negative
degc=degc*9/5 ' calculate Farenheight value from Centigrade value
degc=32-degc ' calculate Farenheight value from Centigrade value
gosub IntgOnly ' begin process to extract 100's, 10's and 1's integers for Farenheight value
return
DegFcalcNeg: ' derive Farenheight value for negative Farenheight readings
degc=degc*9/5-32 ' calculate Farenheight value from Centigrade value
gosub IntgOnly ' begin process to extract 100's, 10's and 1's integers for Farenheight value
return
MinusSign:
intgval ="-" ' set character to be sent to LCD to "minus sign" Character Code
gosub LoadIntgLCD
return
BelowZeroC: ' check for below zero deg C
select case degc
case 0 to 125 ' ignore this case - temperature in the normal positive range
case 129 to 183 ' the case where celsius is in the minus range send a minus sign character to LCD
degc=degc-128 ' correct for the DSDS18B20 setting MSB to "1" or 128 for minus temperature condition
degflag = 1 ' set flag indicating negative temperature condition
gosub MinusSign ' the case where celsius is in the minus range send a minus sign character to LCD
endselect
return
BelowZeroF:
select case degc
case 0 to 124 ' ignore this case - temperature in the normal positive range
gosub DegFcalc
case 129 to 146 ' the case where only celsius is in the minus range
degc=degc-128 ' correct for the DSDS18B20 setting MSB to "1" or 128 for minus temperature conditio
gosub DegFcalcPos
case 147 to 183 ' the case where farenheight is in the minus range send a minus sign character to LCD
degc=degc-128 ' correct for the DSDS18B20 setting MSB to "1" or 128 for minus temperature condition
gosub MinusSign ' the case where farenheight is in the minus range send a minus sign character to LCD
gosub DegFcalcNeg
endselect
return
CheckFlag:
if degflag = 1 then let degc = degc+128 ' Reset the correction for the DSDS18B20 setting MSB to "1" or 128 for minus temperature condition
endif
return
Program the PICAXE
Build It
Step 1 is to cut a hole in the plastic box for the LCD to fit in. This is not easy to do neatly but you can do it by measuring the LCD carefully, applying masking tape to the box and drawing the outline of the LCD carefully. Next use a sharp exacto knife and a steel straight edge as a guide to keep the line straight to cut out the hole in the box. Remove the tape finished.
Step 2 is to drill holes in the box for the power jack, temperature sensor jack and holes to bolt the standoffs and circuit board to the box.

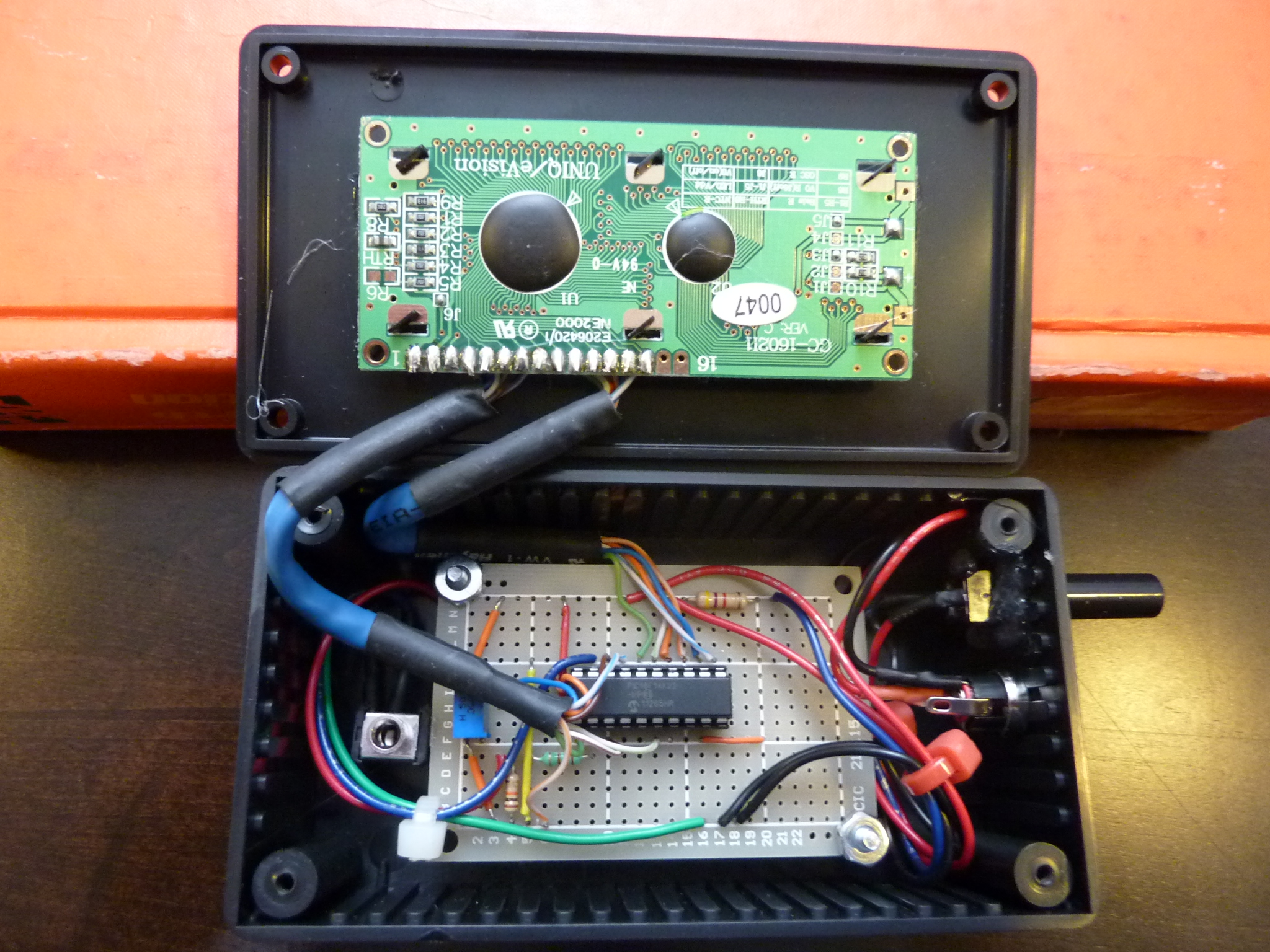

Step 3 is to solder the parts onto the circuit board and connect them as per the circuit diagram. You can install the PICAXE programming jack right on the circuit board or on a short pig tail and then hot glue it in a convenient spot in the box so that it does not move around or accidently short anything out.

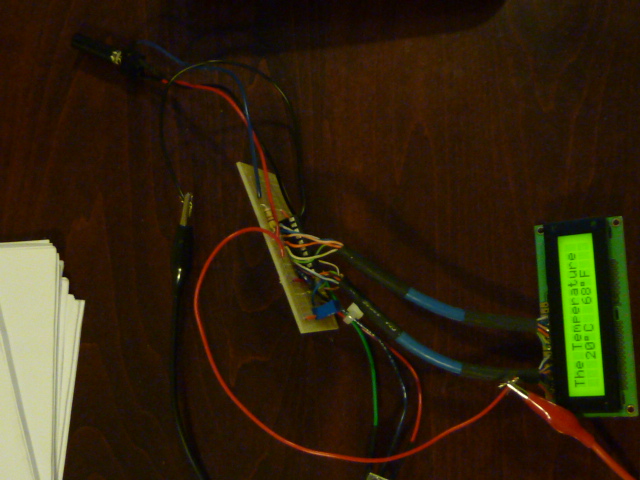

Step 4 is to connect the LCD to the circuit board using any appropriate multiconductor wire. I used a couple of pieces of scrap CAT5 cable but just about anything will work including individual strands of wire.
Step 5 is to connect the circuit gnd and + 5 to the power jack and the wires from the circuit board to the temperature sensor jack making sure that you note which pin connects to where on the circuit board. Use heat shrink tubing on exposed connections.
Step 6 is to mount the temperature sensor inside a 2.5 mm stereo plug. Just connect the 3 pins of the sensor to the 3 connection pins in the plug and make sure they correspond to the correct connections on the circuit board. Here I used heat shrink to keep the pins from shorting out. Next screw the cap on the the plug and fill the end with hot glue.
Step 7 is to put the LCD into the hole in the plastic case and hot glue it in to place - tack at either end is enough. Install the power and temperature sensor jacks into the holes you drilled earlier. Bolt the circuit board into place using the pre-drilled holes at each corner of the circuit board.
