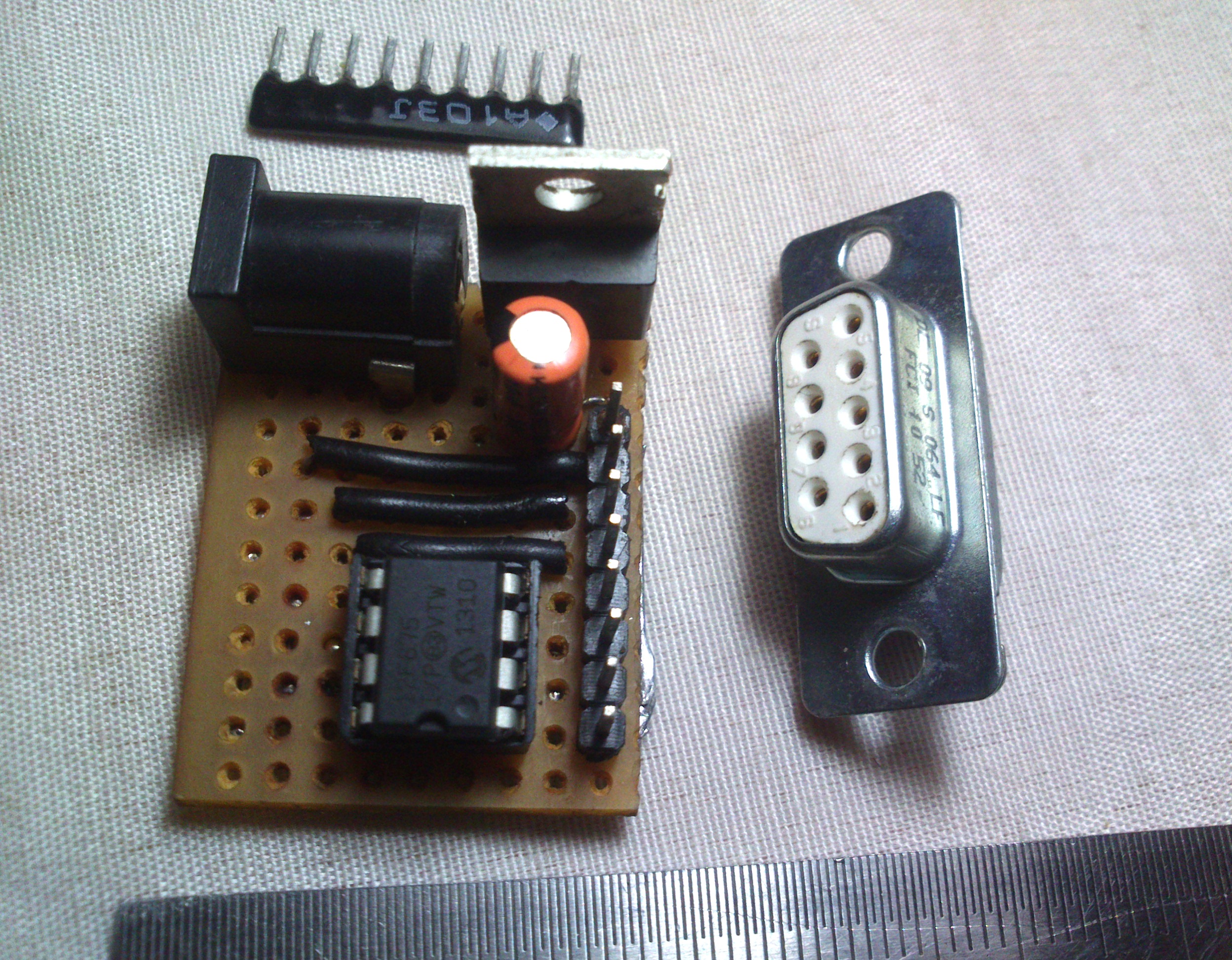

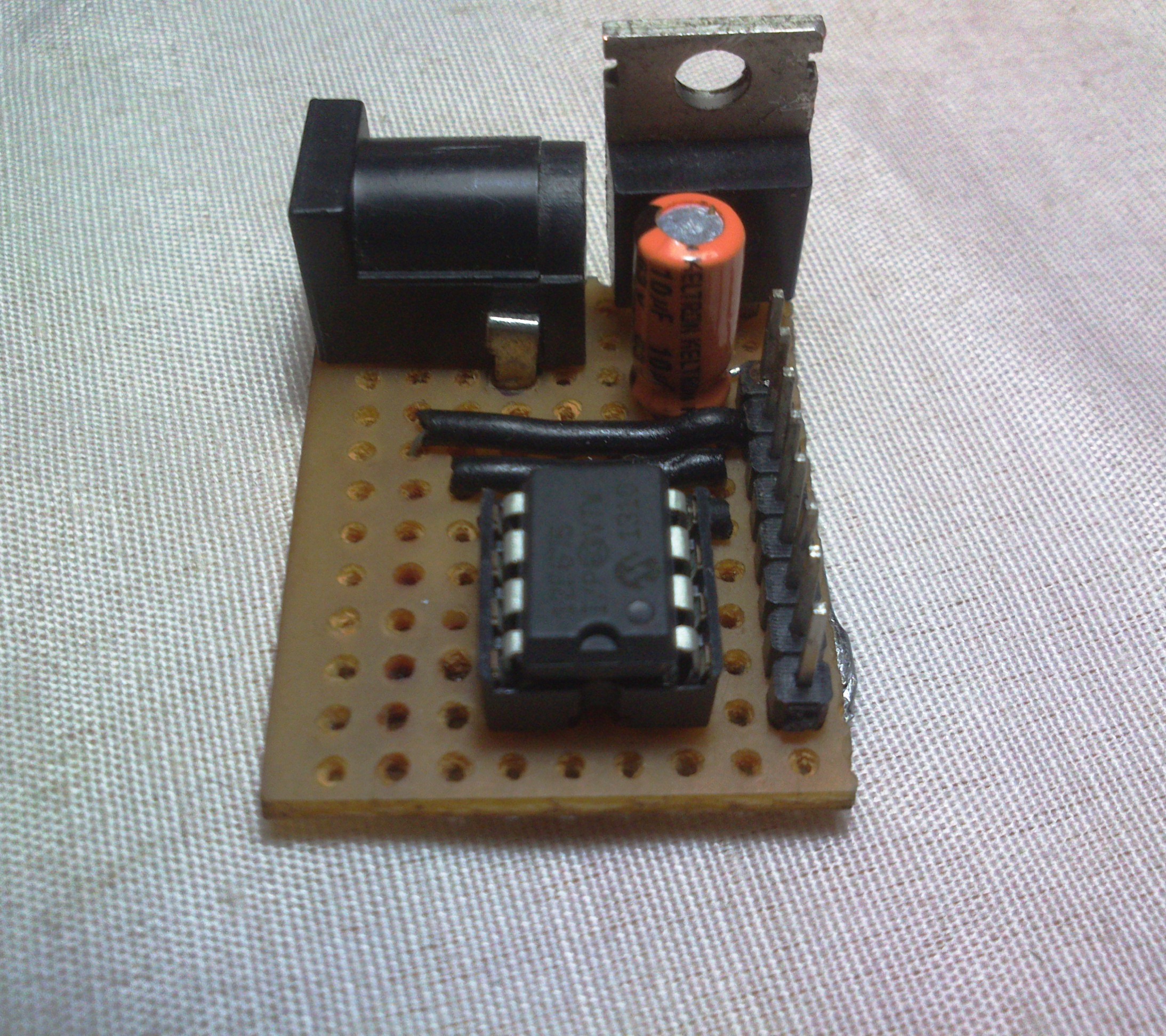

PIC12F675 Development Board Micro Size 3.0 Cm X2.5 Cm

PIC12F675 features

28 bytes of EEPROM data memory,
Programmable pull-up resistors,
 4 oscillator selections including 4 MHz RC oscillator with programmable calibration and Power-On Reset.

Program Memory Type Flash   Program Memory (KB) 1.75
CPU Speed (MIPS) 5
RAM Bytes 64
Data EEPROM (bytes) 128
Timers 1 x 8-bit, 1 x 16-bit
ADC 4 ch, 10-bit
Comparators 1
Temperature Range (C) -40 to 125
Operating Voltage Range (V) 2 to 5.5
Pin Count 8
Cap Touch Channels 4


http://www.microchip.com/wwwproducts/Devices.aspx?dDocName=en010114

datatsheet:

1 ,  7805
2,  1uf capacitor
3,  pic12f675
3,  berg strip male connector
4, vero board
5, DC jack
6, 8 pin DIL ic socket
7, single strand wires

hitech c compiler  Config setting

__CONFIG(FOSC_INTRCIO & WDTE_OFF  & MCLRE_OFF & CP_OFF );


FOSC_INTRCIO   : internal oscillator configuration  it save OSC1 and OSC 2  GPIO pin  [GP5 and GP4]  = 2GPIO
MCLRE_OFF         : RESET internally connected to VDD                                                           [GP3] =1GPIO

https://www.instructables.com/id/low-cost-1-wire-lcd-for-8-pin-micro-controllers-ro/
