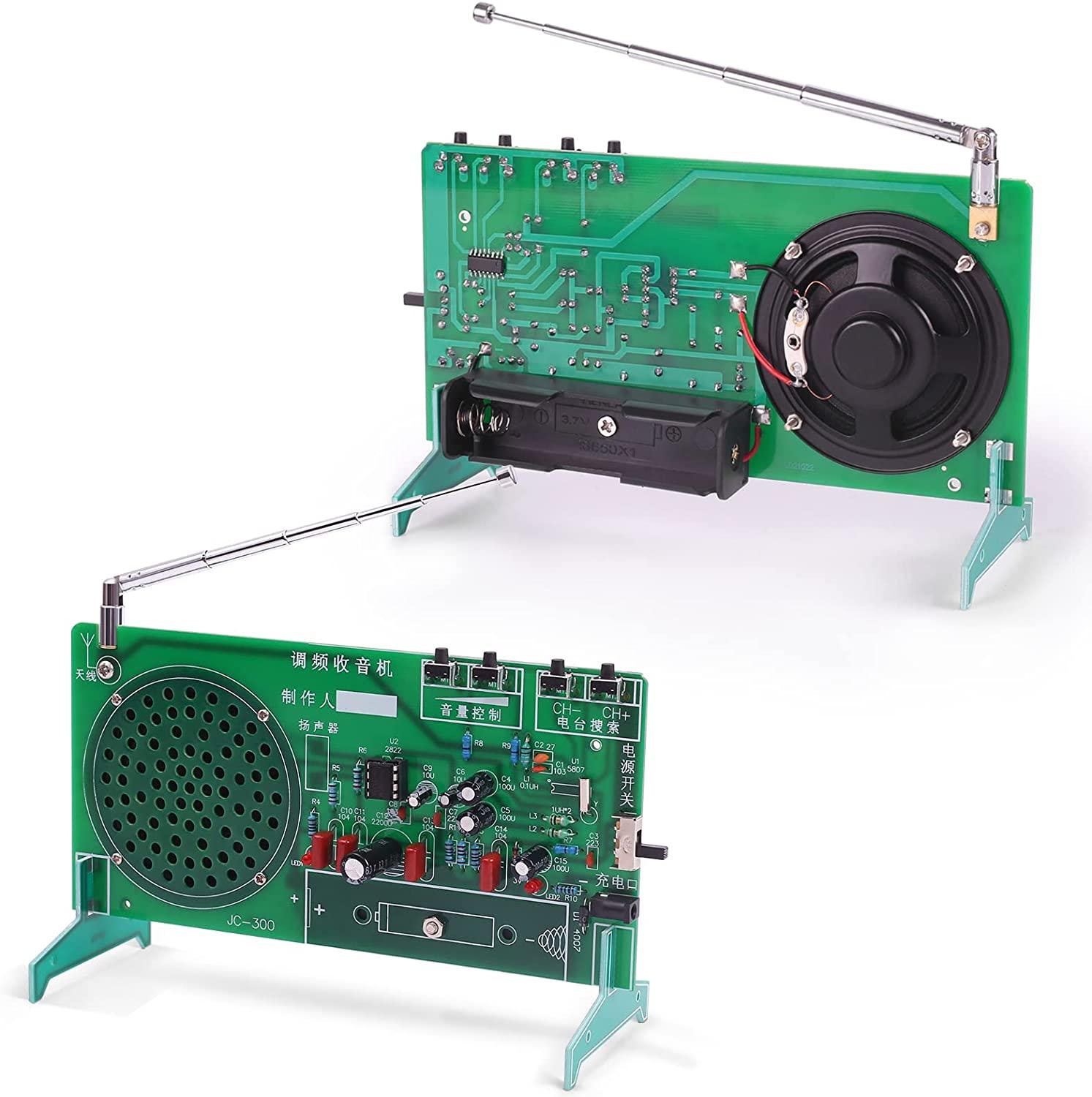

PEMENOL DIY Radio Soldering Kit

• 📻FM Radio Electronic DIY Kit: This radio electronic kit is not a finished product, you need to solder it yourself. You can download the PDF manual and follow the steps to complete the installation. Very suitable for novice and Electronics DIY'er
• 📻High-quality Radio Module:The radio module in the kit uses RDA5807, which can realize the FM reception of sound. The module has the function of noise cancellation, soft mute, high sensitivity, low noise, and strong anti-interference ability
• 📻Great Little Radio Kit for Students: The best choice for teach technology production, which can not only help your student improve the soldering level but also cultivate students' hobbies. The best gift for the elderly to improve their fun of life
• 📻With a Usb Cable to Power the Rechargeable Battery: You need to prepare a battery yourself. Using a rechargeable battery saves electricity and is easy to carry
• 💝The Best Gift for Christmas: This radio needs to be soldered manually by yourself. It is a unique work in the world. So it will be more meaningful than any other Christmas gift. It’s perfect as a present for your lover and family

Installation Tips:

1>.User needs to prepare the soldering tool at first:

1.1>.Small Phillips screwdriver

1.2>.Small wire cutters

1.3>.Fine tip soldering iron(Recommend using a fine point soldering tip)

1.4>.Good quality small gauge solder(recommend no larger than 1.0 mm)

1.5>.Magnifying glass

1.6>.1pcs 18650 battery

2>.Please be patient until the installation is complete.

3>.The package is DIY kit.It need finish install by user.

4>.The soldering iron can't touch the components for a long time(1.0 second), otherwise it will damage the components.

5>.It is recommend building the project starting with the lowest components first and working up to the highest components. This is a common practice as it makes it easier to hold the low components on the board while soldering

6>.Pay attention to the positive and negative of the components.

7>.Strictly prohibit short circuit.

8>.User must install the LED according to the specified rules.Otherwise some LED will not light.

9>.Install complex components preferentially.

10>.Make sure all components are in right direction and right place.

11>.Check that all of the LED can be illuminated.

12>.It is strongly recommended to read the installation manual before installation!!!

13>.Please wear anti-static gloves or anti-static wristbands when installing electronic components.

Install 3pcs 0ohm Metal Film Resistor at R7,R8,R9.

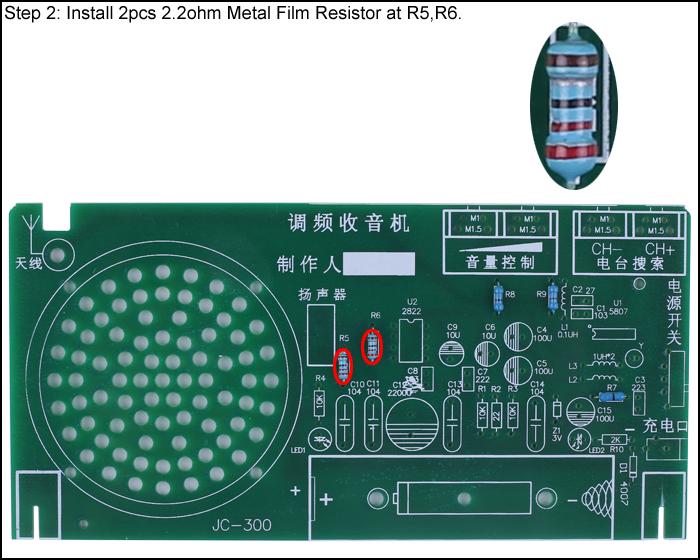

Install 2pcs 2.2ohm Metal Film Resistor at R5,R6.

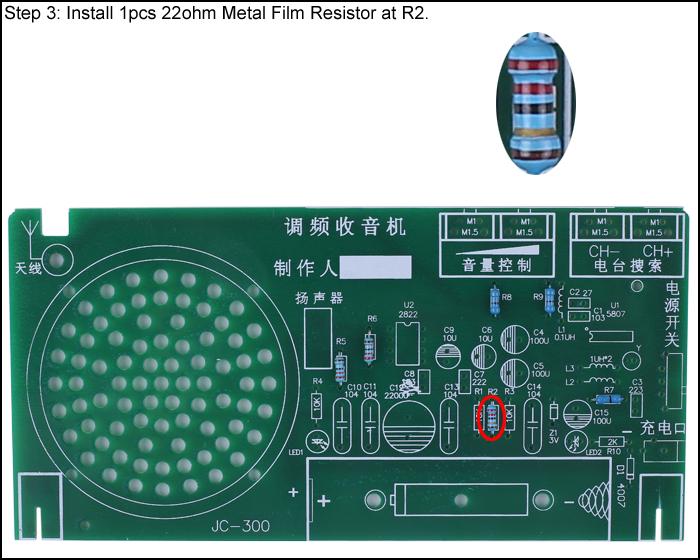

Install 1pcs 22ohm Metal Film Resistor at R2.

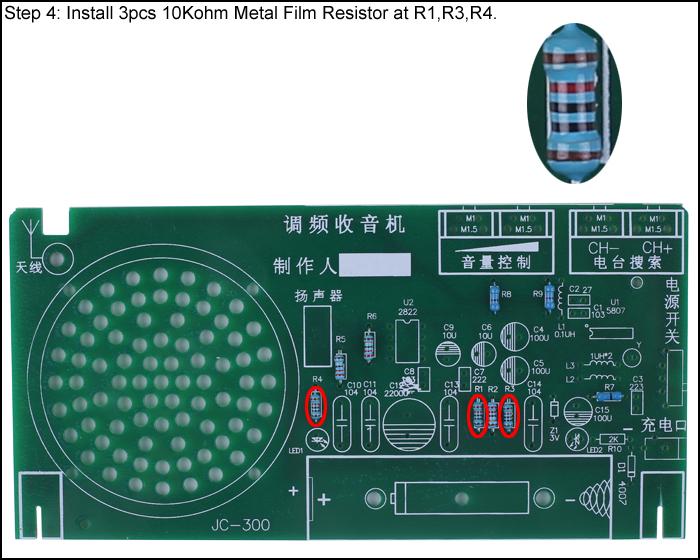

Install 3pcs 10Kohm Metal Film Resistor at R1,R3,R4.

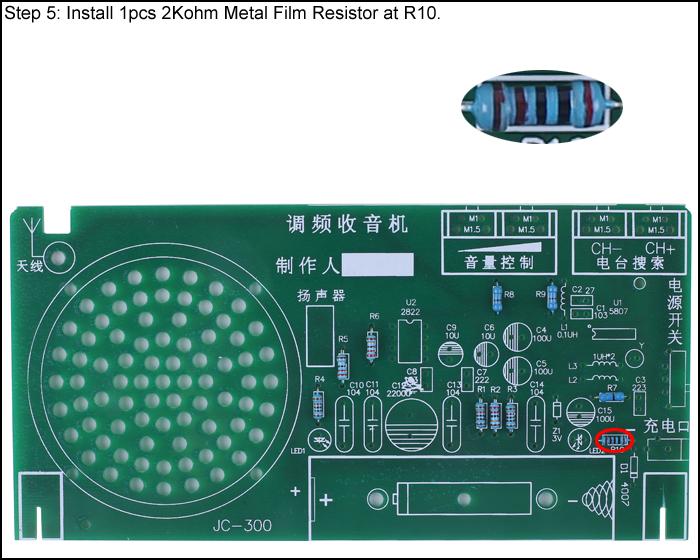

Install 1pcs 2Kohm Metal Film Resistor at R10.

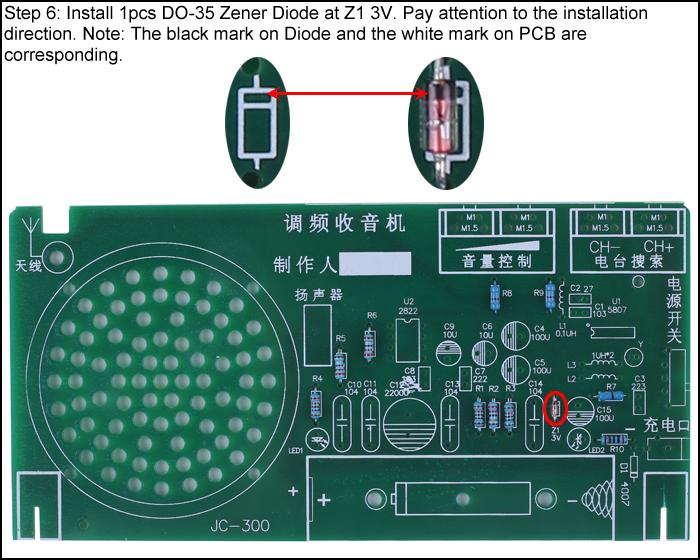

Install 1pcs DO-35 Zener Diode at Z1 3V.

Pay attention to the installation direction.

Note: The black mark on Diode and the white mark on PCB are corresponding.

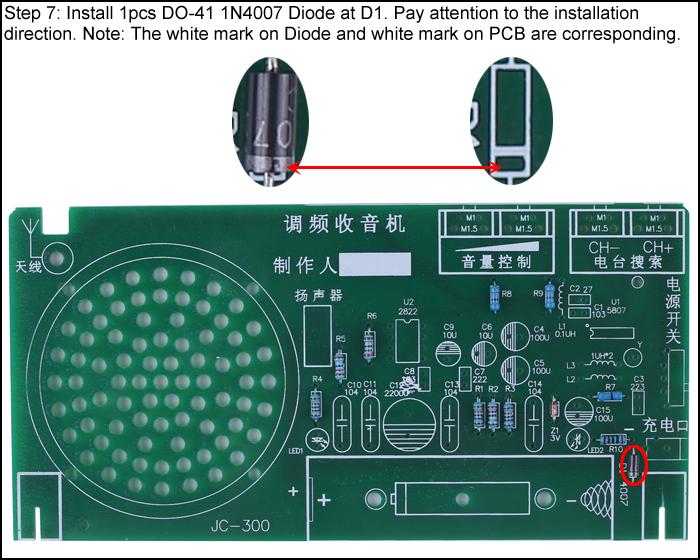

Install 1pcs DO-41 1N4007 Diode at D1.

Pay attention to the installation direction.

Note: The white mark on Diode and the white mark on PCB are corresponding.

Install 1pcs 0.1uH Inductor at L1.

Install 2pcs 1uH Inductor at L2,L3.

Install 1pcs SOP-16 RDA5807 FM Receiver at U1 on PCB another side.

There is a dot on one end of the IC and there is a dot on PCB where the IC can place on.

These two marks are corresponding to each other and are used to specify the installation direction of the IC.

Note: ‘SMD IC Installation Method’ as showing at last if user if user is not familiar with SMD chip installation.

Install 1pcs 32.768KHz Crystal Oscillator at Y.

Install 1pcs DIP-8 IC Socket at U2.

There is a mark(notch) on one end of the IC Socket and there is a mark(curved silk screen printing) on PCB where the IC Socket can place on.

These two marks are corresponding to each other and are used to specify the installation direction of the IC Socket.

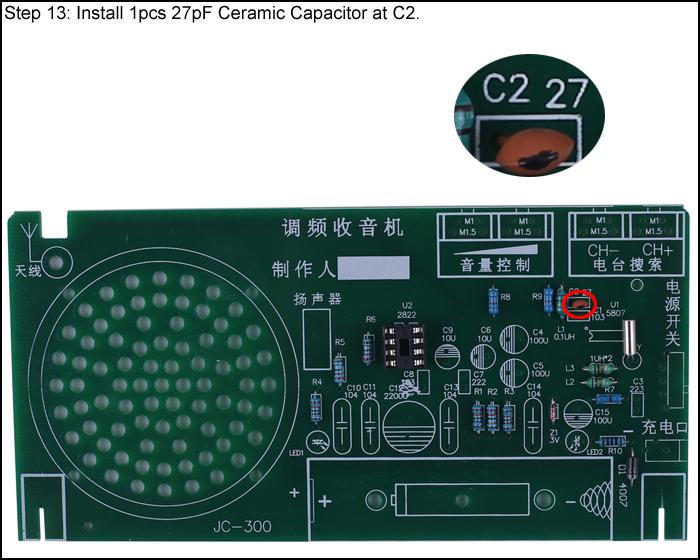

Install 1pcs 27pF Ceramic Capacitor at C2.

Install 2pcs 0.01uF 103 Ceramic Capacitor at C1,C8.

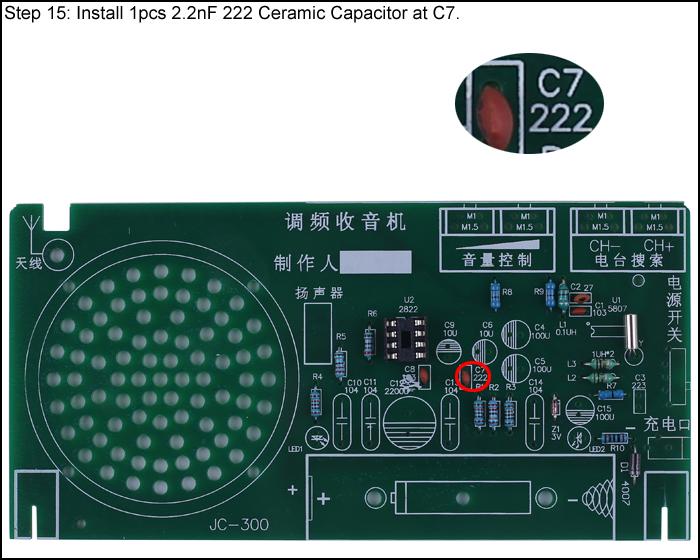

Install 1pcs 2.2nF 222 Ceramic Capacitor at C7.

Install 1pcs 22nF 223 Ceramic Capacitor at C3.

Install 2pcs 3mm Red LED at LED1,LED2.

Pay attention to the installation direction. The shorter pin is negative pole.

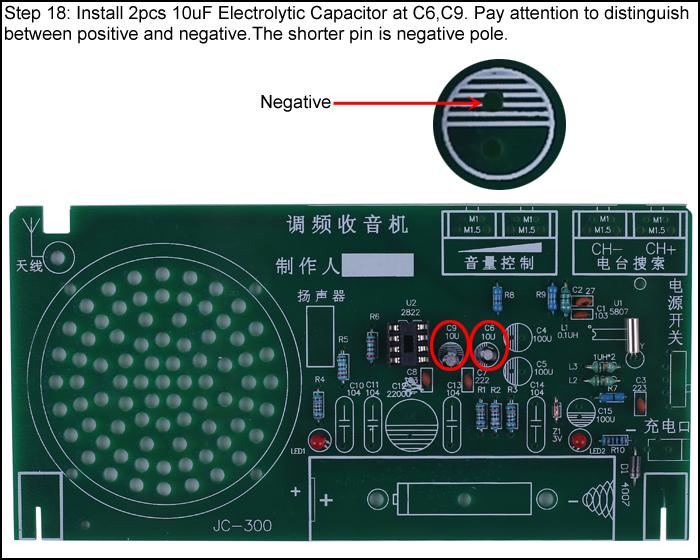

Install 2pcs 10uF Electrolytic Capacitor at C6,C9.

Pay attention to distinguish between positive and negative.The shorter pin is negative pole.

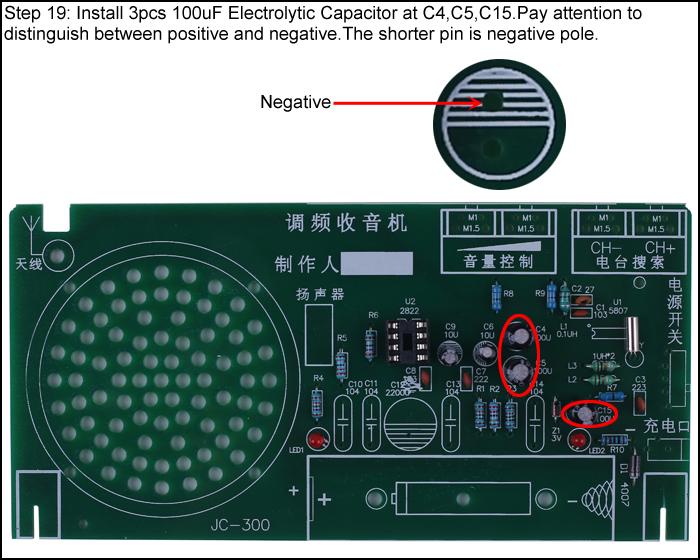

Install 3pcs 100uF Electrolytic Capacitor at C4,C5,C15.

Pay attention to distinguish between positive and negative.The shorter pin is negative pole.

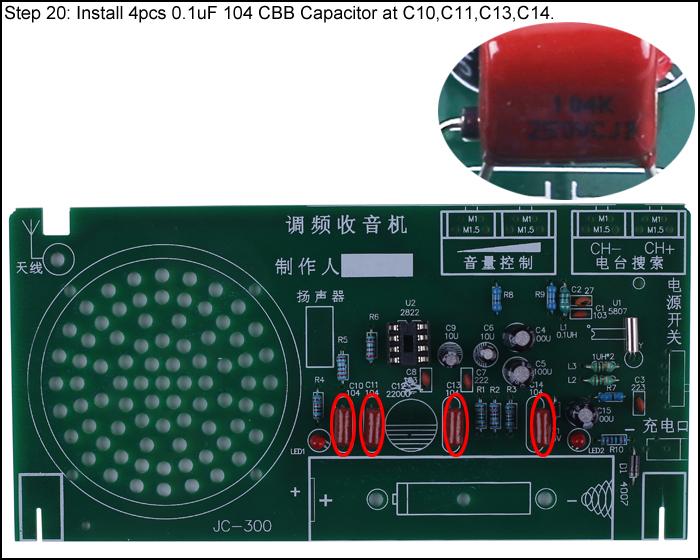

Install 4pcs 0.1uF 104 CBB Capacitor at C10,C11,C13,C14.

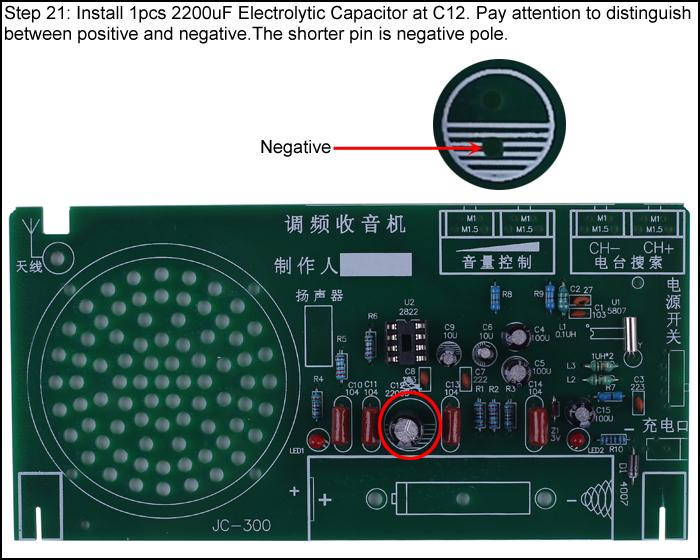

Install 1pcs 2200uF Electrolytic Capacitor at C12.

Pay attention to distinguish between positive and negative.The shorter pin is negative pole.

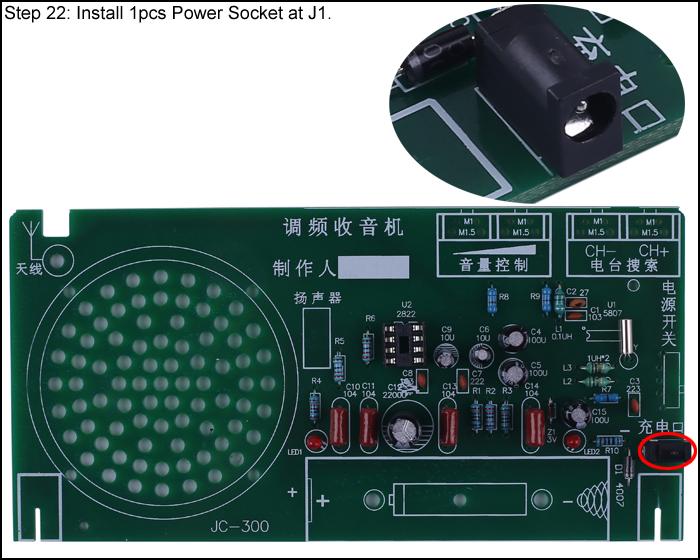

Install 1pcs Power Socket at J1.

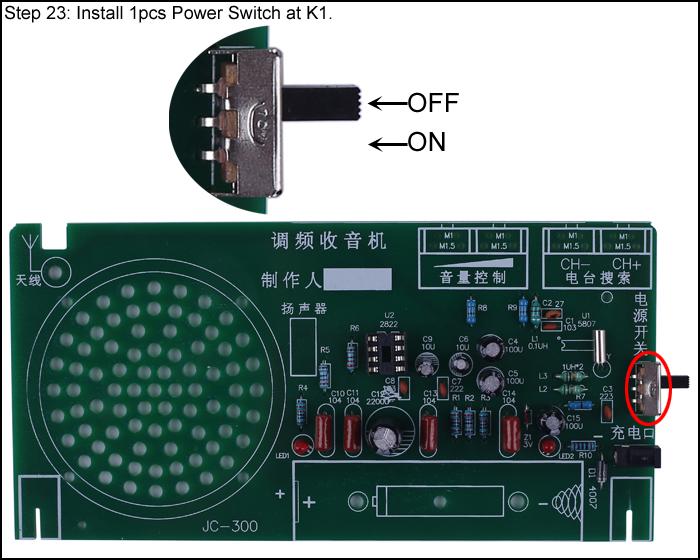

Install 1pcs Power Switch at K1.

Install 4pcs Black Button at S1-S4.

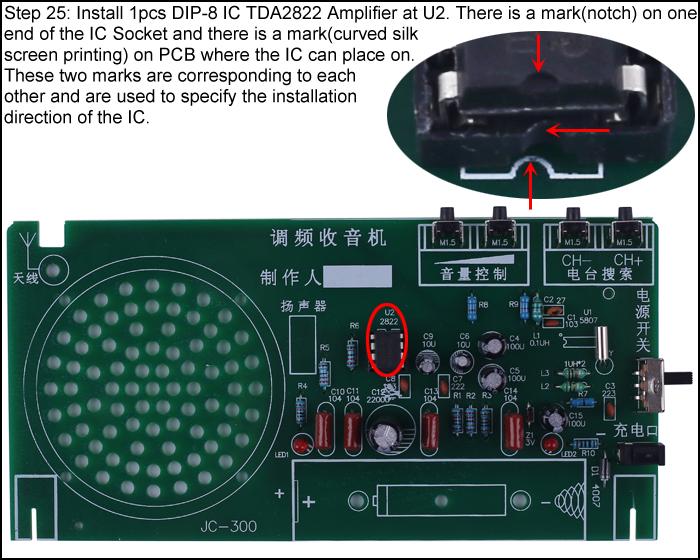

Install 1pcs DIP-8 IC TDA2822 Amplifier at U2.

There is a mark(notch) on one end of the IC Socket and there is a mark(curved silk screen printing) on PCB where the IC can place on.

These two marks are corresponding to each other and are used to specify the installation direction of the IC.

Fix Speaker on another side by 4pcs M2*10mm Screw and 4pcs M2 Nut.

Connect speaker to PCB by red/black wires.

Fix 18650 battery box by 1pcs M3*6mm Screw and 1pcs M3 Nut.

Pay attention to the installation direction.

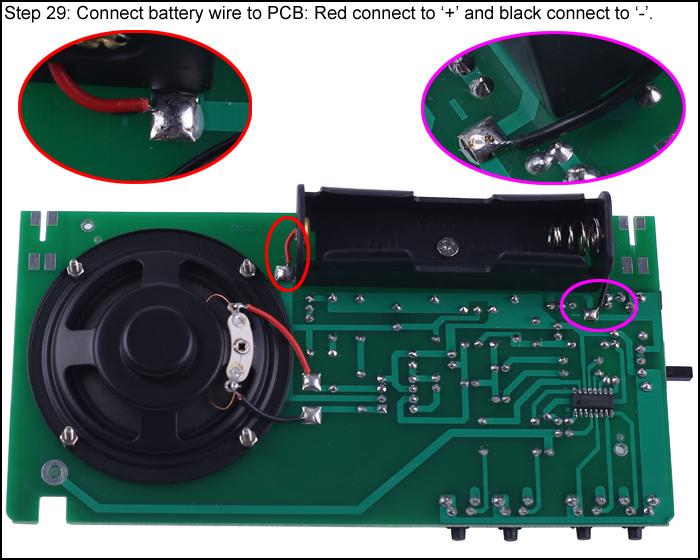

Connect battery wire to PCB: Red connect to ‘+’ and black connect to ‘-’.

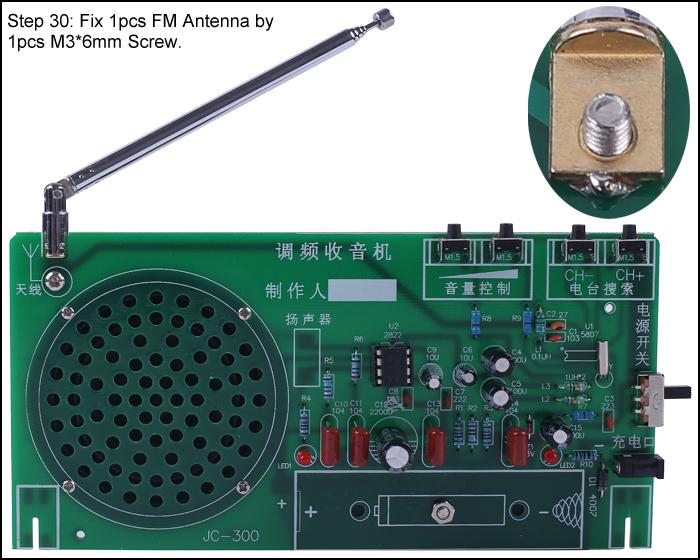

Fix 1pcs FM Antenna by 1pcs M3*6mm Screw.

Fix 2pcs PCB Bracket.

Note that the pads must be aligned.

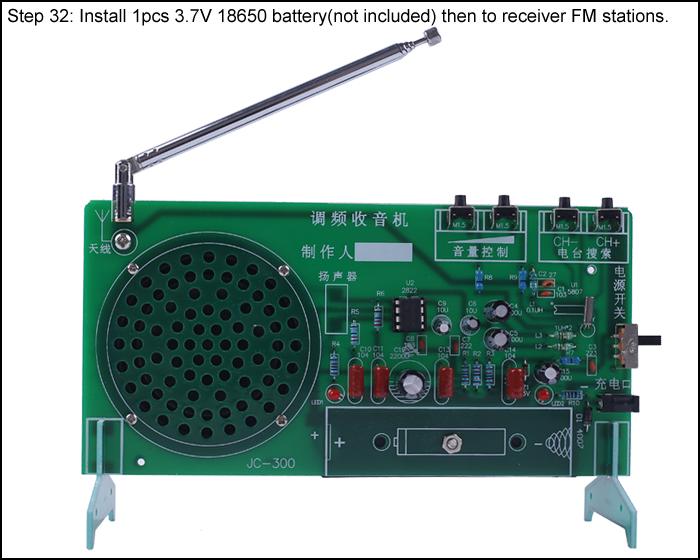

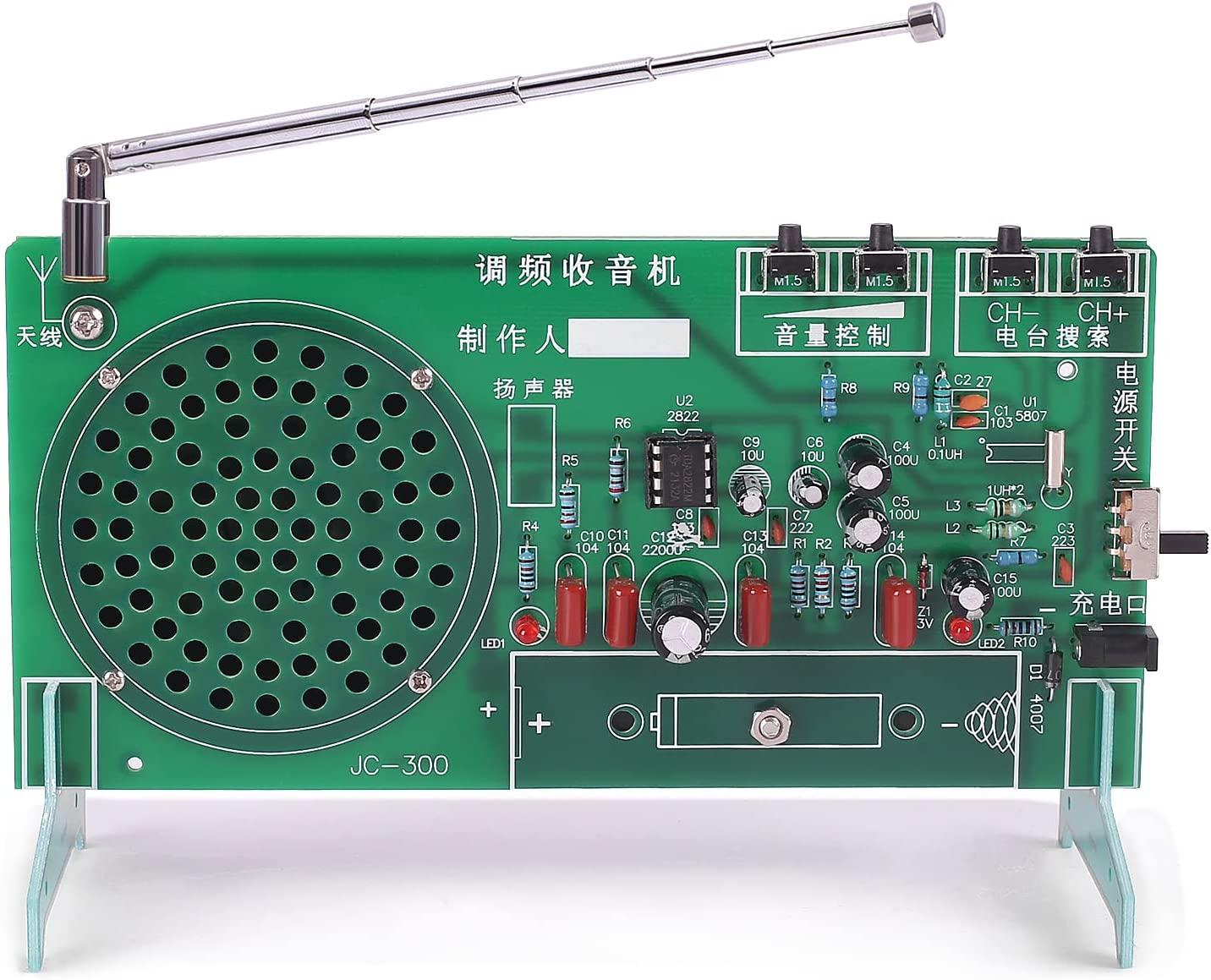

Install 1pcs 3.7V 18650 battery(no included) and to receiver FM stations.

Now you can enjoy your DIY radio kit, and we are looking forward to your work share.
