PCR4all

by IB-as in Workshop > Science

1720 Views, 5 Favorites, 0 Comments

PCR4all

PCR4all pic.png

Polymerase chain reaction (PCR) is a method widely used in molecular biology to rapidly make millions to billions of copies of a specific DNA sample allowing scientists to take a very small sample of DNA and amplify it to a large enough amount to study in detail

specific information about PCR

This biochemical reaction needs one specific instrument : Thermal Cycler

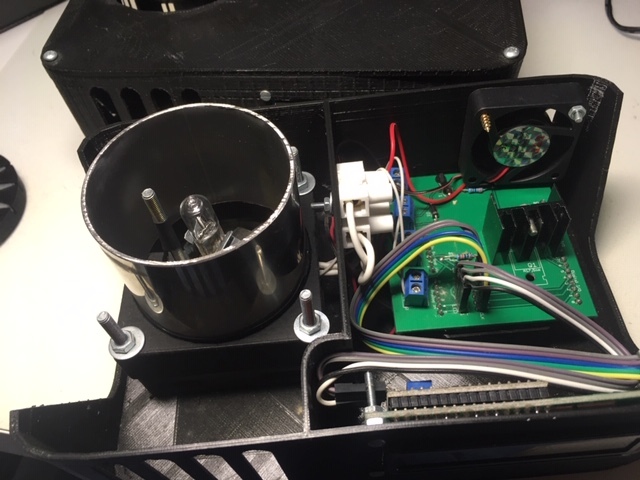

Herein are enclosed all the documentation needed to make your own thermal cycler. This is the first operative prototype, I'm working on a new version, nevertheless the current COVID-19 ha been the main motivation to release the project to the Makers' community.

Attached is the manual for this equipment, which includes the instructions for use, to program PCRs

BOM-STL Files

Part 1.png
Part 2.png

Enclosed is the BOM with some tips,

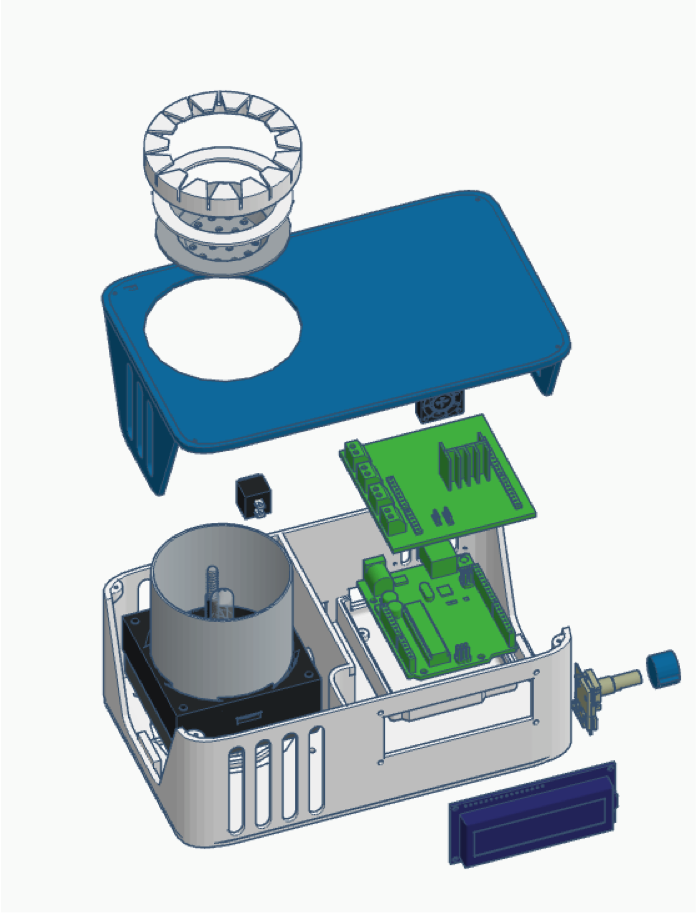

You also can download the STL files from

STL files -Thinkercad

Arduino Shield - PCR Code

Diagram 2.png

Unfortunately, Instructables don't allow me to upload the Gerber files, you can download from here

Gerber files for download

Enclosed are the PCR ino programs

Eng: English

Cat: Català (my mother tongue)

Downloads

Assembly -wiring


Attached are the mounting instructions

Principles - Challenges - Acknowledgments

Principles

Those are our principles, and if you don't like them... well, we can find others:
(G. Marx master )

- Open platform

- DIY

- Crowdfunding?

- We like Arduino based electronics

- No business, only sustainable project

- Truly wonderful, the mind of a child is (Yoda master)

- “Salid y disfrutad” (Johan Cruyff)

Challenge

The challenge was to build an instrument as economically as possible, but with a control and programming system suitable for novice PCR users. The current shield needs some changes and improvements. We have the challenge of transforming the current design to be able to make a qPCR.

Acknowledgments

- This instrument has been inspired in The Light Bulb PCR Machine project, which was a clever idea from Russell Durrett. Bulb PCR

- Thanks to Jordi Jordi Soley he made the PCRshield and the PCR program
