PCB - Skateboard Floodlight V2

Skateboard Floodlight PCB Project - Ride test
Skateboard Floodlight PCB Project - outdoor mode test

A while back, we constructed a pair of LED skateboard truck-risers. That project was intentionally created without the aid of advanced tools and techniques.

We decided to try the concept again but without limiting ourselves. This time around we used custom designed PCBs and 3D printed parts. There was no limiting ourselves to hand tools and whatever we could purchase from off-the-shelf sources.

The results were new truck risers that are just about the size of the truck base itself. Compared to the first version these are a only a small fraction of the original size. More what we originally wanted to do.

Gather the Tools

- Autodesk EAGLE PCB design software

- SMD Heat gun

- Soldering iron

- Solder wick

- heat gun or mini-torch for heat shrink tubing

- scissors

- precision tweezers

- hobby knife

- hot glue gun & glue sticks

- super-glue

- a drill & assorted drill-bits

- wire cutter/stripper

- SparkFun AVR pocket programmer or something equivalent

- 3D printer or 3D printing service

Procure the Parts and Materials

Note that the quantities listed are for EACH LED truck-riser and one remote-control.

External PCB parts

- Assorted heat-shrink tubing (3/32”, 1/8”, 3/16”, ¼”)

- Arctic Silver Thermal Epoxy

- Fine gauge solid core wire, 26AWG or 28AWG will do

- A lithium-polymer management board like the Adafruit Micro Lipo charger

- 2x LED lanterns

- A skateboard bruh

Functional Block Diagram

truck-riser schematic.JPG
remote-control schematic.JPG

This is how the overall system functions for both the truck riser and the controller.

Order the PCBs From a Board-house

three blank boards.JPG

You could go anywhere to get your boards made, but we prefer OSH PARK. Their prices are hard to beat and the lead times, while not the absolute fastest, are very reasonable. All you have to do is ZIP up the Gerber files, and upload them to the OSH PARK upload page.

The picture shows the blank PCBs ready to go. Only three are needed for this project, but we got extras made. Just in case.

Also attached to this post are the gerber files necessary for ordering from OSH PARK.

Populate the PCBs With Components

populated boards.JPG
truck-riser ready boards.JPG

With the iron and SMD heat gun, solder components to the boards. Use solder wick to pick up any excess solder around the SMD components. If it looks like you removed all the solder with the wick, don’t worry, you didn’t. There is almost always enough solder left to do the job. Solder the nRF24s to the PCBs last so that it doesn’t get in the way of installing the other components.

Solder up three pairs of ATMega328 boards and battery-manager boards. Two pairs will be used for the trucks, and the third pair will go into the remote control.

The board for the remote control is the same as the truck-riser boards except for the MOSFETs, and their supporting components are left off.

(Picture 1) Two truck-riser boards and at the top, a board for the remote-control. Notice that the remote board doesn’t have the MOSFETs installed. The nRF24 radios have not been installed yet.

(Picture 2) The truck-riser boards with their nRF24 radio modules installed.

Program the Boards Part 1

programming a board  1.JPG

Because the remote-control is controlled by an Arduino, it is very straightforward to program.

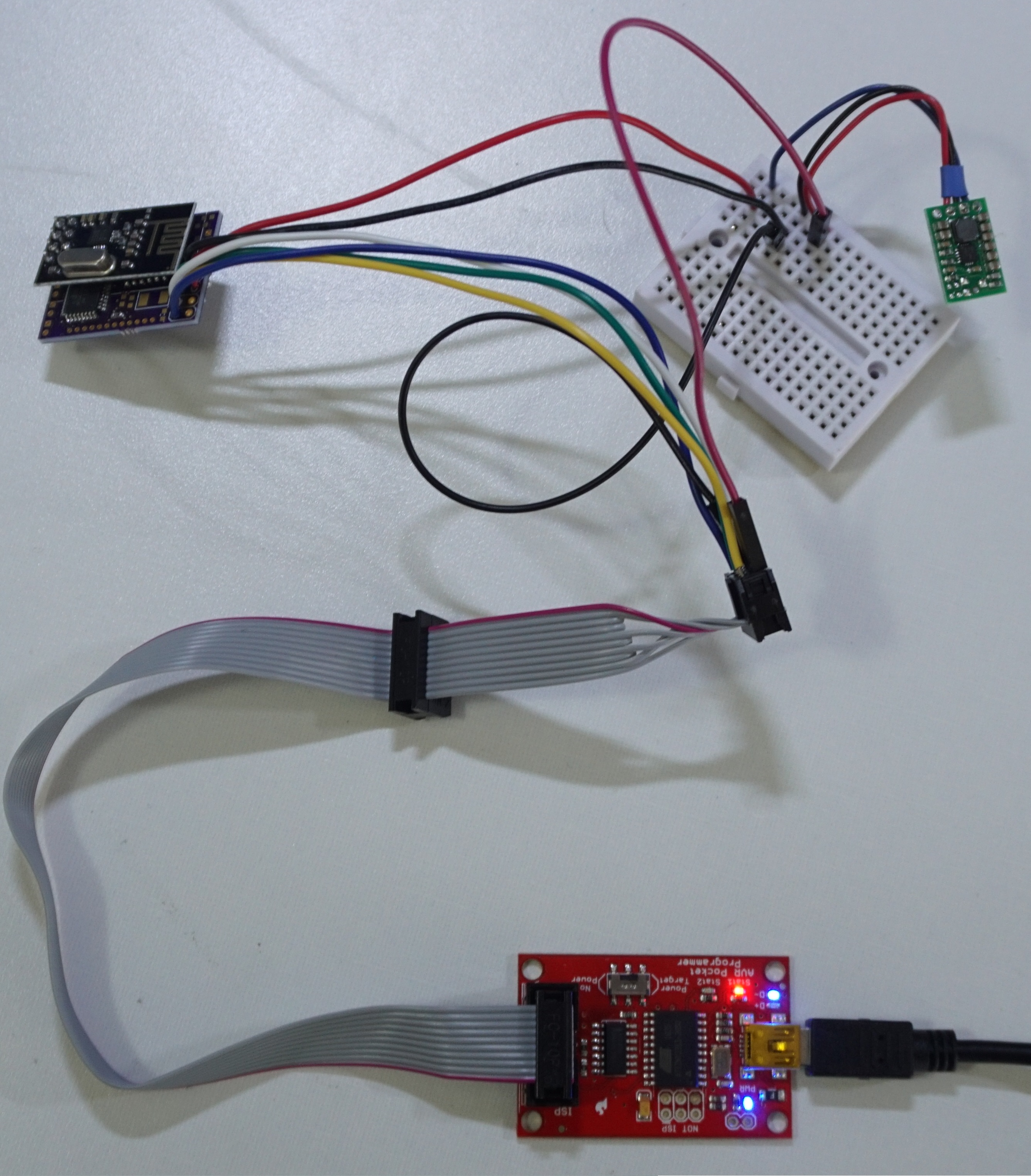

If the boards already have their nRF24 radios soldered on, then you must use the 3.3-volt regulator to supply power to the board. A lot of programmers, including the SparkFun AVR pocket programmer used here, supply 5-volts via their programming header. The nRF24L01 cannot tolerate anything over 3.3-volts. Without burning

If the radio isn’t installed on the board, then program away.

See attached code.

Program the Boards Part 2

proram 1.png

Open the “library” manager by going to Sketch -> Include Library -> Manage Library.

Program the Boards Part 3

program 2.png

Do a search for “RF24” to bring up and the RF24 by TMRh20 library. Select the latest version of the library and install it.

Open the Arduino IDE and load the remote-control sketch. Set up the IDE for uploading to an UNO and hit the upload button.

A quick indication of whether the upload and circuit are working properly, is that the LED on the breadboard will briefly flutter each time the button is pressed.

The Arduino IDE does not come with the cores for programming the ATtiny85. A core is a file that tells the Arduino IDE

how to handle a microcontroller or an Arduino board. Follow the LINK to the GitHub page with ATtiny cores. Instructions for installation will be found on the GitHub page.

This schematic shows the connections between an UNO and an ATTiny85 for In-System-Programming. Use jumper wires to connect an UNO to the ISP header on an Ice-Block PCB.

Shown here is where the PCB header pins go to on the UNO.

Program the Boards Part 4

program 3.png

Load the “Ice Block PCB_Rx_1.ino” sketch. The ice-block PCBs are programmed with an Arduino UNO setup to function as an ISP (in-system programmer). Set the programmer type to “Arduino as ISP” in the dropdown menu.

Program the Boards Part 5

program 4.png

Select the ATtiny85 with an 8MHz internal oscillator. This option wouldn't be available if you didn’t install the ATtiny 85 cores. Finally, upload the sketch.

Build a Remote-Control

remote control shell parts  1.JPG
remote control partial assembly  1.JPG
remote control mostly assembled  1.JPG

The remote-control is built on the skateboard-truck PCB. The MOSFETs and their support components are not installed. However, if your version of the remote-control has need of some MOSFETs, then go ahead and solder them to the board.

The remote-control circuit is built around an Arduino UNO. Build the remote-control circuit onto a breadboard. You will have to use an adapter for the nRF24L01 module because its pin spacing is not compatible with the 0.100” hole spacing of breadboards.

Fasten the remote-control into a cardboard box with a few globs of hot glue. The nRF24 seen here is electrically identical to the types used for the ice-block PCBs except that it has an external antenna on it for extra range. Notice the on-off button jammed into a hole in the cover of the box.

Disassemble the Lanterns for Their LEDs Part 1


This isn't very technical, but it's tricky.

Remove the battery cover on the bottom of the lantern. Use a screwdriver to remove the screws holding the battery tray into place.

Disassemble the Lanterns for Their LEDs Part 2


Pull the battery tray out and clip the wires running to it.

Disassemble the Lanterns for Their LEDs Part 3

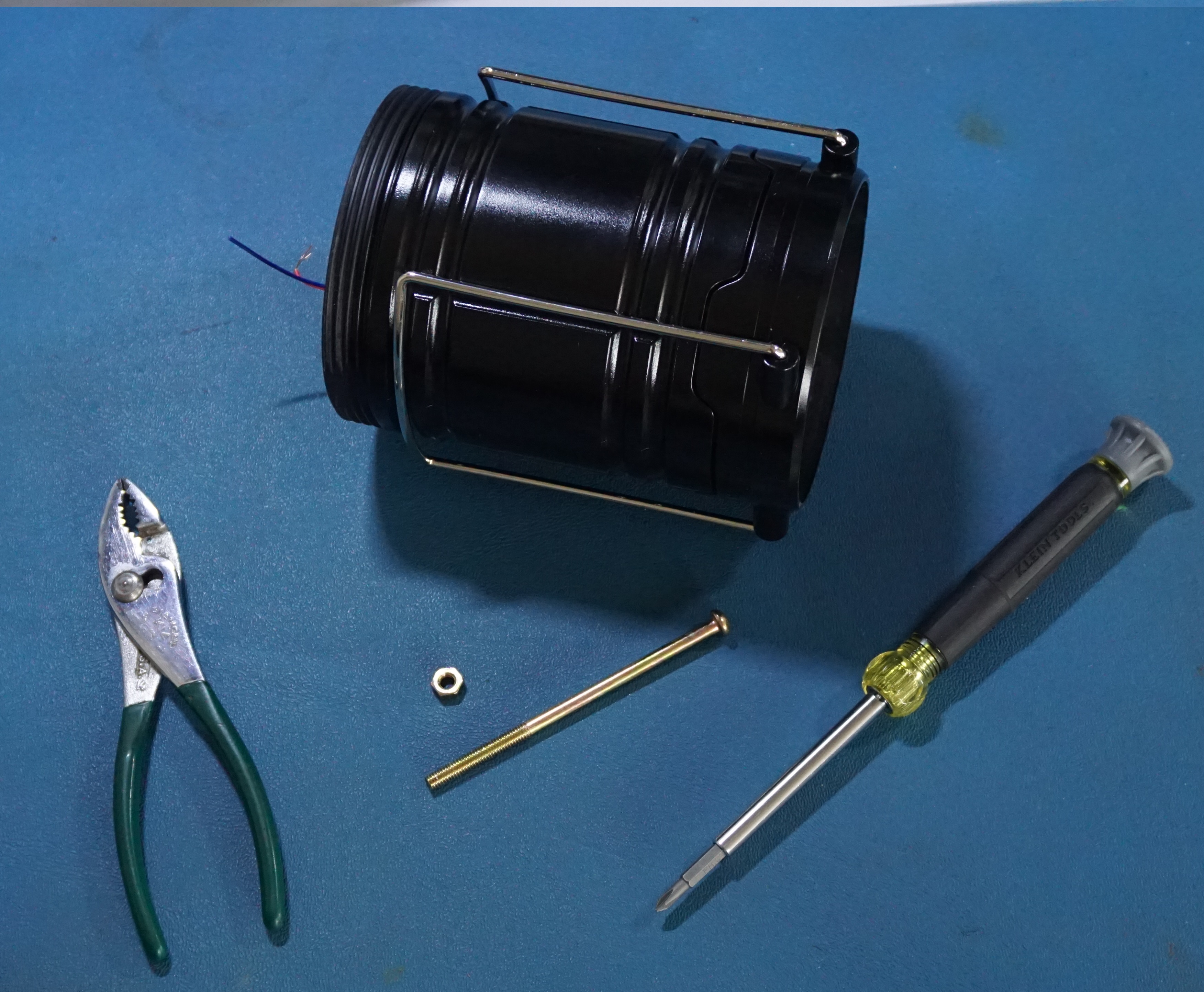

Use a screwdriver and a pair of pliers to remove the long screw running down the center of the lantern.

Disassemble the Lanterns for Their LEDs Part 4


Pull the pieces of the lantern apart.

Disassemble the Lanterns for Their LEDs Part 5


Pull the LED reflector array away from the base. It will pop off when you apply pressure.

Disassemble the Lanterns for Their LEDs Part 6

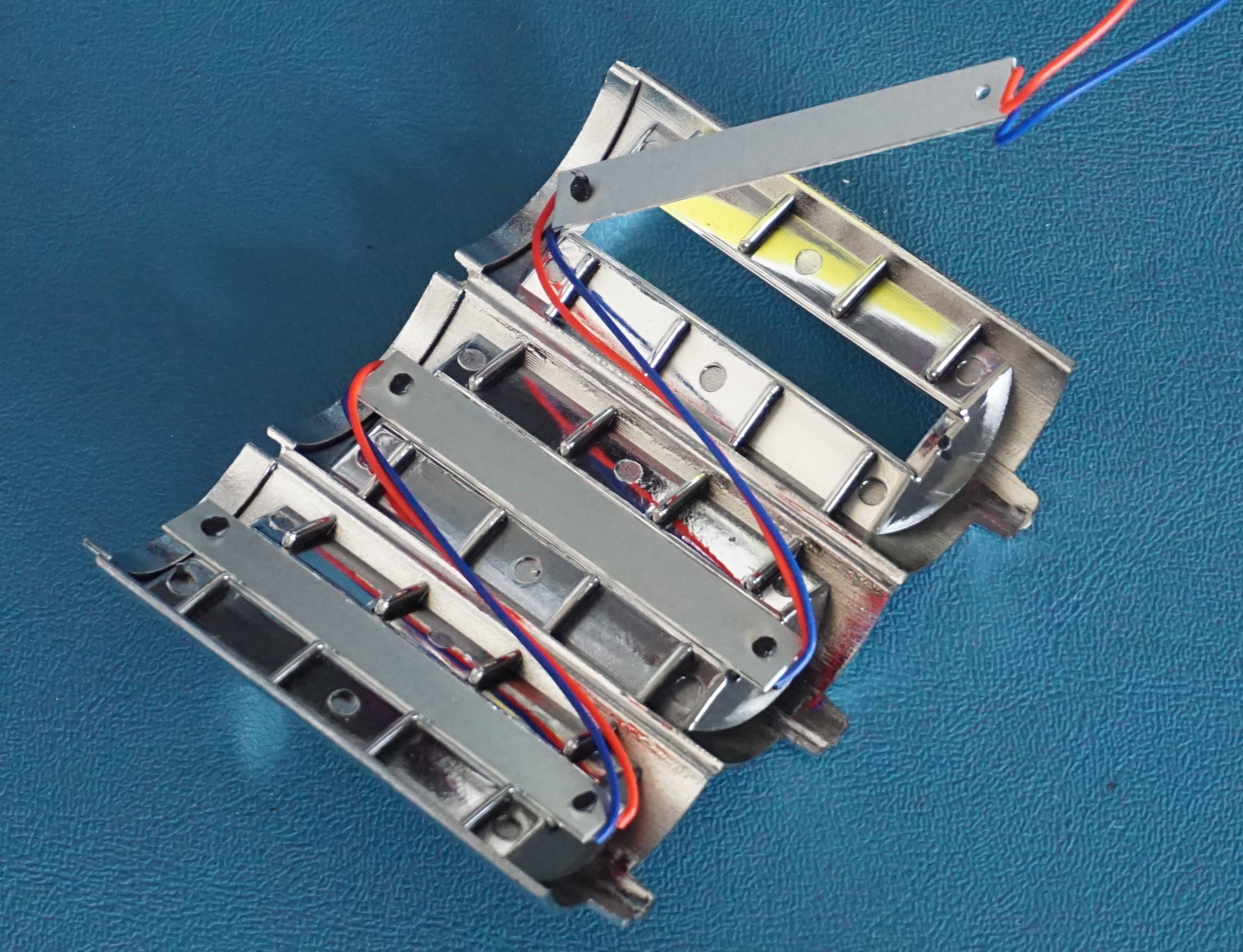

Unfold the LED reflector array. Gently pull the LED panels away from the reflector. You won’t have to pull very hard, the LEDs are held into place with a coup drops of melted plastic.

Disassemble the Lanterns for Their LEDs Part 7

LED array (2).JPG

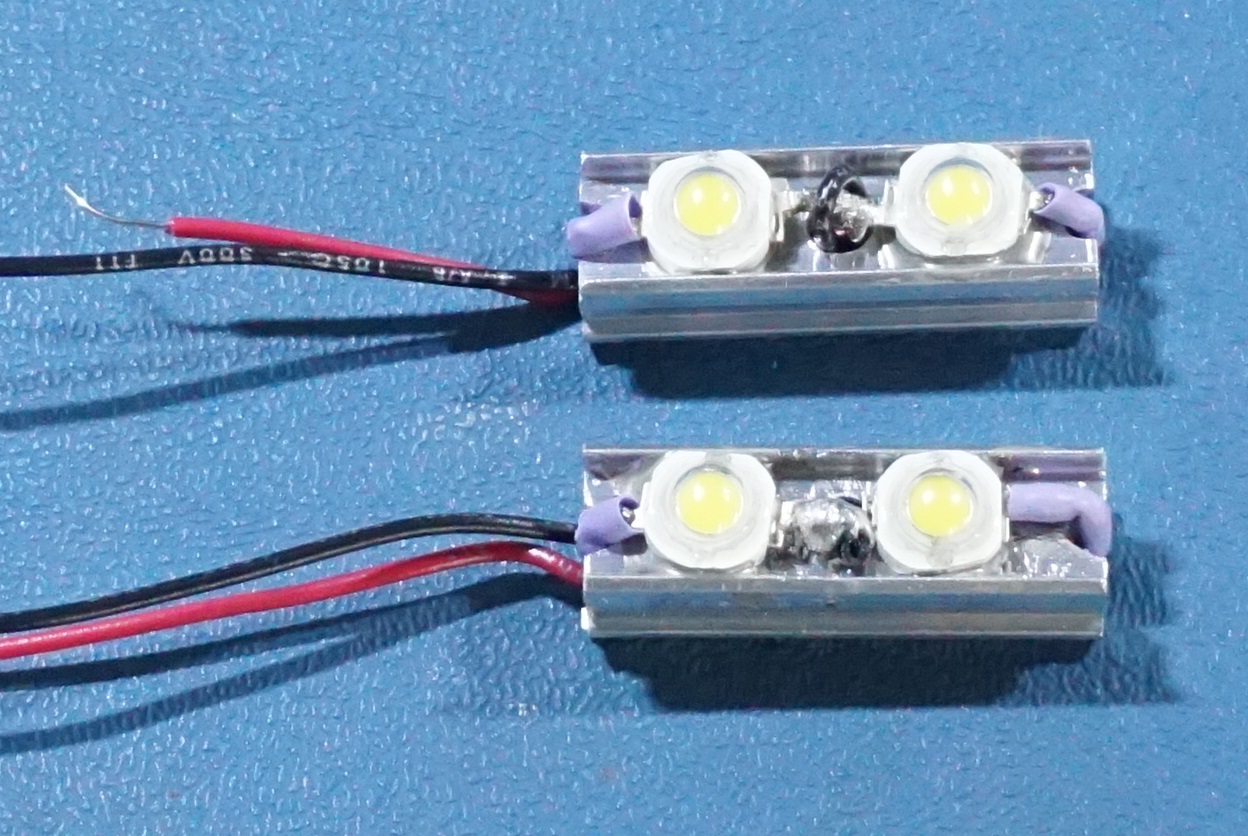

The LED panels. You will have to disassemble two lanterns to get enough LEDs for two truck risers.

Assemble the Truck-risers

front LEDs 1.JPG
LED resistors 1.JPG
lipo and USB boards  1.JPG
prepared regs.JPG

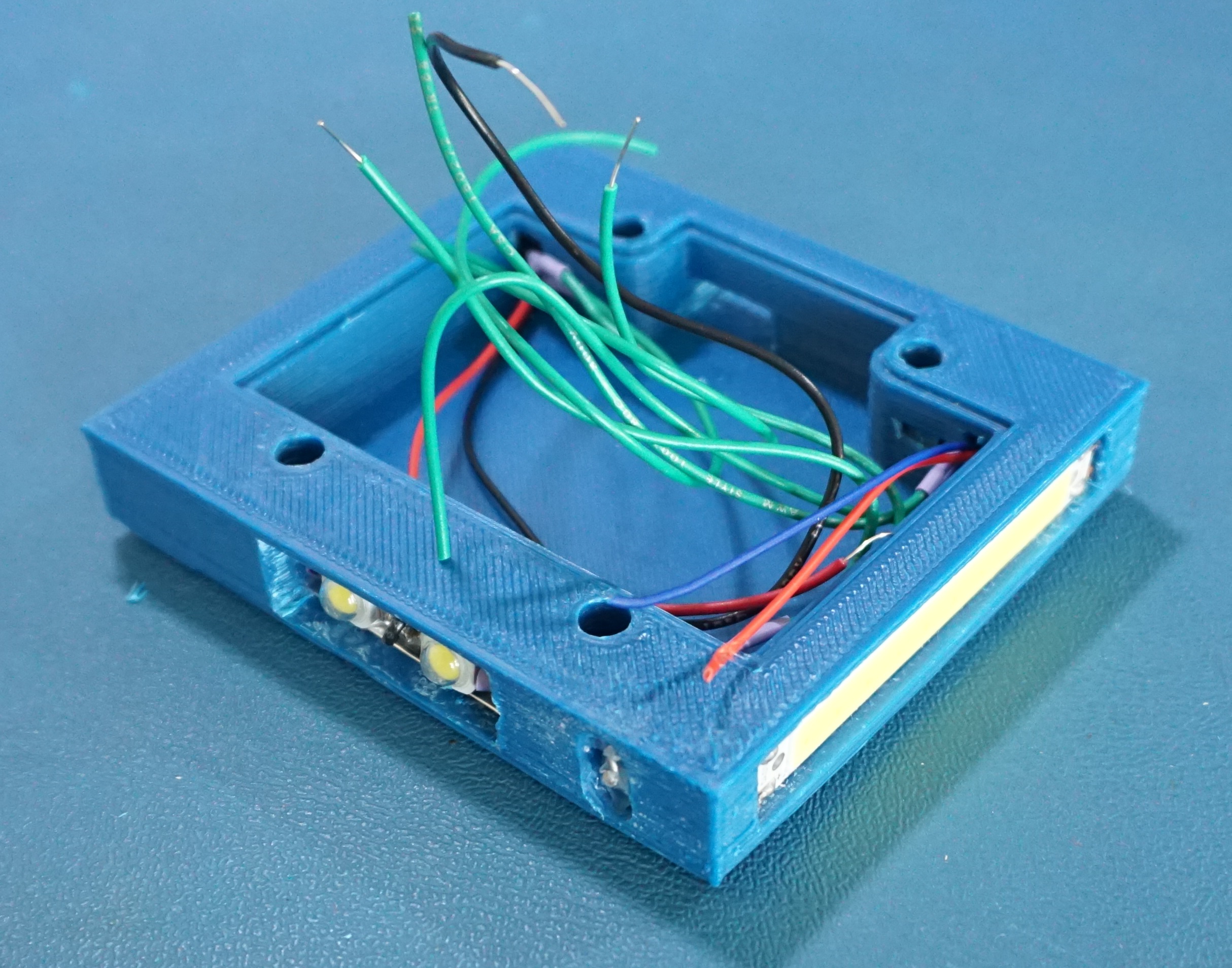

truck riser partial assembly 1.JPG
truck riser assembled 1.JPG

Testing Modes

Skateboard Floodlight PCB Project

Turn on the trucks and the remote. Wait until the LED stops flashing on the remote, then proceed.

Final Thoughts

You are probably wondering, I was riding on 3D printed truck risers, did thy crack or break in any way? Not at all. These were printed in ABS with a full fill. I could even do tricks... however, I didn't do too many, since I wasn't sure how the ectronics would hold up.

What held us back from making this even small was the size of the LEDs and battery.

Perhaps in the future we could find smaller, more powerful LEDs.

But, battery tech doesn't move as fast. So, we might be stuck with a similar power-pack.

Is version 3 on the way? Yes... we just need a little funding first. :)
