PCB Practice
![20181204_120436.jpg](/proxy/?url=https://content.instructables.com/FE3/VBYU/JPLIZV03/FE3VBYUJPLIZV03.jpg&filename=20181204_120436.jpg)

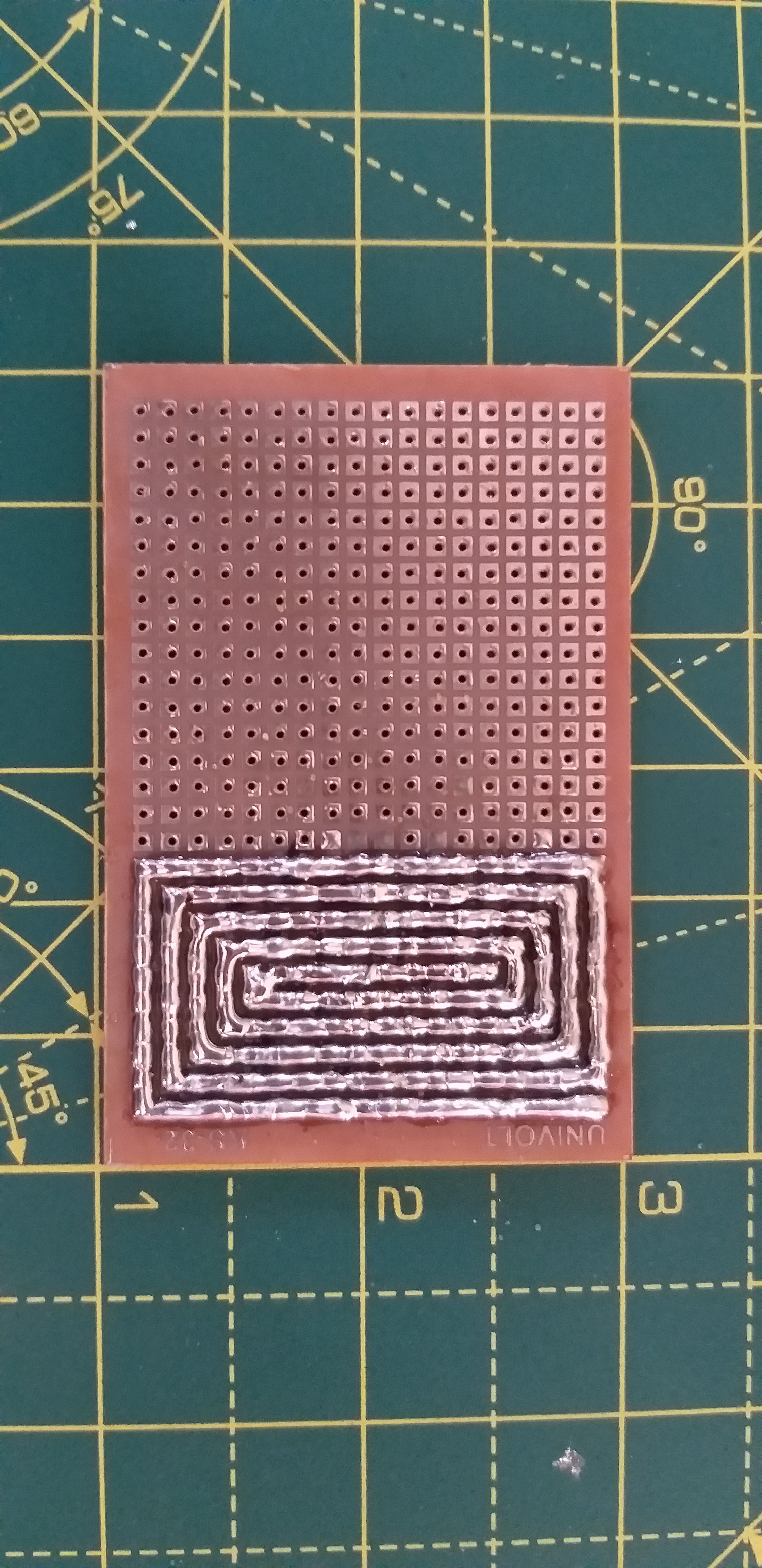

I just want to help the beginners to sholder tracks on dot PCB. So I've decided to make one instructable in a simple way.
Materials Required
![20181204_090850.jpg](/proxy/?url=https://content.instructables.com/FO8/2X4K/JPLIZUYZ/FO82X4KJPLIZUYZ.jpg&filename=20181204_090850.jpg)
![20181204_090936.jpg](/proxy/?url=https://content.instructables.com/FG8/CBFU/JPLIZUZ2/FG8CBFUJPLIZUZ2.jpg&filename=20181204_090936.jpg)
![20181204_090906.jpg](/proxy/?url=https://content.instructables.com/FJD/FATC/JPLIZUZ0/FJDFATCJPLIZUZ0.jpg&filename=20181204_090906.jpg)
1)Small dot PCB.
2)Sholdering station.
3)Sholdering Lead.
Pattern
![sfbf.jpg](/proxy/?url=https://content.instructables.com/FM8/CC4F/JPLIZW3S/FM8CC4FJPLIZW3S.jpg&filename=sfbf.jpg)
![20181204_091316.jpg](/proxy/?url=https://content.instructables.com/FU7/WCRE/JPLIZUZ5/FU7WCREJPLIZUZ5.jpg&filename=20181204_091316.jpg)
Take one small dot PCB and with the help of a marker draw the above given pattern on it.
You can even draw parallel line if you feel difficulty with the above pattern.
Step by Step Instructions.
![20181204_091607.jpg](/proxy/?url=https://content.instructables.com/FXH/B22W/JPLIZUZ8/FXHB22WJPLIZUZ8.jpg&filename=20181204_091607.jpg)
![20181204_091701.jpg](/proxy/?url=https://content.instructables.com/FUY/FFZ9/JPLIZUZA/FUYFFZ9JPLIZUZA.jpg&filename=20181204_091701.jpg)
![20181204_091825.jpg](/proxy/?url=https://content.instructables.com/FDY/YB94/JPLIZUZE/FDYYB94JPLIZUZE.jpg&filename=20181204_091825.jpg)
![20181204_091940.jpg](/proxy/?url=https://content.instructables.com/FML/6ZVG/JPLIZUZH/FML6ZVGJPLIZUZH.jpg&filename=20181204_091940.jpg)
![20181204_092141.jpg](/proxy/?url=https://content.instructables.com/FDV/T0X1/JPLIZUZI/FDVT0X1JPLIZUZI.jpg&filename=20181204_092141.jpg)
![20181204_092352.jpg](/proxy/?url=https://content.instructables.com/F1R/AD50/JPLIZUZJ/F1RAD50JPLIZUZJ.jpg&filename=20181204_092352.jpg)
Step 1: Sholder two dots as shown in the first picture.
Step 2: Join those two dots with some lead as shown in the second picture.
Step 3: Sholder all the dots as shown in third picture.
Step 4: Keep joining two consecutive dots as shown in fourth picture.
Step 5: Now join four dots.
Step 6: Now join all the four dots with next four dots and continue till the end of the line.
Step 7: You will get a track as shown in the last picture.
*Note* At starting you can use more lead , but as you keen on practicing use as less lead as possible. And also use moderate temperature. As I'm using basic sholdering kit I haven't mentioned above.
Adding the New Next Line
![20181204_092556.jpg](/proxy/?url=https://content.instructables.com/FTX/QHGK/JPLIZUZS/FTXQHGKJPLIZUZS.jpg&filename=20181204_092556.jpg)
![20181204_092501.jpg](/proxy/?url=https://content.instructables.com/FBK/7ULO/JPLIZUZO/FBK7ULOJPLIZUZO.jpg&filename=20181204_092501.jpg)
![20181204_093410.jpg](/proxy/?url=https://content.instructables.com/FU9/I7LU/JPLIZUZV/FU9I7LUJPLIZUZV.jpg&filename=20181204_093410.jpg)
Now draw the next line. So that you will be getting a "L" shaped track.
Continue the pattern till you get a close track. Make sure that you don't join the last dots.
Internal Tracks
![20181204_093656.jpg](/proxy/?url=https://content.instructables.com/FT2/4XMX/JPLIZV01/FT24XMXJPLIZV01.jpg&filename=20181204_093656.jpg)
![20181204_113552.jpg](/proxy/?url=https://content.instructables.com/F9F/1PRJ/JPLIZV02/F9F1PRJJPLIZV02.jpg&filename=20181204_113552.jpg)
Start sholdering the internal tracks by following the previous steps.
Make sure that you don't join the adjacent track.
Done
![20181204_120436.jpg](/proxy/?url=https://content.instructables.com/FP7/4AV5/JPLIZXH6/FP74AV5JPLIZXH6.jpg&filename=20181204_120436.jpg)
Keep practicing this pattern until you become an expert in sholdering tracks on dot PCB.
Thanks for watching my instructables.
Any queries feel free to ask.
Soon I will publish an instructable on how to sholder electronic component on dot PCB.
