PCB Making Using Photoresist Paint and UV

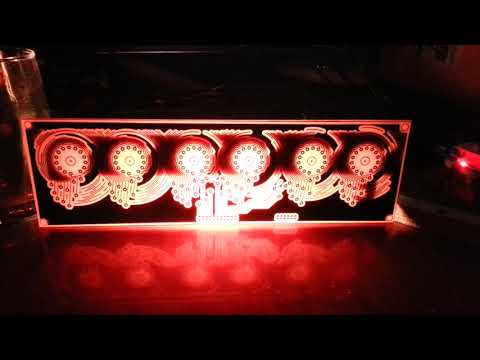

How to make a quality PCB

I apologize for the photos of low resolution,

The home of two PRO camera. Both of the cameras my family had taken out of town

pcb preparation consists of several stages:

1. Prepare a PC program with EAGLE, Sprint-Layout, Proteus 8 Professional or any other kind of acceptable program
2.Print a printed file Print Screen Color Separation & Film Print for PCB

3.PCB Circuit Board Single / Double cut on size and cleaning

4.Draw the paint on it with Silk Screen Printing Mesh

5.It can be over 65 degrees, 25 minutes

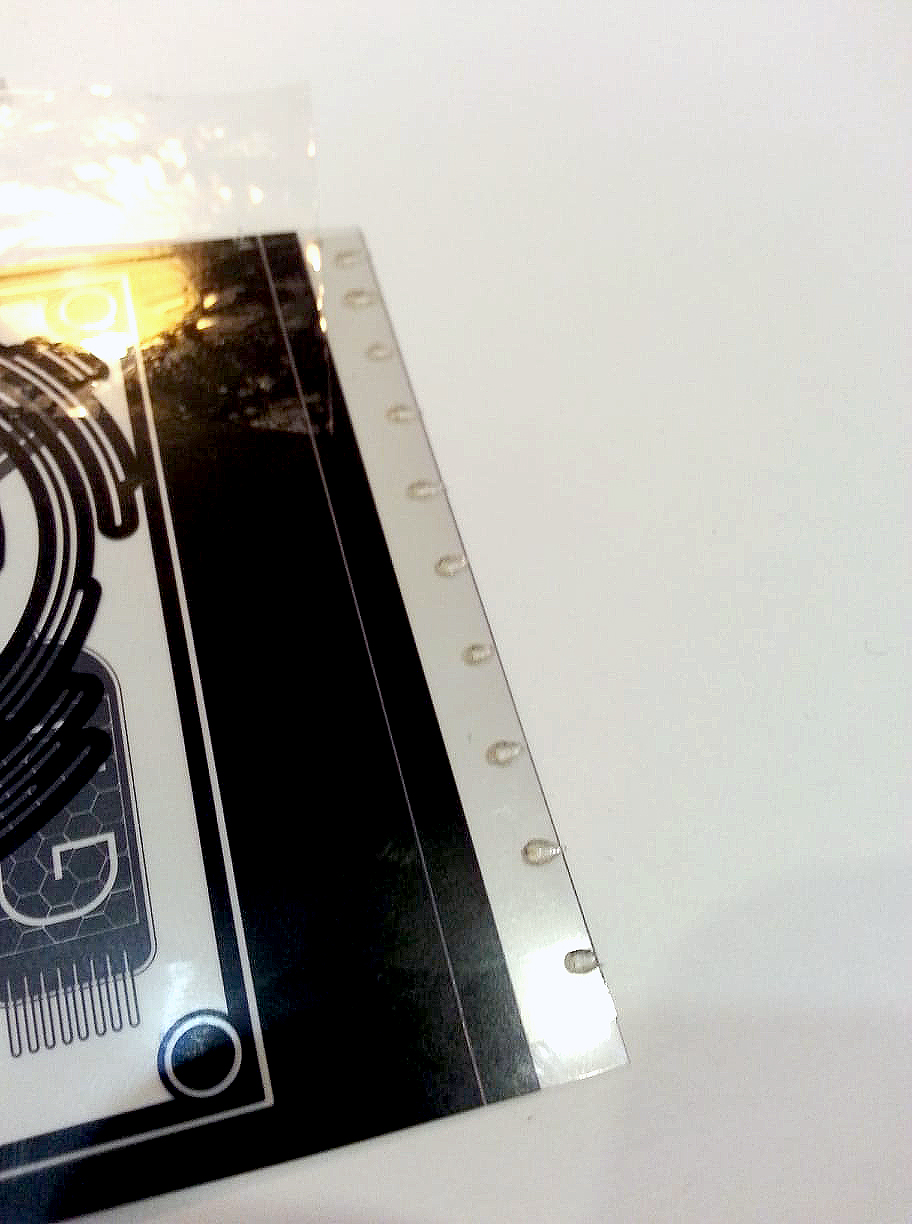

6.Transparent paper Put the already dry PCB

7.UW Irradiate light 1 minute

8.Then place the iron (III) chloride FeCl3

The Sprint-Layout work just because of beauty

It's easy to find other programs

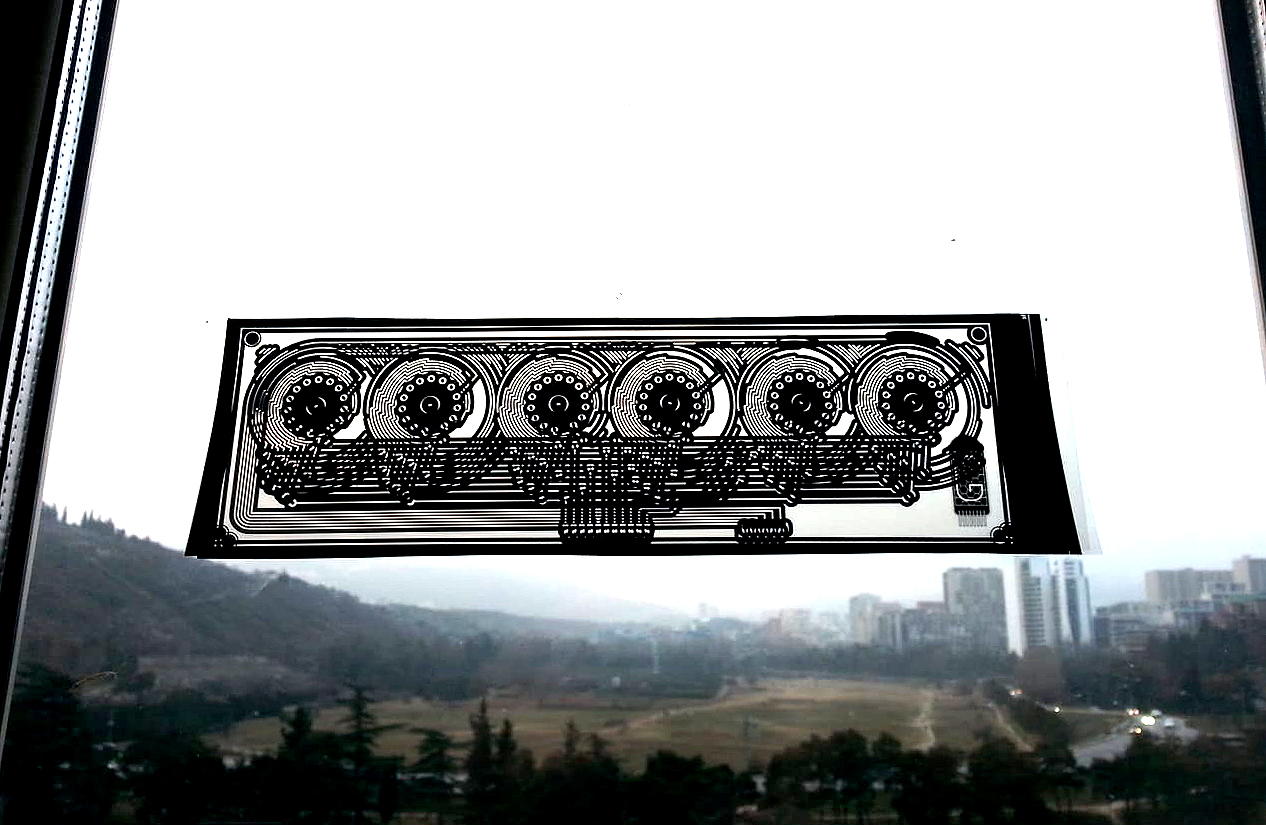

In the nearest Print Center print a transprent paper PCB board
I cut it and inserted it to the other side of the panel

Its easy to fix with Soldering Iron

PCB Circuit Board Double Sided Copper with clean alcohol

You can use all the ropes that control the temperature

The microwave does not work

Wash with sodium hydroxide

Warning: Sodium hydroxide Harmful to health

I'll try to provide you with more quality photos
