PAPER-MADE STIRLING ENGINE MODEL | How to Make

by F_A_B_A_S in Craft > Paper

10119 Views, 62 Favorites, 0 Comments

PAPER-MADE STIRLING ENGINE MODEL | How to Make


Hi everybody!

Below I will show you how I did my first Instructable. It is a paper-made model of an Striling engine. In case someone wants to build it, on paper or other material, here I explain the whole process, and I leave a manual that explains how to make each of the pieces.

PD: all the measurements are in millimeters

Pieces


First of all, we started making the parts detailed in the manual

Joining the Pieces

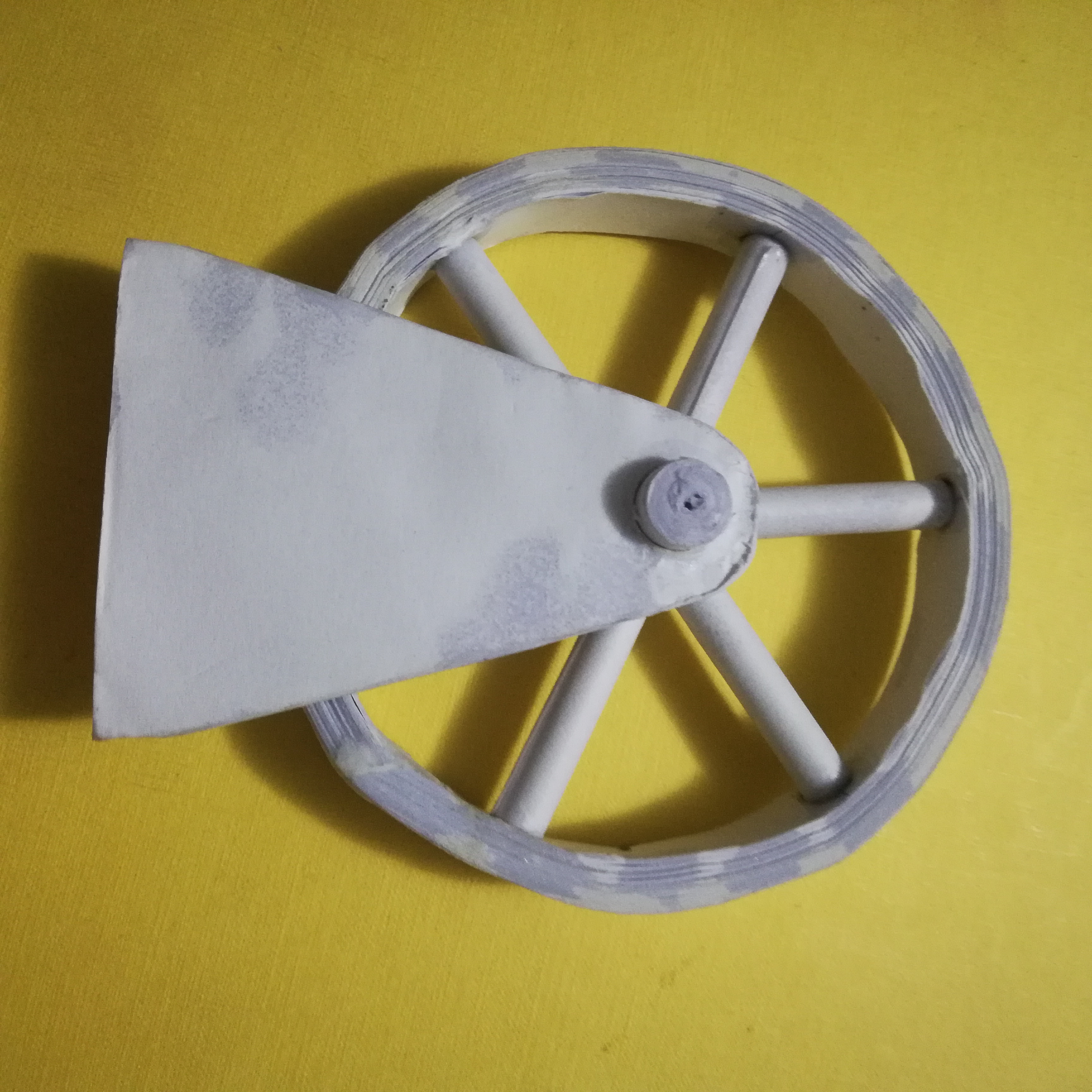

We will start with the wheel, using the following parts. Joing the pieces with superglue.

First Connecting Rod


Join them with superglue

Crank


Join this pieces with the previous rod, only use de superglue at the ends of the small rod

Rod Cut


Cut the # 10 rod as needed, approximately as in the image

Wheel Axle


Join the wheel with the long rod of the previous piece

End of the Axis


Join the last #2 piece with the #10 small rod, don't use superglue

Adding More Pieces


Add one of the #2 pieces to the previous element (don't use superglue), now add the crank, use superglue to join this with the end of the rod.

Finishing the Axis

Join one of the ends of the small rod with the crank, use superglue

Add a Base


With this part finished you can set all this to a base

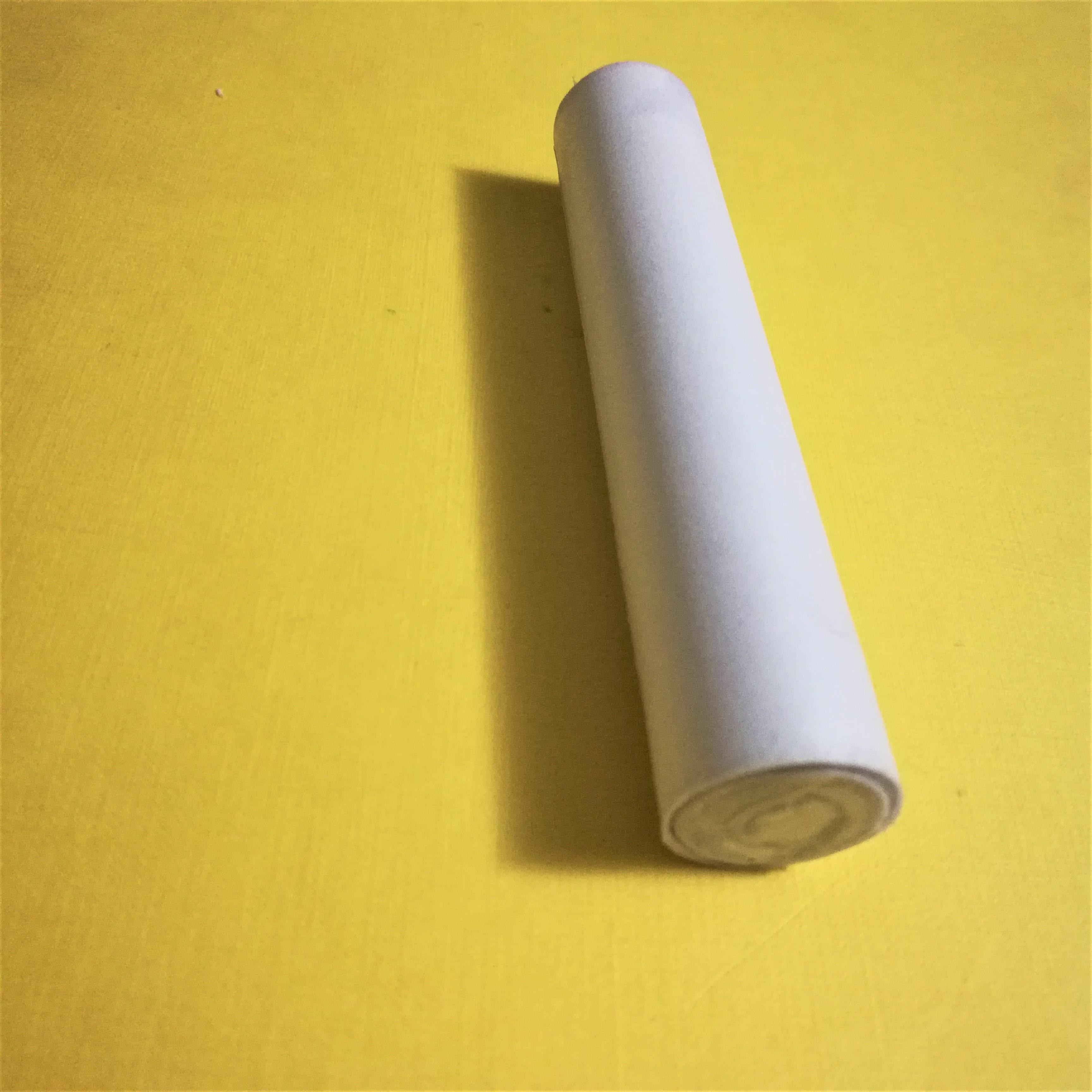

Cilinder


In piece # 9 we must make a 6mm hole at a distance of 15mm, here we will stick piece # 15

Then we will cover one end of the cylinder with piece # 5

Piston


Piston Articulation


Join this piece to the rod, use the last #16 piece

Cilinder & Piston


Now we will join the piston with in cylinder and the crank
First, through the piston shaft we will insert piece # 7, this will serve to cover the other end of the cylinder. Once this is done we can join the piston shaft to the crank articulation.

Ending...


Now we unite the pieces # 13 as pillars to the cylinder.

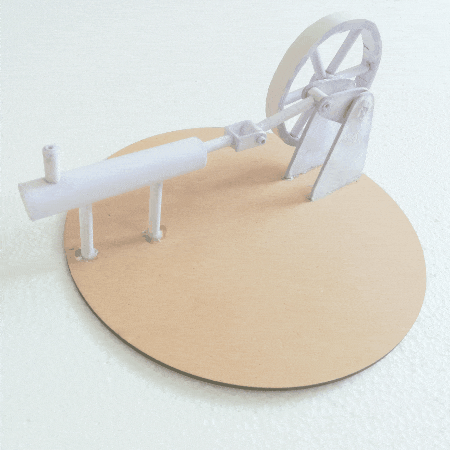

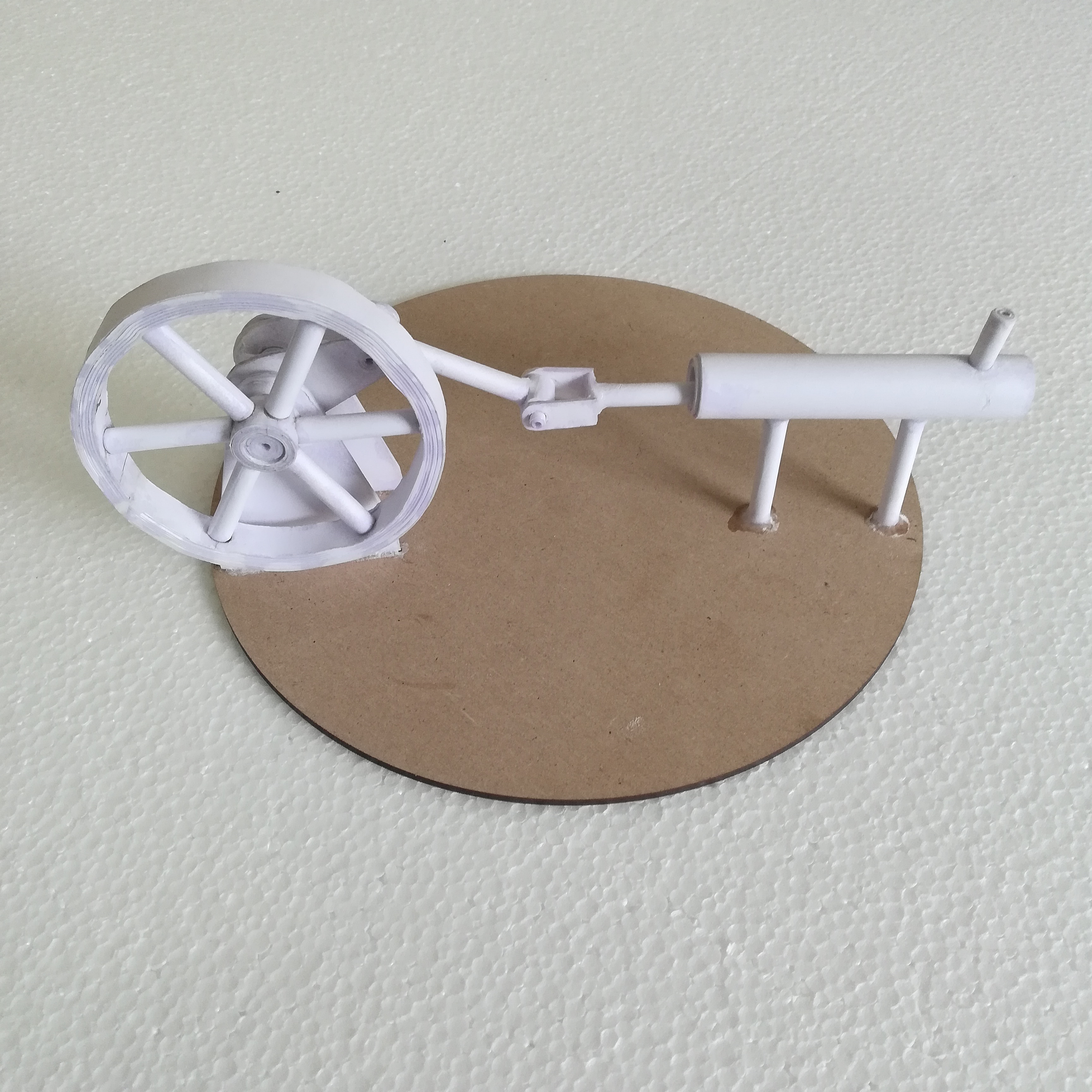

Now we can join the cylinder to the base, calculating the right distance for the piston to make its full travel

Mechanism

GIF (1).gif

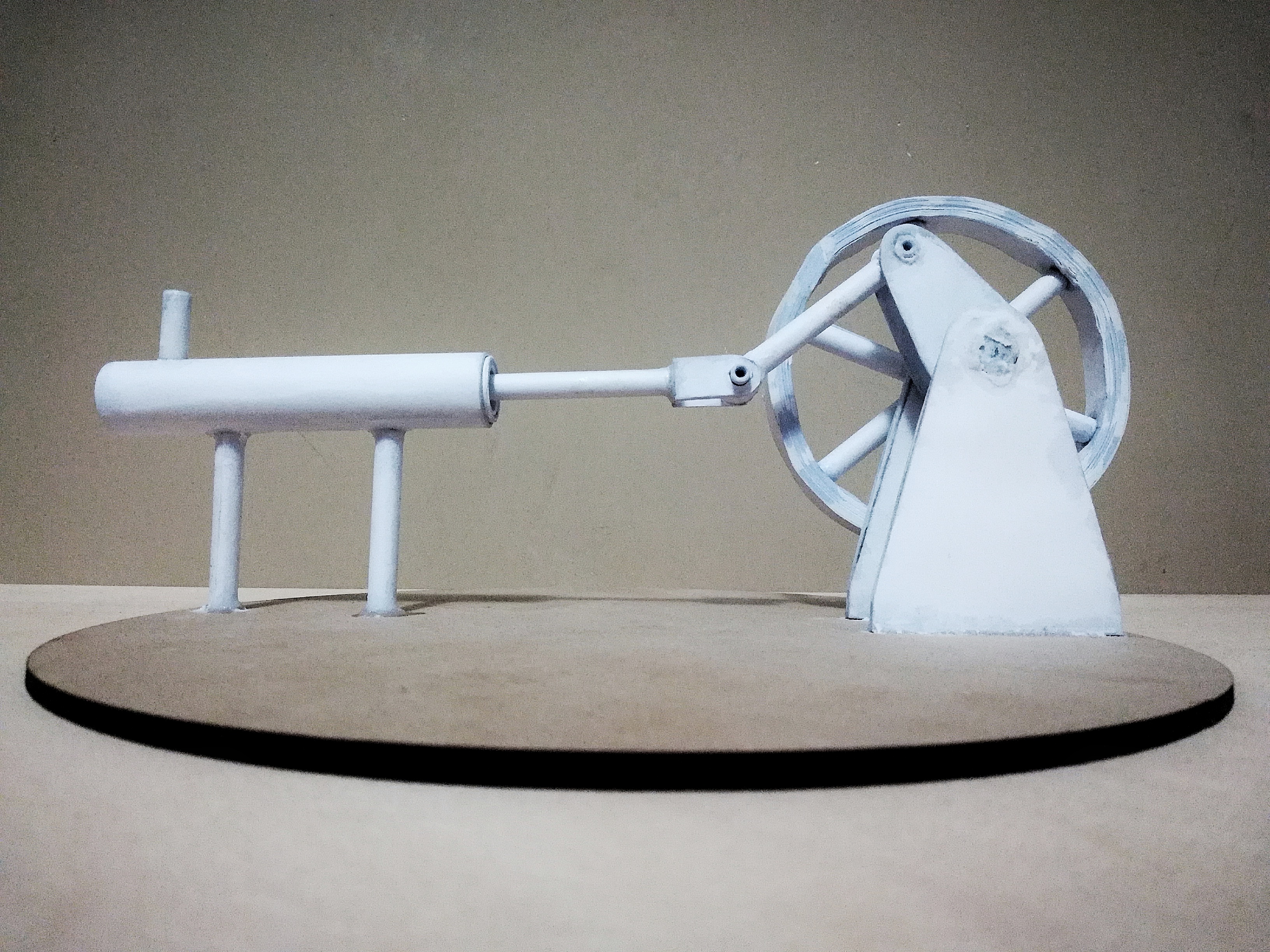

Here is a GIF. showing the piston travel and the movement of the wheel

THANKS!
